Escea DS Series User manual

630546_1
Accessory Installation Instruction
DS Series Double to Single Sided Conversion Kit

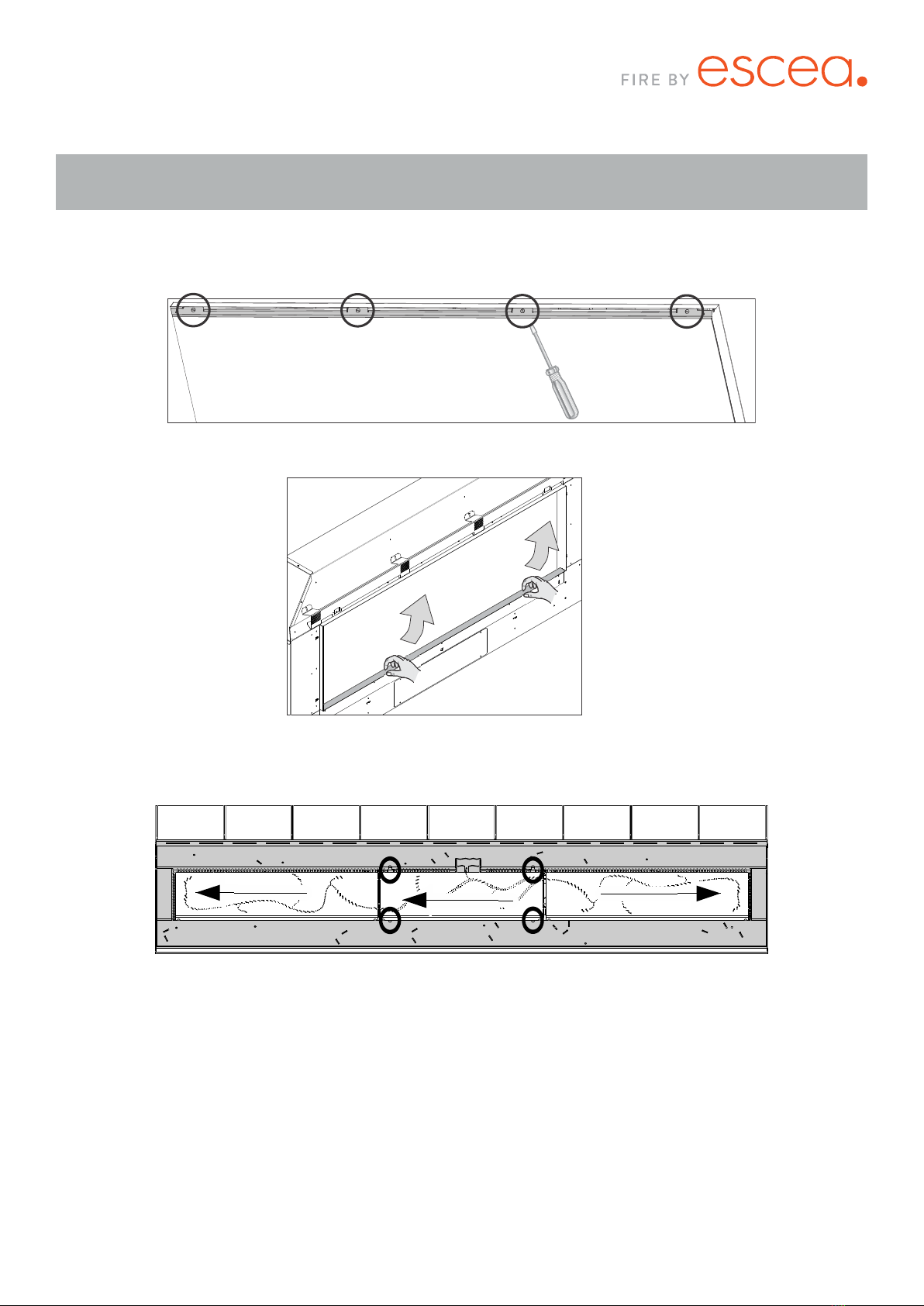

1. On both sides of the fire, remove the glass retaining bracket (shown below in grey) by unscrewing the 1/4 turn fasteners
located at the top of the glass. The DS1150, DS1400, and DS1650 will have 4 fasteners (shown below); the DS1900 will
have 6 1/4 turn fasteners. Remove the glass from both sides of the fire.
2. Remove the bottom trim (shaded in grey below) from both sides of the fire. If necessary, insert a large slotted
screwdriver into the lance forms and twist.
3. Remove the infill screws: the DS1150 and DS1400 have four (shown below); the DS1650 and the DS1900 have eight.
Lift one end of the infill up into the top corner of the firebox and then out towards you, taking care not to scratch the
firebox paint and reflective panels. Remove the outer burners by sliding them away from the centre of the fireplace,
followed by the centre burner, which slides out to the left.

630546_1
Accessory Installation Instruction
DS Series Double to Single Sided Conversion Kit
4. Determine which side of the fire is going to be converted to single sided and which side is going to remain glass. From
the side of the fire that is being converted to single sided, remove the side gib trims by removing the two screws from each
and sliding them out. The rest of the steps will also be performed on this side of the fire.
Remove the top trim by unscrewing the four (five in the DS1900) black machine screws. The screws are removed from the
inside of the fire.

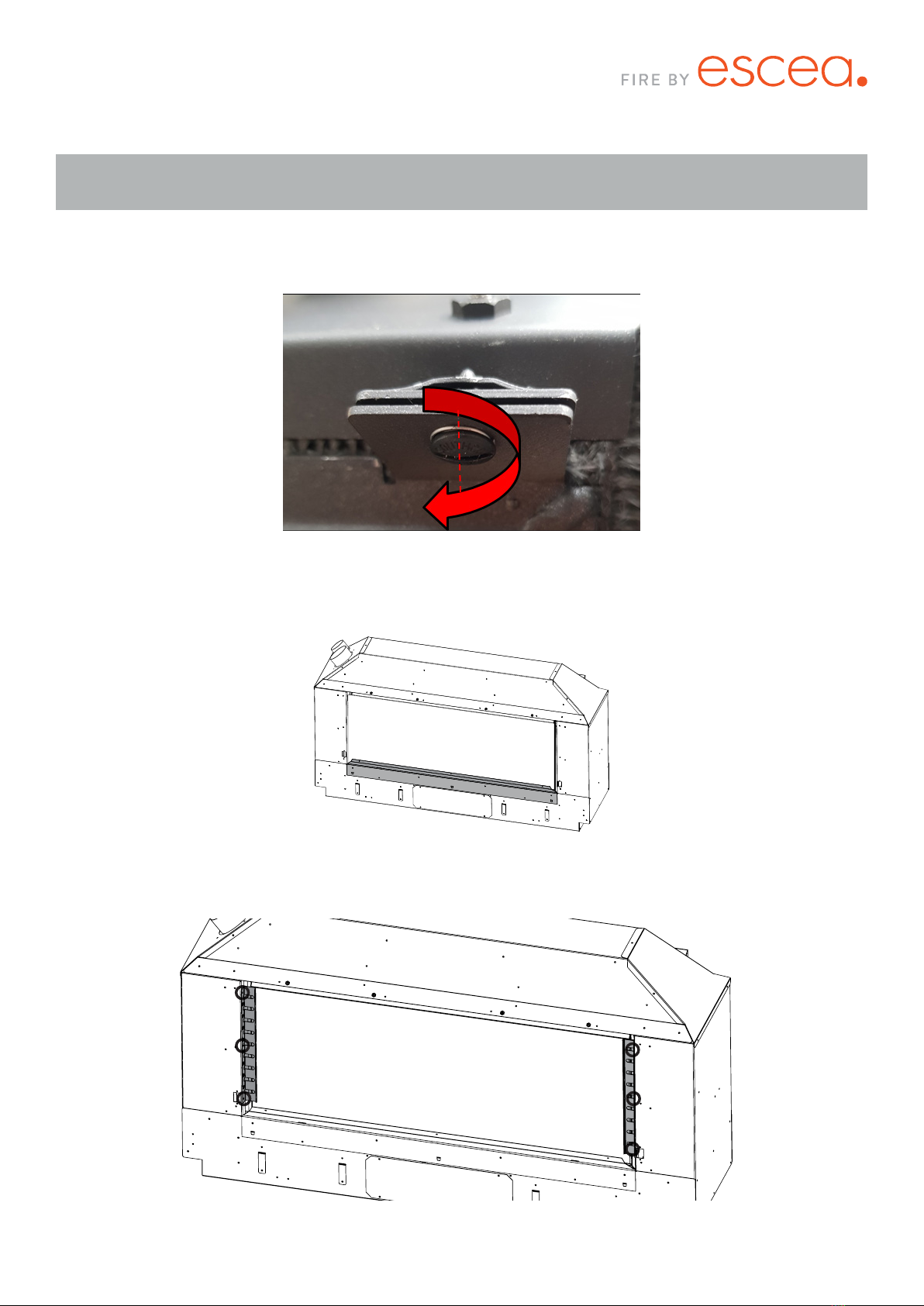

5. The DS1150, DS1400, and DS1650 will have 4 fasteners (circled below); the DS1900 will have 6 1/4 turn fasteners.

630546_1
Accessory Installation Instruction
DS Series Double to Single Sided Conversion Kit
Place the bottom edge of the back panel into the fire, with the 1/4 turn fasteners towards the top. This sits in the same
channel that the glass comes out of. Lean the back panel up and turn the 1/4 turn fasteners to hold it in place.
6. Place the bottom air deflector (shown shaded below) against the back panel and slide it down. The lance forms should
insert into the slots and then be pushed down securely. It may be necessary to use a rubber mallet to fully seat the air
deflector in place.
External Rear View
7. Attach the side brackets (shaded below) by placing the oval slots against the back panel with the holes against the fire
chassis, facing towards the outside of the fire. Fix them to the chassis with 6 of the black pozi screws supplied (circled
below). The brackets should help hold the back panel firmly in place.
External Rear View

630546_1
Accessory Installation Instruction
DS Series Double to Single Sided Conversion Kit
8. On the back of the appliance (non-glass side) remove one screw from each of the four tabs at the bottom of the chassis
and set each pair of tabs from ‘close position’ to ‘open position’ (shown below). Pull the tabs together in pairs (left two, then
right two) to move the position of the air vents inside the fire.
2
Bend tab
up to
vertical
position
3
Pull tab
out to the
next
perforated
section
Bend tab up
at the
perforated
mark.
4
Open
Replace
the screw
1
Close
5
Remove
the screw
Open Tabs Closed Tabs
Once the tabs are in the ‘Open’ position on the back of the fire, air will flow up between the two back panels when the fire
is running. Failure to perform this step will likely result in an error code when the fire is running. The back panel (step 10)
will end up fastening on top of the red tabs, holding the ends in place.
!
Please Take
Extra Care on
this STEP

630546_1
Accessory Installation Instruction
DS Series Double to Single Sided Conversion Kit

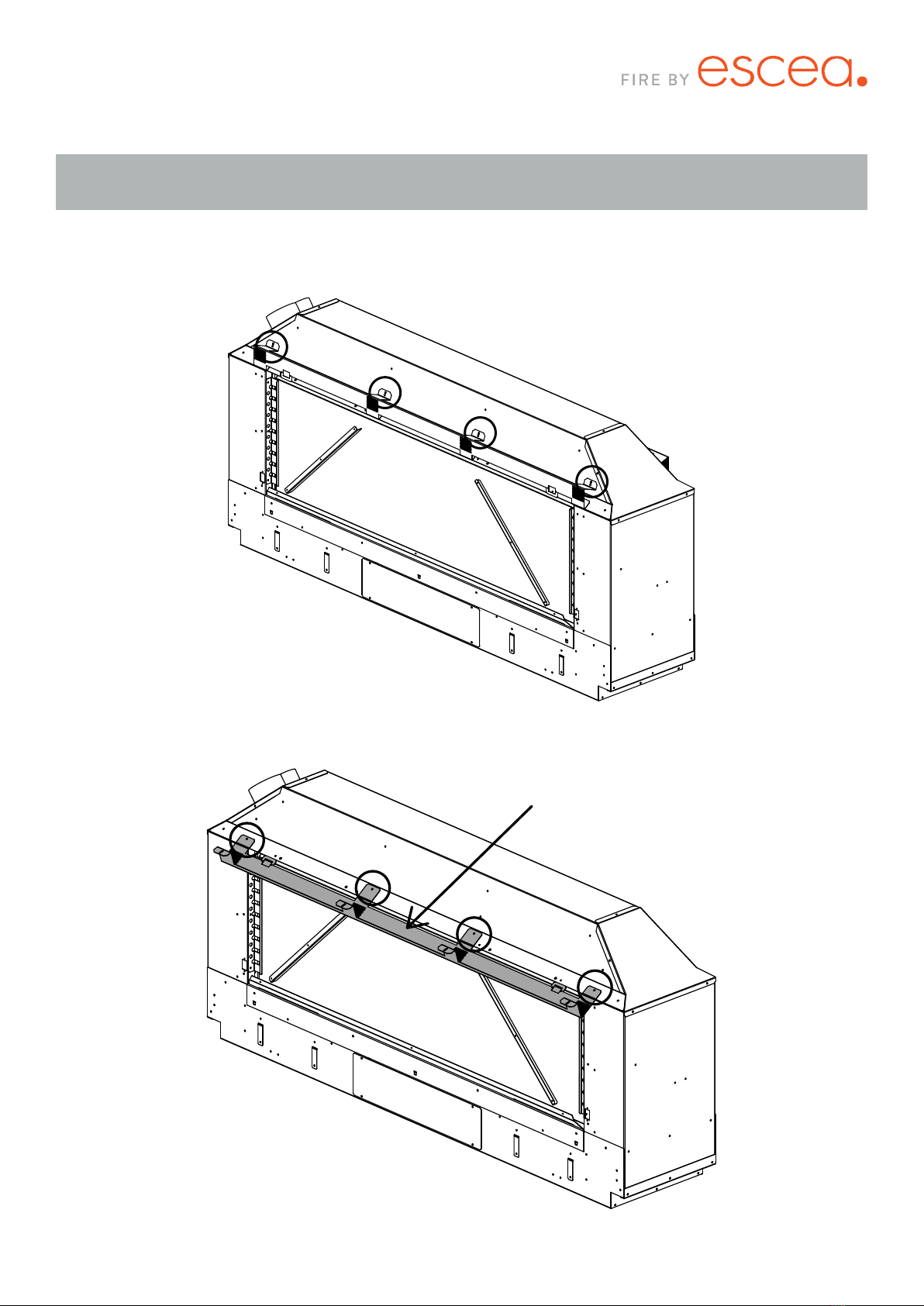

9. For a DS1150, DS1400, or DS1650, remove the gib board fixing bracket by first removing the four screws along the top
(circled below).
Bend the bracket (highlighted below) towards you to allow access to the next set of screws (circled below). Remove those
and lift the bracket o. This is necessary to access the holes for attaching the back panel.
Unfold Bracket

630546_1
Accessory Installation Instruction
DS Series Double to Single Sided Conversion Kit

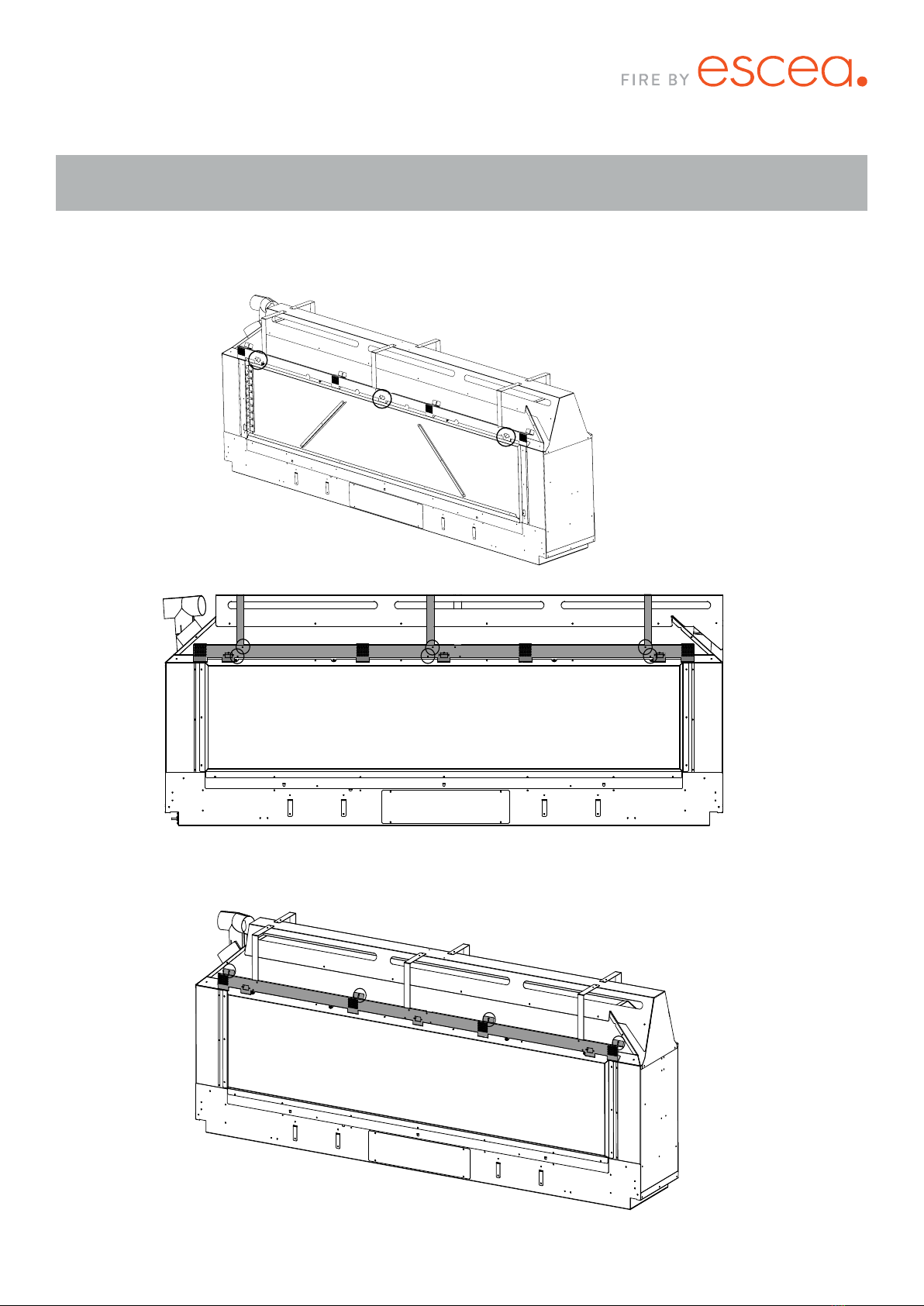

For a DS1900, check if there are access holes on the gib board fixing bracket that allow access to the back panel screws.
If there are access holes, then unscrew the three screws that hold the bottom of the bracket down (circled below) and then
skip to step 10.
If there are not access holes, drill out the six rivets from the gib board fixing bracket (circled below).
External Rear View
External Rear View
External Rear View
Unscrew the four screws from the top of the gib board fixing bracket (circled below) and fold it towards you to allow access
to the back panel screws. Remove the six screws that hold the gib board fixing bracket in place.
External Rear View
External Rear View
External Rear View

630546_1
Accessory Installation Instruction
DS Series Double to Single Sided Conversion Kit
10. Optional: If it is necessary to switch the side of the fireplace that the diagnostic bracket is on, please see the instruction
on the last page. This needs to be done before the back panel is in place.
For a DS1150, DS1400, or DS1650, place the back panel onto the appliance. Place the black pozi screws (circled in the
diagram below) in the back panel of the appliance (DS1400 shown for reference). To make it easier to fix all of the screws
in place, it is recommended to place the top centre screw first.
For a DS1900 ONLY: Place the back panel into place by sliding it under the gib bracket. Attach the back panel using the
black pozi screws (circled below).
If the gib board fixing bracket from step 9 did not have the access holes, reattach the six screws, bend the bracket back up,
and reattach the four screws and the rivets. If it did have access holes, then in the process of attaching the back panel, the
three screws removed will be replaced.
External Rear View
External Rear View
External Rear View

630546_1
Accessory Installation Instruction
DS Series Double to Single Sided Conversion Kit
11. The rest of the steps are performed on the inside of the fire.
Note the top and bottom of the firebox liners (shown below). The visible face has been shaded grey - take care not to
scratch or damage the cosmetic face of the firebox liner.
Top
Bottom
(notice small tabs)
Starting from the left side of the fire, carefully place the lower edge of each firebox liner on the edge of the firebox base
at the back of the fire. Swing the firebox liner up so that it leans against the back of the fire (shaded in the diagram below).
The panels should sit against each other; it may be necessary to slide them together to place the final liner.
Internal Front View

630546_1
Accessory Installation Instruction
DS Series Double to Single Sided Conversion Kit
12. On the inside of the firebox, place the firebox liner bracket (shaded in the diagram below) carefully without scratching
the liners. From the inside of the fire, attach with the provided philips screws (circled in the diagram below). The DS1150
and the DS1400 have 3 screws (shown below); the DS1650 will have 4 screws and the DS1900 will have 6 screws.
13. Reinstall the burners and the infill by reversing the instructions followed in step 3.
14. Install the fuelbed media as per the installation/user guide. Finish the conversion by re-installing the front piece of glass,
followed by the bottom trim, by reversing steps 1 and 2 of these instructions.
Optional Relocation of Diagnostic Bracket - Only carry out this step if needed
Relocate the diagnostic bracket to the opposite side of the appliance by carefully removing the middle screw
and feeding it through to the opposite side of the fire (as shown in the diagram below). Note: this step must be
completed before placing the back panels in place for either a LH to RH conversion or a single sided conversion.
