Escea DX1000 User manual

Installation / Service Guide
For the latest documentation, visit www.escea.com 630228_21
DX1000 / DX1500
Gas Fireplaces

Important:
The appliance shall be installed in accordance with;
• This installation instruction booklet
• Local gas fitting regulations
• Municipal building codes
• Electrical wiring regulations
• Any other relevant statutory regulations.
• AS/NZS 5601.1 Gas Installations
This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.
Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: [phone].
For contact details of your local Escea distributor or dealer in New Zealand, please visit: www.
escea.com, call NZ: 0800 17 3000, or email: [email protected].
From Australia, please visit www.escea.com.au,
call AU: 1800 460 832 or WA: 1800 730 140, or email us at [email protected]
WARNING:
Failure to follow these instructions could cause a malfunction of this appliance, which could
result in death, serious bodily injury, and/or property damage. Failure to follow these instructions
may also void your fire insurance and/or warranty.
This appliance must not be modified.
THIS APPLIANCE MUST BE FITTED WITH AN ESCEA REMOTE ROOM AIR FAN
AND SUITABLE RETURN AIR VENTILATION
THIS APPLIANCE MUST BE FITTED WITH AN ESCEA REMOTE FLUE FAN
THE TERMINAL MUST ALWAYS VENT DIRECTLY OUTDOORS
Who can install this product:
Installation must be carried out by a qualified and registered installer who, on completion of the
installation, must issue a:
AUS: Certificate of Compliance
NZ: Energy Work Certificate
in accordance with national and/or local codes. If these are not issued then the Escea warranty
may be void.

Warranty Repair and Annual Servicing:
Please contact Escea if you require warranty work. Warranty repair work must be carried
out by a recognised gas fire technician. It is recommended that recognised Escea Gas Fire
Technicians are also used to carry out annual servicing requirements (particularly during the
warranty period). For contact details of recognised Escea Gas Fire Technicians in your area, or
for replacement parts, please contact the retailer from whom the appliance was purchased our
visit our website.
General Installation Information:
This appliance must be installed according to these instructions and in compliance with all
relevant building, gas fitting, electrical and other statutory regulations (eg. AS/NZS 5601.1).
Any shortcomings in the appliance and flue installation will be the responsibility of the installer,
and Escea will not be accountable for any such failings or their consequences.
Once this appliance is installed it cannot be removed without disturbing the wall lining.
This DX Series fireplaces has been dispatched from the factory set as a single sided version.
This can be converted into a double sided appliance by using the Double Sided Conversion Kit
available from your Escea distributor. Conversion details are shown in Section E.
An electrician is required to install a 3pin power socket – Section C.

DX1000 PRODUCT SPECIFICATION
MODEL NAME DX1000
Description of Appliance Gas Fire Heater
Star Rating 4.8 Stars
Max. Heat Output 8.4 kW
A/NZ Approval No. AS/NZS 5263.1.3:2016
Gas Type Natural Propane ULPG
Gas input High 33 MJ/hr 33 MJ/hr 33 MJ/hr
Inlet Pressure Max 5 kPa 5 kPa 5 kPa
Min 1.13 kPa 2.75 kPa 2.75 kPa
Operating Pressure on High 0.82 kPa 2.32 kPa 2.32 kPa
Operating Pressure on Low 0.28 kPa 0.72 kPa 0.72 kPa
Burner Jet Size Left and Right:
1.95mm
Left and Right:
1.1mm
Left and Right:
1.1mm
Burner Aeration Left and Right:
3.5 mm
Left and Right:
11 mm
Left and Right:
11 mm
Pilot injector #37 #37 #37
Appliance Dimensions (mm) Width 1328 mm
Height 774 mm
Depth 382 mm
Weight Kg 100 kg
Ignition System Electronic Ignition to pilot system
Escea PCB
Flame Safeguard Flame Rectification
Remote controls Yes
Timers Yes
Clock Yes
Function lock / child Yes
Temperature control Yes
Connections Electric 230V AC
Gas 1/2" BSPP female lower centre of fireplace chassis
Flue Type Aluminium Flexi Flue and PolyPro
Flue Size 75mm and 100mm Flexi Flue & PolyPro
Spigot
Location
Right hand top
Data badge location On Chassis Base

DX1500 PRODUCT SPECIFICATION
MODEL NAME DX1500
Description of Appliance Gas Fire Heater
Star Rating 4.3 Stars
Max. Heat Output 10.4 kW
A/NZ Approval No. AS/NZS 5263.1.3:2016
Gas Type Natural Propane ULPG
Gas input High 42 MJ/hr 42 MJ/hr 42 MJ/hr
Inlet Pressure Max 5 kPa 5 kPa 5 kPa
Min 1.13 kPa 2.75 kPa 2.75 kPa
Operating Pressure on High 0.76 kPa 1.96 kPa 1.96 kPa
Operating Pressure on Low 0.28 kPa 0.96 kPa 0.96 kPa
Burner Jet Size Left and Right:
2.3mm
Left and Right:
1.3mm
Left and Right:
1.3mm
Burner Aeration Left and Right:
3.5 mm
Left and Right:
11 mm
Left and Right:
11 mm
Pilot injector #37 #37 #37
Appliance Dimensions (mm) Width 1828 mm
Height 774 mm
Depth 382 mm
Weight Kg 120 kg
Ignition System Electronic Ignition to pilot system
Escea PCB
Flame Safeguard Flame Rectification
Remote controls Yes
Timers Yes
Clock Yes
Function lock / child Yes
Temperature control Yes
Connections Electric 230V AC
Gas 1/2" BSPP female lower centre of fireplace chassis
Flue Type Aluminium Flexi Flue and PolyPro
Flue Size 75mm and 100mm Flexi Flue & PolyPro
Spigot
Location
Right hand top
Data badge location On Chassis Base

A Installation Process and Product Description 8
A1 Product Description 8
A2 Recommended Installation Process 8
A3 Product Dimensions 9
B Creating the Cavity 10
B1 Cavity Shape 10
B2 Designing the Cavity 10
B3 Framing Dimensions 11
B4 Cavity Base 11
B5 Hearth 11
B6 Wall Linings 11

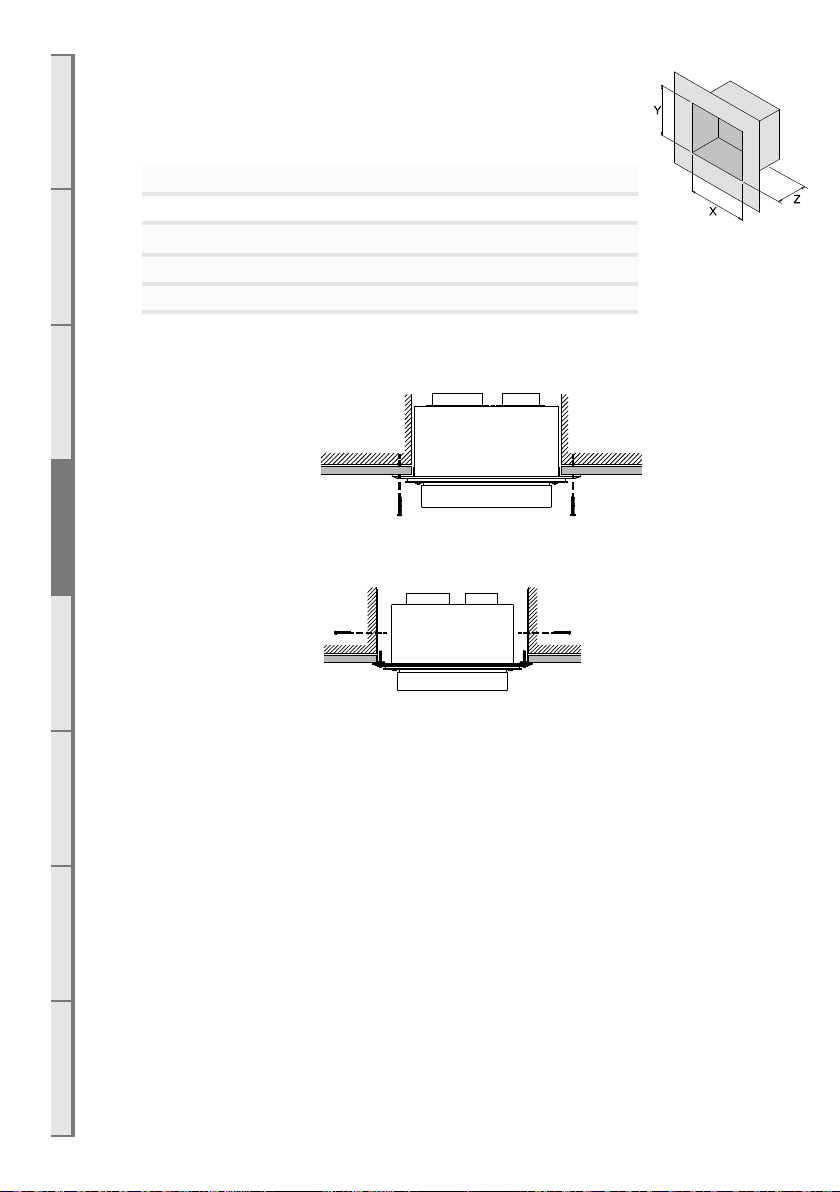

B7 Fascia 12

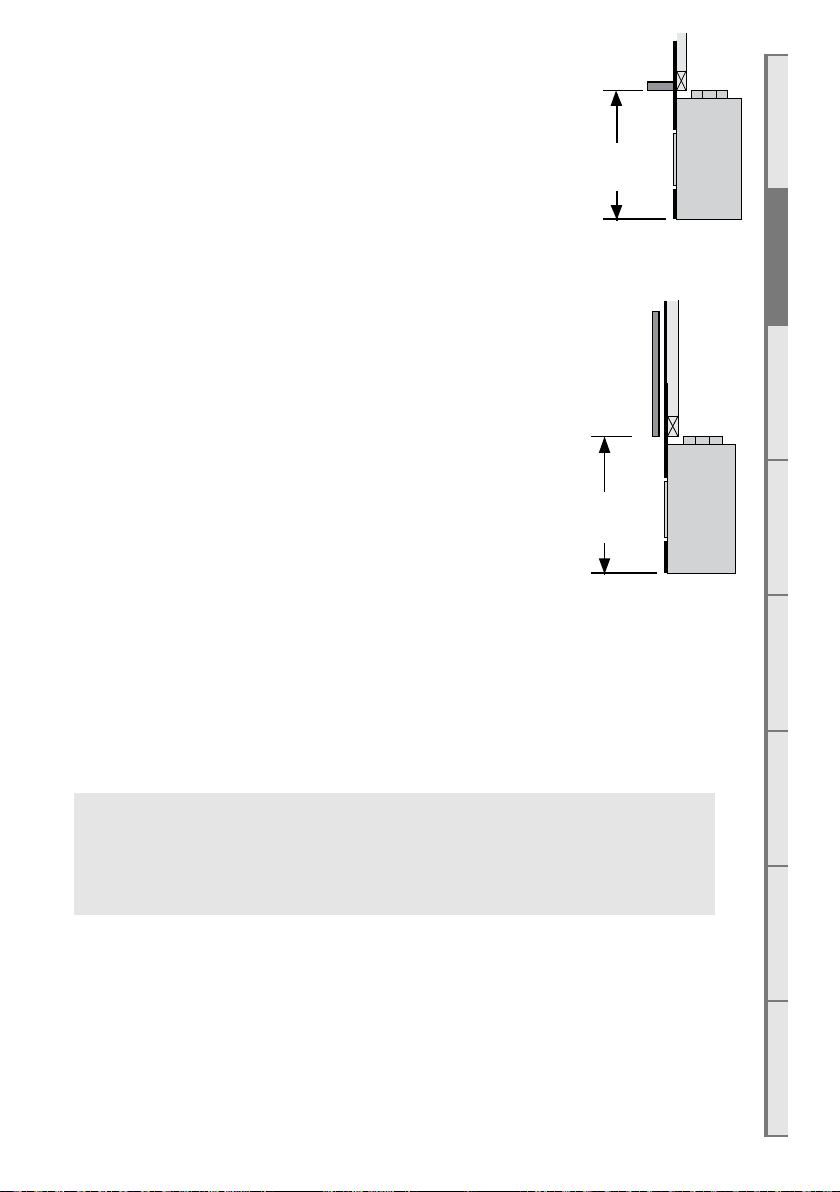

B8 Mantle Clearance 13
B9 Television Clearances 13
B10 Ducting 13
B11 Duct Fan Mounting 14
C Installing the Electricity and Gas to the Appliance 15
C1 Power Supply 15
C2 Network Cable 15
C3 Gas Pipe Sizing 16
C4 Gas Pipe Position 16
C5 Gas Isolating Valve 16
D Installing the Flue 17
D1 Flue Configuration (For less than 4m length) 17
D2 Flue Configuration (For more than 4m length) 18
D3 Installing the Horizontal Powerflue Wall Terminal Option 19
D4 Installing the Internal Vertical Powerflue (UVP) 22
D5 Installing the External Vertical Powerflue (UVP) 24
D6 Removing the Restrictor Plate 25
D7 Installing in Accordance with Relevant Codes 26
D8 Running the Flue 27
D9 Running the Powerflue Electrical Cable 28

E Installing the Appliance 29
E1 Double Sided Conversion 29
E2 Installing the Appliance 30
E3 Connecting the Flue 30
E4 Connecting the Ducting 30
E5 Connecting the Network Cable 30
E6 Connecting the Powerflue and Duct Fan Cables 31
E7 Removing (and Replacing) the Glass 31
E8 Remove the Fuelbed Tray & Burners 32
E9 Gas Type Conversion 32
E10 Checking the Gas Operating Pressure 34
E11 Operating the Appliance 37
E12 Auxillary On/O button 37
E13 Home Automation Setup 37
F Finishing the Installation 39
F1 Crystalight, Coal, or Driftwood Fuel Bed Installation 39
F2 Woodland Selection Fuel Bed 39
F3 Replace the Glass 40
F4 Wall Lining 40
F5 Fitting the Fascia Panels 41
F6 Locating Wall Mount Cradle for Wireless Control 42
F7 Operating the Appliance 42
F8 Normal Operating Sounds and Smells 44
G Installation Checklist 45
S Service Manual 46
S1 Annual service procedure 46
S2 Error Codes 47
S3 Cleaning the Fuel bed, Fascia, and Glass 49
S4 Checking Operating Pressure 50
S5 Replacing a Remote Control 51
S6 Replacing the Burners 52
S7 Accessing the Control Tray 53
S8 Removing the Circuit Board 53
S9 Servicing the Horizontal/Universal Vertical Powerflue 55
S10 Wiring Diagram 56

B
AC D E F G SERVICE
8
A Installation Process and Product Description
A1 Product Description
The Escea DX1500 / DX1000 gas fire is a direct vent (fan draught balanced flue), room sealed gas
appliance designed to be built into a cavity. This appliance is flued using a co-linear flexible aluminium
flue connected to a powerflue terminal.
The hot air from the gas fire is transferred to the room via 250mm ID / 300 mm OD ducting.
The user will control their fire with the Radio Frequency (RF) remote that will normally be left in its
wall mount cradle. In addition to the RF remote it has a single auxiliary On/O button on the unit.
When not in operation it is in a standby mode unless it is physically isolated from the mains supply.

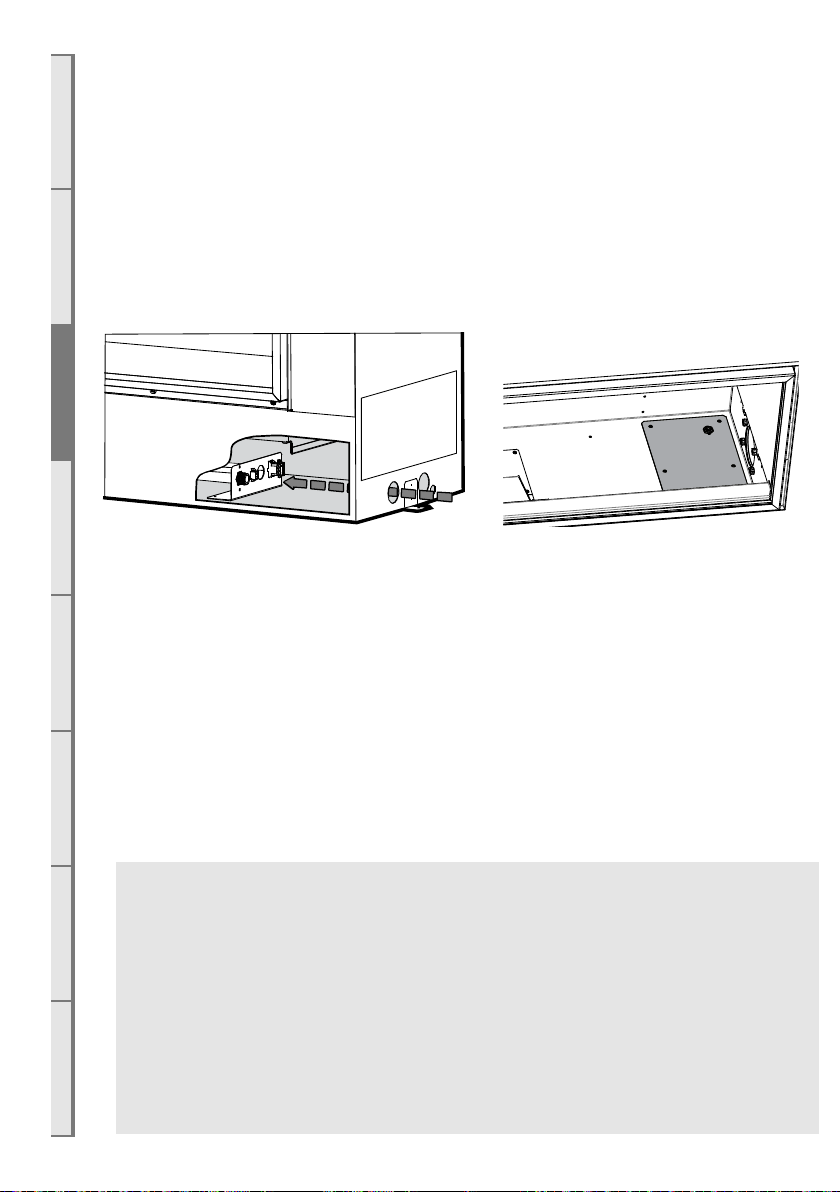

To access the product Dataplate, first remove the fireplace glass, any fuelbed media, the burners, and
the firebox base. An access panel is located to the side of the bottom of the firebox; the dataplate is
located underneath this access panel.
A2 Recommended Installation Process
The following diagram illustrates the steps required to install your gas fire, and the trades required at
each stage.
The sequence in which you choose to do these tasks will vary depending on your individual installation.
Please read these instructions carefully before proceeding with the installation. Leave the installation
of the optional fascia panels until the very end of the installation and commissioning to avoid damage
to the fascia panels.
Create the Cavity Install electrical / gas
connections, ue system, and
replace
Finish installation and t
fascia
Section B Section C, D Section F
Important: Installations that are not specifically outlined in this manual
should be referred to the Escea Architectural Advisory Team.
Please email [email protected]
To ensure that your installation is fully complete, please use the “Installation Checklist” on page 45.

BACDEFGSERVICE
9

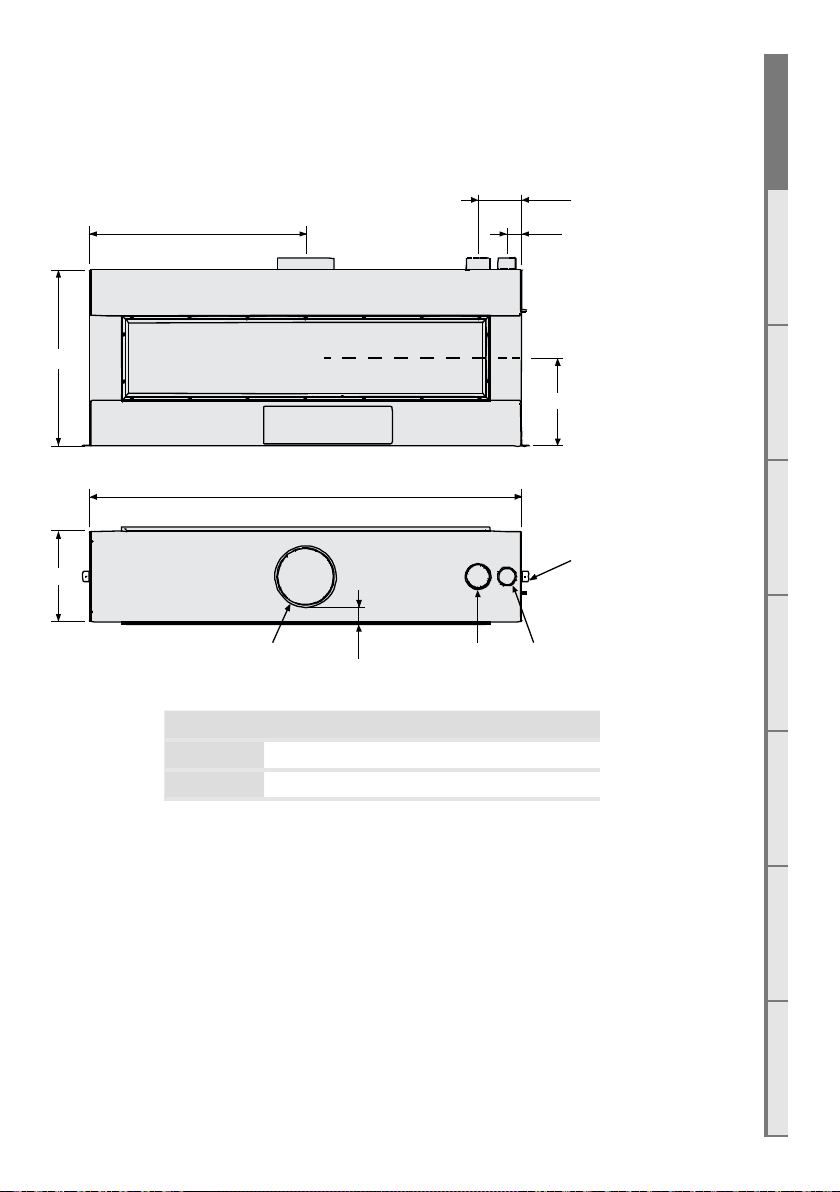

A3 Product Dimensions
NOT TO BE MISTAKEN FOR CAVITY DIMENSIONS.
All dimensions are in mm.
61
183
A
744
B
382
70 Ø100 Ø75 Ø250
372
Gas, Power, Internet
Connections
For more detail, view architectural drawings at www.escea.com
DX1000 DX1500
A664mm 914mm
B1328mm 1828mm

B
A C D E F G SERVICE
10
B Creating the Cavity
B1 Cavity Shape
The DX1500 / DX1000 is suitable for timber framed cavities. Most existing masonry cavities
will not be suitable.
The cavity design & shape will be dependent on a number of things, detailed below
B2 Designing the Cavity
The following aspects must be considered when designing this installation:
• Appliance physical size
• Single sided or Double sided
• Wall finishing and interaction with appliance
• Positioning of appliance in regards to wall lining (depth into wall)
• Is a Fascia to be used? one side or two sides?
• Exhaust cowl aspect – horizontal / vertical and flue configuration
• Flue exhaust fan noise- Is there a direct noise path along the flue, especially for short flue
runs?
• Exhaust cowl access for maintenance
• Duct layout and cavity spaces to run ducting
• Duct fan position
• Access to duct fan for maintenance
• Gas pipe layout
• Gas isolation valve / pressure test point position
• Electrical isolation switch
• Home automation network connections - Ethernet cable layout
□
The cavity and wall linings may be constructed from standard timber framing materials and do
not need to be non-combustible.
It is not necessary to line the sides, or back of the cavity.
This DX1500 / DX1000 fire is to be installed prior to any wall lining.
The wall lining is the very last task to be completed in this installation.

BACDEFGSERVICE
11

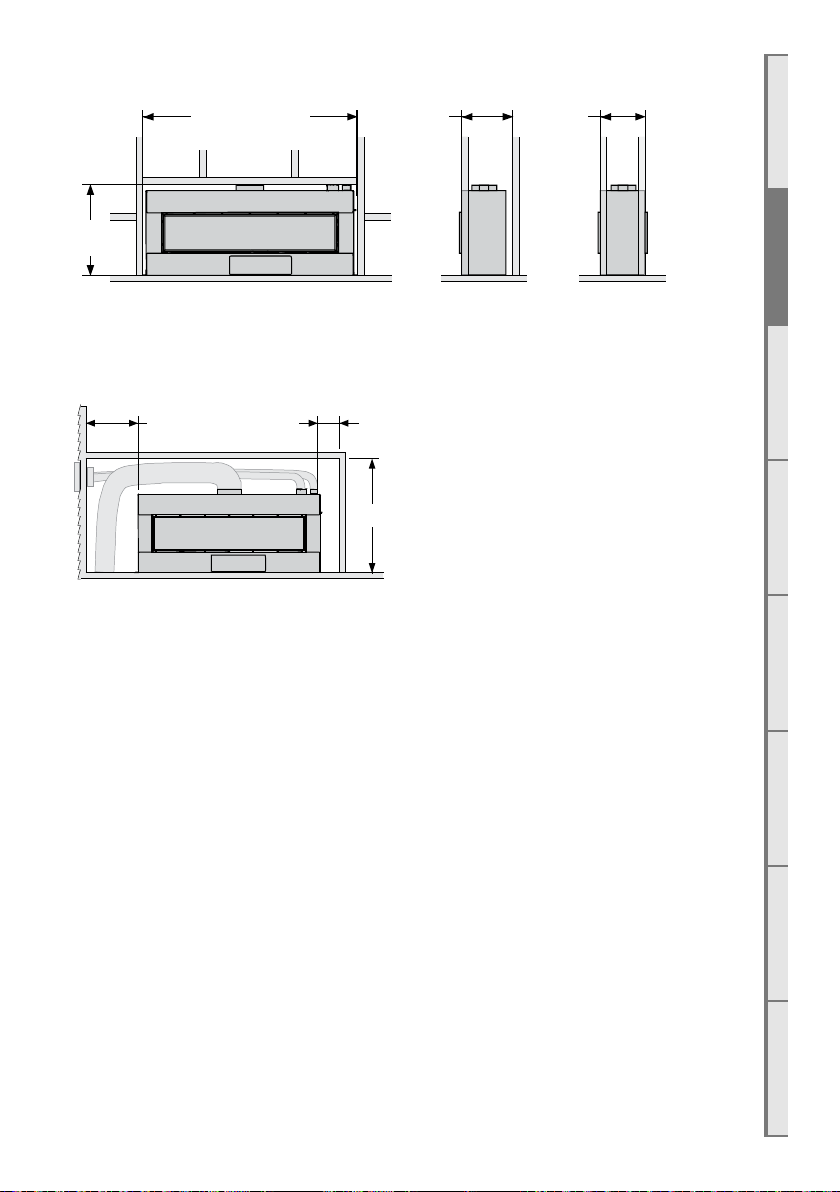

B3 Framing Dimensions
DX1000: MIN
800
MIN
450
MIN
381
Front Side
Single Sided
Side
Double Sided
1400
DX1500: MIN
1900
Guidelines for Framing Dimensions - Bench top / Hutch style
1150 MIN
400 MIN
Adequate space to provide
gas inlet connection.
B4 Cavity Base
This appliance MUST be fully supported on its base, over the entire area of the underside of the
appliance. The base must also be level and strong enough to support the total product weight,
which is approximately 100kg (DX1000) or 120kg (DX1500).
B5 Hearth
No hearth is required.
B6 Wall Linings
The appliance must be installed prior to and behind the finished wall surface. Take into account
any plaster board, tiles or any other finishing surface that may be intended for the finished wall
surface. Wall finishing materials must not encroach upon the minimum cavity clearances given
in previous sections. The wall board that lines the outside of the opening can be normal plaster
board and does not need to be non-combustible.
NOTE: The final wall lining must not encroach within the specified dimensions in this section or
section B8 on page 13. These dimensions indicate the opening required in any wall lining.
These dimensions are for DX1500 / DX1000 without fascia; if using a fascia then please check
the following section of this manual for separate wall lining dimensions.
If not using a fascia, ensure the edge of the wall lining is finished in a tidy manner.

B
A C D E F G SERVICE
12
The plasterboard is to protrude beyond framework as shown in the following diagram.
Note: The wall lining directly above the appliance will get warm and hence may discolour paint finishes
that are susceptible to temperature damage. The heat may also distort vinyl wall coverings. For
durability of finishes and surfaces you should contact the relevant manufacturer for their specification
and avoid materials that are not suitable for use above a fireplace.
Note that a 20mm or less wall lining must be used when installing a DX-series fireplace without a bevelled
fascia. For wall linings of a total thickness of 10mm or larger, a “Linear Trim” may be purchased to cover
any exposed wall lining. A 9mm wall lining is recommended for ease of installation.
B7 Fascia
NOTE: Any installed fascia must be able to be removed for annual servicing of the fire, including
cleaning the glass.
Bevelled Fascia
If using a bevelled fascia, the cutout required in the finished plaster board dimensions are:
A 15mm or less wall lining must be used when installing a DX-series fireplace with a bevelled fascia, as this
is the maximum distance the bevelled fascia can sit o the front face of the fire, as shown. For wall linings
of a total thickness of 10mm or larger, a “Linear Trim for Bevelled Fascia” may be purchased to cover any
exposed wall lining.
Linear Trim
For 10mm-20mm wall linings, an optional “Linear Trim” can be used to cover any unwanted
exposed wall lining and/or act as a slimline fascia.
362
SideFront
362
192
DX1000: MIN
1062
DX1500: MIN
1562
WALL OPENING
(WITHOUT FASCIA)
410
DX1000:MIN
1100
DX1500:MIN
160015
Max
FASCIA
WALL OPENING
(WITH FASCIA)
Note: If duct backpressure is too great, the appliance can shut down due to overheating.
The ducting fan will generate mechanical noise. Ideally it must be installed in a position where noise
will not interfere with daily activities. All air ducts will make noise no matter how well the system is
designed. Increasing the number of outlets is a simple strategy to reduce this noise.

BACDEFGSERVICE
13
B8 Mantle Clearance
Mantles or protruding ledges above the heater must not be installed lower
than the dimension shown to the right.
NOTE: dimension from base of appliance.
B9 Television Clearances
The following are the recommended minimum clearances for the location of any electrical
equipment (such as a Plasma TV, LCD TV or home theatre system) above an Escea DX Series
gas fire.
NOTE: The above television clearance recommendations are to be treated
as a suggestion of a suitable installation only. It is the responsibility of the
end user to check the installation instructions of their electrical appliances
to ensure that the location in relation to the gas fire is suitable. Escea in no
way guarantees or takes responsibility that the above installation suggestion
will be suitable for all electrical or home entertainment appliances.
NOTE: Dimension is from base of appliance.
For installations with a recessed TV above, allow at least 300mm above
the top of the appliance to allow for duct and flue routing.
B10 Ducting
NOTE: The duct fan must be installed in a location accessible for service or replacement; a service
hatch to allow for access may be required.
This gas fire requires a small network of ducting situated in either the ceiling or under the floor
to distribute heat generated by the appliance.
A centrifugal fan (separate purchase) is connected to the duct system. This draws air through
the appliance where it is heated and distributes it via the ducting network. The centrifugal fan is
powered by the appliance. When placing outlets in rooms other than the room the appliance is
installed in, it is important to allow for return air to equalise pressure between the rooms.
Caution: Provision must always be made for return air from heated rooms e.g. undercut
doors or natural leakage.
WARNING: OVERHEATED ROOMS ARE NOT SAFE FOR INFANTS
DX fires require a minimum of three outlets in the ducting system to be fully open at all times.
At least two of those outlets must be present in the same room that the fire resides in. There
can be a maximum of five outlets for the DX1000 and eight outlets for the DX1500.
A standard duct kit (separate purchase) has provision for the three minimum outlets - You can
use your own ductwork and outlets, but you must ensure they are rated to temperatures of at
least 90 degrees Celsius and have an appropriate R-value.
Ductwork must be adequately sized to avoid excess backpressures. Inadequate duct sizes will
cause unnecessary fan noise and premature fan failure.
800
MIN
800
MIN

B
A C D E F G SERVICE
14
We recommend removing the close flaps from at least three of the duct outlets to prevent
unnecessary back pressure and fan noise.
Ductwork must not be crushed or exposed to excessive heat sources.
For installations with the duct fan installed in the appliance cavity we recommend:
- Contact Escea’s free Architectural Advice Service at [email protected] and forward them
a copy of the intended design for comment.
- The cavity to be clad with sound gib.
- The fan to be wrapped in a sound absorbing material.
- The system be tested for sound related issues before it is enclosed. Please contact
Escea for more information at this stage if advice is needed.
- The duct fan must be hung on the provided hanger.
- The ducting must always have a “C” shape or an “S” shape to break up the sound
waves on both sides of the duct fan.
-The duct fan must be installed in a location accessible for service or replacement, a service
hatch (to allow for access) may be required.
-Never place the fan in such a way to result in a straight run to the top of the fire, as the
sound of the fan will echo out the front of the fire.
B11 Duct Fan Mounting
Using the 3x spring mounts supplied, the duct fan should be installed in one of the following
positions as shown below. You must use the spring mounts as this will help decrease noise by not
transferring vibration into the walls.
NOTE: The duct fan must be installed in a location accessible for service or replacement; a service
hatch (to allow for access) may be required.
Run the electrical cable from the duct fan to the cavity where the appliance will be installed.
Ensure the cable is not draped over or in contact with the outer shell of the appliance or either
of the flexi flue tubes and is kept clear from any other possible heat sources. Fix it appropriately
and allow enough cable loop to prevent tension on the cable plugs.
The duct fan unit length is approx 350mm and diameter is approx 340mm.
The duct fan must not be exposed to the outdoors.
END OF SECTION B
By the end of this section, you should have:
□A framed, but un-lined, cavity sized to suit your fascia and flue configuration
□Provision for sucient access to the powerflue for future servicing

BACDEFGSERVICE
15
C Installing the Electricity and Gas to the Appliance
C1 Power Supply
While the cavity is being created,
consideration must be given to the location
of an appropriate power supply. An earthed
230/240 volt mains power connection
(typically a standard 3 pin outlet) must
be available within 1m of the bottom
right of the appliance. This connection
must be accessible after the heater has been fully installed so that the appliance can be safely
disconnected from the mains power supply prior to servicing.
A mains isolation switch (compliant to AS:NZS 5601 Clause 6.2.8) which is accessible from
outside the cavity can also be used to disconnect the power.
Regardless of the method used, it MUST ALWAYS be possible to safely isolate the electrical
supply to the appliance after it has been fully installed.
This appliance must not be located immediately below a socket outlet. This appliance will draw a
maximum of 2 Amps from a 230/240V supply. No additional power supply is required for the
power flue.
C2 Network Cable
A 10 meter length of network (Ethernet) cable has been supplied and is coiled inside the lower
right of the fireplace. Access this via the removable access panel and connect it to the buildings’
modem.
If you do not wish to connect the fireplace to the modem, the Network /
Ethernet cable should be run to somewhere accessible by a service
technician, such as a cupboard.
1m

B
ACD E F G SERVICE
16
C3 Gas Pipe Sizing
Gas pipe should be sized as per the requirements of AS/NZS 5601.1. The pipe sizing must be
sucient to deliver the following volume of gas to the heater with all other gas appliances in the
home running at the same time:
DX1500 Gas Consumption = 42MJ/hr
DX1000 Gas Consumption = 33MJ/hr
C4 Gas Pipe Position
The gas connection is inside the appliance and is ½” male BSPT on the lower right of the
appliance as shown. Access is through the bottom of the firebox via a hatch (shaded grey in the
right diagram).
C5 Gas Isolating Valve
A gas isolating valve must be installed in the gas line as close to the appliance as possible. Fix it in
a convenient position to allow it to be closed o quickly and easily during normal operation. Take
into consideration access to this valve once the wall linings are on. This will also allow for easier
servicing in the future.
END OF SECTION C
By the end of this section, you should have:
□An unlined cavity with 230/240V AC supply that the appliance can be plugged into
□An electrical isolating switch that is accessible once the appliance is installed
□A suitably sized gas supply to the right hand side of the appliance with a pressure test
point, ready to be connected once installed
□Network cable installed, ready for plugging into appliance, regardless of being connected
to internet router/network or not

BACDEFGSERVICE
17
D Installing the Flue
NOTE: The appliance is designed to operate using the approved flexible flue supplied by Escea. Using
other brands of flue may aect the appliance warranty.
D1 Flue Configuration (For less than 4m length)
If your flue system is less than 4m long (as shown in the diagrams below), then a simple flexible
flue is required. if you wish to install a longer flue run of up to 12m, see section D2 on page
18.
X
Y
X + Y = 4m MAX
= 0.6m MIN
4m MAX
1.2m Co-axial Flue
Vertical PowerFlue
Cowl (Duravent)
4m MAX
1.2m F-F Liner
UVP-Internal Cowl
NOTE: You must provide sucient access to the
powerflue to enable it to be serviced in the future.
This means that the fan unit must have sucient
access to allow it to be replaced if necessary.
The flue must be securely fixed and adequately
supported by brackets fastened to the building
structure at suitable points to ensure the stability
of the flue system.
Any joints within the flue system must be sealed
adequately with a sealing agent used if necessary. The flue system for the DX1500 / DX1000 is
zero rated, so no spaces are required between the flue and any timber framing.
□
ONLY USE ESCEA APPROVED FLUE COMPONENTS
X
Y
X+YMaximum = 4m
YMaximum = 1.5m
YMinimum = 0m
XMaximum = 4m
XMinimum = 0m
X+YMinimum = 0.6m
NOTE: All sections of horizontal ue, if exible, must be sloped back toward the re at
a rate of no less than 20mm per metre, to allow any condensation to run back into the
appliance.

B
A C DE F G SERVICE
18
D2 Flue Configuration (For more than 4m length)
If your flue system is greater than 4m long (as shown in diagrams below), then a flexible flue
with condensate trap and rigid PolyPro tube flue lengths is required. (For less than 4m flue runs,
see section D1 on page 17).
4m
Ø80mm / Ø100mm
Flexible Flue
1.2m Co-axial Flue
(Duravent)
Vertical Powerue
Enclosure
12m MAX
Ø100mm
Condensate Trap
Ø80mm / Ø100mm
PP Tube
Vertical PowerFlue
Cowl (Duravent)
4m
ESCEA WALL
TERMINAL
12m MAX
Ø80mm / Ø100mm
PP Tube
Ø100mm
Condensate Trap
Ø80mm / Ø100mm
Flexible Flue
4m
Ø80mm / Ø100mm
Flexible Flue
1.2m F-F Liner
UVP Fan Unit
12m MAX
Ø100mm
Condensate Trap
Ø80mm / Ø100mm
PP Tube
UVP Cowl
FOR MORE INFORMATION ON
INSTALLATION OF THE POLYPRO FLUE,
SEE ‘POLY PRO FLUE INSTALLATION
INSTRUCTIONS’ AVAILABLE ON:
WWW.ESCEA.COM
OR SUPPLIED WITH THE FLUE.
FOR POLY PRO COMPONENT GUIDES,
THESE ARE AVAILABLE ON:
WWW.ESCEA.COM
TITLED:
HORIZONTAL FLUE COMPONENT GUIDE
&
VERTICAL FLUE COMPONENT GUIDE
X
Y
X+ YMaximum = 12m
YMaximum = 1.5m
YMinimum = 0m
XMaximum = 12m
XMinimum = 0m
X+ YMinimum = 0.6m
4m
12m MAX
Ø80mm / Ø100mm
Flexible Flue Ø100mm
Condensate Trap
Ø80mm /
Ø100mm
PP Tube
Note: All sections of
horizontal ue, if exible,
must be sloped back
toward the re at a rate
of no less than 20mm
per metre, to allow any
condensation to run back
into the appliance.

BACDEFGSERVICE
19
D3 Installing the Horizontal Powerflue Wall Terminal Option
The horizontal powerflue wall terminal must be installed in the correct
orientation (the small horizontal slot should be at the bottom). This
allows for the correct operation of the flue system and prevents the
ingress of water.
The horizontal powerflue wall terminal must be weathertight when
installation is complete to prevent damage to the dwelling. It must be
installed by a suitably qualified person.
Fit the horizontal powerflue wall terminal into the hole and fix in place, making sure the installation is
sealed appropriately to prevent the ingress of water from outside the wall cladding. Take notice of the
label on the termination which shows the correct orientation of the terminal.
NOTE: It is the responsibility of the installer to ensure the horizontal powerflue wall terminal is installed to
all relevant building codes to ensure weather tightness.

B
A C DE F G SERVICE
20
Creating the Hole in the Outside Wall
When cutting the hole in the outside wall, be mindful of how the installation of
the horizontal powerflue wall terminal will be finished; the installation must be
weatherproof.
Ideal Hole/Cavity Size for Horizontal Powerflue
Without Side Brackets With Side Brackets
X 298mm 360mm
Y 298mm 298mm
Z 175mm Excluding allowance for flue which exits here
The horizontal powerflue wall terminal can be attached to the wall in two ways:
A) From the front of the terminal:
B) By attaching the optional wall terminal installation brackets to the sides of the cavity and attaching
the horizontal powerflue wall terminal to these, from the front:
Attach the Ø100mm and Ø75mm flexible aluminium flues to the spigots on the rear of the horizontal
powerflue wall terminal using the hose band clamps supplied. Plug the powerflue electrical cable into
the back of the horizontal powerflue wall terminal.
For information on the PolyPro flue, see the installation manual which is supplied with the flue
components.
Ensure that the electrical cable is firmly secured to the wall terminal or building to prevent damage or
disconnection if pulled.
