Escea KS1150 Peninsula 400 Quick guide

INSTALLATION / SERVICE INSTRUCTIONS
For the latest documentation, visit www.escea.com
KS1150 Peninsula 400
Gas Fireplace
630458_1 KS1150 Peninsula 400 Install Manual

Important:
The appliance shall be installed in accordance with;
• This installation instruction booklet
• Local gas fitting regulations
• Municipal building codes
• Electrical wiring regulations
• Any other relevant statutory regulations.
• AS/NZS 5601:2013 Gas Installations
NOTE: NOT INTENDED FOR FIREPLACE INSERT
WARNING:
This appliance must be installed by a qualified person.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR THIS APPLIANCE.
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT MODIFY THIS APPLIANCE.
This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.
Failure to follow these instructions could cause a malfunction of the heater, which could result in
death, serious bodily injury, and/or property damage. Failure to follow these instructions may also
void your fire insurance and/or warranty.
Who can install this product:
Installation must be carried out by a registered installer who, on completion of the installation, must
issue a:
AUS: Certificate of Compliance
NZ: Certificates that comply with the latest legislation in accordance with national and/or local
codes. If these are not issued then the Escea warranty may be void.
Warranty Repair and Annual Servicing:
Warranty repair work must be carried out by a recognised gas fire technician. It is recommended
that recognised Escea Gas Fire Technicians are also used to carry out annual servicing requirements
(particularly during the warranty period). For contact details of recognised Escea Gas Fire
Technicians in your area, please contact the retailer from whom the appliance was purchased.
The heater must be installed according to these instructions and in compliance with all relevant
building, gas fitting, electrical and other statutory regulations (eg. AS/NZS 5601). Any shortcomings
in the appliance and flue installation will be the responsibility of the installer, and Escea will not be
accountable for any such failings or their consequences.
Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: [phone]
For contact details of your local Escea distributor or dealer please visit www.escea.com or email:
[email protected]. From Austrailia, visit www.escea.com.au or call: WA : 1-800 730 140;
EA : 1-800 460 832

KS1150 Peninsula 400 PRODUCT SPECIFICATION
MODEL NAME KS1150 Peninsula 400
Description of Appliance Gas Fire Heater
Star Rating 3.9 Stars
AS/NZ Approval Standard AS/NZS 5263.1.3:2016
Gas Type Natural Gas ULPG Propane
Gas input High 33 MJ/h 33 MJ/hr 33 MJ/h
Low 24 MJ/h 24 MJ/hr 24 MJ/h
Inlet Pressure Max 5.0 kPa 5.0 kPa 5.0 kPa
Min 1.13 kPa 2.75 kPa 2.75 kPa
Operating Pressure on High 0.74 kPa 1.5 kPa 1.5 kPa
Operating Pressure on Low 0.34 kPa 0.76 kPa 0.76 kPa
Burner Jet Size LH & RH: 1.50mm
Middle: 1.95mm
LH & RH: 0.95mm
Middle: 1.25mm
LH & RH: 0.95 mm
Middle: 1.25mm
Burner Aeration
LH & RH: Closed
Collars
Middle: Closed
Collar
LH & RH: 2 x
6mm
Middle: Spacer
(no restriction)
LH & RH: 2 x 6mm
Middle: Spacer
(no restriction)
Pilot injector #42 #27 #27
Appliance Dimensions (mm)
Width 350 mm
Height 790 mm
Depth 1270 mm
Weight Kg 120 kg
Ignition System Electronic Ignition to pilot system
Escea PCB
Ignition Activation 20 secs (approx)
Flame Safeguard Flame Rectication
Consumption 160W @ 0.69A 230V
Remote controls Yes
Timers Yes
Clock Yes
Function lock / child Yes
Temperature control Yes
Connections
Electric 230V AC
Gas 1/2" BSPP female lower centre of replace chassis
Flue Type Aluminium Flexi Flue and PolyPro
Flue Size 75mm and 100mm Flexi Flue & PolyPro
Spigot
Location Top RH Side
Data badge location On Chassis Base

A Product Description and Dimensions 6
A1 Product Description 6
A2 Product Dimensions 6
B Creating the Cavity 7
B1 Cavity Shape 7
B2 Designing the Cavity 7
B3 Hearth 8
B4 Cavity Base 8
B5 Wall linings 8
B6 Television & Mantel Clearances 8
C Installing the Flue 9
C1 Flue Configuration (If less than 4m flue length is required) 9
C2 Flue Configuration (If more than 4m flue length is required) 11
C3 Installing the Horizontal Powerflue Wall Terminal option 12
C4 Installing the Internal Vertical Powerflue (UVP) 15
C5 Installing the External Vertical Powerflue (UVP) 17
C6 Installing in Accordance with Relevant Codes 18
C7 Running the Flue 19
C8 Running the Powerflue Electrical Cable 20
D Installing the Electricity and Gas to the Appliance 21
D1 Power Supply 21
D2 Network Cable 21
D3 Gas Pipe Sizing 22
D4 Gas Pipe Position 22
D5 Gas Isolating Valve 23
E Installing the Appliance 24
E1 Connecting the Flue 24
E2 Installation 24
E3 Removing (and Replacing) the Glass 24
E4 Remove the Infill & Burners 25
E5 Gas Type Conversion 25
E6 Operating the Appliance 27
E7 Checking the Gas Operating Pressure 27
E8 Remote Pairing Button 30
E9 Home Automation Setup 31

F Finishing the Installation 33
F1 Coal, Crystallite, or Driftwood Fuelbed Installation 33
F2 Log and Woodland Log Fuelbed Retainer Setup 33
F3 Log Fuelbed Installation 34
F4 Woodland Fuelbed Installation 35
F5 Flame Picture 36
F6 Wall Linings 37
F7 Locating Wall Mount Cradle for Wireless Control 38
F8 Operating the Appliance 39
F9 Normal Operating Sounds and Smells 40
G Installation Checklist 41
S Service Manual 42
S1 Annual service procedure 42
S2 Error Codes 43
S3 Cleaning the Fuel bed and Glass 45
S4 Checking Operating Pressure 45
S5 Replacing a Remote Control 45
S6 Replacing the burners 46
S7 Serial Number 46
S8 Removing or Cleaning Fan 46
S9 Removing the Control Tray 46
S10 Pressure Switch Removal 47
S11 Replacing the Thermal Cut Out (TCO) 50
S12 Servicing the Horizontal/Universal Vertical Powerflue 50
S13 Wiring Diagram 52

B
AC D E F G SERVICE
6
A Product Description and Dimensions
A1 Product Description
The Mode KS1150 Peninsula 400 gas fire is a room sealed gas appliance designed to be built into
a false self-supporting cavity. It is a powerful gas heater that, on the lowest setting (flame eect)
will still generate approximately 50% heat. The appliance is flued using co-linear flexible aluminium
flue and PolyPro plastic piping beyond 4m. The user will control their fire with the Radio Frequency
(RF) remote that will normally be located in its wall mount cradle. In addition to the RF remote the
appliance has a single auxiliary On/O button on the unit. When not in operation it is in a standby
mode unless it is physically isolated from the mains supply.

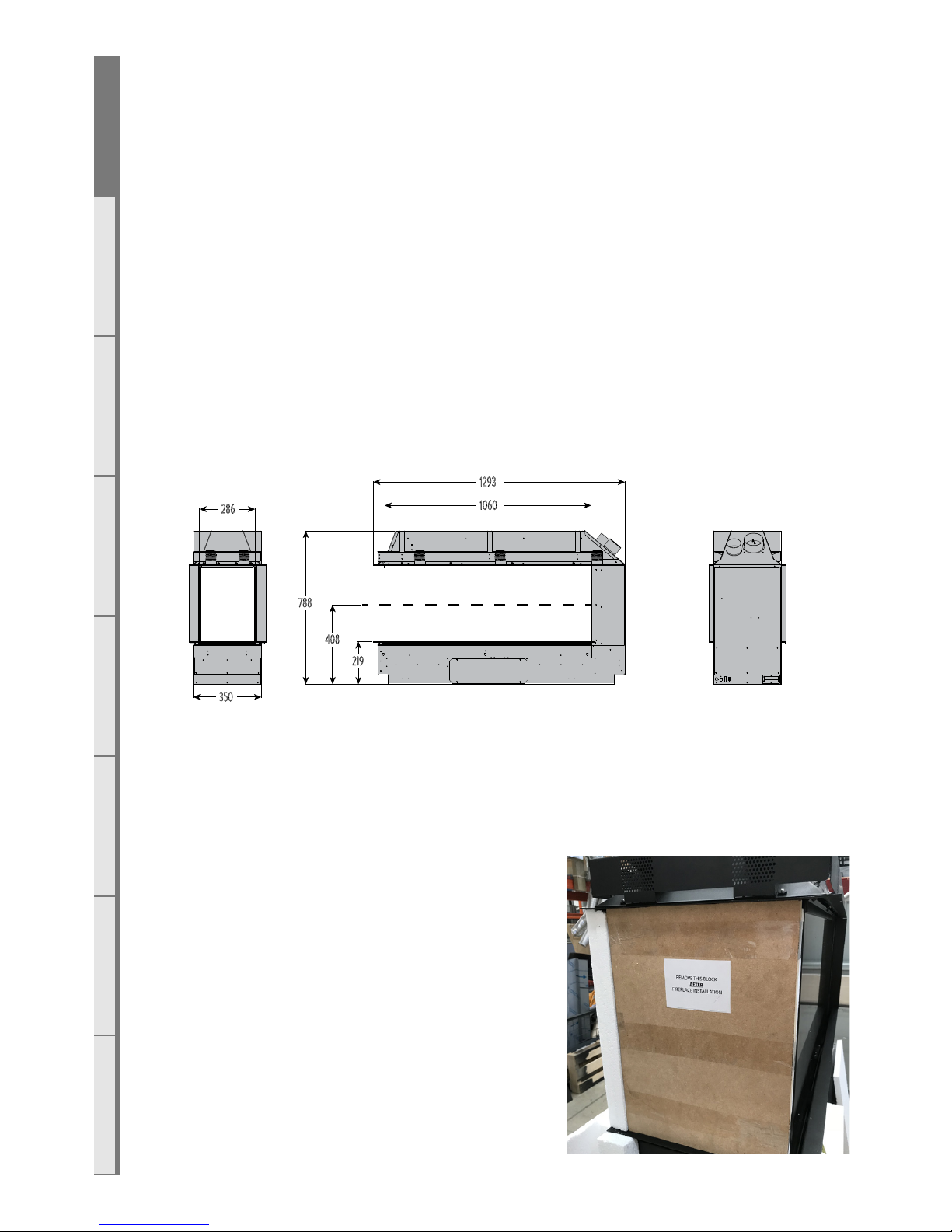

A2 Product Dimensions
NOT TO BE MISTAKEN FOR CAVITY DIMENSIONS.
All dimensions are in mm.
For more detail, contact the Escea architectural advisory team
Email : [email protected]
Phone : [phone]
Note : Keep this wooden support in place
until install has been completed.
ENSURE WOODEN SUPPORT IS REMOVED
ONCE FIRE IS INSTALLED
408
1060
1293
219
788
286
350
788 min*
1270 min*
350 min*
45 max*
396 396
1119
217

BACDEFGSERVICE
7
B Creating the Cavity
B1 Cavity Shape
The KS1150 Peninsula 400 is suitable for self supporting timber/steel framed cavities.
Most existing masonry cavities will not be suitable.
B2 Designing the Cavity
The following aspects must be considered when designing this installation:
• Appliance is NOT load bearing
• Appliance physical size
• Wall finishing and interaction with appliance
• Positioning of appliance in regards to wall lining (depth into wall)
• Exhaust termination aspect – horizontal / vertical and flue configuration
• Flue exhaust fan noise
• Exhaust cowl access for maintenance
• Gas pipe layout
• Gas isolation valve / pressure test point position
• Electrical isolation switch
• Home automation network connections - ethernet cable layout
The cavity and wall linings may be constructed from standard timber framing materials and do not need
to be non-combustible.* SEE SECTION F6 “Wall Linings” on page 36 FOR EXCEPTION.

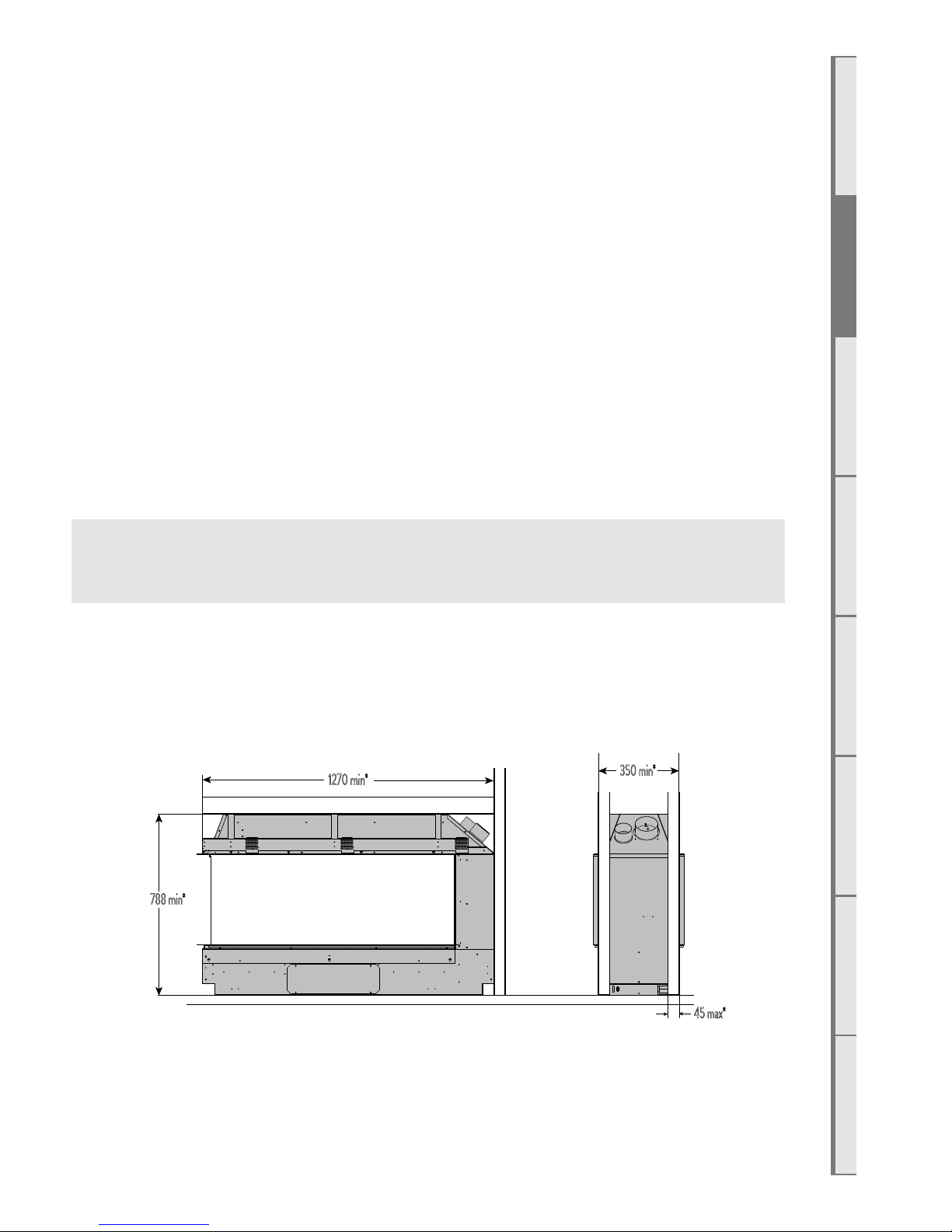

Minimum Framing Dimensions
Note: Dimensions shown do not include allowances for clearance to combustibles to the flue.
This KS1150 Peninsula 400 fire is to be installed prior to any wall lining.
The wall lining is the very last task to be completed in this installation.
408
1060
1293
219
788
286
350
788 min*
1270 min*
350 min*
45 max*
396 396
1119
217

B
A C D E F G SERVICE
8
B3 Hearth
A hearth is not required.
B4 Cavity Base
This appliance MUST be fully supported on its base, over the entire area of the
underside of the appliance. The base must also be level and strong enough to
support the total product weight, which is approximately 150kg.
The fireplace can be recessed into the ground but must maintain the clearances
detailed in the diagram (shown right) for any combustible flooring materials.
B5 Wall linings
Only after all applicable sections up to section F5 “Flame Picture” on page 35 have been
completed, can you commence with the final wall linings detailed in section F6 “Wall Linings” on page
36.
Wall lining cutout dimensions around the glass must be adhered to.
Please refer to section F6 “Wall Linings” on page 36 for wall finishing dimensions surrounding glass.
B6 Television & Mantel Clearances
Television
The diagram (shown right) shows the recommended minimum
clearances for the location of any electrical equipment (such
as Plasma TV, LCD TV or home theatre) above a KS1100P
gas fire. A mantel/recess is not required to comply with our
recommendation of TV installation.
Note: Dimensions from the top edge of the glass frame.
Note: The television clearance recommendations are to be treated as
a suggestion of a suitable installation only. It is the responsibility of
the end user to check the installation instructions of their electrical
appliances to ensure that the location in relation to the gas fire is
suitable. Escea in no way guarantees or takes responsibility that the
recommended installation suggestion will be suitable for all electrical
or home entertainment appliances.
Mantel
Please refer to the diagram (shown right). Mantels or protruding
ledges above the heater must not be installed lower than the
dimension shown.
Note: Dimension from the top edge of the glass frame.

BACDEFGSERVICE
9
C Installing the Flue
C1 Flue Configuration (If less than 4m flue length is required)

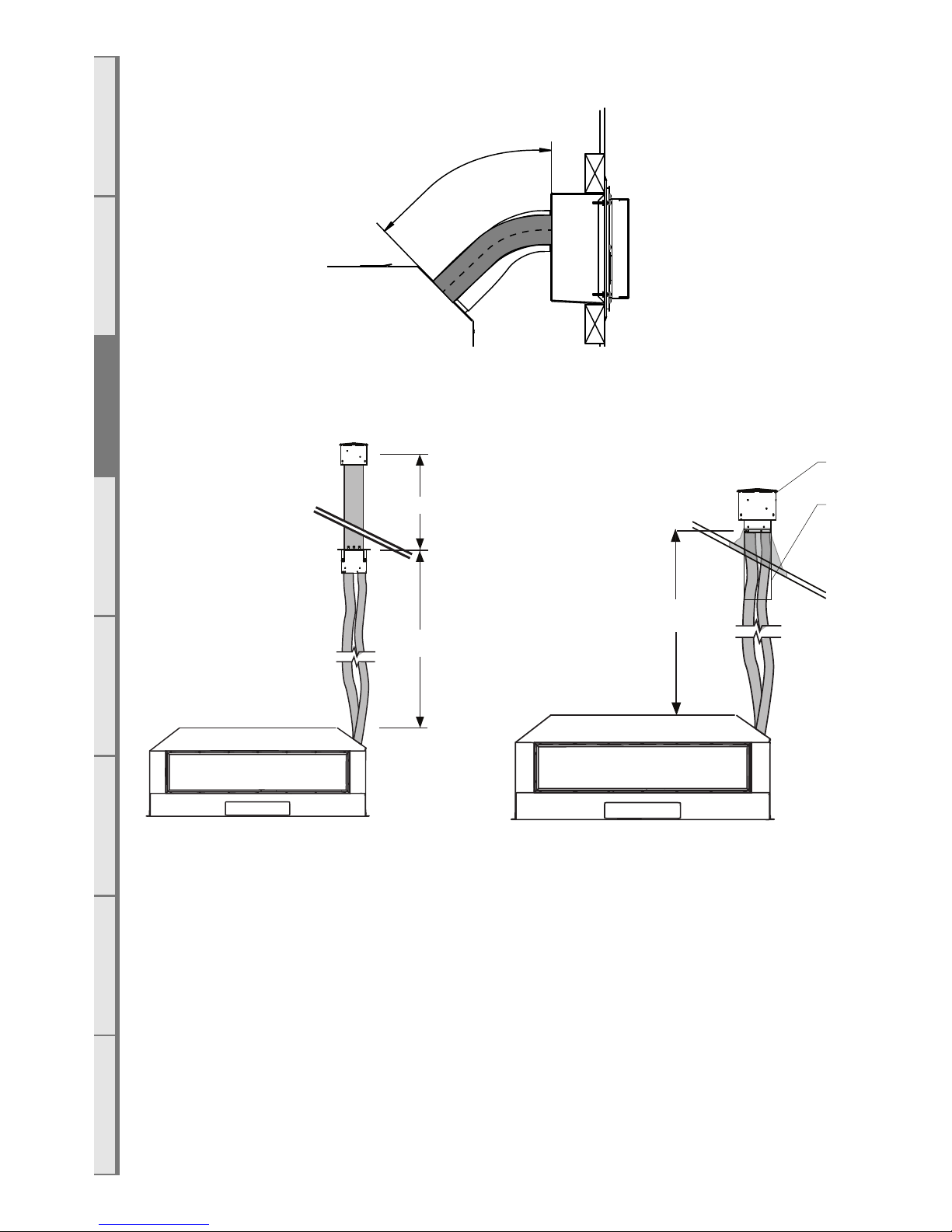

If your flue system is less than 4m long (as shown in diagrams below), then a simple aluminium flexible
flue is required. If you wish to install a longer flue run, up to 12m, see section C2 “Flue Configuration
(If more than 4m flue length is required)” on page 11.

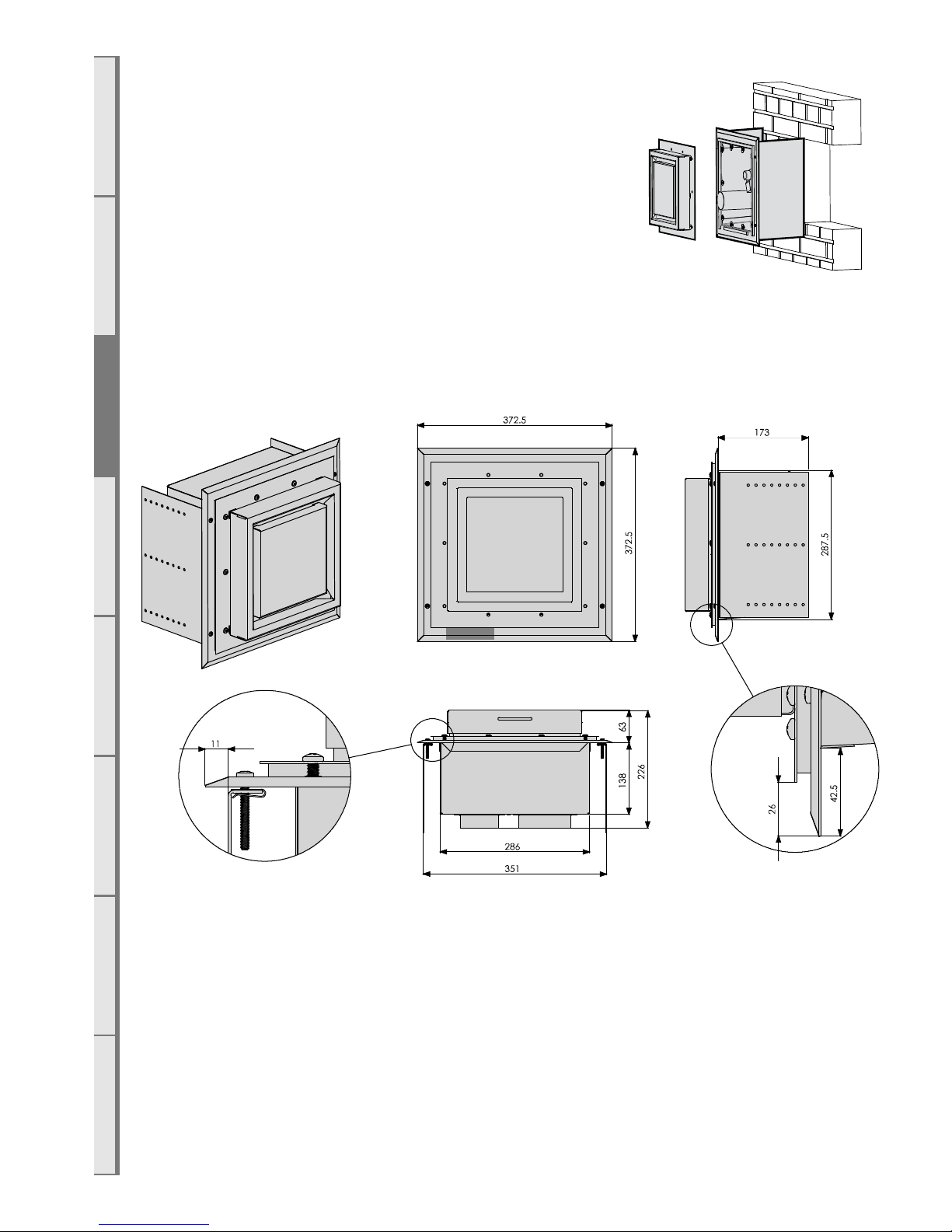

Horizontally Terminated: Utilises the Escea horizontal power flue enclosure kit.
The horizontal oset of the terminal can be any amount up to the total flue length listed below. Please
consult with Escea’s technical sta if your intended flue configuration falls outside of the bounds of
the flue configurations shown below.
Note: When flueing above the fire, the pipe must slope towards fire - NOT towards the terminal. Also when
flueing below the fire, the pipe must slope towards the terminal - NOT towards the fire.
X
Y
X+ YMaximum = 4m
YMaximum = 1.5m
YMinimum = 0m
XMaximum = 4m
XMinimum = 0m
X+ YMinimum = 0.4m
4m MAX Y
X
X + Y = 4m MAX
= 0.4m MIN
1.2m Co-axial Flue

B
ACD E F G SERVICE
10

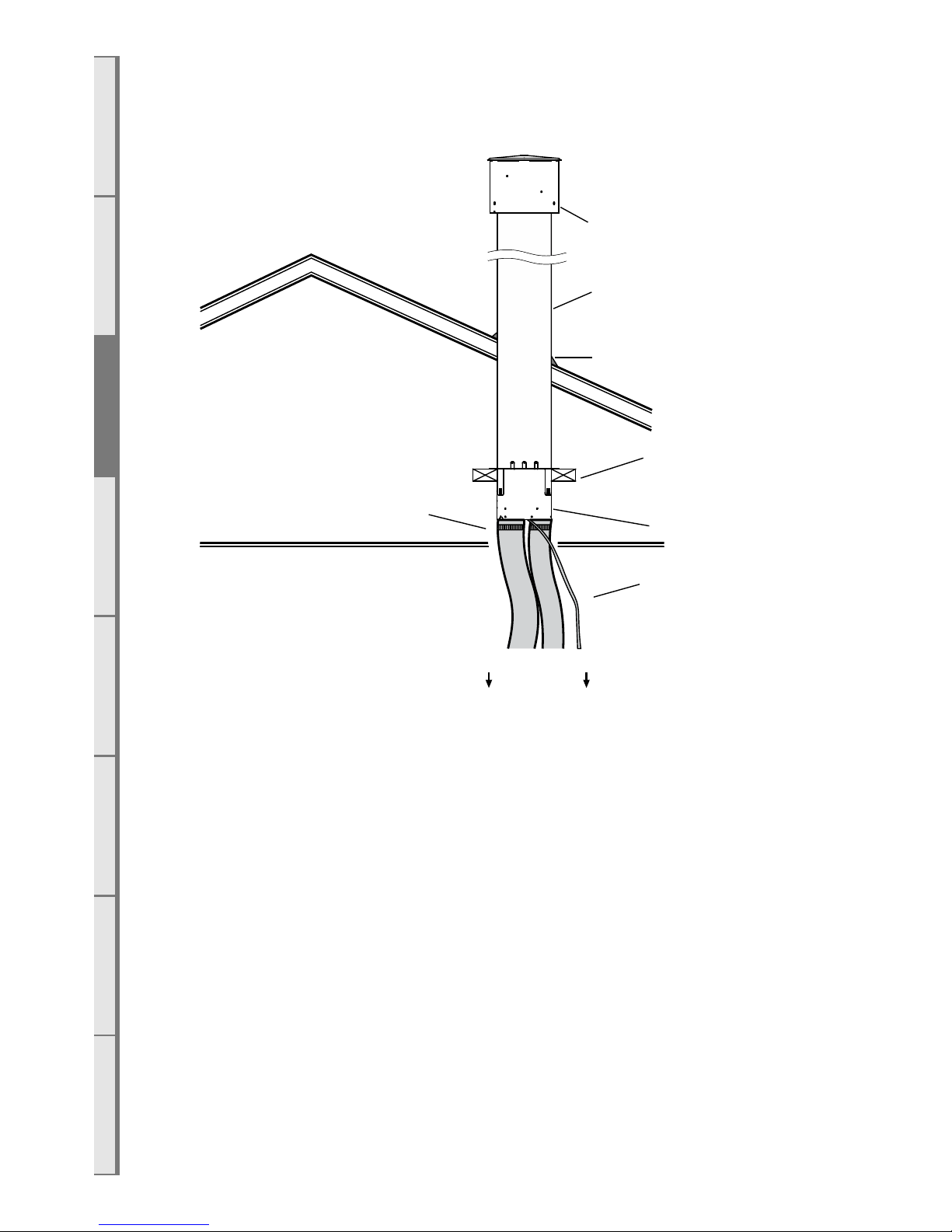

Vertically Terminated: Utilises the Escea universal vertical power flue enclosure kit.
0.4m Min.
4m Max.
Overall ue length:
Liner
UVP Unit
4m MAX
1.2m Co-axial Flue
4m MAX
Vertical PowerFlue
Cowl (Duravent)
External
4m MAX
1.2m Co-axial Flue
4m MAX
1.2m F-F Liner
UVP Cowl
Vertical PowerFlue
Cowl (Duravent)
Internal

BACDEFGSERVICE
11
C2 Flue Configuration (If more than 4m flue length is required)
IIf your flue system is greater than 4m long (as shown in diagrams below), then a flexible flue with
condensate trap and rigid PolyPro tube flue lengths is required. If you are installing a shorter flue run,
see section C1 “Flue Configuration (If less than 4m flue length is required)” on page 9.
FOR MORE INFORMATION ON INSTALLATION OF THE POLYPRO FLUE, SEE ‘POLYPRO
FLUE INSTALLATION INSTRUCTIONS’ AVAILABLE ON:
WWW.ESCEA.COM
OR SUPPLIED WITH THE FLUE.
FOR POLYPRO COMPONENT GUIDES, THESE ARE AVAILABLE ON:
WWW.ESCEA.COM
TITLED:
HORIZONTAL FLUE COMPONENT GUIDE &
VERTICAL FLUE COMPONENT GUIDE
4m
Ø75mm / Ø100mm
Flexible Flue
1.2m Co-axial Flue
Vertical Powerue
12m MAX
Ø100mm
Condensate Trap
Ø75mm / Ø100mm
PP Tube
ESCEA WALL
TERMINAL
Ø75mm / Ø100mm
PP Tube
Ø100mm
Condensate Trap
Ø75mm / Ø100mm
Flexible Flue
4m
12m MAX
4m
Ø80mm / Ø100mm
Flexible Flue
12m MAX
Ø100mm
Condensate Trap
Ø80mm / Ø100mm
PP Tube
Liner
UVP Unit
4m
Ø75mm / Ø100mm
Flexible Flue
12m MAX
Ø100mm
Condensate Trap
Ø75mm / Ø100mm
PP Tube
1.2m F-F Liner
UVP Fan Unit
UVP Cowl

B
ACD E F G SERVICE
12
C3 Installing the Horizontal Powerflue Wall Terminal option
The horizontal powerflue wall terminal must be installed in the correct
orientation. This allows for the correct operation of the flue system
and prevents the ingress of water.
The horizontal powerflue wall terminal must be weathertight when
installation is complete to prevent damage to the dwelling. It must be
installed by a suitably qualified person.
Fit the horizontal powerflue wall terminal into the hole and fix in place,
making sure the installation is sealed appropriately to prevent the ingress of water from outside the
wall cladding. Take notice of the label on the termination which shows the correct orientation of the
terminal.
Note: It is the responsibility of the installer to ensure the horizontal powerflue wall terminal is installed to all
relevant building codes to ensure weather tightness.

BACDEFGSERVICE
13
Creating the Hole in the Outside Wall
When cutting the hole in the outside wall, be mindful of how the installation of
the horizontal powerflue wall terminal will be finished; the installation must be
weatherproof.
Ideal Hole/Cavity Size for Horizontal Powerflue
Without Side Brackets With Side Brackets
X 298mm 360mm
Y 298mm 298mm
Z 175mm Excluding allowance for flue which exits here
The horizontal powerflue wall terminal can be attached to the wall in two ways:
A) From the front of the terminal:
B) By attaching the optional wall terminal installation brackets to the sides of the cavity and attaching
the horizontal powerflue wall terminal to these, from the front:
Attach the Ø100mm and Ø75mm flexible aluminium flues to the spigots on the rear of the horizontal
powerflue wall terminal using the hose band clamps supplied. Plug the powerflue electrical cable into
the back of the horizontal powerflue wall terminal.
For information on the PolyPro flue, see the installation manual which is supplied with the flue
components.
Ensure that the electrical cable is firmly secured to the wall terminal or building to prevent damage or
disconnection if pulled.

B
ACD E F G SERVICE
14
Fit the horizontal powerflue wall terminal into the hole and fix it in place, making sure the installation is
sealed appropriately to prevent the ingress of water from outside the wall cladding.
Note: It is the responsibility of the installer to ensure the horizontal powerflue wall terminal is installed to
all relevant building codes to ensure weather tightness. This may necessitate the use of appropriate flashing
material where appropriate.
IMPORTANT: Ensure that flashings do not restrict the air intake slot around the periphery of the
cowl.
How to Flash the Horizontal Powerflue
The following diagrams are excerpts from the Escea architect drawings and are available in full on our
website. These diagrams are recommendations, and your installation must comply with any local or
national building codes.
Head and Sill scale 1:5
Jamb scale 1:5
framing member with
wall wrap and flashing
tape over
cladding on cavity
batten
typical head flashing with
stop ends to comply with
relevant building code
horizontal powerflue
unit
terminal fixing brackets
(shown dashed) fixed
to framing
flashing tape over wall
wrap to opening
seal air gap to opening
terminal screw fixed to flange
with flange fixed to studs at
fixing brackets
packer to lift terminal off
sill
sill cover to cladding to comply
with relevant building code
300 min
360 min
10
cladding on cavity
batten
10
horizontal powerflue
unit
terminal screw fixed to flange
with flange fixed to studs at
fixing brackets
terminal fixing
brackets screw fixed
into framing
framing member with
wall wrap and flashing
tape over
continuous sealant strip
to jambs
scriber or plug may be
required - dependent on
cladding type
seal air gap to opening
cowl
198
138 60
scale: date:
ecn: drawn:
drawing no: revision:file:
Horizontal Powerflue Detail
as shown ECN-2155 EDA-0006 MGD-Series FLUE Master File.dwg V. 02 08.12.2017
Head and Sill scale 1:5
Jamb scale 1:5
framing member with
wall wrap and flashing
tape over
cladding on cavity
batten
typical head flashing with
stop ends to comply with
relevant building code
horizontal powerflue
unit
terminal fixing brackets
(shown dashed) fixed
to framing
flashing tape over wall
wrap to opening
seal air gap to opening
terminal screw fixed to flange
with flange fixed to studs at
fixing brackets
packer to lift terminal off
sill
sill cover to cladding to compl
y
with relevant building code
300 min
360 min
10
cladding on cavity
batten
10
horizontal powerflue
unit
terminal screw fixed to flange
with flange fixed to studs at
fixing brackets
terminal fixing
brackets screw fixed
into framing
framing member with
wall wrap and flashing
tape over
continuous sealant strip
to jambs
scriber or plug may be
required - dependent on
cladding type
seal air gap to opening
cowl
198
138 60
scale: date:
ecn: drawn:
drawing no: revision:file:
Horizontal Powerflue Detail
as shown ECN-2155 EDA-0006 MGD-Series FLUE Master File.dwg V. 02 08.12.2017

BACDEFGSERVICE
15
C4 Installing the Internal Vertical Powerflue (UVP)
Note: For information regarding an external install of the UVP, go to section C5
“Installing the External Vertical Powerflue (UVP)” on page 17.
The Universal Vertical Powerflue (UVP) internal configuration is designed to
have the fan, mounted within the roof space of the house, and the vertical
Ø225mm diameter liner, containing a Ø100mm flexi, penetrate through
the roof. The UVP internal conversion kit comes with a 1200mm liner that is
specific to the internal installation and must always be used.
Note: The flue setup must comply with either section C1 “Flue Configuration (If less
than 4m flue length is required)” on page 9 or C2 “Flue Configuration (If more
than 4m flue length is required)” on page 11.
Use standard methods to flash the roof penetration. The installation must be
weatherproof and conform to all local council standards including powered flue
termination rules.
Mount the fan mount bracket (1) to the roof framing and strapping using
timber ensuring that the flue is rigid and vertical. Ensure that the mounting
timber does not obstruct access to the 3xM5 screw threads on the side of the
fan unit.
Aim to have the fan enclosure (2) mounted as high as possible, mainly to allow
sucient fall for condensation drainage if the flexi-flue is to run horizontally.
Ensure there is sucient space below fan enclosure (2) to have access to fit the
flexi-flue tubes (3) and allow flowing bends if required.
Note: The UVP-Internal and the flexi flue connections must be installed in a
location accessible for service or replacement; a service hatch or removable flashing to allow access may be
required.
Note: When installing the unit onto a flue liner, ensure the length of flue liner above the roof is the minimum
required length. ENSURE the Ø25mm restriction plate is installed on the inlet.
(1)
(2)
(3)
290
229.1
ø226.8
31.6
221.8
250.2
31.6
103.4
TIMBER MUST NOT
OBSTRUCT THESE ZONES
Head and Sill scale 1:5
Jamb scale 1:5
framing member with
wall wrap and flashing
tape over
cladding on cavity
batten
typical head flashing with
stop ends to comply with
relevant building code
horizontal powerflue
unit
terminal fixing brackets
(shown dashed) fixed
to framing
flashing tape over wall
wrap to opening
seal air gap to opening
terminal screw fixed to flange
with flange fixed to studs at
fixing brackets
packer to lift terminal off
sill
sill cover to cladding to compl
y
with relevant building code
300 min
360 min
10
cladding on cavity
batten
10
horizontal powerflue
unit
terminal screw fixed to flange
with flange fixed to studs at
fixing brackets
terminal fixing
brackets screw fixed
into framing
framing member with
wall wrap and flashing
tape over
continuous sealant strip
to jambs
scriber or plug may be
required - dependent on
cladding type
seal air gap to opening
cowl
198
138 60
scale: date:
ecn: drawn:
drawing no: revision:file:
Horizontal Powerflue Detail
as shown ECN-2155 EDA-0006 MGD-Series FLUE Master File.dwg V. 02 08.12.2017

B
ACD E F G SERVICE
16
The UVP-Internal kit is intended for use within an accessible roof space or ‘chimney’ construction.
Service access must be provided.
Ensure installation complies with relevant building codes and regulations
To appliance
Typical Installation UVP Cowl
‘Decktite’ or similar ashing
1.2m F-F Liner
Hose band clamps
Ø75mmØ100mm
Ensure Power Flue unit
is securely braced using
integral brackets.
Roof Space
Power cord to
appliance
UVP Fan Unit

BACDEFGSERVICE
17
C5 Installing the External Vertical Powerflue (UVP)
Note: For information regarding an internal install of the UVP, go to section C4 “Installing the Internal
Vertical Powerflue (UVP)” on page 15.
The UVP is designed to have the enclosure containing the fan unit mounted externally; an example is
shown below.
Note: When installing the unit onto a flue liner, ensure the length of flue liner above the roof is the minimum
required length. ENSURE the Ø25mm restriction plate is installed on the inlet.
The cowl surround should be fixed in place as shown.
Mount the UVP kit to the top of a chimney flashing plate or penetrate the roof with an optional flue
liner accessory and fit the UVP kit over the flue liner, sealing the penetration with a decktite or similar
flashing. Ensure the terminal is vertical and rigidly mounted and the flexi flue attached below is fixed to
the terminal spigots using the supplied hose clamps. The flexi flue is held in place by drilling 3 holes and
screwing 3 self tapping screws evenly around each hose band clamp (as shown in the picture below).

B
ACD E F G SERVICE
18
C6 Installing in Accordance with Relevant Codes
The location of the horizontal powerflue wall terminal must be installed in accordance with AS/NZS
5601 and any other relevant building codes. If possible, avoid installing the horizontal powerflue wall
terminal in areas exposed to high winds and extreme weather.
Some of the minimum clearances for a fan assisted wall terminal are listed below; please refer to
AS/NZS 5601 Gas installation standard for full guidance on the design of the flue system. Where
possible allow a greater clearance.
A Below eaves, balconies and other projections 200mm
B From the oor, above a balcony or other surface 300mm
C From a return wall or external corner 300mm
D From a gas meter or regulator vent 1000mm
E From electricity meter or fuse box 500mm
F From a drain pipe or soil stack 75mm
G Horizontally from any building structure or obstruction 500mm
H From any other ue terminal or combustion air intake 300mm
J Horizontally from any moving window, door, non-mechanical air inlet, or any other
opening into a building with the exception of sub oor ventilation
300mm
K From a mechanical air inlet or spa blower 1000mm
L Vertically below any moving window, door, non-mechanical air inlet, or any other
opening into a building with the exception of sub oor ventilation
300mm
N Horizontally from a roof light 600mm
O Vertically from a roof light 500mm
Q Vertically from a flat roof 500mm
R Horizontally from a vertical structure 500mm
S Below a roof window 2000mm
T Above or either side of a roof window 600mm
U From a dormer window 1500mm
V Above the apex of the roof (see note 1 on following page) 300mm
W From an open flue 1500mm
N
R
F
S
W
U
A
V
K
Q
E
J
J
A
H
E
D
C
C
A
O
G
JL
B
M
P
Prohibited area for flues is
below or Distance 'E' to
the left andright of the
Electricity meter
or fuse box
M =Gas Meter
P = Electricity meter or Fuse box

BACDEFGSERVICE
19
Notes:
1) Should the flue not extend past the apex, the top of the flue should extend at least 400mm from the roof
(or 500mm in regions with heavy snow).
2) The installation of a flue into a carport is not recommended.
3) The flue terminal will get very hot when in use. Precautions should be taken to protect people and animals
from injury.
C7 Running the Flue
A 50mm clearance to combustibles must be maintained from the exhaust flue for the first 1.5m of
flexi flue from the appliance (see diagram below).
Run the Ø100mm and Ø75mm flexible aluminium hoses from the cavity to the rear of where
the horizontal or vertical powerflue terminal will be installed. Allow enough stretch in the flexible
aluminium flue to allow it to protrude through the wall/ceiling/roof/flue liner to enable it to be
connected to the powerflue terminal. The flue should be expanded at each end in order for the flue to
be attached to the fire/powerflue. It is advisable to secure the flexi flue at regular intervals to prevent
vibration, movement and sagging. Steel wire or ‘builders strapping’ may be used for this purpose.
Note: The flexible flue is shipped in a ‘compressed’ form. Extend it to your desired length by stretching.
For information on running the PolyPro flue , see the installation manual which is supplied with the flue
components.
FOR MORE INFORMATION ON INSTALLATION OF THE POLYPRO FLUE, SEE
‘POLYPRO FLUE INSTALLATION INSTRUCTIONS’ AVAILABLE ON:
WWW.ESCEA.COM
OR SUPPLIED WITH THE FLUE.
FOR POLYPRO COMPONENT GUIDES, THESE ARE AVAILABLE ON:
WWW.ESCEA.COM
TITLED:
HORIZONTAL FLUE COMPONENT GUIDE &
VERTICAL FLUE COMPONENT GUIDE
1.5m

B
ACD E F G SERVICE
20
C8 Running the Powerflue Electrical Cable
Note: The powerflue terminal is powered from the appliance and must be connected to the appliance with the
supplied electrical cable only.
Note: Ensure that the appliance power supply is disconnected before making the connection to the terminal
The supplied electrical cable is 7m long; flue extension kits also include a powerflue electrical cable
extension.
Run the electrical cable from the cavity where the appliance will be installed to the hole in the outside
wall. Ensure it is not draped over, or in contact with, the outer shell of the appliance or the flues.
The cable must be kept clear from any other possible heat sources, sharp edges, or moisture. Fix it
appropriately and allow enough cable to be able to pull both the appliance and the powerflue terminal
out from their installed positions.
END OF SECTION C
By the end of this section, you should have:
□A weather-tight installed powerflue terminal with clearance as specified by AS/NZ5601
□Reasonable access to the terminal for maintenance purposes
□Flue attached to the powerflue terminal leading back to the appliance with the correct
flue clearances
□The electrical cable from the powerflue terminal run back to the appliance cavity in an
electrically safe manner
