Escea AF700 Installation and maintenance instructions

Installation / Service Instructions
For the latest documentation, visit www.escea.com 630301_3
AF 700
Gas Fireplace

Important:
The appliance shall be installed in accordance with;
• This installation instruction booklet
• Local gas tting regulations
• Municipal building codes
• Electrical wiring regulations
• Any other relevant statutory regulations.
• AS/NZS 5601:2013 Gas Installations
NOTE: NOT INTENDED FOR FIREPLACE INSERT
WARNING:
This appliance must be installed by a qualied person.
Do not modify this appliance.
This appliance is not intended for use by young children or inrm persons unless they have
been adequately supervised by a responsible person to ensure that they can use the appli-
ance safely.
Young children should be supervised to ensure that they do not play with the appliance.
Failure to follow these instructions could cause a malfunction of the heater, which could result
in death, serious bodily injury, and/or property damage. Failure to follow these instructions
may also void your re insurance and/or warranty.
Who can install this product:
Installation must be carried out by a registered installer who, on completion of the instal-
lation, must issue a:
AUS: Certicate of Compliance
NZ: Certicates that comply with the latest legislation
in accordance with national and/or local codes. If these are not issued then the Escea war-
ranty may be void.
Warranty Repair and Annual Servicing:
Warranty repair work must be carried out by a recognised gas re technician. It is recom-
mended that recognised Escea Gas Fire Technicians are also used to carry out annual servicing
requirements (particularly during the warranty period). For contact details of recognised
Escea Gas Fire Technicians in your area, please contact the retailer from whom the appliance
was purchased.
The heater must be installed according to these instructions and in compliance with all
relevant building, gas tting, electrical and other statutory regulations (eg. AS/NZS 5601). Any
shortcomings in the appliance and ue installation will be the responsibility of the installer,
and Escea will not be accountable for any such failings or their consequences.
Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: [phone]
For contact details of your local escea distributor or dealer please visit:
www.escea.com [email protected]om

PRODUCT SPECIFICATION
MODEL NAME AF700
Description of Appliance Gas Fire Heater
Star Rating 3-4 Stars
A/NZ Approval No. AS 4553
Gas Type Natural Propane ULPG
Gas input High 25 MJ/hr 25 MJ/hr 22 MJ/hr
Low 11 MJ/hr 11 MJ/hr 9.5 MJ/hr
Inlet Pressure Max 5.0 kPa 5.0 kPa 5.0 kPa
Min 1.13 kPa 2.75 kPa 2.75 kPa
Operating Pressure High 1.0 kPa 2.30 kPa 2.30 kPa
Low 1.06 kPa 2.36 kPa 2.36 kPa
Burner Jet Size Front: 1.7mm
Rear:1.4mm
Front: 1.05mm
Rear:0.9mm
Front: 1.02mm
Rear:0.85mm
Pilot injector #42 #27 #27
Appliance Dimensions (mm)
Width 693.0 mm
Height 596.0 mm
Depth 390.0 mm
Weight Kg 45 kg
Ignition System Electronic Ignition to pilot system
Escea PCB
Ignition Activation 7 secs (approx)
Flame Safeguard Flame Rectication
Consumption 84W @ 0.35A 230V
Remote controls Yes
Timers Yes
Clock Yes
Function lock / child Yes
Temperature control Yes
Connections
Electric 230V AC
Gas 1/2" BSPP female lower right of replace chassis
Flue Type Simpson Duravent Direct Vent (False Chimney)
Flexi Flue (Masonry)
Flue Size 6" mm Outer, 4" mm Inner (Direct Vent)
4" and 3" Flexi Flue (Masonry)
Spigot
Location Rear and centre
Data badge location On Chassis Base

A Installation Process and Product Description 6
A1 Product Description 6
A2 Recommended Installation Process 6
A3 Product Dimensions 7
B Creating the Cavity 8
B1 Cavity Shape 8
B2 Floor Clearances 9
B3 Corner Installations 10
B4 Hearth 10
B5 Cavity Base 10
B6 Wall Linings 10
B7 Mantle Clearance 11
B8 Television Clearances 11
B9 Distance from Fireplace base to Fascia base 11
C Installing the ue 12

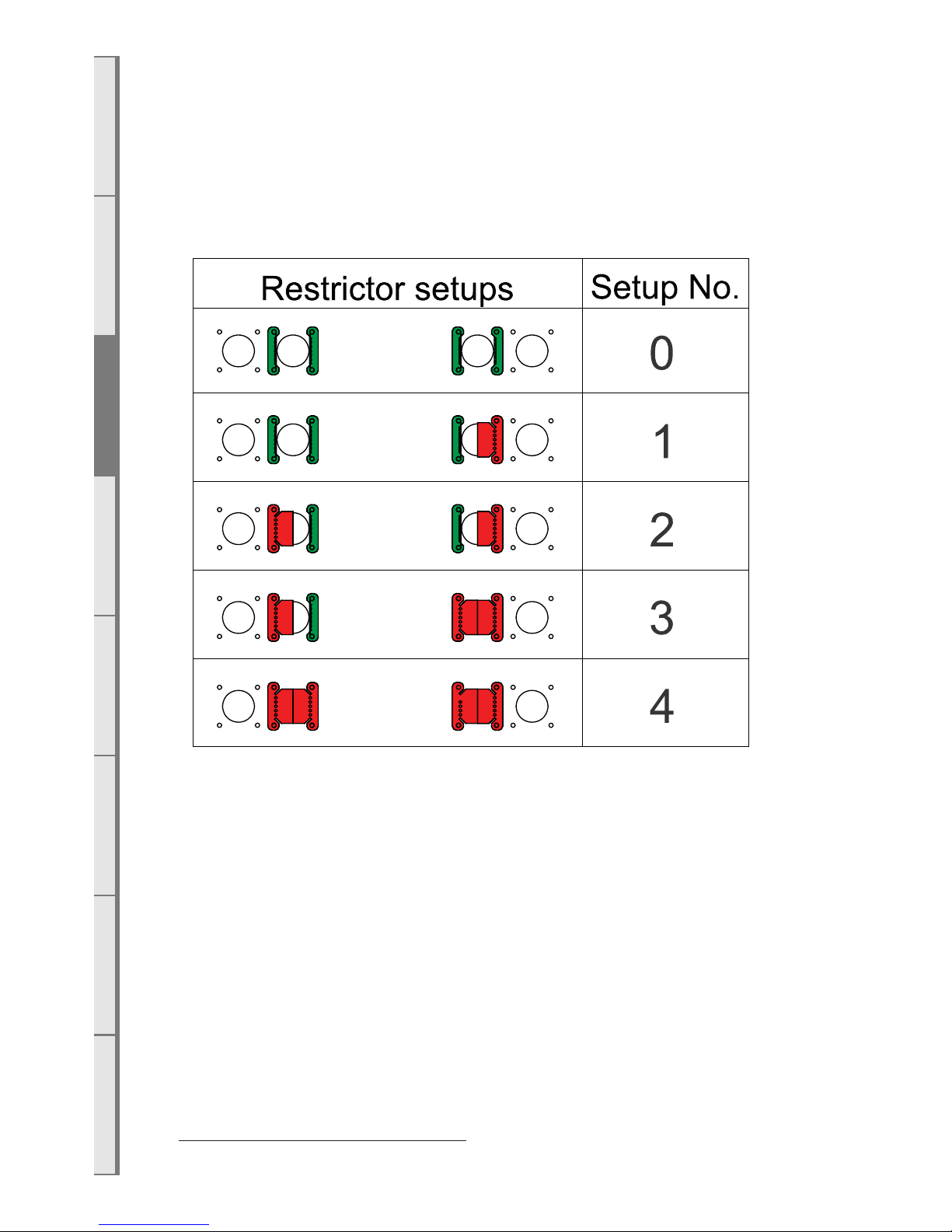

C1 Flue Restrictor Adjustment 12
C2 Installing False Cavity Flueing 12
C3 Supporting the Direct Vent Flue System 14
C4 Sealing ‘Through Roof’ and ‘Through Wall’ Penetrations 14
C5 Twist Locking Procedure 15
C6 Installing the Converter Box 15

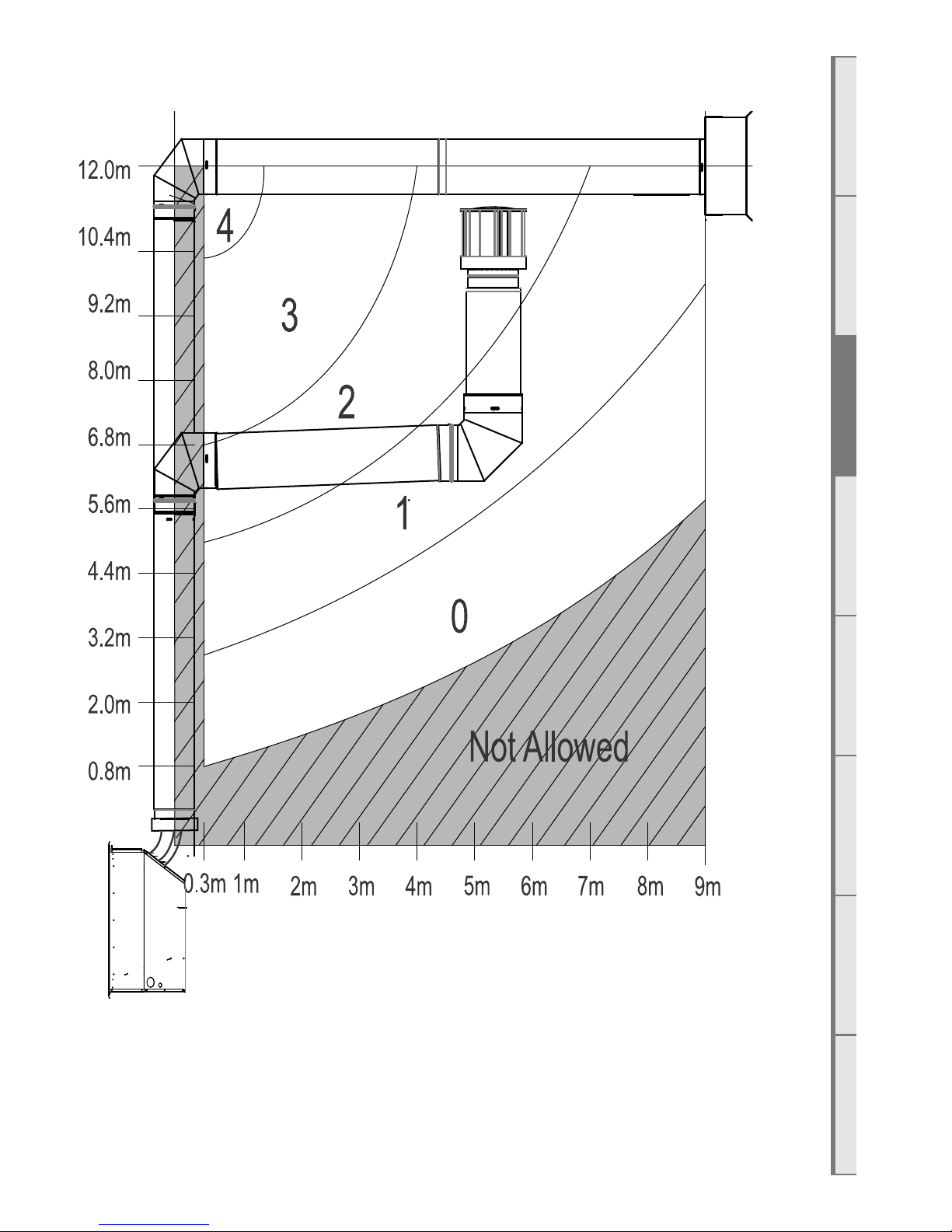

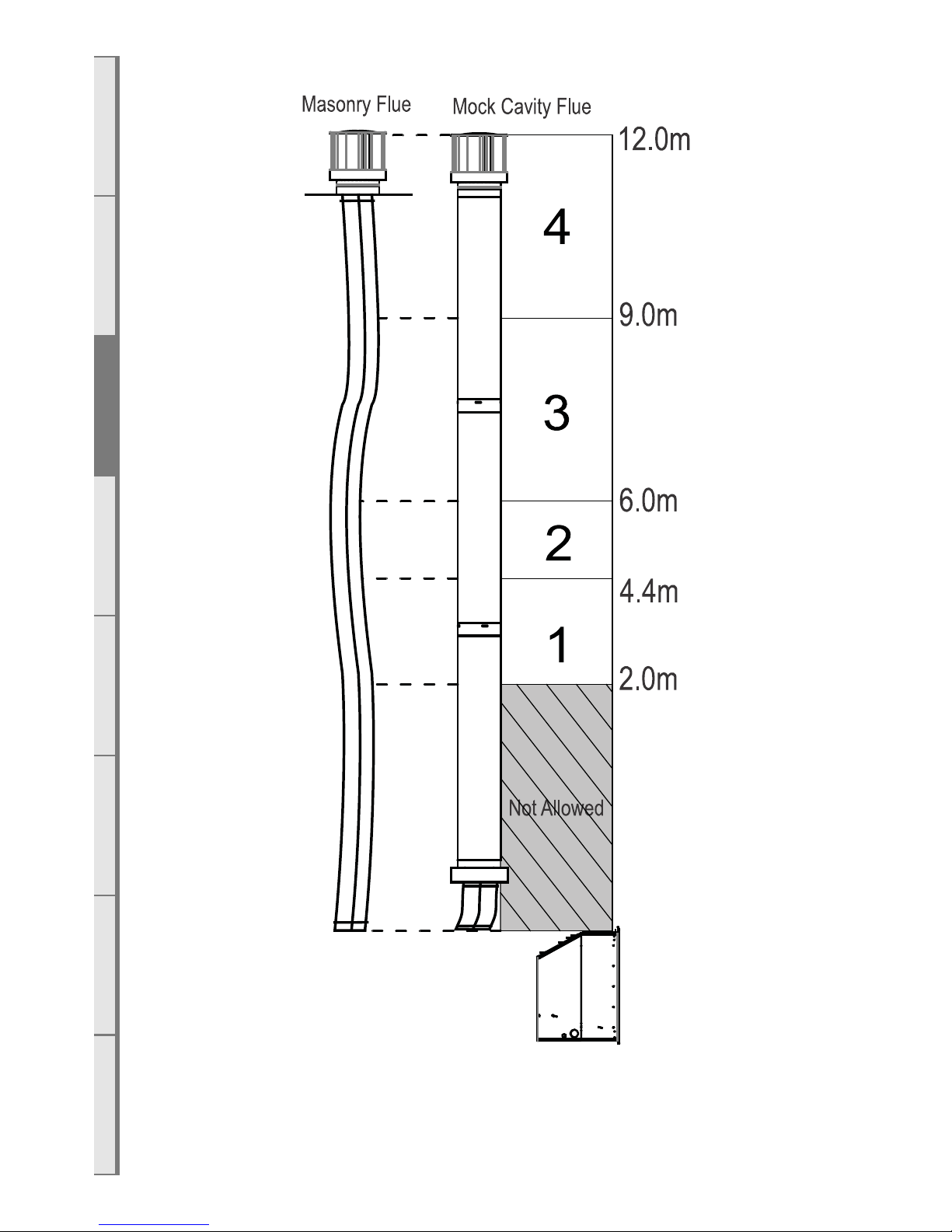

C7 Vertically Terminating Flue Restriction Diagram 18
C8 Horizontally Terminating and Vertically Terminating with a
Horizontal Oset Flue Restriction Diagram 19
C9 Flue Terminal Clearances 20
C10 Connecting the Flexi Flue to the Masonry Terminal Kit 23
C11 Setting up the Flue Spigot Plate 24
D Installing the Electricity and Gas to the Appliance 25
D1 Power Supply 25
D2 Removing the Glass 25
D3 Removing the Burner Tray 26
D4 Gas Pipe Sizing 27
D5 Gas Pipe Position 27
E Installing the Appliance 28
E1 Installation 28
E2 Connecting the Flue 28
E3 Removing the Burner Tray 29

E4 Fixing the Appliance to the Base 30
E5 Network Cable 30
E6 Connecting the Gas Pipe to the Regulator 31
E7 Gas Isolating Valve 31
E8 Pressure Test Point 31
E9 Checking the Operating Pressure 32
E10 Converting the Appliance Gas Type 33
E11 Flame Picture 34
E12 Coal Fuelbed Installation 34
E15 Log Fuelbed Installation 35
E14 Home Automation Setup 35
E15 Home Automation Operation 36
F Fitting the Fascia and Finishing Installation 37
F1 Fitting the Fascia 37
F2 Locating Wall Mount Cradle for Wireless Control 37
F3 Operating the Appliance for the First Time 38
F4 Normal Operating Sounds and Smells 39
F5 Cleaning the glass 39
G Freestanding Unit (FS730) Installation 40
G1 Product Dimensions 40
G2 Hearth and Clearances 40
G3 Flue Installation 41
G4 AF700 Fireplace Installation into FS730 Freestanding Unit 42
H Installation Checklist 43
S Service Manual 44
S1 Error Codes 44
S2 Serial Number 45
S3 Checking Operating Pressure 45
S4 Cleaning the Fascia 46
S5 Cleaning the Log Set and Glass 46
S6 Removing or Cleaning Fan 46
S7 Removing the Electronic Tray 47
S8 Replacing the Thermal Cut Out 48
S9 Replacing a Wireless Control 49
S10 Annual service procedure 50
S11 Wiring Diagram 51

B
AC D E F G SERVICE
6
A Product Description and Installation Process
A1 Product description
The Escea AF700 gas fire is a room sealed gas appliance designed to be built into a masonry cavity or a
false chimney cavity. The AF700 is provided with stando rails installed to the outside of the chassis to
attain a zero clearance rating. The appliances is flued using co-linear flexible aluminium flue for mason-
ry installations and 4” x 6” co-axial direct vent steel flue for false chimney installations. The user will
control their fire with the Radio Frequency (RF) remote that will normally be located in it’s wall mount
cradle. In addition to the RF remote the appliance has a single auxiliary On/O button on the unit.
When not in operation it is in a standby mode unless it is physically isolated from the mains supply.
A2 Recommended Install Process
The following diagram illustrates the steps required to install your gas fire.
The sequence in which you choose to do these tasks will vary depending on your individual scenario.
Please read these instructions fully before proceeding with the installation.
Masonry Installation
Modifying the
cavity to suit
Install electrical / gas
connections and ue
system
Install appliance and
nish cavity
Finish installation,
t fascia and test
appliance
Section B Section C, D Section E Section F
False Cavity Installation
Create The Framed-
Cavity
Install electrical / gas
connections and ue
system
Install appliance and
nish cavity
Finish installation,
t fascia, test appli-
ance and clad the
cavity
Section B Section C, D Section E Section F

BACDEFGSERVICE
7

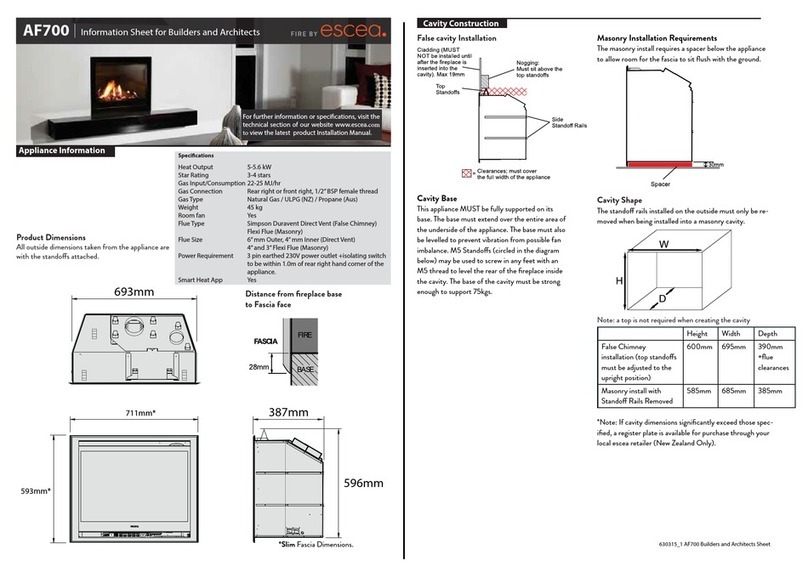

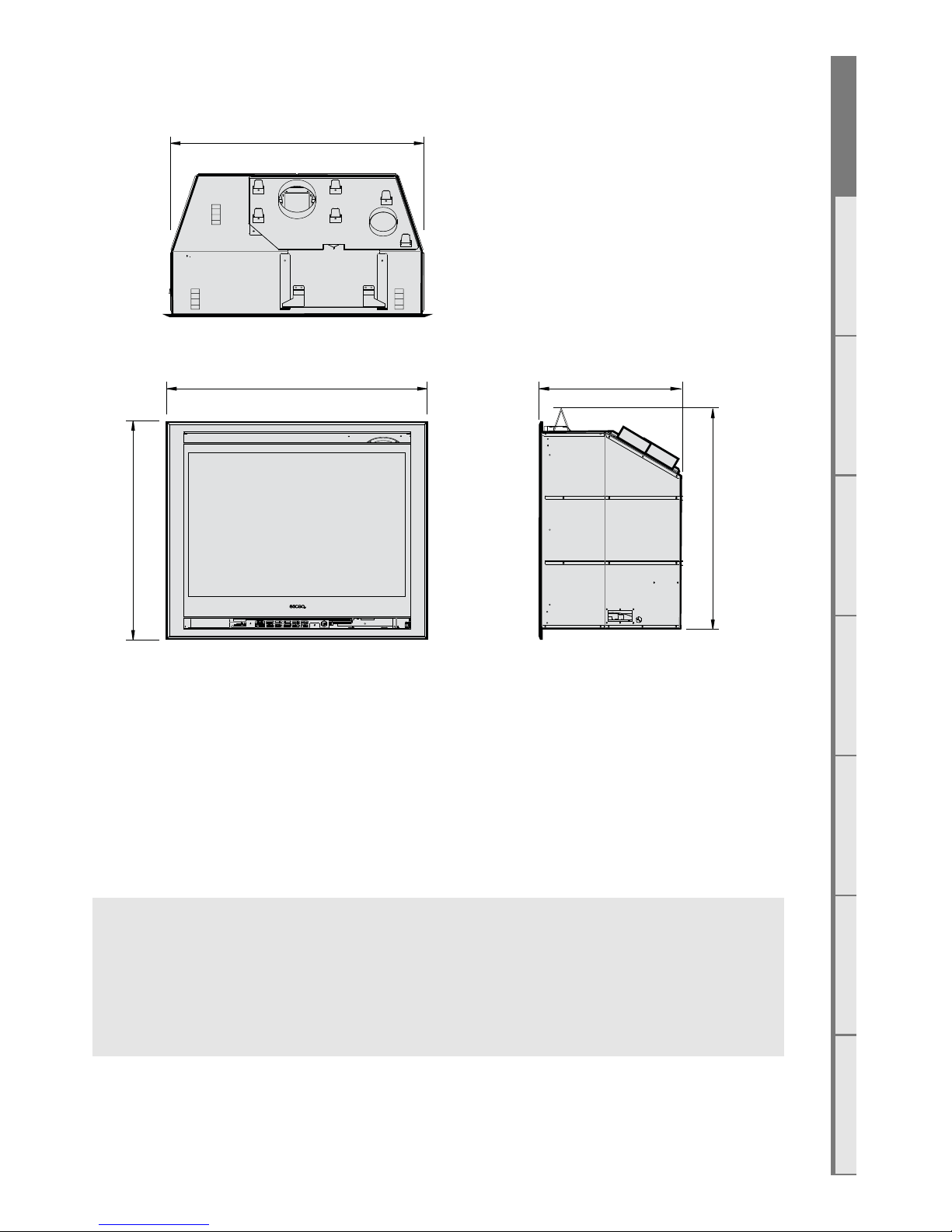

A3 Product Dimensions
All outside dimensions taken from the appliance are with the standos attached
*Fascia Dimensions.
693mm
593mm*
711mm*
596mm
387mm
END OF SECTION A
By the end of this section, you should have:
A framed false cavity
OR
A masonry cavity sized to suit the appliance

B
A C D E F G SERVICE
8
B Creating the Cavity

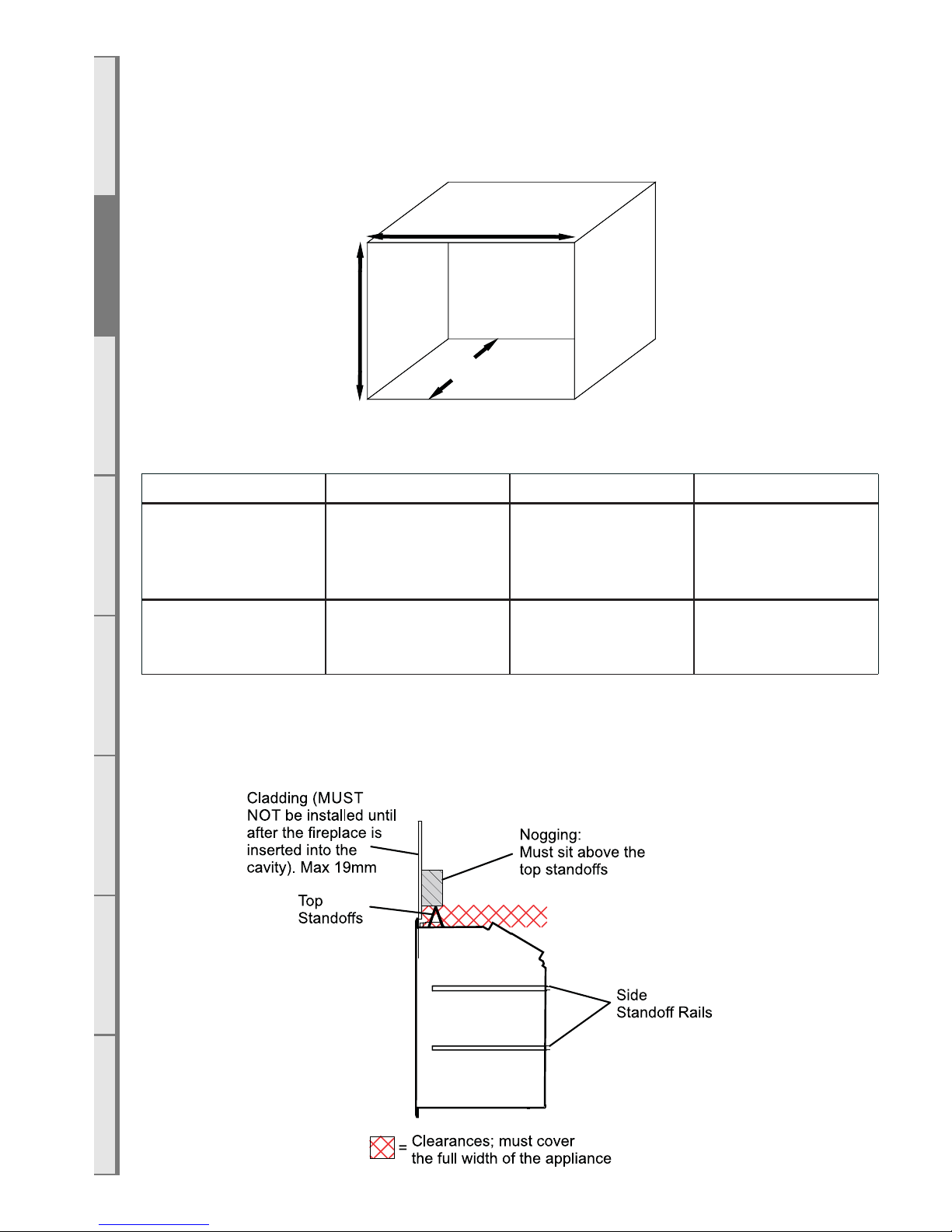

B1 Cavity Shape
The stando rails installed on the outside must only be removed when being installed into a masonry
cavity.
Note: a top is not required when creating the cavity
Height Width Depth
False Cavity
installation (top stand-
os must be adjusted
to the upright position)
600mm 695mm 390mm + flue
clearances
Masonry install with
Stando Rails Re-
moved
585mm 685mm 385mm
*Note: If cavity dimensions significantly exceed those specified, a register plate is available for pur-
chase through your local escea retailer (New Zealand Only).
False Cavity Installation Requirements
D
H
W

BACDEFGSERVICE
9
Masonry Installation Requirements

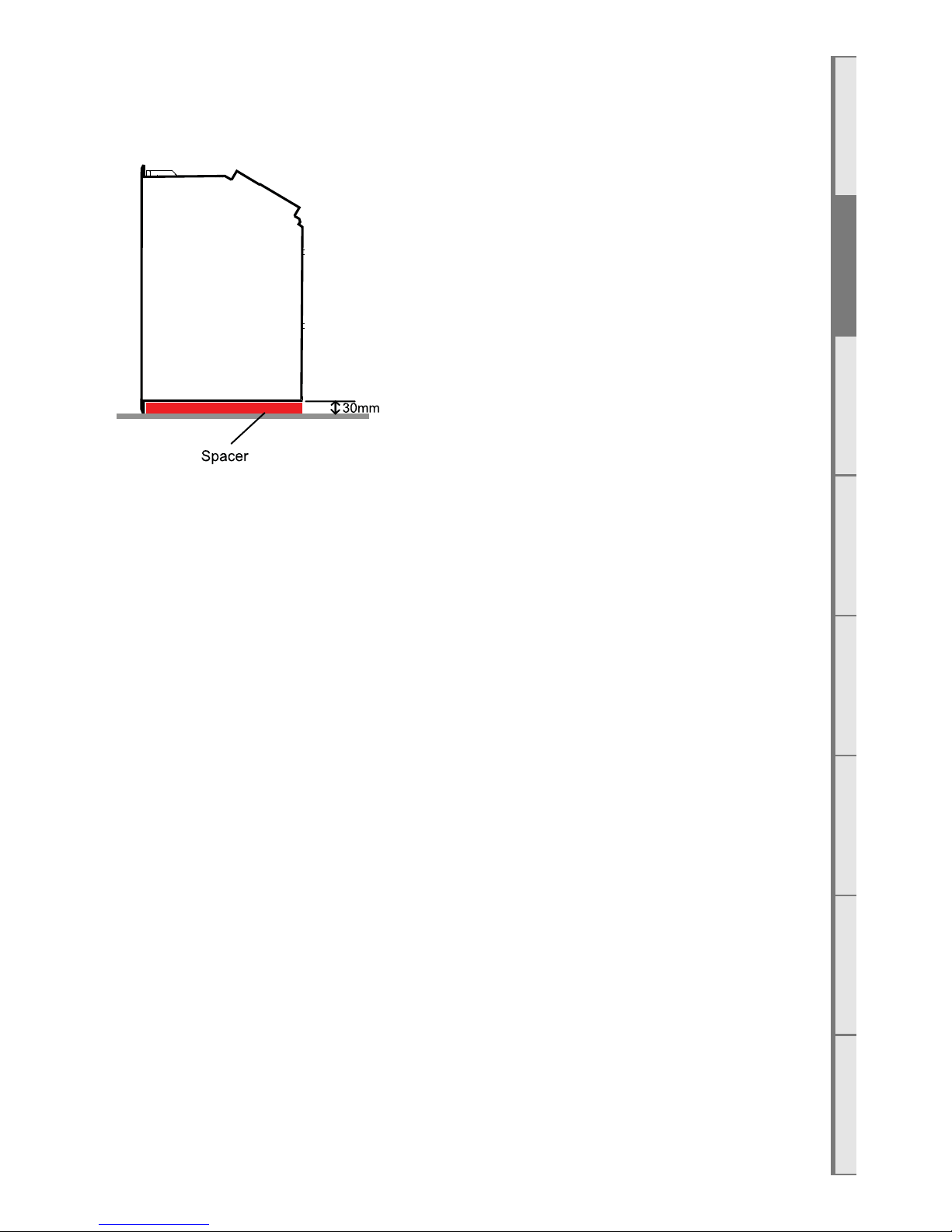

The masonry install requires a spacer below the appliance to allow room for the fascia to sit flush with
the ground.
B2 Floor Clearances
If the appliance is mounted above a “hard floor” (including but not necessarily limited to: wood, wood
veneers, ceramic tiles, concrete and stone) then it may be positioned with the bottom of the fascia
coincident with the finished floor if desired. Note: The appliance has been tested and certified to
AS4553:2008 and the maximum allowable temperature rise above ambient of any combustible floor
is ΔT of 65C. Therefore any material used must be chosen to be able to operate without damage or
degradation with a ΔT of 65C.
If the appliance is mounted above a “Soft floor” ” (including but not necessarily limited to: carpets,
Vinyl, carpet tiles, rugs and mats) then we recommend a distance of 100mm from the bottom of the
fascia to the finished floor.
Refer to section B4 for hearths.

B
A C D E F G SERVICE
10
B3 Corner Installations

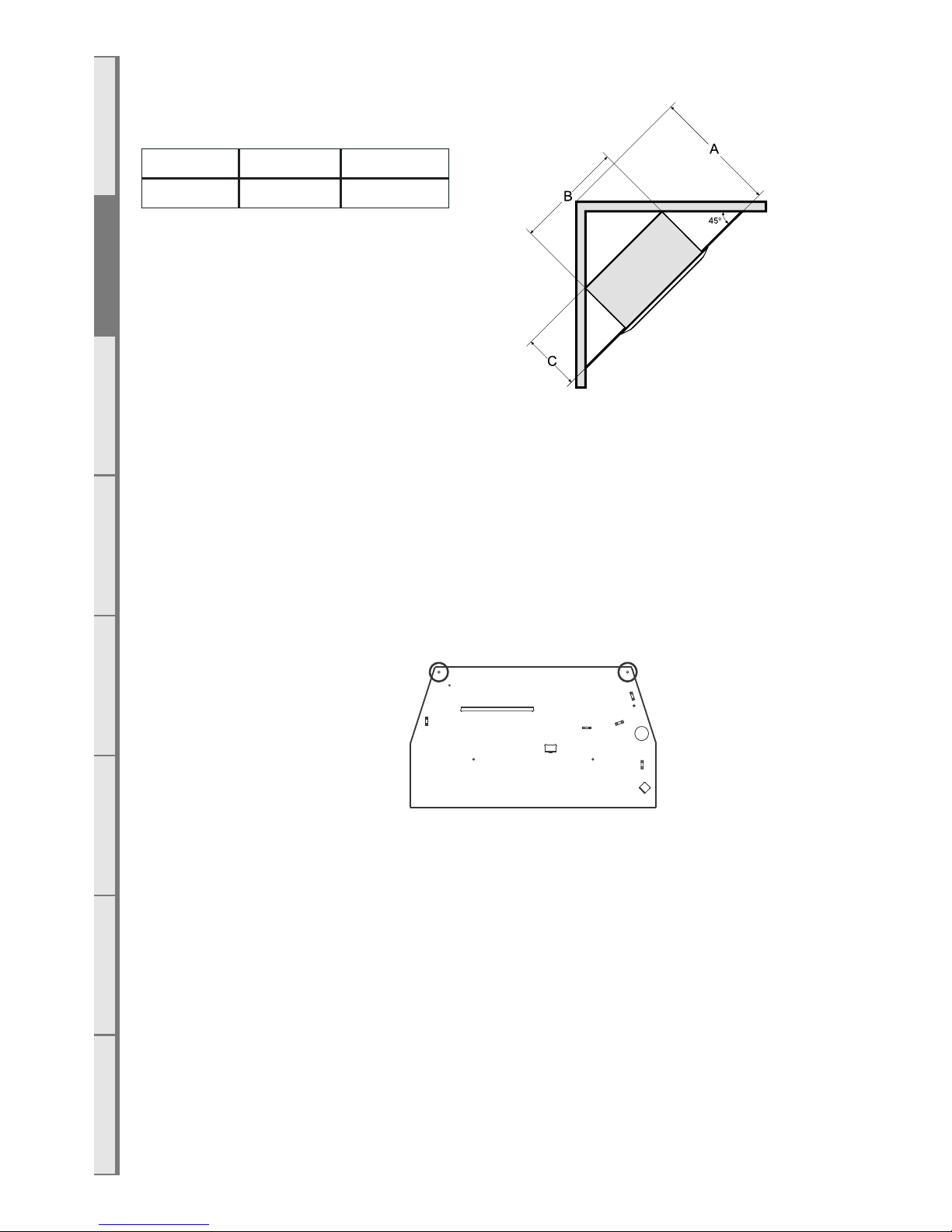

If a cavity is to be created in a corner, the following drawing gives the minimum sized interior wall
dimensions.
AB C
775mm 695mm 420mm
B4 Hearth
A Hearth is not required, however it may be used for decorative purposes or for protection of soft/sen-
sitive flooring as stated in section B2 to allow a smaller floor clearance. The hearth should not obscure
the front face of the fire, must protrude at least 200mm from the face of the fireplace and be at least
the width of the appliance.
B5 Cavity Base
This appliance MUST be fully supported on its base. The base must extend over the entire area of
the underside of the appliance. The base must also be levelled to prevent vibration from possible fan
imbalance. M5 Standos (circled in the diagram below) may be used to screw in any feet with an M5
thread to level the rear of the fireplace inside the cavity. The base of the cavity must be strong enough
to support 75kgs.
B6 Wall Linings
NOTE: for false cavity installations, DO NOT line the wall before the fireplace has been fitted into
the cavity; the top standos are required to be upright for this installation type.
The AF700 fireplace is zero clearance rated with the stando rails installed on the ouside of the chas-
sis. The stando rails may only be removed when installing the fire into a masonry cavity.
The side-front flanges of the appliance must be on top of the finished wall surface in order for the
fascia to mount properly. Take into account any plaster board, tiles or any other finishing surface that
may be intended for the finished wall surface.
The wall board that lines the outside of this opening can be normal dry wall (plaster board) and does
not need to be non-combustible.
If for some reason the cavity dimensions exceed those specified in section B1 a register plate is avail-
able (New Zealand Only) for purchase through your local escea distributor.
Note: The temperature of the wall lining directly above the heater does get warm and hence may
discolour paint finishes that are susceptible to temperature damage or distort vinyl wall coverings. For
durability of finishes and surfaces you should contact the relevant manufacturer for their specification.
Top View of Chassis Base

BACDEFGSERVICE
11
B7 Mantle Clearance

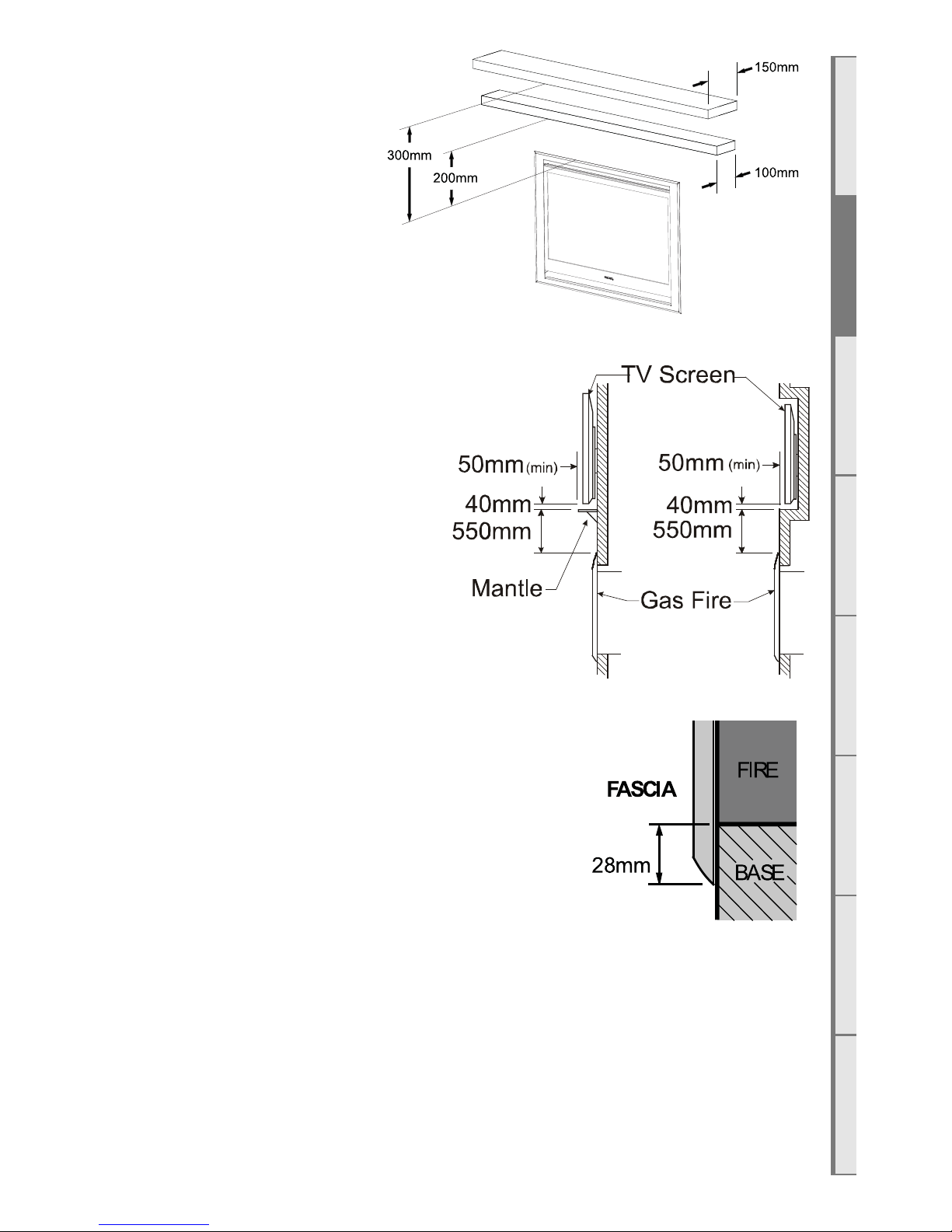

Please refer to the diagram below. Mantles
or protruding ledges mounted above the
heater that are made from combustible
materials, must not extend outside of the
dimensions shown below.
B8 Television Clearances
The following are the recommended
minimum clearances for the location of any
electrical equipment (such as Plasma TV, LCD TV
or home theatre) above an Escea AF700 gas fire.
Use either a shelf or mantle below your TV screen
or alternatively you can construct a recess to mount
your TV screen into.
Note: The above television clearance recommenda-
tions are to be treated as a suggestion of a suitable
installation only. It is the responsibility of the end
user to check the installation instructions of their
electrical appliances to ensure that the location in
relation to the gas fire is suitable. Escea in no way
guarantees or takes responsibility that the above in-
stallation suggestion will be suitable for all electrical
or home entertainment appliances.
B9 Distance from Fireplace base to Fascia base
The following side-on view shows the measurement from the base of the
fireplace to the base of the fascia:

B
ACD E F G SERVICE
12
C Installing The Flue
C1 Flue Restrictor Adjustment
The flue restrictors are adjusted by removing the firebox bae inside the firebox. The restrictors are
a simple sheetmetal part with a finger fold, allowing the installer to bend the flue restrictor open or
closed (flat) with his/her hands or pliers. The flue diagrams in section C7 and C8 refer to dierent
restrictor setups for dierent flue configurations. Use the following index for creating the correct
restriction:
C2 Installing False Cavity Flueing (if installing appliance into masonry, skip to C7)
Ensure all rigid flue components are Simpson Duravent Direct Vent Pro 4” x 6,” no other flue
types may be used.
Use the diagrams in sections C7 and C8 to check if your proposed flue system is
acceptable. Section C9 will also need to be used to determine whether the flue terminal
location meets the requirements of AS/NZS 5601. Then use the table following section C9 to work
out the quantities of the flue components that are required.
Rigid flue system rules for installation:
• The appliance comes with 300mm of flexi flue (compressed) and a converter box to convert the
appliance to rigid flueing.
• Any osets in your flue configuration should be 45° where possible.
• If your flue configuration has a horizontal run, there must be a minimum 1° inclination (20mm
vertical rise per 1m horizontal run) leading upwards towards the termination.
• Do not install the flue with horizontal sections sloping down towards the termination. This could
cause the fire to operate incorrectly and possibly create an unsafe condition.
• This flue system cannot be cut to length. Correct lengths must be selected for each installation.
For a full list of available flue lengths, contact your Escea retailer.

BA
CDEFGSERVICE
13
• The listed length of the flue pipe is not the installed length. 1 ½” (38mm) needs to be subtract-
ed for each join to determine the installed length of each piece of flue pipe.
E.g. 48” length has installed length of 45”.
• All vertical measurements should be measured from the top surface of the fireplace casing
itself (not the fascia).
• When using 90° elbows in the installation, use the diagram below to help calculate installations
horizontal and vertical distances. 1½” (38mm) will still need to be subtracted from each join.
• When using horizontal flue runs, vertical measurements should be measured to the centre line
of the horizontal flue pipes (as shown in diagram below).

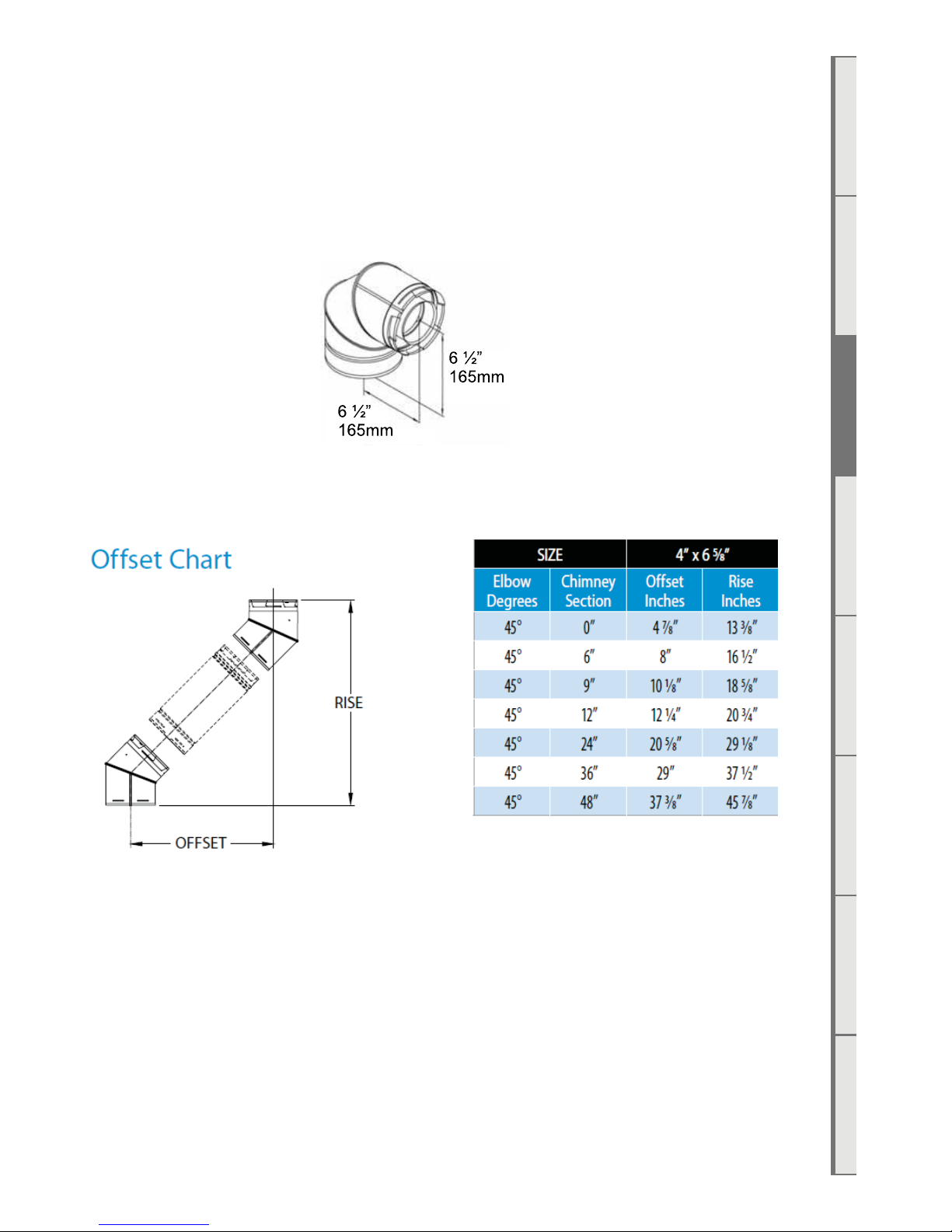

• If using a 45° oset in your installation, consult the chart below to select the required flue
length to give the desired oset. 1½” (38mm) will still need to be subtracted from each of the
45° bends to allow for the joins.

B
ACD E F G SERVICE
14
• Adjustable lengths are available depending on stock levels. Contact escea for more information.
The flue must maintain the following clearances to combustible materials; 25mm from all sides and
bottom of the flue, and 50mm from the top of the flue:
C3 Supporting the Direct Vent flue system
Wall straps are required to fix the Direct Vent flue system in place for each installation. This will ensure
that no undue strain is placed on flue components once installed.
For a flue oset or horizontal run, it is recommended that wall straps be used to secure the flue system
with a spacing of 900mm between straps. Plumbers strapping / tape can be used to connect the wall
straps to the building structure where there are large distances between the support point and the
anchor point.
For vertical flue runs it is recommended that wall straps be used to anchor the flue system
with a spacing of 1200mm between straps.
C4 Sealing ‘Through Roof’ and ‘Through Wall’ Penetrations
For ‘through roof’ penetrations, use a Deck-tite flashing or equivalent to create a weather-tight seal
between the flue and the roof cladding.
For ‘through wall’ penetrations, this will require the use of a Wall Thimble. The Wall Thimble will ensure
you have suitable clearance from combustibles as well as sealing the penetration. The section of the
wall thimble installed on the external surface of the wall should be sealed to the wall using a high tem-
perature sealant such as a High Temperature RTV Silicone or equivalent. Additional sealant is required
to seal the Terminal Cap to the external wall. A bead should be run along the edge of the Terminal that
will be in contact with the wall once installed.

BA
CDEFGSERVICE
15
C5 Twist locking procedure

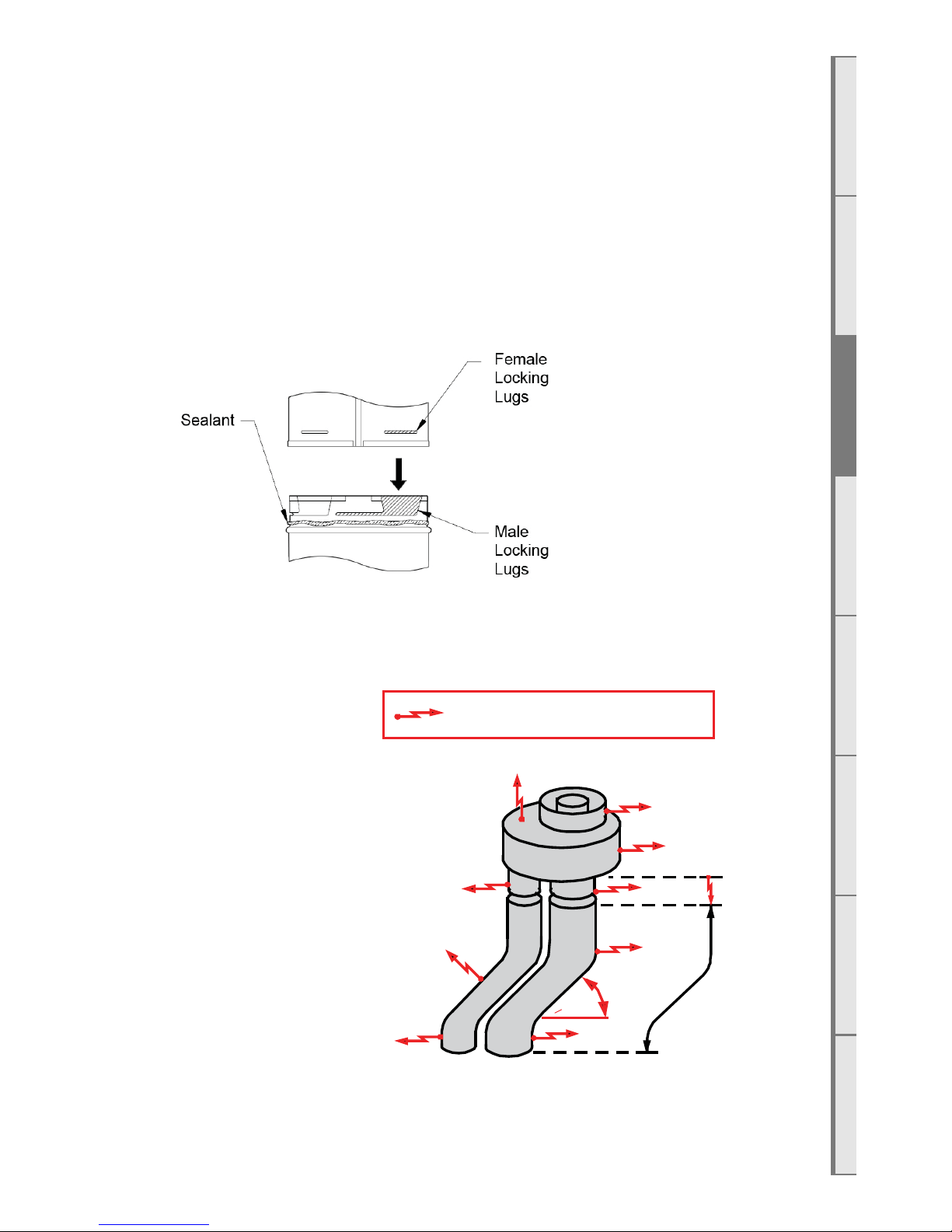

Before connecting flue components, to ensure an airtight seal run a single 7-8mm bead of High
Temperature RTV Silicone or equivalent, on the ‘male’ end of the flue as shown in the diagram
below.
The four indentations located on the female end of the flue are designed to slide straight onto the
male ends of the adjacent flue length, by orienting the four flue indentations so they match and slide
into the four entry slots on the male ends.
Push the pipe sections completely together, then twist-lock one section clockwise approximately
one-quarter turn, until the two sections are fully locked.
Wipe o any excess sealant from the exterior of the flue joint.
C6 Installing Converter Box
The AF700 only comes with a spigot plate suited for flexi flue, because of this, a converter box is
required to convert a 300mm, 4” and 3” flexi flue length to Simpsons Duravent 4” x 6” direct vent
flueing.
The converter box must be appro-
priately secured and should not take
the weight of the duravent rigid flue;
rigid flueing should be secured by wall
straps as stated in section C3.
NOTE: The joists used to support the
converter box from below MUST still
maintain clearances from the flexi
pipes.
Combustible clearances for the
converter box are as shown in this
diagram:
25mm
= Minimum distance to combustibles
50mm 50mm 0mm*
50mm
50mm
>45°**
50mm
Ø75mm Int ake
Ø100mmExh
aust
50mm
25mm
25mm
600mm
300mm to
*Note Underside of converter box can be ?xed straight onto wooden
joist/nogging.
**Note: Flexi Flue must not be run at an angle greater than 45 degrees from
vertical; excluding appliances built into a freestander kit.

B
ACD E F G SERVICE
16
Locate the 30cms long piece of fibreglass tape in the accessory pack provided with the
AF700 fire.
Remove the tape backing and adhere it to the Exhaust spigot of the Co-axial transition box
spigot approximately 10mm o the face of the planer surface of the transition box.
Locate the 100mm exhaust flexi flue. Stretch the flexi flue to the desired length ensuring
that the end part that fits onto the exhaust spigot is completely extended (stretched).
Locate the exhaust flue onto the exhaust spigot over the fibreglass tape.
Locate 1 X 100mm diameter stainless steel band clamp provided with the flexi flue kit.
Mark, centre punch and drill 3 x 4.0mm diameter holes approximately equally spaced
around the diameter of the band clamp.

BA
CDEFGSERVICE
17
Place the band clamp over the exhaust flexi flue. Position the band so that it aligns with the
fibreglass tape underneath (approximately 15mm o the planar surface of the transition
box). Tighten the band clamp.
ONLY TIGHTEN ENOUGH TO JUST HOLD AND PREVENT THE FLEXI FLUE FROM
COMING OFF THE SPIGOT IF PULLED ON. OVER TIGHTENING THE CLAMP WILL
CRUSH & DAMAGE THE FLEXI FLUE.
Pilot drill 3 X 3.00 diameter holes through the previously drilled holes in the band clamp and
into and through both the flexi flue and the exhaust spigot.
Screw a stainless steel self-tapping screw (provided with the fibre glass tape) into each of
the 3 holes.
Ensure that the joint is sound and secure.
The steel ‘flashing plate’ provided with the 46DVA-CT collinear kit may be used (if desired)
to force distances to combustible materials and provide a platform to screw onto
appropriately placed wooden joists (supports).
The joint on the 75mm intake spigot is achieved in the same manner however the fibreglass
tape is not required to be fitted to the intake spigot.

B
ACD E F G SERVICE
18
C7 Vertically Terminating Flue Restriction Diagram
NOTE: If your flue configuration falls on or near a restriction zone boundary line in diagrams locat-
ed in section C7 or C8, it may require the restriction setup from either side of the boundary line to
achieve the correct flame aesthetic (refer to E11 for flame aesthetic), this may vary from installation to
installation.

BA
CDEFGSERVICE
19
C8 Horizontally Terminating and Vertically Terminating with a Horizontal Oset Flue
Restriction Diagram
NOTE: If your flue configuration falls on or near a restriction zone boundary line in diagrams located
in section C7 or C8, it may require the restriction setup from either side of the boundary line to
achieve the correct flame aesthetic (refer to E11 for flame aesthetic), this may vary from installation
to installation.

B
ACD E F G SERVICE
20
C9 Flue Terminal Clearances
Horizontal Termination Clearances
This diagram applies to all horizontal flue type installations on this appliance.
