ESCO Technologies ETS-LINDGREN BiConiLog 3142E User manual

Model 3142E
BiConiLog ™ Antenna
User Manual
PN: 399337
Feb, 2021
Rev C
ets-lindgren.com

2
ETS-Lindgren Inc. reserves the right to make changes to any products herein to improve functioning or
design. Although the information in this document has been carefully reviewed and is believed to be
reliable, ETS-Lindgren does not assume any liability arising out of the application or use of any product
or circuit described herein; nor does it convey any license under its patent rights nor the rights of others.
All trademarks are the property of their respective owners.
© Copyright 2012 - 2021 written permission from ETS-Lindgren Inc. All Rights Reserved. No part of
this document may be copied by any means without written permission from ETS-Lindgren Inc.
Trademarks used in this document: The ETS-Lindgren logo is a registered trademark of ETS-Lindgren,
Inc.; Teflon is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Revision Record
MANUAL, 3142E | Part # 399337 Rev C
Revision Description Date
AInitial Release July, 2012
BUpdated frequency range;
updated boom options
February, 2015
CUpdated manual format and
added typical data for cross
polarization
February, 2021

32
TABLE OF CONTENTS
NOTES, CAUTIONS AND WARNINGS 4
INTRODUCTION 5
Tripod Options � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6
ETS-Lindgren Product Information Bulletin � � � � � � � � � � � � � � � � � � � � � � � � � � � �6
MAINTENANCE 7
Replacement and Optional Parts � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7
Service Procedures � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7
Contacting ETS-Lindgren � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7
Sending a Component for Service � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7
Calibration Services and Annual Calibration � � � � � � � � � � � � � � � � � � � � � � � � � � �7
SPECIFICATIONS 8
Electrical Specications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �8
ASSEMBLY 9
Attach Bowtie Elements � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �9
MOUNTING 11
Using Included Mounting Adapters � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
Using the Stinger to Mount to a Model 2175 MiniMast � � � � � � � � � � � � � � � � � � � � � � � 12

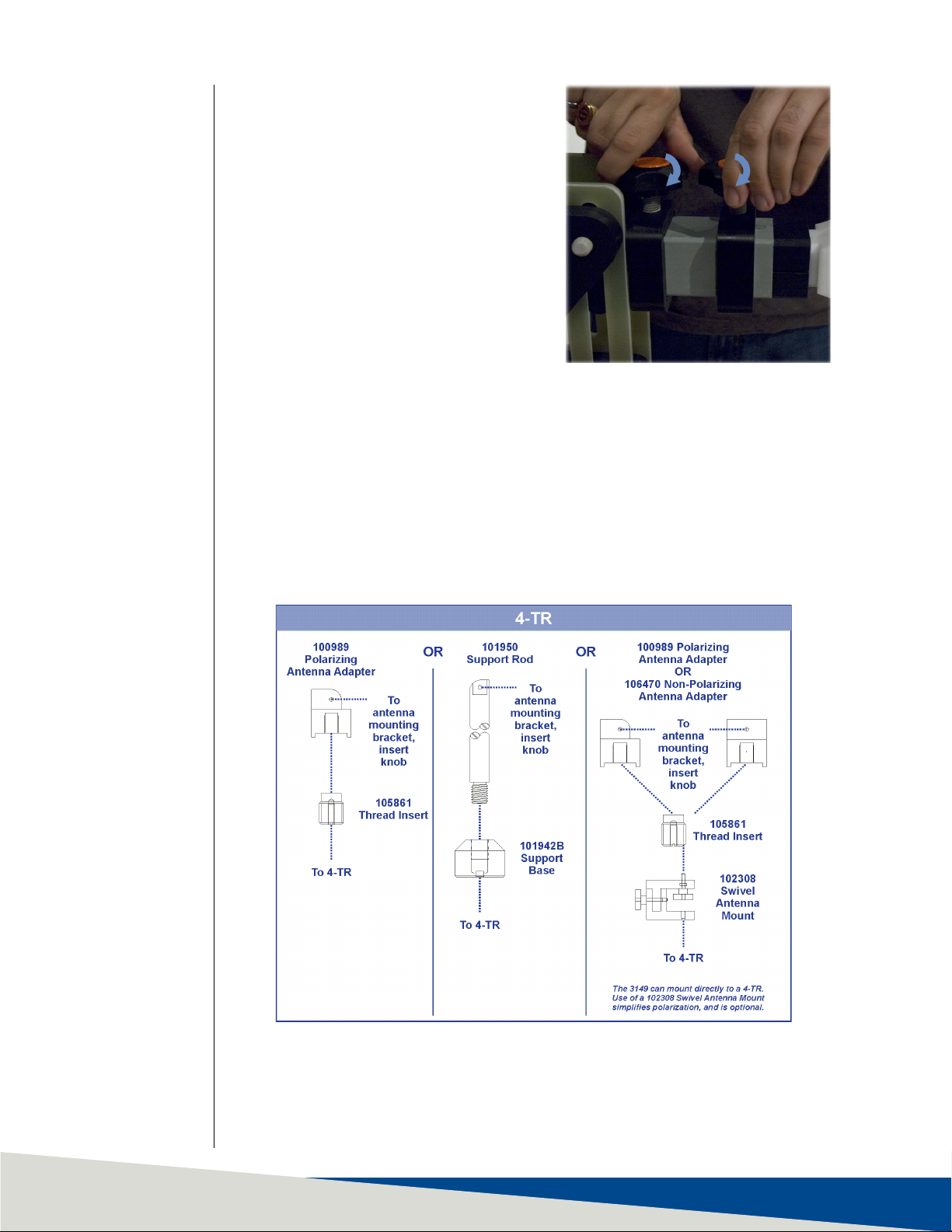

Additional Mounting Options � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
4-TR Mounting Options � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14

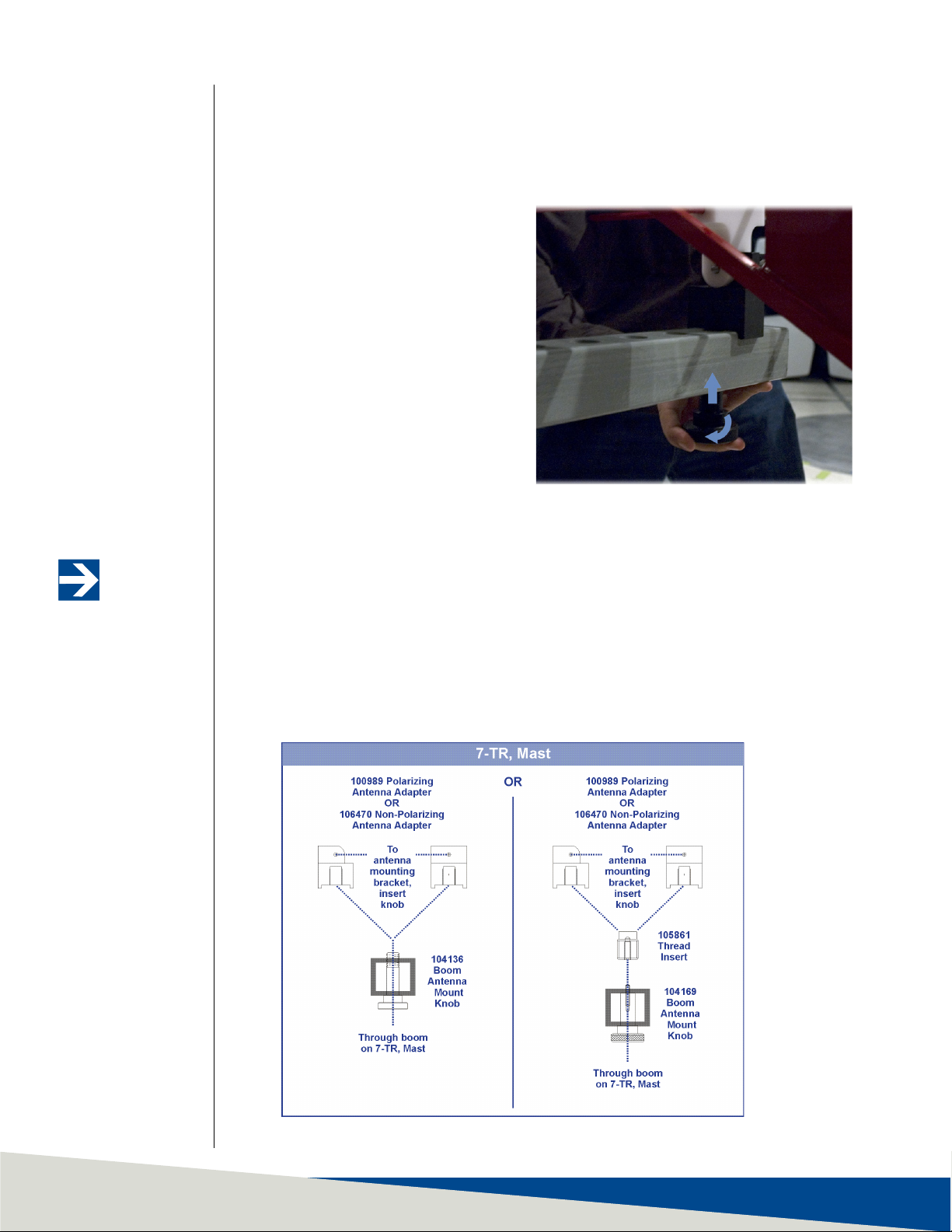

7-TR and Mast Mounting Options � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
2X2 Boom Mounting Options � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16
TYPICAL DATA 17
Typical Antenna Factor and Gain � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17
Typical VSWR� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18
Typical Half Power Beamwidth � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18
Typical Radiation Patterns � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
30MHz-50MHz � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
70MHz-90MHz � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
100 MHz-200MHz � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20
300MHz-400MHz � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20
500MHz-600MHz � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21

4
700MHz-800MHz � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21
900MHz-1000MHz � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
2000MHz-3000MHz � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
4000MHz-5000MHz � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
6000MHz � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
Typical Cross Polarization � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24
APPENDIX A: WARRANTY 25

54
NOTES, CAUTIONS AND WARNINGS
Note: Denotes helpful information intended to provide tips for better
use of the product.
CAUTION: Denotes a hazard. Failure to follow instructions could
result in minor personal injury and/or property damage. Included
text gives proper procedures.
WARNING: Denotes a hazard. Failure to follow instructions could
result in SEVERE personal injury and/or property damage. Included
text gives proper procedures.
*All notes, cautions, and warnings will be located on the left column area of the page.
See the ETS-Lindgren Product Information BulletinProduct Information Bulletin for safety, regulatory, and other product
marking information

6
INTRODUCTION
Model 3142E shown in horizontal polarization
The ETS-Lindgren Model 3142E
BiConiLog™ Antenna is designed
as a dual-purpose antenna that
can be used for both immunity and
emission testing. From 30 MHz to
6 GHz, the Model 3142E exhibits an
average 5.5 dB gain. Applications for
the Model 3142E include emissions
testing, immunity measurements, and
medical equipment testing.
The Model 3142E Antenna includes a stinger mount; it also includes a
mounting bracket and a 1/4–20 thread knob to attach to an ETS-Lindgren
tripod or tower adapter.
For the variety of mounting options available for the Model 3142E, see
Mounting instructions.
Model 3142E shown in vertical polarization

76

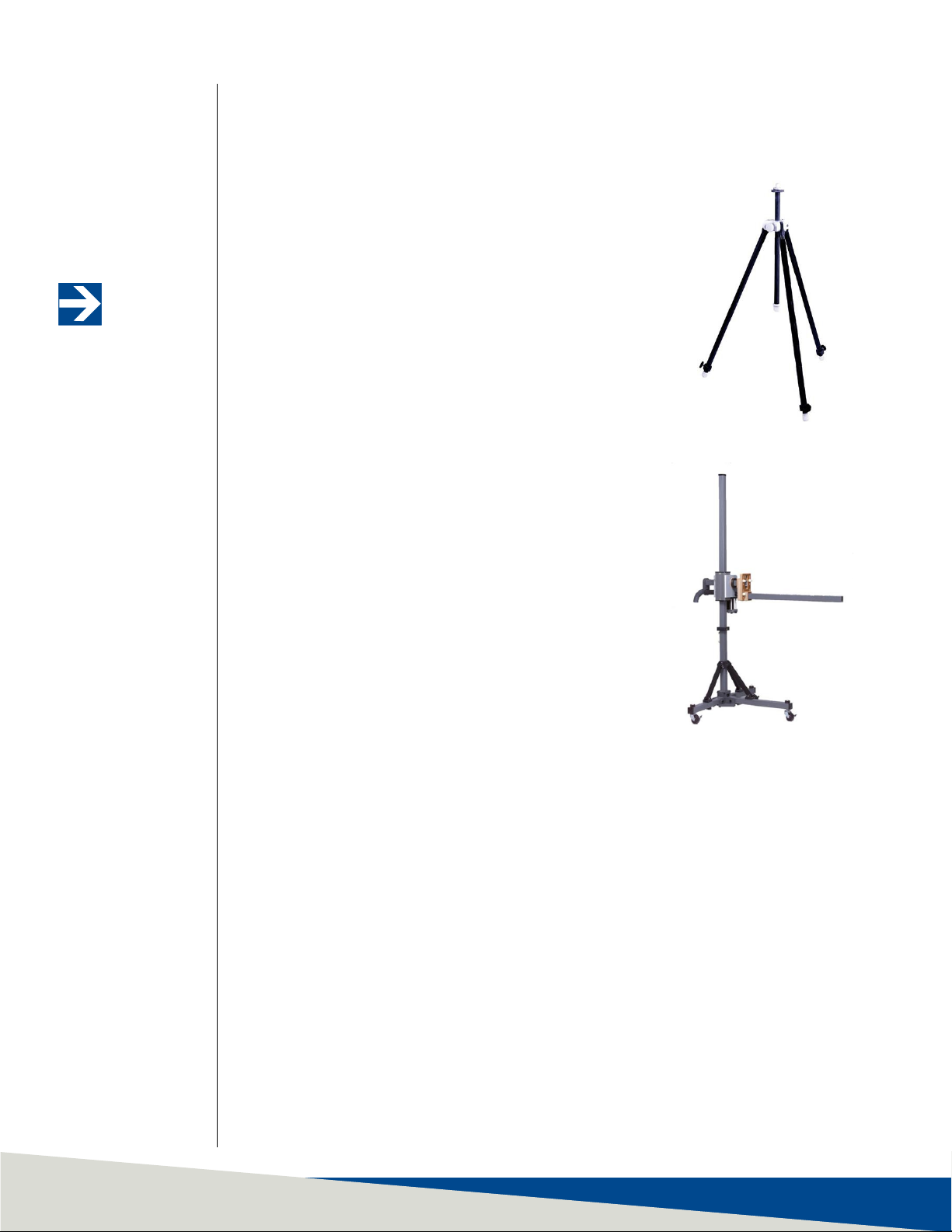

Tripod Options
ETS-Lindgren offers the following non-metallic, non-reflective tripods for use
at both indoor and outdoor EMC test sites.
ETS-Lindgren Product Information Bulletin
See the ETS-Lindgren Product Information Bulletin included with your
shipment for the following:
• Safety, regulatory, and other product marking information
• Steps to receive your shipment
• Steps to return a component for service
• ETS-Lindgren calibration service
• ETS-Lindgren contact information
Note:
For easy horizontal and
vertical polarization,
the ETS-Lindgren
Model 7-TR tripod is
recommended.
• 4-TR Tripod—Constructed of linen phenolic
and delrin, designed with an adjustable
center post for precise height adjustments.
Maximum height is 2.0 m (80.0 in), and
minimum height is 94 cm (37.0 in). This tripod
can support up to an 11.8 kg (26.0 lb) load.
• 7-TR Tripod—Constructed of PVC and
fiberglass components, providing increased
stability for physically large antennas. The
unique design allows for quick assembly,
disassembly, and convenient storage. Allows
several different configurations, including
options for manual or pneumatic polarization.
Quick height adjustment and locking wheels
provide ease of use during testing. Maximum
height is 2.17 m (85.8 in), with a minimum
height of 0.8 m (31.8 in). This tripod can
support a 13.5 kg (30 lb) load.

8
Before performing any
maintenance, follow
the safety information
in the ETS-Lindgren
Product Information
Bulletin included with
your shipment.
Maintenance of the
Model 3142E is limited
to external components
such as cables or
connectors.
If you have any
questions concerning
maintenance, contact
ETS-Lindgren Customer
Service.
Note:
ETS-Lindgren may
substitute a similar
part or new part
number with the same
functionality for another
part/part number.
Contact ETS-Lindgren
for questions about part
numbers and ordering
parts.
For additional/optional
mounting hardware, see
Additional Mounting
Options.
MAINTENANCE
Replacement and Optional Parts
The following are the part numbers for ordering replacement or
optional parts for the Model 3142E.
Part Description Part Number
Polarizing Mounting Adapter 100989
Thread Insert 105861
Service Procedures
Contacting ETS-Lindgren
Please see www.ets-lindgren.com for a list of ETS-Lindgren offices,
including phone and email contact information.
Sending a Component for Service
For the steps to return a system or system component to ETS-
Lindgren for service, see the Product Information Bulletin included
with your shipment.
Calibration Services and Annual Calibration
See the Product Information Bulletin included with your shipment for
information on ETS-Lindgren calibration services.

98
SPECIFICATIONS
Electrical Specifications
Frequency Range: 30 MHz–6 GHz
Input Impedance (Nominal): 50 Ω
VSWR (Average): 2:1 above 50 MHz
Maximum Continuous Power Continuous Peak
30 MHz-60 MHz: 500 W 800 W
60 MHz-600 MHz: 1 kW 1.5 kW
600 MHz-1 GHz: 500 W 800 W
1 GHz-6 GHz: 200 W 300 W
Peak Power: 1.3 kW
Pattern Type: Directional
Polarization: Linear
Connector: Type N female
Physical Specifications
Height (Overall): 76.2 cm (30 in)
Length: 139.16 cm (54.79 in)
Width: 133.75 cm (52.66 in)
Weight: 5.7 kg (12.5 lb)

10
Before connecting any
components, follow
the safety information
in the ETS-Lindgren
Product Information
Bulletin included with
your shipment.
Note:
Photos of bowtie
elements used in this
section may differ from
the bowtie elements for
your Model 3142E; the
assembly procedure is
the same for both.
ASSEMBLY
The Model 3142E BiConiLog™ Antenna is comprised of the following parts:
• Antenna
• Bowtie elements (2)
• 10–32 thumbscrew knobs to attach bowtie elements (2)
• Mounting bracket and mounting knob
Attach Bowtie Elements
The Model 3142E ships with the bowtie elements detached. To attach the
bowtie elements:
Model 3142E shown in vertical polarization

1110
1. For stability, mount the Model 3142E onto a tripod or tower. See Mounting
Instructions on page 19 for the steps to mount the antenna.
Do not cross thread
this connection or
permanent damage
to the bowtie element
could occur.
2. Slide the narrow end of one of the bowtie elements into the receptacle
hole on the antenna balun, and then align the bowtie with the receptacle
on the balun.
3. Insert one of the 10–32 thumbscrew knobs into the opposite side of the
balun from where you inserted the bowtie. Slowly tighten the knob, taking
care not to cross thread the connection.
4. Repeat steps 2 and 3 for the second bowtie element.

12
Before connecting any
components, follow
the safety information
in the ETS-Lindgren
Product Information
Bulletin included with
your shipment.
The Model 3142E
antenna is a precision
measurement device.
Handle with care.
Note:
Photos of bowtie
elements used in this
section may differ from
the bowtie elements for
your Model 3142E; the
assembly procedure is
the same for both.
MOUNTING
Contact with any metal or non-metallic structure can capacitively load the
antenna, which may cause unrepeatable results. Therefore, make sure that no
part of the dipole elements or bowties is in contact with the tripod or tower,
particularly in vertically-polarized tests. Where possible, run the feed cable
straight one meter or more back from the Model 3142E BiConiLog™ Antenna
before dropping vertically.
Using Included Mounting Adapters
In addition to the attached mounting bracket and mounting knobs, the Model
3142E ships with these mounting adapters:
1. 100989 Polarizing
Mounting Adapter with
7/8–14 thread receptacle
• If you need to convert
the polarizing adapter
to a 1/4–20 receptacle,
insert the 1/4–20
thread insert into the
polarizing adapter
2. 105861 1/4–20 Thread
Insert

1312
To attach the included adapters to the Model 3142E:
Model 3142E mounted
onto 4-TR using included
100989 Polarizing Mounting
Adapter and 105861 1/4–20
Thread Insert
1. If required, insert the 1/4–20 thread insert into the mounting adapter.
2. Remove the mounting knob from the mounting bracket on the antenna.
3. Slide the mounting bracket onto the mounting adapter with the adapter
placed between the shoulders of the mounting bracket.
4. Thread the mounting knob through the mounting bracket, then through
the mounting adapter, and finally through the hex nut.
5. Tighten the mounting knob to secure the antenna.
6. Attach the mounting adapter and antenna to tripod or tower, as required.
Using the Stinger to Mount to a Model 2175 MiniMast
The stinger mount provides on-axis rotation during 90° horizontal or vertical
polarization. The stinger enables you to mount the antenna directly to an ETS-
Lindgren 7-TR Tripod or mast.
Before you begin –
• Install the center rotate boom (part# 108507) for rear-mount stinger-type
antennas.
• Attach the included mounting adapter to the Model 3142E as instructed in
Using Included Mounting Adapters on page 20.
• You will need one of the optional mounting knobs described in 7-TR and
Mast Mounting Options on page 26. To order optional mounting hardware,
contact the ETS-Lindgren Sales Department.
Do not cross thread or
permanent damage to
the adapter and thread
insert could occur.
Note:
Do not use the stinger
to mount the Model
3142E onto a 4-TR
tripod.

14
Before connecting any
components, follow
the safety information
in the ETS-Lindgren
Product Information
Bulletin included with
your shipment.
The Model 3142E
antenna is a precision
measurement device.
Handle with care.
Note:
Photos of bowtie
elements used in this
section may differ from
the bowtie elements for
your Model 3142E; the
assembly procedure is
the same for both.
1. Thread the antenna feed
or receiving cable through
the center of the boom
so that the antenna
connector emerges a few
inches out of the clamp
end of the boom.
2. Attach the cable to the
Type N connector at the
end of the stinger.
3. Slide the cable and
stinger into the clamp
on the boom, carefully
guiding the cable out the
other end.
4. When you reach the back
of the balun box, align it
with the boom receptacle,
and then slide the smaller
portion of the balun box
into the boom. This will
prevent rotation of the
antenna unless the boom
is being polarized.

1514
5. Tighten the clamp knobs
on the boom to secure the
antenna into place.
Additional Mounting Options
4-TR Mounting Options
Following are additional options for mounting the Model 3142E onto an
ETS-Lindgren 4-TR tripod. Contact the ETS-Lindgren Sales Department for
information on ordering optional mounting hardware.

16
Note:
Mast refers to 2070
Series, 2075, and 2175
Antenna Towers.
7-TR and Mast Mounting Options
The stinger on the Model 3142E enables you to mount to antenna directly to
an ETS-Lindgren 7-TR Tripod Positioner.
However, following are
additional options for
mounting the Model 3142E
onto an ETS-Lindgren 7-TR
Tripod Positioner.
Contact the ETS-Lindgren
Sales Department for
information on ordering
optional mounting
hardware.
Non-stinger method to mount Model 3142E to 7-TR
7-TR refers to these booms –
• 109042 boom—Straight boom; for general antenna mounting on a 7-TR
• 108983 boom—Offset boom; for general antenna mounting on a 7-TR with
pneumatic or manual polarization; can also be used to mount stinger-type
antennas
• 118947 – for stinger-type antennas only

1716
Note:
2x2 boom refers to a
typical 2-inch by 2-inch
boom.
2X2 Boom Mounting Options
Following are additional options for mounting the Model 3142E onto a 2x2
boom. Contact the ETS-Lindgren Sales Department for information on
ordering optional mounting hardware.

18
TYPICAL DATA
Typical Antenna Factor and Gain
Distance for the ANSI 3-meter and 10-meter calibrations is measured from the
antenna midpoint, and for SAE 1-meter calibrations the distance is measured
from the antenna tip. Midpoint is defined as half the distance between the small
elements and the bowties, which is about 45 cm from the small end tip.

1918
Typical VSWR
Typical Half Power Beamwidth

20
Typical Radiation Patterns
30MHz-50MHz
70MHz-90MHz
