ESI FlexCharge4 Series Parts list manual
assembly and operation instructions
FlexCharge4™
Model #FCH4-DSK-WHT
Model #FCH4-DSK-BLK
personal desktop power
Page 1
FlexCharge4 Safety instructions
Please review these instructions before beginning the installation. Check that all parts and tools
needed were provided with your order. Contact your supplier if any parts are missing. Do not discard the
packaging until content that the product operates to your satisfaction.
Parts provided
Safety instructions/warning
Always read the safety instructions carefully.
• Do not install near heat sources such as radiators, heat registers stoves, or
other equipment (including amplifiers) that produce heat.
• Unplug the unit during lightning storms or when unused for extended
periods of time.
• To reduce the risk of fire or electric shock, do not expose this unit to rain or
moisture, including any drips or splashes.
• Objects filled with liquids such as vases, should never be placed on or near
the unit.
• Do not open due to risk of electric shock hazard.
• The outlet used to power the unit should be easily accessible and located
near the equipment.
• The unit is for indoor use only.
• Please refer to the marking label on the unit for input and output ratings. Do
not overload the power supply.
• DO NOT USE this product in life support applications where failure of this
unit can reasonably be expected to cause the failure of the life support
equipment or to significantly aect its safety or eectiveness is not
recommended. Do not use this equipment in the presence of a flammable
anesthetic mixture with air, oxygen or nitrous oxide.
• Failure to adhere to these instructions eectively voids the warranty.
Power module (1) Bottom bracket (1)
power outlets
USB charging ports
Page 2
FlexCharge4 Parts and tools
M3x12 Panhead screw (2)M4 Allen key (1) M4x14 Panhead screw (4)
Caution: Hand-tighten screws only.
Additional tools required
• Phillips screwdriver
• Power drill with ⁄” drill bit (under-desk mounts only)
There are three ways to mount the FlexCharge4 power module:
• Edge Mount (page 2)
• Grommet Mount (page 3)
• Under-Desk Mount (page 5)
Choose the best mounting method based on user preference and the mounting circumstances.
Desk clamp (option 1)
With the edge mount method, the product is
clamped to the edge of the work surface.
Step #1 assemble the brackets and clamp
• Route the power cord through the opening in the top
bracket.
• Attach the top bracket to the rear of the power
module using the two M3x12 panhead screws.
Tighten securely.
power module
M3x12
Page 3

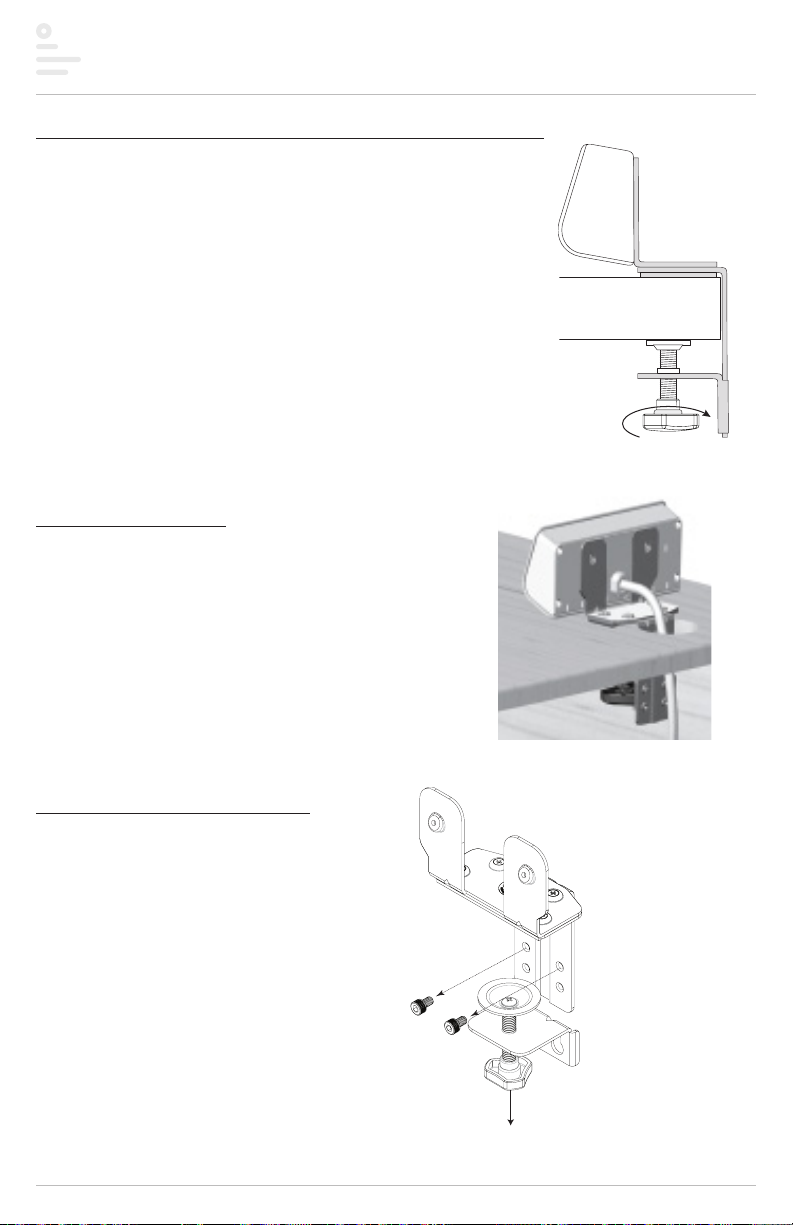

FlexCharge4 Desk clamp
Step #2 attach bracket/clamp assembly to power module
• Position the assembly in the desired location and clamp securely to the
worksurface by tightening the triangle knob.
• Plug the power cord into an AC outlet
You are now ready to use the two AC power outlets
and two USB charging ports on the FlexCharge4. worksurface
Desk clamp (option 2)
The grommet mount method is similar to the edge mount
method, except here the assembly is clamped to the edge of a
2.3” grommet hole rather than the edge of the worksurface.
Step #1 remove the desk clamp
• Loosen the (2) M5x8 socket cap screws
using the M4 Allen key.
— Desk clamp can be removed.
Page 4
FlexCharge4 Desk clamp continued
Step #2 attach bracket assembly to power module
• Route the power cord through the opening in the top bracket.
• Attach the top bracket to the rear of the power module using
the two M3x12 panhead screws. Tighten securely.
Step #3 clamp power module assembly to worksurface
• Re-tighten the two M5x8 screws to the bottom bracket, leaving about ⁄” exposed between the screw
heads and the bracket.
— With worksurface thicknesses between 0.9” and 2”, attach the screws to the bottom two holes.
Attach the clamp to the top two holes if the worksurface thickness is less than 1.5”.
• Insert the bottom bracket through the grommet hole.
• Attach the clamp to the bottom bracket.
— Fit the keyhole openings in the clamp over the M5x8 screw heads. Tighten the screws securely over
the narrow portion of the keyholes using the M4 Allen key.
• Clamp the assembly securely to the worksurface by tightening the triangle knob.
• Plug the power cord into an AC outlet.
You are now ready to use the two AC power outlets and two USB charging ports on the FlexCharge4.
power module
M3x12
2”
minimum hole
diameter = 2.3”.
hook clamp
keyholes onto
screws and tighten
worksurface grommet
hole
M5x8
0.13
exposed
