Esic HTC625 User manual

Operating Manual
HTC625
7-Day Programmable Thermostat 4000W
HTC625_M04082011E

2
Operating Manual
Congratulations on your purchase of this ESIC line-voltage thermostat. Your new
thermostat is pre-programmed by the installer and ready to use. Please take the time to
read and understand this manual so you can begin to enjoy the convenience this product
offers.
Features
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
CSA C828 Performance Certified
7 day programming with 4 settings per day
High Ppwer up to 4000W
Ideal for baseboard heaters, convectors, radiant ceilings and electric fan-forced heating
systems
Temperature setting and display in °C or °F
Precise temperature control set in half degrees
TRIAC system (quiet operation)
Cycle rates for proportional heating
Usage Monitor (tracks total run time)
Maximum temperature limit set point feature
Pre-comfort recovery system (begins to warm up before preset time)
Room Temperature and Set Point Temperature display
Heating Power Level display
Clock display in 12 or 24-hour format
Backlit LCD screen
Internal Rechargeable backup for clock and settings
Built-in surge protection
Setting range: +5°C to +35°C (41°F to 95°F)
Simple 2-wire installation
=

Keep this manual in a safe place for future reference.
Specifications
Rating: 120V~240V AC, 60Hz
Maximum Load: 16.7A
4000W @ 240V
2000W @ 120V
Minimum Load: 300W @ 240V
!
This product is for use with high voltage system (120V~240V) with a
minimum load of 300W; it is not designed for use with low voltage (24V)
central heating & air conditioning systems or wall mounted furnaces
3
ESIC Technical Support
Hours of Operation: 8:30 AM to 7:00 PM (EST), Monday to Friday
1-866-277-7791 [email protected]om•

Table of Contents
4
LCD Display
Location of Buttons
Option Settings
Choosing 12 or 24-hour Format
Selecting the Heat Cycle Rate .
Enabling the Pre-Comfort Recovery Feature
Selecting the Temperature Unit (°C or
............................
.........................
...........................
....................
....................
................
°F)................
Setting Time and Day .........................
Program Periods ..........................
Setting Program Schedules......................
Copy Program Function ........................
Restoring Default Programs and Options .................
Temporary Temperature Override ....................
Hold Function . ..........................
Heating Power Display Level ......................
Usage Monitor ...........................
Memory Back-Up ..........................
High Limit Function .........................
Troubleshooting ..........................
Warranty Information ........................
Operating Manual
5
6
7
7
7-8
9
10
10
11-12
13
14
15
15
16
16
17
17
18
19-20
21

5

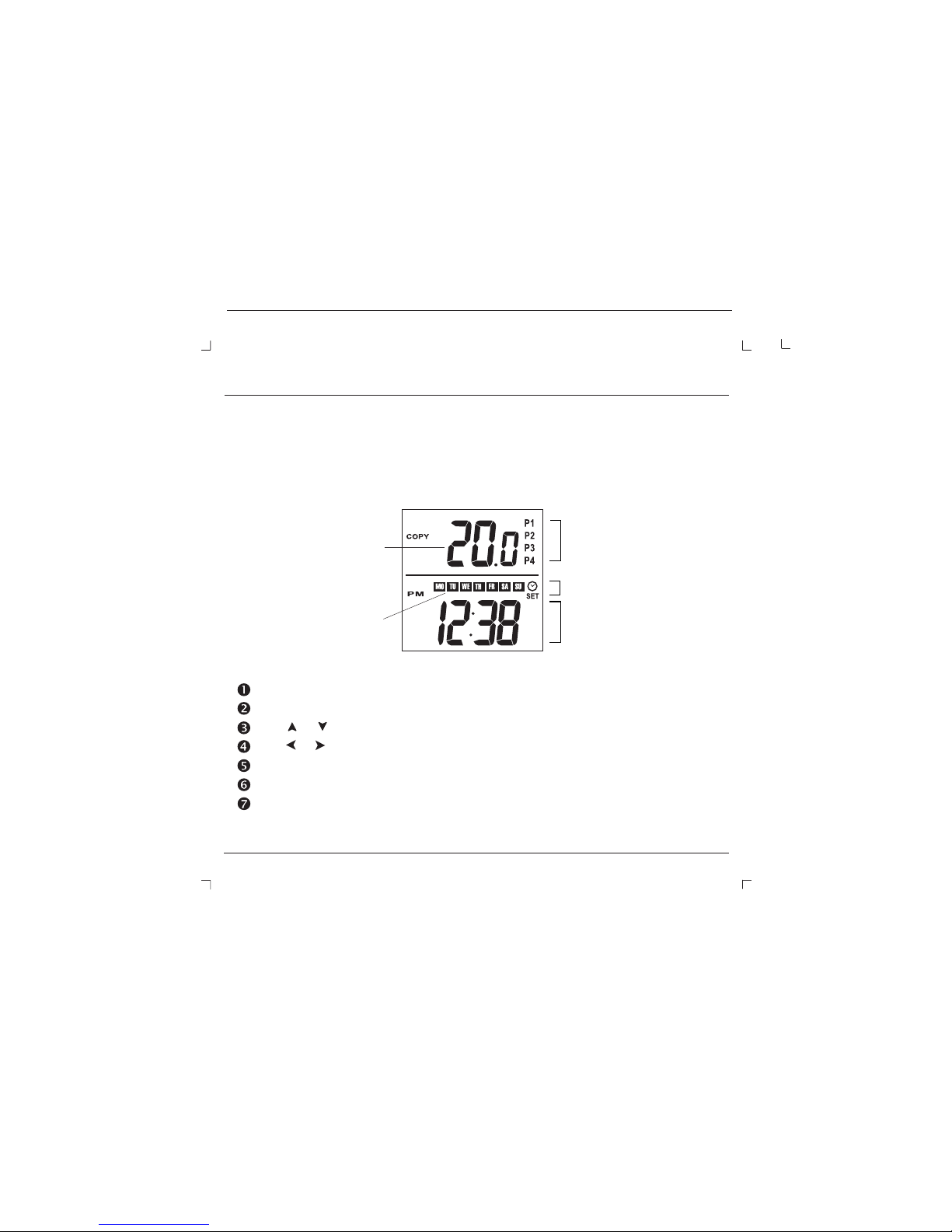

LCD Display
Current Temperature
Heating Power Level
Override “On” Icon
Hold Function
Copy Function
High Limit Function
Set Temperature
Usage Monitor
Weekdays
Temperature Unit
(Celsius or Fahrenheit)
Heat “On” Indicator
Program Periods
Set Clock
Time / Usage

6

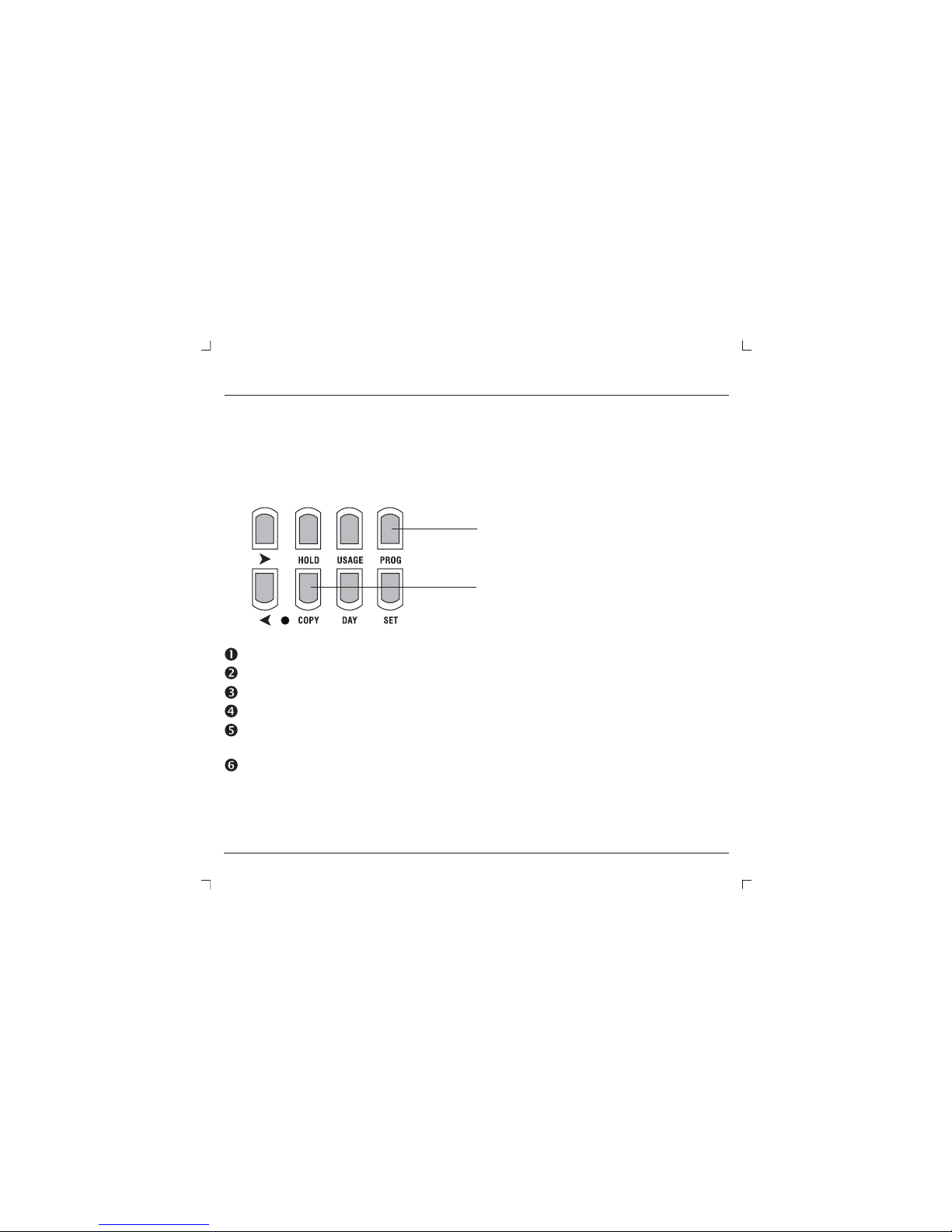

Location of Buttons
Decreases target
temperature
Moves time ahead in
clock or program mode
Moves time back in
clock or program mode
Increases target
temperature
Suspends automatic
programs (Manual mode)
Enters program mode and
scroll settings
Displays total time heating
is running per day / per week
Enters clock setting mode.
To access optional settings,
press for 3 seconds
Copies program settings
from one weekday to another
Changes day of the week when viewing
programs or setting clock
Operating Manual

7
Option Settings
This thermostat has 5 OPTION settings that you can change. The OPTION data will appear
on the lower pane of the screen.
Option 1: Choosing 12- or 24-hour Format
?

Press and hold SET for 3 seconds to enter the Option Setting mode. will flash onscreen.
(Note: The 12-hour format is the default setting.)
Press or to toggle between the 12- and 24-hour format.
12:Hr
Option 2: Selecting the Heat Cycle Rate
To provide precise, consistent and economical heating, this thermostat has an adjustable heat
cycle rate. The cycle rate determines the on/off time cycles that the thermostat uses to reach
and maintain the desired temperature.
Certain cycle rates are more efficient when used with certain types of electric heating systems.
Selecting the correct cycle rates help maintain an even temperature, which has been proven
to reduce energy usage while improving comfort.
OFF (fixed span)
20 seconds
240 seconds (4 minutes)
Cr
Cr-0
Cr-1
Cr-2
CYCLE RATES

8
Cr0
Cr1 (Default)
is a fixed span (no cycling), with a variance of +/- 0.3⁰C (+/- 0.6⁰F). The heating unit
will operate at full power and the power bar will appear full. This function is for users
who do not want their electric heating devices turning on and off frequently. This is the
recommended setting for fan assisted electric heating devices.
is a 20 second cycle rate with proportional heating. This means the heating
will be turned on and off once every 20 seconds to provide a stable room temperature.
The cycle rate allows a proportional level of power to the heating device. This is indicated
on the thermostat display by the power bar which will be partially filled; indicating the
amount of power going on the heater. This setting is recommended for non-fan assisted
baseboards and electric heating devices
Cr2 is a 240 second cycle. This means the heating will be turned on and off once every 240
seconds. This is the recommended setting for fan assisted heaters, radiant ceilings and
convectors.
and will provide the most energy efficient heating
and a stable temperature.
Option 2: Selecting the Heat Cycle Rate...continued
While it is still in the Options Setting mode, press SET again to advance to the second
option ( will flash on screen).
Press or to select the cycle rate
Cr:1
?

Operating Manual

9
This thermostat is equipped with a Pre-comfort Recovery feature which activates the
heating system in advance of the actual set program time so that the room will be at the
desired temperature at the start of the program time.
It is normal for the system to be activated earlier than the actual set program time (up to
an hour). The Pre-comfort Recovery feature can be disabled, if desired. If this feature is
turned off, heating will only be initiated at the exact start time of the program period.
?

Press SET again to advance to the third option - Pre-comfort Recovery feature
( will flash on screen)
Press or to adjust setting:
• Pre-comfort Recovery feature is disabled
• Pre-comfort Recovery feature is enabled
rE:1
rE:0
rE:1
Option 3: Enabling the Pre-Comfort Recovery Feature

Setting Time and Day
?

Press SET to enter the clock setting mode. (SET appears and the clock symbol/
time flashes).
Press or to scroll to the correct time of day. ( Hold the button to
accelerate).
Press DAY repeatedly to change the day of the week. (Weekday symbols to flash).
Press SET to end the time mode; or wait 15 seconds to return to normal display.
Tip:
10
Operating Manual
Celsius (⁰C) is the default temperature unit; no action is required if this is the desired
temperature display.
IMPORTANT: If you wish to use Fahrenheit (⁰F), it is important to choose this
temperature unit before you begin programming the thermostat. If you proceed to
set programs using the default mode in Celsius (⁰C), then change to Fahrenheit (⁰F)
or vice versa, all programs set by the user will be deleted and will reset to factory
defaults.
Press SET again to advance to the final option. The current temperature will
appear on screen.
Press or to toggle between the ⁰C or ⁰F
?

Option 4: Selecting the Temperature Unit (⁰C or ⁰F)

11
Program Periods
For maximum energy savings, this thermostat is equipped with 7-day programming –
you can program 4 settings per day for each day of the week. This thermostat is pre-
programmed for your convenience, or you can set your own programs as desired.
The program periods (P1, P2, P3 and P4) allow you to set the temperature settings
and start times throughout the day.
During the morning, when you may prefer to wake up to a warmer
temperature.
The time you leave home is usually an energy-savings period; when
the temperature can be reduced to minimize energy consumption.
If you are staying home on a particular day, you may override this
setting by manually adjusting the temperature using the
button.
This the time you return home when you prefer to set the
temperature to a comfortable level. Generally, the temperature is set
to warmer settings during fall/winter and to cooler settings during
spring/summer. If you stay home during the day, periods 1, 2 and 3
can be set at the same temperature level.
This is the time you go to bed, also an energy savings period. You
may set the temperature to your desired energy saving level to save
on heating cost.
HOLD
P1: Morning
P2: Day
P3: Evening
P4: Night

12
Samples of Temperature Settings
Default Setting
The factory default setting will activate automatically; convenient for people who
are away from home during the day and who wish to maximize energy savings.
Period Time Heat Set Point
Morning
Day
Evening
Night
6:00 AM
8:00 AM
5:00 PM
10:00 PM
69.0°F (20.5°C)
63.5°F (17.5°C)
70.0°F (21.0°C)
62.5°F (17.0°C)
Period Time Heat Set Point
Morning
Day
Evening
Night
7:00 AM
8:00 AM
5:00 PM
11:00 PM
69.0°F (20.5°C)
69.0°F (20.5°C)
69.0°F (20.5°C)
62.5°F (17.0°C)
Custom Setting
An example of a custom programming; convenient for people who are at home during the day
and want the home warm all day and cooler at night.
Operating Manual

13
Setting Program Schedules
First, select the day you wish to program; then select the start times and temperature
settings for all four programs periods. Scroll through the daily Program Periods in this
order: P1, P2, P3, P4. You may select any weekday to begin.
Temperature Setting
Weekdays
Program Periods
Clock Symbol
Start Time
Press PROG to enter the program setting mode.
Press DAY to select the day you wish to program. (P1 will appear ).
Press or to set the desired temperature.
Press or to set the start time.
Press PROG again to set the time and temperature for the next periods (P2, P3 and P4).
Press PROG to exit program mode.
Repeat the above steps until the time and temperature settings for each day of the week are
programmed.

14
Copy Program Function
Using this thermostat's COPY function is an easy and convenient way to copy the
programming for all four period settings (P1, P2, P3 and P4) from one day to another
instead of programming each day individually.
If you are not already in the program mode, press PROG to enter the program setting mode.
Press DAY to select the day you wish to copy from.
Press COPY; the COPY symbol will appear and the next weekday will flash.
Press DAY to select the day you wish to copy the programs to.
Press COPY again to copy settings for all four program periods; the COPY symbol will disappear
to indicate that the COPY function is complete.
Repeat the above steps to copy the program to another day.
Tip: If you press COPY 12 times consecutively, the programmed settings will be copied for the entire week.
Press to enter Program Setting ModePROG
Press to copy all four programming
periods
COPY
Operating Manual

15
Restoring Default Programs and Options
If you have difficulty programming your thermostat, you may wish to restore the factory
default settings and begin again.
Press and hold SET for 3 seconds to enter the option setting mode.
Press and hold PROG for 3 seconds to restore all programs to factory defaults.
Note:
(The RESET button must be pressed gently using
a small blunt object)
This will restore the default programs and option settings but will not affect the
clock. To reset the clock, press RESET
. This will revert the clock back to 9:00 AM Monday morning.
Temporary Temperature Override
This function allows you to temporarily override the temperature setting for the current
time period. The thermostat will automatically return to the programmed settings at
the next program period.
Tip: Press and hold or to change the setting more
Press or manually to adjust to the desired temperature setting.
The temperature can be set in half-degree increments (0.5⁰C or 0.5⁰F).
Note:

16
Hold Function
This function allows you to permanently adjust the temperature setting for all time
periods. It maintains a constant temperature and disables all programmed settings.
Press HOLD to activate the hold function; the HOLD symbol appears.
Press or to manually adjust to the desired temperature setting
To deactivate the HOLD function at anytime, press HOLD again. The HOLD symbol will
disappear and will return to the programmed settings for the current time period.
Heating Power Level Display
When the thermostat activates the heating system, the Heat “On” symbol will appear.
Equipped with an intelligent proportional regulation system, this thermostat will determine the
amount of power needed by the electric heater to maintain the room temperature at precisely the
set temperature. The “Power Bar” (A) will indicate the current output power level. 1 BAR = 10%
and 10 BARS = 100%
Display current output power level
Indicates “HOLD” function is activated
Operating Manual

17
Usage Monitor
The thermostat tracks the total run time, i.e. the total time the heating equipment is
running.
Press USAGE once to view USAGE TODAY (starts at midnight).
Press USAGE again to view USAGE THIS WEEK (total time from Monday to current day;
automatically resets every Monday morning, after midnight on Sunday. A new week begins
Monday morning).
Memory Back-Up
The memory back-up will save and protect programs and option settings indefinitely. If an
extended power outage occurs, only the clock setting may be affected. The clock will continue to
run and display on the LCD screen for up to 1 to 2 days even without power, due to the
rechargeable back-up battery inside the unit. However, if the power outage is longer than 2 days,
the clock will revert back to the factory default setting and will need to be reset.
Displays total time heating
is running per day / per week

High Limit Function
The High Limit Function is a security feature which allows the user to select the maximum
temperature limit. If this feature is activated, the user cannot set the temperature to go over
this limit. The High Limit setting cannot be bypassed by programs, temporary overrides or
the Hold function.
To activate the function, press or until the desired high limit temperature is shown in the
program temperature pane.
Press USAGE and COPY simultaneously for 3 seconds to activate this function. A LOCK symbol will
appear on screen.
All existing programs will be scanned and if an existing temperature setting is above the new
maximum set point, it will be reduced to the high-limit set point.
To deactivate, turn off the power supply at the circuit breaker or fuse, then turn it back on after 30
seconds. The LOCK symbol will appear on screen.
While the LOCK symbol is blinking, the deactivation process can be carried out by pressing USAGE
and COPY simultaneously for 3 seconds. . The LOCK symbol will disappear upon deactivation.
Indicates High Limit Function
is activated
18
Operating Manual

19
Troubleshooting
Problem Solution
The LCD screen is blank or
abnormal
• Make sure the thermostat is fully installed.
Check that the power supply has been reconnected at
the circuit breaker or fuse.
If the heater or heating appliance has a power switch
of its own, check to see that it is in the ON position.
•
•
The thermostat housing feels
hot to the touch
When working at full capacity, the thermostat
housing may reach a temperature of approx. 45°C
to 50°C (113°F to 122°F). This is normal and does
not affect the operation of the thermostat.
The thermostat is rated to operate safely at these
temperatures; ensure that the thermostat is not near
heat sensitive or flammable materials such as exposed
wood or wallpaper.
The heating system is constantly
running
Make sure the temperature is not set too high.
The heating system seems to cycle
too often
Make sure the selected cycle matches the heating
system (see pages 7 and 8 for details).

20
Troubleshooting
Problem Solution
Heating is not activated at the
programmed time
• Review the programming guide to ensure the programs
have been entered correctly.
Check that the clock has been set to the correct time
(e.g. AM and PM are reversed).
Reset programs: Press SET for 3 seconds to enter
option mode, then press PROG for 3 seconds to clear
program settings only.
•
•
• Reset all: Press and hold the and buttons
at the same time to restore all settings to factory
defaults.
HOLD RESET
The heating system will not
activate
Temperature settings will not
change
Make sure the temperature is set to the acceptable
range: 5°C to 35°C (41°F to 95°F).
• Check the LCD display to see if there has been a power
failure.
If the symbol appears on the LCD screen when
you increase the temperature, the High Limit Function
is activated. (To deactivate, see page 18 for details.)
Check the heating device to see if it is disabled or if the
circuit breaker is open.
•
•
LOCK
Operating Manual
