Crestron CHV-THSTAT User manual

Crestron Thermostat Quick Start Guide
Thermostat Quick Start Guide – Doc. 6145A CHV-TSAT and CHV-THSTAT Series •
Crestron Quick Start Thermostat
CHV-TSTAT and CHV-THSTAT Series
Step 2
Thermostat System Connections
Mounting
Screws
(not provided)
Wall Anchors
(not provided)
Backplate
Panhead
6/32 x 1 in
Single-gang
electrical box
(not provided)
Stud
Step 1
Thermostat Mounting
Backplate
For Additional details, refer to the latest version of
the Operations and Installation Guide, Doc. 8163
TOP
HUM
RHU
RSR RSR
RS1 RS2 24(C)
24(R)
24V
Y
Z
G
NETWORK
RH
RC G
Y/Y1 Y2
O
B
W/W1
W2
Backplate
24(R) - 24 VAC reference terminal. Can be connected to RH or RC
by P4 jumper setting (refer to following page), or tied directly
to power source
24(C) - 24 VAC common terminal supplies remote 24 VAC power
to thermostat
RS2 - Remote Sensor terminal - Connect the sensor from RS2 to RSR
RS1 - Remote Sensor terminal - Connect the sensor from RS1 to RSR
RSR - Remote Sensor Returns - Common sensor terminal
RHU - Reference for humidifier
HUM - Energized (connected) to RHU during humidity call
W2 - Heat (stage two), energized (connected) to RH during a call for
second stage heat in heat/cool systems
W/W1 - Heat (single stage)/heat (stage one) energized
to RH during a call for heat in heat/cool systems or aux heat
in heat pump systems
B - Energized to RC during non-cooling modes
O- Changeover control, energized to RC during cooling modes
Y2 - Compressor (stage two), energized to RC on two-stage
systems on call for second stage
Y/Y1 - Compressor (stage one), energized to RC when
compressor (or first stage) is run
G- Fan, energized to RC during call for fan
RC - Reference Cool, used for calls to cooling system
RH - Reference Heat, used for calls to heating system
Network Connection
for Crestron
Installer Only
NOTE:
Fill the Electrical Box
with Thermal
Insulation Material
1

Quick Start Guide Crestron Thermostat
•CHV-TSTAT and CHV-THSTAT Series Thermostat Quick Start Guide – Doc. 6145A
NOTE: Ensure that the power circuits are shut off at the source before connecting the thermostat.
Provide disconnect means and overload protection as required for the power supply.
2

Crestron Thermostat Quick Start Guide
Thermostat Quick Start Guide – Doc. 6145A CHV-TSAT and CHV-THSTAT Series •
3

Quick Start Guide Crestron Thermostat
Crestron Electronics, Inc. Thermostat Quick Start – DOC. 6145A
15 Volvo Drive Rockleigh, NJ 07647 08.04
Tel: 888.CRESTRON
Fax: [phone] Specifications subject to
www.crestron.com change without notice.
Global Update
SEND
MODE
VIEW T
T
CRESTRON
Use the up and down arrow buttons
to make a selection.
Press MODE to step to the next
screen.
Press MODE to return to Main Screen
Press VIEW to set the humidity
setpoint, see the outdoor
temperature, and see text messages
from the system
Press VIEW
to return to
Main Screen
Use the up and
down arrow
buttons to
adjust the
Humidity Set
Point level
View the outdoor
temperature
(if an outdoor
sensor has been
installed) and
outdoor humidity
(if available)
View text messages sent from the control
system when part of a Cresnet system
Step 5

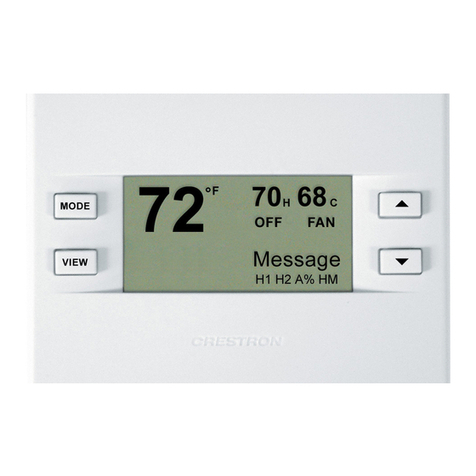

Thermostat Operation
MODE and VIEW
Main Screen
Press the down
arrow to activate
T
T
System Mode
HEAT COOL AUTO OFF
AUX HEAT ONLY
Slab System Mode
HEAT OFF
Floor Warming
76 0F820F
Air System Mode
HEAT COOL AUTO OFF
Slab System Mode
HEAT OFF
Crestron Sys
ONLINE HOLD
Humidifier
ENABLED DISABLED
Fan Mode
AUTO ON
Humidity
30%24 %
Outdoor
oF
32
Messages
Emergency Gen in Use
<CLR
SLAB 3
System
SLAB 1
System
Heat/Cool,
Heatpump &
SLAB 4 Systems
System Mode
HEAT OFF
SLAB 2
System
SLAB 5
System
Floor Warming
76 0F820F
System Mode
HEAT OFF
The displayed Mode screens
depend on the type of system. 76oF
43 %
76oF
HEATING
HEAT ONLY
NET FAULT
H1 H2 AX
F
o
76
HC
MODE
VIEW T
T
CRESTRON
76oF
43 %
76oF
HEATING
HEAT ONLY
NET FAULT
H1 H2 AX
F
o
76
HC
