Esse-ti GSM200 C User manual

7IS-80146
Installation and User’s manual

Thank you for choosing
an Esse-ti product
This product has been especially designed for easy
operation. It has been manufactured with perfect
workmanship using suitable materials for long-lasting
performance.
All Esse-ti products are subjected to extensive reliability
and operational testing in our laboratories in order to
provide total guarantee for the user.
The User shall be responsible for defects arising from the use of the product. Esse-ti shall only be
responsible for defects according to and within the limitations set by the Presidential Decree dated
24/05/1988 no. 224 (fulfilling the EEC directive no. 85/374 on the harmonisation of statutory and
administrative regulations of the Member States on the liability for damages arising from defective
products under art. 15 of Law no. 183 of 16 April 1987).
Esse-ti reserves the right to modify the characteristics of the products at any time without prior
notice.

TABLE OF CONTENTS
GENERAL INSTRUCTIONS FOR THE INSTALLER .................... 4
General Notes ................................................................................. 4
Making the Installation .................................................................. 4
DESCRIPTION .................................................................................. 5
INSTALLATION ............................................................................... 6
Inserting the SIM card ............................................................................. 7
Inserting the antenna ................................................................................ 8
PROGRAMMING.............................................................................. 9
CONNECTIONS .............................................................................. 10
Helpy 2W-TL / Helpy 2W-LCP ............................................................ 10
Helpy L300 / Helpy L300 TL ................................................................ 10
Helpy L200 / Helpy L200 TL ................................................................ 10
ST60 / ST61 / Helpy Quick / Helpy Quick-TL / Helpy Vox ................ 11
ST56 / Helpy Star ................................................................................... 11
STARTING ...................................................................................... 12
Test call .................................................................................................. 13
Module mounting operations ................................................................. 13
GSM200 C installation recommendations ............................................. 14
EU Declaration of Conformity .............................................................. 14
SIGNALLING .................................................................................. 15
LED indicating device operation status (RED) ..................................... 15
LED indicating GSM signal strength (GREEN) ................................... 15

Page 4
GENERAL INSTRUCTIONS FOR
THE INSTALLER
GENERAL NOTES
Carefully read the notes contained in this section as they provide important
information on the correct safe installation, use and maintenance of the product.
 The product must be EXCLUSIVELY used for the purpose it was designed for.
Esse-ti shall not be responsible for damages arising from improper use.
 The product has been designed in compliance with the regulations in force and
must be installed in systems that comply with the provisions of law.
 Always disconnect the product from the power supply mains before carrying out
any operation either inside or outside the product (cleaning, maintenance, etc.).
 Always refer to an authorised assistance centre for repair.
 Install the product in a well-ventilated place, making sure not to obstruct the
ventilation slots.
 Do not use the product in association with other electric or electronic devices that
were not especially designed to be used with it.
 Do not install the product in potentially explosive environments.
 Make sure that the product has been installed as required.
 Do not introduce objects, liquids or powders inside the product. Do not use sprays
inside the product.
 Packing components (such as plastic bags, foam polystyrene, etc.) must be kept out
of the reach of children because potentially dangerous.
MAKING THE INSTALLATION
Internal telephone installations must be carried out by specialised personnel.
The installation and connection of telephone terminals to the telecommunications
network that do not comply with the regulations in force is not permitted.

Page 5
DESCRIPTION
The GSM200 C module can be used in conjunction with the following
Esse-ti elevator alarm systems:
- Helpy 2W-TL
- Helpy 2W-LCP
- Helpy L300
- Helpy L300 TL
- Helpy L200
- Helpy L200 TL
- ST60
- ST61
- Helpy Quick
- Helpy Quick-TL
- Helpy Vox
- ST56
- Helpy Star.
For the correct operation of the module a GSM SIM card is required.
This manual describes the GSM200 C installation procedure. For other
instructions, please refer to the elevator alarm system user manual.

Page 6
INSTALLATION
 Remove the cover.
A ANTENNA connector
B SIM CARD housing
C LED indicating signal strength (green)
LED indicating device operation status (red)
D RJ45 for module connection to Esse-ti
elevator alarm systems

Page 7
Inserting the SIM card
Before inserting or replacing the SIM card, always make sure that the
module has been disconnected from the mains and take all necessary
measures to avoid electrostatic discharge.
 Shift the SIM card housing cover downward and lift it.
 Carefully slide the SIM card in its housing cover.
 Lower the SIM card housing cover and shift it upward until it
blocks.
WARNING
The SIM card must have the PIN code
DISABLED. If the Sim card has the PIN
code enabled it is necessary to disable it
by means of a normal mobile phone.
 Close the module cover.

Page 8
Inserting the antenna
 Screw the antenna cable in to the connector on the top of the
module.
WARNING
NEVER connect GSM200 C module
without having installed the antenna.
The module may damage.
WARNING
Do not install the product near other electric or
electronic devices that were not especially designed to
be used with it. They could be subjected to RF
interference from the module.

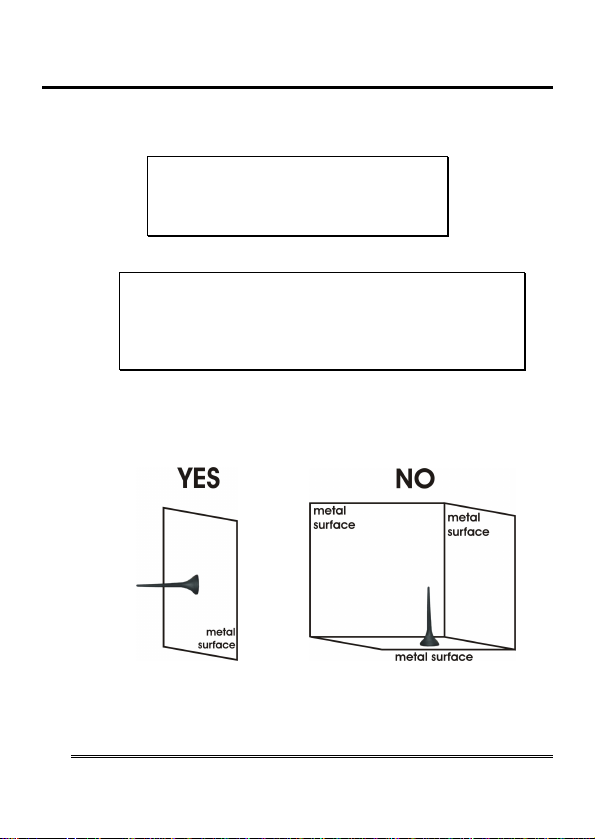

 Position the antenna with magnetic base so that any metal
surfaces do not block the signal.

Page 9
PROGRAMMING
When using the GSM200 C module for connection with any Esse-ti alarm
system, please make sure the parameter “Programming the type of
telephone line” has been adequately set in the specific alarm system.
 Lift the local telephone handset of the elevator alarm system.
 Dial:
< Installer password >
(by default: ).
 Set the type of GSM200 line:
 Exit programming:
< Installer password>
(by default: ).

Page 10
CONNECTIONS
Helpy 2W-TL / Helpy 2W-LCP
 Insert the provided cable (pin-to-pin cable) in to the two RJ45
connectors located on the Helpy 2W-TL / Helpy 2W-LCP and
GSM200 C module.
In order to reach longer distances (up to 100 m), please use a cat.5 or
higher cable.
Helpy L300 / Helpy L300 TL
 Make sure that the jumpers JP11 and JP12 located on the Helpy
L300 / Helpy L300 TL are in position 2-3 (towards the RJ45
connector).
 Insert the provided cable (pin-to-pin cable) in to the two RJ45
connectors located on the Helpy L300 / Helpy L300 TL and
GSM200 C module.
In order to reach longer distances (up to 100 m), please use a cat.5 or
higher cable.
Helpy L200 / Helpy L200 TL
 Make sure that the jumper JP5 located on the Helpy L200 / Helpy
L200 TL is in position 2-3 (towards the RJ45 connector).
 Insert the provided cable (pin-to-pin cable) in to the two RJ45
connectors located on the Helpy L200 / Helpy L200 TL and
GSM200 C module.
In order to reach longer distances (up to 100 m), please use a cat.5 or
higher cable.
