Essential Home DA1026RW2 User manual

Model No.:
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION PLEASE READ AND
KEEP FOR FUTURE REFERENCE
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our
customer service department. We will replace
the part FREE of charge.
Tel #: [phone]
E-Mail: c[email protected]
Fax #: [phone]
(Walnut) 0-02563282-9
Bunk Bed
OWNER'S
(White) 030-040682-114
(Pine) 030-257777-110
MANUAL
DA1026RW2 - White
DA1026RP2 - Pine
PRODUCT CODE:
DA1026RWN- Walnut
ATTACH HERE
RECEIPT OF PURCHASE:
eSSeNTIAL HOMe
TM
UPC CODE:
(White) 0-72000-96501-6
(Pine) 0-72000-96502-3
(Walnut) 0-65857-14462-8
DATE OF PURCHASE:

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
FOLLOW THE INFORMATION ON THE WARNINGS APPEARING ON THE UPPER BUNK
END STRUCTURE AND ON THE CARTON. DO NOT REMOVE WARNING LABEL FROM
BED.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer
service representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product
model number, color and a detailed description of the part.
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
E-MAIL:[email protected]
WARNING
STRANGULATION HAZARD - NEVER ATTACH OR HANG ITEMS TO ANY PART OF THE
BUNK BED THAT ARE NOT DESIGNED FOR USE WITH THE BED; FOR EXAMPLE, BUT
NOT LIMITED TO, HOOKS, BELTS AND JUMP ROPES.
THE MATTRESS PLATFORM IS DESIGNED TO SUPPORT A MATTRESS WITHOUT THE
NEED FOR A POSTURE BOARD OR BOX SPRING.
USE OF A NIGHT LIGHT MAY PROVIDE ADDED SAFETY PRECAUTION FOR A CHILD
USING THE UPPER BUNK.
ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR
BOTH, TO HELP PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS.
USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" - 38 1/2" WIDE ON
UPPER AND ON LOWER BUNKS. ENSURE THICKNESS OF MATTRESS DOES NOT
EXCEED 6". SURFACE OF MATTRESS MUST BE AT LEAST 5" (127MM) BELOW THE
UPPER EDGE OF GUARDRAILS.
DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK.
ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF THE
BUNK BED WILL BE PLACED NEXT TO THE WALL, THE GUARDRAIL THAT RUNS THE
FULL LENGTH OF THE BED SHOULD BE PLACED AGAINST THE WALL TO PREVENT
ENTRAPMENT BETWEEN THE BED AND WALL (APPLICABLE FOR BUNK BEDS WITH
FULL LENGTH GUARDRAILS ON ONE SIDE).
PERIODICALLY CHECK AND ENSURE THAT THE GUARDRAIL, LADDER AND OTHER
COMPONENTS ARE IN THEIR PROPER POSITION, FREE FROM DAMAGE, AND THAT
ALL CONNECTORS ARE TIGHT.
DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON
THE BED.
DO NOT USE SUBSTITUTE PARTS. CONTACT CUSTOMER SERVICE FOR
REPLACEMENT PARTS.
THE USE OF WATER OR SLEEP FLOTATION MATTRESSES IS PROHIBITED.
ALWAYS USE THE LADDER FOR ENTERING AND LEAVING THE UPPER BUNK.
PROHIBIT MORE THAN ONE PERSON ON UPPER BUNK.
KEEP THESE INSTRUCTIONS FOR FUTURE USE.

*
*
*
*
*
*
*
*
Check bolts/screws periodically and tighten them if necessary.
MOST BOARD PARTS ARE LABELED OR STAMPED ON THE RAW EDGE.
MAKE SURE ALL PARTS ARE INCLUDED. WORK IN SPACIOUS AREA, PREFERABLY
ON A SMOOTH SOFT SURFACE.
PHILLIPS SCREWDRIVER (NOT INCLUDED) IS REQUIRED.
WARNING: Should this product
become damaged, and/or components
are broken or missing, DO NOT USE.
BED IS DESIGNED FOR CHILDREN RANGING FROM 6 YEARS OF AGE TO YOUNG
TEENAGERS.
Dust regularly with a soft, dry cloth. We do not recommend the use of chemical cleaners or
wax on our lacquered furniture as it may damage the finish. Keep solvents, alcohol, nail
polish and polish removers away from your hardwood furniture surfaces.
MAINTENANCE
JARDINE ENTERPRISE LIMITED WARRANTY
Jardine Enterprise warrants its product to be free from defects in material and workmanship
and agrees to remedy any such defect. This warranty covers 1 year from the date of original
purchase. This warranty is valid only upon presentation of proof of purchase. This is solely
limited to the repair or replacement of defective furniture components and no assembly labor
is included. This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in any way.
This warranty gives you specific legal rights and you may also have other rights which vary
from State to State
CARE AND CLEANING
A RUBBER MALLET (NOT INCLUDED) IS RECOMMENDED TO FACILITATE ASSEMBLY.
NOTES
READ EACH STEP CAREFULLY BEFORE STARTING. IT IS VERY IMPORTANT THAT
EACH STEP OF INSTRUCTION IS PERFORMED IN THE CORRECT ORDER. IF THESE
STEPS ARE NOT FOLLOWED IN SEQUENCE, ASSEMBLY DIFFICULTIES WILL OCCUR
AND CAN RESULT IN INJURY.
CAUTION: ADULT ASSEMBLY REQUIRED
ASSEMBLY WILL REQUIRE TWO PEOPLE.

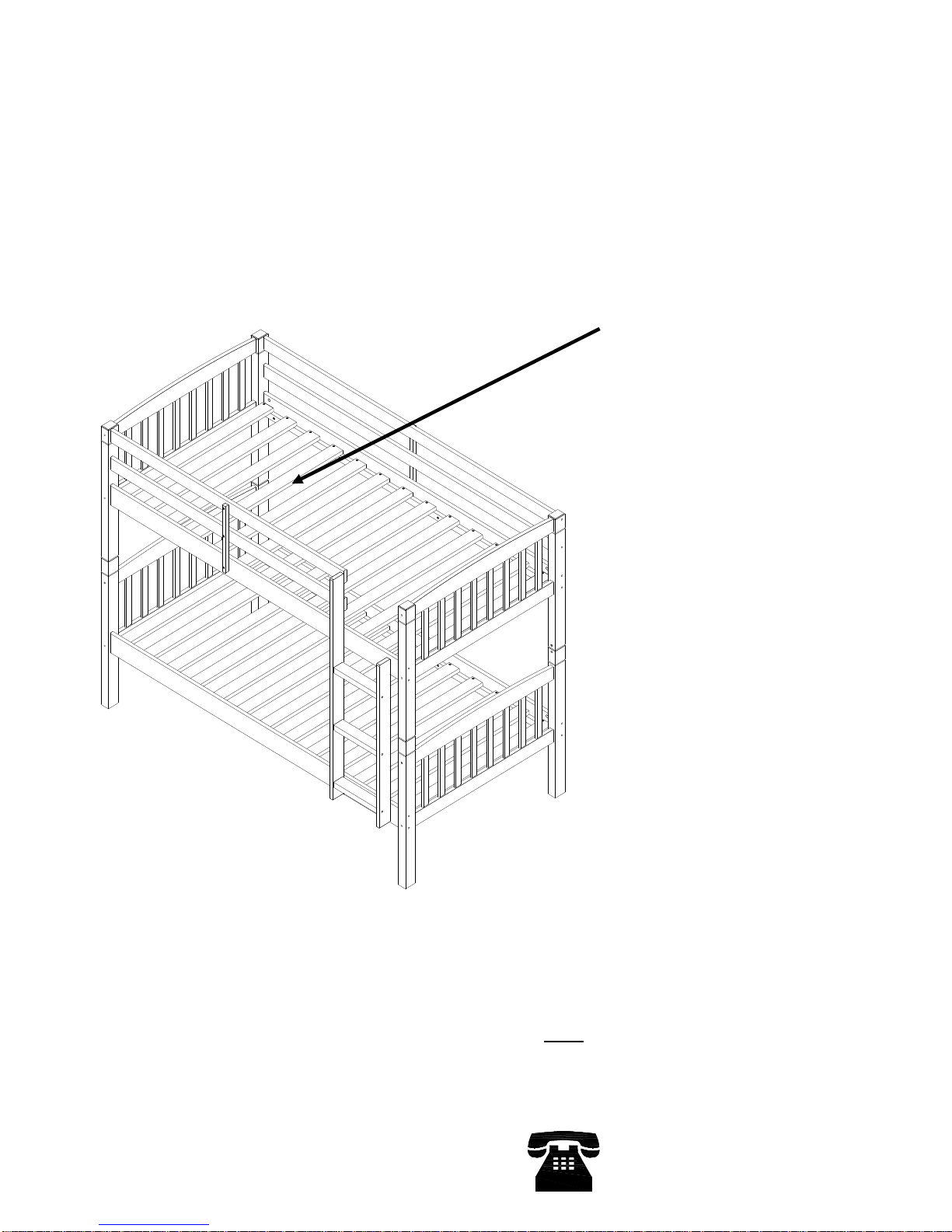

BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
11
WOOD JOINT CONNECTOR (4mm HEX HEAD)
6 PCS
6.5mm x 80mm
HARDWARE LIST
1 2
JOINT CONNECTOR (4mm HEX HEAD)
16 PCS
HEX KEY
1 PC
BARREL NUT
16 PCS
STOPPER
32 PCS
WOOD DOWEL
28 PCS
WOOD DOWEL
4 PCS
FLAT HEAD WOOD SCREW
6 PCS
FLAT HEAD WOOD SCREW
60 PCS
WOOD JOINT CONNECTOR (4mm HEX HEAD)
16 PCS
WOOD JOINT CONNECTOR (4mm HEX HEAD)
12 PCS
1/4" x 85mm 6.5mm x 48mm
4
4mm x 35mm
3
6.5mm x 100mm
6
57
8
4mm x 30mm 15mm x 60mm 10mm x 50mm
910
11.8mm x 15mm
1

BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
PARTS LIST
BOTTOM POST
2 PCS BOTTOM POST
2 PCS HEADBOARD TOP CROSS
4 PCS
ABC
E
DF
C
2

BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
I
HG
PARTS LIST
PQR
O
N
M
JKL
HEADBOARD BOTTOM CROSS
4 PCS TOP SIDE RAIL (WITH 3 HOLES)
1 PC BOTTOM SIDE RAIL (WITH 2 HOLES)
1 PC
TOP SIDE RAIL (WITH 1 HOLE)
1 PC BOTTOM SIDE RAIL (WITH NO HOLE)
1 PC SLAT
26 PCS
SHORT GUARDRAIL
2 PCS
HEADBOARD SLAT
32 PCS SAFETY BLOCK
2 PCS
SV
3

NOTES: Headboard top cross (F) and headboard bottom cross (G) may require that they be pulled
closer together or further apart in order to allow wood dowels (7) to align with holes in top posts (A and
B).
Insert stoppers (8) and headboard slats (S) into the holes of the headboard bottom cross (G) and
push down until firmly in place. Slide headboard top cross (F) onto headboard slats (S). Insert wood
dowels (7) into ends of top cross (F) and bottom cross (G). Attach top posts (A & B) using wood joint
connectors (3) as shown.
BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
One of the headboard top cross (F) has a label on it, do not use it in this step.
STEP 1
F
S
7
3
A
8
7
B
A
S
F
G
88 PCS
4 PCS
74 PCS
3
without label
4

NOTE: Headboard top cross (F) and headboard bottom cross (G) may require that they are pulled
closer together or further apart in order to allow wood dowels (7) to align with holes in top posts (A
and C).
Insert stoppers (8) and headboard slats (S) into the holes of the headboard bottom cross (G) and
push down until firmly in place. Slide headboard top cross (F) onto headboard slats (S). Insert wood
dowels (7) into ends of top cross (F) and bottom cross (G). Attach top posts (A & C) using wood joint
connectors (3) as shown
BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
Use the headboard top cross with label (F) in this step.
STEP 2
F
S
7
3
A
8
7
C
A
S
F
G
88 PCS
4 PCS
74 PCS
3
with label
5

STEP 3
BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
Insert stoppers (8) and headboard slats (S) into each hole in the headboard bottom cross (G) and push
them down until firmly in place. Slide headboard top cross (F) onto headboard slats (S). Insert wood dowels
(7) into ends of top cross (F) and bottom cross (G). Attach bottom posts (D and E) using wood joint
connectors (3) as shown.
Repeat the above step to assemble the remaining headboard.
816 PCS 78 PCS
8 PCS
3
6

BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
Attach the two headboards with the bottom posts (D and E) to the bottom side rails (I and K) by the joint
connectors (1) and barrel nuts (9) as shown. This is the lower bunk.
STEP 4
9
9
9
1
1
E
D
Holes
K
I
9
E
D
1
7

STEP 5
BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
Insert a wood dowel (7) into each end of the long guardrails (M). Attach the two long guardrails (M) and the
two top side rails (H and J) to the top posts (A and B) and (A and C) as shown. Use the joint connectors (1)
with the barrel nuts (9) to fasten the top side rails (H and J) and use the wood joint connectors (11) to
fasten the long guardrails (M).
M
4 PCS
7
8PCS
9
hole on opposite side
hole on opposite side
M
J
H
C
A
B
A
11 4 PCS
18PCS
8

STEP 6

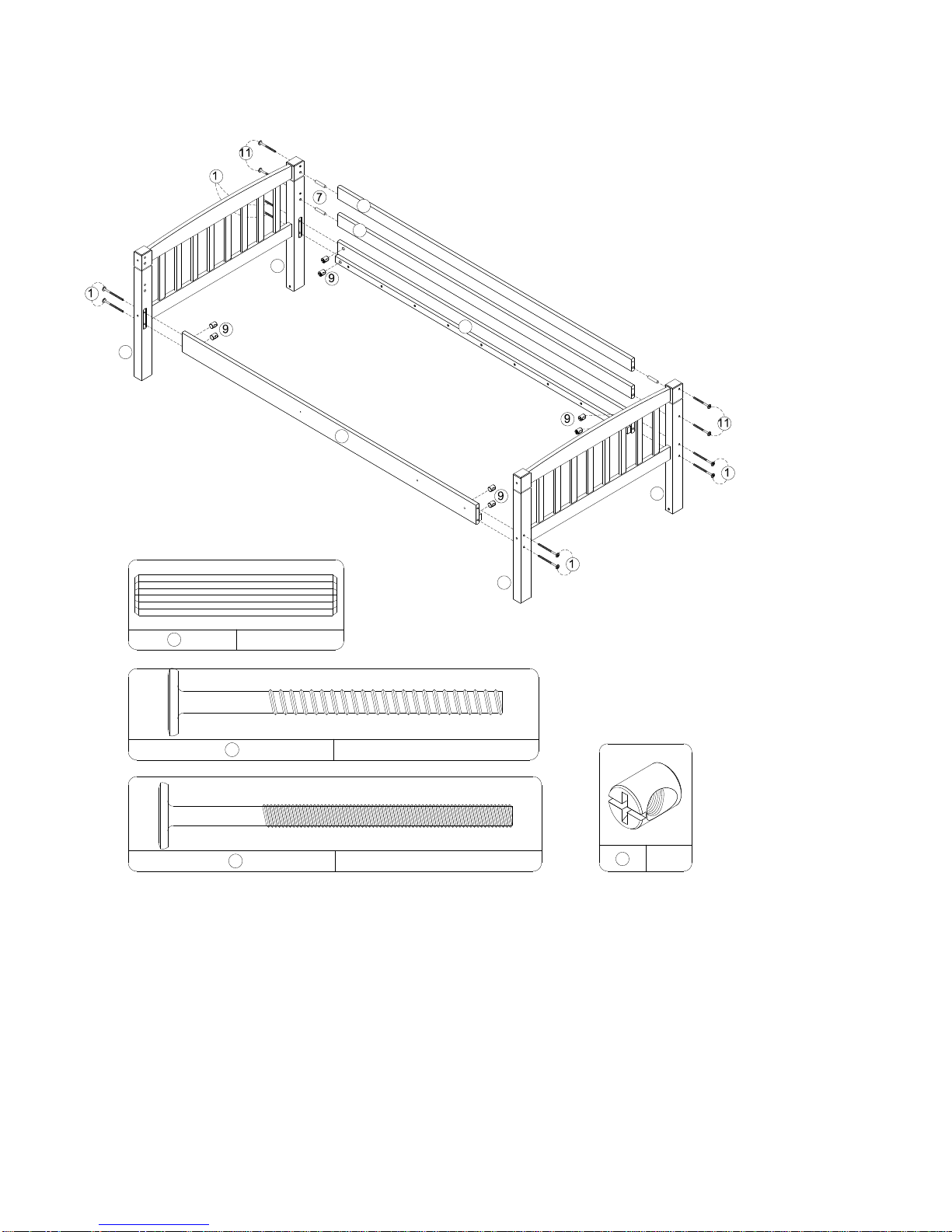

Attach a slat (L) onto the bottom side rails (I and K) of the bottom bunk so that it touches the corner posts (as
close to the headboard as possible) with flat head wood screws (4). Attach the rest of the slats (L) onto the
bottom side rails (I and K) with flat head wood screws (4). Use safety block (V) to space them out evenly.
BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
NOTE: If you notice that any of the slats (L) are not perfectly flat, be sure to assemble them so that the slats
(L) curves up in the middle and down on the ends.
Repeat this process for the top bunk.
I
I
H1
A
52 PCS E
D
4
One per side
V
E
D
K
I
(L): slats:13 pcs for the lower bunk
13 pcs for the upper bunk
9

STEP 7
Insert wood dowels (7) into the holes in the ends of short guardrails (N). Attach short guardrails (N) to
top post (A) with wood joint connectors (11). Attach the guardrail leg (R) to the short guardrails (N)
and top side rail (H) with flat head wood screws (5). Attach the remaining guardrail leg (R) (on the
other side of the bed) to the long guardrails (M) and top side rail (J) with flat head wood screws (5).
BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
Place four wood dowels (6) into the holes in the bottom posts (D and E). With the help of another
person, stack the top bunk onto the bottom bunk.
I
I
J
H1
A
R
D
5
7
N
K
R5
H
J
M
B
A
6
E
D
10

STEP 8
BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
Assemble the ladder by inserting wood dowels (7) into the end of the ladder steps (Q) and screwing long
ladder end (O) and short ladder end (P) to ladder steps (Q) with wood joint connectors (2) as shown.
Secure the upper bunk to the lower bunk by screwing the screws (4) into the holes in the top and bottom
posts (A, B, C, D & E) as shown.
I
I
H1
Headb
Footboard
Headboar
SIDE RAIL
WOOD SCREWS
A
11

STEP 9
BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
Attach the ladder to the short guardrails (N), the top side rail (H) and bottom side rail (I) with the wood joint
connectors (2) as shown.
NOTE: If a slat (L) is covering the ladder mounting holes, please remove the slat (L) and reattach after the
ladder is attached.
I
I
J
H1
Headboar
A
Slats are not shown in
illustration for clarity
N
O
K
H
I
2
12

DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
Instructions for converting the bunk bed into two single beds
BUNK BED
I
I
J
H1
Footboard
To be used as
the headboard
for single bed
To be used as
the headboard
for single bed
To be used as
the footboard
for single bed To be used as
the footboard
for single bed
Remove the ladder and all the guardrails.
With the help of another person, remove the top bunk from the lower bunk.
Disassemble the side rails from all headboards (top and lower bunks).
Re-assemble the headboards (with tall posts) and footboards (with short posts) to side rails.
Note: Switching the headboards will allow the two single beds to be identical (headboards have
taller posts and footboards have shorter posts.
The supports slats are
removed from illustration for
clarity only - they DO NOT
need to be removed to convert
the bunk bed to single beds.
However, the 2 end slats
can be removed to facilitate
assembly.
footboard
headboard
13

DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact
our customer service department. We
will replace the part FREE of charge.
Tel # : [phone]
E-Mail: [email protected]
Fax #: [phone]
BUNK BED
DA1026RP2 PINE / DA1026RW2 WHITE/ DA1026RWN WALNUT
USE ONLY MATTRESSES
WHICH ARE 74"-75" LONG AND
37 1/2" - 38 1/2" WIDE ON
UPPER AND ON LOWER
BUNKS. ENSURE THICKNESS
OF MATTRESS DOES NOT
EXCEED 6".
DO NOT ALLOW CHILDREN
UNDER 6 YEARS OF AGE
TO USE THE UPPER BUNK.
BED IS DESIGNED FOR
CHILDREN RANGING FROM
6 YEARS OF AGE TO
YOUNG TEENAGERS.
DO NOT ALLOW HORSEPLAY ON
OR UNDER THE BED AND
PROHIBIT JUMPING ON THE BED.
14

MODEL #: DA1026RP2 PINE / DA1026RW2 WHITE / DA1026RWN WALNUT
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity: (Please be sure to list model number or SKN number)
Customer Service Representative Mailing Address:
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
Customer Service
Customer Service Phone Number 1-800-295-1980
Email: [e-mail]
Customer Service Fax Number 514-353-7819
C
B
E
A
B
B
B
