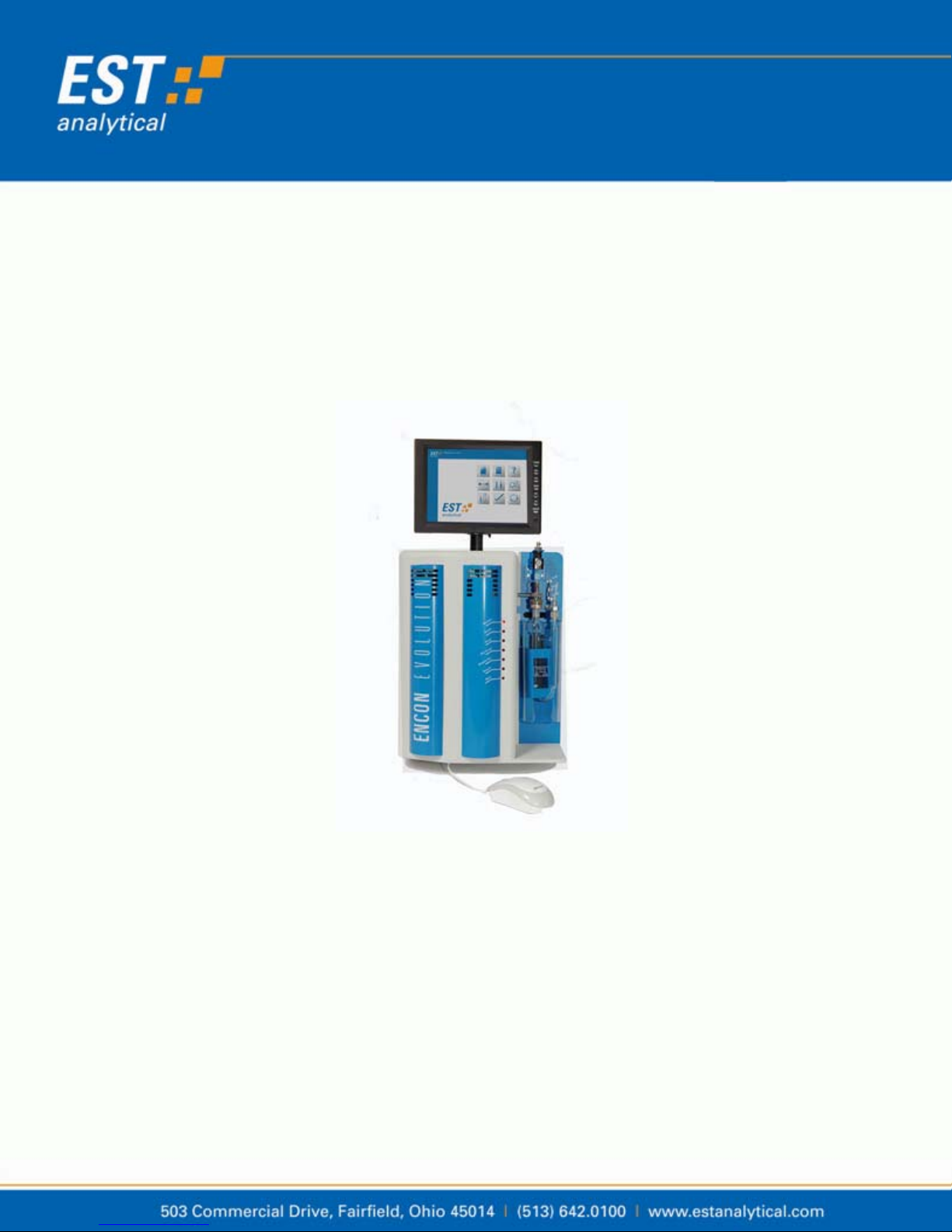

EST Encon Evolution User manual

 Encon Evolution User Manual
Original Operating Instructions
(Rev. 4.5)






























Notices
No part of this manual may be reproduced in any form or by any means (including electronic
storage and retrieval or translation into a foreign language) without prior agreement and written
consent for EST Analytical.
Edition
Version
Rev. 4.5
EST Analytical
503 Commercial Dr.
Fairfield OH, 45014 USA
Acknowledgements
Encon Evolution® is a registered trademark of EST Analytical. Carbopack®, Carbosieve®,
Carboxen®, SP®, and Vocarb® are trademarks of Sigma-Aldrich Co. Tenax® is a trademark of
Enka Research Institute Arhem. HP® is a registered trademark of Hewlett-Packard Company.
Perkin Elmer® is a registered trademark of Perkin Elmer Inc. Varian® is a trademark of Varian
Inc. Swaglock® is a registered trademark of the Crawford Fitting Co. Teflon® and Vespel® are
trademarks of E.I. DuPont de Nemours and Company Inc. Windows®XP is a registered
trademark of the Microsoft Corp. Chemrex® is a trademark of Chemrex Inc. Siltek® is a
trademark of Restek Corp.
Registered names and trademark information are accurate to the best of our knowledge at the
time of printing.
The symbol marked on the product indicates compliance with the requirements of
CAN/CSAC22.2 No.61010.1, 2nd edition, including Amendment 1.

Warranty
The material contained in this document is provided “as is”, and is subject to change without
notice, in future editions. EST Analytical warrants the products it manufactures and distributes,
except those specially exempted, to be free from defects for (1) full year from the date of
shipment. This warranty is limited to the original purchaser of the product and is not
transferable. This limited warranty does not extend to any products that have been damaged as a
result of accident, misuse, abuse, unauthorized service or modification by anyone.
Except as expressly set forth above, no other warranties are expressed or implied including, but
not limited to, any implied warranties merchantability and fitness for a particular purpose, and
EST expressly disclaims all warranties not stated herein. In the event the product is not free
from defect as warranted above, the purchaser’s sole remedy shall be provided above. Under no
circumstances will EST Analytical be liable to the purchaser or any user for any damages,
including the incidental or consequential damages, expenses, lost profits, lost savings or other
damages arising out of the use or inability to use the product. This warranty shall not be
applicable to the extent that any provision of this warranty is prohibited by any federal, state, or
municipal law that cannot be preempted.
Federal Communications Commission advisory:
This equipment has not been tested or found to comply with the limits of Class A computing
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his
expense.
Safety Notices
CAUTION
A CAUTION notice denotes a hazard. It calls attention to an operating procedure, practice, or
the like that, if not properly performed or adhered to, could result in damage. Do not proceed
beyond a CAUTION notice until the indicated conditions are completely understood and met.
ATTENTION
La mention ATTENTION signale un danger. Il attire l'attention sur une procédure
d'exploitation, la pratique ou la comme ça, s'il n'est pas correctement effectuée ou respectée, peut
entraîner des dommages. Ne pas aller au-delà d'une mention ATTENTION jusqu'à ce que les
conditions indiquées sont complètement comprises et respectées.

WARNING
AWARNING notice denotes a hazard. It calls attention to an operating procedure or practice,
or the like that, if not properly performed or adhered to, could result in personal injury of death.
Do not proceed beyond a WARNING notice until the indicated conditions are completely
understood and met.
AVERTISSEMENT
La mention AVERTISSEMENT signale un danger. Il attire l'attention sur une procédure ou une
pratique exploitation, ou le comme ça, s'il n'est pas correctement effectuée ou respectée, peut
entraîner des blessures de la mort. Ne pas aller au-delà d'une mention AVERTISSEMENT
jusqu'à ce que les conditions indiquées sont complètement comprises et respectées.

Table of Contents
Chapter 1: Introduction
1.1 Product Description
1.2 Product Specifications
1.3 Warnings and Symbols
1.4 Disposal and Recycling Information
Chapter 2: Encon Evolution Installation and Set-up
2.1 General Information
2.2 Work Space Requirements
2.3 Power Requirements
2.4 Unpacking the Encon Evolution
2.5 System Setup

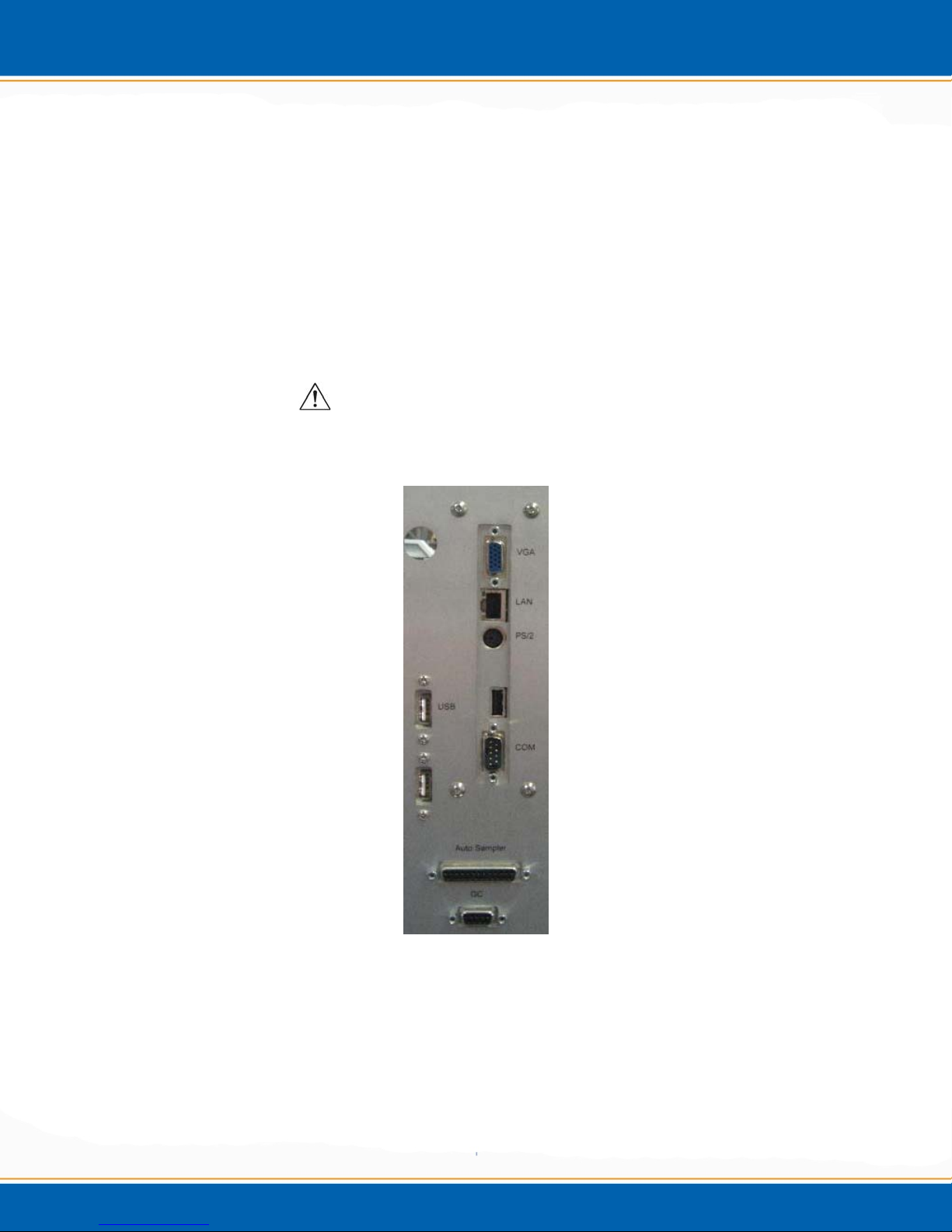

2.5.1 Interface Connection
2.5.2 Monitor Connection
2.5.3 Mouse Connection
2.5.4 Gas Connection
2.5.5 Power Connection
2.5.6 System Power Up
Chapter 3: Encon Evolution Operation
3.1 Powering on the Encon Evolution
3.2 Opening the Encon Evolution Application
3.3 Powering off the Encon Evolution
3.4 Main Screen
3.5 Diagnostics Screen
3.6 Home/Login Screen
3.7 Exit Icon
3.8 Options Screen
3.9 Sequence Screen
3.10 Method Screen
3.10.1 Method Setup Tab
3.10.2 Purge and Trap Tab
3.10.3 Sample Heater Tab (OPTION)
3.11 Run Status Screen

3.12 Active Run Log Screen
3.13 Report Screen
3.14 Integrity
3.15 Help Screen
3.16 Recommended Encon Evolution Purge and Trap Parameters USEPA
Method 8260b
Chapter 4: User Maintenance
4.1 Technical Support Contact Information
4.2 Cleaning the Encon Evolution
4.3 Trap and MoRT Replacement
4.4 Diagnostics Screen
4.4.1 Icons
4.4.2 Manual Heater Control
4.4.3 Manual Valve Control
4.4.4 Flow Pathway Drop Down Menu
4.4.5 Flow
4.4.6 Flow Calibration
4.4.7 Trap Bake
4.4.8 Calibration
4.4.9 Drain
4.4.10 Manual Injection
4.5 Fuse Replacement
4.6 Spare Parts Website
Chapter 5: Flow Diagrams

User Manual
Introduction
Chapter 1

1.1 Product Description
Over the past several years, the Encon has proven itself to be an extremely reliable instrument
providing 24/7 hours of operation. EST Analytical is now introducing the Encon Evolution with
features such as: the Foam Sensor, Modular Pressure/Flow Control for programmable flow rates
and an automated leak/pressure check. The modular design of the flow controller allows the user
to replace individual components in case of failure instead of the expense of replacing the entire
Mass Flow controller. Moisture control is performed during the purge cycle to reduce the
sample desorb pathway. Optional touch screen interface along with easy trap access from the
front of the instrument make daily use and operation very simple. With superior
chromatographic resolution, the Encon has evolved with features that will make the laboratory
more productive and ensure data integrity.
As limits are pushed lower in many states, carryover within the purge and trap system is
becoming a greater concern. In the past, efforts have been to reduce carryover with new sample
pathway materials and programmable flow rates during the bake cycle, but little has been done to
deal with the primary cause of the carryover, the sparge vessel itself. If an analyst runs a high
level sample, followed by a blank, a certain level of carryover can be seen on all purge and trap
systems. If an analyst runs a high level sample, replaces the glassware, then runs a blank a 70-
90% reduction in carryover can be seen. The new Encon Evolution employs a mode where
during the bake cycle of the concentrator, the sparge vessel is heated (Patent Pending). The result
is the lowest level of carryover of any concentrator today.
Other features like; DPC – Desorb Pressure Control (Patent Pending) can help provide superior
chromatographic resolution. There are many different parameters that can affect peak shape,
especially with the early eluting compounds. The peak shape of these compounds can be greatly
affected by flow rates and pressure changes within the trap. One of the problems is that the trap
pressure is often different than the GC column head pressure. When the concentrator goes into
desorb, the multiport valve turns to allow GC carrier flow to travel through the trap. If the trap is
at a pressure lower than the column head pressure, the trap will experience a surge in gas flow to
adjust to the new pressure causing poor peak shape and/or recovery of the light compounds. The
Encon Evolution allows the user, after purge, to establish a set pressure within the trap. Users
can adjust this setting depending upon the column head pressure they are using to optimize peak
shape.
EST Analytical was the first to introduce a foam sensor to purge and trap. Fritted sparge vessels
improve purging efficiency but they also increase the frequency of samples foaming. With the
Encon Evolution, if a foamed sample is detected the sample will be drained; the GC will be sent
a start signal to perform a blank run, ensuring the GCs sequence table is accurate. The sample
pathway is then baked out and a notification is written to the instrument’s sample log.
Windows XPe Graphical Display is the new EST Analytical user interface. This is an easy to use
programming environment that provides total system information. Basic status screens display
real time pressure and flow paths. Modes and times of operation give the user an easy way to
review overall system parameters and current status. System maintenance screens give users
complete control of the entire system. Click on each valve to manually actuate solenoids or the
multi-port valve, perform automated leak and flow checks or condition a new trap with the press

of a button. Users can be locked out of this area by an administrator if desired. The complete log
can be viewed at any time showing any errors, trap changes, leak and flow check status etc. This
information is stored until printed or deleted from the system.
1.2 Product Specifications
Major Features
Modular Flow Control
Optional Sample Foam Sensor
Optional Sample Heater for reduced carryover during Bake
Optional Touch Screen Interface
High Temperature capability
Precise Temperature control
Siltek sample pathway
Dimensions
17”H x 11”W x 16”D (43.2cm x 27.94cm x 40.6cm)
Weight
45lbs. (20.4kg)
Indoor Use
Up to 2000 m altitude
10°C to 25°C operating temperature
5°C to 85°C storage temperature
10 to 90% relative humidity
Programmable Time Ranges
999.99 min for all timed events
Programmable Temp. Ranges
Trap: ambient to 270°C
Transfer Line: ambient to 250°C
Valve Oven: ambient to 250°C
Trap
Standard EPA Specified Traps
Conductive heating/replaceable insert
Various sorbent materials available for US EPA methods and other applications

Valve
Electrically actuated
8-port, 45 degree rotation
Replaceable valve rotor
Transfer Line
Siltektubing, 0.020 ID
60“ (152.4cm) standard
Optional Glassware
5 ml Needle sparge kit
25 ml Needle sparge kit
25 ml frit sparge kit
20 ml Disposable Test tubes
Electronic Control
1GB RAM, volatile
Compact Flash = 2GB nonvolatile memory
20 local method storage with battery backup
Display Std mouse, optional keyboard, optional touch screen
USB communication
Trap
1000°C/min heating rate
Cool down rate less than 90 sec.
Optional Sparge Glass Heater
Up to 150°C glassware bake
Temperature
Accuracy/Stability +/- 1°C for all heated zones
PID monitored
Water Elimination Trap
Operates at ambient to 210°C
Conductive heating/replaceable
Pass-through tube
Sample Pathway
Inert Siltek pathway

Gas Requirements
Helium or Nitrogen 60-80 PSI (414-552kPa) 99.999% GC/MS grade purity; BTU/hr. = NA
(compressed gas used for pressurization only)
Voltage
115/230 VAC (+/-10%) 50/60 Hz
Current
Model115VAC230VAC
Current(A)Current(A)
EnconEvolution 106.3
Battery:
CR2032 battery contained on SBC (CPU) board
Installation Category
II
Pollution Degree
2
Major Options
Sample Foam Sensor
Heated Glassware Kit
Touch Screen Monitor
1.3 Warnings and Symbols:
English
Warnings in the manual or on the Encon Evolution to be observed during installation,
operation, service and/or repair of the instrument. EST Analytical will assume no
responsibility for customers failing to comply with the safety precautions stated.
Use of the Encon Evolution for something other than the intended use of the instrument is
prohibited.
The use of the Encon Evolution is for trained personnel only.
Personnel operating the Encon Evolution should wear safety glasses, safety shoes and
gloves where appropriate.
The Encon Evolution is not intended for use in a hazardous environment.
Installation of the Encon Evolution requires that there is nothing blocking the vents of the
system.
Installation of the Encon Evolution requires that the instrument be placed on a non-
flammable surface capable of handling the weight of the instrument.

Heaters and heated transfer line(s) require surrounding space to be non-combustible
material.
Sound pressure level of the Encon Evolution is 58db (A).
When cleaning the Encon Evolution please refer to section 4.2 of the User Manual. No
other cleaning agents may be used other than what is specified in this section.
Français
Les avertissements dans le manuel ou sur l'évolution Encon à observer lors de
l'installation , le fonctionnement , le service et / ou la réparation de l'instrument . EST
analytique n'assume aucune responsabilité pour les clients qui ne respectent pas les
consignes de sécurité indiquées .
Utilisation de l'évolution Encon pour autre chose que l'utilisation prévue de l'instrument
est interdite.
L'utilisation de l'Evolution Encon est de personnel qualifié seulement .
Le personnel d'exploitation l'évolution Encon doivent porter des lunettes de protection,
chaussures de sécurité et gants le cas échéant .
Le Encon Evolution n'est pas destiné à être utilisé dans un environnement dangereux .
Installation de l'évolution Encon exige que rien ne bloque les orifices de ventilation du
système .
l'installation de l' Evolution Encon exige que l' instrument est placé sur une surface non
inflammable capable de supporter le poids de l'instrument.
Chauffe et ligne de transfert chauffée (s) nécessitent de l'espace environnant à un
matériau incombustible .
le niveau de l'évolution Encon de pression acoustique est de 58 dB ( A) .
Lors du nettoyage de l'évolution Encon s'il vous plaît se référer à la section 4.2 du
Manuel de l'utilisateur . Pas d'autres agents de nettoyage peuvent être utilisées autrement
que ce qui est spécifié dans cette section.
See Accompanying Instructions for more Information
Voir les instructions d'accompagnement pour plus d'informations
Indicates an Electrical Hazard
Indique un danger électrique

Indicates Hot Surface
Indique surface chaude
Indicates Bulky/Heavy Item, Use Two Person Lift
Indique objet volumineux / lourds, utilisez deux personnes ascenseur
1.4 Disposal and Recycling Information
United States:
This symbol indicates that your product must be disposed of properly according
to local laws and regulations. When your product reaches its end of life, contact
your local authorities to learn about recycling options.
European Union:
This symbol above means that according to local laws and regulations your product should be
disposed of separately from household waste. When this product reaches its end of life, take it to
a collection point designated by local authorities. Some collection points accept products for
free. The separate collection and recycling of your product at the time of disposal will help
conserve natural resources and ensure that it is recycled in a manner that protects human health
and the environment.

User Manual
Installation and Setup
Chapter 2

2.1 General Information
The system setup and installation is intended to be as thorough as possible. If in doubt at
any point during the installation, please contact EST Analytical toll free at (800) 283-
3510, or outside the United States at [phone]. If installation is not directed or
performed by EST Analytical personnel, the operator must be thoroughly familiar with
setup and installation sections of this manual.
NOTE: Failure to follow the installation instructions as set forth could result in
damage to the product and nullify the warranty.
2.2 Work Space Requirements
Dimensions: 17”H x 11”W x 16”D (43.2cm x 27.94cm x 40.6cm).
NOTE: Allow for added space on all sides of the instrument for proper ventilation.
The Encon Evolution weighs approximately 45 lbs. (20.4 kg).
2.3 Power Requirements
Voltage:
115/230 VAC (±10%)
50/60 Hz
10/6.3 Amps
15/20A circuit breaker

2.4 Unpacking the Encon Evolution
1. The Encon Evolution is packaged in one carton as shown in Figure 2a containing all
components necessary for instrument installation and operation.
Figure 2a: Shipping Container
2. Before unpacking the Encon Evolution visually inspect the shipping carton for any
damage. If visual damage is present; call EST Analytical at [phone] or (513)
642-0100 immediately.
3. Cut the strapping and lift the top box cover off the box and put aside. Lift the outer
box shell off the Encon Evolution and put aside. Remove the excess foam packing
material from the box and put aside.
4. Remove the box inside the main Encon Evolution body. This box contains the
installation kit, monitor, mouse, I/O cable and power cable.
5. With the help of another person tilt the Encon Evolution gently on one side
and remove the foam inserts. The Encon Evolution is now ready to be placed on the
bench. With one person on each side of the Encon Evolution transfer the Encon
Evolution to the bench.

NOTE: The Encon Evolution needs to be lifted from the base of the instrument.
WARNING: The Encon Evolution needs enough space on all sides of the
instrument to ensure proper cooling of instrument components AND to ensure
that the power cord can be easily disconnected.
AVERTISSEMENT: Le Encon Evolution a besoin de suffisamment d'espace sur
tous les côtés de l'appareil pour assurer le bon refroidissement des composants
de l'instrument et de veiller à ce que le cordon d'alimentation peut être
facilement déconnecté .
NOTE: Please retain all shipping material.
2.5 System Setup
Please refer to Figure 2b for a view of the back panel of the Encon Evolution.
Figure 2b: View of the Encon Evolution’s back panel
2.5.1 Interface Connection
Install the supplied interface cable between the Encon Evolution and Gas
Chromatograph. Call EST at [phone] or [phone] if you have any questions
about your interface connection.

2.5.2 Monitor Connection
Mount the monitor to the post and tighten the mounting bracket to the hold down post
screw. Plug the VGA cable to the VGA port on the bottom of the monitor. Plug power
cable to the 24 VDC port on the back of the monitor. Note: If optional touch screen
monitor is purchased an additional a 9 pin cable will be included to connect to the
monitor.
2.5.3 Mouse Connection
Place the mouse on the bench and run the cable under the Encon Evolution and out the
back of the instrument. Plug the mouse into the USB connector labeled “Mouse”.
2.5.4 Gas Connections
Pressurization Gas
Connect the 1/8” helium line to the bulkhead of the
Encon Evolution and set the tank pressure between 60-80 psi (414-552kPa).
Carrier Gas
Connect the carrier gas line of the Encon Evolution to the union at the cut in carrier gas
pathway of the gas chromatograph. The heated transfer line will connect to the other end
of the cut in the carrier gas line pathway that is closest to the inlet.
WARNING: The transfer line is heated and needs to be installed so as to keep a
minimum of 10 inches between the transfer line and any adjacent cables or objects.
AVERTISSEMENT: La ligne de transfert est chauffé et doit être installé de manière
à maintenir un minimum de 25.4 cm entre la ligne de transfert et les câbles ou les
objets adjacents.
2.5.5 Power Connection
Plug power cord into the power entry module located on the back of the Encon
Evolution.
WARNING: Ensure proper grounding of the Encon Evolution system before
powering the system up.
AVERTISSEMENT: S'assurer de la bonne mise à la terre du système Encon
Evolution avant de mettre le système en place.
2.5.6 System Power Up
The Encon Evolution is ready for power cycle. Turn on the Encon Evolution and follow
the Encon Evolution Installation checklist below. The power switch is located in the rear
right side of the unit.
NOTE: EST strongly recommends you familiarize yourself with the rest of the
manual before proceeding to the installation checklist. If you have any questions
regarding installation please do not hesitate to call EST Analytical at [phone]
or [phone], or your local authorized dealer.

User Manual
Operation
Chapter 3
