Vestfrost VLS 054A User manual
GB Instructions for use
FR Consignes d’utilisation
ES Instrucciones para el uso
CHI 使用说明
VLS 054A/ 094A/ 154A SDD
Vestfrost Solutions is working towards reaching the UN - Global Sustainable
Development Goals by 2030.
The Sustainable Development Goals are the blueprint to achieve a better and
more sustainable future for all.
In order to implement Goal no 12 ”Responsible Consumption and Production”,
this manual has been printed on recycled paper.
As this appliance contains hy-
drocarbon refrigerant please
refer to guidelines listed below.
The quantity and type of the
refrigerant used in your appli-
ance is indicated on the rating
plate.
the room in which you install
your appliance must have a
volume of 1m³ per 8 g of hydro-
carbon refrigerant used in the
appliances. This is to avoid the
mixtures in the room where the
appliance is located in the event
of a leak in the refrigerant circuit.
Keep ventilation openings in the
appliance or in built-in structures
must be kept clear.
Do not use other mechanical de-
vices or means to accelerate the
defrosting process or to remove
rime other than those recom-
mended by the manufacturer.
Do not damage the refrigerant
system.
The appliance may not be ex-
posed to rain.
This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack experience and knowl-
edge, unless they have been
given supervision or instructions
concerning use of the appliance
by a person responsible for their
safety. Children should be super-
vised to ensure that they do not
play with the appliance.
Children must not play with, on,
or around the appliance.
Children must not clean the
appliance or carry out general
maintenance unless they are at
least 8 years old and are being
supervised.
Always, keep the keys in a sepa-
rate place and out of reach of
children.
2
GB
To be repaired only by trained
personnel.
Before servicing or cleaning
breaker.
Do not store explosive substanc-
es such as aerosol cans with a
-
pliance.
When positioning the appliance,
ensure the power cord is not
trapped or damaged.
Do not locate multiple portable
socket-outlets or portable power
supplies at the rear of the appli-
ance.
Contents
WARNING ..................................................2
Introduction.................................................4
Operational guidelines................................4
Get to know your VLS SDD........................5
HIGHLY IMPORTANT!................................6
Placing and unpacking ...............................7
Installation and start up ..............................8
Loading the appliance ................................9
Control panel ............................................10
Solar panels..............................................10
Maintenance and cleaning........................12
Trouble-shooting.......................................13
Warranty, spare parts and service ............14
Disposal....................................................15
3
GB
Operational guidelines
The compressor requires that the solar
panels are able to deliver a power above
a certain threshold in order to start. When
started, the compressor is able to operate
at lower power consumption than the
starting threshold. The compressor may
need a couple of starting attempts to get
running. So be patient!
During days with changing weather
conditions, the compressor may start and
stop several times.
The noise coming from the VLS SDD
appliance is low, and primarily comes from
a fan cooling the compressor.
The compressor is almost noiseless. The
fan starts a moment before the compressor
and stops a moment after the compressor.
The controller is factory set and should be
adjusted only by authorized personnel.
Basket is included when the appliance is
supplied and this MUST be used for storing
the medicine.
without prior notice.
Introduction
The philosophy behind the VLS SDD
system is:
• Simplicity
• Safety
• Robustness
• Reliability
The VLS SDD system is composed of:
• VLS SDD refrigerator
• Solar panels
• Installation equipment for the solar panels
• Wires from the solar panels to the
VLS SDD
The VLS SDD is a vaccine refrigerator. It
has one compartment for vaccine storage
(+2°C to +8°C) equipped with 1 basket.
With correct installation and by following a
few maintenance routines, the system will
work trouble-free for many years.
PQS Code Model PQS Performance
PQS Independent
type-testing protocol
E003/106 VLS 054A SDD E003/RF05.5 E003/RF05-VP.4
E003/107 VLS 094A SDD E003/RF05.5 E003/RF05-VP.4
E003/108 VLS 154A SDD E003/RF05.5 E003/RF05-VP.4
4
GB
Get to know your VLS SDD
Handle
Sealing strip
Compressor
compartment with
ventilation grille
Temperature
display
Vaccine storage
Basket
Green diode
ON/OFF Switch
Bottom
grate
Controller
ON/OFF
switch
photovoltaic cells
MC4
Fuse
5
GB
Make sure NEVER to place any
commodites up against the sensor
cover.
Eg. Water-pack
Fig. 3
Fig. 4 Fig. 5
6
GB
Unpacking
Unpack the appliance and check that it
has not been damaged. If you observe any
damage, please inform your supervisor.
Placing
Install the appliance in a dry and well
ventilated place. Avoid installation near heat
sources or in direct sunlight.
sure that it is level.
Level the appliance by screwing the adjust-
able feet up or down.
If the appliance is to be placed on a soft
best to recheck whether the appliance is still
level after a period of time as the underlying
surface may give under the weight of the
appliance.
Room temperature
The appliance is designed and adjusted to
produce an optimum temperature level in
the vaccine compartment at a minimum/
maximum ambient temperature of +5°C to
+43°C.

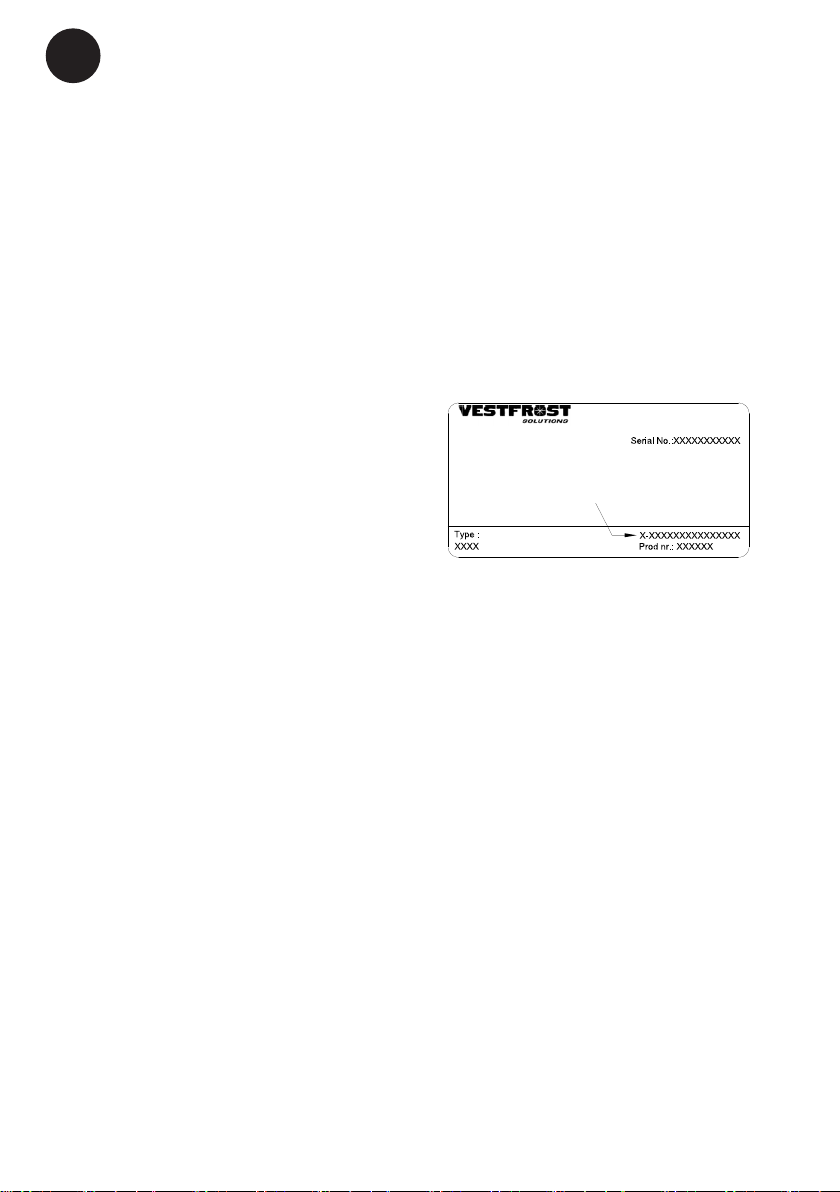

The Climate Class is indicated on the rat-
ing plate.
0, 1, 2, 3, 4, 6 ,8 =ambient 32°C
Climate class
5 and 7 = ambient 43°C
Placing and unpacking
800 mm
20 mm
100 mm
100 mm
proximity of the appliance.
ventilation grille.
Ventilation
It is important that the appliance is placed-
well ventilated, so that air can circulate
unhindered above, below, and around the
appliance. Fig. 7 illustrates how the neces-
sary air circulation can be ensured. There
must be at least 30 mm clearance between
Ventilation openings in the appliance or in
built-in structures must be kept clear.
Fig. 6
7
GB
Connect the appliance to the solar pan-
els according to table 1, which states the
lengths and sizes of the wires used for con-
necting the appliances.
Standard supplied cable size and length will
be 6mm²and 20m.
The screened cables coming from the PV
compatible connectors. The connections
male/female MC4 compatible connectors
placed at the back of the appliance - See
The connections are of plug and play type
female/female to male.
Clean the appliance thoroughly before start
up.
Start up
Before the appliance is loaded with vaccine,
the ice pack ballast must be frozen. The
cool-down time in an ambient temperature
of 43°C will be approx. 5-7 days.
When the temperature on the display of
the thermometer is approx. +4°C in the
morning, the appliance is ready for load-
ing vaccine. Check the temperature in the
basket. The temperature must be between
+2°C and +8°C.
The vaccines must be placed and arranged
The temperature in the vaccine compart-
ment must always be monitored on the ther-
mometer and be between +2°C and +8°C.
The controller is factory set and should not
be adjusted by unauthorized personnel.
Installation and start up
Size: Max. length:
Cross section AWG
[mm2]
2,5
4
6
10
[Gauge]
12
12
10
8
[m]
8
13
20
32
[ft]
26
42
65
105
Table 1
MC4
8
GB
Loading the appliance
Loading vaccines
When the temperature in the vaccine
compartment has stabilized, i.e. and the
temperature is between +2° and +8°C and
the compressor stops and starts, vaccines
can be loaded. The vaccines should be
placed and arranged in the basket.
Do not load the vaccine
above top of the basket.
To ensure air-circulation and prevent too
low vaccine temperature, direct contact
to the inside walls must be avoided. The
Vaccine load in the basket shall not be
above top of the basket.
9
GB
Placing
Solar panels are always to be placed on a
stable roof or bar, which is safe and easily
accessible (not for the public).
according to the supplier’s instructions and
recommended by the manufacturer.
Do not place the solar panels in the
shadows of buildings, trees, etc. The
surfaces of the solar panels are to be
turned directly towards the sun.
are to observed are available in table 2.
Solar panels
The green diode indicates that the
compressor is running
Green diode
Solar-thermometer
Control panel
Type 2 according E003/
PV01 direct drive
18V
360W (standard test
conditions)
Number of parallel
connected modules
4
Min. 2 years
Performance guar-
25 years (to 80% of
original value)
UL, TÜV or compliance
with the requirements of
IEC 61215
Table 2
°C
+4
10
GB
Controller
The appliance has a controller that controls
the temperature in the vaccine compart-
ment. The controller is factory adjusted to
a default setpoint,what in most ambient en-
vironments will keep the vaccine compart-
If the cooler is not used for a longer period
of time, it is recommended to use the
ON/OFF switch to turn the cooler OFF.
This disconnects the power from mains
Controller
ON/OFF switch
Fuse
Photo voltage celles
MC4
In case cooler is turned OFF, make sure
the vaccine compartment is cleaned and
dried thoroughly afterword´s, this to prevent
problems with odors or mold. To prevent
odors taking hold it is highly recommended
to keep the lid slightly open.
11
GB
penetration and browning.
Cabling should be checked to ensure it is
secure.
Checking the mounting hardware to ensure
it is in good condition and ensuring the earth
connection is continuous
Checking of junction boxes to ensure there is
no water accumulation and that the integrity of
lid seals, connections and clamping devices is
intact.
Checking of junction boxes to ensure there is
no water accumulation and that the integrity of
lid seals, connections and clamping devices is
intact.
All bolts and nuts are to be re-tightened 2
weeks after installation, and then once a year.
Cleaning
unit.
The best way to clean the appliance is by
using luke warm water with a small amount
of unscented detergent. Never use cleaning
agents that scour. Use a soft cloth. Rinse with
clean water and dry thoroughly. It is important
to prevent water from running into the control
panel.
The sealing strip around the lid must be
cleaned regularly to prevent discolouration
and prolong service life. Use clean water. After
cleaning the sealing strip, check that it contin-
ues to provide a tight seal.
If the appliance is not being used for any peri-
the power supply, empty the appliance, clean
the inside, and leave the lid open to allow air
circulation and prevent smells.
The temperature in the vaccine compartment
must always be monitored on the thermo-
meter every morning and evening. Please
note that the vaccine in the appliance may
not freeze. The temperature is factory set,
and should not be adjusted by unauthorized
personnel.
Please check each day that the internal lid is
the appliance.
Weekly Remove any water at
the bottom of the refrigerator with a cloth.
Wipe of water droplets on the inside wall.
Monthly
Clean grille for compressor compartment.
Clean the refrigerator with lukewarm water
and mild detergent.
6 Month maintenance
Clean condenser coils.
Maintenance of the solar panels
The solar panels are to be cleaned for dust
once each week – or as required. Cleaning
must be carried out with water using a soft
cloth or wash rag.
Avoid shading. It should be regularly moni-
tored that shades do not come up such as
new towering trees, as this will decrease the
amount of energy produced by the system.
Electric connections and components are to
be checked and cleaned at least once a year
or more often if required. Because of risk of
Checking that PV panels are clean, free of
fractures, scratches, corrosion, moisture
Maintenance and cleaning
12
GB
Trouble-shooting
Fault Possible cause Remedy
Compressor is not run-
ning, and the ice packs
are not cold
Be patient, it is most likely that the
compressor will start within a few
minutes.
If this is not the case, check the fol-
lowing:
- Check that power is connected and
that the wire from the solar panel to
the appliance is intact.
- Check the fuse and replace it if
necessary.
- If the above is OK, call technical
supervisor.
Compressor is running,
and the temperature is
too high
The ventilation grill is blocked.
The lid is not closed properly.
The fan in the compressor compart-
ment is blocked or defective.
The temperature in the room in which
the appliance is installed is too high.
Ensure unhindered air circulation.
Ensure that the lid is closed properly.
Check that the fan is running, if not
it should be replaced. See section:
Service
Shield the appliance against direct
sun light and ensure more ventilation
to the room.
Temperature in VLS
054 SDD is too low
To low set point on digital controller Contact technical supervisor for
ajustment.
No temperature is
displayed
There is not enough light for the solar
sensor.
Turn on the light.
No light in green diode
during day time
Switch is turned OFF
Fuse is burned
Diode is defect
Turn on the switch
Replace the fuse.
Replace diode.
Table 3
13
GB
Warranty, spare parts and service
Warranty disclaimer
Faults and damage caused directly or
indirectly by incorrect operation, misuse,
installation or mains connection. Fire, ac-
cident, lightening, voltage variation or other
electrical interference, including defective
fuses or faults in mains installations are not
covered by the warranty.
Repairs performed by others than approved
service centres and any other faults and
damage that the manufacturer can sub-
stantiate are caused by reasons other than
manufacturing or material faults are not
covered by the warranty.
Please note that changes to the construc-
tion of the appliance or changes to the
component equipment of the appliance will
invalidate warranty and product liability, and
the appliance cannot be used lawfully. The
approval stated on rating plate will also be
invalidated.
Transport damage discovered by the buyer
is primarily a matter to be settled between
the buyer and the distributor, i.e. the dis-
tributor must ensure that such complaints
are resolved to the buyer’s satisfaction.
Before calling for technical assistance,
please check whether you are able to
rectify the fault yourself. If your request for
assistance is unwarranted, e.g. if the appli-
ance has failed as a result of a blown fuse
or incorrect operation, you will be charged
the costs incurred by your call for technical
assistance.
Spare parts
When ordering spare parts, please state
the type, serial and product numbers of
your appliance. This information is given on
the rating plate. The rating plate contains
various technical information, including type
and serial numbers.
Product number
14
GB
Disposal
Information for Users on Collection
and Disposal of Old Equipment and
used Batteries
These symbols on the products,
packaging, and/or accompanying
documents mean that used electri-
cal and electronic products and
batteries should not be mixed with
general household waste. For proper
treatment, recovery and recycling
of old products and used batteries,
please take them to applicable collec-
tion points, in accordance with your
national legislation and the Directives
2012/19/EU and 2006/66/EC.
By disposing of these products and
batteries correctly, you will help to
save valuable resources and prevent
human health and the environment
which could otherwise arise from
inappropriate waste handling.
For more information about collec-
tion and recycling of old products and
batteries, please contact your local
municipality, your waste disposal
service or the point of sale where you
purchased the items.
Penalties may be applicable for incor-
rect disposal of this waste, in accord-
ance with national legislation.
For business users in the European
Union.
If you wish to discard electrical and
electronic equipment, please contact
your dealer or supplier for further
information.
Information on Disposal in other
Countries outside the European
Union
These symbols are only valid in the
European Union. If you wish to discard
this product, please contact your local
authorities or dealer and ask for the
correct method of disposal.
This symbol might be used in combi-
nation with a chemical symbol. In this
case it complies with the requirement
set by the Directive for the chemical
involved.
15
GB
Puisque l’appareil appareil
contient des hydrocarbures réfri-
gérant s’il vous plaît se référer
aux directives ci-dessous.
La quantité et le type de réfri-
gérant utilisée dans votre
appareil est indiquée sur la
plaque signalétique.
La norme EN378 précise que la
pièce dans laquelle vous instal-
lez votre appareil doit posséder
un volume de 1 m³ par 8 g de
réfrigérant avec des hydrocar-
d’éviter la formation de mé-
la pièce où l’appareil est installé
dans le cas où il y aurait une
fuite dans le circuit réfrigérant.
-
tion, situés sur la carrosserie de
l’appareil ou autour de l’appareil,
libres de toute obstruction.
Ne pas utiliser d’appareils méca-
niques ou autres moyens pour
accélérer la décongélation sauf
ce qui est recommandé par le
fabricant.
Ne pas endommager le système
de réfrigération.
Ne pas utiliser d´appareils élec-
triques à l’intérieur du comparti-
ment de stockage sauf s’ils sont
reconnandés par le fabricant.
L’appareil ne doit pas être expo-
sé à la pluie.
Cet appareil n’est pas conçu
pour une utilisation par de
jeunes enfants ou des per-
sonnes handicapées sauf si
elles sont sous la surveillance
d’un adulte responsable. Les
enfants ne doivent pas jouer
avec l’appareil.
Les enfants ne doivent pas jouer
avec l’appareil.
Le nettoyage et l’entretien ef-
fectué par l’utilisateur ne doi-
vent pas être accomplis par des
enfants, sauf s’ils sont âgés de
8 ans et plus et qu’un adulte les
surveille.
2
FR
Sommaire
AVERTISSEMENT......................................2
Introduction.................................................4
Instructions de fonctionnement...................4
Familiarisez-vous avec votre VLS SDD.....5
TRÈS IMPORTANT! ..................................6
Déballage et mise en place ........................7
Installation et mise en marche....................8
Chargement de l’appareil ...........................9
Panneau de contrôle ................................10
Panneaux solaires....................................10
Entretien et nettoyage ..............................12
..........................13
Garantie, pièces de rechange et service
après-vente...............................................14
Mise au rebut............................................15
Conserver les clés dans un en-
droit hors de portée des enfants.
Ne pas entreposer des explo-
sifs, tels que les aérosols avec
l’appareil.
Danger – risque d’incendie ou
-
mable utilisé. L’appareil doit
seulement être réparé par un
Lors de la mise en place de
láppareil assurez-vous que son
cordon dálimentation nést pas
coincé ni endommagé.
Ne placez pas plusieurs pries
de courant portables ou des
sources dálimentation portables
á lárriére de láppareil.
3
FR
Introduction
La philosophie qui soutient le système VLS
SDDest :
• Simplicité
• Sécurité
• Robustesse
• Fiabilité
Le système VLS SDD est composé des
éléments suivants :
• Réfrigérateur VLS SDD
• Panneaux solaires
• Équipement pour l’installation des pan-
neaux solaires
• Câbles des panneaux solaires au VLS
SDD
Le VLS SDD est un réfrigérateur pour
vaccins. Il possède un compartiment pour le
stockage de vaccins (+2 °C à + 8 °C) muni
de 1 panier.
Avec une bonne installation et en suivant
quelques séquences d’entretien, le sys-
tème fonctionnera sans problème pendant
plusieurs années.
Instructions de fonc-
tionnement
Le compresseur requiert que les panneaux
solaires puissent fournir une puissance
supérieure à un certain seuil pour qu’il
démarre. Une fois démarrer, le compres-
seur peut fonctionner en consommant une
puissance moindre que celle du seuil de dé-
marrage. Le compresseur peut avoir besoin
de quelques tentatives de démarrage pour
fonctionner. Soyez donc patient !
Lors de journées avec des conditions
météorologiques changeantes, le compres-
seur peut démarrer et arrêter plusieurs fois.
Le bruit provenant de l’appareil VLS 054 est
de faible intensité et est généré par le venti-
lateur de refroidissement du compresseur.
Le compresseur est pratiquement silen-
cieux. Le ventilateur démarre un instant
avant le compresseur et s’arrête un instant
après son arrêt.
Le contrôleur est réglé en usine et ne doit être
réglée que par le personnel autorisé.
De panier est inclus avec la fourniture de
l’appareil et ils DOIVENT être utilisés pour
le stockage des médicaments.
Code PQS Modèle -
mance PQS
Registre d’essai de type in-
dépendant PQS
E003/106 VLS 054A SDD E003/RF05.5 E003/RF05-VP.4
E003/107 VLS 094A SDD E003/RF05.5 E003/RF05-VP.4
E003/108 VLS 154A SDD E003/RF05.5 E003/RF05-VP.4
4
FR
Familiarisez-vous avec votre VLS SDD
Compartiment
du compresseur
avec grille de
ventilation
température
Stockage de
vaccins
Panier
Grille de
fond
Voyant d’alimentation
Interrupteur
MARCHE/
ARRÊT
Sealing strip
Cellules photovoltaïques
MC4
Poignée
Contrôleur
Interrupteur
MARCHE/
ARRÊT
Fusible
5
FR
Assurez-vous de ne JAMAIS placer
de produits contre le couvercle de
sound.
Par exemple briquettes d’eau
6
FR
This manual suits for next models
2
Table of contents
Languages:
Other Vestfrost Laboratory Equipment manuals
Popular Laboratory Equipment manuals by other brands
Sanuvox
Sanuvox S300 Installer's instructions
Integra
Integra PIPETBOY pro operating instructions
biochrom
biochrom GeneQuant 1300 Quick reference guide
Hanil
Hanil J1250 user manual
H.E. Anderson
H.E. Anderson Feeder J Plus Installation Guidelines and Operation
Gilson
Gilson CENTRY 103 Minicentrifuge user guide
