ESTHER EAE-02-414-55 User manual
Digital door lock
EAE---
Installation
A
: Drill the holes on the door and then
install the mortise into the door
B
: Install the spindle into the handle hole in the
front panel, and then insert the rod and fasten it
(
)
C
: Install the front panel on the door
( )
D
: Connect the cable between the front and back
panels
E
: Install the back panel on the other side
of floor, and then fasten both panels
F
: Install the batteries and test the installation to
confirm the installation is successful
Product Guide
Brief Introduction
1. The default master password is 123456
2. There are total 300 users available, 9 users can be the master users, and 291 can be the normal users in the lock
3. The password can be 4 to 8 digits
-8
4. The Micro-USB port is at the bottom of front panel, which is the port of emergency power supply
Micro-USB
5. The lock has 2 unlocking modes: Single Unlocking Mode and Double Unlocking Mode
:
Operation
Register Master user
AInput * + # BInput the master user for authorization,
* + # Press # to confirm
“#”
CInput 1 for master user D.Input 1 to register master user E.Input the IDnumber (3 digits),
and press # to confirm
FFingerprint: place the fingerprint G.Password: input the password H.Card: place the card close to
on the sensor for 4 times to register and press # to confirm in 2 times the card reader to register.
“#”
!
The master Password can be 4 to 8 digits (-)
!
For new -
the lock, this default password is deleted automatically (-
)
!
There are up to 9 master users available in the lock ( )
!
It is suggested to make a list to record the users ID number for a better management (
Users ID number)
!
Once finishing the operation, please try to unlock the lock to confirm the operation is successful.
()
2Add Normal User
Make sure there is at least 1 master user registered in the lock, otherwise you cannot register normal users
AInput * + # BInput the master user for authorization,
“*”+ “#”Press # to confirm
CInput 2 for normal user D.Input 1 to register normal user E.Input the IDnumber (3 digits),
“2” “” and press # to confirm
ID number 3 “#”
FFingerprint: place the fingerprint G.Password: input the password H.Card: place the card close to
on the sensor for 4 times to register and press # to confirm in 2 times the card reader to register.
“#”
!
The Password can be 4 to 8 digits (-)
!
There are up to 9normal users available in the lock ()
!
It is suggested to make a list to record the users ID number for a better management (
Users ID number)
!
Once finishing the operation, please try to unlock the lock to confirm the operation is successful.
()

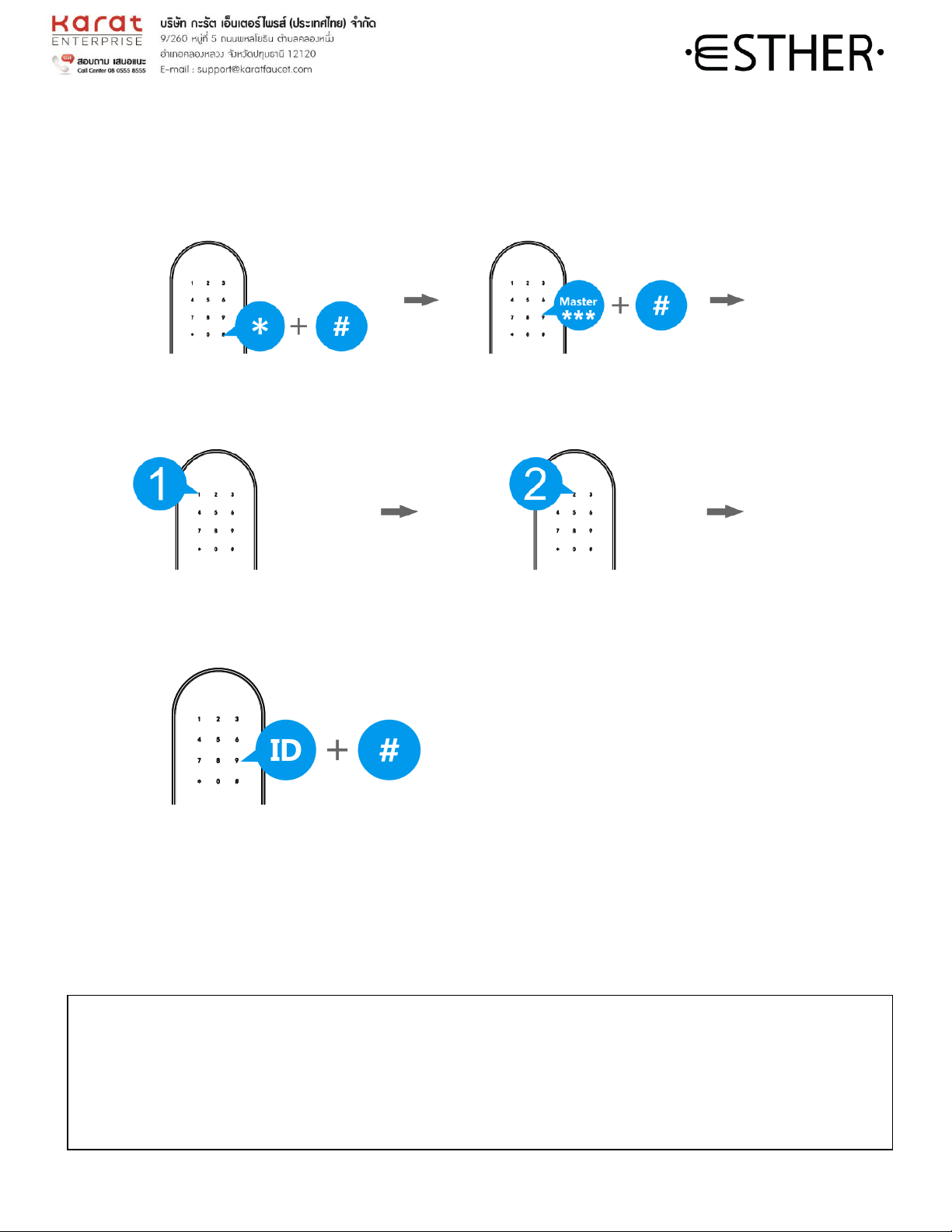

Delete User
AInput * + # BInput the master user for authorization,
“*”+ “#”Press # to confirm
“#”
CInput 1 for master user DInput 2 to delete master user
“1” “”
EInput the ID number you want to delete
Press # to confirm
ID number “#”
!
The master user which is used to log in the system can not be deleted.
( Log in )
!
Once finishing the operation, please try to unlock the lock to confirm the operation is successful.
()
Delete Normal User (Single User)
AInput * + # BInput the master user for authorization,
“*”+ “#”Press # to confirm
“#”
CInput for normal user DInput 2 to delete single normal user
“” “”
EInput the ID number you want to delete
Press # to confirm
ID number “#”
!
Once finishing the operation, please try to unlock the lock to confirm the operation is successful.
()

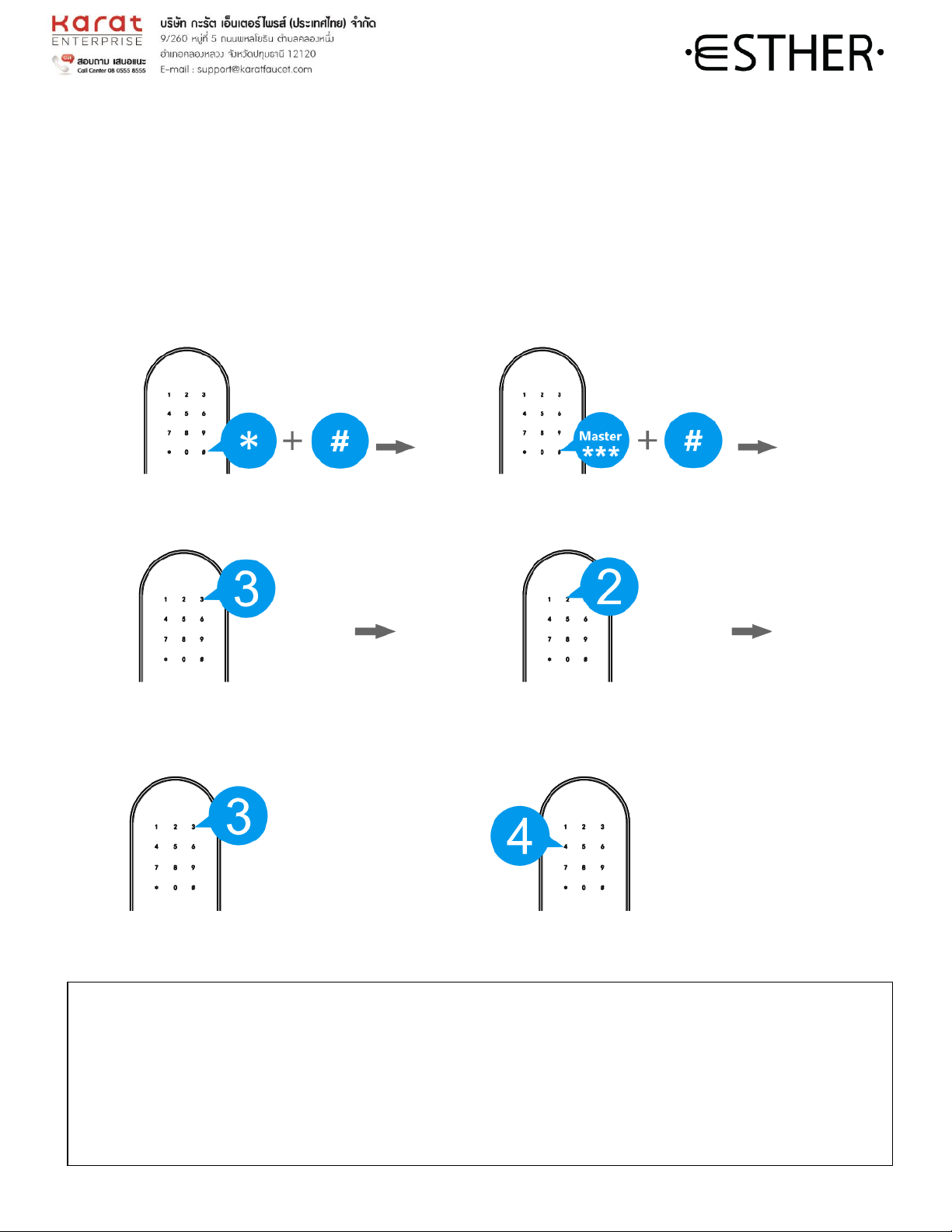

Unlocking Mode
Sometime if you need a higher security level, you can set up the lock in double unlocking mode, which the unlock
needs 2 registered users, for unlocking each time
AInput * + # BInput the master user for authorization,
“*”+ “#”Press # to confirm
“#”
CInput 3 for system setting DInput 2 to unlocking mode
“3” “”
ESingle unlocking: input 3 F.Double unlocking: input 4
“”“”
!
Once finishing the operation, please try to unlock the lock to confirm the operation is successful.
()
!
When the lock is under double unlocking mode, you have to input 2 registered users to unlock
every time. (
.Voice setting
You can turn on/off the voice for unlocking.
AInput * + # BInput the master user for authorization,
“*”+ “#”Press # to confirm
“#”
CInput 3 for system setting DInput 4 to turn on/off the voice
“3” “4”
!
Once finishing the operation, please try to unlock the lock to confirm the operation is successful.
()
.Passage Mode
When the lock is required to unlock frequently, set the lock to passage mode can let the people unlock without any
identification.
AInput * + # BInput the master user for authorization,
“*”+ “#”Press # to confirm
“#”
CInput for system setting DInput for unlock mode
“3” “”
EInput to turn on the passage mode FInput to turn off the passage mode
“1” “”
.Restore The Lock
When the lock has problems and you can try to restore the lock to solve the problems
Press the reset key in the battery case for 6 seconds, and then the lock will be restored to the factory default. The
master password will be restored to 123-456.
Reset
-
