Etac Molift EvoSling HighBack User manual

Molift EvoSling
HighBack
EN - User manual
BM28501 Rev. B 2015-03-25

2
Molift EvoSling / www.etac.com
Content
General.....................................................3
Declaration of conformity........................3
Conditions for Use ..................................3
Warranty ................................................3
Label and symbols.....................................3
Symbols..................................................3
Molift EvoSling HighBack...........................4
About Molift EvoSling HighBack..............4
Technical Data...........................................5
Expected lifetime ....................................5
Combination list .....................................5
How to use Molift EvoSling HighBack ........6
Before use / Daily check ..........................6
Size guide...............................................6
Sling checkpoints ....................................6
Sling application........................................7
Transfer.....................................................8
Removing sling..........................................9
Maintenance ...........................................10
Cleaning and disinfection ......................10
Recycling ..............................................10
Periodic Inspection ..................................10
Periodic Inspection Scope......................10
Troubleshooting ...................................... 11
Important
This User Manual contains important safety
instructions and information regarding the use of
the sling and accessories.
In this manual the user is the person being lifted.
The assistant is the person operating the hoist.
Warning!
This symbol indicates important
information related to safety.
Follow these instructions carefully.
Please read the User Manual
before use!
It is important to fully understand
the contents of the user manual
before attempting to use the
equipment. Read the manual for
both the hoist and sling

3
Molift EvoSling / www.etac.com
Declaration of conformity
The Molift EvoSling HighBack and related accessories described in this operator manual are
CE marked in accordance with EU Council Directive 93/42/EEC concerning medical devices,
class 1, and has been tested and approved by a third party according to standard EN ISO
10535:2006.
Conditions for Use
Lifting and transferring a person will always pose a certain risk and only trained personnel should use
the equipment and accessories covered by this user manual.
Warranty
2-year warranty against defects in workmanship and materials of our products.
For Terms and conditions, see www.etac.com
General
Label and symbols
1.
2015-01
DK: HMI ?????
EvoSling HighBack Net Padded
1722730
Size M
Polyester / polyethylene
M
300 660
EvoSling HighBack Net Padded
Molift EvoSling
1
3
2
4
Main label
2. Size label
3. Product label with barcode that contains
EAN number (01), and serial number (21)
4. Periodic inspection label / Name tag
Symbols:
-Date of manufacture
YYYY-MM (year/month)
-CE marked
-Refer to user manual
-More labels inside pocket, fold
out for more information
- This way up, this side is outside
300 660 -Max user weight
Wash symbols - see “Maintenance” chapter.

4
Molift EvoSling / www.etac.com
BarcodeaccordingtoGS1-128
(01)xxxxxxxxxxxxxx(21)xxxxxxxx
(01):EANnumber(21):Serial number
YYYY-MM
DK:HMI?????
MoliftEvoSling ???????
??????? Size??
Polyester/polyethylene
M
300 660
EvoSlingHighBack Padded
Molift EvoSling
BarcodeaccordingtoGS1-128
(01)xxxxxxxxxxxxxx(21)xxxxxxxx
(01):EANnumber(21):Serial number
YYYY-MM
DK:HMI?????
MoliftEvoSling ???????
??????? Size??
Polyester/polyethylene
M
300 660
EvoSlingHighBack Net Padded
Molift EvoSling
BarcodeaccordingtoGS1-128
(01)xxxxxxxxxxxxxx(21)xxxxxxxx
(01):EANnumber(21):Serial number
YYYY-MM
DK:HMI?????
MoliftEvoSling ???????
??????? Size??
Polyester/polyethylene
M
300 660
EvoSlingHighBack Padded
Molift EvoSling
BarcodeaccordingtoGS1-128
(01)xxxxxxxxxxxxxx(21)xxxxxxxx
(01):EANnumber(21):Serial number
YYYY-MM
DK:HMI?????
MoliftEvoSling ???????
??????? Size??
Polyester/polyethylene
M
300 660
EvoSlingHighBack Padded
Molift EvoSling
Molift EvoSling HighBack
About Molift EvoSling HighBack
Etac supplies a wide selection of slings for differ-
ent types of transfers. Molift EvoSling HighBack is
suitable for users that require total support.
The sling has a high back, head support and it
supports the entire torso. It has split leg support
with a medium opening. EvoSling HighBack is not
suitable for double leg amputees
The slings can be used for lifting from a sitting
or lying position to a sitting or lying position.
Approved for users with weight up to 300kg.
Molift EvoSling HighBack is avalable in sizes XS –
XXL, in padded polyester and Net polyester with
padded leg supports.
The net version sling has a centre mark line and
both versions have the application pockets to facil-
itate application of the sling. The sling has a guide
handle for positioning of the user when lifted.
Molift EvoSling is developed to be combined with
a 2-point suspension but the sling also works
with a 4-point suspension. See the combination
list for the correct sling and suspension.
Product label
Lifting
strap /
Leg strap
Lifting
strap /
Leg strap
Upper
Lifting
strap
Upper
Lifting
strap
Head
Support
padding
Centre
mark line
Ladder
loops
Ladder
loops
Padding
Padding
Guide
handle
Guide
handle
Application
pocket
Application
pocket
EvoSling HighBack
Net Padded
EvoSling HighBack
Padded

5
Molift EvoSling / www.etac.com
Safe Working Load (SWL)
XS-XXL: 300 kg (660 lbs)
Material:
Polyester, Polyethylene
Dimensions (cm):
Size A B
XS 70 72
S80 88
M93 104
L100 110
XL 105 120
XXL 110 130
Lifting Strap Ladder loops
The ladder loops on the lifting straps give differ-
ent options for mounting sling to suspension. Use
the ladder that makes the sling most comfortable
for user.
A A A
The ladder loops on the lifting straps have differ-
ent colours to help to ensure straps are fastened
with equal length on the left and right side but
not necessarily the same colour on the upper lift-
ing strap as the leg strap.. Distance between each
ladder loop (A) is 9cm.
Expected Lifetime:
The product has an expected service life of 1 to
5 years under normal use. The service life of the
product varies depending on usage frequency,
loads and how often it is washed.
Combination list
Molift EvoSling HighBack is designed for use with
2-point suspension but also works with 4-point
suspension.
= Recommended
= Not recommended
2 Point Suspension
XS-S M-L XL-XXL
Small 340mm
Medium 440mm
Large 540mm
4 Point Suspension
XS-S M-L XL-XXL
Small 340mm
Medium 440mm
Large 540mm
X-Large 640mm
Technical Data
B
A

6
Molift EvoSling / www.etac.com
How to use Molift EvoSling HighBack
General Safety Precautions
Only use accessories and slings that are adjusted
to fit the user, taking into consideration their dis-
ability, size, weight and transfer.
If maximum load (SWL) differs
between hoist and sling, the lowest
maximum load shall always be used
It is recommended that an individual risk
assessment is carried out with the user prior to
use. Make a decision on whether one or more
assistants are required.
Plan the lifting operation in advance to ensure
that it is as safe and smooth as possible.
Remember to work ergonomically.
Assess the risks and take notes. You as the assis-
tant are responsible for the safety of the user.
Molift slings should only be used to
lift people. Never use the sling to
lift or move objects of any kind.
The sling should not be stored in
direct sunlight.
Before use / Daily check
Before using the sling for first time
it should be marked with the date
of the first use on the periodic
inspection label.
Inspection to be performed daily or before use:
Make sure user has the required ability for the
sling
Make sure the sling is suitable for the hoist/
suspension to be used.
Make sure sling does not have visible damage
or frays.
Never use a faulty or damaged
sling as it can break and cause per-
sonal injury. Destroy and discard
damaged and old slings
Size guide
Measurements in table should be used as a refe-
rence. Correct size depends on the user’s weight,
function and body shape. Measure the waist size
and back height on user in sitting position. Try the
sling with most correct measurements to make
sure it fits.
W
W
H
Size User weight
- kg (lbs)
Width
(W) - cm
Height
(H) - cm
XS 17-25 (37-55) 31-38 60-70
S25-50 (55-110) 35-42 70-80
M45-95 (99-210) 37-47 80-95
L90 -165 (198-353) 40-51 95-100
XL 160-240 (353-529) 45-57 100-105
XXL 230-300 (507-660) 50-64 100-120
Sling checkpoints
2
1
3
4
1. Suspension is not too close to the users head
2. Leg straps are crossed
3. Sling is placed to give sufficient head support
4. The leg supports are placed under users thigh
without folds

7
Molift EvoSling / www.etac.com

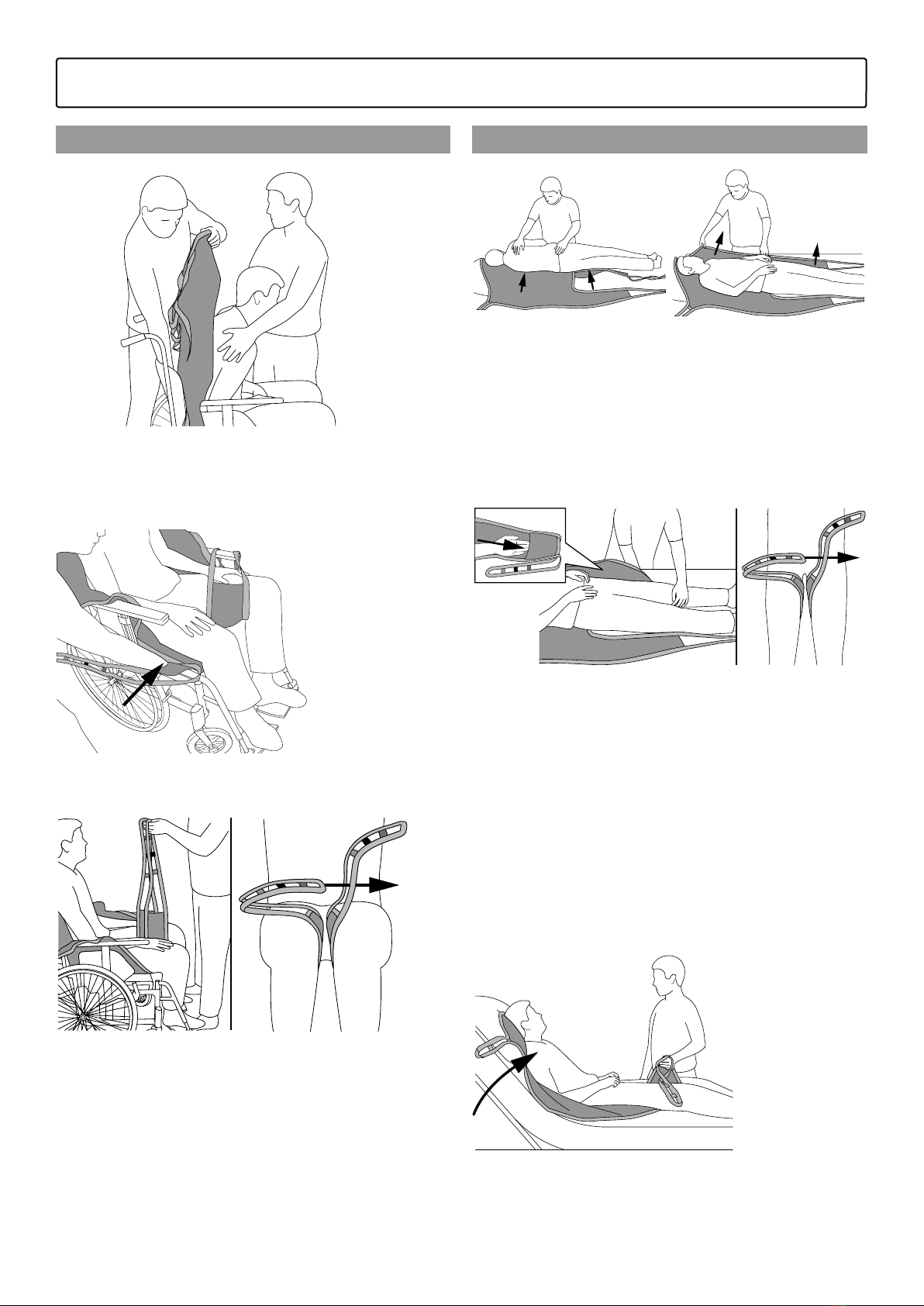

Sling application
Sitting position
1. Ask the user to lean forward, support him if
necessary with one hand. Use the application
pocket and slide the sling down behind the user’s
back until it reaches the seat. Make sure the top
of sling is positioned so it supports the users head.
2. Pull the leg supports forward and position
them under the user’s thighs. Use the application
pocket on the leg support for easier application.
3. Make sure the lifting straps are the same length
on both sides and that the sling is placed under
the users tighs without any folds.
Cross the leg loops by pulling one of the loops
through the other and connect all 4 lifting straps
to suspension. Make sure the lifting straps are
fastened with equal length on right and left side.
Upper straps and legstraps can be mounted with
different colour on ladder loop to make sure sling
is comfortable and safe.
Lying position
1. Turn the user towards you so that they are
lying in a safe position on their side. Place the
sling with the bottom edge in line with the users
coccyx. Make sure the sling is placed in the centre
on the users back, and that the top of the sling
is positioned to support the users head. Fold the
sling so it is possible to pull out the folded side
after turning the user over on the other side.
2. Pull the leg supports forward and position
them under the user’s thighs. Use the application
pocket on the leg support for easier application.
Make sure the lifting straps are the same length
on both sides and that the sling is placed under
the users tighs without any folds.
Cross the leg loops by pulling one of the loops
through the other and connect all 4 lifting straps
to suspension. Make sure the lifting straps are
fastened with equal length on right and left side.
Upper straps and legstraps can be mounted with
different colour on ladder loop to make sure sling
is comfortable and safe.
Raise the user into sitting postition before lifting if
possible.

8
Molift EvoSling / www.etac.com
Transfer
When moving the user, stand to the side of the
person you are lifting. Make sure that arms and
legs do not obstruct the seat, bed, etc.
1. Check that the sling is correctly fitted around
the user and that the strap loops are correctly
fitted to the suspension hooks.
2. Start lifting until the lifting straps are stretched
without lifting the user. Ensure that all four
loops of the sling are securely fastened to
avoid the user slipping or falling out of the
sling.
3. Lift user, and perform transfer.
Never lift the user higher than
necessary to carry out a lift.
Remember that wheels on a mobile
hoist must NOT be locked.
Never leave a user unattended in a
lifting situation.
Be careful during movement, the user may swing
during turns, stops and starts. Be careful when
manoeuvring close to furniture to prevent the
suspended user from colliding with these objects.
The hoist should not be used to lift
or move users on sloping surfaces
Avoid deep pile carpets, high thresholds, uneven
surfaces or other obstacles that may block the
castors. The hoist may become unstable if forced
over such obstacles increasing the risk of tipping
over.
Lowering into sitting
When transferring the user into a sitting position,
the following techniques can be used for lowering
the user as far back into the seat as possible:
A Push gently on the users knees to steer the
user in towards the backrest of the chair.
B Tilt the seat backwards.
Do not lift with the guide
handles! Excessive force on the
handles can cause the sling to tear.
User must be facing the hoist when
lifting or lowering from or into a
chair.

9
Molift EvoSling / www.etac.com

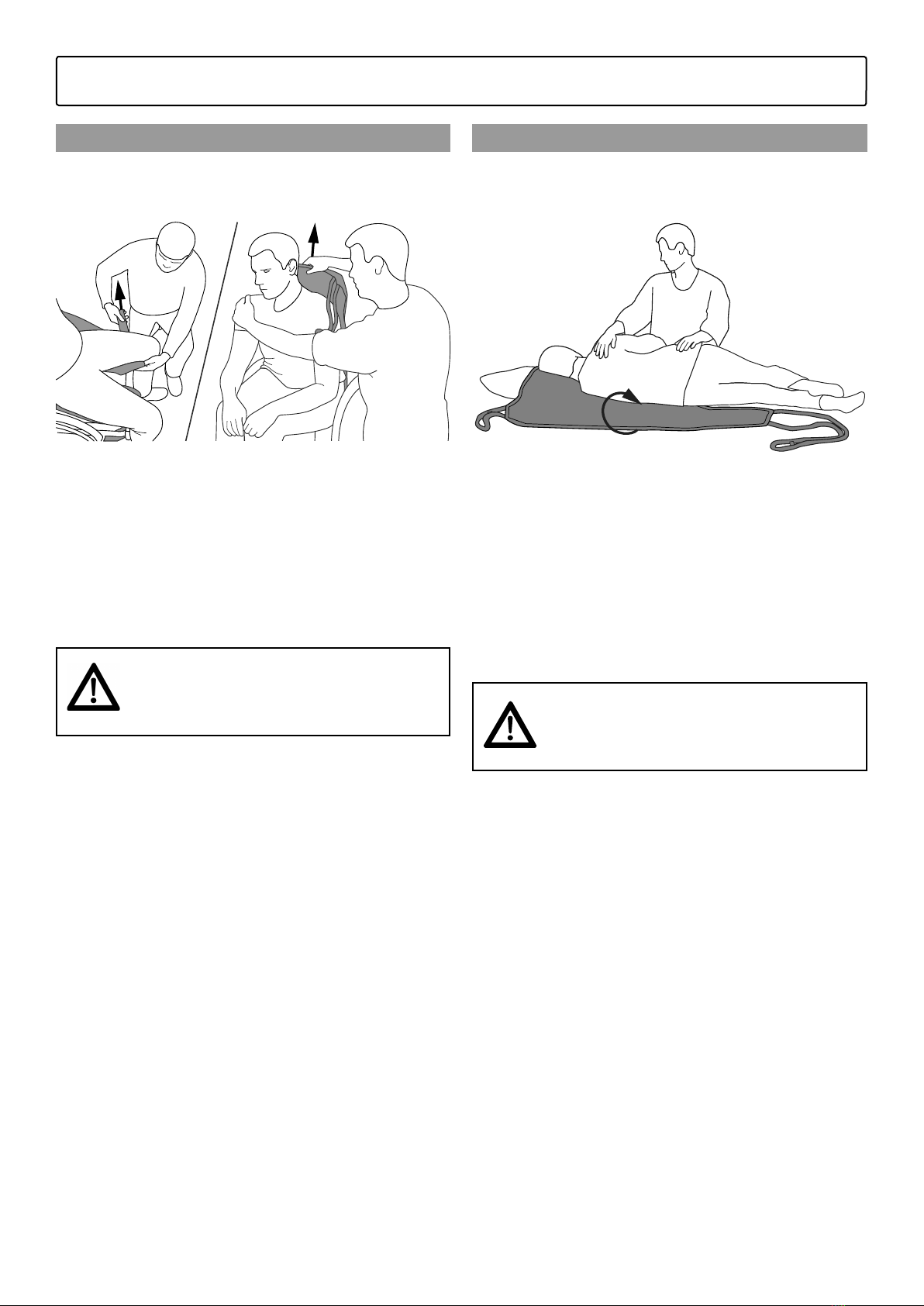

Removing the sling
Sitting position
Lower the user into sitting position.
Release lifting straps from suspension.
Remove the leg support by folding the leg
support under the sling itself and the users
thigh and pull out
Stand next to the chair and ask the user to lean
forward. Support the user with one hand if neces-
sary. Pull the sling away with one hand, and ask
the user to lean back in the chair.
Remove the sling gently to ensure
the users doesn’t fall forward.
Lying position
Lower the user into lying position.
Release lifting straps from suspension.
Turn the patient towards you so that the user is
lying in a safe position on their side.
Fold the sling in the middle and position it behind
the user’s back.
Turn the user over on the opposite side and pull
the sling away. Support the user with one hand if
necessary.
Remove the sling gently to ensure
the users doesn’t roll and fall off
the bed.

10
Molift EvoSling / www.etac.com

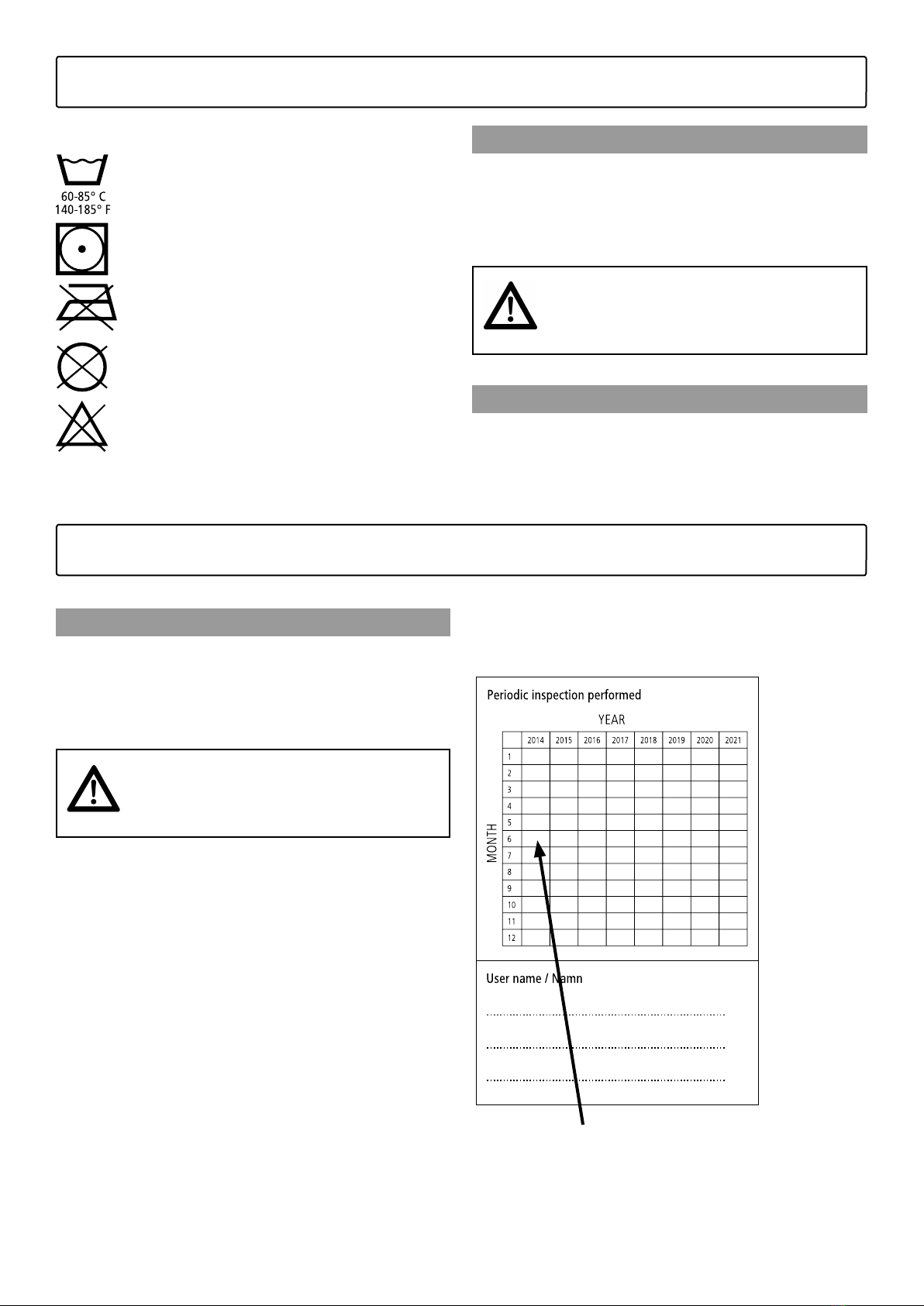

Maintenance
Wash symbols:
Slings can be washed at temperatures
up to 85º C.
Tumble drying, max 45º C.
Do not iron
Do not dryclean
Do not bleach
Cleaning and disinfection
Washing and drying at higher temperatures
wears out the material faster. The sling must be
inspected regularly, preferably prior to each lifting
operation but especially after it has been washed.
Make sure not to damage or
remove labels when cleaning.
Recycling
Refer to “Recycling instructions” for how to
properly dispose of product. This can be found on
www.etac.com.
Periodic Inspection
Periodic Inspection Scope
Periodic inspection is a visual examination of the
sling according to Periodic Inspection Report for
Etac/Molift Slings. This can be found on
www.etac.com.
If the inspection reveals any dan-
ger to safety, the sling must imme-
diately be taken out of service and
be disposed of.
Periodic inspection must be carried out at least
every 6 months. More regular inspection may be
required if the sling is used or washed more often
than is normal. The inspection must be performed
by trained personnel.
When performing a periodic inspection, the
inspector shall fill out the inspection report for
Etac/Molift Slings. The reports should be retained
by the person(s) responsible for inspecting the
sling. If the inspection reveals defects and dam-
ages, the owner shall be notified.
When periodic inspection is completed the inspec-
tor shall mark periodic label showing the date
when periodic inspection is performed.
The periodic inspection label can be found behind
the product label, and this will then indicate when
the next service should be performed (within 6
months from last inspection).
When the sling is used for the first time, the
periodic inspection label should be marked
with month and year. That way it is easier to
know when first periodic inspection should be
performed.

11
Molift EvoSling / www.etac.com
Troubleshooting
Symptom Possible Cause/Action
The sling does not fit the user. Wrong sling size. Try other size.
The sling is too small when the leg supports do
not reach halfway around the inner thigh and
the suspension is too close to the user’s face. Try
other size.
The sling is too small when top of sling doesn’t
support the users head and the suspension is too
close to the user’s face. Try other size.
The sling is not correctly positioned.
Pull the sling further down at the back when
fitting it.
All the straps do not lift at the same time. If the sling straps lift unevenly, it means that the
sling can slide up at the back which can lead to
the user sliding down in the opening of the sling.
Make sure that the leg supports are positioned
correctly on the thighs.
User is sliding through/out of the sling. The sling is not connected correctly according to
individual prescription.
The user is wearing to slippery clothes. Change or
remove some of the clothing
