Liko SilhouetteSling 22 Manual

Silhouette Sling’s design and material make it par-
ticularly suitable for lifting from customized wheel-
chair seats and moulded seats, since the sling is
usually left in the wheelchair after the lifting operation
is completed.
Silhouette Sling is very popular in care and habilita-
tion situations, where moulded seats are commonly
used.
Silhouette Sling can also be used in bathing and
showering situations.
Silhouette Sling is a pliable sling that adapts to the
contours of the body and requires minimal space in
the wheelchair. It has an adjustable head support,
provides good support for the entire body and is
available in a range of sizes.
Silhouette Sling enables a somewhat reclined sitting
posture, which suits patients with poor torso stabil-
ity. The sling is made of a comfortable, pliable mesh
fabric that allows body heat and moisture to pass
through.
Product Description
Liko Silhouette Sling, Mod. 22
Instruction Guide
English
7EN160137-01
”Caution!” triangles are used to warn of situations that demand extra care and attention.
In this document, the person being lifted is referred to as the ”patient” and the person helping them is referred to
as the ”caregiver”.
Before using lifts and lifting accessories, read the instructions for both the sling and the lift that will
be used. Instruction guides can be downloaded, free of charge, at www.liko.com.

2Liko • w w w . l i k o . comLiko Silhouette Sling • 7EN160137-01
Liko Silhouette Sling
Lifting from/to a horizontal position
Turn the patient towards you to prevent him/her from fall-
ing out of the bed. Place the lower edge of the sling as far
down under the patient as possible, so that it is level with
the tailbone. The edge of the head support should not be
lower than the head, so as to provide sufcient support to
the head during the lifting operation.
Gather the sling together in a couple of folds and lay it so
that the centre of the sling corresponds to the position of
the patient’s spine when he/she is gently turned back.
Carefully work the sling out from the opposite side.
Raise the bed’s headrest/backrest to a reclining position.
Connect the strap loops as described on page: 3.
Smooth out the leg supports under the legs.
Important! If the bed is not equipped with an adjustable
headrest/backrest, particular care must be taken during the
initial phase of lifting to prevent strain on the neck.
The assisting caregiver should support the neck manually
during the lift.
Stand in front of the wheelchair to pre-
vent the patient from falling forward.
Lean the patient forward and guide
the lower edge of the sling down to the
level of the tailbone/wheelchair seat.
Head support loop
Size marking
Serial number
Label
Head support
Torso loop
Lower edge
Leg support
Leg support loop
Lifting from a seated position
When lifting from a horizontal position, the easiest way to apply the sling is with the patient in a fully recumbent position,
though in some cases it may be more appropriate to apply the sling while the patient is sitting up in bed.
Follow the instructions below. Lifting to a horizontal position is done in the reverse order.
Remember to lower the headrest/backrest on the bed to avoid discomfort to the neck.
When lifting a patient who requires head support from a sitting position it is usually necessary to lean the patient forward in
order to apply the sling. Remember to apply the wheelchair brake.
Make sure the lower edge of the sling
is pressed against the wheelchair seat
around he patient’s thighs and buttocks.
Pull the leg supports forward, rst on
one side, then on the other.
Helpful hint: Applying light pressure to
the kneecaps will allow you to extend
the leg supports and smooth out any
creases near the back. Make sure both
leg supports reach equally far forward.
Before lifting, remember the following:
• The need for one or more caregivers must be determined
from case to case.
• Plan the lift carefully to ensure that it is performed as safely
and conveniently as possible.
• Although Liko’s slingbars are equipped with safety latches,
particular care should be taken. Before the patient is lifted
from the underlying surface, but after the straps have been
fully extended, make sure the straps are properly hooked to
the slingbar.
• Never lift a patient higher than is necessary for the lifting and
transfer procedure.
• Never leave a patient unattended during a lifting situation.
• Make sure the wheels on the bed, gurney, etc. are locked
during the lifting/transfer operation.

3Liko • w w w . l i k o . com
Liko Silhouette Sling • 7EN160137-01

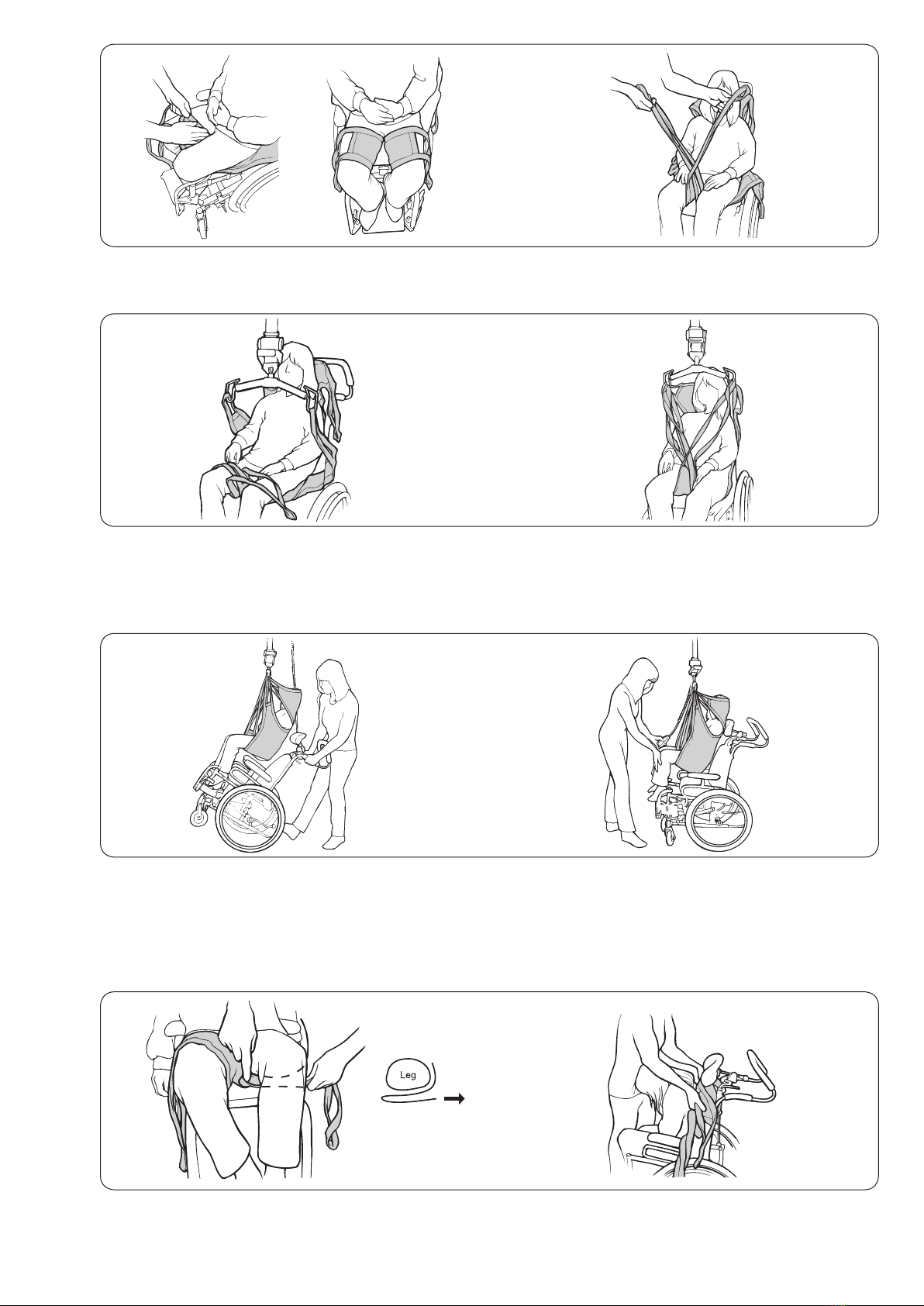

Guide the sling’s leg supports under each thigh.
Make sure the fabric is smoothed out under the thighs and
that it reaches properly around the legs.
Normally, one leg support is passed through the other
before they are hooked to the slingbar.
Lifting to a chair
Removing the sling
Hang the torso loops on the slingbar, then the leg
support loops. In most cases, the patient’s arms can be
held either inside or outside the sides of the sling.
Connect the head support loops to the slingbar. Select
loops according to the needs of the patient. Connect the
leg support loops, normally in the outermost loops.
To facilitate placement in the chair, tilt the chair back
somewhat during lowering. Let the patient’s bottom
slide down the back of the chair during the nal stage of
lowering. Guide the position of the wheelchair by placing
your foot on the tipping lever.
Alternative: Press lightly against the patient’s knees during
lowering so that his/her bottom is guided in towards the
back of the chair. Silhouette Sling is usually left in the
wheelchair, in which case the strap loops can be removed
and kept in a convenient place, ready for future use.
Carefully remove the leg support loops. The gentlest way is
to pull them out under the fabric, as in the illustration.
Loosen the leg supports and remove the sling by pulling it
carefully upwards behind the patient’s back.

Overview Liko Silhouette Sling, mod. 22
Code:
1 Recommended
2 Possible
3 Not advisable
4 Inappropriate
Laundering:
Article Prod. No. Size Weight*
When lifting with this combination the patient’s arms should stay outside the sling.
*
© Copyright Liko AB 2007-05
Recommended combinations of
Liko Universal Sling and
Liko slingbars:
Silhouette Sling 3522603 XS Extra Small 20-28 kg (44-62 lbs.)
Silhouette Sling 3522604 S Small 25-50 kg (55-110 lbs.)
Silhouette Sling 3522605 M Medium 45-75 kg (99-165 lbs.)
Silhouette Sling 3522306 L Large 65-100 kg (143-220 lbs.)
Always read the laundring instructions on the sling’s label before washing!
Class I medical-technical productClass I medical-technical product
*NOTE! Indicated patient weights are just guidelines. Deviations may occur.
Make sure that Silhouette Sling’s mid-back height corresponds to the distance from the patient’s tailbone to
the top of his/her head and that the sling ts comfortably and securely around the hips.
If the sling is too large, the patient may risk slipping out of it.
A sling that is too small can be tight in the crotch and cause discomfort.
Liko slings are approved for a maximum load of 200 kg (440 lbs.) or more, see product label.
!
Important!
Lifting and transferring a patient always involves a degree
of risk. Study the instruction manuals for both lift systems
and accessories carefully. A complete understanding of the
contents of instructions is essential. Only trained personnel
should use the equipment.
Make certain that the lift accessories are appropriate for the
lift you are using and for the lifting situation. Exercise caution
and care when using lift equipment and accessories.
As a caregiver, you are responsible for the patient’s safety.
You must be well informed of the patient’s condition and
ability to manage the lifting situation.
Inspect the sling regularly, especially after laundering.
Check carefully for wear and damage to seams, fabric,
straps and strap loops. Never used damaged accessories!
When in doubt, contact the manufacturer or supplier.
Liko Silhouette Sling has been tested by an accredited testing institute and complies with all requirements for MDD Class I
products and the harmonized EN ISO 10535 standard.
Liko's products are constantly being updated and rened. Liko reserve the right to change aspects of the products without
prior notice. Contact your local Liko representative for updated information and advice.
Mini 220
Slim 350
Standard 450 Wide 670
Cross-bar
Silhouette Sling, XS 1* 1 1 2 2 4 3 3 1 1 3
Silhouette Sling, S 2* 1 1 1 1 3 3 3 1 1 3
Silhouette Sling, M 2* 1 1 1 1 3 2 2 1 1 2
Silhouette Sling, L 2* 1* 1* 1 1 3 1 1 1 1 1
Universal 350 Universal 450
Universal 600
Cross-bar 450
Cross-bar 670
Twinbar 670
