ETAS ES600 Series User manual

ETAS ES620.1
Thermo Module
User Guide

Copyright
The data in this document may not be altered or amended without special noti-
fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in
relation to this document. The software described in it can only be used if the
customer is in possession of a general license agreement or single license.
Using and copying is only allowed in concurrence with the specifications stipu-
lated in the contract.
Under no circumstances may any part of this document be copied, reproduced,
transmitted, stored in a retrieval system or translated into another language
without the express written permission of ETAS GmbH.
© Copyright 2021 ETAS GmbH, Stuttgart
The names and designations used in this document are trademarks or brands
belonging to the respective owners.
ES620.1 - User Guide R09 EN - 05.2021

ETAS Contents
Contents
ES620.1 - User Guide 3
1 About this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Classification of Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Presentation of Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Presentation of Supporting Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.5 Scope of supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.6 Additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Basic safety notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 General safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Requirements for users and duties for operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1 ES600 Measurement Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 ES620.1 Thermo Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2.2 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.4 Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.5 Ports and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.5.1 Front Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.5.2 Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.5.3 Rear Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.6 Measurement Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.1 Installation and blocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.1.1 General installation recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.1.2 Fastening the module onto a carrier system . . . . . . . . . . . . . . . . . . . . . . . 20
4.1.3 Connecting several modules mechanically. . . . . . . . . . . . . . . . . . . . . . . . . 21
4.2 Cabling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.4 Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.1 General Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.1.1 Product labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.1.2 Fulfilled Standards and Norms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.1.3 Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.1.4 Maintenance the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.1.5 Cleaning the product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.1.6 Mechanical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.2 RoHS Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Contents

ETAS Contents
ES620.1 - User Guide 4
5.3 CE conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.4 UKCA conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.5 KCC conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.6 Taking the Product Back and Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.7 Use of Open Source software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.8 System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.8.1 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.8.2 Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.9 Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.9.1 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.9.2 Host Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.9.3 Thermocouple Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.10 Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.10.1 Thermocouple Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.10.2 Ethernet Interface, Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.10.3 External Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6 Cables and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.1 Y-Cable (ES620.1 in Stand-alone Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.1.1 CBEP110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.1.2 CBEP1105 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.1.3 CBEP120 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.1.4 CBEP1205 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.2 Connecting Cables to the ES600.1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.2.1 CBE130 (Straight Cable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.2.2 CBE140 (Angled Cable). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.1 ES620.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.2 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.2.1 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9 Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

ETAS About this Document
ES620.1 - User Guide 5
1 About this Document
1.1 Classification of Safety Messages
The safety messages used here warn of dangers that can lead to personal
injury or damage to property:
1.2 Presentation of Instructions
The target to be achieved is defined in the heading. The necessary steps for his
are in a step-by-step guide:
Target definition
1. Step 1
2. Step 2
3. Step 3
> Result
DANGER
indicates a hazardous situation with a high risk of death or serious injury if
not avoided
WARNING
indicates a hazardous situation of medium risk which could result in death or
serious injury if not avoided.
CAUTION
indicates a hazardous situation of low risk which may result in minor or
moder-ate injury if not avoided.
NOTICE
indicates a situation which may result in damage to property if not avoided.

ETAS About this Document
ES620.1 - User Guide 6
1.3 Typographical Conventions
1.4 Presentation of Supporting Information
1.5 Scope of supply
Prior to the initial commissioning of the module, please check whether the
module was delivered with all required components and cables (see chapter 7
on page 36).
Additional cables and adapters can be obtained separately from ETAS. A list of
available accessories and their order designation is located in chapter “Acces-
sories” on page 36 of this manual or in the ETAS product catalog.
1.6 Additional information
The configuration instructions for the module under INCA can be found in the
corresponding software documentation.
Bold Menu commands, buttons, labels of the product
Italic Emphasis on content and newly introduced terms
NOTE
Contains additional supporting information.

ETAS Basic safety notices
ES620.1 - User Guide 7
2 Basic safety notices
This chapter contains information about the following topics:
• General safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
• Requirements for users and duties for operators. . . . . . . . . . . . . . . . . . . 7
• Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 General safety information
Please observe the Product Safety Notices ("ETAS Safety Notice") and the fol-
lowing safety notices to avoid health issues or damage to the device.
ETAS GmbH does not assume any liability for damages resulting from
improper handling, unintended use or non-observance of the safety precau-
tions.
2.2 Requirements for users and duties for operators
The product may be assembled, operated and maintained only if you have the
necessary qualification and experience for this product. Improper use or use by
a user without sufficient qualification can lead to damages or injuries to one's
health or damages to property.
The assembler of the system is responsible for the safety of any system incor-
perating the equipment.
General safety at work
The existing regulations for safety at work and accident prevention must be
followed. All applicable regulations and statutes regarding operation must be
strictly followed when using this product.
2.3 Intended use
Application area of the product
This product was developed and approved for applications in the automotive
sector. The module is suitable for use in interiors, in the passenger cell or in the
trunk of vehicles. The module is not suitable for installation in the engine com-
partment and similar environments. For use in other application areas, please
contact your ETAS contact partner.
NOTE
Carefully read the documentation (Product Safety Advice and this User's
Guide) that belongs to the product prior to the startup.

ETAS Basic safety notices
ES620.1 - User Guide 8
Requirements for the technical state of the product
The product is designed in accordance with state-of-the-art technology and
recognized safety rules. The product may be operated only in a technically flaw-
less condition and according to the intended purpose and with regard to safety
and dangers as stated in the respective product documentation. If the product
is not used according to its intended purpose, the protection of the product
may be impaired.
Requirements for operation
• Use the product only according to the specifications in the correspond-
ing User's Guide. With any deviating operation, the product safety is no
longer ensured.
• Observe the requirements on the ambient conditions.
• Do not use the product in a wet or damp environment.
• Do not use the product in potentially explosive atmospheres.
Electrical safety and power supply
• Observe the regulations applicable at the operating location concerning
electrical safety as well as the laws and regulations concerning work
safety!
• Connect only current circuits with safety extra-low voltage in accordance
with EN 61140 (degree of protection III) to the connections of the mod-
ule.
• Ensure that the connection and setting values are being followed (see
the information in the chapter "Technical data").
• Do not apply any voltages to the connections of the module that do not
correspond to the specifications of the respective connection.
Power supply
• The power supply for the product must be safely disconnected from the
supply voltage. For example, use a car battery or a suitable lab power
supply.
• Use only lab power supplies with double protection to the supply net-
work (with double insulation/reinforced insulation (DI/ RI)).
• The lab power supply must be approved for an operating altitude of
5000 m and for an ambient temperature of up to 70 °C.
• In regular operation of the modules as well as very long standby opera-
tion, a discharge of the vehicle battery is possible.
DANGER
Thermocouples should not be placed on energized parts!

ETAS Basic safety notices
ES620.1 - User Guide 9
Connection to the power supply
• The power cable must not be connected directly to the vehicle battery or
lab power supply, but via a fuse of up to 20 A.
• Ensure that the connections of the lab power supply, the power supply at
the module and the vehicle battery are easily accessible!
• Route the power cord in such a way that it is protected against abrasion,
damages, deformation and kinking. Do not place any objects on the
power cord!
De-energizing the module
The module does not have an operating voltage switch. The module can be de-
energized as follows:
• Disconnecting the cables from the measurement inputs
and
• Disconnecting the module from the power supply
– Disconnecting the module from the lab power supply
Separating device is the lab plug of the power cord or the plug of the
power cord at the connection of the module
or
– Disconnecting the module from the vehicle battery
Separating device is the lab plug of the power cord or the plug of the
power cord at the connection of the module
or
– Disconnecting the vehicle battery.
Approved cables
• Use exclusively ETAS cables at the connections of the module!
• Adhere to the maximum permissible cable lengths!
• Do not use any damaged cables! Cables may be repaired only by ETAS!
• Never apply force to insert a plug into a socket. Ensure that there is no
contamination in and on the connection, that the plug fits the socket, and
that you correctly aligned the plugs with the connection.
Requirements for the location
• Position the module or the module stack on a smooth, level and solid
underground.
• The module or the module stack must always be securely fastened.
DANGER
Dangerous electrical voltage!
Connect the power cable only with a suitable vehicle battery or with a suitable
lab power supply! The connection to power outlets is not allowed!
To prevent an inadvertent insertion in power outlets, ETAS recommends to
equip the power cables with safety banana plugs in areas with power outlets.

ETAS Basic safety notices
ES620.1 - User Guide 10
Fixing the modules on a carrier system
• When selecting the carrier system, observe the static and dynamic
forces that could be created by the module or the module stack on the
carrier system.
Requirements on the ventilation
• Keep the module away from heat sources and protect it against direct
exposure to the sun.
• The free space above and behind the module must be selected so that
sufficient air circulation is ensured.
Assembling (interconnecting) the modules
• Prior to assembling (interconnecting) or separating a module stack, the
modules must be disconnected from the supply voltage or they have to
be in the standby operating mode.
Transport
• Stack and connect the modules only at the location of the startup!
• Do not transport the modules at the cable of the module or any other
cables.
Maintenance
The product is maintenance-free.
Repair
If an ETAS hardware product should require a repair, return the product to
ETAS.
Cleaning the module housing
• Use a dry or lightly moistened, soft, lint-free cloth for cleaning the module
housing.
• Do not user any sprays, solvents or abrasive cleaners which could dam-
age the housing.
• Ensure that no moisture enters the housing. Never spray cleaning agents
directly onto the module.
Ambient conditions
The housing and the connectors of the module as well as the plug connectors
of the cables meet the degree of protection IP20.

ETAS Basic safety notices
ES620.1 - User Guide 11
Opening the module
Potential equalization
Cabling
For detailed information about cabling, see the User's Guide of the module.
CAUTION
Damage to the module and loss of properties based on IP20!
Do not open or change the module housing!
Work on the module housing may only be performed by ETAS.
CAUTION
Potential equalization in the vehicle is possible via the shield of the
connecting cables of the modules!
Install the modules only at locations with the same electrical potential or iso-
late the modules from the installation location.

ETAS Hardware Description
ES620.1 - User Guide 12
3 Hardware Description
This chapter contains information on the following topics:
• ES600 Measurement Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
• ES620.1 Thermo Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
• Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
• Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
• Ports and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
• Measurement Accuracy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.1 ES600 Measurement Modules
The ES6xx series comprises a range of advanced and powerful measurement
and interface modules. All modules are designed for use under harsh environ-
mental conditions and are therefore ideally suited for automotive use. This
applies both to the housings of the ES6xx series and all cable connections. The
ability of these modules to operate under a wide range of ambient tempera-
tures and power supply voltages further contributes to their suitability for auto-
motive applications.
The compact and rugged housings of the ES6xx series allow easy mounting
even under difficult installation conditions. By installing the modules close to
the signal source, it is possible to avoid long signal lines that would corrupt
measurement signals. The housings of the ES6xx series stack easily to build
larger blocks of units.
The measurement modules provide a high sampling rate with high resolution
and accuracy. The accuracy is guaranteed across Thermo Modulethe entire
extensive ambient temperature range.
The interface modules provide the connection to the popular bus systems used
in motor vehicles and to various emulator probes (ETK).
Each module is equipped with a powerful Ethernet interface that ensures high-
speed data exchange with the host PC.
A synchronization and power management module makes it possible to con-
nect several measurement and interface modules to one Ethernet interface on
the host PC. This synchronization and power management module also
ensures simultaneous sampling of all measurement channels—even in large
module networks. The periodic synchronization signal is superimposed onto
the Ethernet signals without affecting data transfer. This excludes the possibil-
ity of a phase shift between the individual signals, even when measurements
are taken from different modules.
All modules of the ES6xx series have an automatic power saving feature. For
this purpose, the modules are equipped with a link signal detector that is con-
trolled directly by the Ethernet interface. As soon as a device connected to the
ES620.1 starts to send link signals via the Ethernet interface, the module is
“awakened” from its power-saving standby mode and is ready for operation.
When it no longer receives any more link signals, the ES620.1 switches back
into standby mode automatically after a delay.

ETAS Hardware Description
ES620.1 - User Guide 13
The modules are configured using the INCA’s graphical user interface (GUI).
INCA also provides you the functionality for data acquisition and data evalua-
tion.
3.2 ES620.1 Thermo Module
3.2.1 Overview
The ES620.1 is designed to measure temperatures using thermocouples. It
provides you with 16 channels for temperature measurement with thermocou-
ples.

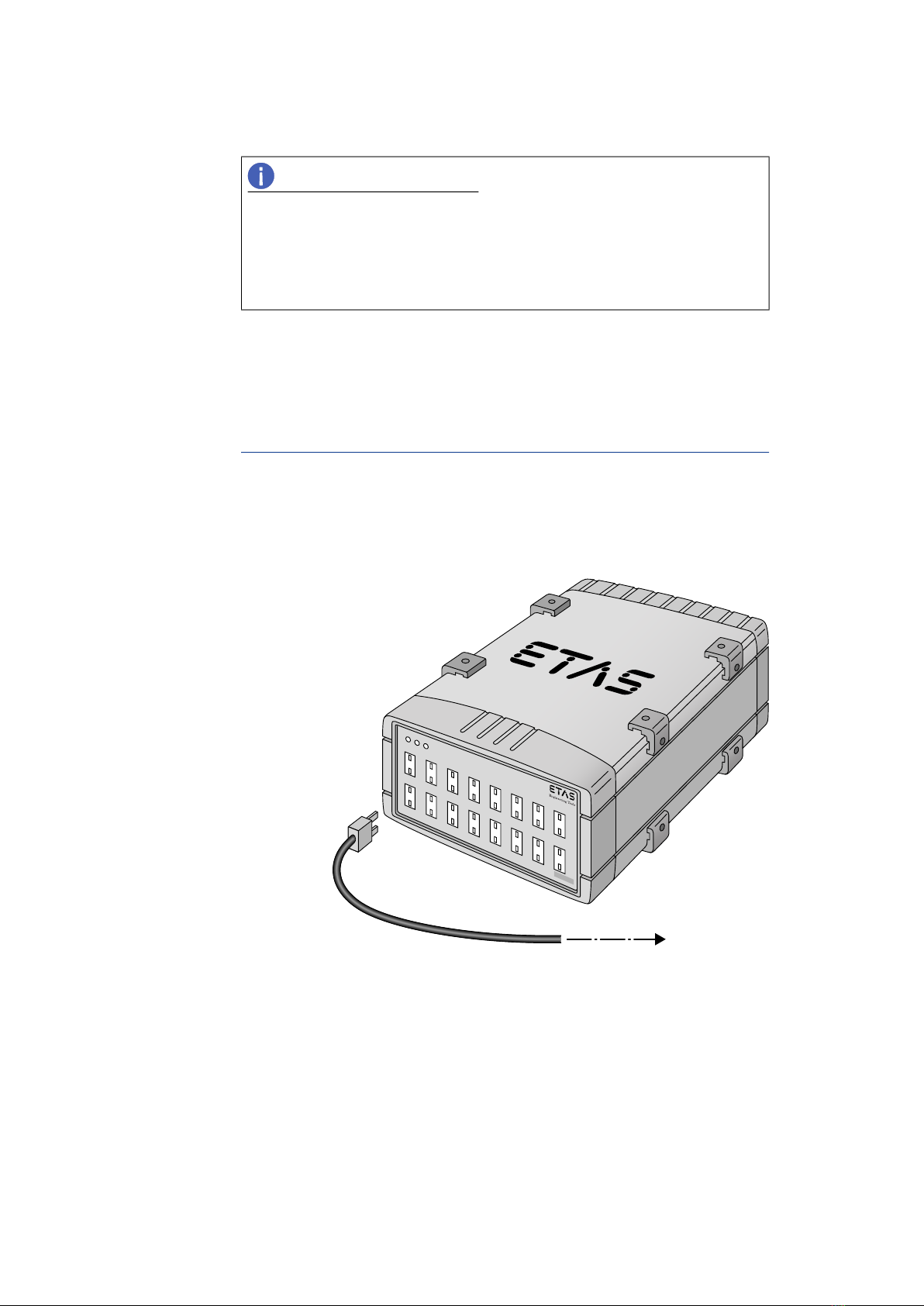

Fig. 3-1ES620.1 Thermo Module
The thermocouple channels have a resolution of 21 bits.
You can use B-, E-, J-, K-, N-, R-, S- and T-type thermocouples. The maximum
measuring range is -210 °C to +1,820 °C. Each thermocouple channel is fitted
with a cold junction compensation directly in the connector. This ensures accu-
racy even when the housing is not heated uniformly. The thermocouples are
galvanically isolated from each other and from case ground.
NOTE
The ES620.1 only switches from the power-saving standby mode to opera-
tion mode when it receives link pulses via the Ethernet interface. To ensure
that a connected PC sends link pulses, its Ethernet adapter must be properly
configured. A data transfer via the Ethernet interface automatically switches
the ES620.1 into operation mode.
TH1
ON TX ER
ES620.1
TH9
TH2
TH10
TH3
TH11
TH4
TH12
TH5
TH13
TH6
TH14
TH7
TH15
TH8
thermocouple
0463318

ETAS Hardware Description
ES620.1 - User Guide 14

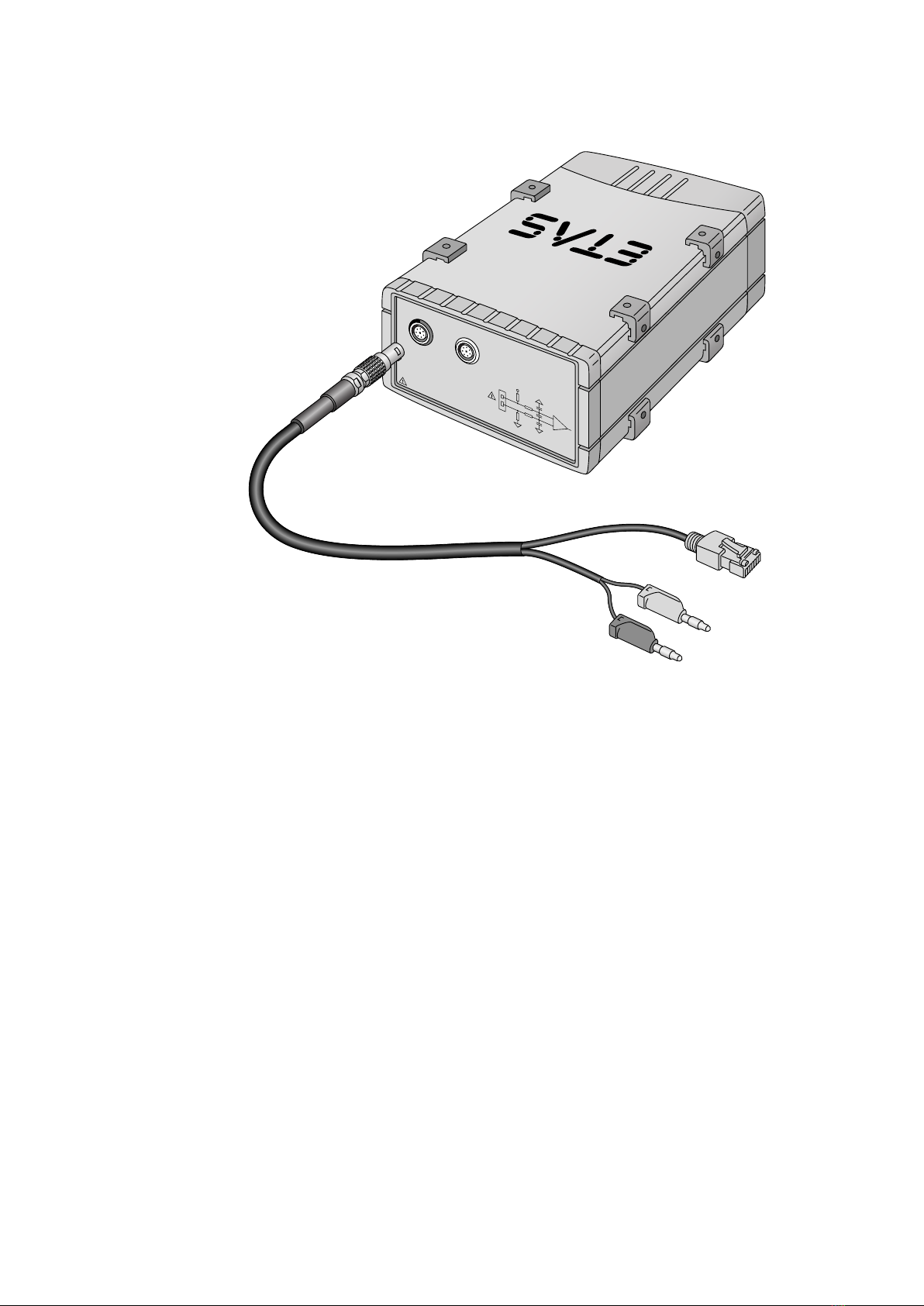

Fig. 3-2ES620.1 Thermo Module back panel
3.2.2 Features
Overview of the major features of the ES620.1:
• 16 galvanically isolated measurement channels for thermocouples
• Measuring range from -210 °C to +1,820 °C (depending on type of ther-
mocouple)
• Measurement channels galvanically isolated from each other and from
the supply voltage
• Settable acquisition rate per channel
• Parameterized software filters for signal smoothing with adaptive cutoff
frequency
• High resolution
• Data transfer via Ethernet
• Synchronous data acquisition
• Automatic power saving feature (standby mode)
• Rugged, functional metal housing
• Member of the ETAS Tool Suite – supported by INCA
For complete technical data of the ES620.1, refer to Chapter “Technical Data”
on page 25.
6-32V/HOST EXT. DISPLAY
CBEP 120
Operating Temperature
-
40…+ 70°C
Typical power consumption 3.0 W
Standby power consumption 50mW
Ethernet 10 Base-T
See manual for maximum voltages and impedance
A+
-
VCC
K

ETAS Hardware Description
ES620.1 - User Guide 15
3.3 Package Contents
The ES620.1 is available as two different packages.
• Package variant „ES620.1“ includes the following parts:
– the ES620.1 Thermo Module
– a combined Ethernet cable and power supply cord CBEP110-2, 2 m
– four T-brackets to daisy-chain the housings
• Package variant „ES620.1-SCB“ includes the following parts:
– the ES620.1 Thermo Module
– four T-brackets to daisy-chain the housings
Additional connection cables for connection to the sensors and extension
cables can be ordered separately from ETAS. A list of available accessories and
ordering information can be found in Chapter “Ordering Information” on
page 36 of this manual or in the ETAS product catalog.
Before using your ES620.1, check that the unit has been delivered with all
required parts and cables.
3.4 Housing
The ES620.1 uses a housing with connections on the front and the rear side of
the device. The robust metal housing of the ES620.1 is equipped with non-slip
plastic feet.
The module is designed for the accommodation in the vehicle or lab. In order to
stabilize it, it can easily be screwed onto a support system. The housings of this
device family can also be connected with each other – quickly and easily (see
chapter 4.1 on page 20.

ETAS Hardware Description
ES620.1 - User Guide 16
3.5 Ports and Indicators
The ES620.1 has three indicators (LEDs), sixteen ports for sensors and trans-
ducers, one combined Ethernet/power supply port, and one port for an external
display.
3.5.1 Front Side
Fig. 3-3ES620.1 Front panel
Ports
The 16 ports TH1 to TH16 for the thermocouples are located on the front panel.
All sensor and transducer ports are galvanically isolated from each other and
from case ground.
3.5.2 Indicators
The three indicators (LEDs) are located in the top left corner on the front panel.
They indicate the following operational states of the ES620.1:
DANGER
Thermocouples should not be placed on energized parts!
Indicator Indication Operational State
ON green The unit is powered on.
green, blinking The unit is in standby mode.
green, pulse,
intermittent
brightness
The unit is synchronizing with the
ES600.
TX yellow Host connection exists.
yellow, blinking Data are being transferred.
t
t

ETAS Hardware Description
ES620.1 - User Guide 17
When enabling the device identification in INCA, the ER LED lights up for 5 s
with intermittent brightness. This allows you to identify the device selected in
INCA within a device block.
Serial number
The serial number is located on the front side of the module. This number is
important for the unique addressing of the module in the application software.
3.5.3 Rear Side
The ports for Ethernet, power supply and the external display are located on the
back panel.
Fig. 3-4ES620.1 Back panel
Ports
The port for an external display is located on the back panel. The current firm-
ware version does not yet support this external display; however, the port has
been built in to provide for future use.
ER red
(duration > 5 s)
An error has occurred. Measurement
accuracy may be out of specification.
Please send the unit to ETAS for service.
red, bright blink-
ing
A serious error has occurred. Measure-
ments are no longer possible. Please
send the unit to ETAS for repair.
red, pulse, inter-
mittent bright-
ness
Device identification activated from
INCA.
Indicator Indication Operational State
t
t

ETAS Hardware Description
ES620.1 - User Guide 18
3.6 Measurement Accuracy
While measuring temperatures with thermocouples the total measurement
inaccuracy is determined by different parts. These parts are:
• Basic accuracy Tg
• Temperature drift of thermocouple inputs Td
• Inaccuracy depending on the internal resistance of the thermocouple Ti
• Inaccuracy of cold junction compensation Tcjc
• Temperature drift of cold junction compensation Tdcjc
The maximum total inaccuracy is the sum of all parts.
T = Tg + Td + Ti + Tcjc + Tdcjc
The amount of the parts depends on the type of thermocouple. The figures are
listed in table “Thermocouple Inputs” on page 30.
Two examples show you how to calculate the maximum total inaccuracy.
Example 1
A thermocouple of type K with an internal resistance Ri of less than 50  is
used to measure a temperature Tm of 200 °C (473.15 K; 392 °F) at an ambient
temperature Ta of 25 °C (77 °F).
Tg = ( | Tm - T0 | * 0.025 %) + 0.25 K
Tg = ( | 473.15 K - 298.15 K | * 0.025 %) + 0.25 K
Tg = 0.29 K
Td = 0.005 K/K * | Ta - T0 |
Td = 0.005 K/K * | 25 °C - 25 °C |
Td = 0.00 K
Ti = 0 because the internal resistance is less than 50 
Tcjc = 1 K
Tdcjc = 0.008 K/K * | Ta - T0 |
Tdcjc = 0.008 K/K * | 25 °C - 25 °C |
Tdcjc = 0.00 K
The maximum total inaccuracy is:
T = Tg + Td + Ti + Tcjc + Tdcjc
T = 0.29 K + 0.00 K + 0.00 K + 1 K + 0.00 K
T = 1.29 K
In this example the maximum total inaccuracy is determined by the inaccuracy
of the cold junction compensation.

ETAS Hardware Description
ES620.1 - User Guide 19
Example 2
A thermocouple of type K with an internal resistance Ri of 150  is used to
measure a temperature Tm of 400 °C (673.15 K; 752 °F) at an ambient tempera-
ture Ta of 50 °C (122 °F).
Tg = ( | Tm - T0 | * 0.025 %) + 0.25 K
Tg = ( | 673.15 K - 298.15 K | * 0.025 %) + 0.25 K
Tg = 0.34 K
Td = 0.005 K/K * | Ta - T0 |
Td = 0.005 K/K * | 50 °C - 25 °C |
Td = 0.13 K
Ti = 0.004 K/ * Ri
Ti = 0.004 K/ * 150 
Ti = 0.60 K
Tcjc = 1 K
Tdcjc = 0.008 K/K * | Ta - T0 |
Tdcjc = 0.008 K/K * | 50 °C - 25 °C |
Tdcjc = 0.20 K
The maximum total inaccuracy is:
T = Tg + Td + Ti + Tcjc + Tdcjc
T = 0.34 K + 0.13 K + 0.60 K + 1 K + 0.20 K
T = 2.27 K
In this example the maximum total inaccuracy is determined by the inaccuracy
of the cold junction compensation and the part of the inaccuracy that depends
on the internal resistance of the thermocouple.

ETAS Getting Started
ES620.1 - User Guide 20
4 Getting Started
This chapter contains information on the following topics:
• Installation and blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
• Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
• Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
• Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.1 Installation and blocking
4.1.1 General installation recommendations
4.1.2 Fastening the module onto a carrier system
The ES620.1 has a robust metal housing equipped with non-slip plastic feet.
The module can easily be screwed onto a support system for fastening in the
vehicle or lab. The screw threads for fastening the module are already in the
housing and easily accessible.
Fastening the housing of the ES620.1:
1. Remove the plastic feet on the underside of the module. To do
so, push the blunt screwdriver between bottom of housing and
plastic foot.
2. Pry off the plastic foot.
Fig. 4-1Prying off the plastic foot
A screw thread becomes visible under the plastic foot. The
threads for fastening the module are located on the underside
of the housing.
CAUTION
Damage or destruction of the module is possible.
The modules are approved only for the installation and operation on compo-
nents or at locations that ensure that the technical data of the modules are
maintained during their operation (see chapter 5 on page 25).
