Etatron eOne MF 0110 User manual

Part B: Attaching suction & foot lter tubing
Cut clear tubing
in two pieces that
are the correct
size for your
application.
Attach one of the
two clear PVC
tubes to the
suction valve
following steps
2 - 5 in part A.
Attach the foot
filter (using
same process as
above), to other
end of clear PVC
tubing. Place into
the stock tank.
Slide the second
clear PVC tube
onto the priming
barb, and place
into the
stock tank.
eOne MF 0110 Quick Start Guide
• eOne MF pump
• Bracket Mounting Kit
• Operating instructions
and maintenance manual
• Allen Wrench (to remove solenoid
head when needed)
• Hose Packet
- Opaque, Rigid PE Tubing for
the Discharge
- Clear, Flexible, PVC Suction Tube
- Injection Valve
- Foot Filter
NOTE: Remove safety labels before installing
and remember pumps may hold water inside.

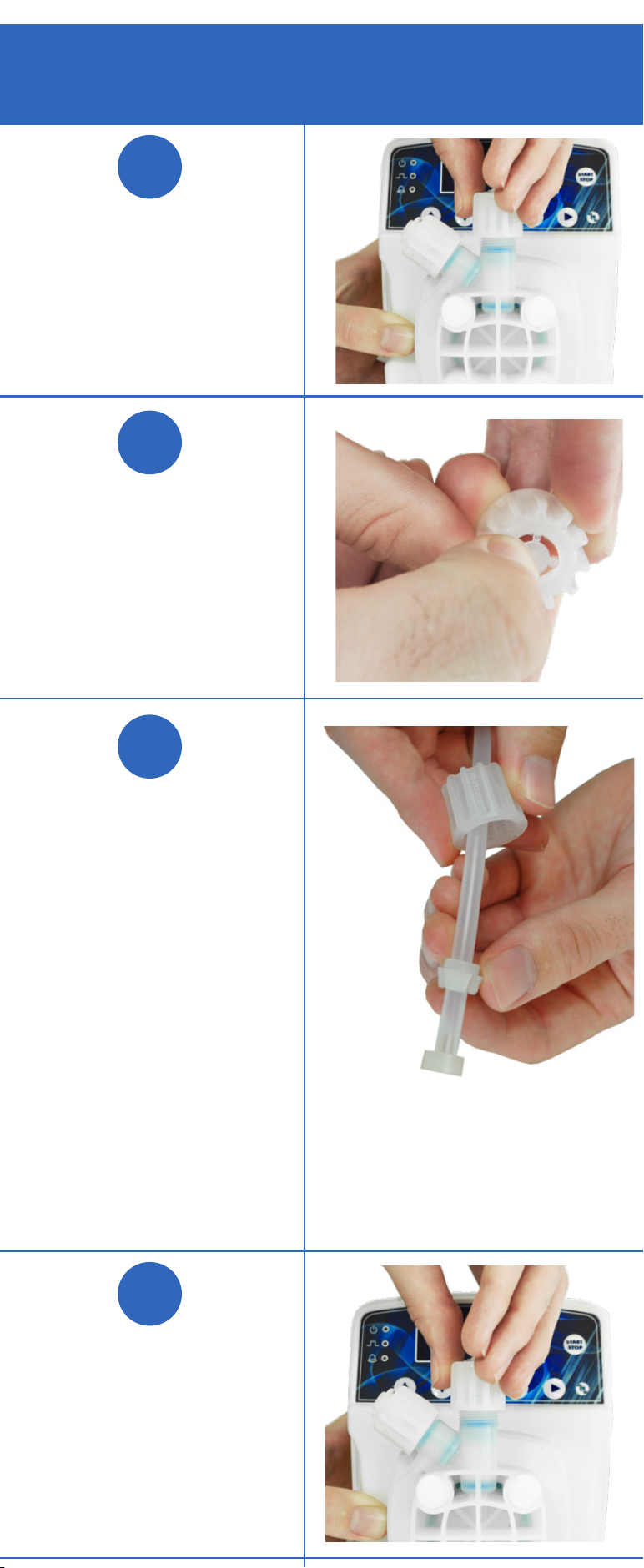

Part A: Attaching the opaque tubing to
the injection valves
Remove the
top discharge
valve nut.
Remove the
protective cap
from the nut and
discard.
Insert the opaque
tubing through
the nut. Slide the
locking collar
and insert the
hose nozzle
over the tube
creating a
compression
fitting.
Screw the nut
back onto the
discharge valve.
Hand tighten.
Attach other end
of tubing to the
injection stem,
follow steps 3 and
4. Install injection
stem into the
water line.
Flow Rate 0.26 GPH, Max. Pressure 145 PSI

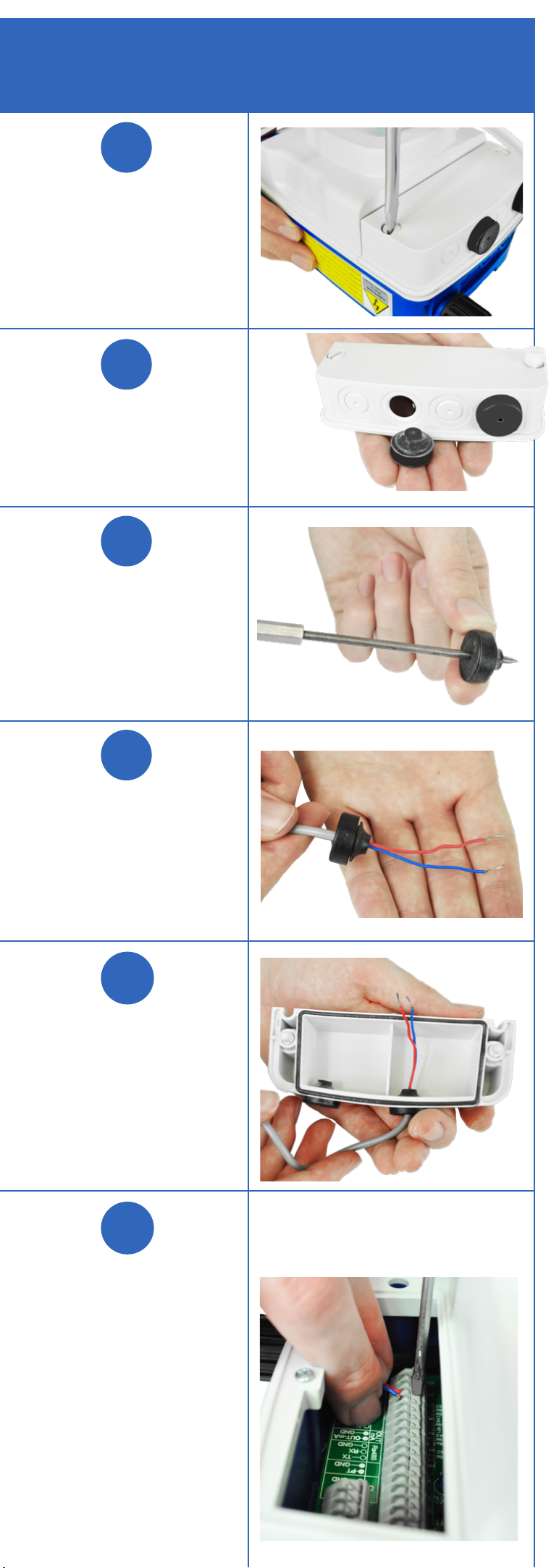

Part C: Connecting the Water Meter
Tools needed: punch, small and standard
size at head screwdriver
Remove bottom
front cover using a
standard flat head
screw driver.
Remove the
rubber cap on
the left.
Using a punch
tool, punch a small
hole through the
rubber cap.
Insert the Water
Meter wires
through the hole in
the cap.
Run the wires
back through the
hole in the front
cover. Reinsert
the rubber cap.
Insert wires on
3rd and 4th holes
from left. Push
button and insert
wires using small
screwdriver.
Make sure they
are connected
properly.
1
2
3
4
5

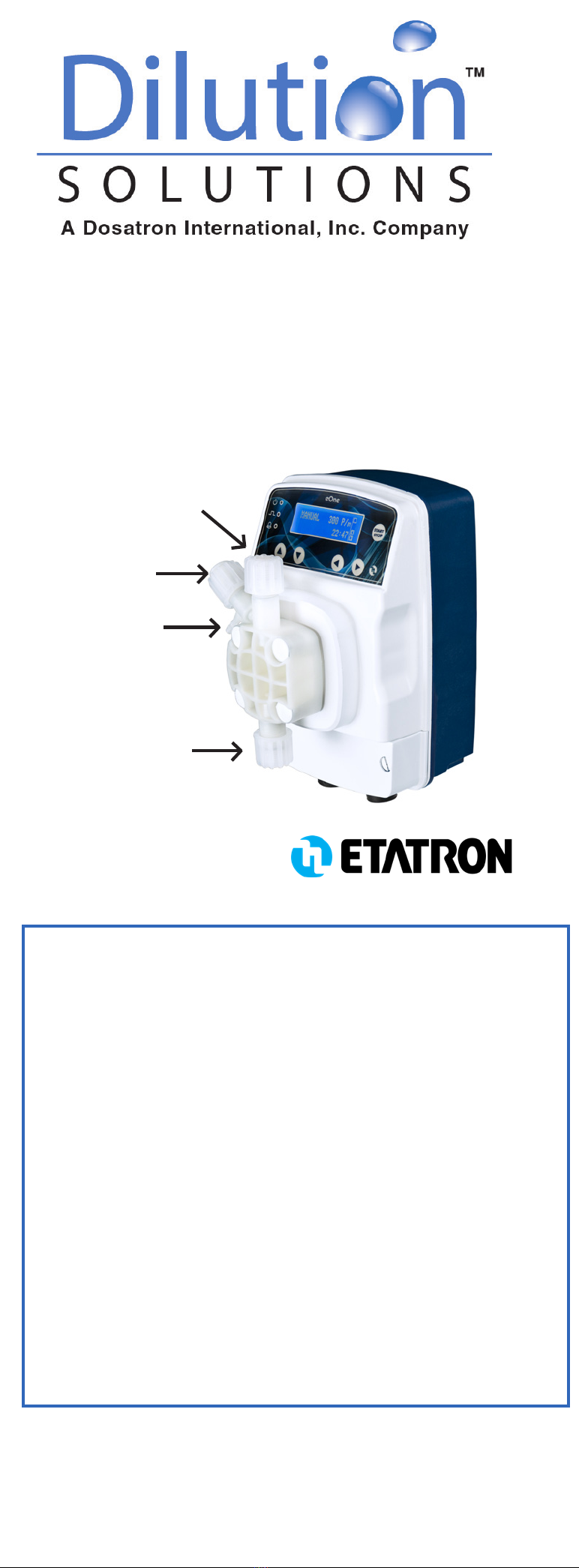

Included in the Box
Discharge
Valve
Priming
Barb
Suction
Valve
Air Bleed
Valve
1
2
3
4
1
2
3
4
5
6

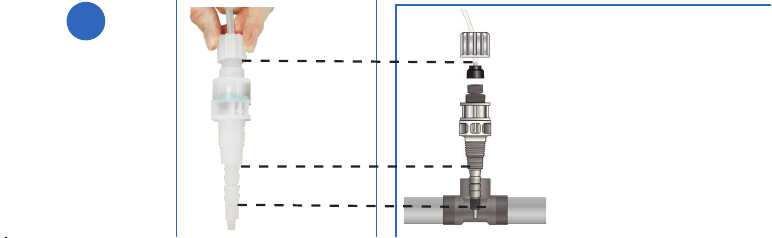

Injection stem has
1/2”, 3/8” and M10
MPT thread options.
Cut to your
specifications.
Insert into water line
so that the end of
injection valve is
midway in the pipe.
(Continue to back)
DO NOT CUT
passed this point

Part B: Attaching suction & foot lter tubing
Cut clear tubing
in two pieces that
are the correct
size for your
application.
Attach one of the
two clear PVC
tubes to the
suction valve
following steps
2 - 5 in part A.
Attach the foot
filter (using
same process as
above), to other
end of clear PVC
tubing. Place into
the stock tank.
Slide the second
clear PVC tube
onto the priming
barb, and place
into the
stock tank.
eOne MF 0110 Quick Start Guide
• eOne MF pump
• Bracket Mounting Kit
• Operating instructions
and maintenance manual
• Allen Wrench (to remove solenoid
head when needed)
• Hose Packet
- Opaque, Rigid PE Tubing for
the Discharge
- Clear, Flexible, PVC Suction Tube
- Injection Valve
- Foot Filter
NOTE: Remove safety labels before installing
and remember pumps may hold water inside.
Part A: Attaching the opaque tubing to
the injection valves
Remove the
top discharge
valve nut.
Remove the
protective cap
from the nut and
discard.
Insert the opaque
tubing through
the nut. Slide the
locking collar
and insert the
hose nozzle
over the tube
creating a
compression
fitting.
Screw the nut
back onto the
discharge valve.
Hand tighten.
Attach other end
of tubing to the
injection stem,
follow steps 3 and
4. Install injection
stem into the
water line.
Flow Rate 0.26 GPH, Max. Pressure 145 PSI
Part C: Connecting the Water Meter
Tools needed: punch, small and standard
size at head screwdriver
Remove bottom
front cover using a
standard flat head
screw driver.
Remove the
rubber cap on
the left.
Using a punch
tool, punch a small
hole through the
rubber cap.
Insert the Water
Meter wires
through the hole in
the cap.
Run the wires
back through the
hole in the front
cover. Reinsert
the rubber cap.
Insert wires on
3rd and 4th holes
from left. Push
button and insert
wires using small
screwdriver.
Make sure they
are connected
properly.
1
2
3
4
5
Included in the Box
Discharge
Valve
Priming
Barb
Suction
Valve
Air Bleed
Valve
1
2
3
4
1
2
3
4
5
6
Injection stem has
1/2”, 3/8” and M10
MPT thread options.
Cut to your
specifications.
Insert into water line
so that the end of
injection valve is
midway in the pipe.
(Continue to back)
DO NOT CUT
passed this point

Part B: Attaching suction & foot lter tubing
Cut clear tubing
in two pieces that
are the correct
size for your
application.
Attach one of the
two clear PVC
tubes to the
suction valve
following steps
2 - 5 in part A.
Attach the foot
filter (using
same process as
above), to other
end of clear PVC
tubing. Place into
the stock tank.
Slide the second
clear PVC tube
onto the priming
barb, and place
into the
stock tank.
eOne MF 0110 Quick Start Guide
• eOne MF pump
• Bracket Mounting Kit
• Operating instructions
and maintenance manual
• Allen Wrench (to remove solenoid
head when needed)
• Hose Packet
- Opaque, Rigid PE Tubing for
the Discharge
- Clear, Flexible, PVC Suction Tube
- Injection Valve
- Foot Filter
NOTE: Remove safety labels before installing
and remember pumps may hold water inside.
Part A: Attaching the opaque tubing to
the injection valves
Remove the
top discharge
valve nut.
Remove the
protective cap
from the nut and
discard.
Insert the opaque
tubing through
the nut. Slide the
locking collar
and insert the
hose nozzle
over the tube
creating a
compression
fitting.
Screw the nut
back onto the
discharge valve.
Hand tighten.
Attach other end
of tubing to the
injection stem,
follow steps 3 and
4. Install injection
stem into the
water line.
Flow Rate 0.26 GPH, Max. Pressure 145 PSI
Part C: Connecting the Water Meter
Tools needed: punch, small and standard
size at head screwdriver
Remove bottom
front cover using a
standard flat head
screw driver.
Remove the
rubber cap on
the left.
Using a punch
tool, punch a small
hole through the
rubber cap.
Insert the Water
Meter wires
through the hole in
the cap.
Run the wires
back through the
hole in the front
cover. Reinsert
the rubber cap.
Insert wires on
3rd and 4th holes
from left. Push
button and insert
wires using small
screwdriver.
Make sure they
are connected
properly.
1
2
3
4
5
Included in the Box
Discharge
Valve
Priming
Barb
Suction
Valve
Air Bleed
Valve
1
2
3
4
1
2
3
4
5
6
Injection stem has
1/2”, 3/8” and M10
MPT thread options.
Cut to your
specifications.
Insert into water line
so that the end of
injection valve is
midway in the pipe.
(Continue to back)
DO NOT CUT
passed this point

Part B: Attaching suction & foot lter tubing
Cut clear tubing
in two pieces that
are the correct
size for your
application.
Attach one of the
two clear PVC
tubes to the
suction valve
following steps
2 - 5 in part A.
Attach the foot
filter (using
same process as
above), to other
end of clear PVC
tubing. Place into
the stock tank.
Slide the second
clear PVC tube
onto the priming
barb, and place
into the
stock tank.
eOne MF 0110 Quick Start Guide
• eOne MF pump
• Bracket Mounting Kit
• Operating instructions
and maintenance manual
• Allen Wrench (to remove solenoid
head when needed)
• Hose Packet
- Opaque, Rigid PE Tubing for
the Discharge
- Clear, Flexible, PVC Suction Tube
- Injection Valve
- Foot Filter
NOTE: Remove safety labels before installing
and remember pumps may hold water inside.
Part A: Attaching the opaque tubing to
the injection valves
Remove the
top discharge
valve nut.
Remove the
protective cap
from the nut and
discard.
Insert the opaque
tubing through
the nut. Slide the
locking collar
and insert the
hose nozzle
over the tube
creating a
compression
fitting.
Screw the nut
back onto the
discharge valve.
Hand tighten.
Attach other end
of tubing to the
injection stem,
follow steps 3 and
4. Install injection
stem into the
water line.
Flow Rate 0.26 GPH, Max. Pressure 145 PSI
Part C: Connecting the Water Meter
Tools needed: punch, small and standard
size at head screwdriver
Remove bottom
front cover using a
standard flat head
screw driver.
Remove the
rubber cap on
the left.
Using a punch
tool, punch a small
hole through the
rubber cap.
Insert the Water
Meter wires
through the hole in
the cap.
Run the wires
back through the
hole in the front
cover. Reinsert
the rubber cap.
Insert wires on
3rd and 4th holes
from left. Push
button and insert
wires using small
screwdriver.
Make sure they
are connected
properly.
1
2
3
4
5
Included in the Box
Discharge
Valve
Priming
Barb
Suction
Valve
Air Bleed
Valve
1
2
3
4
1
2
3
4
5
6
Injection stem has
1/2”, 3/8” and M10
MPT thread options.
Cut to your
specifications.
Insert into water line
so that the end of
injection valve is
midway in the pipe.
(Continue to back)
DO NOT CUT
passed this point

Part B: Attaching suction & foot lter tubing
Cut clear tubing
in two pieces that
are the correct
size for your
application.
Attach one of the
two clear PVC
tubes to the
suction valve
following steps
2 - 5 in part A.
Attach the foot
filter (using
same process as
above), to other
end of clear PVC
tubing. Place into
the stock tank.
Slide the second
clear PVC tube
onto the priming
barb, and place
into the
stock tank.
eOne MF 0110 Quick Start Guide
• eOne MF pump
• Bracket Mounting Kit
• Operating instructions
and maintenance manual
• Allen Wrench (to remove solenoid
head when needed)
• Hose Packet
- Opaque, Rigid PE Tubing for
the Discharge
- Clear, Flexible, PVC Suction Tube
- Injection Valve
- Foot Filter
NOTE: Remove safety labels before installing
and remember pumps may hold water inside.
Part A: Attaching the opaque tubing to
the injection valves
Remove the
top discharge
valve nut.
Remove the
protective cap
from the nut and
discard.
Insert the opaque
tubing through
the nut. Slide the
locking collar
and insert the
hose nozzle
over the tube
creating a
compression
fitting.
Screw the nut
back onto the
discharge valve.
Hand tighten.
Attach other end
of tubing to the
injection stem,
follow steps 3 and
4. Install injection
stem into the
water line.
Flow Rate 0.26 GPH, Max. Pressure 145 PSI
Part C: Connecting the Water Meter
Tools needed: punch, small and standard
size at head screwdriver
Remove bottom
front cover using a
standard flat head
screw driver.
Remove the
rubber cap on
the left.
Using a punch
tool, punch a small
hole through the
rubber cap.
Insert the Water
Meter wires
through the hole in
the cap.
Run the wires
back through the
hole in the front
cover. Reinsert
the rubber cap.
Insert wires on
3rd and 4th holes
from left. Push
button and insert
wires using small
screwdriver.
Make sure they
are connected
properly.
1
2
3
4
5
Included in the Box
Discharge
Valve
Priming
Barb
Suction
Valve
Air Bleed
Valve
1
2
3
4
1
2
3
4
5
6
Injection stem has
1/2”, 3/8” and M10
MPT thread options.
Cut to your
specifications.
Insert into water line
so that the end of
injection valve is
midway in the pipe.
(Continue to back)
DO NOT CUT
passed this point

Arrow right to
input number
of pulses.
Example image
shows 15 Pulse/
Strokes has
been entered.
Arrow down.
Click START.
Screen changes
reflecting what
you programmed:
1xNM 15 will
display in upper
left corner.
NOTE: Your pump will run upon
receiving a pulse from the Water
Meter. On the second signal the
pump will dose slower, spacing out
the pulses over time.
NEED HELP?
CALL 1-800-451-6628
Part D: Priming the pump
Plug the pump,
this will put you in
SET UP mode.
Press the arrow to
the right twice and
select MF.
Click START
button twice.
Screen shows
Operating Mode/
Manual Mode.
Pump will begin to
prime.

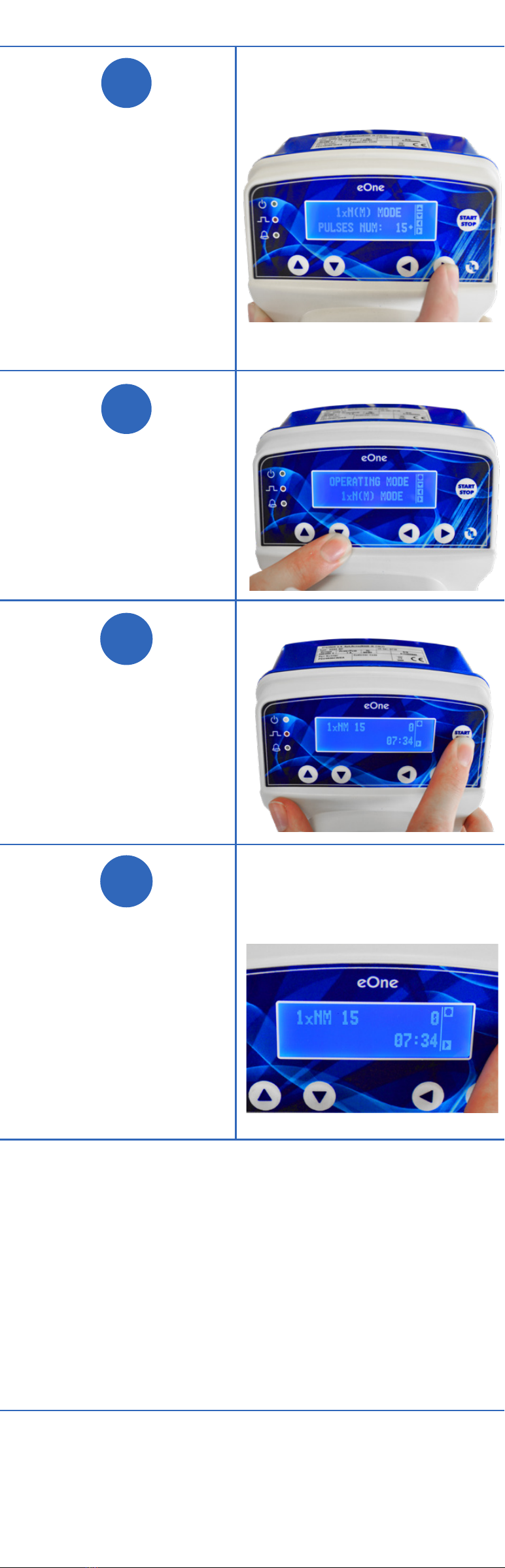

Part E: Programing the pump 1xN(M)
MODE
Press the right
arrow twice,
display will read
1XN(M). This
means pump
will stroke N
times with every
impulse from the
Water Meter with
memory function.
N = Number
of pulses
Arrow down once
and you have the
option to input
the PULSES
NUM:

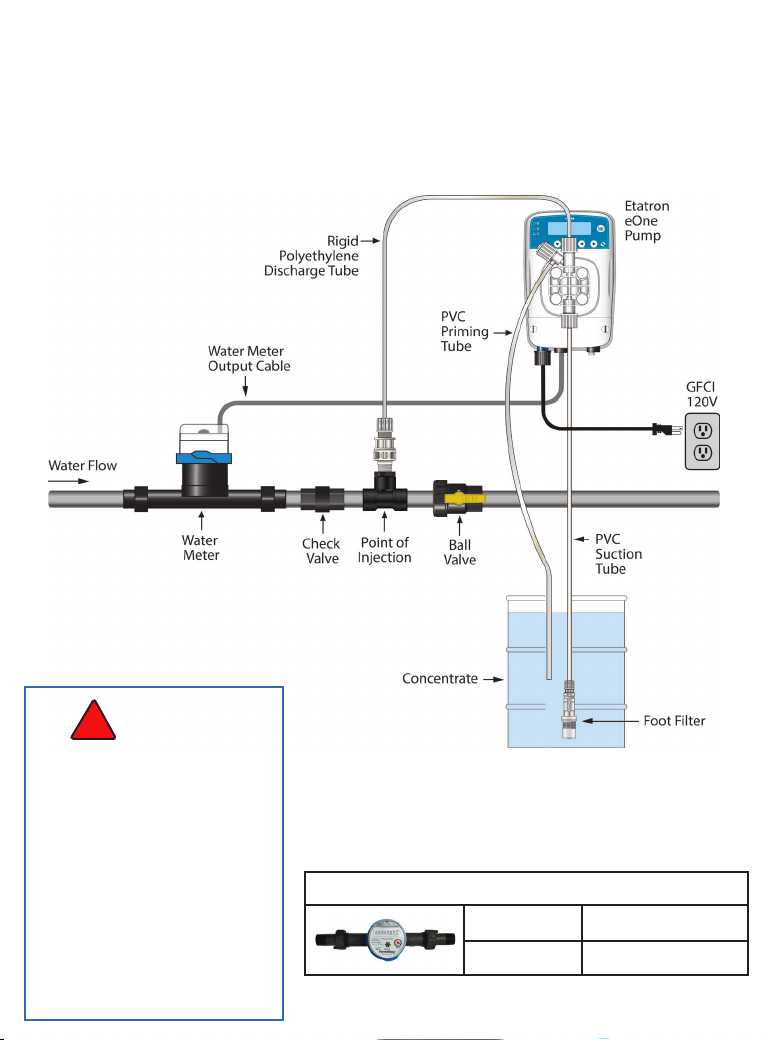

eOne Installation
The pump is ready to receive signals from the Water Meter.
Priming Instructions
Water Meter Options
WM34-1PPG One pulse/gallon
WM34-10PPG One pulse/10 gallons
See operating manual for
complete instructions
and safety standards.
When connecting a metering
pump either to a public
water supply or to its own
water source, you must
respect the regulations in
force concerning protection
of the source i.e.
backflow prevention, etc.
!CAUTION
1
2
3
4
5
6
1
2
3
NOTE: Installation illustrations are to be
used as a reference guide only.

Arrow right to
input number
of pulses.
Example image
shows 15 Pulse/
Strokes has
been entered.
Arrow down.
Click START.
Screen changes
reflecting what
you programmed:
1xNM 15 will
display in upper
left corner.
NOTE: Your pump will run upon
receiving a pulse from the Water
Meter. On the second signal the
pump will dose slower, spacing out
the pulses over time.
NEED HELP?
CALL 1-800-451-6628
Part D: Priming the pump
Plug the pump,
this will put you in
SET UP mode.
Press the arrow to
the right twice and
select MF.
Click START
button twice.
Screen shows
Operating Mode/
Manual Mode.
Pump will begin to
prime.
Part E: Programing the pump 1xN(M)
MODE
Press the right
arrow twice,
display will read
1XN(M). This
means pump
will stroke N
times with every
impulse from the
Water Meter with
memory function.
N = Number
of pulses
Arrow down once
and you have the
option to input
the PULSES
NUM:
eOne Installation
The pump is ready to receive signals from the Water Meter.
Priming Instructions
Water Meter Options
WM34-1PPG One pulse/gallon
WM34-10PPG One pulse/10 gallons
See operating manual for
complete instructions
and safety standards.
When connecting a metering
pump either to a public
water supply or to its own
water source, you must
respect the regulations in
force concerning protection
of the source i.e.
backflow prevention, etc.
!CAUTION
1
2
3
4
5
6
1
2
3
NOTE: Installation illustrations are to be
used as a reference guide only.

Arrow right to
input number
of pulses.
Example image
shows 15 Pulse/
Strokes has
been entered.
Arrow down.
Click START.
Screen changes
reflecting what
you programmed:
1xNM 15 will
display in upper
left corner.
NOTE: Your pump will run upon
receiving a pulse from the Water
Meter. On the second signal the
pump will dose slower, spacing out
the pulses over time.
NEED HELP?
CALL 1-800-451-6628
Part D: Priming the pump
Plug the pump,
this will put you in
SET UP mode.
Press the arrow to
the right twice and
select MF.
Click START
button twice.
Screen shows
Operating Mode/
Manual Mode.
Pump will begin to
prime.
Part E: Programing the pump 1xN(M)
MODE
Press the right
arrow twice,
display will read
1XN(M). This
means pump
will stroke N
times with every
impulse from the
Water Meter with
memory function.
N = Number
of pulses
Arrow down once
and you have the
option to input
the PULSES
NUM:
eOne Installation
The pump is ready to receive signals from the Water Meter.
Priming Instructions
Water Meter Options
WM34-1PPG One pulse/gallon
WM34-10PPG One pulse/10 gallons
See operating manual for
complete instructions
and safety standards.
When connecting a metering
pump either to a public
water supply or to its own
water source, you must
respect the regulations in
force concerning protection
of the source i.e.
backflow prevention, etc.
!CAUTION
1
2
3
4
5
6
1
2
3
NOTE: Installation illustrations are to be
used as a reference guide only.
