ETC F-Drive R12 Series User manual

F-Drive Series R12
Installation Manual
Part Number: 7148M2100 Rev: G
Released: 2023-07

To view a list of ETCtrademarks and patents, go to etcconnect.com/ip. All other trademarks, both marked
and not marked, are the property of their respective owners.
For a complete list of all third-party licenses that are fully incorporated herein to the extent required by each
third-party license terms and conditions, please visit etcconnect.com/licenses.
ETC intends this document, whether printed or electronic, to be provided in its entirety.

Table of Contents
Table of Contents i
Introduction 1
Document Conventions 1
Help from ETC Technical Services 2
Chapter 1 Overview 3
System Components 3
Accessories 3
F-Drive System Design Tool 3
Output Cards 3
CC-150Card 4
FTW-150Card 5
ChromaCard 5
CV-150Card 6
ArcLamp150Card 6
Compatible Products 7
Luminaires 7
Power Supplies 7
Optional Accessories 7
ETCConcert 7
LEDDimming Compatibility Database 7
Documentation for Compatible Products 8
Chapter 2 Before You Begin Installation 9
Safety 9
IMPORTANTSAFEGUARDS 9
Label Symbols 10
Installation Requirements 10
Voltage Drop 10
Power Disconnect Device 11
Clearance Requirements 11
Chapter 3 Prepare to Install the R12 12
Inspect the Shipment 12
Parts and Tools 12
F-Drive R12 Wire and Terminal Specifications 13

Rack-Mount Safety 14
Install a Power Supply 14
Chapter 4 Install the R12 15
Rack-Mount the R12 15
Connect Ground/Earth 15
Connect the DCPower Input 15
Terminate DMXIn and Thru 16
Panic 16
Chapter 5 Install R12 Output Cards 17
Mismatched Cards 18
Connect Luminaires to the Output Cards 18
F-Drive-Compatible Luminaires with RJ45 Input 19
ArcSystem Pro One-Cell Luminaires 20
Third-Party Fixtures 21
ArcLamps 22
Record Installed Output Cards 22
Chapter 6 Panic Connector 23
Panic Switches 23
Wire the Panic Connector 24
Non-Isolated (Dry) Contact 24
Isolated (Wet) Contact (+48 VDC Signal) 24
How to Use R12 with a W1EmergencyDriver 25
Additional Non-Isolated (Dry) Contact 25
Chapter 7 Power Up and Control 26
Power Up Procedure 26
Identify 26
DMX System Control 26
Navis Luminaire DMXPersonalities 27
Live Edit Configuration Files 27
Edit Offline and Save Configuration Files to
MicroSD 27
Configure the CV-150Card and ArcLamp150Card 28
Configure the CC-150Card 28
ii R12 Installation Manual

Configure the ChromaCard and FTW-150Card 28
ChromaCard DMX Footprint 28
Firmware Upgrade Instructions 29
RDM Parameters 30
On Below Minimum 33
Maintenance 33
Troubleshooting 34
F-Drive R12 Control Card LEDIndicators 34
F-Drive R12 Output Card LED Indicators 35
Errors 36
Appendix A Connect F-Drive-Compatible Luminaires
to the Terminal Block Output 37
Connect F-Drive-Compatible Luminaires with RJ45
Input to the Terminal Block Output 37
Wire the Eight-Pin Connector to Category-Type Cable 38
Connect ArcSystem Pro One-Cell Luminaires to the
Terminal Block Output 39
Appendix B Install MEANWELL48 VDCPower
Supplies 40
Important Accessories 40
Technical Information from MEAN WELL 40
MEANWELLRKP-1UI Features 41
MEAN WELL RKP-1UI with three RCP-2000 Modules 41
Clearance 42
Install the Power Supply in the Rack 42
Connect Ground/Earth 43
Wire the DC Power Output 43
Bussing Kit Parts Illustration 45
Bussing Kits 46
Bussing Kit Details 46
Final Installation Steps 46
MEANWELL LED Indicators 47
Appendix C Compliance 48
Table of Contents iii

iv R12 Installation Manual

Introduction 1
Introduction
Congratulations on your purchase of the ETC F-Drive Series R12. The F-Drive Series R12
LEDpower control solutionprovides a modular, centralized approach for controlling
LEDluminaires. The R12 is a card cage enclosure that can hold up to 12 low-voltage output
cards, providing power and data to multiple circuits per card. By maintaining remote, easy
access to the output cards and power supplies, LED-based systems can be easily installed and
serviced, while ensuring critical components are readily accessible to support staff.
Document Conventions
This document uses the following conventions to draw your attention to important
information.
Note: Notes are helpful hints and information that is supplemental to the main text.
CAUTION: A Caution statement indicates situations where there may be
undefined or unwanted consequences of an action, potential for data loss or
an equipment problem.
WARNING: A Warning statement indicates situations where damage may
occur, people may be harmed, or there are serious or dangerous
consequences of an action.
WARNING: RISK OF ELECTRIC SHOCK! This warning statement indicates
situations where there is a risk of electric shock.
All ETC documents are available for free download from our website: etcconnect.com.
Please email comments about this manual to: [e-mail].

2 R12 Installation Manual
Help from ETC Technical Services
If you are having difficulties and your problem is not addressed by this document, try the ETC
support website at support.etcconnect.com or the main ETC website at etcconnect.com. If
none of these resources are sufficient, contact ETC Technical Services directly at one of the
offices identified below. Emergency service is available from all ETC offices outside of normal
business hours.
When calling for help, take these steps first:
• Prepare a detailed description of the problem
• Go near the equipment for troubleshooting
• Find your notification number if you have called in previously
ETC, Inc.
Americas
Technical Services Department
3031 Pleasant View Road
Middleton, WI 53562
800-775-4382 (USA, toll-free)
[phone]
[e-mail]
ETC GmbH
Germany, Austria, Switzerland,
Eastern Europe, and Russia
Technical Services Department
Ohmstrasse 3
83607 Holzkirchen, Germany
[phone]
[e-mail]
ETC Austin
High End Systems Products
Technical Services Department
2105 Gracy Farms Lane
Austin, TX 78758 USA
800-890-8989 (USA, toll-free)
[phone]
[e-mail]
ETC France
France
Zone Urbaparc -
Bâtiment E
6 Boulevard de la Libération
Saint-Denis, 93200
[phone]
[e-mail]
ETC Ltd
Europe, Middle East, and Africa
Technical Services Department
26-28 Victoria Industrial Estate
Victoria Road,
London W3 6UU England
[phone]
[e-mail]
ETCAsia
Asia
Technical Services Department
Room 1801, 18/F
Tower 1, Phase 1 Enterprise Square
9 Sheung Yuet Road
Kowloon Bay, Kowloon, Hong Kong
[phone]
[e-mail]

Overview 3
Chapter 1
Overview
+
+
+
+
+
+
+
+
+
+
+
+
+
F-Drive R12 Driver
System Components
An F-Drive R12 system consists of the following:
• One or more F-Drive R12 drivers.
• One or more F-Drive Power Supplies or other 48 VDCexternal power supplies. See Power
Supplies on page7 .
• Up to 12 output cards for each R12. See Output Cards below .
• Compatible luminaires or third-party fixtures. See Luminaires on page7 .
Accessories
• F-Drive B-Box breakout boxes (optional). See Optional Accessories on page7 .
• F-Drive bussing kit:required for use with optional MEANWELLRKP-1Uthree-bay frames.
See Bussing Kits on page46 . The F-Drive Power Supply does not require a bussing kit.
F-Drive System Design Tool
Visit the F-Drive System Design Tool (etcconnect.com/FDriveSysDesignTool) to design an
F-Drive R12 system with different luminaires, breakout boxes, cable lengths, and other system
components.
Output Cards
R12 output cards are available for a variety of low-voltage load types. Output cards are sold
separately.
CAUTION: Do not coil excess Category-type cable.

4 R12 Installation Manual
Note: F-Drive R12 supports output cards and luminaires up to 1500W total. To
prevent configurations that may exceed system limits, visit the F-Drive System Design
Tool (etcconnect.com/FDriveSysDesignTool) for more information about system limits.
CC-150Card
The CC-150Card is designed for use with F-Drive-compatible Fixed White luminaires and
200–700 mA constant current fixtures by other manufacturers. See Compatible Products on
page7 .
F-Drive Series R12 CC-150Card supports a wide variety of third-party loads. Determining
compatibility between these loads and the CC-150Card is an important step toward ensuring
the success of a project. Search the LEDDimming Compatibility Database at
etcconnect.com/compatibility to see if your load is compatible. If your load is not in the
compatibility database, follow the instructions at the link above to contact the ETC
Applications Engineering department to arrange for compatibility testing.
+
Output
Adjustable 200–700mA constant current per channel, 2.8A total per card (see
Configure the CC-150Card on page28 )
48VDC
Output Channels Four channels on a single RJ45 or eight-pin terminal block
Loads
• Up to four F-Drive-compatible Fixed White luminaires per card. See
Compatible Products on page7 .
• 200–700 mA constant current fixtures manufactured by others.
Maximum Load 33 Wper two-pin channel, 134 W total per card
Model Number FDROCCC150
Part Number 7148K1011
Label Stripe Color Yellow to match Navis100 Fixed White luminaire face and cap labeling
Note: The CC-150Card does not support ArcSystem Pro One-Cell High Output
luminaires.
CAUTION: Setting the F-Drive CC-150Card to output more current than the
manufacturer recommends for the loads may reduce the lifetime or cause
damage to the loads. See Configure the CC-150Card on page28.
CAUTION: Do not exceed any Class 2 limits stated by the manufacturer of
the third-party load.
Note: Use ONEtype of output connector for each card. For example, use the RJ45
receptacle OR the eight-pin terminal block on the slot where a FTW-150Card or a
CC-150Card is installed.

Overview 5
FTW-150Card
The FTW-150Card is designed for use with Navis100 Fade to Warm luminaires.
+
Output Constant current, maximum 450 mA per channel, 1.8A total per card
48VDC
Output Channels Four channels on a single RJ45 or eight-pin terminal block
Loads Up to four Navis100 Fade to Warm luminaires per card
Maximum Load 21.6 Wper channel, 86 Wper card
Model Number FDROCFTW150
Part Number 7148K1010
Label Stripe Color Green to match Navis100 Fade to Warm luminaire face and cap labeling
Note: Use ONEtype of output connector for each card. For example, use the RJ45
receptacle OR the eight-pin terminal block on the slot where a FTW-150Card or a
CC-150Card is installed.
ChromaCard
The ChromaCard is designed for use with Navis100 RGBWluminaires.
+
Output 48 VDCpower and data
Output Channels Four channels on a single RJ45*
Loads Up to four Navis100 RGBW luminaires per card
Maximum Load 2.1A, 100 Wper card
Model Number FDROCCHC100
Part Number 7148K1014
Label Stripe Color Purple to match Navis100 RGBW luminaire face and cap labeling
*An eight-pin terminal block is present, but disabled.

6 R12 Installation Manual

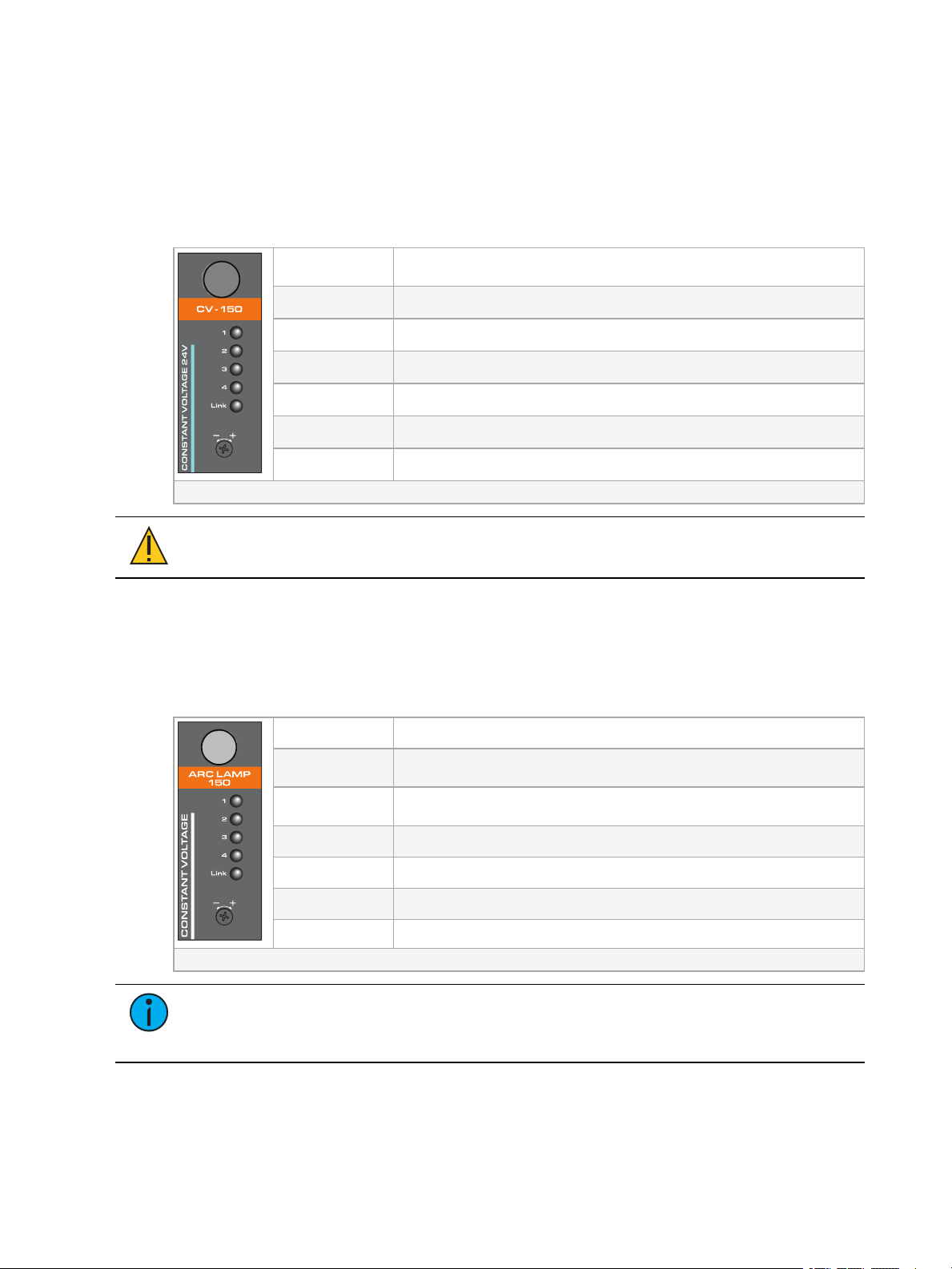

CV-150Card
The CV-150Card supports a wide variety of third-party loads. Determining compatibility
between these loads and the CV-150Card is an important step toward ensuring the success of
a project. Search the LEDDimming Compatibility Database at etcconnect.com/compatibility to
see if your load is compatible. If your load is not in the compatibility database, follow the
instructions at the link above to contact the ETC Applications Engineering department to
arrange for compatibility testing.
+
Output Adjustable 24–28 VDC constant voltage
2.1A per channel, 6.25A total per card
Output Channels Four channels on an eight-pin terminal block*
Loads 24 VDCfixtures manufactured by others
Maximum Load 50 Wper channel, 150 Wper card
Model Number FDROCCV150
Part Number 7148K1013
Label Stripe Color Blue
*An RJ45 receptacle is present, but disabled.
CAUTION: Do not exceed any Class 2 limits stated by the manufacturer of
the third-party load.
ArcLamp150Card
The ArcLamp150Card is designed for use with ETCArcLamp retrofit screw-in LEDlamps.
Voltage drop is an important consideration for ArcLamp installations. See Voltage Drop on
page10 . For information on the installation of ArcLamps, see the ArcLamp System Installation
Manual at etcconnect.com/ArcLamp.
+
Output Adjustable 24–28 VDCpower and data
Output
Connectors Four channels on an eight-pin terminal block†
Loads Up to eight ArcLamps per channel and a maximum of thirty-two ArcLamps per
card
Maximum Load 50 Wper channel, 150 Wper card
Model Number FDROCAC150
Part Number 7148K1012
Label Stripe Color White
†An RJ45 receptacle is present, but disabled.
Note: Do not bridge outputs on R12 ArcLamp output cards. If your installation
requires more than eight ArcLamps per circuit, consider a standalone ArcLamp wall-
mount or rack-mount driver. See etcconnect.com/ArcLamp.

Overview 7
Compatible Products
Luminaires
R12 output cards are compatible with the following ETCluminaires:
• Navis100 Fixed White, Fade to Warm, and RGBW luminaires
• Source Four Mini LED for F-Drive Fixed White luminaires
• Irideon FPZ and Irideon WLZfor F-Drive Fixed White luminaires
• ArcSystem Pro One-Cell Standard*, Pro One-Cell Small*, and Pro One-Cell Micro* Fixed
White or Fade to Warm luminaires
• ArcSystem ArcLamp lamps
R12 output cards are also compatible with third-party constant current and constant voltage
luminaires. For more information on compatible products, see LEDDimming Compatibility
Database below and Documentation for Compatible Products on the next page .
Note: *The most convenient way to connect ArcSystem Pro One-Cell Fixed White
luminaires to a CC-150Card is with an FD-BBOX-4M. See ArcSystem Pro One-Cell
Luminaires on page20.
Power Supplies
• F-Drive Power Supply:The F-Drive Power Supply houses a single power supply to power a
single F-Drive R12 driver.
• MEAN WELLRKP-1U three-bay frame and RCP-2000 modules: Each three-bay frame
houses up to three power supply modules to power up to three F-Drive R12 drivers.
Optional Accessories
• B-Boxes (optional):
‐FD-BBOX-4R can connect F-Drive-compatible luminaires with RJ45 input in star
topology.
‐FD-BBOX-4M provides a convenient way to connect ArcSystem Pro One-Cell
luminaires.
‐FD-BBOX-4T can be used with third-party loads.
• F-Drive bussing kit (optional):required for use with optional MEANWELLRKP-1Uthree-
bay frames. See Bussing Kits on page46 . The F-Drive Power Supply does not require a
bussing kit.
ETCConcert
F-Drive Series drivers can be configured using ETCConcert software.
LEDDimming Compatibility Database
The LEDDimming Compatibility Database (etcconnect.com/compatibility) is a searchable list of
devices that ETChas tested for compatibility with ETCdimming and control systems.

8 R12 Installation Manual
Documentation for Compatible Products
The following documents are available at etcconnect.com/Products/Power-Controls/LED-
Drivers/F-Drive/Documentation.aspx:
• F-Drive B-Box4 Installation Guide
• F-Drive Series W1 Installation Manual
• F-Drive R12 and W1 Wiring Reference Guide
• F-Drive Power Supply Installation Guide
The following documents are available at etcconnect.com/Products/Architectural-Fixtures/:
• ArcSystem Navis 100 Installation Guide
• Source Four Mini LED F-Drive Installation Guide
• Irideon WLZ (F-Drive) Installation Guide
• Irideon FPZ (F-Drive) Installation Guide
• ArcSystem Pro D1 and D2 Series Drivers Installation Guide for information about
ArcSystem Pro One-Cell luminaires
• ArcLamp System Installation Manual
ETCConcert software and documentation is available at etcconnect.com/concert.
For current technical information about the MEANWELLRKP-1UI three-bay frame and RCP-
2000 48VDC power supplies, visit meanwell.com. The RCP-2000/RKP-1UI Instruction Manual
is available at etclink.it/mayQfb7p.

Before You Begin Installation 9
Chapter 2
Before You Begin Installation
Review the following information before installing the F-Drive R12.
Safety
The F-Drive Series R12 is intended for professional use only. Read the entire manual before
using this equipment.
IMPORTANTSAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS.
• Do not use outdoors.
• Do not let power supply cords touch hot surfaces.
• Do not mount near gas or electric heaters.
• Equipment should be mounted in locations and at heights where it will not
readily be subjected to tampering by unauthorized personnel.
• The use of accessory equipment not recommended by the manufacturer may
cause an unsafe condition.
• Do not use this equipment for other than intended use.
• To reduce the risk of fire and overheating, make sure all connections are
tight.
• Turn off electrical power before modifying the lighting system in any way.
SAVE THESE INSTRUCTIONS
Note: Cable bundling limitations apply to F-Drive R12 Class 2 output cables. For
more information about maximum number of four-pair cables in a bundle, see
NFPA702020 National Electrical Code, table 725.144.

10 R12 Installation Manual
Label Symbols
R12 Drivers are conveniently labeled with relevant symbols for your safety. Refer to the
product label to see which symbols apply to your product.
General warning Avertissement général
This product should not be discarded as unsorted
waste but must be sent to separate collection
facilities for recovery and recycling.
Ce produit ne doit pas être jeté avec les déchets
ménagers mais doit être déposé dans une collecte de
déchets électroniques ou dans un point de collecte.
The product input or output is suitable for direct
current only.
L’entrée et la sortie de ce produit convient
uniquement au courant continu.
Safety extra low voltage device Dispositif de sécurité à très basse tension
Protective earth (ground) Protection Classe I Mise à la terre
Installation Requirements
• Ambient operating temperature 0°C–40°C (32°F–104°F), 20%–90% non-condensing
humidity.
• Dry locations only.
• The R12 requires a 19-inch equipment rack that must support the weight of the R12 plus
up to twelveoutput cards and any power supplies and accessories.
• The R12 is a 48 VDC input product that requires an external power supply for operation.
Voltage Drop
Voltage drop along load wiring is a consideration for constant voltage loads. Voltage drop
calculations vary by project and are based on the type, length, and gauge of wire. The
CV-150Card and the ArcLamp150Card have an adjustabledial on the front of the output
card to set the 24–28VDC (+/-5%) output. Measure the voltage at the load and adjust the dial
to achieve 24VDC at the load. Contact a qualified electrician and refer to the following
resources for more information:
• The F-Drive System Design Tool at etcconnect.com/FDriveSysDesignTool
• Configure the CV-150Card and ArcLamp150Card on page28
• F-Drive R12 Wire and Terminal Specifications on page13 for recommended wire gauges

Before You Begin Installation 11
Power Disconnect Device
Before installation, make sure you have an accessible input power disconnect device installed
ahead of your F-Drive R12.
WARNING: RISK OF DEATH BY ELECTRIC SHOCK! Failure to disconnect all
power to the system before installation, maintenance, cleaning, or any other
system modification could result in serious injury or death.
AVERTISSEMENT : RISQUE DE MORT PAR DÉCHARGE ÉLECTRIQUE!
Négliger de débrancher toutes les sources d’alimentation du système avant
l’installation, l’entretien, le nettoyage ou toute autre modification du
système peut causer des blessures graves ou la mort.
De-energize main feed to F-Drive Power Control products and follow
appropriate Lockout/Tagout procedures as mandated by NFPA 70E. It is
important to note that electrical equipment such as breaker panels can
present an arc flash hazard if improperly serviced. This is due to the high
amounts of short-circuit current available on the electrical supply to this
equipment. Any work must comply with OSHA Safe Working Practices.
WARNING: RISK OF ELECTRIC SHOCK! Circuits that are installed without an
accessible power disconnect device cannot be serviced or operated safely.
AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLECTRIQUE! Il est imprudent
d'utiliser ou de réparer les circuits installés sans qu'un dispositif de
déconnexion de l'alimentation ne soit accessible.
Clearance Requirements
CAUTION: To reduce risk of fire, do not install closer than 3 inches to
cabinet wall.
ATTENTION : Pour reduire les risques d'incendie, n'installez pas plus de
3pouces au mur de l'armoir.
Refer to the F-Drive Power Supply Installation Guide or Install MEANWELL48 VDCPower
Supplies on page40 for power supply clearance considerations.

12 R12 Installation Manual
Chapter 3
Prepare to Install the R12
Inspect the Shipment
Before you begin installation, check your shipment and confirm that it arrived complete and
undamaged.
1. Check the shipping container for physical damage.
• If you find damage, document it to help with a claim against the shipper.
2. Inspect the order for completeness.
• Check the box contents received against the packing list to ensure that your order is
complete.
• If you discover a problem with the contents of the shipment, contact ETC. See Help
from ETC Technical Services on page2 .
ETCPart
Number or
Model
Description Notes
FDR12FD R12 R12 ships with the control card (ETCpart number 7148K1000) installed and
with blanks covering the slots for the output cards.
7148B7002 2.4m (8ft)red-and-black DC
wiring harness See
Connect the DCPower Input on page15 .
7148B7003 61cm (2ft) green
ground/earth harness See
Connect Ground/Earth on page15 .
HWM1656 M5k-lock nut See Connect Ground/Earth on page15 .
7148K1015 three-pin panic termination kit See Wire the Panic Connector on page24 .
7148K1016 12-piece eight-pin output
channel termination kit
4100A1023 DMX 3-position termination
kit
Follow the DMX termination kit instructions provided with the product to
terminate the control wiring.
Note: All output cards and accessories are packaged separately.
Parts and Tools
The following supplies are required, but not provided:
• #2 Phillips screwdriver
• Precision flatblade screwdriver
• Precision wire stripper with self-adjusting blades or wire stripper that includes a fixed
opening for 23–24 AWG
• Wire cutter
• Wire ties

Prepare to Install the R12 13
F-Drive R12 Wire and Terminal Specifications
Terminal/Connector Wire
Range/Specifications
Strip
Length Torque
Power Input
Use provided DCpower
harness:2.4m (8ft) of
8AWG.
11 mm
(7/16 in) None
Ground/Earth
Use provided
ground/earth harness:
61cm (2ft) of 8AWG.
None None
DMX In/Thru three-pin connectors
Belden 9729 or
equivalent or Cat5e (or
better) 0.2mm2
(24AWG) or larger
conductors terminated
to T568B standard.
See wiring instructions
included with the
termination kit.
Panic three-pin connector
0.05–2.5 mm2(30–12
AWG)
Follow class 2 wiring
methods.
6 mm
(1/4 in) None
RJ45
connectors
(A–L)
ChromaCard power/data
FTW-150Card power
CC-150Card power
You must use 0.25mm2(23AWG) or larger
conductors in Category-type cable. Terminate to
T568B standard.
Eight-pin
connectors
(A1–A4
through
L1–L4)
FTW-150Card power
CC-150Card power
two pins per output
channel
0.2–1.5mm2
(26–14AWG)
Follow Class 2 wiring
methods.
6 mm
(1/4in)
0.4–0.5Nm
(3.5–4.4in-lb)
CV-150Card power
ArcLamp150Card power
two pins per output
channel
1.5mm2(14AWG)
Follow Class 2 wiring
methods.
6 mm
(1/4in)
0.4–0.5Nm
(3.5–4.4in-lb)
CAUTION: Do not coil excess Category-type cable.
Note: Use ONEtype of output connector for each card. For example, use the RJ45
receptacle OR the eight-pin terminal block on the slot where a FTW-150Card or a
CC-150Card is installed.

14 R12 Installation Manual
Rack-Mount Safety
The F-Drive R12 and F-Drive Power Supply or MEANWELLthree-bay frame install into a
standard 19-inch rack enclosure.
•Elevated Operating Ambient Temperature: If the R12 is installed in a closed or multi-unit
rack assembly, the operating ambient temperature of the rack environment may elevate
above the room ambient temperature. Do not operate the device in an enclosed
environment above 40°C (104°F).
•Reduced Air Flow: When installing the R12 in an equipment rack, the rack must be
vented and have adequate airflow to maintain an operating temperature below 40°C
(104°F).
•Mechanical Loading: The R12 must be installed in a rack in a horizontal flat orientation
to ensure even mechanical loading in the rack, avoiding hazardous or dangerous loading
conditions.
•Circuit Overloading: When installing the R12 in an equipment rack, consider the
connection of the equipment to the rack or power source to avoid overloading the rack
circuit or supply wiring. Consider the rack or power distribution in the equipment rack
during installation.
•Reliable Grounding: Maintain reliable grounding of the rack-mounted equipment. Give
particular attention to any supply connections other than direct connections to the
branch circuit (for example, the use of power strips).
Install a Power Supply
Each F-Drive Series R12 requires a 48 VDCpower supply. ETCoffers two options:
• The F-Drive Power Supply:Houses a single power supply to power a single F-Drive R12
driver. See the F-Drive Power Supply Installation Guide at
etcconnect.com/Products/Power-Controls/LED-Drivers/F-Drive/Documentation.aspx.
• The MEAN WELLRKP-1UI three-bay frame and RCP-2000 power supply modules:Each
three-bay frame houses up to three power supply modules to power up to three F-Drive
R12 drivers. Three-bay frames can be bussed together. See Install MEANWELL48
VDCPower Supplies on page40 .
