ETCR ETCR6200 User manual

ETCR6200 AC/DC
Leakage Current Clamp Meter
User Manual

CONTENT
Warning....................................................................................................... 1
I. Introduction..............................................................................................2
II. Range and Accuracy.............................................................................3
III. Electrical Signs..................................................................................... 3
IV. Technical Specifications......................................................................4
V. Structure of the Leaker.........................................................................6
VI. LCD Display..........................................................................................7
VII. Operating Method...............................................................................7
1. Startup, Shutdown............................................................................ 7
2. AC / DC switch.................................................................................7
3. Reset................................................................................................. 8
4. Current Measurement.......................................................................8
5. Peak Holding.................................................................................. 10
6. Hold, Storage and Access Reading................................................ 10

7．Data upload...................................................................................11
VIII．Application.......................................................................................11
IX. How to Change Battery.....................................................................12
X. Accessories..........................................................................................13

Warning
Thank you for purchasing our company's ETCR6200 AC/DC Leakage
Current Clamp Meter, for better use of this product, please:
——Read carefully the user's manual.
——Follow strictly safety rules and notes listed in this manual.
Under any circumstances, please pay special attention to your safety in
the course of using this leaker.
Give heed to label texts and symbols on panel and back plate of this
leaker.
Please be more careful if the line voltage is above 60VDC or 30VAC.

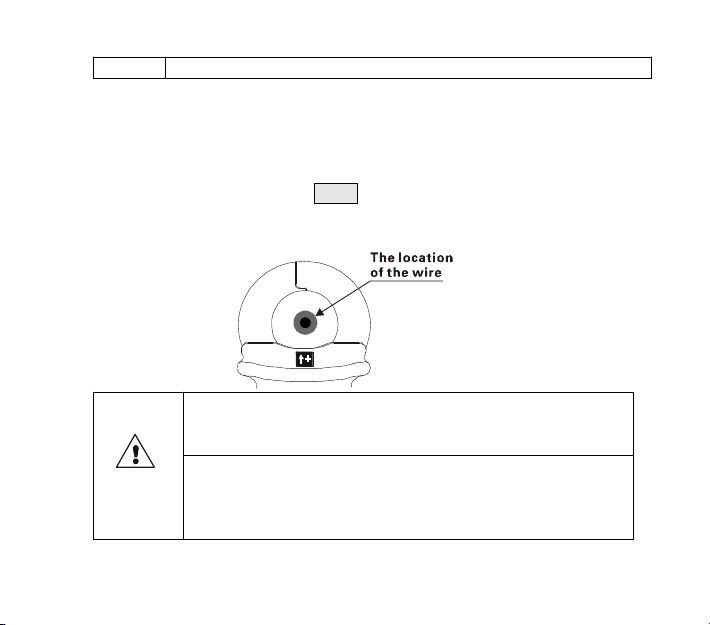

When test AC current, the wire should be in the jaw center, otherwise the
error will increase.
Please don't place and store this leaker in hot and humid condition,
locations with moisture condensation and under direct sunlight for a long
time.
In case voltage of battery was low, please replace batteries.
If you expect not to use the leaker for a long time, please take out
batteries.
When changing batteries, please pay attention to the polarity of battery.
Use, disassembly and maintenance of this leaker shall be operated by
authorized personnel.

In case dangers would occur if continue to use a faulty leaker, please stop
to use it and seal it for safekeeping immediately; and then, send it for
disposal of authorized agency.
Users shall carry out operation based on danger signs “ ” on leaker
and manual.
Users shall carry out safety operation based on instructions listed in this
manual, e.g. “ ” and danger signs on this manual.
I. Introduction
ETCR6200 AC/DC Leakage Current Clamp Meter also named: Car Leakage
Current Clamp Meter, Car Standby Current Clamp Meter, Car Inrush Current
Tester, Car Charge Current Tester. It is specially designed for online
measurement of DC, AC leakage current, current below 600V by adopting
up-to-date CT technology and digital integration technology. It is specially
suitable for measure car standby current, leakage current, inrush current. It is
a product with the characteristic of relatively small size, high accuracy, strong
anti-interference capability and automatic shifting. It is apply to car leakage
rapid detection, consumed current detection, quickly find the fault of the wire
broke leakage, equipment fled electric, line contact with iron, measuring the
motor inrush current and alternator charging current etc. It could be widely
use in those fields as car repair, car leave factory test, car parts test, the
current detection in telecommunication room, electric power overhauling,
meteorology, oil detection, etc.
It has those functions as peak holding, data holding and data storage. It

obtains one RS232 interface, communication cable and software, through
the computer, it can online real-time monitoring, historical query, dynamic
display, MIN-AVG-MAX indication, alarm setting and indicating, data reading,
saving and printing.
II. Range and Accuracy
Function
Measure Range
Accuracy
Resolution
DC current
0.0mA~60.00A DC
±2%rdg±5dgt
1mA
AC current
0.0mA~60.00A DC
±2%rdg±5dgt
1mA
(Condition: 23°C±5°C, below 75%rh, wire in the center of jaw)
III. Electrical Signs
Extremely dangerous! Operators shall strictly keep to
safety rules; otherwise there would be dangers of electric
shock to cause personal injuries or casualties.
Dangerous！Operators shall strictly keep to safety rules;
otherwise there would be dangers of electric shock to
cause personal injuries or casualties.
Warning ！Operators shall strictly keep to safety rules;
otherwise personal injuries or equipment damages might
be caused.

Double insulation
AC
DC
IV. Technical Specifications
Model
ETCR6200
Function
Measurement of AC/DC current, leakage
current, repairing the car circuit.
Power Supply
Zn-Mn dry battery, 6F22, 9V, continuous use for 30h
Test Mode
Clip-on CT, noncontact measurement
Clamp Size
25mm×35mm
Measurement
Range
0mA~60.0A AC/DC
Resolution
1mA AC/DC
Accuracy
±2%rdg±5dgt (23°C±5°C, below 75%rh)
Display Mode
Four digits LCD display
Dimension
LWH: 168mm×65mm×34mm
LCD
Dimension
35mm×21.5mm; display domain: 32mm×15mm
Sampling Rate
2 times/s

Frequency
AC: 45Hz-400Hz
Polarity
Indication
DC current auto identified and display“—”
Test Position
Tested wire in the jaw center
Range Shift
Automatically
Line Voltage
Do not exceed AC 600V
RS232
Interface
Data stored in the memory of the meter via RS232
upload to PC
Com-Configure
Baud rate:9600, data bit:8, stop bit:1, check bit:
NONE
Data Memory
99units, FULL blinks when the memory is full
Reading Hold
DH indicating the reading is hold
Out of Range
OL indicating the current is out of range
Auto Power-off
5 minutes after power on, it will power off
automatically to lower the power consumption
Battery Voltage
Indicating the battery voltage is lower than
7.2V.Then the battery has to be changed.
Weight
180g (including the battery)
Working
Current
Max 20mA
Humiture
-10°C-50°C, below 80%rh
Limit
Temperature
-10°C-0°C and 40°C-50°C, within 2%rdg

Error
Humiture
Storage
-10°C-60°C,below 70%rh
Insulating
Strength
AC 3700V/rms. (between the alloy of the clamp and
the housing)
Applicable
safety rules
IEC1010-1, IEC1010-2-032, pollution:2, CAT III
(600V)
Accessories
Meter: 1pc; toolkit: 1pc; RS232 communication line:
1pc; disk: 1pc; case: 1pc.
V. Structure of the Leaker
1. Clamp.
2. Totoid opening lever.
3. POWER key.
4. LCD.
5. USB interface.
6. DC current positive input indication.
7. HOLD Key.
8. AC / DC switch key.
9. ZERO Key.
10. The screw of connect the upper and lower cover together.
11. The screw to fix the battery cover.

12. Battery cover.

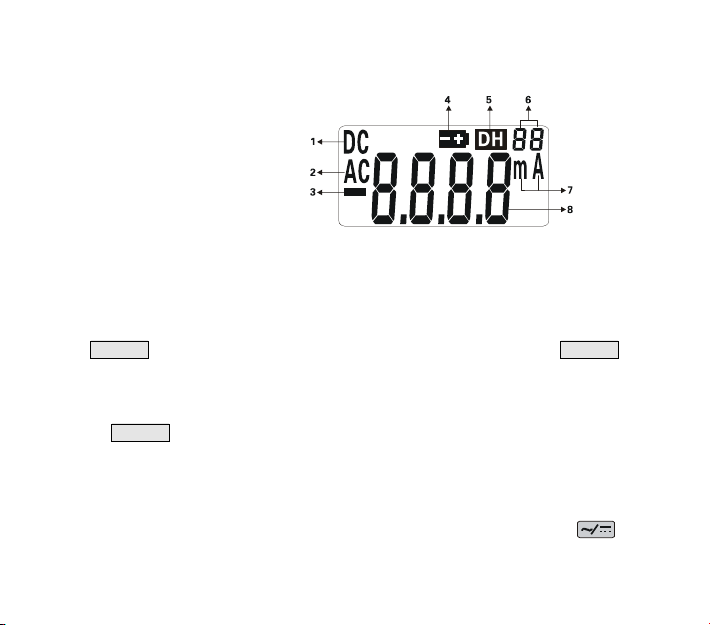

VI. LCD Display
1. DC indication
2. AC indication
3. AC indication
4. Low battery symbol
5. Data hold indication
6. Stored data code
7. Unit of current indication 8. Value of current
VII. Operating Method
1. Startup, Shutdown
Press POWER key to start up, LCD will begin to display; Press the POWER key
again, the leaker will shut down. After starting up for 5 minutes, LCD will flick
notes that the leaker will shut down automatically; after flickering for 30s, it
will shut down formally to reduce battery consumption. In case you have
pressed POWER key when LCD was flickering, the leaker will continue to
work for 5 minutes. If LCD was very dark after starting up, it might be caused
by low-voltage battery, in this case, please change battery immediately.
2. AC / DC switch
After startup, instrument default into DC current testing. Press to
switch the AC and DC current. LCD display DC indicates DC current, display

AC indicates AC current.
3. Reset
Before measuring, long press the ZERO key to reduce the residual
magnetism to zero, and then conduct measurement.
Rational usage of this adjust zero function will make the results more
accurate. For example, after boot, before measurement, we can take the jaw
close to the DC current wire, LCD will show an inductive current. Adjust
ZERO key to calibrate to deduct the inductive value.
4. Current Measurement
High voltage, extremely dangerous! Operators shall
strictly observe safety rules; otherwise there would be
risk of electric shock to cause personal injuries or
casualties.
Dangerous ！Please don’t use it to measure current
higher than 60A; otherwise there would be risk of
electric shock to cause personal injuries or equipment

damages.
1) Power on
2) Switch AC/DC key to choose the kind of measurement.
3) Adjust zero
4)Release the toroid lever to open clamp mouth and clamp measured
conductors.
5)Read LCD display data. In case OL A symbol was displayed, it means that
current of measured line is beyond the maximum limit of this leaker; with
this case, please choose leaker with much higher range limit.
Note! For your safety, when measure the large
current, after the correct operation, put the
instrument removed from the tested wire.
In locations with difficulty to read out data, please
use the data holding function. If [DH] symbol
displayed, please discharge data holding state
first, and then do the test.

5. Peak Holding
Pressing HOLD key continually in the course of measurement (More than 3
seconds), the leaker will capture current peak values of lines in this period of
time; release the key, it then will return to measuring state.
6. Hold, Storage and Access Reading
1)Pressing HOLD key for a short time in the course of measurement (less
than 3 seconds), DH symbol will display, the leaker will hold current
measuring data and automatically stored in the memory with a unit ID;
press HOLD key again to release the hold state, and the leaker continues
its measuring; in case stored data reached to 60 groups, press HOLD key
again, the “FULL” symbol will display, which means storage memory is full;
press HOLD key to cancel “FULL” flickering and return to measuring
mode.
2)Press HOLD+POWER keys to enter into data access mode and display Unit
1 storage data automatically; and then press HOLD key again to turn the
page of stored data; NULL will display when there is no data in stored in the
memory, press POWER key to exit data access mode.
3)After entering into data access mode, press HOLD key for more than 3
seconds will clean up all stored data; When the leaker displaying “dEL”
symbol, it means that it has finished cleanup process, and then return to
measuring state automatically.

7．Data upload
Make good connection of computer and the tester with RS232
communication wire, switch on the tester and run monitoring software. In the
software directory setting: the editor / communication settings /serial
number: COM1 ~ COM5. If the connection is successful, then it can read
the stored historical data, upload to company, preserve and print.
The monitoring software has those functions as online real-time monitoring,
historical query, dynamic display, MIN-AVG-MAX indication, alarm setting
and indicating, data reading, saving and printing.
VIII．Application
Car leakage usually makes the car starting difficult or the appliances
abnormal operation, such as the lights dim, central controlled lock can not
open. The driver often want to replace the battery when the car has no
electricity. Actually, the following situations cause the battery empty:
1. The appliances are not shutdown (such as headlight isn’t turn off).
2. The faults of appliance, wiring harness, control unit and sensor.
3. Wires contact with iron.
4. The motor do not generate electric.
5. The battery plate short circuit or oxidation and fall off.
If the reason is 1, 2, 3 or 4, replay the battery not only waste repair cost, but
also not solve the essential problem. Use the ETCR6200 Car Leakage
Current Clamp Meter, there is no need to power off and clearing to measure

the battery standby current, the appliance standby current and working
current, the motor charging current, safe and rapid to find out the fault
location, save time and cost. When the appliance shutdown, clamp the
positive power line, measure the leakage current and standby current, when
the appliance startup, clamp the positive power line, measure the working
current.
IX. How to Change Battery
Warning! It is dangerous to carry out test when the
battery cover plate was not on its position.
Please pay attention to the polarity of battery to
avoid damaging the leaker.
Chang the low battery in time
If you expect not to use the meter for a long time,
please get off the battery to storage.
1)“ ” symbol means the battery is undercharge and need to be replaced.
2)Press POWER key to shut down the leaker; Before opening the battery
cover, please confirm the leaker is in off position, and then replace with
qualified new battery; special attention shall be paid to the polarity of battery;
at last, cover battery cover plate.

X. Accessories
Clamp tester
1 pc
USB Com cable
1 pc
Software
1 disk
Battery(6F22 9V)
1 pc
User Manual
1 copy
Warranty card / Certification/ Packing box
1 copy
