ete DT-9850M User manual

Particle Counter
User Manual
Please read this manual before switching the unit on.
Important safety information inside.
2016-05-14 02:54 PM
www.ete.co.th
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th

Contents Page
1.Introduction.....................................................................................
1.1 PM2.5 fine particulate matter that is...........................................
1.2 PM10 particles can be inhaled....................................................
1.3 The standard index.....................................................................
2.Features...........................................................................................
3.Specifications..................................................................................
4.Front Panel And Bottom Description..................................................
5.Power on or Power off......................................................................
6.Measurement Mode.........................................................................
7.Particle Counter measurement mode................................................
7.1 Particle Setup mode...................................................................
7.1.1 Sample time......................................................................
7.1.2 Start Delay........................................................................
7.1.3 Ambient Temp/%RH..........................................................
7.1.4 Sample Cycle.....................................................................
7.1.5 Mass Concentration/Particle..............................................
7.1.6 Sample Mode....................................................................
7.1.7 Interval..............................................................................
7.1.8 Level Indication.................................................................
8.Strorage File Browser........................................................................
9.System Settings...............................................................................
9.1 Date/Time..................................................................................
9.2 Language...................................................................................
9.3 Auto Power off...........................................................................
9.4 Display Timeout..........................................................................
9.5 Alarm.........................................................................................
9.6 Memory Status...........................................................................
9.7 Factory Setting...........................................................................
9.8 Units( C/ F).................................................................................
10.Help File.........................................................................................
10.1 Particle Counter instruction.......................................................
11.Product Maintenance......................................................................
12.Cautions.........................................................................................
Attach1:...........................................................................................
oo
4
4
4
4
5
5
6
7
7
8
8
9
9
9
9
10
10
10
11
11
11
12
12
12
13
13
13
13
14
14
14
14
14
15
3
Particle Counter User Manual
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

4
Particle Counter User Manual
1.Introduction
Thank you for purchasing this 4 in 1 Particle Counter instrument. This instrument is Particle Counter with
2.8 color TFT LCD display. Proving fast, easy and accurate readings for particle counter, air temperature &
relative humidity, most surface temperature measurements. It would be the best instrument for environment
protection and energy save.The dew-point temperature measurement will be very visible for wet and dry
proof.It is a good hand industrial measurements and data analyzing, the real scene and time can be displayed
on color TFT LCD.Any memory readings can be recorded in memory.The user can be back in office to analyze
the measured air quality under the support of software.
"
1.1 PM2.5 fine particulate matter that is
1.2 PM10 particles can be inhaled
1.3 The standard index
Fine particles known as fine particles, fine particles, PM2.5. It refers to fine particulate matter in ambient
air aerodynamic equivalent diameter less than or equal to 2.5 micron particles. He can be more time suspended
in the air, the higher its content concentration in the air, on behalf of the more serious air pollution. Although
the Earth's atmospheric composition PM2.5 only a few components in the content, visibility and air quality
but it has important influence. Compared with coarse atmospheric particulate matter, PM2.5 particle size is
small, large, active, easy shipped hazardous substances(for example, heavy metals, microorganisms, etc.),
and the length of stay in the atmosphere, transmission distance, thus greater impact on human health and
the atmospheric environment.
PM10 called inhalable particles or particulates, respirable coarse particulate matter refers to the ambient
air aerodynamic equivalent diameter of less than 10 micron particles, PM10 ambient air very long duration,
human health and visibility Atmospheric effects are great. Part of the particulate matter emissions from direct
sources, such as unpaved, cement road motor vehicles, crushing grinding process material and the dust raised
by the wind and the like. Others are fine particles from the ambient air of sulfur oxides, nitrogen oxides, volatile
organic compounds and other compounds interact to form, their chemical and physical composition according
to location, climate, season of the year varies greatly changed.
Fine particulate matter standards, proposed by the United States in 1997, mainly to more efficient monitoring
with increasing industrialization and the emergence of well-developed, the old standard was ignored harmful
fine particles. Fine particulate matter has become an important index for monitoring air pollution index of the
degree.
Until 2010, except the United States and some EU countries, the fine particles included in the GB and
mandatory restrictions, most of the world countries have yet to carry out monitoring of fine particulate matter,
mostly by PM10 monitoring.
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

5
Particle Counter User Manual
2.Features
2.8 TFT Color LCD display
320*240 pixels
Simultaneously measure and display 3 channel of particle sizes.
Air temperature and humidity
Dew-point & Wet-bulb temperature
MAX, MIN, DIF, AVG record, Date/time setup controls
Auto Power Off
•
•
•
•
•
•
•
"
3.Specifications
PM2.5/PM10
0~2000ug/m
1ug/m
3
3
0 to 50 C(32 to 122 )
oo
oo
oo o
oo
oo
oo
F
0 to 50 C(32 to 122 F)
0 to 100%RH
±1.0 C(1.8 F)10 to 40 C
±2.0 C(3.6 F)others
±3.5%RH@20% to 80%
±5%RH 0% to 20% ro 80% to 100%
0 to 50 C(32 to 122 F)
-10 to 60 C(14 to 140 F)
10 to 90%RH non-condensing
2.8”320*240 Color LCD with Backlight
Mass Concentration
channels
Mass Concentration Range
Display Resolution
Particle Counter
channels
Flow Rate
Counting Efficiency
Coincidence Loss
Data Storage
Count Modes
0.3,2.5,10um
2.83L/min(0.1ft )
50%@0.3 m; 100% for particles >0.45 m
5% at 2,000,000 particles per ft
5000 sample records(SD Card)
Cumulative, Differential,Concentration
3
3
µ µ
Air temperature and Relative humidity measurement
Air Temperature Range
Dewpoint Temperature Range
Relative Humidity Range
Air temperature Accuracy
Dewpoint temp. Accuracy
Relative Hum. Accuracy
Operating Temperature
Storage Temperature
Relative Humidity
Display
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

6
Particle Counter User Manual
Power
Battery
Battery Life
Battery Charge Time
Size(H*W*L)
Weight
Rechargeable battery
About 4 hours continuous use
About 2 hours with AC adapter
240mm*75mm*57mm
570g
4.Front Panel And Bottom Description
F1 F2 F3
ESC RUN
STOP ENTER
Particle Counter
Color LCD Display
Function button
Page up button
Measure button
Enter button
Particle counter
button
Back up button
Page down button
Power ON/OFF button Particle Sensor
Temp.%RH Sensor
USB interface
AC/DC Adapter
Battery cover
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

7
Particle Counter User Manual
5.Power on or Power off
On the power off mode,press and hold button, until the LCD is on, then the unit will power on.
On the power on mode,press and hold button, until the LCD is off, then the unit will power off.
6.Measurement Mode
This instrument has two modes
On the power on mode, the unit will display the two measure modes, and display three setup options.
You can use or button to select any measure mode you need.and use function button F1, F2 , F3 to
enter the system interface.
Items Description
Particle Counter measurement
Memory Set
System Set
Help file
Symbol Description
Cumulative mode
Concentration mode
Differential mode
Scan
HOLD
2016-05-14 02:54 PM
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

8
Particle Counter User Manual

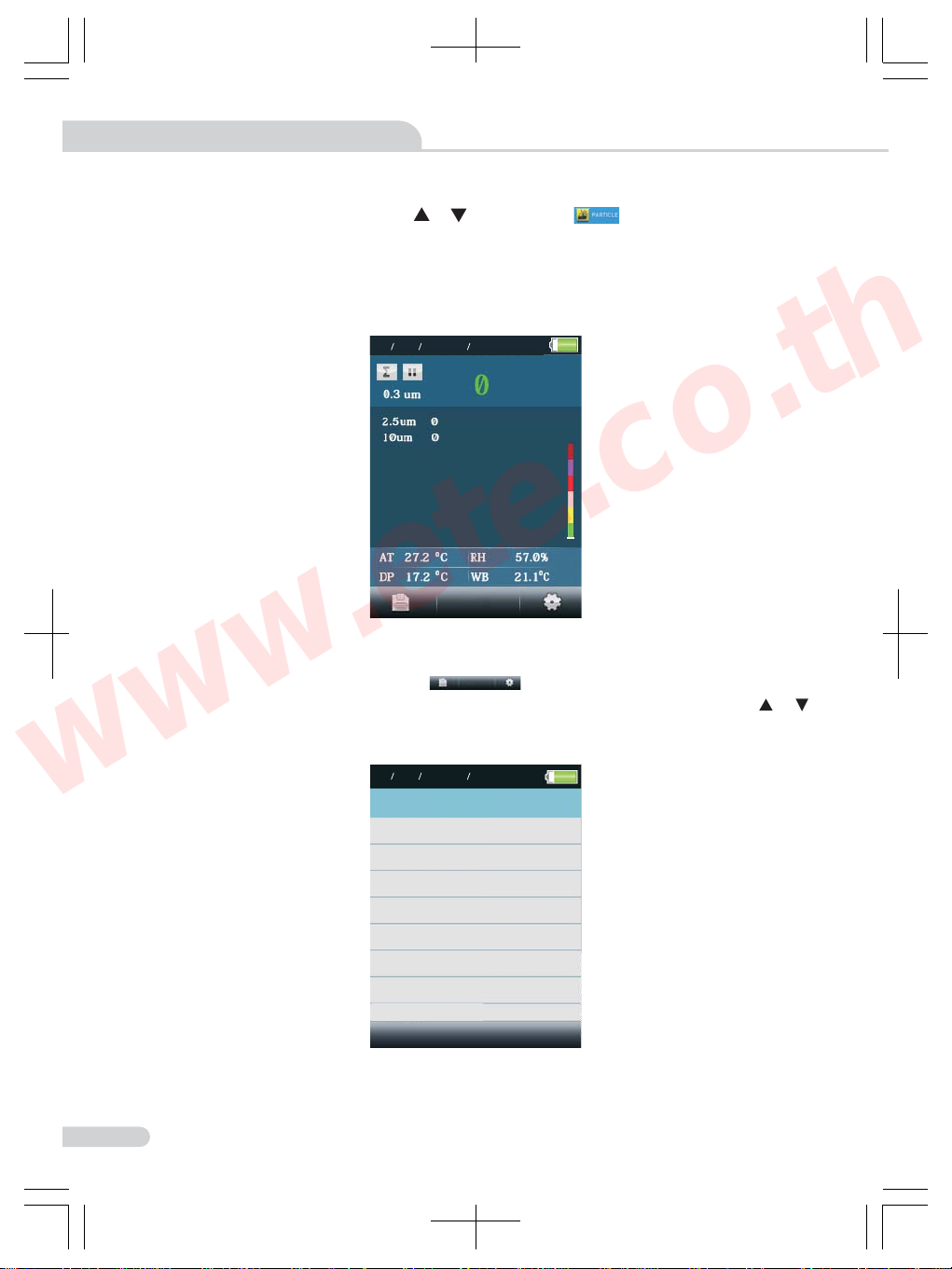

7.Particle Counter measurement mode
On the power on mode, you can use the or button to select , then press the ENTER button
to enter the Particle Counter mode, Start to measure and display temperature and humidity.
Press RUN/STOP button to start detection of particles, when the sample time is up, the particle measurement
will automatically stop, and the data will automatically save. You can also, press RUN/STOP button to stop
the measurement when the sample time is not up.
7.1 Particle Setup mode
On the particle counter mode, you can see icon, and these icon corresponding to F1, F2,
F3, press F3 can enter the Setup mode, on this mode, you can setup any parameter you wan. Use the or
button to select any option you want to setup. Then press ENTER button to confirm the parameter.
2016-05-14 02:54 PM
Sample Time
Start Delay
Ambient Temp/%RH
Sample Cycle
Masscon/Particle
Sample Mode
Interval
Ievel Indication
Particle Settings
2016-05-14 02:54 PM
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

9
Particle Counter User Manual

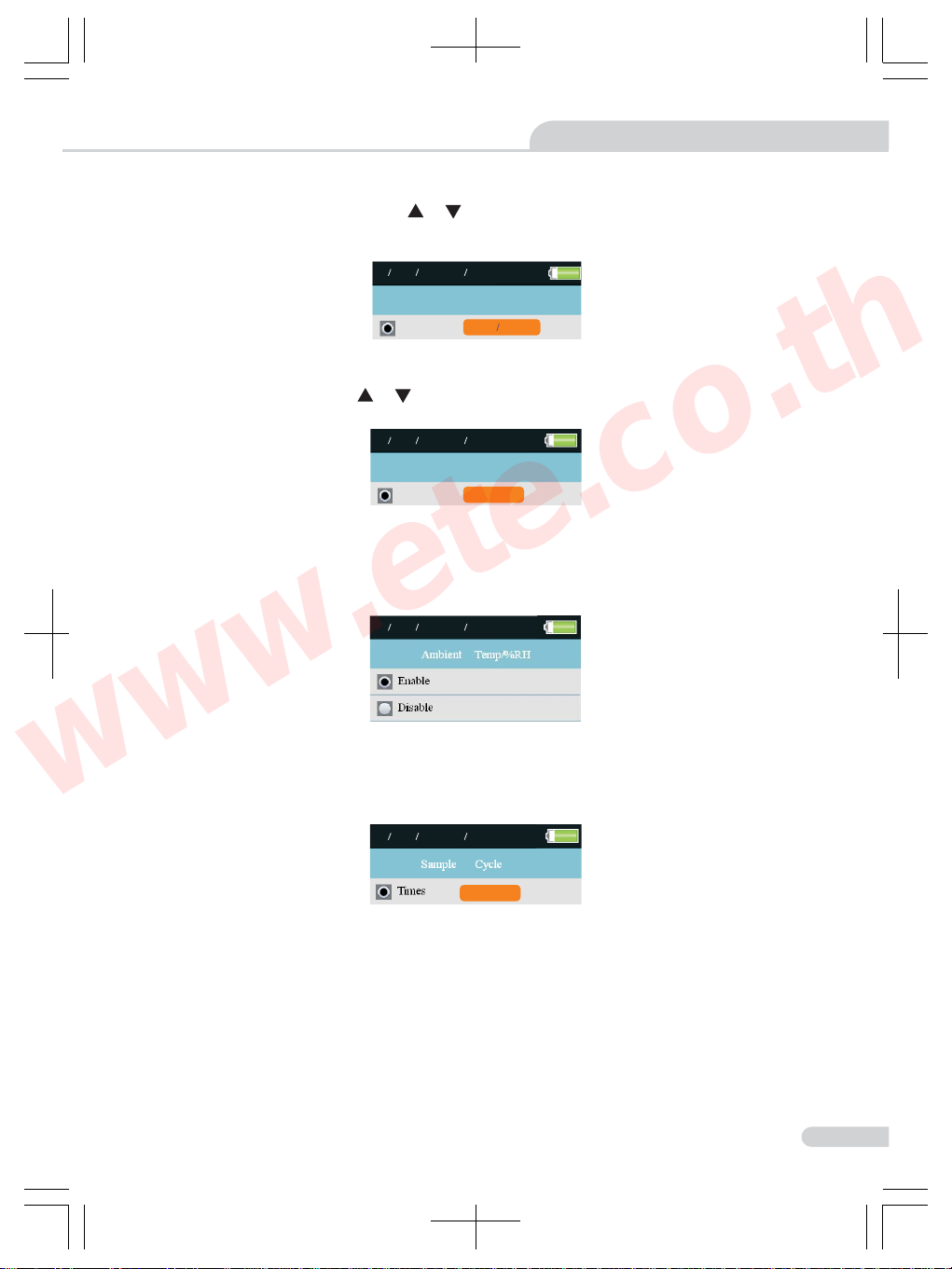

7.1.1 Sample time
You can adjust the sample time use the or button to control the volume of measured gas. It can be
set to 60s/2.83L.
7.1.2 Start Delay
7.1.3 Ambient Temp/%RH
7.1.4 Sample Cycle
You can adjust the time use the or button to control start time. The delay time of up to 100 seconds.
Choose this seting if the Air temperature and humidity are displayed.
This option is used to set the sampling period.
21S /0.9912L
Sample Time
Time
2016-05-14 02:54 PM
6S
Start Delay
Time
2016-05-14 02:54 PM
2016-05-14 02:54 PM
1
2016-05-14 02:54 PM
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

10
Particle Counter User Manual
7.1.5 Mass Concentration/Particle
7.1.6 Sample Mode
7.1.7 Interval
This setting is used to select the particle or mass concentration measurement mode, the use of the keys
to select the next.
This setting to set the display mode of particle counter.
When You select the cumulative mode, the particle measure will display symbol and the meter work
in the cumulative mode.
When you select the differential mode, the particlemeasure will display symbol and the meter work in
the differential mode.
When you select the concentration mode, the particle measure will display symbol and the meter work
in the concentration mode.
Set the time between samples for the sampling period is greater than one times. The longest interval is 100
seconds.
2016-05-14 02:54 PM
2016-05-14 02:54 PM
1S
2016-05-14 02:54 PM
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

11
Particle Counter User Manual

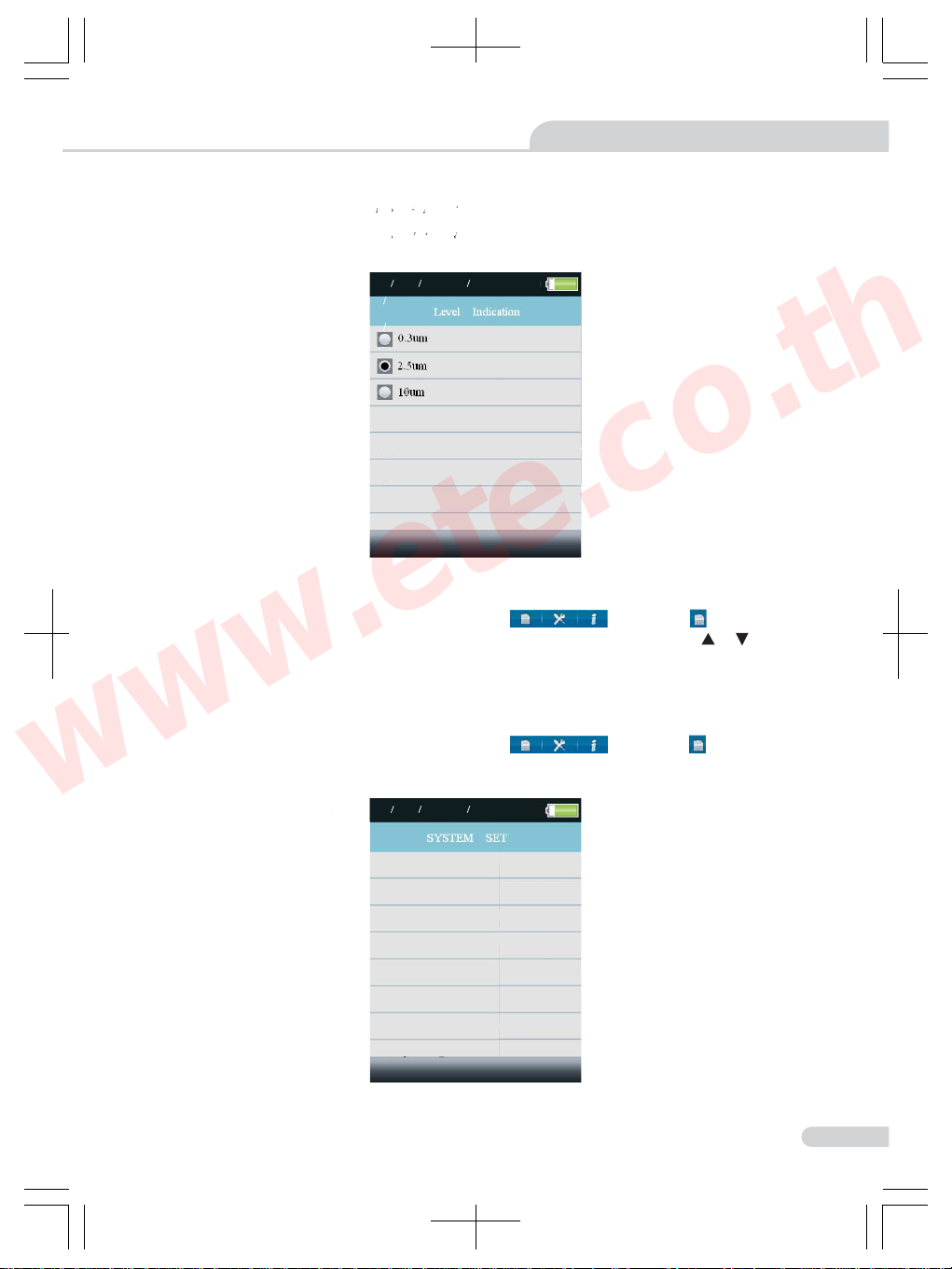

7.1.8 Level Indication
Select the alarm level of the corresponding particle size in the measurement, when the selected particle
size exceeded, the instrument measuring interface will have exceeded the prompt.
8.Strorage File Browser
9.System Settings
Turn the instrument on, below the LCD has a bar icon. Click on the icon to enter the
data memory via the F1 button. on the Memory set mode, there are three options, press or button to
select one and press ENTER button to enter this option. and then you can view the recorded data, images,
and video information. If you do not save the information, it shows no file.
Turn the instrument on, below the LCD has a bar icon. Click on the icon to enter the
System Set Mode via the F2 button.
2016-05-14 02:54 PM
Date/Time
Language
Auto Power off
Display Timeout
Alarm
Memory Status
Factory Setting
Units( C/ F)
oo
2016-05-14 02:54 PM
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

12
Particle Counter User Manual

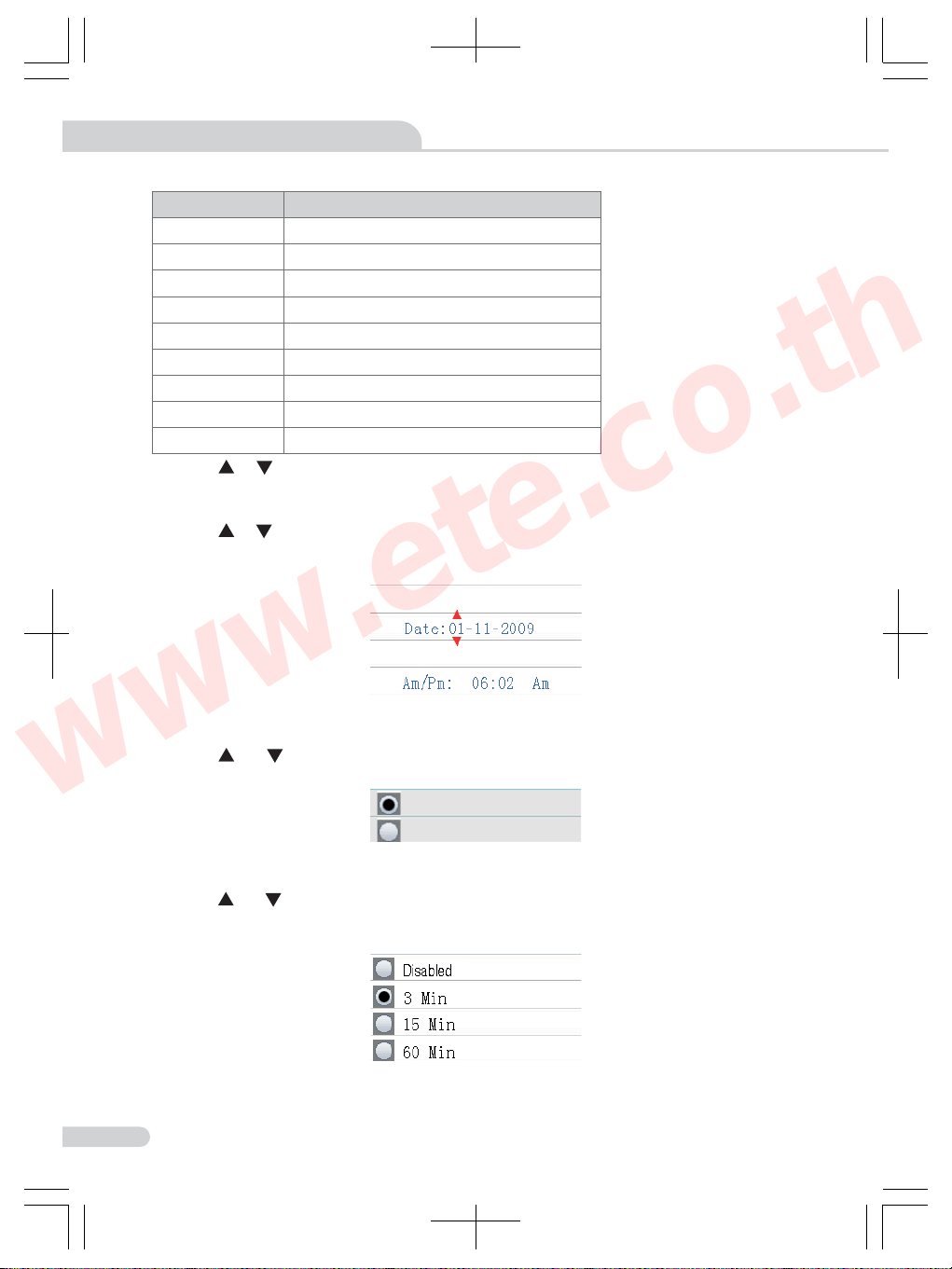

Items
Date/Time
Language
Auto Power Off
Display Timeout
Alarm
Memory Status
Factory Setting
Units( C/ F)
Version:
oo
Descriptions
Set date and time
Select Language
Select auto power off time
Select display auto off time
Display the memory and SD card capacity
Restore factory settings
Select the temperature unit
Display Version
Select Alarm ON or OFF
Press the or button to select the items, Then press the ENTER button to enter.
9.1 Date/Time
9.2 Language
9.3 Auto Power off
Press the or button to select the value, press ENTER button to set the next value, press ESC button
to exit and save the date and time.
Press the and button to select language, press the ESC button to esc and save.
Press the and button to select the auto power off time or never auto power off, press the ESC button
to esc and save.
English
Chinese
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

13
Particle Counter User Manual
Press the and button to select the Display auto off time or never Display auto off, press the ESC button
to esc and save.
Press the and button to select the memory (flash or SD). Press the ESC button to esc and save.
If SD card inserted, SD card will be selected by default.
Press the ENTER button to format the flash or SD card, press F3 button to cancel format, press F1 button
to confirm format.
Press the and button to select yes or no restore factory settings. Press the ESC button to esc and
save.
9.4 Display Timeout
9.5 Alarm
9.6 Memory Status
9.7 Factory Setting
NOTE:
Choose the alarm is enable or disable.
Total: 9MB
Used: 11MB
Free: 1MB
Device
SD Card
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

14
Particle Counter User Manual
Press the and button to select the unit, press the ESC button to esc and save.
This is 4 in 1 Particle Counter with 2.8” color TFT LCD display. Proving fast, easy and accurate readings
for particle counter, air temperature & relative humidity, most surface temperature measurements. It is the
first combination of these measurements in global, would be the best instrument for environment protection
and energy save. The dew-point temperature measurement will be very visible for wet and dry proof. It is a
good hand industrial measurements and data analyzing, Any memory readings can be recorded in SD card.
The user can be back in office to analyze the measured air quality under the support of software.
1.Particles that scattered in the dust in the air, dust or smoke. They mainly come from automobile exhaust,
power plant,garbage incineration furnace and so on.Relative diameter less than 2.5um particles known as
PM2.5, this particle is smaller than human cells, not be drained, but directly into the lungs and blood, the
harm to human body is larger.
2.This meter with a simple key operation to achieve a particle counter measurement, real-time monitoring
the value of environmental particles concentration, six channel data measured simultaneously, and at the
same time displayed on the screen, also can be a separate display. Joined the exceed the standard grade
alarm indication, and accompanied by different buzzer, more direct master of environmental quality.
3.Due to particulate matter measurements need to start the pump, will be dust inhalation, is recommended
for daily use less as far as possible, to reduce the pollution on the sensor, thereby increasing the service
life of the instrument, such as the average daily use 5 times, the instrument can be used for 5 years.
in the foggy there will be fine mist as dust!
1.Maintenance or service is not included in this manual, the product must be repaired by professionals.
2.It must use the required replacement parts in maintenance.
3.If the operating manual is changed, please instruments prevail without notice.
1.Do not use in over dirty or dusty environment. Inhalation of too many particles will damage the product.
2.To ensure the measure accuracy, please do not use in an over fogged environment.
3.Do not use in explosive environment.
4.Follow the instructions to use the product, privately take apart the unit is not allowed.
9.8 Units( C/ F)
10.1 Particle Counter instruction
oo
10.Help File
11.Product Maintenance
12.Cautions
Attention:
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

15
Particle Counter User Manual
Attach1:
Air quality new standards
Air quality levels
Good
Moderate
Lightly Polluted
Moderately Polluted
Heavily Polluted
Severely
24 hours average of the standard values
PM2.5(ug/m )
0 ~ 10ug/m
10 ~ 35ug/m
35 ~ 75ug/m
75 ~ 150ug/m
150 ~ 200ug/m3
>200ug/m3
3
3
3
3
3
PM10(ug/m )
0 ~ 20ug/m
20 ~ 75ug/m
75 ~ 150ug/m
150 ~ 300ug/m
300 ~ 400ug/m
>400ug/m
3
3
3
3
3
3
3
World Health Organization(WHO)2005 year<air quality guidelines>
Prject
Transition period
goals 1
Transition period
goals 2
Transition period
goals 3
Guideline value
PM2.5(ug/m3)
Annual average Daily average
35ug/m 75ug/m
25ug/m 50ug/m
15ug/m 37.5ug/m
10ug/m 25ug/m
33
33
33
33
PM10(ug/m3)
Annual average Daily average
70ug/m 150ug/m
50ug/m 100ug/m
30ug/m 75ug/m
20ug/m 50ug/m
33
33
33
33
EASTERN ENERGY CO.,LTD. (HEAD OFFICE)
40/4 Vitoondumri Rd., Banbueng, Banbueng, Chonburi 20170
Tel: [phone] Fax: [phone] Email: [email protected]
Contact :
www.ete.co.th
www.ete.co.th

Rev.160516
