Ethos techtron Elite 3500 User manual

Elite 3500
Instruction Manual

2
Welcome to techtron® by combining passion, drive and
intellect with market leading research and cutting-edge
technology, we innovate and deliver premium quality
products that excite, inspire and challenge the sector.
Striving for perfection, embracing new ideas and
investing in the future is our ethos.
Ethos
Future Tech. Today

3
Contents
Product and Accessories 4
Assembly 6
Charging 8
Display Panel Function 9
techtron® Smart App 10
Maintenance and Warranty 12
Rider Guidance, Safety and Specications 15
IMPORTANT! Read carefully and keep for future reference.

4

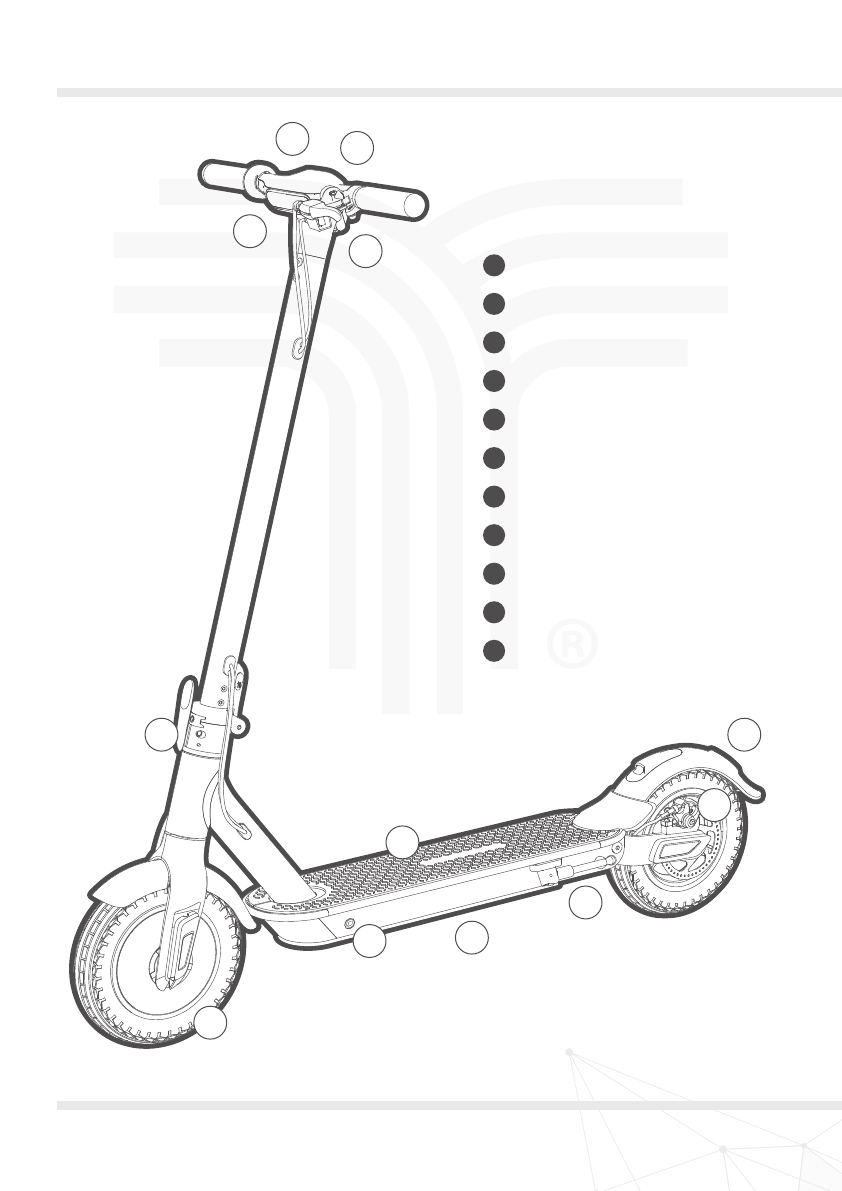

Product and Accessories
AAccelerator
BMain display panel
CBrake lever
DFolding handle and lock
EFootstep
FBattery compartment
GMotor wheel
HCharger port
I Front and rear lights
JRear wheel disc brake
KKickstand
J
B
C
K
A
D
G
H
E
I
I
F

5
M3 hex screws x4
Charging adaptor x1
M5 hex key x1
M3 hex key x1
Product and Accessories

6

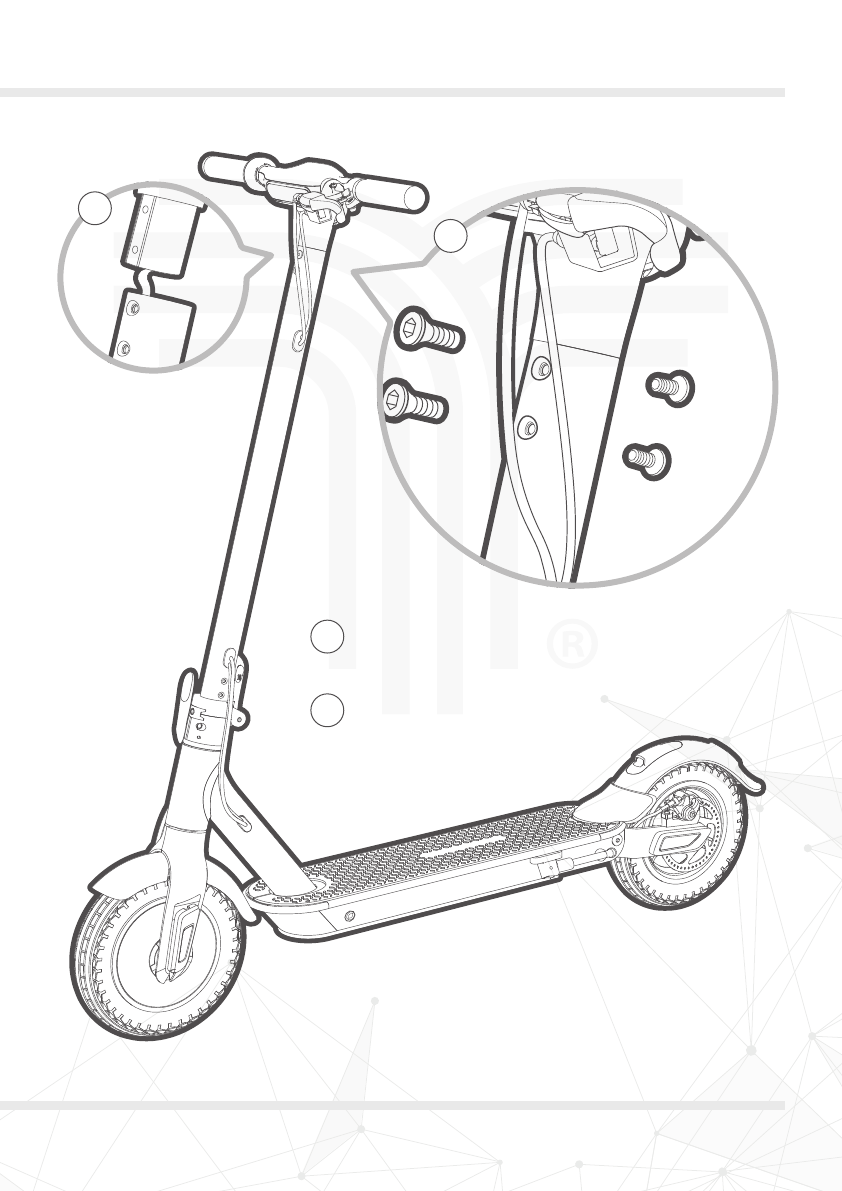

Assembly
2Unfold the scooter
standpipe, move the
handle into position
and lock the folding
mechanism in place.
Make sure the
brake lever is
installed in the
correct position.
Use the M5 hex
key to loosen and
tighten the xing.
1

7
Assembly
Using the M3 hex key,
fasten the crossbar onto
the standpipe with the
four M3 hex screws.
Install the crossbar
onto the standpipe.
4
4
3
3

8
Charging
Battery level indicator
Five bars along the top edge of the display
panel indicate the current charge status.
When only a single bar remains, electricity
is less than 10% and the scooter will
eventually slow to a natural stop
and must then be re-charged.
To charge the techtron® eScooter
simply open the rubber stopper
on the side of the base and plug into
the power supply.
Please allow 5-6 hours for the
eScooter’s battery to fully charge.
Replace the stopper after charging
to prevent water damage.

9
Display Panel Function
Speed display
The techtron® Elite 3500 foldable eScooter is capable of a maximum speed of 25km/h,
with three pre-congured factory default speed modes.
Factory default settings
Speed mode Maximum speed
110km/h
215 k m / h
325km/h
These presets can be changed via the techtron® smart app (see page 10). The app
allows the user to set a pre-determined speed for each speed mode. The display can
also be congured to show speed in mph or km/h using the techtron® app.
Display panel button
To turn the eScooter ON/OFF, hold down the button on the main display panel for two
seconds. With a quick press of the same button, the user can toggle between the
device’s three-speed mode presets. The eScooter’s main light can also be turned
ON/OFF by a quick double press of the same button. Press the button three times
to display the total distance travelled, then press another three times to display your
speed again.
Cruise control
To activate cruise control mode press and hold the accelerator at the same speed
for ve seconds, the device will beep when the mode is activated. To turn OFF cruise
control simply brake or decelerate.
Power saving
When not in use the techtron® eScooter will power down automatically
after 15 minutes.

10

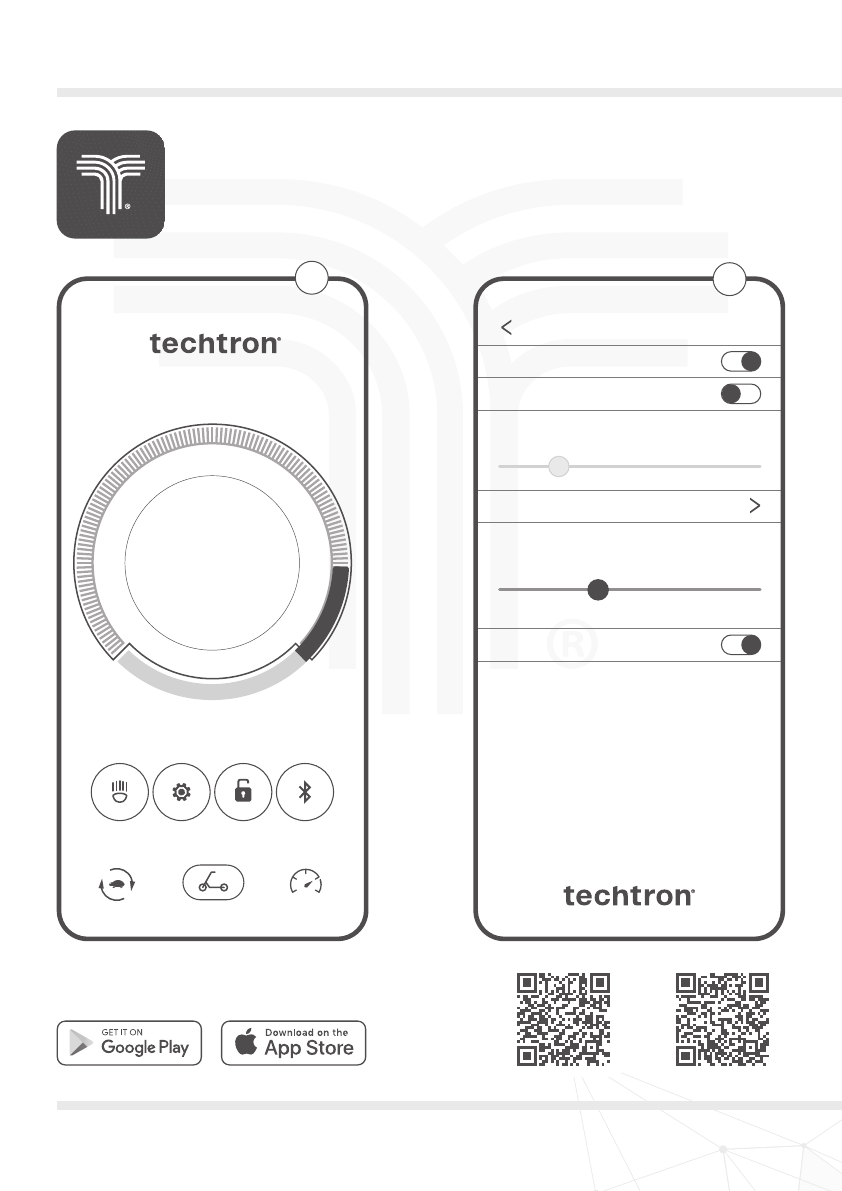

techtron® Smart App
Light: OFF Settings
Speed mode 2
Unlocked Connection
0.0
km/h
Remaining range 27.7km
48%
t-802358
Trip Info Cruise control
OFF
Settings
Unit: Metric
Cruise control
Riding mode
Cruise control speed 10Km/h
Normal mode speed limit value 15Km/h
2
Zero Start
OFF
ON
2
1
Google Play Apple App Store
Download to your smart device via
the Apple App Store or Google Play.
Your eScooter can be congured using the techtron® smart app. Use it to set
up your desired settings such as riding mode and speed limiter. You can even
lock the scooter to prevent unauthorised access.
Please note - the eScooter will remember all settings applied
in the techtron® smart app even when Bluetooth® is disconnected.

11
techtron® Smart App
Trip Info
Remaining range 21.3Km
Mileage for this journey 0.0Km
Total mileage 40.6Km
Scooter temperature 12.8˚C
Total driving time 6H 44M 42S
Current speed 0.0Km/h
Current 0.0A
Voltage 36.2V
Power 0.0W
Error code 0
Warning code 0
Electronic control version 80.7.1 (00030251)
Bluetooth version 6.9.3 (03)
App Version 1.1.0
Firmware upgrade
3
App store is a service mark of Apple Inc.
Android and the ‘Google Play’ logo are trademarks of Google Inc.
3
2
1Home screen
View the remaining range of your eScooter,
so you can plan your journey.
Light - Turn the main light On/O.
Settings - Access further controls.
Lock - Secure your eScooter against
unauthorised access.
Connection - Discover and pair your
eScooter to your smart device.
Riding mode - Toggle between riding modes
Trip info - View the latest trip information.
Cruise control - Quickly toggle this option
On/O.
Settings
Unit - Change the unit of measurement used
to display your speed from km/h to mph.
Cruise control - Set a specic preferred
speed for longer journeys.
Riding mode - Choose your preferred speed
preset (options vary depending on model).
Speed limiter - Control how fast the scooter
can go if being used by children.
Zero start - Enable the option to start your
eScooter from stationery position (enabling
this option can reduce battery range).
Trip info
View your eScooter’s latest trip information,
anything from total driving time to voltage
and power statistics.
The device rmware can also be upgraded
by the user from this menu (internet
connection required.

12
Maintenance and Warranty

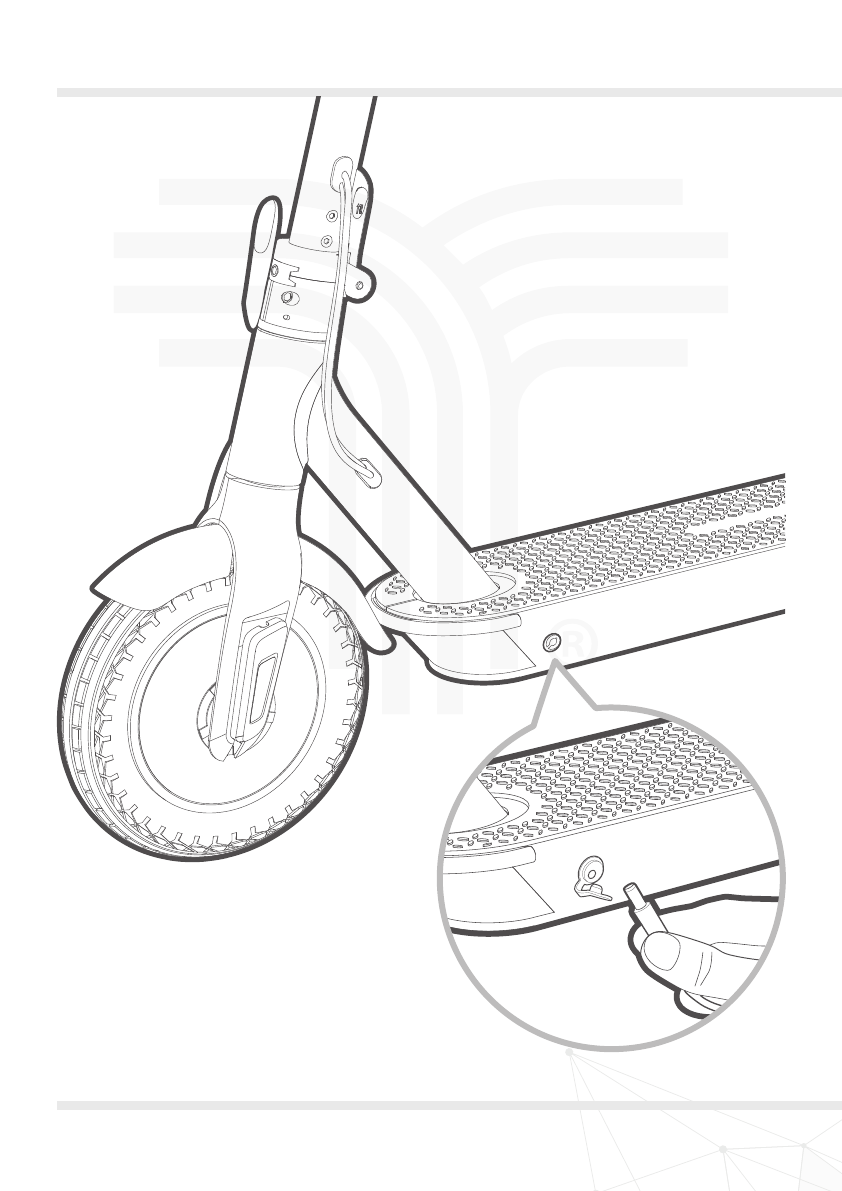

Standpipe shake
Should your eScooter’s standpipe
develop a slight shake over time,
it may be necessary to tighten
the two folding mechanism screws,
using the M3 hex key.
Product registration
For exclusive oers, product
support and information on the
latest techtron® innovations,
register your product by
completing the form on the
website with your serial number
and details - www.techtron.co

13
Maintenance and Warranty

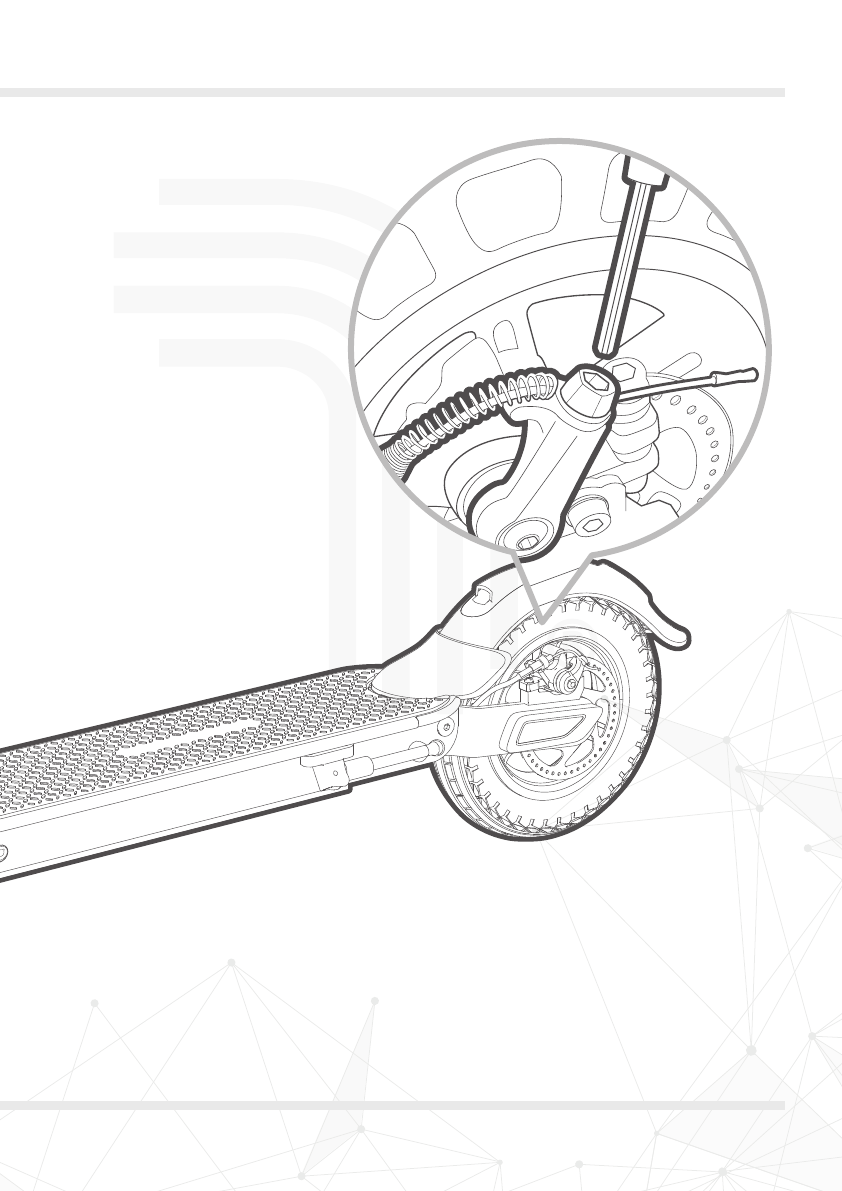

Brake adjustment
If the brakes are too tight,
insert the M5 hex key into
the slot shown, and turn
counterclockwise to release the
pressure plate screw on the disc
brake seat. Return the brake line
to make the exposed tail length
slightly shorter and lock the
pressure plate screw. If the brake
is too loose, release the pressure
plate screw, pull the brake cable
to make the exposed tail length
slightly longer, then lock the
pressure plate screw.

14
Maintenance and Warranty
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse
of material resources. To return your used device, please use the return
and collection systems or contact the retailer where the product was
purchased. They can take this product for environment safe recycling.
All product images shown in this instruction manual are for illustrative purposes only and may dier slightly from the actual product.
Cleaning and storage
Use a soft cloth dipped in a small amount of water to wipe the eScooter; for any dicult
to clean areas, you can use toothpaste and gently brush with a toothbrush, then use a damp
cloth to clean.
Do not use alcohol, petrol, kerosene, or other corrosive, volatile chemical cleaning solvents,
as this will seriously damage the appearance and internal structure of the body. Do not use
pressure washers to clean. Ensure that the charging cable has been unplugged and the
rubber stopper on the charging port is closed. Otherwise, there may be a chance of electric
shock or serious failure due to internal water intake.
Warranty policy
techtron® oers a one-year guarantee on rechargeable batteries. Two-year guarantee
against parts and/or manufacturing defects, Terms & Conditions/Exclusions apply,
please see website for further details.
Product registration
For exclusive oers, product support and information on the latest techtron® innovations,
register your product by completing the form on the website with your serial number
and details - www.techtron.co
Battery maintenance and disposal
Do not touch the battery contacts, and do not open or expose the shell. Avoid metal objects
touching the battery contacts, as this will cause a short circuit, damage to the battery,
or even personal injury.
Please refer to the model specications in this manual for your eScooter’s charging
requirements. Only use a charger with the correct voltage otherwise there will be a risk
of damage to components or re.
Ensure batteries are disposed of responsibly. Recharge the battery and store after use,
in order to preserve battery life. Do not place the battery in high temperatures higher than
50°C or below -20°C, or it may lead to battery failure, overheating, or even risk of re.
Always store in a cool dry place fully charged. A battery will be at optimum performance
at a standard room temperature. Warranty may be invalid if the battery is removed.

15
Rider Guidance, Safety and Specifications
Model specications
Any enquiries regarding
maintenance, accessories, security
or warranty, please visit the techtron
website:
www.techtron.co
or email us:
[email protected]
Model Elite 3500
Range 30km
Power 350W
Top Speed 25 km/h
Speed Modes 3
Hill Incline 15%
Rider Age 16-50 years
Max. Load 120kg
Battery 37V 10Ah
Charger 42V/2A
Storage Temp -20˚C to 45˚C
Working Temp -10˚C to 40˚C
Rider Height 120cm - 200cm
Frame Material Aluminium
Current Limit 16A+/-0.5V
Motor Type Brushless DC
IP Rating IPX4
Foldable Yes
Tyre Size 10”
Rules of the road and licensing guidance
For the latest up-to-date safety, licensing guidance and rules of the road for UK eScooter users,
please consult the UK Government website:
www.gov.uk/guidance/e-scooter-trials-guidance-for-users
Helmets and clothing
Wearing cycle helmets are recommended when
riding an eScooter, but they are not a legal
requirement. Always make sure that your cycle
helmet conforms to current regulations, is the
correct size, and is securely fastened. Wear light-
coloured or uorescent clothing so that other road
users can see you at night or whenever visibility
is poor.
As with any vehicle, the faster the user is travelling,
the more braking distance is required. Please
respect pedestrians’ right of way when riding
the techtron® eScooter.
Riding safely
Please check the eScooter before riding.
Check for loose parts and general tyre wear and
tear.
Always start the eScooter by pushing o with your
foot rst, this reduces the start load on the motor,
ensuring a longer battery life.
The techtron® eScooter is designed to perform best
on smooth dry surfaces, therefore avoid riding
on uneven gravel, sand, grass, slick or wet surfaces.
Never ride over curbs or jump. The eScooter is not
designed for this type of riding and any damage
caused to the eScooter while riding in this manner
will void the warranty.
techtron® accepts no liability for any injuries caused
to rider or damage to property which may arise
while riding the eScooter. Never ride the scooter
with more than one person, as this may lead to loss
of control. It is the rider’s responsibility to ensure
they comply with all local laws and regulations that
may apply while riding the eScooter.

For further information and advice you can find us at:
techtron® Unit 2, Jowett St,
Bradford, BD1 2JX. UK.
e: [email protected]
t: 0203 307 6776
w: techtron.co
Research & Development 2100 Geng Road, Suite 210,
Palo Alto, California, 94303 USA.
e: [e-mail] w: techtroncalifornia.com
techtron® is a division of Multibrands International Ltd.
