MAXTRA ML-44GDRS-ES-E100 User manual
MAXTRA
ML-44GDRS-ES-E100
ELECTRIC SCOOTER FOR KIDS 6-12
USER MANUAL
Thank you for choosing
MAXTRA!
Please take a few minutes to read this user manual
before using it.This manual will help you better under-
stand your scooter and, with proper care, it will provide
years of trouble-free use.
If you have any questions, please do not hesitate to
contact us. If you can attach some pictures or videos, it
will help us better understand your difficulties.Our
customer service team will give you a satisfactory reply
within 24 hours.
.
(7x24 hours)
Phone Call: 302-261-5366
Contents
Safety Warning 01
.....................................................................
Must Read 04
............................................................................
Learn About Scooter 05
Package Contents 06
................................................................
Assembly 07
Functions 08
Battery 10
Maintainance 11
.......................................................................
.................................................................................
Parts List 12
..............................................................................
..............................................................................
Charge 09
.................................................................................
.............................................................................
............................................................
Troubleshooting 13
.....................................................................
Controller 14
..............................................................................
01
CHECK AND MAINTAIN SCOOTER CONDITIONS:
PARENTAL AND ADULT RESPONSIBILITY AND SUPERVISION IS NECESSARY:
1.
SAFETY WARNINGS
Before use, check to make sure that any and all parts are in place and in a usable state
2. Riding an electric scooter does present potential risks and caution is required.Like any riding
product, electric scooters can and are intended to move and it is therefore, of course, possible
to lose control or otherwise get into dangerous situations. Both children and adults responsible
for supervising them must recognize that if such things occur, a rider can be seriously injured
or die, even when using safety equipment and other precautions.Neither MAXTRA is responsi-
ble for any injuries, damages or legal disputes caused by a rider's inexperience or failure to
follow the instructions in this manual
3.
Because products like electric scooters,can and do present potential hazards plainly associated
with their use, it is well recognized the need for exercise of parental responsibility in selecting
riding products appropriate to the age of a child
4. This scooter is recommended for ages 6-12. Please keep children who are not in this age
group away from this product. Any rider unable to fit comfortably on the scooter should not
attempt to ride it. A parent’s decision to allow his or her child to ride this product should be
based on the child’s maturity, skill and ability to follow rules
5. Keep in mind that it is for use only by people who are completely comfortable and capable of
operating a scooter. People who have a heart condition, head, back or neck condition (or have
had previous surgery on those parts of the body), or who are pregnant, should be warned not
to handle these products
6. Always check and obey any local laws or regulations, which may affect the locations where the
electric scooter may be used. Keep safely away from cars and motor vehicle traffic at all times,
and only use where allowed and with caution
7. Do not activate the speed control on the hand grip unless you are on the scooter and in a safe,
outdoor environment suitable for riding.The normal powered top speed of this scooter will be
approximately 13 km/h, which can be affected by conditions, such as rider weight, inclines and
battery charge level. Avoid excessive speeds that can be associated with downhill rides
02
8. Do not touch the brake or motor on your scooter when in use or immediately after riding, as
these parts can become very hot
9. Ride defensively. Watch out for potential obstacles that could catch your wheel or force you to
swerve suddenly or lose control. Be careful to avoid pedestrians, skaters, skateboards,
scooters, bikes, children or animals who may enter your path, and respect the rights and
property of others
10. The electric scooter is intended for use on flat, dry surfaces, such as pavement or level
ground, without loose debris, such as sand, leaves, rocks or gravel. Wet, slick, bumpy,
uneven or rough surfaces may impair traction and contribute to possible accidents. Do not
ride your scooter in mud, ice, puddles or water. Watch out for potential obstacles that could
catch your wheel or force you to swerve suddenly or lose control. Avoid sharp bumps,
drainage grates, and sudden surface changes
11. Do not attempt or do stunts or tricks on your electric scooter. The scooter is not made to
withstand abuse from misuse, such as jumping, curb grinding or any other type of stunts.
Racing, stunt riding, or other maneuvers also enhance risk of loss of control, or may cause
uncontrolled rider actions or reactions
12. Proper riding attire: Always wear proper protective equipment, such as an approved safety
helmet (with chin strap securely buckled), elbow pads and kneepads. A helmet may be legally
required by local law or regulation in your area.Never ride barefooted or in sandals, and keep
shoelaces tied and out of the way of the wheels, motor and drive system
13. Do not exceed the weight limit of 155lbs. The minimum carrying weight shall not be less than
40lbs and the maximum carrying weight shall not be more than 155lbs. Rider weight does not
necessarily mean a person’s size is appropriate to fit or maintain control of the scooter
03
16. Never allow more than one person at a time to ride the scooter
17. Do not ride at night or when visibility is limited
18. Never use near steps or swimming pools
19. Never hitch a ride with a vehicle
14. Do not ride your scooter in wet or icy weather and never immerse the scooter in water, as the
electrical and drive components could be damaged by water or create other possibly unsafe
conditions. Never risk damaging surfaces, such as carpet or flooring, by use of an electric
scooter indoors
15. The scooter should be maintained and repaired in accordance with the manufacturer’s
specifications, using only the manufacturer’s authorized replacement parts, and should not be
modified from the manufacturer’s original design and configuration.
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS FURTHER
INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISK AND WITH APPRO-
PRIATE AND SERIOUS ATTENTION TO SAFE OPERATION. USE CAUTION
04
1.
2.
3.
4.
5.
6. Don't assume that your existing insurance policy has to provide coverage for motorcycle use.
Check with your insurance company for information about insurance
Do not ride in wet conditions, otherwise there is a risk of injury and scooter failure
Always wear protective gear when riding
PRE-RIDE CHECK LIST
Check the brake for proper function. When you squeeze the brake lever, the brake should provide
positive braking action. Make sure that the brake is not rubbing when the brake lever is released
Brake
Check for cracks or broken connections. Although broken frames are rare, it is possible for an
aggressive rider to run into a curb or object and wreck, bend or break a frame. Get in the habit
of inspecting your scooter on a regular basis
Frame, Fork and Handlebars
Periodically inspect the tire for excess wear and replace as needed
Tire
Before every ride, check all parts, such as nuts, bolts, cables, fasteners, etc., to ensure they are
secure and assembled correctly. There should not be any unusual rattles or sounds from loose
parts or broken components. If the unit is damaged, do not ride.
Hardware/Loose Parts
Reference “Safety Warnings” on page 01 of this manual
Make sure the battery is fully charged before riding
Check and comply with local laws at all times
Respect pedestrians while riding
Do Not Ride Until You Read This:
i
05
Get To Know Your Scooter
Throttle Brake
Handle bolt
Handlebar stem
Quick release
Front fork
Front tire
Front tire bolt
Folding bolt Deck
Battery box
（Batteries and controller are inside）
Folding handle
Kickstand
Rear tire
Motor
Charge port ＆Power switch
Reset button
06

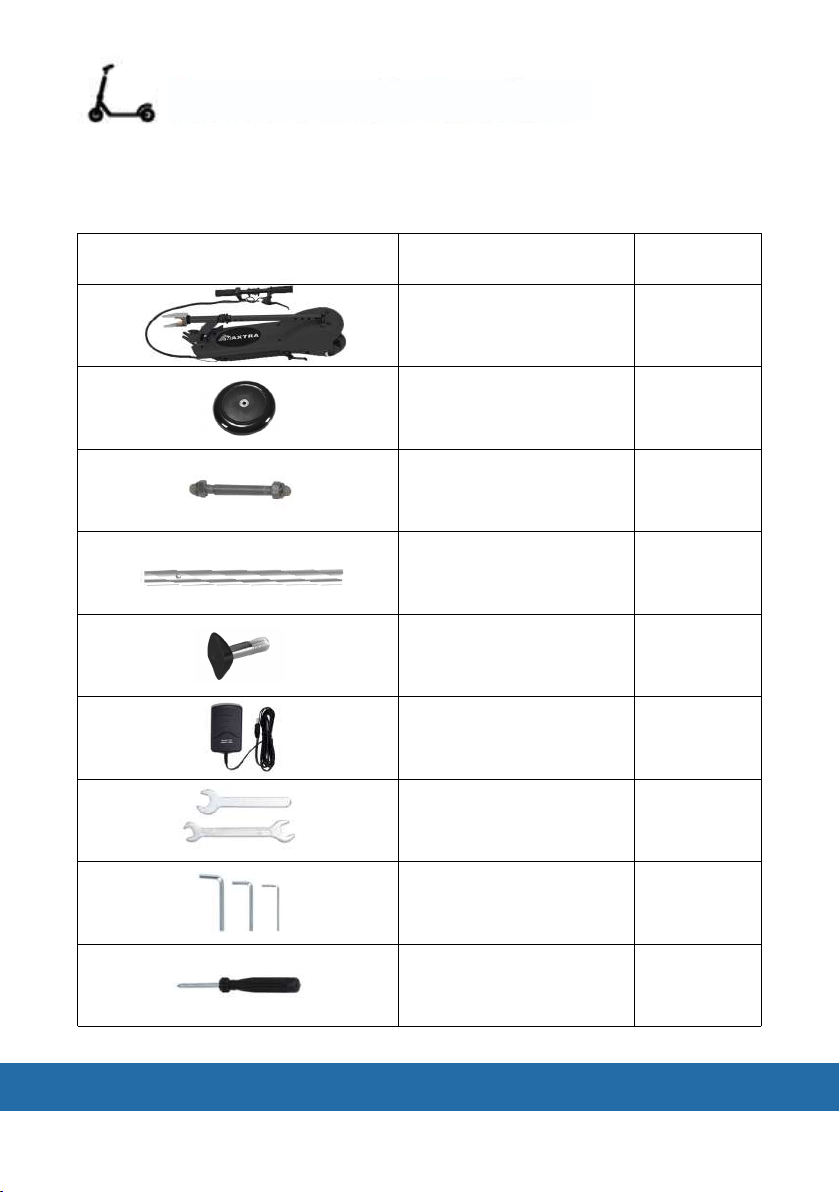

Package Contents
Please check all parts in the box and contact us in case of
any missing or damaged parts
Electric Scooter
Front Wheel
Front Wheel Bolt
Handlebar Stem
Handle bolt
Seat pole
Wrench
Hex Wrench
Screwdriver
Quantity
1
1
1
1
1
1
2
3
1
Image Name
1
2
4
5
07
Take the scooter and all the parts out of the box
Assemble Your Scooter
Before any assembly, make sure the power switch is in the
off position
Place the front wheel in the front fork, pass the front wheel screw through
the holes in the tire and fork frame, and tighten the nuts with a wrench
3Loosen the folding quick release, gradually lift the handlebar until the
folding screw snaps into the upper hole and hears the clicking sound to
keep the scooter upright, and finally lock the folding quick release
Loosen the quick release, insert the silver handlebar stem to the fixed
hole, and finally lock the quick release
Insert the handle into the top of thehandlebar stem, align with the hole,
and bolt through and lock
08

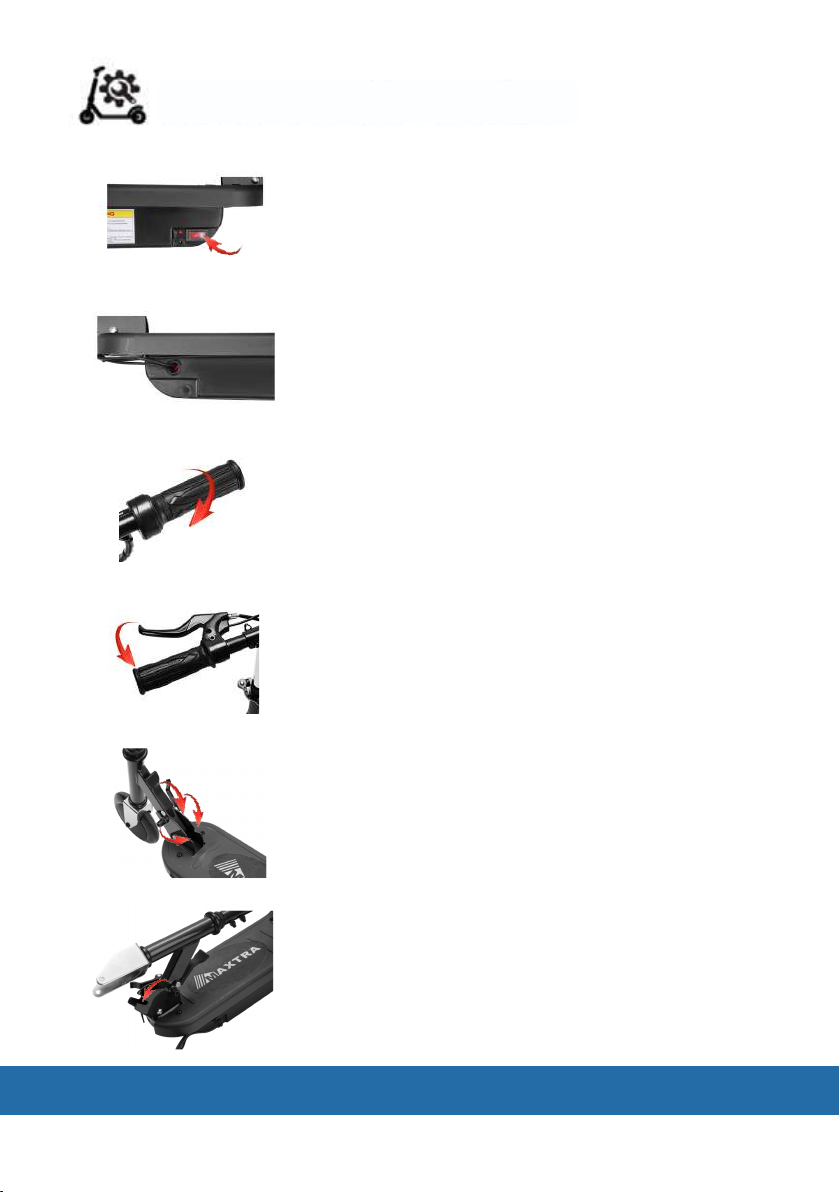

On the right side of the battery box.When the switch is set to “O”,
it is powered off. When the switch is placed in the "-" position, it
is in power state, and the red status indicator beside the switch
also lights up. At this point, just turn the throttle, you can start the
scooter.
Power switch:
On the left side of the battery box is the reset button. When the
motorcycle exceeds the set current due to some reasons (caused
by overweight rider, too steep hill, etc.), the reset button will pop
up and turn off the power supply of the whole scooter. Press the
reset button to restore the scooter to normal use
Reset button:
The speed can be adjusted by twisting the throttle. When the
throttle is in the initial position, the scooter stops. When the
throttle is turned in the direction of the arrow, the scooter moves
forward. When the throttle valve is released, the scooter moves
slowly due to inertia
Speed Control:
Adopt mechanical brake and electronic brake.During braking,
the disc prevents the hub braking. At the same time, close the
internal power switch, the controller stops the output voltage,
easier to brake
Brake Handle:
Loosen the folding quick release and pull down the folding
handle. While maintaining this state, gradually pull the
handlebar stem until the screw enters the groove to complete
the unfold. Remember the last locking folding quick release (by
adjusting the nut on the left side can be locked or relaxed
folding quick disassembly)
Unfold the scooter:
Loosen the folding quick release and pull down the folding
handle until the screw enters the groove below to complete the
folding.Remember to lock the last fold quick release (by
adjusting the nut on the left side can be locked or relaxed
folding quick disassembly) . Folding helps store and transport
the scooter
Folding scooter:
SCOOTER FUNCTIONS
09

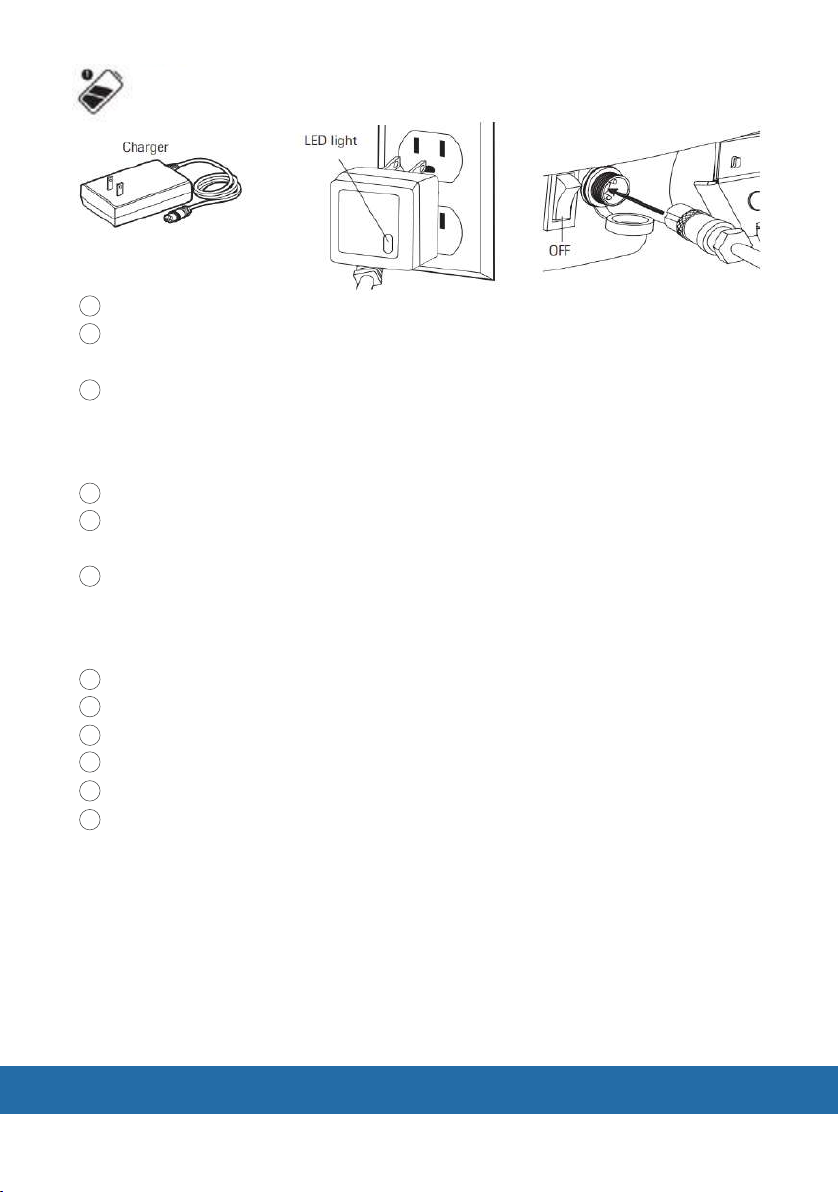

Charge Your Scooter
1
2
3
Plug the charger into the socket, and the green light on the charger lights up
Insert the charging port of the charger into the scooter, and the red light of the charger
indicates that it is charging, and the charging time is about 6-9 hours
When the green light on the charger lights up again, it means that the charging is complete,
remove the charger in time
Note
1
2
3
As soon as you receive the scooter, unpack it and charge it
Please keep the scooter power off during the charging process, and the scooter light will not
be on during the charging process
In some cases, the reset button will pop up so that the charger can't charge the battery, you
need to press the reset button on the left side of the battery box (page5) to keep chargin
Warning
1
2
3
4
5
6
Only original charger can be used
Chargers are not toys and should be operated by adults
Do not use the charger near inflammable and explosive objects
Charging, operation, storage temperature :0-40℃/32-104℉
Charging time should not exceed 20 hours
Check whether the power cord, plug and cover of the charger are damaged regularly. If the
charger is damaged, please repair or replace it before charging
Paramter
Product Model: LC-2538
Input voltage: 100~240Vac 50~60Hz
Input power: 23W MAX
Output voltage: 24VDc, 0.5A
Manufacturer: Guangdong Macil Electric Technology Co., LTD
10
Warning
Disposal
1
2
3
4
5
6
Fire hazard - No user serviceable parts
If the battery is swollen, leaking, or damaged, do not use it
Do not attempt to open or repair the battery, which may damage the battery or cause an
accident
Use and store batteries out of reach of children
Do not place the battery in fire or heat it, otherwise it may catch fire and explode
If the battery leaks, avoid contact with the leaking acid, and put the damaged battery in a
plastic bag.If acid comes into contact with skin or eyes, rinse with cold water for at least 15
minutes and contact your doctor
Do not dispose of a lead-acid battery in your regular household trash. The incineration, land
filling or mixing of sealed lead-acid batteries with household trash is prohibited by law in most
areas. Return exhausted batteries to a federal or state approved lead-acid battery recycler or a
local seller of automotive batteries. If you live in Florida or Minnesota, it is prohibited by law to
throw away lead-acid batteries in the municipal waste stream
Note
1
2
The scooter must be charged every 30 days, even if it is not in use, to protect the battery
Ensure that the power switch is turned off when the scooter is not in use. If the power switch
is left on for a long time, the battery may fail to charge
3To ensure the battery life, do not store the product in a place with high temperature. The
recommended ambient temperature is 40 °F to 95°F, and the optimal ambient temperature
is 70 °F to 85°F, which will permanently damage the battery at or below freezing point
Before any assembly, make sure the power switch is in the
off position
Battery Information
CONTAINS SEALED LEAD-ACID BATTERIES.
BATTERIES MUST BE RECYCLED
11
Maintenance & Repair
Tips
1
2
3
4
5
Please turn off the power and charge after use
Avoid sudden braking, help to prolong the service life of tires
Check the tightness of each screw regularly to reduce noise
Tighten the belt regularly to reduce belt shedding and damage
Frequent cleaning of the motor surface is conducive to better heat dissipation of the motor
1
2
Do not rinse the scooter with water, wipe it with a damp cloth
Do not use alcohol, gasoline, kerosene and other corrosive solutions to clean, which will
seriously damage the appearance and structure of the scooter
1
2
Do not put the scooter in the outdoor storage, exposure will seriously affect the service life
of the scooter, should be stored in a dry and cool place indoors
Before long-term storage, please fully charge the battery and charge it every 30 days
Scooters are consumables and certain parts need regular
maintenance and replacement, such as batteries and tires
Cleaning
Storage
12

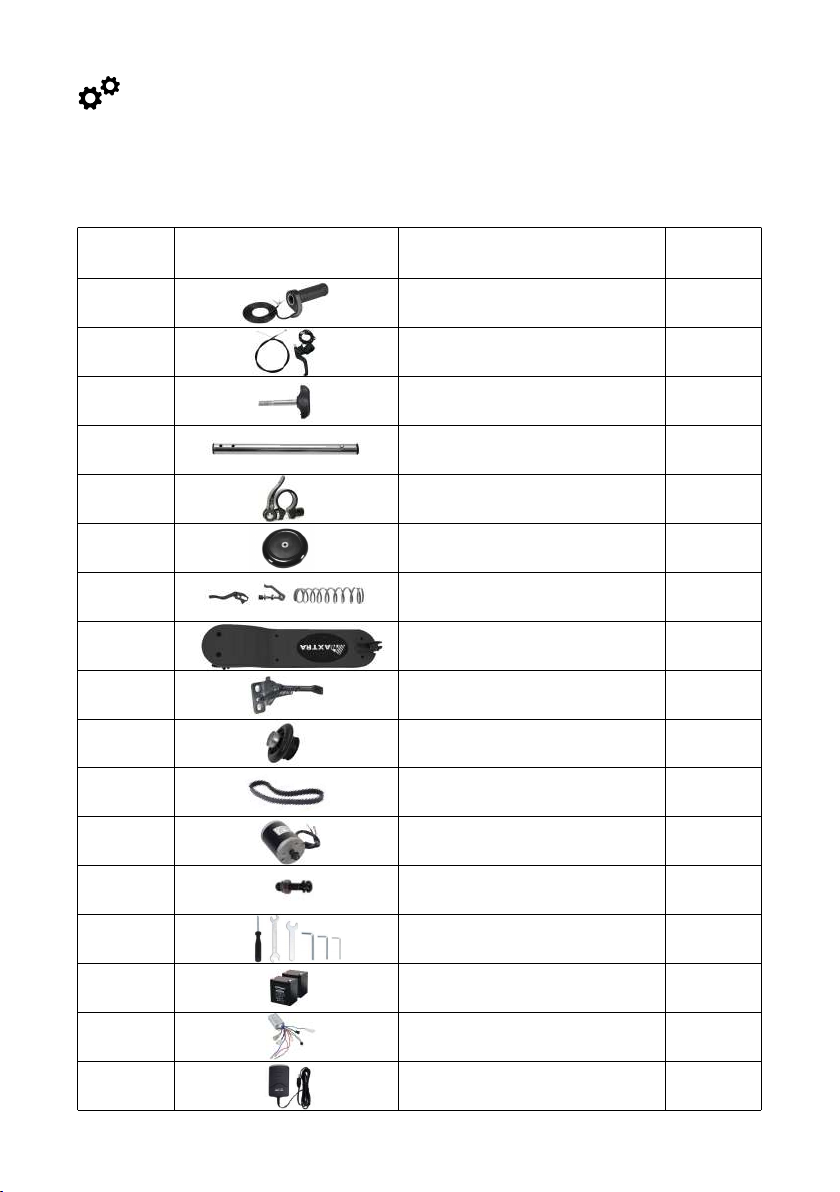

Parts List
We will provide parts replacement service for this scooter,
if you have any need, welcome to contact us
Part# Quantity
Throttle
Brake
Handle Bolt
Handlebar stem
Quick Release
Front Tire With Bolt
Folding Parts
(Includes quick release, spring and handle）
Screws Bag
（Includes all screws）
Deck
Kickstand With Bolt
Rear Tire
Belt
Motor
Tool Bag
Battery With Wire
Controller
Charger
A 1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Image Name
13
Troubleshooting
for support
If you have any problems with your scooter, you can contact
us directly
Problem Possible Cause Solution
Not Work/Unable
To Chargei
1Reset Button Pops Up Press the reset button
Check for loose or damaged connections/wires
underneath the deck plate
2Loose Connection
Check power to wall outlet and/or try a different outlet
3Socket Fault
Check lights on charger:
Plugged into wall - Green
Plugged into wall & unit - Red (charging)
Plugged into wall & unit - Green (charging complete)
No lights/Blinking lights - Replace charger
4Charger Failure
Weigh no more than 155 pounds
1Rider Weight
Use only on flat, dry surfaces. Avoid slopes and
areas with large amounts of rubble
2Riding Conditions
Charge for 9 hours
3Battery Low
Check the wires around the throttle and connectors
underneath the deck plate
1Loose Connection
Replace throttle
2Throttle Failure
Avoid sudden braking/rear wheel replacement
1Slam The Brakes On
Replace batteries
4Battery Failure
Adjust brake tightness (under normal conditions,
the rear wheel can be easily turned by hand)
When braking, the controller still has current
output, check whether the brake wire is properly
connected or replace the brake (in normal braking,
the controller should immediately reduce the
current output to "0" after holding the brake handle)
1.
2.
5Brake Dragging
Replace controller
5Control Module Failure
(for the light after turning
on the switch)
Replace controller and batteries
6Battery Failure (when
the light is not on when
the switch is opened)
Short Run
Time/Runs Slow
Runs
Intermittently
Rear Wheel
Wear
14
Controller
Controller
Scooter
Light Status
Scooter
Condition Troubleshooting
LED
Indicating
Lamp
No Light Controller Not Working
1.
2.
3.
Check that all wire connections
are in good condition
Check whether the reset button
pops up
Replace batteries/controller
Motor Does Not Turn
Light Up
(motor does not turn)
1.
2.
Check that throttle and motor
wires are in good contact
Replace throttle/motor
Over-temperature Protection Power it up again after shutting
it down for a period of time
Flashed Twice
Over-current Protection
Turn off the power and press the
reset button to turn on the power
again
Flashed 3 Times
Output Short Circuit
Protection
Motor short circuit or controller
output blue, brown wire short
circuit, troubleshooting after
restart
Flashed 4 Times
Speed ProtectionFlashed 5 Times Replace controller
Thank you very much for your patience in reading this manual.We have been committed to
providing you with better after-sales service, but the electric scooter is a complex electronic
product, if you encounter any problems, we hope you can give us a little patience to help
you.Thank you again for choosing the MAXTRA electric scooter.
Words In The End
