ETS-Lindgren 2081-2.0 User manual

©ETS-LINDGREN L.P. - JANUARY 2003 REV D – PN 399212
Model 2081
Turntable Series
2081-2.0, 2081-2.5, 2081-3.0,
2081-4.0, 2081-5.0, 2081-6.0
MANUAL
Archived 3/18/10

MODEL 2081 TURNTABLE SERIES
© ETS-LINDGREN L.P. – JANUARY 2003
REV D – PN 399212
ETS-Lindgren L.P. reserves the right to make changes to any products herein to improve functioning,
design, or for any other reason. Nothing contained herein shall constitute ETS-Lindgren L.P. assuming any
liability whatsoever arising out of the application or use of any product or circuit described herein. ETS-
Lindgren L.P. does not convey any license under its patent rights or the rights of others.
© Copyright 2003 by ETS-Lindgren L.P. All Rights Reserved.
No part of this document may be copied by any means
without written permission from ETS-Lindgren L.P.
E-MAIL & INTERNET
[e-mail]
http://www.ets-lindgren.com
USA
1301 Arrow Point Dr., Cedar Park, TX 78613
P.O. Box 80589, Austin, TX 78708-0589
Phone [phone]
Fax [phone]
FINLAND
Euroshield OY
Mekaanikontie 1
27510, Eura, Finland
Phone + 358.2.838.3300
Fax + 358.2.865.1233
JAPAN
4-2-6, Kohinata
Bunkyo-ku
Tokyo 112-0006
JAPAN
Phone + 81 3 3813 7100
Fax + 81 3 3813 8068
CHINA
1917-1918 Xue Zhixuan Building
No 16 Xue Qing Road
Haidian District
Beijing Postcode: 100083
CHINA
Phone + 86 010 82755304
Fax + 86 010 82755307
Archived 3/18/10

MODEL 2081 TURNTABLE SERIES
© ETS-LINDGREN L.P. – JANUARY 2003
REV D – PN 399212
Table of Contents
INTRODUCTION........................................................................................................................................ 1
STANDARD CONFIGURATION.............................................................................................................. 2
OPTIONS...................................................................................................................................................... 3
PRECAUTIONS........................................................................................................................................... 4
TURNTABLE INSTALLATION CONSIDERATIONS........................................................................... 6
POWER AND SIGNAL LINES ......................................................................................................................... 6
OUTDOOR INSTALLATIONS.......................................................................................................................... 6
INSTALLATION ......................................................................................................................................... 7
GROUND RING INSTALLATION .................................................................................................................... 9
ELECTRICAL INSTALLATION............................................................................................................ 10
CONNECTING THE MODEL 2090 POSITIONING CONTROLLER..................................................................... 11
OPERATION.............................................................................................................................................. 12
RECOMMENDED PARAMETERS FOR THE MODEL 2090 POSITIONING CONTROLLER ................................... 13
EDITING MODEL 2090 POSITIONING CONTROLLER CONFIGURATION PARAMETERS.................................. 14
TURNTABLE ENCODER CALIBRATION ....................................................................................................... 14
TT CALIBRATION EXAMPLE...................................................................................................................... 15
SETTING CURRENT POSITION ON 2090...................................................................................................... 17
CAUTION:ON RESETTING CURRENT POSITION ON 2090........................................................................... 17
CHANGING ROTATION SPEED.................................................................................................................... 18
SETTING TRAVEL LIMITS .......................................................................................................................... 19
ALTIVAR MOTOR BASE CONFIGURATION ................................................................................................. 20
HAND CONTROL UNIT.......................................................................................................................... 21
RECOMMENDED MAINTENANCE...................................................................................................... 22
EVERY SIX MONTHS.................................................................................................................................. 22
EVERY TWELVE MONTHS.......................................................................................................................... 23
SPECIFICATIONS.................................................................................................................................... 24
ELECTRICAL.............................................................................................................................................. 24
PHYSICAL.................................................................................................................................................. 24
WARRANTY STATEMENT.................................................................................................................... 25
ILLUSTRATIONS..................................................................................................................................... 26
Archived 3/18/10

MODEL 2081 TURNTABLE SERIES
© ETS-LINDGREN L.P. – JANUARY 2003
REV D – PN 399212
NOTICE: This product and related documentation must be reviewed for familiarization
with safety markings and instructions before operation.

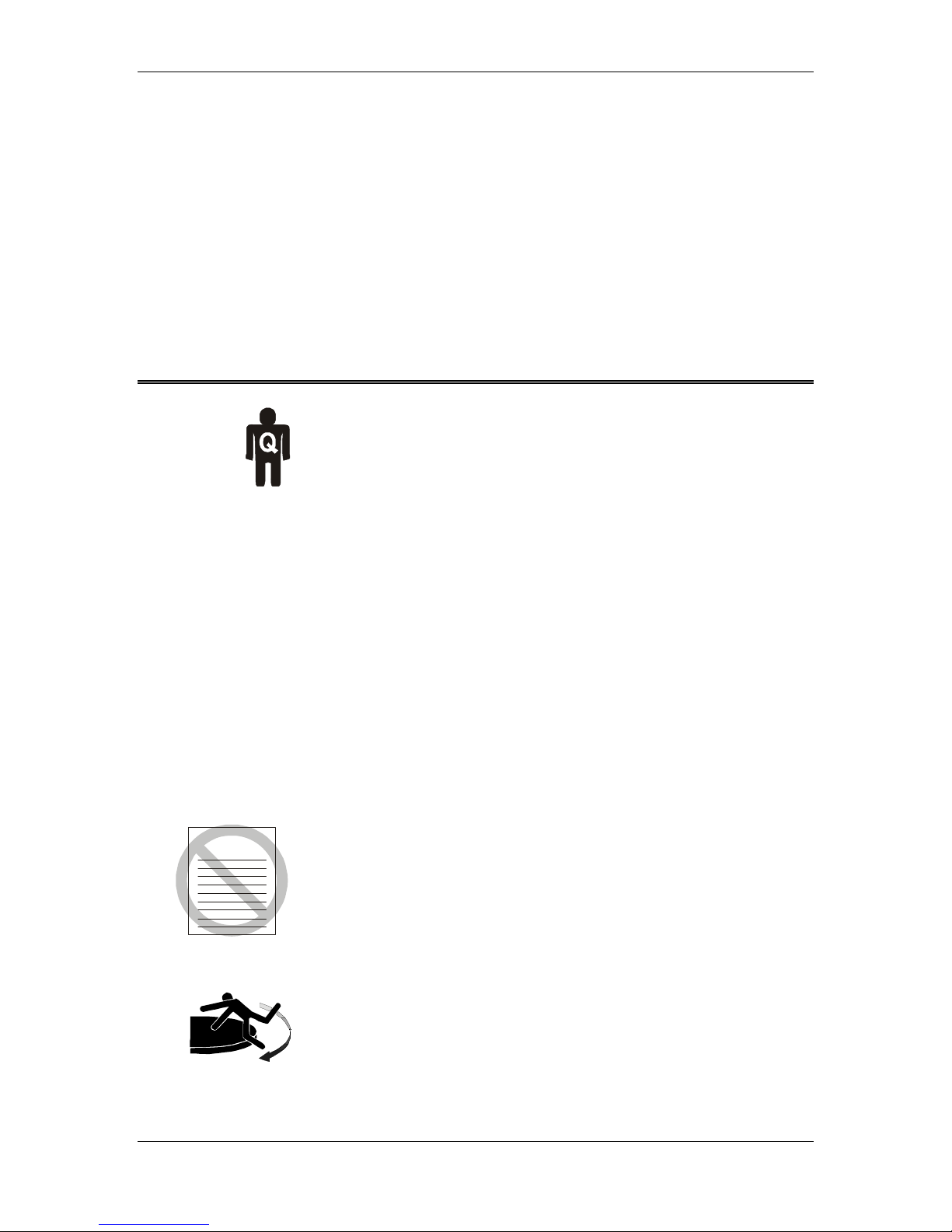

SAFETY SYMBOL DEFINITIONS
GENERAL SAFETY CONSIDERATIONS
REFER TO MANUAL When product is marked with this symbol refer to
instruction manual for additional information.
HIGH VOLTAGE Indicates presence of hazardous voltage. Unsafe practice
could result in severe personal injury or death.
PROTECTIVE EARTH GROUND (SAFETY GROUND)
Indicates protective earth terminal. You should provide uninterruptible safety
earth ground from the main power source to the productinput wiring
terminals, power cord, or supplied power cord set.
CAUTION Denotes a hazard. Failure to follow instructions could result in
minor personal injury and/or property damage. Included text gives proper
procedures.
WARNING Denotes a hazard. Failure to follow instructions could result in
SEVEREpersonal injury and/or property damage. Included text gives proper
procedures.
BEFORE POWER IS APPLIED TO THIS INSTRUMENT,
GROUND IT PROPERLY
through the protective conductor of the AC power
cable to a power source provided with protective earth contact. Any
interruption of the protective (grounding) conductor, inside or outside the
instrument, or disconnection of the protective earth terminal could result in
personal injury.
BEFORE SERVICING: CONTACT ETS-LINDGREN - servicing
(or modifying) the unit by yourself may void your warranty. If you attempt to
servicethe unit by yourself, disconnect all electrical power beforestarting.
There are voltages at many points in the instrument which could, if
contacted, cause personal injury. Only trained service personnel should
perform adjustments and/or serviceprocedures upon this instrument.
Capacitors inside this instrument maystill be CHARGED even when
instrument is disconnected from its power source.
ONLY QUALIFIED PERSONNEL should operate (or service) this equipment.
STAY CLEAR of moving components during operation of equipment.
!
CAUTION
WARNING
WARRANTY
OR
Archived 3/18/10

MODEL 2081 TURNTABLE SERIES Introduction
© ETS-LINDGREN L.P. – JANUARY 2003 1
REV D – PN 399212
INTRODUCTION
The ETS-Lindgren Model 2081 is an electric powered turntable
platform system designed to be used with the Model 2090
Positioning Controller for EMI compliance testing. Two meter and
larger tables utilize a pinion and gear drive with a gear reducer and
electric motor. The conductive metal top is outfitted with a
continuous ground brush to electrically couple the turntable to the
ground plane. The drive motor and gearing are located beneath the
platform. The sectional turntable top provides easy access in the
event that service is required. A shielded enclosure contains the
electronics for the system. Signal I/O from the turntable to the
Model 2090 controller is via fiber optic cable.
The bearing on which the turntable rotates has the drive teeth cut
directly on the outside and will easily support most heavily
weighed equipment under test (EUT). Casters underneath the table
surface aid in the support of a cantilevered load. Leveling screws
are located at each caster, between the casters and in the center
section of the assembly for ease in matching height on an uneven
ground plane.
To prevent over-travel of the turntable in either direction of
movement, mechanical limits can be set using dial knobs on the
outside of the encoder enclosure located in the center of the main
pivot bearing. The knobs can be accessed by removing the center
section of the turntable. Soft limits can be set within the
mechanical limits, using the Model 2090 Positioning Controller.
Ground brushes attached directly to the top of the table are in
continual contact with the floor flange supplied with the ground
ring option. The brushes point downward from the top of the table.
To extend the life of the ground brush, a one-piece stainless steel
liner is attached to the inside edge of the stationary floor flange.
