ETS NORD NORDfire SEDM-L User manual

NORDfire
SEDM-L Smoke Extraction Damper / MULTI
CE certified acc. to EN 12101-8
Tested in accordance with EN 1366-10
Classified acc. to EN 13501-4 + A1
Fire resistance up to EIS 120
Pressure class 2 (vacuum 1000 Pa / overpressure 500 Pa)
Tightness according to EN 1751 via body class C and via damper slat
min. class 3
Cmod cycling according to EN 12101-8
Certificate of Constancy of Properties No. 1391-CPR2021/0009
Performance declaration No PM/SEDM-L/01/22/1

www.etsnord.com
2RDT-030-0223
®NORDfire |SEDM-L
Description
Smoke and heat extraction dampers - multi are closures in the ductwork of smoke extraction devices. In the
event of a fire, the smoke and heat removal system open the dampers in the aected section, therefore enabling
the extraction fans to remove combustion products and heat from the endangered areas.
The damper slat is controlled by an actuator.
The damper is fire resistant and is designed for systems with automatic or manual activation.
Smoke dampers are intended for use in spaces with multiple fire compartments, which can be connected
by a smoke extraction duct tested according to EN 1366-8 or can be installed in the construction of the fire
compartment.
The dampers can be supplied with flange(s) or without flange(s), with cover grille(s).
Smoke and heat removal system
installation of the damper into the wall. In normal operation, the SEDM-L dampers remain closed. If necessary,
in the event of a fire, the SEDM-L dampers in the aected fire section will open completely so that the smoke
can be removed. When the smoke and heat removal dampers are activated, the dampers used for air supply
in the aected section open. The dampers used to supply air in the aected fire section are installed at the
ground. The dampers are controlled from the central control system on the basis of signals, e.g. from smoke
detectors. The use of cables with a certain fire resistance for the supply voltage ensures that the actuator is
supplied even in the event of a fire.
Ventilation system
During ventilation, SEDM-L dampers in the smoke and heat extraction system are controlled by a control
system, it’s possible to fully open, close or continuously control the flow. The SEDM-L dampers, which are
used for air supply, remain closed during ventilation.
Example of a ventilation device for forced smoke and heat removal
SEDM-L Smoke Extraction Damper / MULTI
3
Smoke and heat extraction dampers - multi are closures in the pipework of smoke extraction
devices. In the event of a fire, the smoke and heat removal system open the dampers in the
affected section, therefore enabling the extraction fans to remove combustion products and heat
from the endangered areas.
The damper slat is controlled by an actuator.
The damper is fire resistant and is designed for systems with automatic or manual activation.
Smoke dampers are intended for use in spaces with multiple fire compartments, which can be
connected by a smoke extraction pipe tested according to EN 1366-8 or can be installed in the
construction of the fire compartment.
The dampers can be supplied with flange(s) or without flange(s), with cover grille(s).
In normal operation, the SEDM-L dampers remain closed. If necessary, in the event of a fire, the
SEDM-L dampers in the affected fire section will open completely so that the smoke can be
removed. When the smoke and heat removal dampers are activated, the dampers used for air
supply in the affected section open. The dampers used to supply air in the affected fire section
are installed at the ground. The dampers are controlled from the central control system on the
basis of signals, e.g. from smoke detectors. The use of cables with a certain fire resistance for the
supply voltage ensures that the actuator is supplied even in the event of a fire.
During ventilation, SEDM-L dampers in the smoke and heat extraction system are controlled by
a control system, it's possible to fully open, close or continuously control the flow. The SEDM-L
dampers, which are used for air supply, remain closed during ventilation.
Position:
1 SEDM-L
2 Ventilation grille or damper for smoke and heat removal from one section
3Air inlet
4 Smoke barrier
5 Fan for forced smoke and heat removal
6 Pipes for smoke extraction from one section
7 Multi-section smoke extraction pipe
Position:
1. SEDM-L
2. Ventilation grille or damper for smoke
and heat removal from one section
3. Air inlet
4. Smoke barrier
5. Fan for forced smoke and heat removal
6. Duct for smoke extraction from one section
7. Multi-section smoke extraction duct

Images are for illustrative purposes
We reserve the right to make changes RDT-030-0223 3
®NORDfire |SEDM-L
Damper classification SEDM-L
Construction Classification

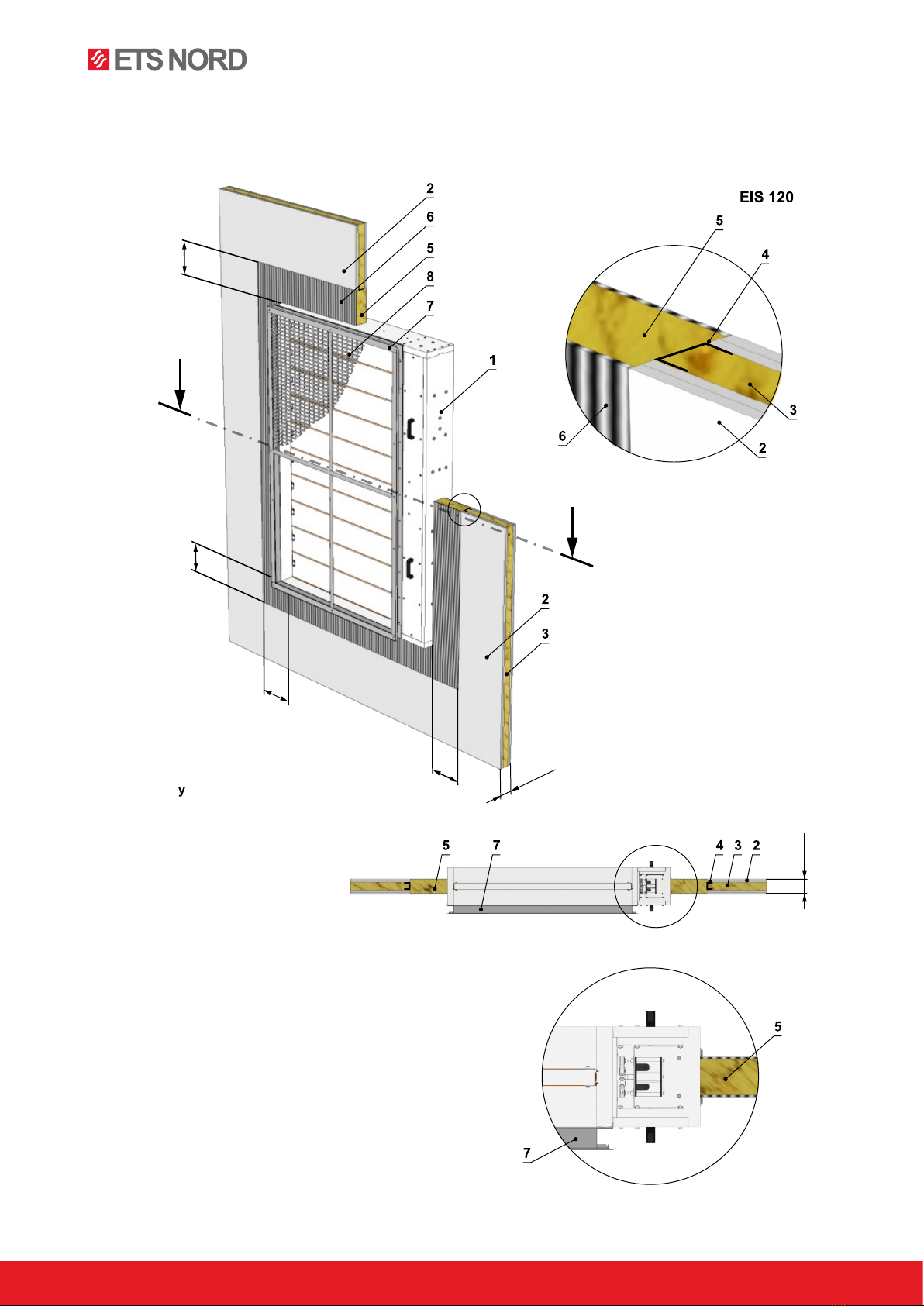

In a solid wall construction and on duct in a solid wall
construction, th. 100 mm EI 90 (Vedw - i ↔o) S1000CmodHOT 400/30MAmulti*
For duct in a solid wall construction, th. 100 mm EI 120 (Ved - i ↔o) S1000CmodHOT 400/30MAmulti*
In gypsum wall construction and on the duct in gypsum
wall construction, th. 100 mm EI 120 (Vedw - i ↔o) S1000CmodHOT 400/30MAmulti*
In practice, the dampers are never open when there is a risk of smoke.
Operating conditions
Trouble-free operation of the dampers is guaranteed under the following conditions:
• maximum air flow speed 12 m/s
• maximum vacuum up to 1000 Pa or overpressure up to 500 Pa
The dampers are designed for environments protected against weather conditions with class 3K5 climatic
conditions, without condensation, icing, ice formation, without water and from sources other than rain and
with a temperature limit of -30°C to 50°C.

www.etsnord.com
4RDT-030-0223
®NORDfire |SEDM-L
Design
1. SEDM-L Smoke Extraction Damper / MULTI Designs
1.1 Design with actuating mechanism, Design .44 and .54
Belimo actuators are used for dampers:
BLE 24 (BE 24-12), resp. 24 V
BLE 230 (BE 230-12), resp. 230 V
After connection to the power supply voltage, the actuator moves the damper slats to the ”OPEN” position or
”CLOSED” (according to the corresponding connection, see wiring diagram). If the power supply is interrupted,
the actuator stops at the current position. The signalling of the ”OPEN” and ”CLOSED” damper slats positions
is ensured by two built-in fixed “potential-free” end- limit switches.
The actuator for operating the damper slats is mounted in an insulated cover/box. It is accessible after removing
the cover lid. The electrical connection of the actuator is made with a non-flammable cable (or a cable located
in the adjoining cable duct), which passes through an opening made in the wall of the insulated cover/box when
installing the damper or when connecting the actuator power cable. The cable entry must meet a minimum
fire resistance of 30 minutes.
5
Belimo actuators are used for dampers: BLE 24 (BE 24-12) for 24V
BLE 230 (BE 230-12) for 230V
After connection to the supply voltage, the actuator moves the damper slat to the "OPEN" or
"CLOSED" position (according to the corresponding connection, see wiring diagram). The
adjustment speed is max. 60 s. If the power supply is interrupted, the actuator stops at the current
position. The damper can be operated manually, after removing the cover with a special handle,
which is included with the actuator. Signalling for "OPEN" and "CLOSED" damper slat positions
is ensured by two built-in fixed limit switches.
The actuator for operating the damper slat, including the mechanical control mechanism (or the
communication and network device BKNE 230-24) is mounted in an insulated housing. The
actuator, control mechanism (or communication and network device BKNE 230-24) is accessible
after removing the side cover. The actuator's electrical connection (or communication and
network device BKNE 230-24) is made with a non-flammable cable (or a cable located in the
adjoining cable duct), which passes through an opening made in the housing wall of when
connecting the actuator power cable. This penetration must be equipped with a cable penetration
with a minimum fire resistance of 30 minutes.
Position:
1 Damper housing
2 Slats
3 Silicone slat seal
4 Internal silicone seal
5 Fire-fighting foam tape
6 Slat stop
7Actuator housing
8Actuator housing cover
9Actuator
Position:
1. Damper housing
2. Slats
3. Silicone slat seal
4. Internal silicone seal
5. Fire-fighting foam tape
6. Slat stop
7. Actuator housing
8. Actuator housing cover
9. Actuator

Images are for illustrative purposes
We reserve the right to make changes RDT-030-0223 5
®NORDfire |SEDM-L

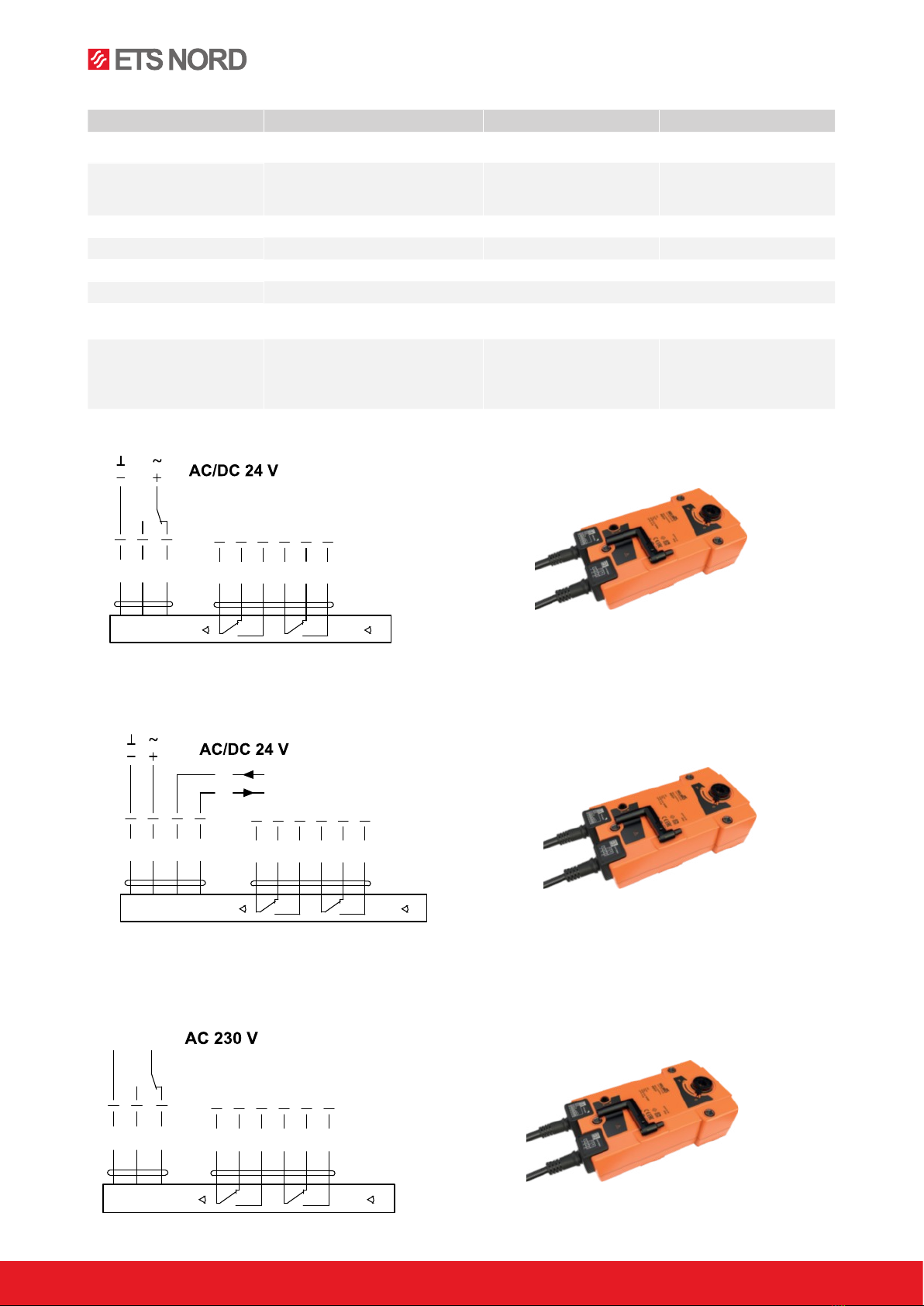

Actuator Belimo - 15 Nm BEN 24(-ST) BEN 24 SR BEN 230
Power voltage AC/DC 24 V
50/60 Hz
AC/DC 24 V
50/60 Hz
AC 230 V
50/60 Hz
Power consumption:
- in operation
- in the end position
3 W
0,1 W
3 W
0,3 W
4 W
0,4 W
Dimensioning 6 VA (Imax 8,2 A @ 5 ms) 6,5 VA (Imax 8,2 A @ 5 ms) 7 VA (Imax 4 A @ 5 ms)
Protection class III III II
Degree of protection IP 54
Adjustment time for 95° < 30 s
Ambient temperature
Storage temperature
-30°C … +55°C
-40°C … +80°C
Connection
- drive
- auxiliary switch
Cabel 1 m, 3 x 0,75 mm²
Cabel 1 m, 6 x 0,75 mm²
(BEN 24-ST) with plug connectors
Cabel 1 m, 4 x 0,75 mm²
Cabel 1 m, 6 x 0,75 mm²
Cabel 1 m, 3 x 0,75 mm²
Cabel 1 m, 6 x 0,75 mm²
Actuator Belimo BEN 24(-ST)
Actuator Belimo BEN 24-SR
Actuator Belimo BEN 230
6
Power voltage AC/DC 24 V
50/60Hz
AC/DC 24 V
50/60Hz
AC 230 V
50/60Hz
Power consumption - in operation
- in the end position
3 W
0,1 W
3 W
0,3 W
4 W
0,4 W
Dimensioning 6 VA (Imax 8,2 A @ 5 ms) 6,5 VA (Imax 8.2 A @ 5 ms) 7 VA (Imax 4 A @ 5 ms)
Protection class III III II
Degree of protection IP 54
Adjustment time for 95° < 30 s
Ambient temperature
Storage temperature
-30°C … +55°C
-40°C … +80°C
Connection - drive
- auxiliary switch
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
(BEN 24-ST) with plug
connectors
Cable 1 m, 4 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
S2S1 S3 S5S4 S6
2
13
<5° <80°
S2S1 S3 S5S4 S6
2
13
<5° <80°
N L1
S2S1 S3 S5S4 S6
2
13
<5° <80°
5
Y
U
DC (0)2...10 V
DC 2...10 V
6
Power voltage AC/DC 24 V
50/60Hz
AC/DC 24 V
50/60Hz
AC 230 V
50/60Hz
Power consumption - in operation
- in the end position
3 W
0,1 W
3 W
0,3 W
4 W
0,4 W
Dimensioning 6 VA (Imax 8,2 A @ 5 ms) 6,5 VA (Imax 8.2 A @ 5 ms) 7 VA (Imax 4 A @ 5 ms)
Protection class III III II
Degree of protection IP 54
Adjustment time for 95° < 30 s
Ambient temperature
Storage temperature
-30°C … +55°C
-40°C … +80°C
Connection - drive
- auxiliary switch
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
(BEN 24-ST) with plug
connectors
Cable 1 m, 4 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
S2S1 S3 S5S4 S6
2
13
<5° <80°
S2S1 S3 S5S4 S6
2
13
<5° <80°
N L1
S2S1 S3 S5S4 S6
2
13
<5° <80°
5
Y
U
DC (0)2...10 V
DC 2...10 V
6
Power voltage AC/DC 24 V
50/60Hz
AC/DC 24 V
50/60Hz
AC 230 V
50/60Hz
Power consumption - in operation
- in the end position
3 W
0,1 W
3 W
0,3 W
4 W
0,4 W
Dimensioning 6 VA (Imax 8,2 A @ 5 ms) 6,5 VA (Imax 8.2 A @ 5 ms) 7 VA (Imax 4 A @ 5 ms)
Protection class III III II
Degree of protection IP 54
Adjustment time for 95° < 30 s
Ambient temperature
Storage temperature
-30°C … +55°C
-40°C … +80°C
Connection - drive
- auxiliary switch
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
(BEN 24-ST) with plug
connectors
Cable 1 m, 4 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
S2S1 S3 S5S4 S6
2
13
<5° <80°
S2S1 S3 S5S4 S6
2
13
<5° <80°
N L1
S2S1 S3 S5S4 S6
2
13
<5° <80°
5
Y
U
DC (0)2...10 V
DC 2...10 V

www.etsnord.com
6RDT-030-0223
®NORDfire |SEDM-L
Actuator Belimo - 15 Nm BEE 24(-ST) BEE 24 SR BEE 230
Power voltage AC/DC 24 V 50/60 Hz AC/DC 24 V 50/60 Hz AC 230 V 50/60 Hz
Power consumption:
- in operation
- in the end position
2,5 W
0,1 W
3 W
0,3 W
3,5 W
0,4 W
Dimensioning 5 VA (Imax 8,2 A @ 5 ms) 5,5 VA (Imax 8,2 A @ 5 ms) 6 VA (Imax 4 A @ 5 ms)
Protection class III III II
Degree of protection IP 54
Adjustment time for 95° < 60 s
Ambient temperature
Storage temperature
-30°C … +55°C
-40°C … +80°C
Connection
- drive
- auxiliary switch
Cabel 1 m, 3 x 0,75 mm²
Cabel 1 m, 6 x 0,75 mm²
(BEE 24-ST) with plug connectors
Cabel 1 m, 4 x 0,75 mm²
Cabel 1 m, 6 x 0,75 mm²
Cabel 1 m, 3 x 0,75 mm²
Cabel 1 m, 6 x 0,75 mm²
Actuator Belimo BEE 24(-ST)
Actuator Belimo BEE 24-SR
Actuator Belimo BEE 230
7
S2S1 S3 S5S4 S6
2
13
<5° <80°
S2S1 S3 S5S4 S6
2
13
<5° <80°
N L1
S2S1 S3 S5S4 S6
2
13
<5° <80°
5
Y
U
DC (0)2...10 V
DC 2...10 V
Power voltage AC/DC 24 V
50/60Hz
AC/DC 24 V
50/60Hz
AC 230 V
50/60Hz
Power consumption - in operation
- in the end position
2,5 W
0,1 W
3 W
0,3 W
3,5 W
0,4 W
Dimensioning 5 VA (Imax 8,2 A @ 5 ms) 5,5 VA (Imax 8.2 A @ 5 ms) 6 VA (Imax 4 A @ 5 ms)
Protection class III III II
Degree of protection IP 54
Adjustment time for 95° < 60 s
Ambient temperature
Storage temperature
-30°C … +55°C
-40°C … +80°C
Connection - drive
- auxiliary switch
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
(BEE 24-ST) with plug
connectors
Cable 1 m, 4 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
7
S2S1 S3 S5S4 S6
2
13
<5° <80°
S2S1 S3 S5S4 S6
2
13
<5° <80°
N L1
S2S1 S3 S5S4 S6
2
13
<5° <80°
5
Y
U
DC (0)2...10 V
DC 2...10 V
Power voltage AC/DC 24 V
50/60Hz
AC/DC 24 V
50/60Hz
AC 230 V
50/60Hz
Power consumption - in operation
- in the end position
2,5 W
0,1 W
3 W
0,3 W
3,5 W
0,4 W
Dimensioning 5 VA (Imax 8,2 A @ 5 ms) 5,5 VA (Imax 8.2 A @ 5 ms) 6 VA (Imax 4 A @ 5 ms)
Protection class III III II
Degree of protection IP 54
Adjustment time for 95° < 60 s
Ambient temperature
Storage temperature
-30°C … +55°C
-40°C … +80°C
Connection - drive
- auxiliary switch
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
(BEE 24-ST) with plug
connectors
Cable 1 m, 4 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
7
S2S1 S3 S5S4 S6
2
13
<5° <80°
S2S1 S3 S5S4 S6
2
13
<5° <80°
N L1
S2S1 S3 S5S4 S6
2
13
<5° <80°
5
Y
U
DC (0)2...10 V
DC 2...10 V
Power voltage AC/DC 24 V
50/60Hz
AC/DC 24 V
50/60Hz
AC 230 V
50/60Hz
Power consumption - in operation
- in the end position
2,5 W
0,1 W
3 W
0,3 W
3,5 W
0,4 W
Dimensioning 5 VA (Imax 8,2 A @ 5 ms) 5,5 VA (Imax 8.2 A @ 5 ms) 6 VA (Imax 4 A @ 5 ms)
Protection class III III II
Degree of protection IP 54
Adjustment time for 95° < 60 s
Ambient temperature
Storage temperature
-30°C … +55°C
-40°C … +80°C
Connection - drive
- auxiliary switch
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
(BEE 24-ST) with plug
connectors
Cable 1 m, 4 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2

Images are for illustrative purposes
We reserve the right to make changes RDT-030-0223 7
®NORDfire |SEDM-L
Actuator Belimo - 40 Nm BE 24-12(-ST) BE 230-12
Power voltage AC 24 V 50/60 Hz
DC 24 V AC 230 V 50/60 Hz
Power consumption:
- in operation
- in the end position
12 W
0,5 W
8 W
0,5 W
Dimensioning 18 VA (Imax 8,2 A @ 5 ms) 15 VA (Imax 7,9 A @ 5 ms)
Protection class III II
Degree of protection IP 54
Adjustment time for 95° < 60 s
Ambient temperature Storage
temperature
-30°C … +50°C
-40°C … +80°C
Connection
- drive
- auxiliary switch
Cabel 1 m, 3 x 0,75 mm2
Cabel 1 m, 6 x 0,75 mm2
(BE 24-ST) with plug connectors
Actuator Belimo BE 24-12(-ST)
Actuator Belimo BE 230-12
8
S2S1 S3 S5S4 S6
2
13
<3° <87°
S2S1 S3 S5S4 S6
2
13
<3° <87°
N L1
Power voltage AC/DC 24 V
50/60Hz
AC 230 V
50/60Hz
Power consumption - in operation
- in the end position
12 W
0,5 W
8 W
0,5 W
Dimensioning 18 VA (Imax 8,2 A @ 5 ms) 15 VA (Imax 7,9 A @ 5 ms)
Protection class III II
Degree of protection IP 54
Adjustment time for 95° < 60 s
Ambient temperature
Storage temperature
-30°C … +50°C
-40°C … +80°C
Connection - drive
- auxiliary switch
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
(BE 24-ST) with plug
connectors
8
S2S1 S3 S5S4 S6
2
13
<3° <87°
S2S1 S3 S5S4 S6
2
13
<3° <87°
N L1
Power voltage AC/DC 24 V
50/60Hz
AC 230 V
50/60Hz
Power consumption - in operation
- in the end position
12 W
0,5 W
8 W
0,5 W
Dimensioning 18 VA (Imax 8,2 A @ 5 ms) 15 VA (Imax 7,9 A @ 5 ms)
Protection class III II
Degree of protection IP 54
Adjustment time for 95° < 60 s
Ambient temperature
Storage temperature
-30°C … +50°C
-40°C … +80°C
Connection - drive
- auxiliary switch
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
(BE 24-ST) with plug
connectors

www.etsnord.com
8RDT-030-0223
®NORDfire |SEDM-L
2. Dimensions
11
The slat spacing is always 200mm.
Without flange and cover grille
11
The slat spacing is always 200mm.
With flange and cover grille over slats

Images are for illustrative purposes
We reserve the right to make changes RDT-030-0223 9
®NORDfire |SEDM-L
Oval holes in the corners are used to connect the duct.
Covering grille KMM
13
A
A
30
A (B)
17
10
10
X
A-A
Detail X

www.etsnord.com
10 RDT-030-0223
®NORDfire |SEDM-L
Nominal size
A (mm)
Number
of slats
Eective area Sef
[m2]
Weight SEDM-L
[Kg]
Weight flange
over slats [Kg]
Weight grille
over slats [Kg]
Actuator torque
(Nm)
200x430
2
0,0537 39,0 1,8 0,9
BEN (15 Nm)
250x430 0,0682 40,7 1,9 1,0
300x430 0,0827 42,4 2,0 1,1
350x430 0,0972 44,3 2,1 1,2
400x430 0,1117 45,9 2,2 1,3
450x430 0,1262 47,6 2,3 1,4
500x430 0,1407 49,3 2,4 1,5
550x430 0,1552 51,0 2,5 1,6
600x430 0,1697 52,7 2,6 1,7
650x430 0,1842 54,8 2,7 1,8
700x430 0,1987 56,5 2,8 1,9
750x430 0,2132 59,8 2,9 2,0
800x430 0,2277 61,5 2,9 2,1
850x430 0,2422 63,2 3,0 2,2
900x430 0,2567 64,9 3,1 2,3
950x430 0,2712 66,9 3,2 2,4
1000x430 0,2857 68,6 3,4 2,5
1050x430 0,3002 70,3 3,5 2,6
1100x430 0,3147 72,0 3,6 2,7
1150x430 0,3292 73,7 3,7 2,8
1200x430 0,3437 75,4 3,8 3,0
200x630
3
0,0833 50,3 2,2 1,2
BEN (15 Nm)
250x630 0,1058 52,3 2,3 1,3
300x630 0,1283 54,4 2,4 1,4
350x630 0,1508 56,6 2,5 1,6
400x630 0,1733 58,6 2,6 1,7
450x630 0,1958 60,7 2,7 1,8
500x630 0,2183 62,7 2,8 1,9
550x630 0,2408 64,8 2,9 2,0
600x630 0,2633 66,8 3,0 2,2
650x630 0,2858 70,9 3,1 2,3
700x630 0,3083 72,9 3,2 2,4
750x630 0,3308 74,9 3,3 2,5
800x630 0,3533 77,0 3,3 2,7
850x630 0,3758 79,0 3,4 2,8
900x630 0,3983 81,1 3,5 2,9
950x630 0,4208 83,5 3,6 3,0
BEE (25 Nm)
1000x630 0,4433 86,7 3,7 3,4
1050x630 0,4658 88,7 3,9 3,5
1100x630 0,4883 90,8 4,0 3,6
1150x630 0,5108 92,8 4,1 3,8
1200x630 0,5333 94,9 4,2 3,9
200x830
4
0,1129 61,8 2,6 1,5
BEN (15 Nm)
250x830 0,1434 64,2 2,7 1,6
300x830 0,1739 66,6 2,8 1,8
350x830 0,2044 69,2 2,9 1,9
400x830 0,2349 71,6 3,0 2,1
450x830 0,2654 74,0 3,1 2,2
500x830 0,2959 76,4 3,2 2,4
550x830 0,3264 80,4 3,3 2,5
600x830 0,3569 82,8 3,4 2,7
650x830 0,3874 85,5 3,5 2,8
700x830 0,4179 87,9 3,6 2,9
BEE (25 Nm)
750x830 0,4484 91,5 3,7 3,1
800x830 0,4789 93,9 3,7 3,2
850x830 0,5094 96,3 3,8 3,4
900x830 0,5399 98,7 3,9 3,5
950x830 0,5704 101,9 4,0 3,7
1000x830 0,6009 104,3 4,2 4,1
1050x830 0,6314 106,7 4,3 4,3
1100x830 0,6619 109,1 4,4 4,4
1150x830 0,6924 111,5 4,5 4,6
1200x830 0,7229 113,9 4,6 4,7

Images are for illustrative purposes
We reserve the right to make changes RDT-030-0223 11
®NORDfire |SEDM-L
Nominal size
A (mm)
Number
of slats
Eective area Sef
[m2]
Weight SEDM-L
[Kg]
Weight flange
over slats [Kg]
Weight grille
over slats [Kg]
Actuator torque
(Nm)
200x1030
5
0,1425 74,1 3,0 1,8
BEN (15 Nm)
250x1030 0,1810 76,8 3,1 1,9
300x1030 0,2195 79,6 3,2 2,1
350x1030 0,2580 82,6 3,3 2,3
400x1030 0,2965 85,3 3,4 2,4
450x1030 0,3350 89,7 3,5 2,6
500x1030 0,3735 92,4 3,5 3,0
BEE (25 Nm)
550x1030 0,4120 95,2 3,6 3,2
600x1030 0,4505 99,1 3,7 3,3
650x1030 0,4890 102,4 3,8 3,5
700x1030 0,5275 105,2 3,9 3,7
750x1030 0,5660 108,3 4,0 3,9
800x1030 0,6045 111,1 4,1 4,1
850x1030 0,6430 113,9 4,2 4,3
900x1030 0,6815 116,6 4,3 4,5
950x1030 0,7200 120,0 4,4 4,7
1000x1030 0,7585 122,7 4,5 5,2
BE (40 Nm)
1050x1030 0,7970 125,5 4,6 5,4
1100x1030 0,8355 128,2 4,7 5,6
1150x1030 0,8740 131,0 4,8 5,8
1200x1030 0,9125 133,8 4,9 6,0
200x1230
6
0,1721 85,3 3,4 2,1
BEN (15 Nm)250x1230 0,2186 88,4 3,5 2,3
300x1230 0,2651 91,5 3,6 2,4
350x1230 0,3116 94,9 3,7 2,6
BEE (25 Nm)
400x1230 0,3581 98,0 3,8 2,8
450x1230 0,4046 102,7 3,9 3,2
500x1230 0,4511 107,0 4,0 3,4
550x1230 0,4976 110,1 4,1 3,6
600x1230 0,5441 113,2 4,2 3,8
650x1230 0,5906 117,3 4,2 4,0
700x1230 0,6371 120,4 4,3 4,2
750x1230 0,6836 123,5 4,5 4,5
800x1230 0,7301 126,7 4,5 4,7
850x1230 0,7766 129,8 4,6 4,9
BE (40 Nm)
900x1230 0,8231 132,9 4,7 5,1
950x1230 0,8696 136,6 4,8 5,3
1000x1230 0,9161 139,7 4,9 5,9
1050x1230 0,9626 142,8 5,0 6,2
1100x1230 1,0091 145,9 5,1 6,4
1150x1230 1,0556 149,0 5,3 6,6
1200x1230 1,1021 152,1 5,4 6,8
200x1430
7
0,2017 96,7 3,7 2,3 BEN (15 Nm)
250x1430 0,2562 100,2 3,8 2,6
300x1430 0,3107 103,6 3,9 2,8
BEE (25 Nm)
350x1430 0,3652 109,0 4,0 3,1
400x1430 0,4197 112,4 4,1 3,4
450x1430 0,4742 117,0 4,2 3,6
500x1430 0,5287 120,5 4,3 3,8
550x1430 0,5832 124,4 4,4 4,1
600x1430 0,6377 127,9 4,5 4,3
650x1430 0,6922 132,0 4,6 4,5
700x1430 0,7467 135,4 4,7 4,8
750x1430 0,8012 138,9 4,8 5,0
BE (40 Nm)
800x1430 0,8557 142,3 4,9 5,2
850x1430 0,9102 145,8 5,0 5,5
900x1430 0,9647 149,2 5,1 5,7
950x1430 1,0192 153,3 5,2 5,9
1000x1430 1,0737 156,7 5,3 6,7
1050x1430 1,1282 160,2 5,4 6,9
1100x1430 1,1827 163,7 5,5 7,1
1150x1430 1,2372 167,1 5,6 7,4
1200x1430 1,2917 170,6 5,7 7,6

www.etsnord.com
12 RDT-030-0223
®NORDfire |SEDM-L
Nominal size
A (mm)
Number
of slats
Eective area Sef
[m2]
Weight SEDM-L
[Kg]
Weight flange
over slats [Kg]
Weight grille
over slats [Kg]
Actuator torque
(Nm)
200x1630
8
0,2313 108,1 4,2 2,6
BEE (25 Nm)
250x1630 0,2938 111,9 4,3 2,9
300x1630 0,3563 115,7 4,4 3,1
350x1630 0,4188 121,4 4,4 3,5
400x1630 0,4813 126,4 4,5 3,7
450x1630 0,5438 130,2 4,7 4,0
500x1630 0,6063 134,0 4,7 4,3
550x1630 0,6688 138,4 4,8 4,5
600x1630 0,7313 142,2 4,9 4,8
650x1630 0,7938 146,6 5,0 5,0
BE (40 Nm)
700x1630 0,8563 150,4 5,1 5,3
750x1630 0,9188 154,2 5,2 5,5
800x1630 0,9813 158,0 5,3 5,8
850x1630 1,0438 161,8 5,4 6,1
900x1630 1,1063 165,6 5,5 6,3
950x1630 1,1688 170,0 5,6 6,6
1000x1630 1,2313 173,8 5,7 7,4
1050x1630 1,2938 177,6 5,8 7,7
1100x1630 1,3563 181,4 5,9 7,9
1150x1630 1,4188 185,3 6,0 8,2
1200x1630 1,4813 189,1 6,1 8,4
200x1830
9
0,2609 120,2 4,6 2,9
BEE (25 Nm)
250x1830 0,3314 124,3 4,7 3,2
300x1830 0,4019 128,5 4,8 3,6
350x1830 0,4724 135,8 4,9 3,8
400x1830 0,5429 139,9 5,0 4,1
450x1830 0,6134 144,1 5,1 4,4
500x1830 0,6839 148,2 5,1 4,7
550x1830 0,7544 153,0 5,3 5,0
600x1830 0,8249 157,2 5,4 5,3
BE (40 Nm)
650x1830 0,8954 162,1 5,4 5,5
700x1830 0,9659 166,3 5,5 5,8
750x1830 1,0364 170,5 5,6 6,1
800x1830 1,1069 174,6 5,7 6,4
850x1830 1,1774 178,8 5,8 6,7
900x1830 1,2479 182,9 5,9 6,9
950x1830 1,3184 187,9 6,0 7,2
1000x1830 1,3889 192,1 6,1 8,1
1050x1830 1,4594 196,2 6,2 8,4
1100x1830 1,5299 200,4 6,3 8,7
1150x1830 1,6004 204,5 6,4 9,0
1200x1830 1,6709 208,7 6,5 9,3
200x2030
10
0,2905 131,3 4,9 3,2
BEE (25 Nm
250x2030 0,3690 135,8 5,0 3,6
300x2030 0,4475 143,1 5,1 3,9
350x2030 0,5260 148,0 5,2 4,2
400x2030 0,6045 152,5 5,3 4,5
450x2030 0,6830 157,0 5,4 4,8
500x2030 0,7615 161,5 5,5 5,1
BE (40 Nm)
550x2030 0,8400 166,7 5,6 5,4
600x2030 0,9185 171,2 5,7 5,7
650x2030 0,9970 176,5 5,8 6,0
700x2030 1,0755 181,0 5,9 6,3
750x2030 1,1540 185,5 6,0 6,6
800x2030 1,2325 190,0 6,1 7,0
850x2030 1,3110 194,5 6,2 7,3
900x2030 1,3895 199,1 6,3 7,6
950x2030 1,4680 204,4 6,4 7,9
1000x2030 1,5465 208,9 6,5 8,9
1050x2030 1,6250 213,4 6,6 9,2
1100x2030 1,7035 217,9 6,7 9,5
1150x2030 1,7820 222,4 6,8 9,8
1200x2030 1,8605 226,9 6,9 10,1

Images are for illustrative purposes
We reserve the right to make changes RDT-030-0223 13
®NORDfire |SEDM-L
Mounting the grille on the flange
22
Mounting the handrail on the damper
Position:
1. Flange
2. Grille
3. Screw M6x20
4. Space ring
5. Retaining ring
6. Rivet nuts
Position:
1. SEDM-L
2. Pre-drilled holes
3. Handrail
4. Screw 5x50

www.etsnord.com
14 RDT-030-0223
®NORDfire |SEDM-L
3. Placement and assembly
3.1 Multi-slat smoke and heat dampers - multi SEDM-L
• They’re designed for installation in smoke and heat removal duct according to EN1366-8.
• They’re suitable for installation in a vertical position, with the slat axis horizontal.
• Dampers and duct must be suspended separately. The connected piping must be suspended in such
a way that the transfer of all loads from the adjoining ventilation duct to the damper body is completely
excluded. Adjacent duct must be suspended or supported, as required by the duct suppliers.
• Provide the necessary space for access to the control device, it is recommended that other objects be at
least 350 mm away from the control parts of the damper.

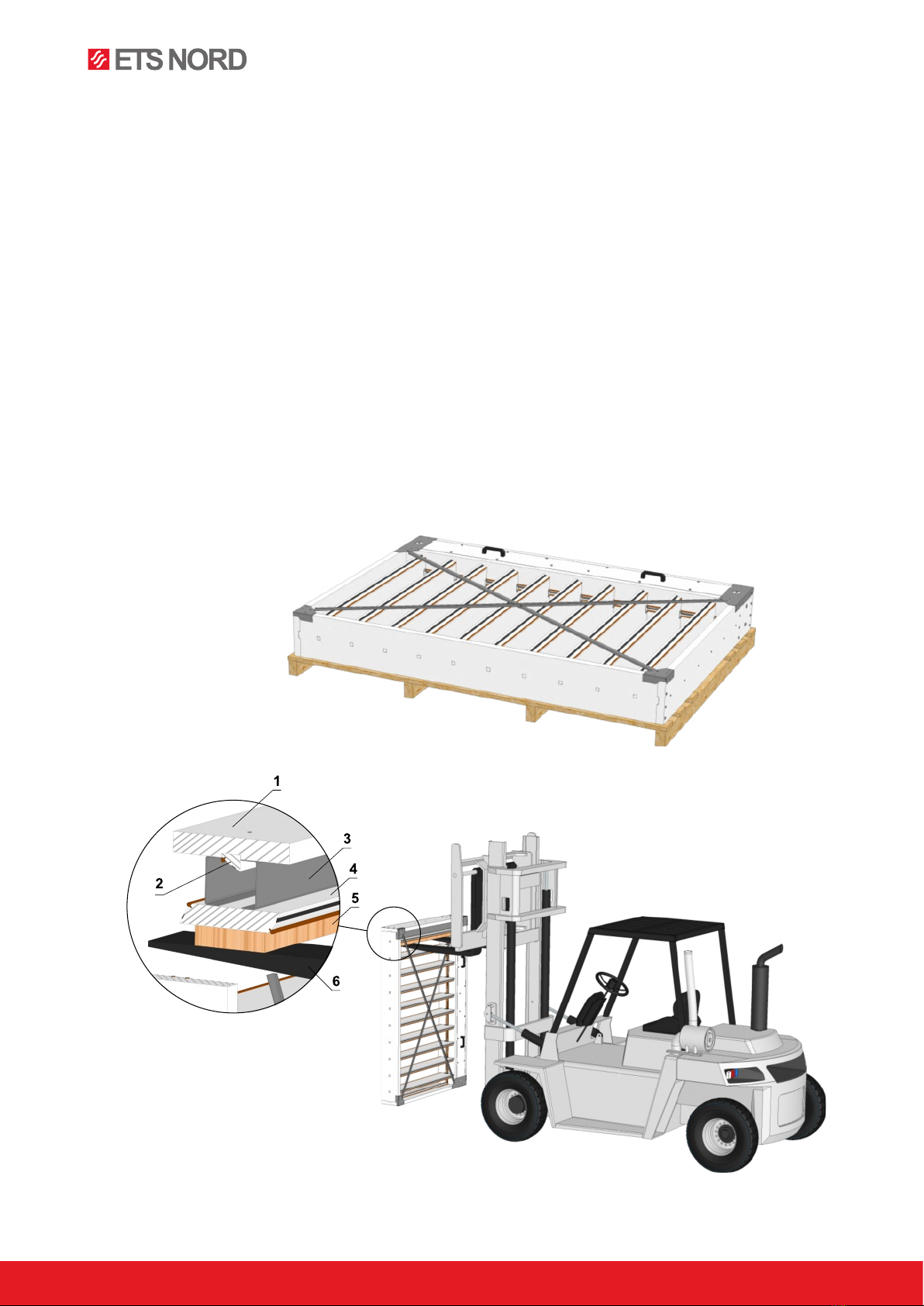

3.2 Transport to the installation site
• Transport the damper to the installation site in the transport packaging. Pay attention to the appropriate
length of the forks of the forklift /handling equipment/ to avoid breaking of wooden planks, consequently
damaging the damper´s slats.
• Smaller dimensions can be transported, handled and installed into the mounting hole manually, for
dimensions where a handling insert is included in the delivery, it is recommended to use a suitable handling
tools and machines, eg. a forklift.
3. Drive the forklift under the highest slat. It´s necessary to put a board between the slat and the fork along
the slat´s entire length so that the slat is not damaged when the damper is raised.
3.3 Damper handling when installed in the mounting hole
1. Place the damper in a vertical position. Do not remove the transport pacers and corners!.
16
●They're designed for installation in smoke and heat removal pipes according to EN1366-8.
●They're suitable for installation in a vertical position, with the slat axis horizontal.
●Dampers and pipes must be suspended separately. The connected piping must be suspended in such
a way that the transfer of all loads from the adjoining ventilation duct to the damper body is completely
excluded. Adjacent pipes must be suspended or supported, as required by the pipe suppliers.
●o provide the necessary space for access to the control device, it is recommended that other objects
be at least 350 mm away from the control parts of the damper.
●Transport the damper to the installation site in the transport packaging.
●Smaller dimensions can be transported, lifted and installed in the mounting hole by hand, for larger
dimensions we recommend using suitable handling equipment, e.g. forklift.
Position:
1Damper housing
2 Slat stop
3Handling inserts (2pc)
4Slat
5 Board
6 Forks
2. Place handling inserts between the top slat and the damper housing.
16
●They're designed for installation in smoke and heat removal pipes according to EN1366-8.
●They're suitable for installation in a vertical position, with the slat axis horizontal.
●Dampers and pipes must be suspended separately. The connected piping must be suspended in such
a way that the transfer of all loads from the adjoining ventilation duct to the damper body is completely
excluded. Adjacent pipes must be suspended or supported, as required by the pipe suppliers.
●o provide the necessary space for access to the control device, it is recommended that other objects
be at least 350 mm away from the control parts of the damper.
●Transport the damper to the installation site in the transport packaging.
●Smaller dimensions can be transported, lifted and installed in the mounting hole by hand, for larger
dimensions we recommend using suitable handling equipment, e.g. forklift.
Position:
1Damper housing
2 Slat stop
3Handling inserts (2pc)
4Slat
5 Board
6 Forks
Position:
1. Damper housing
2. Slat stop
3. Handling inserts (2 pc)
4. Slats
5. Board - not included
6. Forks

Images are for illustrative purposes
We reserve the right to make changes RDT-030-0223 15
®NORDfire |SEDM-L
17

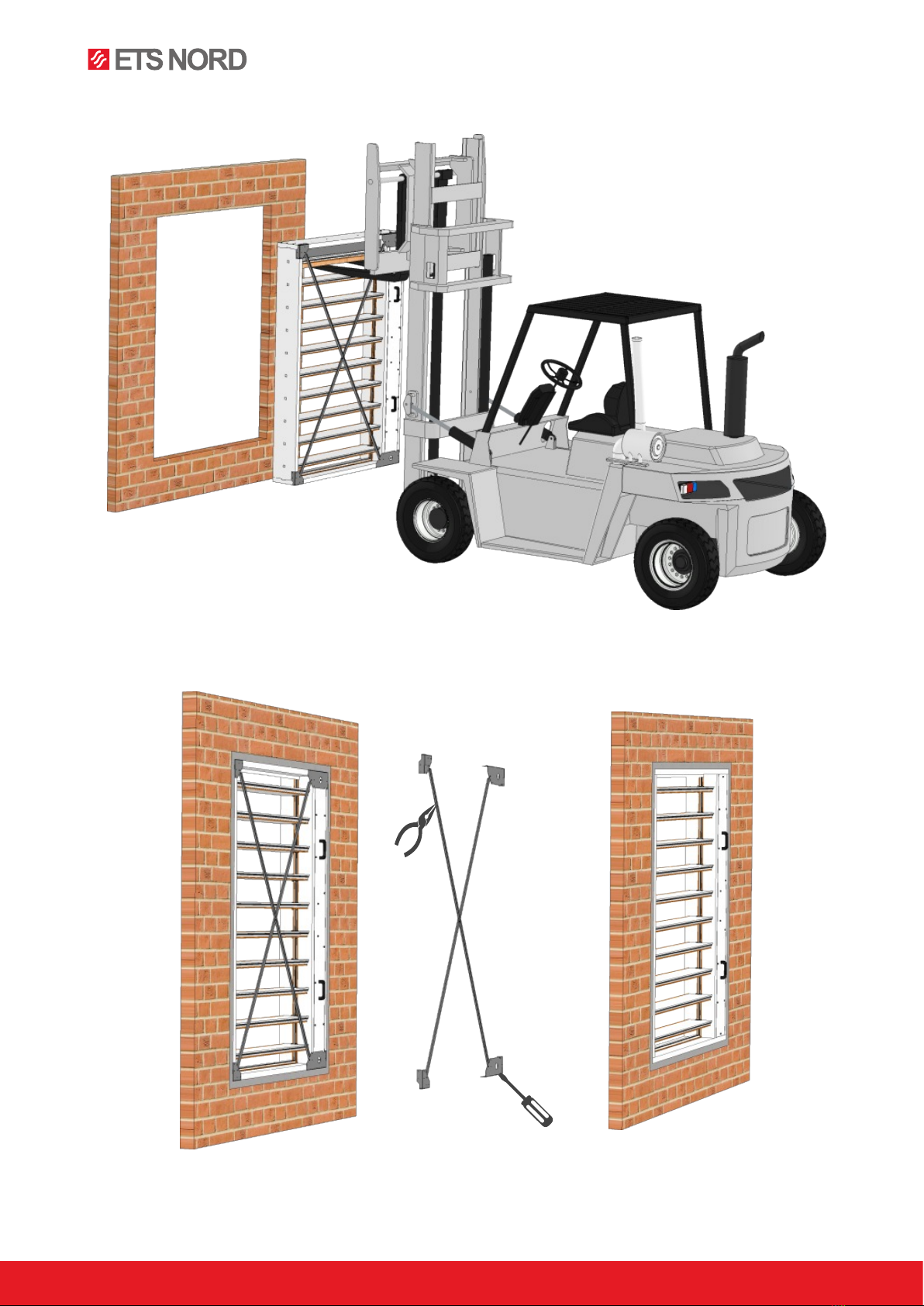

4. Place the damper in the installation hole.
5. After installing the damper and possibly hardening the plaster/mortar, remove the transport struts and
corners.
17

www.etsnord.com
16 RDT-030-0223
®NORDfire |SEDM-L
Installation of multiple dampers in a fire diving structure
• Minimum distance 200 mm between dampers installed in one fire dividing structure.
• Distance 75 mm between the damper and the structure (wall/ceiling).
• When installing SEDM-L (smaller dimensions), which is not equipped with transport spacers and corners,
the sheets must be in the “CLOSED” position. The damper body must not be deformed during installation.
• After installing the damper, the damper slats must not be opened, or closing on the damper body.
Installation side by side
Installation on top of each other
18
●Minimum distance 200 mm between dampers installed in one fire dividing structure.
●Distance 75 mm between the damper and the structure (wall/ceiling).
●When installing SEDM-L (smaller dimensions), which is not equipped with transport spacers
and corners, the sheets must be in the “CLOSED” position. The damper body must not be
deformed during installation.
●After installing the damper, the damper slats must not be opened, or closing on the damper body.
18
●Minimum distance 200 mm between dampers installed in one fire dividing structure.
●Distance 75 mm between the damper and the structure (wall/ceiling).
●When installing SEDM-L (smaller dimensions), which is not equipped with transport spacers
and corners, the sheets must be in the “CLOSED” position. The damper body must not be
deformed during installation.
●After installing the damper, the damper slats must not be opened, or closing on the damper body.

Images are for illustrative purposes
We reserve the right to make changes RDT-030-0223 17
®NORDfire |SEDM-L

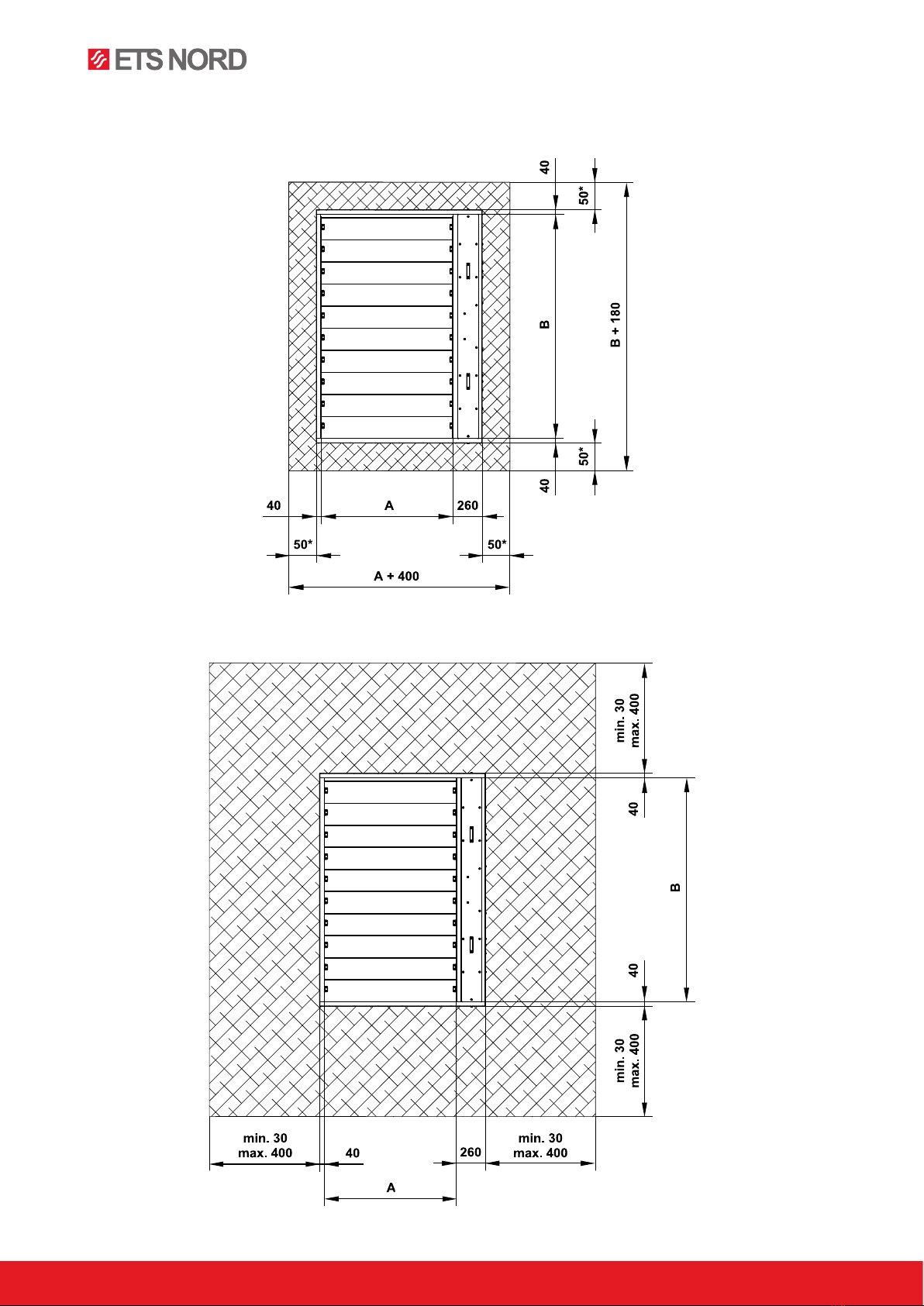

Recommended construction openings
19
Construction opening – Weichschott
*Recommended size
Construction opening – mortar or gypsum

www.etsnord.com
18 RDT-030-0223
®NORDfire |SEDM-L
4. Installation methods overview
Fire separating construction Wall
Min. thikness [mm] Installation Fire resist. Page
Solid wall / shaft construction 100 Mortar or gypsum EIS 90 18
100 Weichschott EIS 120 19
Gypsum wall / shaft construction 100 Weichschott / EIS 120 20
4.1 Instalaltion in solid / shaft wall construction
Mortar or gypsum
21
Position:
1 SEDM-L
2 Solid wall / shaft construction
3 Mortar or gypsum
4 Flange
5 Grille
A
≥ 100
A
A-A X
≥ 100
50*
This is the recommended size
X
Position:
1. SEDM-L
2. Solid wall / shaft construction
3. Mortar or gypsum
4. Flange
5. Grille
*Recommended size

Images are for illustrative purposes
We reserve the right to make changes RDT-030-0223 19
®NORDfire |SEDM-L
Weichschott fire board
22
Position:
1 SEDM-L
2 Solid wall / shaft construction
3 Fire board
4 Fire coating th. 1 mm
5 Flange
6 Grille
Example of materials used:*
3
Hilti CFS-CT B 1S 140/50
4 Hilti CFS-CT
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
A
≥ 100
A
y
X
A-A X
≥ 100
= min. 30 mm, max. 400 mm
y
yy
Position:
1. SEDM-L
2. Solid wall / shaft construction
3. Fire board
4. Fire coating th. 1 mm
5. Flange
6. Grille
Example of materials used:*
3 Hilti CFS-CT B 1S 140/50
4 Hilti CFS-CT
*Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.

www.etsnord.com
20 RDT-030-0223
®NORDfire |SEDM-L
4.2 Instalaltion in gypsum / shaft wall construction
Weichschott fire board
23
= min. 30 mm, max. 400 mm
Position:
1 SEDM-L
2 Gypsum wall / shaft construction
3 Mineral wool (type depending on the type of construction)
4 Steel profile for plasterboard constructions
5 Fire board
6 Fire coating th. 1 mm
7 Flange
8 Grille
Example of materials used:*
5
Hilti CFS-CT B 1S 140/50
6 Hilti CFS-CT
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
X
A
≥ 100
A
y
y
yy
Z
Z
A-A X
≥ 100
Example of materials used:*
5 Hilti CFS-CT B 1S 140/50
6 Hilti CFS-CT
*Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties..
Position:
1. SEDM-L
2. Gypsum wall / shaft construction
3. Mineral wool (type depending on the type of construction)
4. Steel profile for plasterboard constructions
5. Fire board
6. Fire coating th. 1 mm
7. Flange
8. Grille
