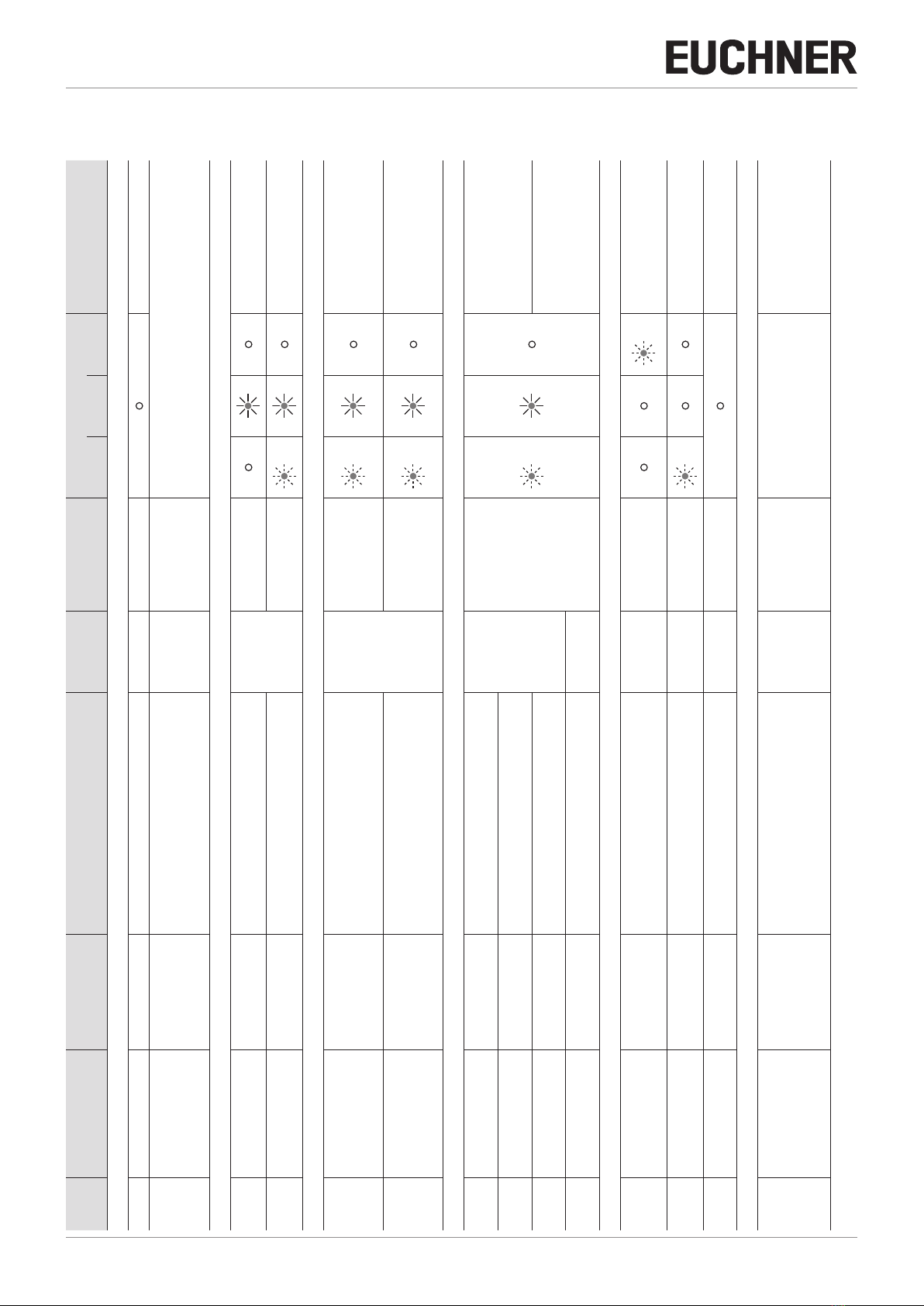

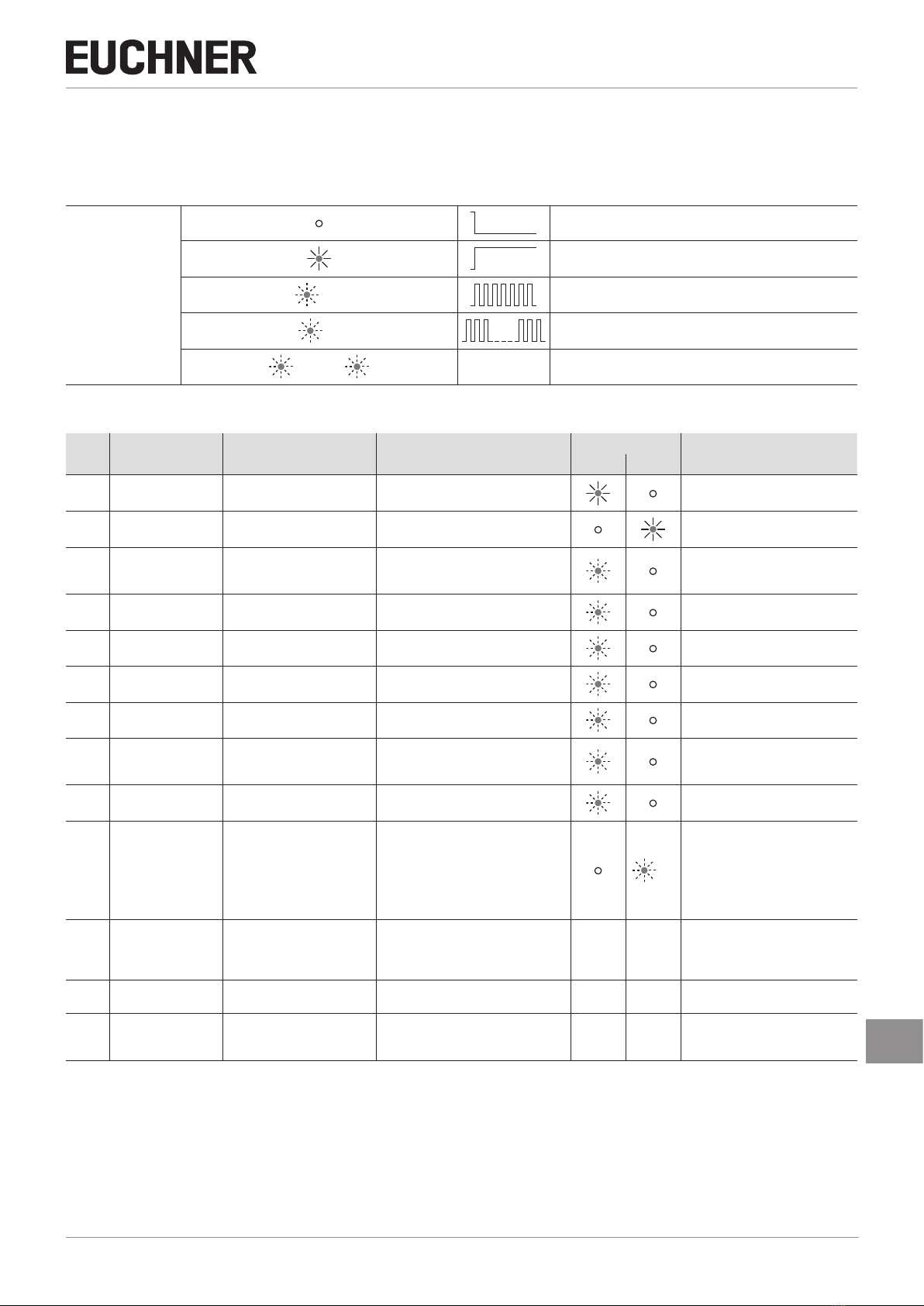

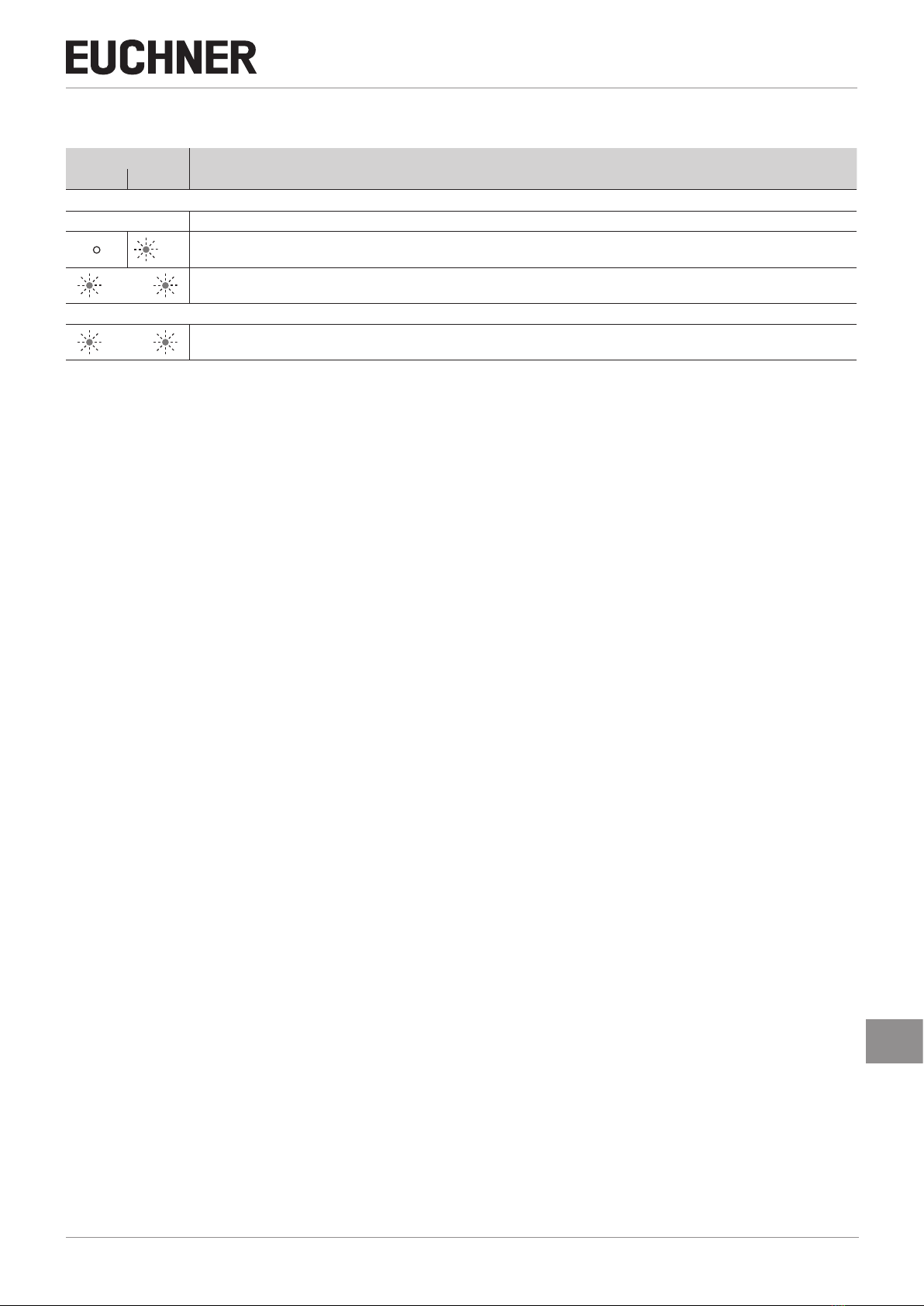

12. Status and fault displays ..................................................................................... 11
12.1. Smartcard status and fault displays................................................................................................11
12.2. EKS2 status and fault displays.......................................................................................................12
12.3. Firmware status display.................................................................................................................13
13. Technical data .................................................................................................... 14
13.1. Technical data for EKS2 ................................................................................................................14
13.2. Radio frequency approvals.............................................................................................................15

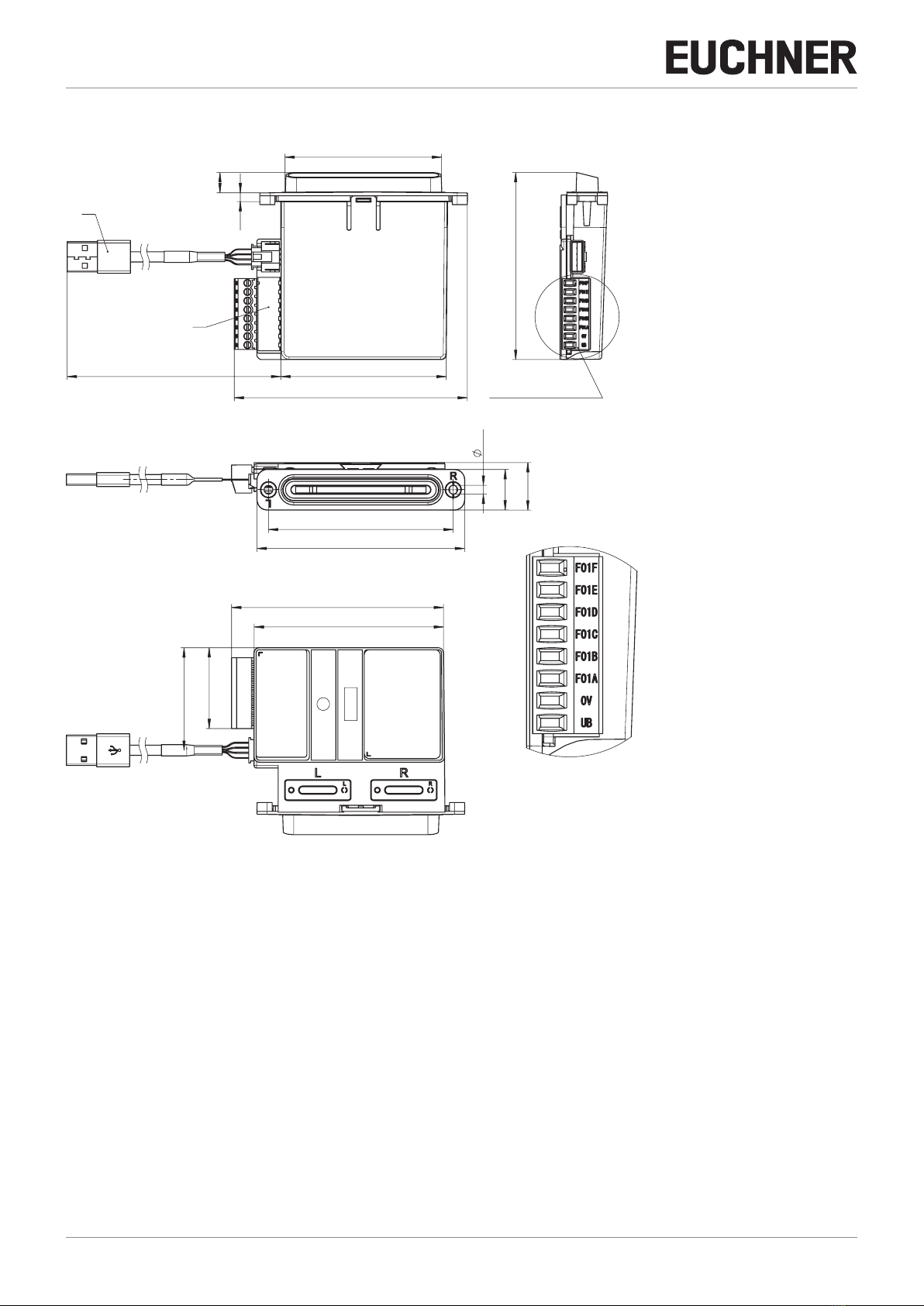

13.3. Dimension drawing for EKS2…......................................................................................................16
14. Inspection and service ........................................................................................ 17
15. Service .............................................................................................................. 17

3
2546099-01-10/21 (translation of the original operating instructions)
Operating Instructions
Electronic-Key-System EKS2
EN
1. About this document
1.1. Scope
These operating instructions apply to all EKS2-C-USB-M-I1S1-B1-… from version V1.0.0. These operating instructions, the
supplementary documents and any enclosed data sheet form the complete user information for your device.
1.2. Target group
Design engineers and installation planners for safety devices on machines as well as setup and servicing staff possessing
the following expertise:
Ìspecialist knowledge in handling safety components
Ìknowledge about the applicable EMC regulations
Ìknowledge about the applicable regulations on operational safety and accident prevention
1.3. Key to symbols
Symbol/depiction Meaning
DANGER
WARNING
CAUTION
Safety precautions
Danger of death or severe injuries
Warning about possible injuries
Caution slight injuries possible
NOTICE
Important!
Notice about possible device damage
Important information
Tip Useful information
1.4. Supplementary documents
The overall documentation for this device consists of the following documents:
Document title
(document number) Contents
Operating instructions
(2546099) (this document)
Documentation
(HTML) .NET library documentation
Assembly instructions
(2551025) Assembly instructions
Description of
testdmgmori.py Use of the pyekslibrary
Important!
Always read all documents to gain a complete overview of safe installation, setup and use of the device.

Operating Instructions
Electronic-Key-System EKS2
4(translation of the original operating instructions) 2546099-01-10/21
2. Correct use
The device is used in combination with a touch panel or softkeys as part of a higher-level overall system for selection of
operating mode.
Before the device is used, a risk assessment must be performed on the machine, e.g. in accordance with the following
standards:
ÌENISO13849-1
ÌENISO12100
ÌIEC62061
Correct use includes observing the relevant requirements for installation and operation, particularly based on the following
standards:
ÌENISO13849-1
ÌEN60204-1
The device may be operated only with suitable smartcards and the EUCHNER connection components. On the use of unsuit-
able smartcards or other connection components, EUCHNER provides no warranty for safe function.
Important!
ÌThe user is responsible for the proper integration of the device into a safe overall system. For this
purpose, the overall system must be validated, e.g. in accordance with ENISO13849-2.
ÌUse only components that are permissible in accordance with the table below.
Table 1: EKS components
Component Order number Euchner ID no. Description
Reader EKS2-… 3784024 166521 Reader
Smartcard
3875478
3875479
3860313
3875480
166173
166174
166175
166176
Smartcard for selecting an operating mode
3875481 166177 Smartcard for selecting an operating mode and the Service mode
3796652 166178 Smartcard for selecting an operating mode and the device conguration
.NET library 2546104 2546104 EKS class library
testdmgmori.py Use of the pyekslibrary

5
2546099-01-10/21 (translation of the original operating instructions)
Operating Instructions
Electronic-Key-System EKS2
EN
3. Description of the safety function
Devices from the series EKS2-… feature the following safety function:
Safe switching and monitoring of the selected operating mode
(subsystem of the safety function selection of operating mode according to ENISO13849-1)
ÌSafety function:
- Safe selection of an operating mode using a touch panel
- Safe detection of a change of operating mode
ÌSafety characteristics: category, Performance Level, PFHD (see chapter 13. Technical data on page 14).
Selection of operating mode
As a subsystem, the device fullls the subfunctions of an operating mode selector that controls the machine’s safety functions
required for the selected operating mode. A failure or malfunction of selection of operating mode can lead to the safety
functions of the selected operating mode not being activated in the machine.
A system for selection of operating mode can be subdivided into the following subfunctions according to ENISO16090-1,
for example:
ÌAccess system
ÌSelection system
ÌActivation system
Incorrect behavior or an error in the selection system subfunction can lead to the safety function of the overall selection of
operating mode system failing.
The device fullls the access system subfunction and, in combination with a touch panel, the selection systemsubfunction.
The safety function is ensured by a two-stage interaction between the device and the touch panel. This involves prompting
conrmation of the selection in a new, additional dialog.
Reading card
Checking selection
Checking conrmation
Setting outputs to safe
control system
Selecting operating
mode
Conrming selected
operating mode
Activating new
operating mode
EKS2 Touch panel Safe control system

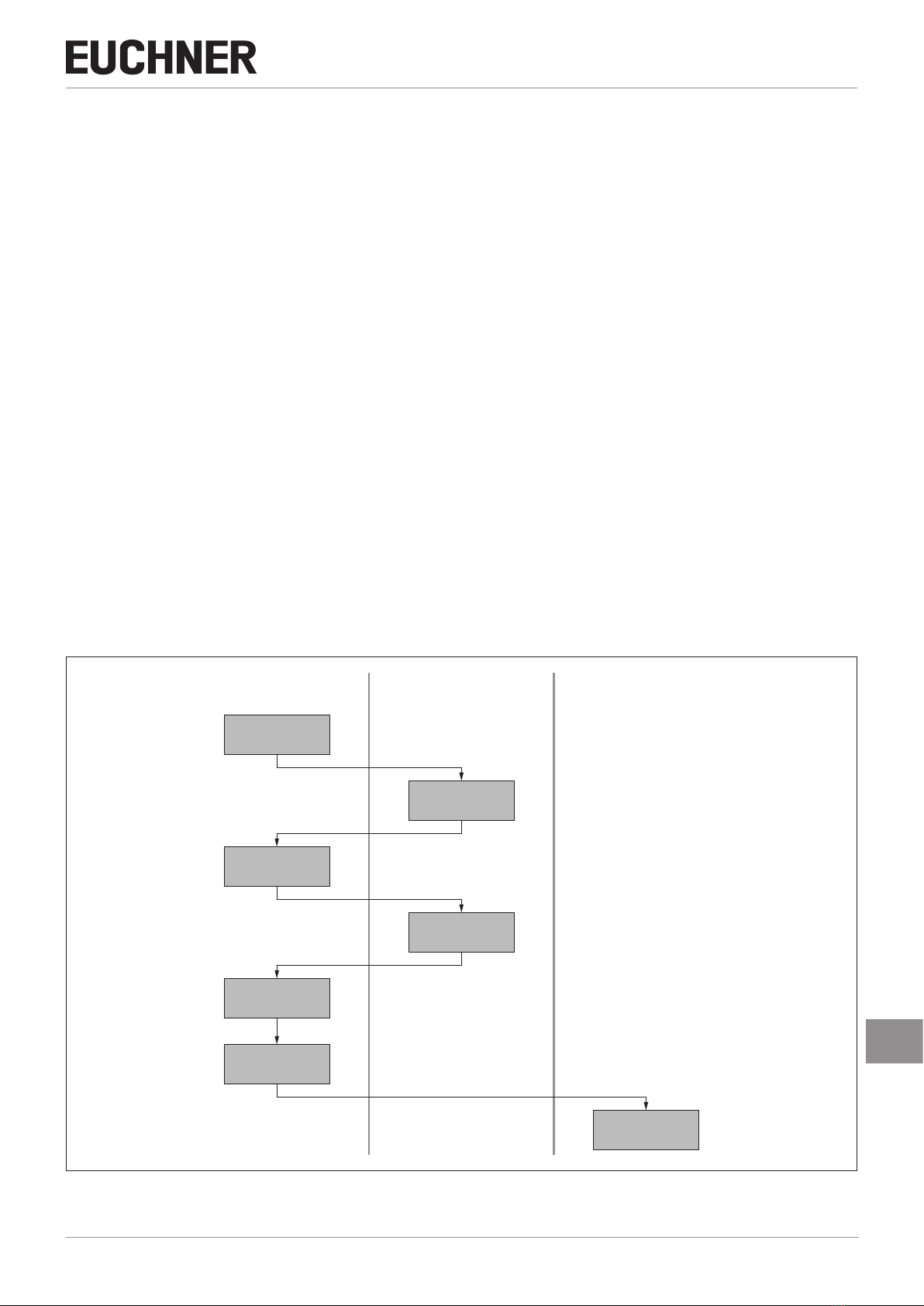

Fig. 1: Two-stage interaction between EKS2 and touch panel

Operating Instructions
Electronic-Key-System EKS2
6(translation of the original operating instructions) 2546099-01-10/21
The data structure of selection of operating mode is hierarchically structured for the individual authorization levels, and it
changes values accordingly in the individual polling levels.
MSO1 MSO3 MSO4 MSO SE MSO2
0FF0H 3333H 33CCH 3C3CH 0F0FH
MSO1 MSO3 MSO4 MSO SE MSO2
MSO1 MSO3 MSO4 MSO SE MSO2
3333H 33CCH 3C3CH 0F0FH 0FF0H
33CCH 3C3CH 0F0FH 0FF0H 3333H
MSO1 MSO3 MSO4 MSO SE MSO2
0F0FH 0FF0H 3333H 33CCH 3C3CH
Setting outputs to safe control system
Selecting operating mode
Checking selection
Conrming selected operating mode
Fig. 2: Data structure of selection of operating mode
To fulll the safety function of the overall selection of operating mode system, a suitable activation system must be connected
to the safe outputs of the device. A suitable activation system is a safe control system that can process 1-of-n signals, for
example.
The failure probability of the overall system’s safety function can therefore be calculated as follows:
PFHD,tot. = PFHD,EKS2 + PFHD,Control
EKS2
PFHD,EKS2 PFHD,Control
HMI
touch panel
Access system Activation system,
e.g. control system
Selection system 1 of n

7
2546099-01-10/21 (translation of the original operating instructions)
Operating Instructions
Electronic-Key-System EKS2
EN
4. Exclusion of liability and warranty
Liability or warranty is ruled out in case of:
ÌIncorrect use
ÌFailure to comply with the operating instructions and the safety regulations therein
ÌFailure to perform the required check for correct function
ÌChanges to the device
5. General safety precautions
Safe operating mode selectors fulll personnel protection functions. Incorrect installation of the subsystem or tampering
can lead to fatal injuries to personnel.
Observe the following safety regulations to prevent failure of the personnel protection function:
ÌVisually inspect all components for damage prior to mounting and connection. Do not use damaged components; le a
complaint with the manufacturer instead.
ÌDo not modify or replace plugs or cables.
ÌCheck the safe function of the device as a subsystem, particularly:
- each time after initial setup
- each time after replacing the device
- each time after correcting an error
- in accordance with the machine’s maintenance schedule
6. Function
The device is part of a higher-level overall system for selection of operating mode on safe control systems.
The device consists of a reader and various smartcards. Authorizations for selecting various operating modes are stored
on the smartcards.
After being read in the reader, the smartcard is checked for validity based on specic parameters. If the smartcard is rec-
ognized as valid, the operating modes available for selection can be displayed on the machine’s touch panel.
The selected operating mode is transmitted via the device’s safety outputs FO1A to FO1F to the safe control system of the
machine acting as the activation system. The safe control system must be capable of processing 1-of-n signals.
Each 1-of-n state maps an operating mode MO (Mode of Operation):
FO1A FO1B FO1C FO1D FO1E FO1F
MO1 1 0 0 0 0 0
MO2 0 1 0 0 0 0
MO3 0 0 1 0 0 0
MO4 0 0 0 1 0 0
MO Service 0 0 0 0 1 0
Safe state 1) 2) 000000
Safe state 1) 2) Two or more outputs: 1
1) Operating mode change: state duration from 2 to max. 60 ms; safe state: state duration longer than 60 ms.
2) The subsystem EKS2 is in the safe state. An error must be reported to the control system.
The LED illumination of the card holder indicates the status and error messages (see chapter 12. Status and fault displays
on page 11).

Operating Instructions
Electronic-Key-System EKS2
8(translation of the original operating instructions) 2546099-01-10/21
7. Smartcards
Various smartcards are available for the device. They differ regarding the type and scope of authorization for selection of
operating mode MO.
Order number Smartcard Selectable operating modes
3875478 Mode 1 (MO1) Automatic mode
3875479 Mode 2 (MO2) Automatic mode
Setup
3860313 Mode 3 (MO3)
Automatic mode
Setup
Automatic mode with manual intervention
3875480 Mode 4 (MO4)
Automatic mode
Setup
Automatic mode with manual intervention
Automatic mode with manual intervention without enabling device
3875481 Mode Service (MO Service)
Automatic mode
Setup
Automatic mode with manual intervention
Automatic mode with manual intervention without enabling device
Service mode
3796652 Mode Master (MO1) Automatic mode
8. Mounting
Assembly instructions are included with the device and form part of these operating instructions.
Observe the following points during mounting:
ÌInstall the reader on the side of the touch panel. If the reader is installed on the upper or lower frame of the touch panel,
make sure that:
- no dust or dirt particles can enter the card holder from above.
- vibrations cannot cause the smart card to fall out of the reader.
ÌEnsure adequate ventilation for the device to maintain the ambient temperature (see 13. Technical data on page 14).
ÌMaintain a distance of at least 2.5 mm from metal surfaces.
ÌFasten screws with a tightening torque of 1 ±0.15 Nm.

9
2546099-01-10/21 (translation of the original operating instructions)
Operating Instructions
Electronic-Key-System EKS2
EN
9. Electrical connection
9.1. General notes
WARNING
Loss of the safety function due to incorrect electrical connection.
ÌEnsure that at least four of the safety outputs FO1A to FO1F can be evaluated by a safe control
system at all times.
ÌEnsure that the safe control system can process 1-of-n signals.
ÌLay the connecting cables with protection to prevent short circuits.
ÌDo not lay connecting cables in the immediate vicinity of sources of interference.
CAUTION
Risk of damage to equipment or malfunctions as a result of incorrect electrical connection.
ÌEnsure that all circuits connected to the device comply with the regulations for low voltages with
safe electrical isolation (SELV/PELV).
ÌEnsure that power devices, which are a powerful source of interference, are installed in a separate
location away from the input and output circuits for signal processing. The cables of the safety
circuits must be installed as far away as possible from the cables of the power circuits.
ÌEnsure that, to avoid EMC interference, the physical environmental and operating conditions
at the installation site of the device comply with the requirements according to the standard
EN60204-1:2016, section 4.4.2 (EMC).
ÌPay attention to any interference elds from devices such as frequency converters or induction
heating systems. Observe the EMC notes in the manuals from the respective manufacturer.
9.2. Notes about
Important!
ÌThis device is intended to be used with a Class 2 power source in accordance with UL1310.
As an alternative an LV/C (Limited Voltage/Current) power source with the following properties can
be used:
This device shall be used with a suitable isolating source in conjunction with a fuse in accordance
with UL248. The fuse shall be rated max. 3.3 A and be installed in the max. 30 V DC power supply
to the device in order to limit the available current to comply with the UL requirements. Please note
possibly lower connection ratings for your device (refer to the technical data).
ÌFor use and application as per the requirements of 1) a connecting cable listed under the UL
category code CYJV/7 must be used.
1) Note on the scope of the UL approval: the devices have been tested as per the requirements of UL508 and CSA/ C22.2 no. 14 (protection against electric shock
and re).

Operating Instructions
Electronic-Key-System EKS2
10 (translation of the original operating instructions) 2546099-01-10/21
9.3. Terminal assignment
Connection terminal
FO1F -
FO1E MO Service
FO1D MO4
FO1C MO3
FO1B MO2
FO1A MO1
0V Ground 0 V
UB Operating voltage 24 V DC
USB interface
The device is connected to the touch panel using the permanently mounted USB cable.
10. Setup
Important!
When programming the evaluation in the safe control system, ensure that, when the operating mode
is selected, exactly one output is set at the safety outputs FO1A to FO1F for transmission to the safe
control system via 1-of-n evaluation.
This means:
ÌIf more than one output or no output is set, there is an error in the device or in the cable installa-
tion. The safe control system must be capable of reacting to such errors in accordance with the
machine’s risk assessment.
ÌWhen the device is reset, the setting of an output can be delayed by up to 5 s. Operating mode
MO1 is selected automatically after the reset.
11. Operation
Important!
If the smartcard is removed from the reader in operating mode MO4 or Service mode, the selected
operating mode will be retained for up to 15 s:
ÌIf the same smartcard is re-inserted into the reader within 15 s, the corresponding operating mode
will be regarded as still being selected.
ÌIf no smartcard is inserted into the reader within the 15 s, the device will automatically switch to
operating mode MO1.
ÌIf a different smartcard is inserted into the reader within the 15 s, the device will immediately
switch to operating mode MO1.

11
2546099-01-10/21 (translation of the original operating instructions)
Operating Instructions
Electronic-Key-System EKS2
EN
12. Status and fault displays
The card holder’s LED illumination indicates the individual status and error messages. Detailed error messages can be
output on the touch panel.
Key to symbols
LED not illuminated
LED illuminated
5Hz LED ashes at 5Hz
3 x LED repeatedly ashes three times
 LEDs ash alternately
12.1. Smartcard status and fault displays
Status
code
ENUM in .NET
‘KeyStatus’ Status/error Meaning LED indicator Troubleshooting
yellow green
0x00 NoKey Card not inserted or cannot
be read.
The device is ready for operation. No
card is inserted or card cannot be read.
Not an error
0x01 ValidKeyInsert Card inserted. Card valid. The inserted card was checked. The
card is valid.
Not an error
0x02 KeyInvalid Invalid authentication The card is valid, but an authentication
parameter does not match the pre-
scribed values.
Use card with valid parameters
0x03 KeyLocked Card blocked The card can be read but is locked. Use a valid card.
0x04 KeyExpired Expired validity date of the
card
The card can be read, but the validity
date has expired.
Use a valid card or extend the
validity date.
0x05 KeyUnknownData-
Structure
Invalid data structure The card can be read, but its data
structure is invalid.
Card does not belong to this ma-
chine. Use a valid card.
0x06 InvalidFileContent File error The le content is invalid and cannot be
read. The le is not safe (security).
Card is faulty or does not belong to
this machine. Use a valid card.
0x07 FileError File error At least one data record on the card is
invalid and cannot be read. The le is
not safe (security).
Card is faulty or does not belong to
this machine. Use a valid card.
0x08 KeyTypeNotSup-
ported
Invalid card type The card can be read, but the card type
is invalid.
Card does not belong to this ma-
chine. Use a valid card.
0x09 KeyCommuncation
Error
Communication error Disrupted communication with the touch
panel. There may be an EMC fault.
6 x
1. Switch the device off.
2. Check the connecting cables to
the touch panel and to the safe
control system.
3. Restart the device.
Contact the manufacturer if the
problem persists.
100 NoKeyWithFallback
Timeout
No card inserted, and fallback
timeout is activated.
Only in .Net library: no card inserted.
The device will switch to a different safe
operating mode when the fallback timer
elapses.
Insert a valid card with the appropri-
ate authorization within the timeout
period.
101 KeyUIDUnreadable UID of the inserted card can-
not be read.
Only in .Net library: the unique identier
(UID) of the card cannot be read.
Use a valid card.
102 KeyInMaximumMO
NotDeterminable
Error when reading the highest
permissible operating mode.
Only in .Net library: the highest permis-
sible operating mode of the inserted
card cannot be read.
Use a valid card.

Operating Instructions
Electronic-Key-System EKS2
12 (translation of the original operating instructions) 2546099-01-10/21
12.2. EKS2 status and fault displays
Error
code ENUM in .NET Error Meaning State of safe-
ty outputs Reset LED indicator Troubleshooting
green red yellow
Normal operation - The device starts. Communication not possible. All off 0x00 The device is in operation. Depending on
the selected operating mode
Depending on the card status (see “12.1. Smartcard status and fault displays”)
General errors 0x01 Enum(EKSError) +
Value(EKS Error Code)
Internal error The device has an internal error.
At least two outputs on
Reset not possible Replace the device.
0x02 Enum(EKSError) +
Value(EKS Error Code)
Conguration error Invalid conguration Reset not possible
1 x Restart the machine.
Output error 0x10 Enum(EKSError) +
Value(EKS Error Code)
Invalid output state The output state is invalid (1-to-n):
ÌSeveral outputs are switched (short circuit). ÌWrong output is switched. ÌThe output cannot be switched. At least two
outputs on
Select operating mode again or restart via .NET library 2 x
Internal error or connection error. Check connections.
0x11 Enum(EKSError) +
Value(EKS Error Code)
Voltage is too high or too low.
Voltage monitoring at the outputs reports an error:
ÌThe output voltage is too high. ÌThe output voltage is too low.
Select operating mode again or restart via .NET library 2 x
Check connections.
Environment error 0x20 Enum(EKSError) +
Value(EKS Error Code)
Supply voltage too high
All off Select operating
mode again or restart via .NET library 3 x
Check connections and power supply.
0x21 Enum(EKSError) +
Value(EKS Error Code)
Supply voltage too low
0x22 Enum(EKSError) +
Value(EKS Error Code)
Temperature too high Check ambient conditions.
0x23 Enum(EKSError) +
Value(EKS Error Code)
Temperature too low At least two
outputs on
Communication error 0x30 - Communication
timeout
The polling time of 1 s was exceeded. .NET library does not send an error code. Error appears only in the transfer protocol.
Irrelevant Reset possible
6 x
No or invalid card inserted. Check connections.
6 x Card is valid. Check connec-
tions.
- ? Faulty communication Only in .NET library: incorrect USB connection or
faulty cable.
Irrelevant Check connections.
Plausibility error 0x40 InvalidSelectedMO
InvalidConrmedMO
Invalid selection of operating mode
Invalid selection of operating mode:
ÌThe selected operating mode does not match
the authorization.
ÌThe conrmed operating mode does not match
the selected operating mode.
Irrelevant Reset possible See “Normal operation”

13
2546099-01-10/21 (translation of the original operating instructions)
Operating Instructions
Electronic-Key-System EKS2
EN
12.3. Firmware status display
LED indicator Meaning
green red
Firmware update
See “Normal operation” Firmware data are sent to the device during normal operation.
5 Hz The rmware update is activated via a separate command.
 The rmware update was successful. Acknowledge ashing code by restart or separate command.
Restore factory settings
 The device has been reset to the factory settings. A restart is required.

Operating Instructions
Electronic-Key-System EKS2
14 (translation of the original operating instructions) 2546099-01-10/21
13. Technical data
13.1. Technical data for EKS2
Parameter Value Unit
min. typ. max.
General
Material Polyamide PA66
Installation orientation On side
Degree of protection in the installed state IP54 at front, IP20 in panel
Safety class
Degree of contamination
Mechanical life
Ambient temperature at UB=24V -25 - +55 °C
Storage temperature Reader EKS -45 - +85 °C
Smartcard -45 - +55 °C
Weight Approx. 0.09 kg
Connection Plug-in connection terminal, 8-pin,
with screw terminal (tightening torque 0.2 … 0.25 Nm),
conductor cross-section 0.05 … 1.5 mm²
Interface to the PC USB full speed
Transfer protocol USB 2.0
Data transfer rate 12 Mbits
USB interface connection Socket type A
USB cable length 0.5 m
Output cable length 20 m
Operating voltage UB (reverse polarity protected, regulated,
residual ripple < 5%) 24 ± 15% (SELV/PELV) VDC
Current consumption 100 mA
Switching current 50 mA
The following applies to the approval acc. to UL Operation only with UL class 2 power supply or equivalent measures
Switching load acc. to UL DC 24V, class 2
External fuse (operating voltage UB) 1.5 - 10 A
Rated impulse withstand voltage Uimp - - ± 1 kV
Rated conditional short-circuit current 200 A
Resilience to vibration As per EN60947-5-2
EMC protection requirements As per IEC61000-6-2
Safety outputs FO1A/FO1B Semiconductor outputs, p-switching, short circuit-proof
- Output voltage UFO1A…UFO1F
VDCHIGH UFO1A…UFO1F UB - 1.5 - UB
LOW UFO1A…UFO1F 0-1
Switching current per safety output 1 - 50 mA
Utilization category acc. to EN60947-5-2 DC-13 24V 150mA
Caution: outputs must be protected with a free-wheeling diode in case of inductive loads
Off-state current Ir 1) 0.5 mA
Reliability values acc. to ENISO13849-1
Mission time 20 years
Monitoring of guard locking and the guard position
Category 3
Performance Level (PL) d
PFHD1.01 x 10-7/h
1) Maximum current at an output in switched-off state

15
2546099-01-10/21 (translation of the original operating instructions)
Operating Instructions
Electronic-Key-System EKS2
EN
13.2. Radio frequency approvals
FCC ID: 2AJ58-14
IC: 22052-14
FCC/IC-Requirements
This device complies with part 15 of the FCC Rules and with Industry Canada’s licence-exempt RSSs. Operation is subject
to the following two conditions:
1) This device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for compliance could void the user‘s authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploita-
tion est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Supplier‘s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identier:
EKS2-C-USB series
Responsible Party – U.S. Contact Information
EUCHNER USA Inc.
6723 Lyons Street
East Syracuse, NY 13057
[phone]
[phone]
info(at)euchner-usa.com
http://www.euchner-usa.com

Operating Instructions
Electronic-Key-System EKS2
16 (translation of the original operating instructions) 2546099-01-10/21
13.3. Dimension drawing for EKS2…
74
Z
92
66 500
62
8
3,5
X1
X2
16
82
3,5
19
73
Z 2 : 1
32
75
84
ca. 41
Socket strip

17
2546099-01-10/21 (translation of the original operating instructions)
Operating Instructions
Electronic-Key-System EKS2
EN
14. Inspection and service
Regular inspection of the following is necessary to ensure trouble-free long-term operation:
ÌCheck the secure mounting of the devices and the connections
ÌCheck for contamination
No servicing is required. Repairs to the device are only allowed to be made by the manufacturer.
NOTICE
The year of manufacture can be seen in the lower right corner of the type label. The current version
number in the format (V X.X.X) can also be found on the device.
15. Service
If servicing is required, please contact:
EUCHNER GmbH + Co. KG
Kohlhammerstraße 16
70771 Leinfelden-Echterdingen
Germany
Service telephone:
[phone]
E-mail:
[e-mail]
Internet:
www.euchner.com

Euchner GmbH + Co. KG
Kohlhammerstraße 16
70771 Leinfelden-Echterdingen
[e-mail]
www.euchner.com
Edition:
2546099-01-10/21
Title:
Operating Instructions Electronic-Key-System EKS2
(translation of the original operating instructions)
Copyright:
© EUCHNER GmbH + Co. KG, 10/2021
Subject to technical modications; no responsibility is accept-
ed for the accuracy of this information.
