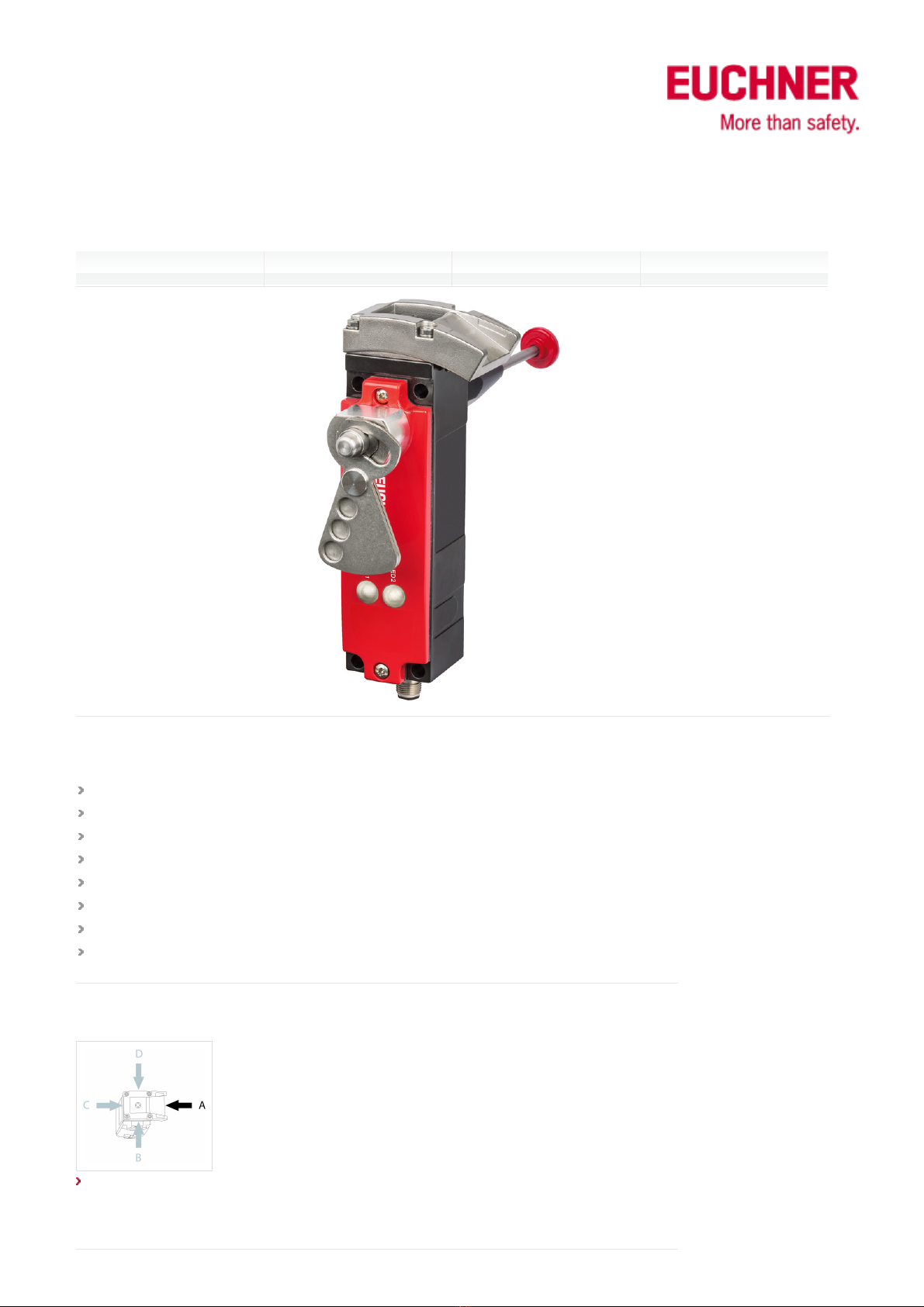

ITEM 111918 CET1-AX-LRA-00-50F-SA-C2333-111918
Features
Read head with guard locking
Locking force up to 6500 N
Up to category 4/PL e according to EN ISO 13849-1
With plug connector M12
With escape release, 75 mm long
With lockout bar
2 LEDs (1 freely configurable)
Approach direction A (default setting on delivery)
Approach direction
Figure
Horizontal
Can be adjusted in 90° steps

Lockout bar
The lockout bar can be used to prevent maintenance personnel from being
unintentionally locked in the danger area, for example.
Important: The lockout bar is not a safety function.
This device with lockout mechanism possesses no auxiliary release.
Solenoid operating voltage
DC 24 V +10% -15%
Guard locking type
CET1 Closed-circuit current principle, guard locking by spring force.
Release by applying voltage to the guard locking solenoid.
LED function display
LED rot illuminates when solenoid is switched on
LED grün freely configurable
Category according to EN ISO 13849-1
Important: The category in accordance with EN ISO 13849-1 is dependent on
the evaluation unit used and on the installation position.
Figure
Notes
Special connection cables from EUCHNER are required for the connection.
Please take into account in the order!
The read head CET may be operated only in conjunction with the actuator
CET-A-BWK-50X. The actuator must be ordered separately.
Escape release
This is used for manual release of guard locking from within the danger area
without tools.
Approvals

Mechanical values and environment
Housing material
Slide Stainless steel
Safety switch Die-cast aluminum
Weight
Net 1 kg
Ambient temperature
At U = 24V DC -20 ... 55 °C
Degree of protection IP67
Mechanical life 1 x 10
Installation position Any
Degree of freedom
X ±5 mm
Y ±5 mm
Z ±4 mm
Switching frequency 1 Hz
Connection 1 plug connector M12, 8-pin
Approach speed 20 m/min
Guard locking principle Closed-circuit current principle
Locking force F 6500 N
Locking force F 5000 N
Electrical connection ratings
Operating voltage DC
LED 24 V DC -15% ... 15% Reverse polarity protected
Current consumption
I 480 mA Solenoid
LED max.6 mA
Solenoid operating voltage DC
U 24 V DC -15% ... +10% Reverse polarity protected,
regulated, residual ripple < 5%, PELV
Rated insulation voltage U 50 V
Rated impulse withstand voltage U 1,5 kV
Power consumption
Solenoid 12 W
Solenoid duty cycle 100 %
Degree of contamination (external,
according to EN 60947-1)
3
Safety class
EN IEC 61140 III
Miscellaneous
C number
C2333 With lockout mechanism mounted
B
[1]
6
[2]
[3]
max
Zh
CM
CM
i
imp

With screwed tight plug connector
Preferably head downward
This value can vary depending on the evaluation unit used. See system documentation of
the related evaluation unit.

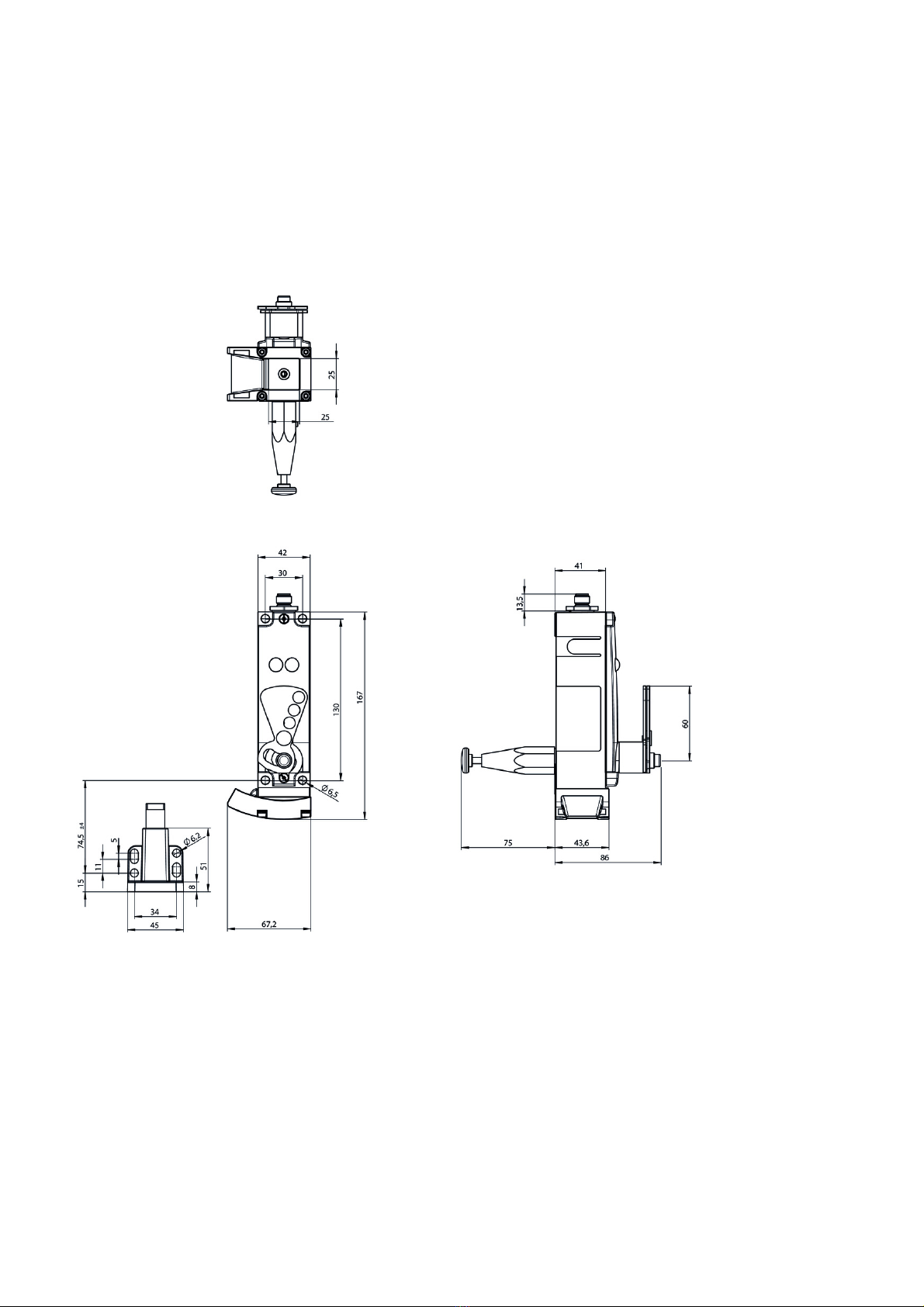

Dimension drawing
[1]
[2]
[3]

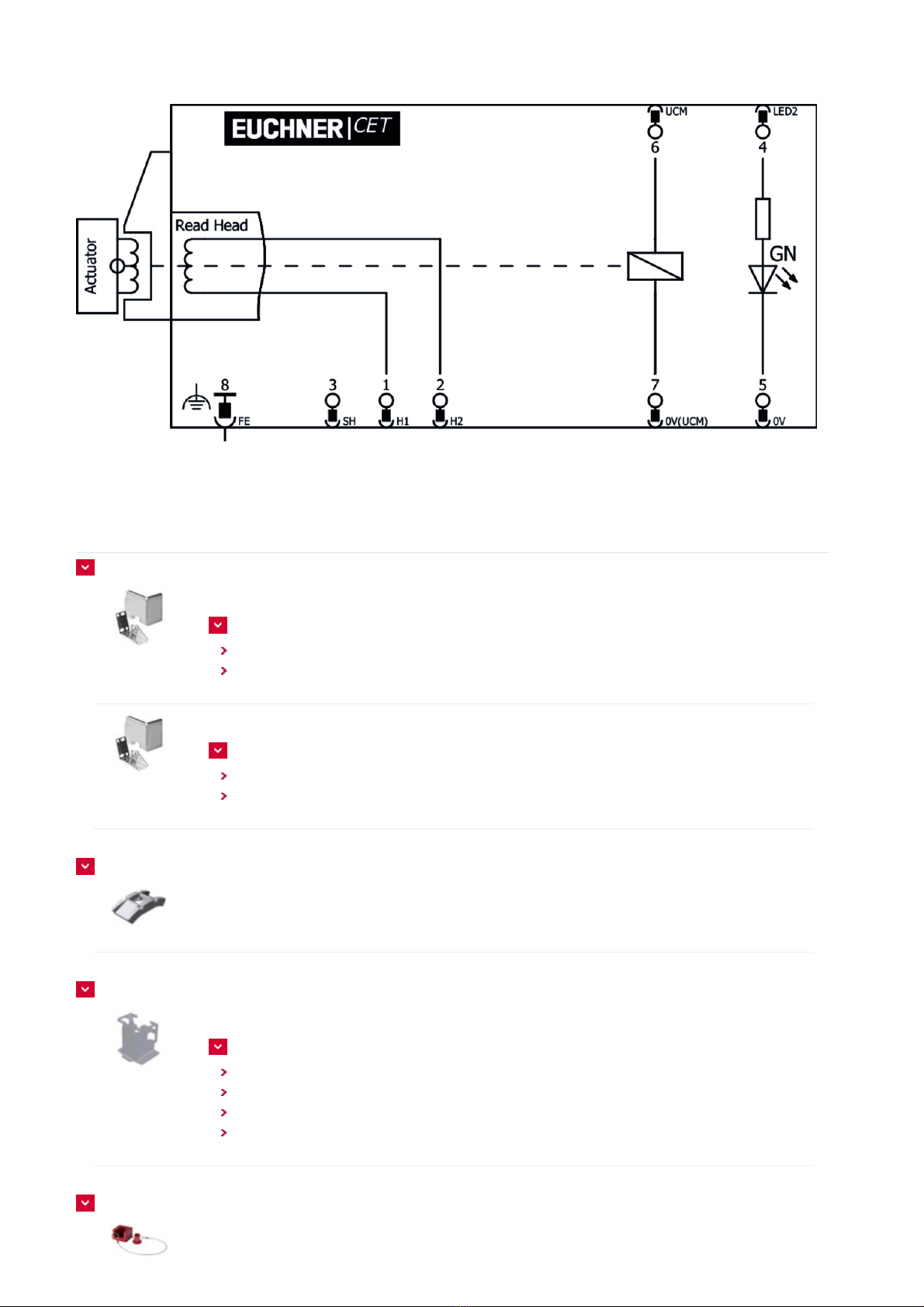

Block diagram
Function expansion
Cover for read head and actuator CET
098808 CET ABDECKUNG RECHTS
Features
Cover for read heads / safety switches CET and actuators CET
For approach direction A
098807 CET ABDECKUNG LINKS
Features
Cover for read heads / safety switches CET and actuators CET
For approach direction C
Double ramp for safety switch/read head CET
114091 CET-DR
Cover for actuator CET
124979 AM-C-124979
Features
Cover for actuator CET
Horizontal and vertical fastening option on the actuator
Mounting using 4 screws M5x16 (included with the actuator)
Not suitable in combination with lockout bar for actuator CET
Lockout mechanism for CET actuator
122609 AE-L-CET-122609

Features
Prevents unintentional closing of the door
Can be secured with padlocks
Not suitable in combination with cover AM-C for actuator CET
Extension of the escape release CET
127377 AF-E-80-127377
Features
Extension of the CET escape release by 30, 50 or 80 mm
Actuator
Actuator CET-A-BWK-50X
096327 CET-A-BWK-50X
Features
Actuator for read head/safety switch CET
Four safety screws M5x16 included

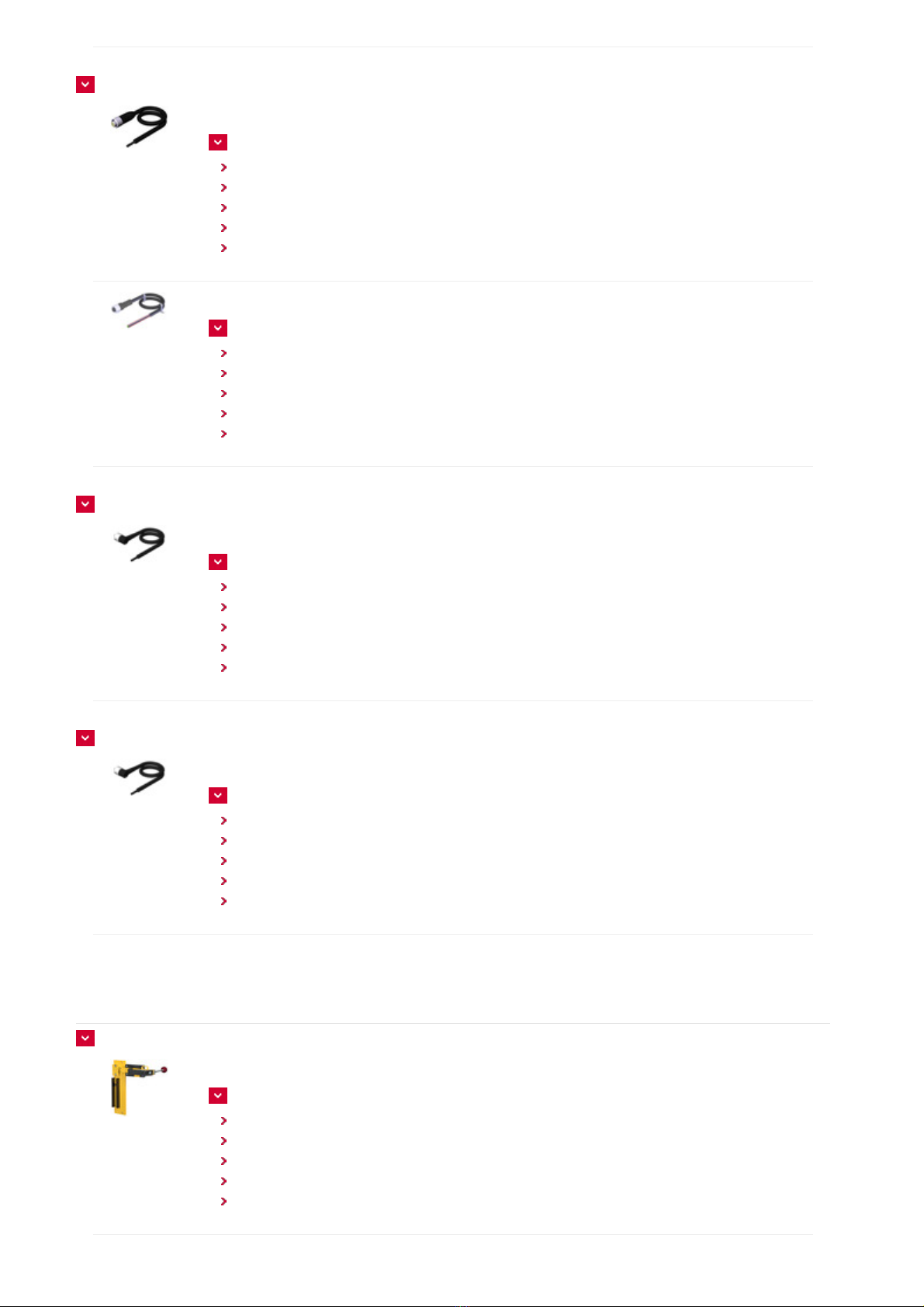

Connection material
Connection cable with plug connector M12, 8-pin, 10m
099633 C-M12F08-07X025PV10,0-MA-099633
Features
M12 female plug, 8-pin
Straight plug connector
PVC cable
Cable length 10 m
With flying lead
102218 C-M12F08-07X025PU10,0-MA-102218
Features
M12 female plug, 8-pin
Straight plug connector
PUR cable
Cable length 10 m
With flying lead
Connection cable with plug connector M12, 8-pin, 20m
099634 C-M12F08-07X025PV20,0-MA-099634
Features
M12 female plug, 8-pin
Straight plug connector
PVC cable
Cable length 20 m
With flying lead

Connection cable with plug connector M12, 8-pin, 25m
103115 C-M12F08-07X025PV25,0-MA-103115
Features
M12 female plug, 8-pin
Straight plug connector
PVC cable
Cable length 25 m
With flying lead
103782 C-M12F08-07X025PU25,0-MA-103782
Features
M12 female plug, 8-pin
Straight plug connector
PUR cable
Cable length 25 m
With flying lead
Connection cable with angled plug connector M12, 8-pin, 10m
100456 C-M12F08-07X025PV10,0-MA-100456
Features
M12 female plug, 8-pin
Angled plug connector
PVC cable
Cable length 10 m
With flying lead
Connection cable with angled plug connector M12, 8-pin, 20m
105071 C-M12F08-07X025PV20,0-MA-105071
Features
M12 female plug, 8-pin
Angled plug connector
PVC cable
Cable length 20 m
With flying lead

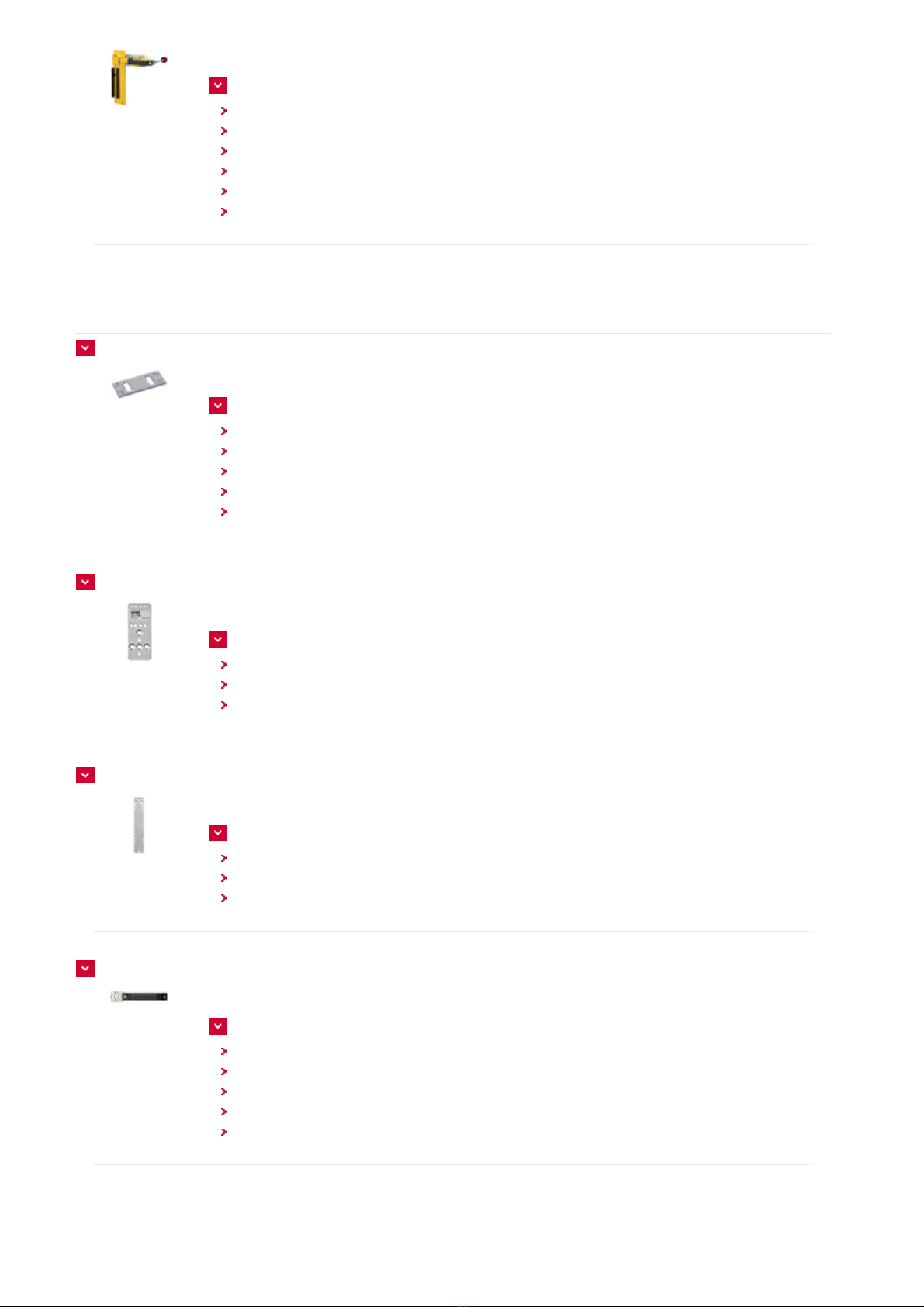

Bolt
Bolt CET-A-C/F with escape release
106172 RIEGEL CET-A-C/F
Features
Steel bolt
For doors hinged on the left or right
In combination with CET with escape release
Detent knob in open position
Can be locked in open position with padlocks

106350 RIEGEL CET-A-C/F-C2282
Features
Steel bolt
Stainless steel guide strip
For left or right hinged doors
In combination with CET with escape release
Detent knob in open position
Can be locked in open position with padlocks
Mounting accessories
Mounting plate EMP-L-… for CET read head/switches
106695 EMP-L-CET
Features
Mounting plate for CET read heads/switches
For hinged or sliding doors
Suitable for aluminum profiles 40 ... 45 mm
Horizontal and vertical mounting
Suitable for CET with escape release
Mounting plate EM-P actuator for safety switch CET
126400 AM-P-126400
Features
Mounting plate for CET actuator
Suitable for mounting on aluminum profiles of width 30/40/50 mm
Suitable for the mounting plates AM-P-126399 and AM-P-126398
Mounting plate EM-P switch for safety switch CET
126399 AM-P-126399
Features
Mounting plate for CET read heads/switches
Direct mounting on aluminum profiles of width 30/40/50 mm
Suitable for the mounting plates AM-P-126400 and AM-P-126398
Mounting plate EM-P handle for safety switch CET
126398 AM-P-126398
Features
Mounting plate with handle (handle included)
For hinged or sliding doors
Horizontal and vertical assembly circuits possible
Suitable for aluminum profiles of width 30/40/50 mm
Suitable for the CET mounting plates AM-P-126399 and AM-P-126400

Instructions
Manual de instrucciones Cabeza de lectura CET-AX con bloqueo y monitorización de bloqueo
Doc. no. Version Language Download
Betriebsanleitung Lesekopf CET-AX mit
Zuhaltung und Zuhaltungsüberwachung
Operating Instructions Read Head CET-AX with
Guard Locking and Guard Lock Monitoring
2098069 18-07/17 2.0 MB
Mode d'emploi Tête de lecture CET-AX avec
interverrouillage et contrôle de verrouillage
2098069 18-07/17 1.1 MB
Manual de instrucciones Cabeza de lectura CET-
AX con bloqueo y monitorización de bloqueo
2098069 18-07/17 1.1 MB
Istruzioni di impiego, Testina di lettura CET-AX
con meccanismo di ritenuta e controllo del
meccanismo di ritenuta
2098069 18-07/17 1.1 MB
Declaration of conformity
EU-Konformitätserklärung
Doc. no. Version Language Download
EU-Konformitätserklärung
Declaración UE de conformidad
Déclaration UE de conformité
Dichiarazione di conformità
EU declaration of conformity
2077154 34-01/17 0.5 MB
CAD data
CAD data for this item on TraceParts
