Euramco Safety UB20 Series User manual

UB20
12V DC
Euramco Safety, Inc.
2746 Via Orange Way
Spring Valley, CA 91978 USA
USA 1.800.4.RAMFAN
Tel [phone]
Fax [phone]
[e-mail]
www.EuramcoSafety.com
SM-UB2012V Rev B
Owner’s Manual

UB20 12V Owner’s Manual | Euramco Safety, Inc. | SM-UB2012V Rev B
1
Preface
Thank you for purchasing the RAMFAN UB20 12V utility blower manufactured by Euramco Safety, Inc.
For more than 30 years Euramco Safety has been on the cutting edge of industrial, fire, and marine ventilation
products. Each and every one of our blower/exhausters, smoke ejectors, PPV & LSV fans and accessories represent
the finest technologies available. Every product is constructed to demanding and exact specifications for quality,
performance, and reliability.
When human life depends on having a fan that can deliver clean, safe air, you have only one choice you can trust:
RAMFAN.
Explore our website and online catalog at www.EuramcoSafety.com and discover how RAMFAN can make a
difference in the field!
This manual covers operation and maintenance procedures for the RAMFAN UB20 12V utility blower/exhauster.
All product information in the publication is based on the most current information available at the time of
printing. Euramco Safety, Inc. reserves the right to make changes at any time without notice.
READ MANUAL BEFORE STARTING FAN FOR FIRST TIME!

UB20 12V Owner’s Manual | Euramco Safety, Inc. | SM-UB2012V Rev B
2
Table of Contents
1 | Specifications/Warnings................................................................................................................................. 3
2 | Features & Benefits ........................................................................................................................................ 3
3 | Safety Precautions........................................................................................................................................... 4
4 | Operation.......................................................................................................................................................... 5
5 | Maintenance .................................................................................................................................................5, 6
6 | Troubleshooting...............................................................................................................................................6
7 | Spare Parts....................................................................................................................................................... 7

UB20 12V Owner’s Manual | Euramco Safety, Inc. | SM-UB2012V Rev B
3
1 |Specifications/ Warnings
* Specifications are subject to change without notice. Some values are approximate.
CAUTION! This fan requires a 12VDC battery power source. Do NOT use a higher voltage battery
than 12VDC.
The UB20 12VDC blower/exhauster is also available with RAMFAN's Battery Pak™and charger system for up to
10 hours of operation.
2 | Features & Benefits
RAMFAN® combines high performance turbofan design with high strength polymers to create a line of rugged,
portable turbo blowers. The UB-Line is ideal for general use, confined space ventilation and delivers the highest
airflow in its class. The double-wall, polyethylene casing is light-weight, corrosion and chemical resistant and
handles the bumps and falls of any job site.
The 8"/20 cm UB20 turbo blower is at the heart of the RAMFAN industrial ventilation systems that provide you with
the complete solution for common confined space ventilation applications. The multi-purpose blower and exhauster
delivers powerful airflow in a compact and lightweight package.
Compact & Lightweight
Integrated Duct Adapter
Cord Strap
15'/4.6 m Extended Reach Jumper Cable
Ultra-Quiet
Easily attaches Quick-Couple™ Duct Canister for Exhaust/Suction
MODEL
UB20 12V
Part Number
ED9002
Airflow
862 cfm / 1465 m3/hr
Volts
12V DC
Amps
11.5A
Motor output max.
1/4 Hp / 0.19 kW
Protection class
IP55
Height x Width x Length
14 x 12 x 13 in / 36 x 31 x 33 cm
Weight
17 lbs / 8 kg
Sound level @ 3’ / 1 m
74 dB(A) @ 3’ / 1 m

UB20 12V Owner’s Manual | Euramco Safety, Inc. | SM-UB2012V Rev B
4
3 | Safety Precautions
Before Operation
Before starting for the first time: DO NOT START fan if there are any signs of shipping damage,
particularly to blade, guards, or housing. If ANY damage is suspected, STOP and call your dealer
immediately.
Keep children away: Do not allow children to play with or around the unit, which could result in injury. Be
sure the unit is inaccessible to children when not attended.
Power Cable: Only use power cable or jumper cable provided by Euramco Safety for use with RAMFAN
UB20 12V.
Handle with care: Do not drop or throw the unit. Rough treatment can damage the components or wiring and
create a hazardous condition.
Run on stable surface: Start only if blower is sitting in a stable and upright position. While on level surface
and running at full speed, the blower should not move around. If unit is moving, check rubber feet for damage
and replace if necessary.
Secure during transport: When transporting in a vehicle, secure the unit to prevent sliding and possible
injury to vehicle occupants.
During Operation
Airflow Direction: When using the blower, note the directional airflow indicator on the external housing.
Keep out of water: Never operate the unit in pooled or standing water, as this may create a risk of injury
from electrical shock. Do not store outdoors. If electrical wiring or components become wet, thoroughly dry
them before using the unit.
Safety: Proper ear and eye protection must be worn while blower is running. Keep fingers and hands clear of
blade. Do not move blower while it is running.
Keep air intakes clear: Do not clog or block air intakes, this may occur if operated to close to loose
lightweight objects such as clothing or leaves. This can cause the unit to overheat and result in a fire or
electrical hazard.
Keep away dust and dirt: Do not allow dust, dirt, or other particles to be drawn into the air intakes. Dirt in the
motor can cause it to overheat, resulting in a fire or electrical hazard. If the motor gets dirty, clean it using a
compressed air hose.
Allow repair only by qualified person: Immediately stop the unit upon hearing excessive mechanical noise
or vibration. Do not attempt to disassemble or repair the unit if you are not qualified to do so. You can perform
regular maintenance or troubleshooting, however complex problems need to be repaired by an authorized
service technician.
For information about authorized repair, call Euramco Safety Customer Service at [phone] or email
us at [e-mail].

UB20 12V Owner’s Manual | Euramco Safety, Inc. | SM-UB2012V Rev B
5
4 | Operation
1. Read the Owner's Manual completely before starting fan.
2. Wear both eye and ear protection.
3. Position the fan on a level surface.
4. Make sure the switch is in the "OFF" position before connecting a power source.
5. This blower is supplied with a 15ft jumper cable that plugs into the blower and is designed to clip to a 12V
vehicle battery. The UB20 12V may be powered by any 12V source with sufficient capacity (See specs in
table above). Battery life will depend on the capacity of the power source.
6. Check vehicle battery, clean terminals.
7. Connect jumper cable to the fan and clamp the ends to the appropriate terminals on a 12V vehicle battery.
When the unit is properly connected to the power source, flip the toggle switch to the “ON”position.
8. Check for proper operation before leaving the unit unattended. Do not move or carry the blower while it is
running.
5 | Maintenance
LOCK-OUT / TAG-OUT: When performing any maintenance, always follow all additional safety precautions
that your company may have for lock-out / tag-out procedures.
POWER OFF: Always turn the power OFF and unplug the unit before performing maintenance procedures. All
the service procedures below are to be executed with the unit unplugged. Perform before each use or as
needed.
DO NOT DISSASSEMBLE blower for maintenance reasons.
INSPECT ELECTRICAL SYSTEM: Inspect the electrical cord for damage at regular intervals. Periodically,
inspect internal wiring for bare wires, insecure fasteners, and discoloration. Remove and repair any damaged
wiring as needed. Failure to do so may lead to electrical shock or a fire hazard.
CLEAN AIR INTAKES: Clean off any accumulated lint or other materials from the finger guards. A build up will
reduce the airflow and may cause the motor to overheat and become a fire hazard. NEVER operate fan with
damaged or missing finger guards.
CLEAN EXTERIOR: Clean fan periodically to remove accumulated dust or particles using a commercially
available biodegradable cleaning solution. DO NOT use solvents containing chlorinated hydrocarbons (i.e.
MEK, Acetone)
EXTERIOR INSPECTION: Evaluate exterior components and make sure they are properly installed. Inspect
the fan for loose fasteners at least once every 6 months depending on frequency of use. Tighten any loose
fasteners immediately. DO NOT overtighten fasteners.

UB20 12V Owner’s Manual | Euramco Safety, Inc. | SM-UB2012V Rev B
6
LISTEN to the unit for abnormal sounds. Check rubber feet for excessive wear or breakage. Contact Euramco
Safety for replacement parts and installation instructions.
DO NOT WET MOTOR OR WIRING: To prevent damage to electrical components, do not use a duct or
pressure washer to clean a blower. If electrical components do become wet, dry them immediately.
6 | Troubleshooting
"FS" or Field Solutions can be handled by the technician in the field | "AST" or Authorized RAMFAN Service Technician
PROBLEM
CAUSE
See Above
SOLUTION
Motor won't run
No power to machine
FS
Plug in the unit; check circuit breaker or fuse
Switch not turned on
FS
Turn on the switch
Blower impeller jammed
FS
Remove material jamming impeller
Intake or exhaust blocked
FS
Turn machine off and allow to cool, then remove blockage
Switch is broken
AST
Call distributor or Euramco for replacement switch
Loose wiring
AST
Check wiring and tighten as needed
Motor runs but impeller turns
erratically or scrapes
Severe jolt has caused motor
mount to bend and impeller to
rub
AST
Remove motor from housing, then replace or repair
bent motor mount
Unit vibrates excessively
Accumulation of soil on impeller
FS
Clean blower impeller
Blower impeller has lost balance
AST
Balance or replace blower impeller
Blower impeller has been bent
AST
Replace blower impeller
Bent motor shaft
AST
Replace motor
WARNING: Execute all the service procedures below with the blower OFF and power cord unplugged.

UB20 12V Owner’s Manual | Euramco Safety, Inc. | SM-UB2012V Rev B
7

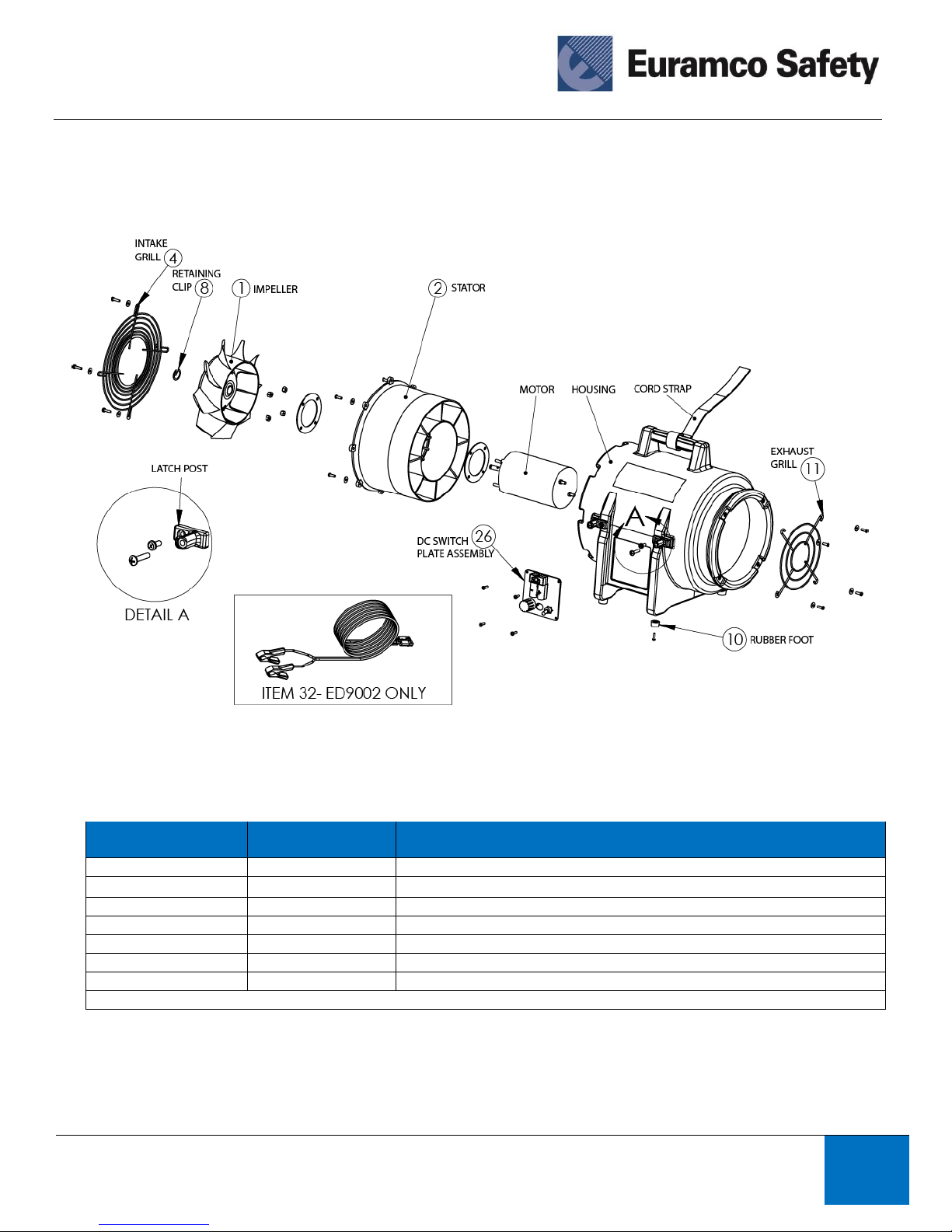

7 | Spare Parts
Contact factory for replacement parts and installation instructions.
To order spare parts call Euramco Safety +1.619.670.9590 or email [e-mail]
Model UB20 12VDC
Corresponding
Bubble No.
RAMFAN P/N
Description
1
BL011
Impeller
2
ST010
Stator
4
ED4001
Intake Grill
8
EZP80783007
Retaining Clip
10
FZ-9540K46
Rubber Foot w/washer (4)
11
ED4003
Exhaust Grill
26
ED0109DC2
UB20 DC Switch Plate Assembly w/SMH Connector
