EURO ED5DES User manual

ED5DES
euro

This manual contains sections of Safety
Instructions,Operating Instructions,
Installation Instructions and Troubleshooting
Tips etc. Carefully reading it before using the
dishwasher will help you to use and maintain
the dishwasher properly.
Reviewing the section on troubleshooting will
help you solve some common problems yourself,
without the need to ask the help of professional
technicians.
..................1
The manufacturer, following a policy of constant
development and up-dating of the product, may
make modifications without giving prior notice.
ControlPanel........................2
DishwasherFeatures................. 2
WashCycleTable.................... 3
TurningOntheAppliance..............3
Detergent...........................4
RinseAid........................... 5

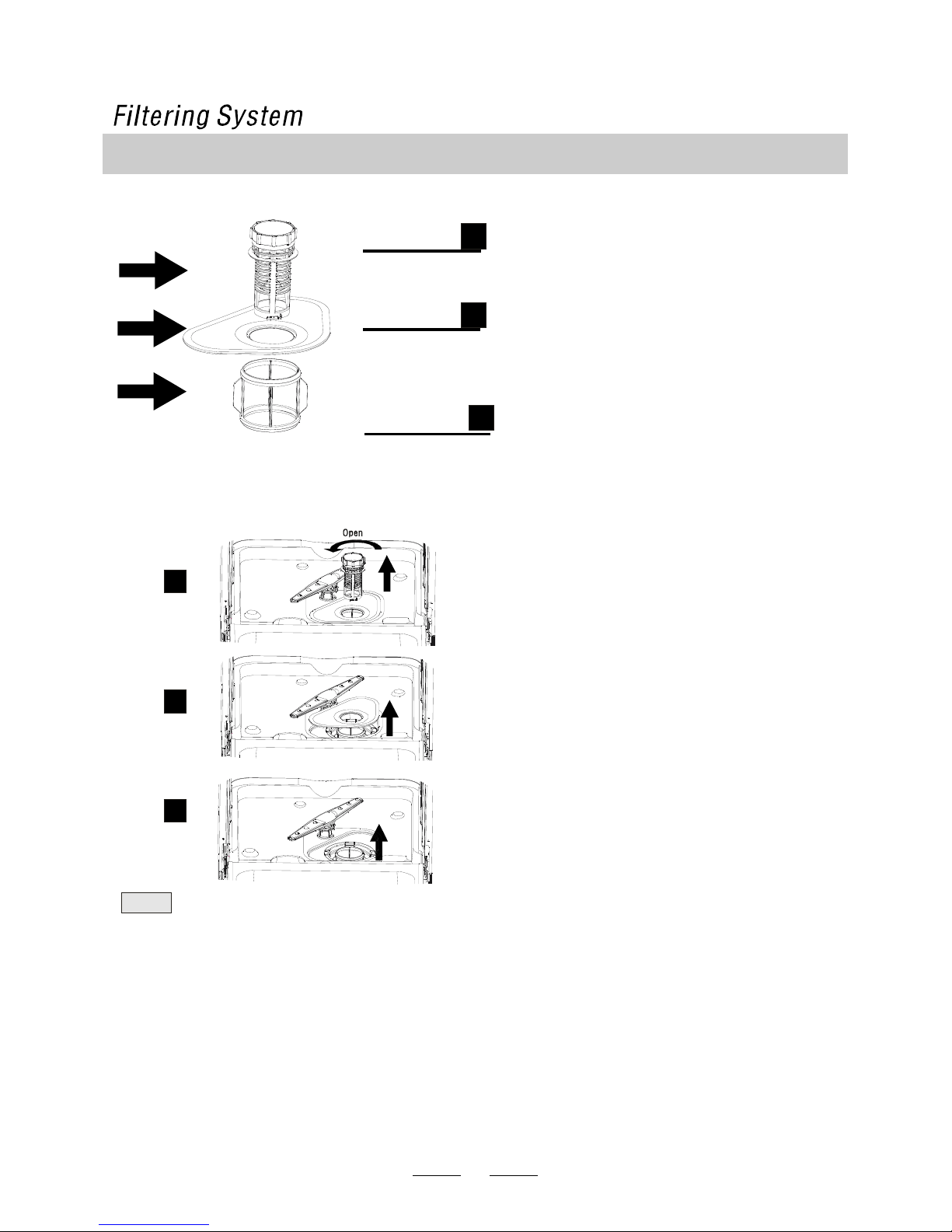

FilteringSystem......................9
CaringfortheDishwasher.............10
About Electricityconnection . . . . . . . . . . 11

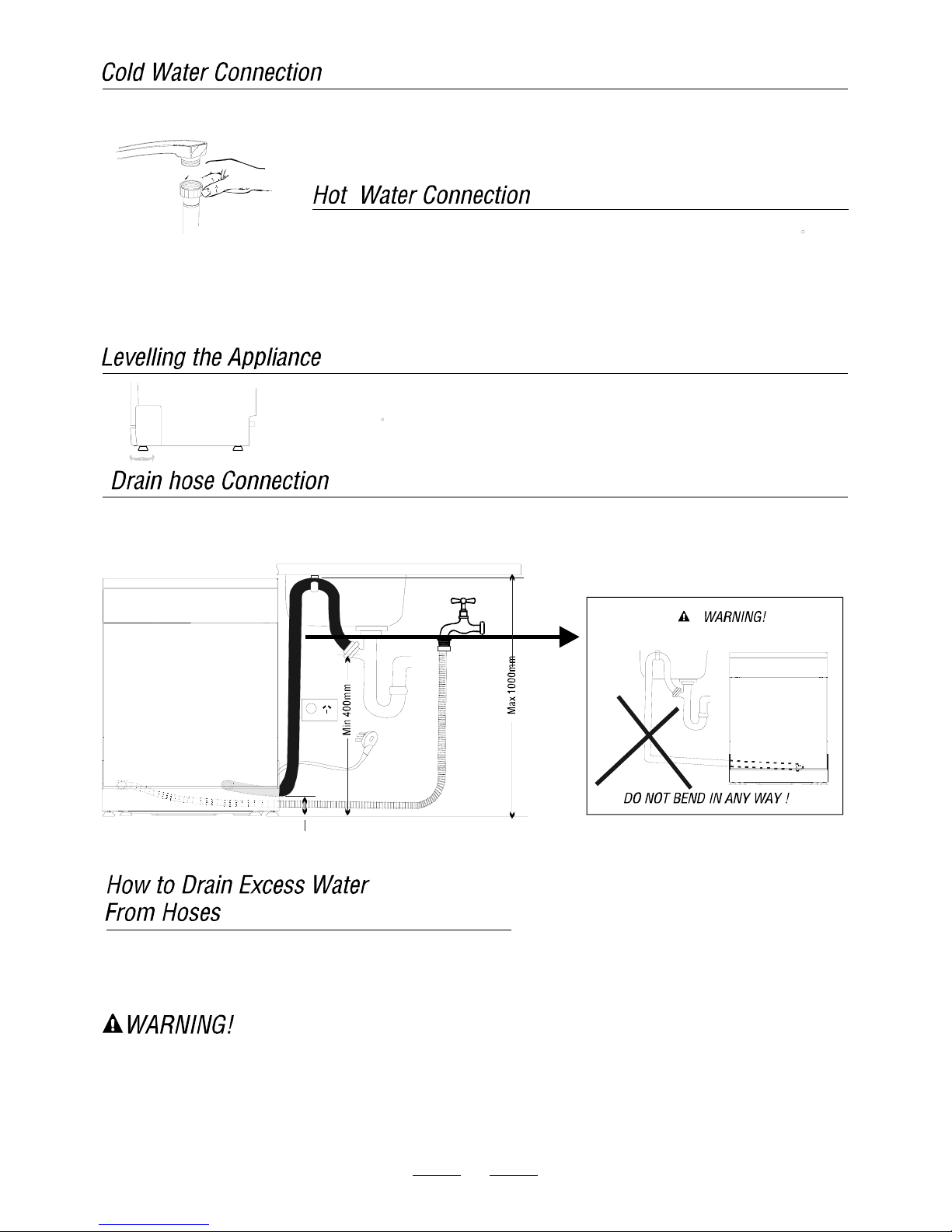

WaterConnection................... 12

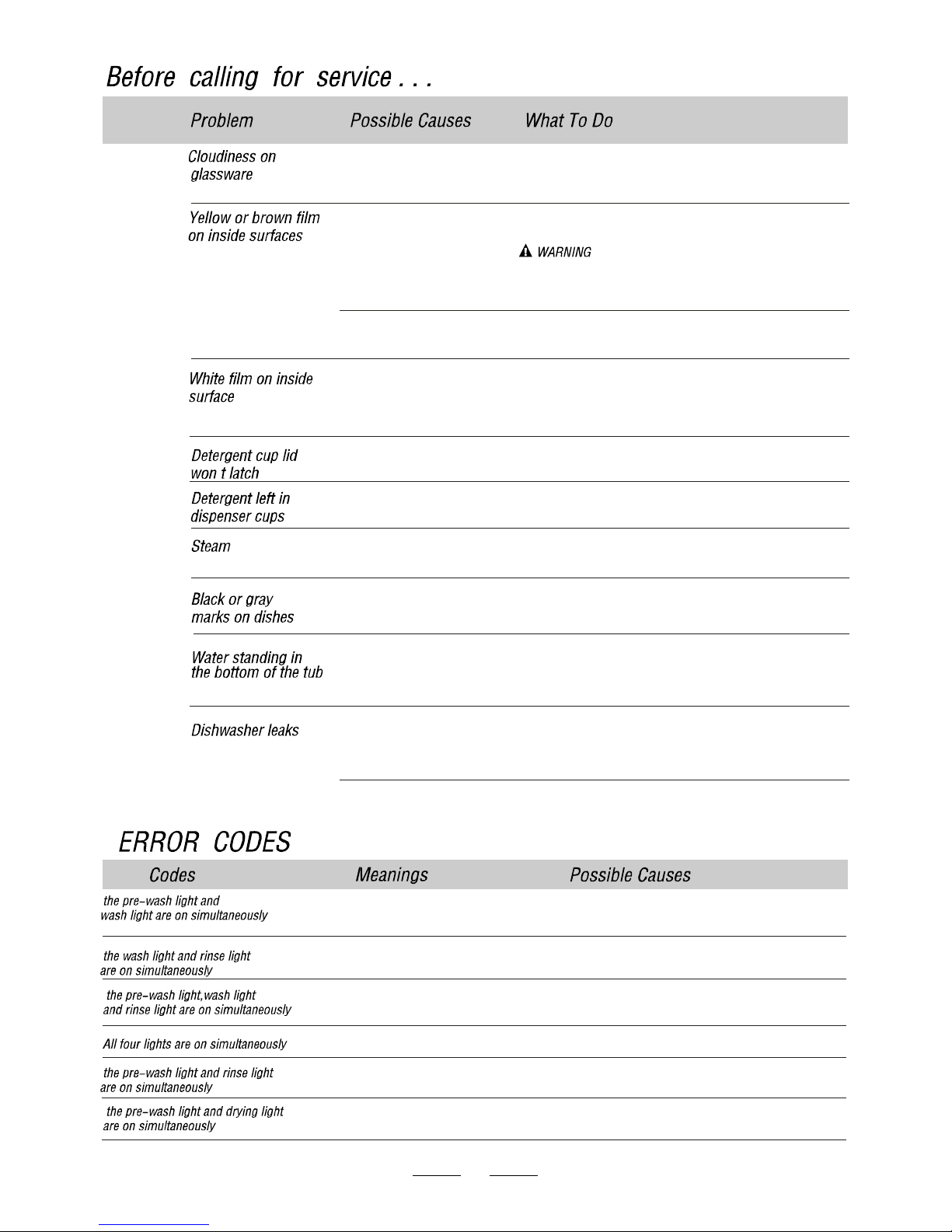

Beforecallingforservice.......... 13,14
Faultcodes.........................14
Loading the Dishwasher Rack(12 sets) . 6,7
Adjusttheupperrack................. 6
Notsuitableforthedishwasher.........8

This appliance must be grounded. In the event
of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a
path of least resistance of electric current. This
appliance is equipped with a cord having an
equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate
outlet that is installed and grounded in accordance
with all local codes and ordinances.
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service representative if you
are in doubt whether the appliance is
properly grounded. Do not modify the plug
provided with the appliance; If it is not fit
for the outlet. Have a proper outlet installed
by a qualified electrician.

Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot-water system has not been used for such a period, before using the dishwasher turn on all
hot-water faucets and let the water flow from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this
time.
1

Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren

Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
 Do not touch the heating element during or
immediately after use.

Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed
for an automatic dishwasher. Never use soap,
laundry detergent, or hand washing detergent
in your dishwasher. Keep these products out of
the reach of children.


During installation, the power supply must not
be excessively or dangerously bent or flattened.
The door should not be left in the open position
since this could present a tripping hazards.


Do not tamper with controls.

Do not operate your dishwasher unless all
enclosure panels are properly inplace. Open
the door very carefully if the dishwasher is
operating,there is a risk of water squirting out.

Do not place any heavy objects of stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Load sharp knives with the handles up to reduce
the risk of cut-type injuries.
3 Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points down
or placed in a horizontal position.
)

When using your dishwasher, you should prevent
plastic item from contacting with heating element.

If the supply cord is damaged, it must be replaced
by the manufacturer or its service agentor a
similarly qualified person in order to avoid a
hazard.

Please dispose of packing materials properly.


Use the dishwasher only for its intended function.

Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
This appliance is not intended for use by persons
(including children ) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes andkeep children away
from the dishwasher when the door is open.
Children should be supervised to ensure that they
do not play with the appliance.
Check that the detergent receptable is empty after
completion of the wash cycle.




Other means for disconnection from the supply must
be incorprated in the fixed wiring with at least 3mm
contact separation in all poles.

The appliance is to be connected to the water mains
using new hose sets and that old hose-sets should
not be reused.

The maximum number of place settings to be washed
is 12.

The maximum permissible inlet water pressure is 1Mpa.

The minimum permissible inlet water pressure is 0.04Mpa.


To get the best performance from your dishwasher,read all operating instructions before using it for the
first time.
2
6
Start / Pause Button: Press this button to start or pause the
dishwasher, the light will come on when starting.
9 Power Light : To come on when the ON Button is
Press d .e
1
2
3
4
5
Pre-rinse light:lights on pre-rinse.
Wash light:lights when washing.
Rinse light:lights when rinsing.
Drying light:lights when drying.
Door Handle:Pull it to open the door.
7
Washing Program Selector: Turn the knob clockwise to
select wash cycle.
8 ON/OFF Button: To turn ON/OFF the power supply.
11
10
Upper Basket
Spray Arms
Lower Basket
Detergent Dispenser
Silverware Basket
Main Filter
Cup Shelf
5
6
7
8
Rinse Aid Dispenser
Coarse Filter
Drain pipe connector
Inlet pipe connector
9
10
11
3
2
14
11
10
Upper Basket
Spray Arms
Lower Basket
Detergent Dispenser
Silverware Basket
Main Filter
Cup Shelf
5
6
7
8
Rinse Aid Dispenser
Coarse Filter
Drain pipe connector
Inlet pipe connector
9
10
11
3
2
14
10
Rinse Aid Warning Light : To come on when the
rinse aid dispenser needs to be refilled.
10
1
2
3
4
5
6
7
8
9

If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the main power and water supply
before calling a service.
3
Press the Start/Reset button and hold more than
threeseconds,thiswillcancelthecurrentprogramme.
(NOTE: turning off the appliance by pressing the on/off
button can not cancel the current programme, because
this model has a "broken remember" function.)
Turn the programme knob to select the desired
programme.
Press the Start/Pause button to start washing.
1
2
3
Premise
: A cycle that is underway can only be modified if it
has only been running for a short time. Otherwise, the detergent
may have already been released, and the appliance may have
already drained the wash water. If this is the case, the detergent
dispenser must be refilled (see the paragraph entitled " Loading
the Detergent " ).
NOTE: If you open the door when washing, the machine
will pause. When you close the door and press the
Start/Pause button, the machine will resume after
10 seconds.
3
4
5
6
7
8
1
Draw out the lower and upper basket, load the dishes and
push them back. It is recomended that you load the lower
basket first, then the upper one (see the section entitled
" Loading the Dishwasher " ).
Press the ON/OFF button
Turn the knob located on the right of the control panel in
the clockwise direction until the number or the symbol
for the cycle
Press the Start/Pause button to start the washing.
When the washing is over, turn off by pressing on/off
button..
Lock the door with a little force to ensure the door is properly
closed.
NOTE: A click could be heard when the door is closed
perfectly.
2
Pour in the detergent(see the section entitled,
"Salt,DetergentandRinseAid").
`
Insert the plug into the socket.
Pre-wash
-wash
Wash (50 ℃)
Rinse (70 ℃)
Drying
Pre
To rinse dishes that you
plan to wash later that day.
15 g
A shorter wash for lightly
soiled loads that do not
need drying.
Soak
5/22 g
5/25 g
22 g
Pre-wash
-wash( 0℃
Wash (70 ℃)
Rinse
Rinse (70 ℃)
Drying
Pre 5 )
Pre-wash
Wash (47 ℃)
Rinse (60 ℃)
Drying
Pre-wash
Wash (47 ℃)
Rinse
Pre-wash
(50 ℃)
Drying
Rapid
Intensive
(AS/NZS 2007.1 )
For heavy soiled loads,
such as , plates,glasses
and lightly soiled pans.
standard daily cycle.
pots
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
beensittingwithdriedfood
on them for a while.
For normal soiled loads,such
as plates,glasses,bowls and
lightly soiled pans.
required.
