User Manual
Luna Chair E37085

User Manual
Luna Chair
2
www.eurobib.com
CONTENT
Page 3 Recommended use
Page 3 Handling
Page 4 Caution
Page 4 Usage
Page 4 Cleaning advice
Page 4 Technical data
Page 4 Warranty
Page 5-6 Troubleshooting
Congratulations with your new Luna.
Please read the enclosed user manual carefully. A safe use of our products is only possible if the
operating instructions are read completely and the instructions contained are strictly observed.

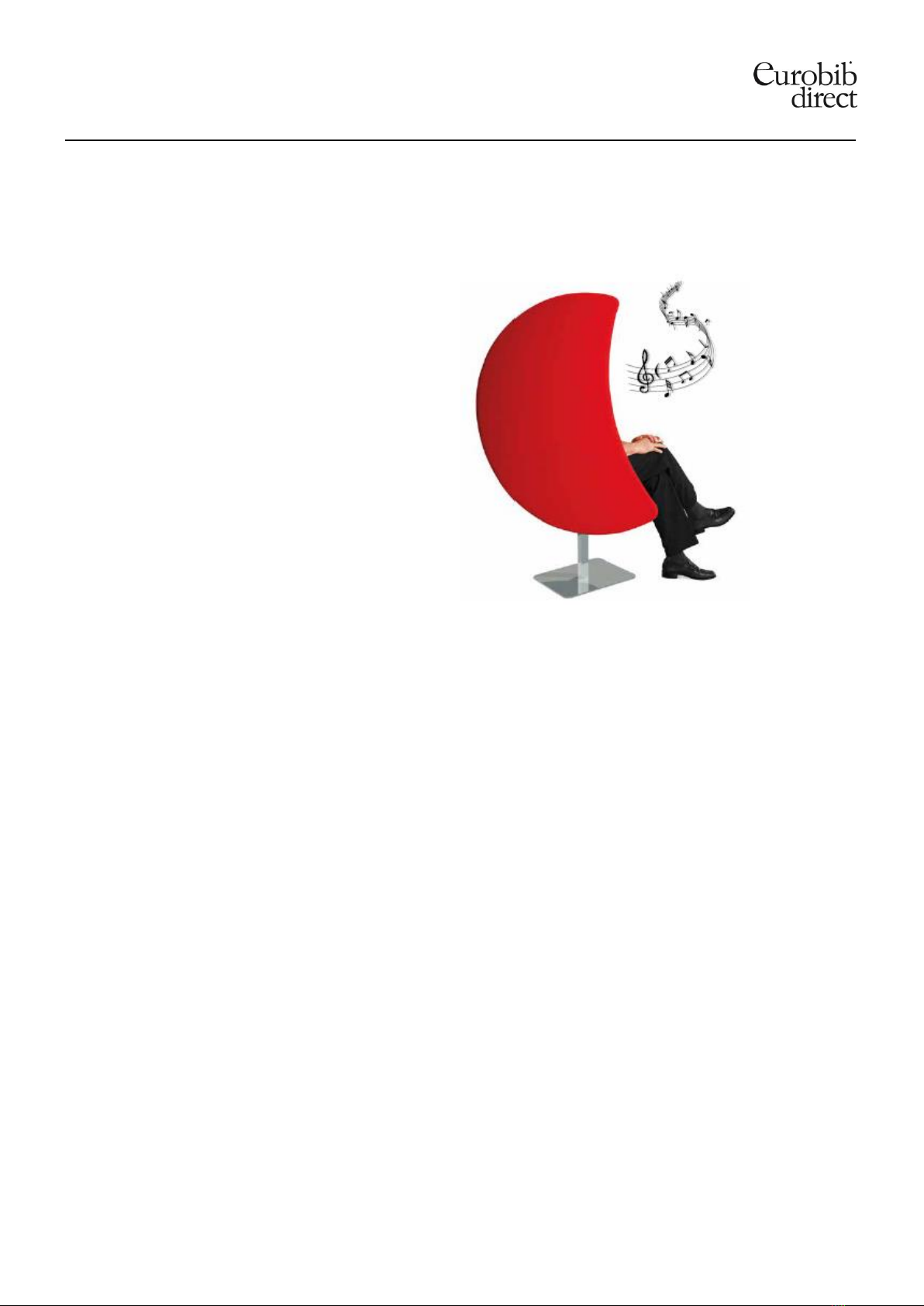

Luna is designed for active listening and relaxation. Listen to an audio book or to music (or simply enjoy
the silence). You don’t need any headphones; the audio is just there. The armchair is equipped with
integrated speakers and 3,5 mm Mini Stereo Jack connector. Simply connect to a stereo, iPad, computer
or another audio source.
Luna’s characteristic moon shape has an important sound-shielding function. No disturbing noise in or
out. The sound stays in the armchair and does not disturb anyone else.
Design Mårten Cyrén & Bertil Harström for Eurobib Direct

User Manual
Luna Chair
3
www.eurobib.com
RECOMMENDED USE
Luna is designed for public spaces and is ideal for libraries or other learning environments.
•Set-up Luna with a user accessible music device (e.g. tablet positioned in secured tablet stand), so
that the user has access to music streaming of choice.
•Set-up Luna with no user accessibility and control the music device by your staff only.
HANDLING
Luna is delivered including built in stereo speakers, amplifier, power cable and 3,5 mm Mini Stereo Jack
connector for connection of a music device. Connection cable with 3,5 mm Mini Stereo Jack plug for the
music device is not included.
•Place Luna in the desired location.
•The power cable is attached to the foot of the chair (pos.1.).
•Connect power cable to a wall socket.The chair is delivered incl. 3 m standard EU power cable which
can be changed if you wish a longer cable or a different power plug. Cable connection type C14
EN60320-1.
•Connect your music device e.g. laptop, tablet, smartphone or stereo device with a connection cable
with 3,5 mm Mini Stereo Jack under the chair (pos. 2). Please note that the connection cable is not
included as it depends on the music device.
•Adjust the volume of the speakers (pos. 3.) directly on the amplifier which is placed in the bottom of
Luna behind the velcro opening (pos.4.). Please note that the music device also influences the sound
and may require adjustment in order to achieve the optimal sound.
Cable connection with 3,5 mm Mini Stereo Jack for connection to Luna char and relevant connection
for music device are not included.
1
2
3
4

User Manual
Luna Chair
4
www.eurobib.com
•Children should not use Luna without adult supervision
•Power cable and Connection cable with 3,5 mm Mini Stereo Jack mm must be protected
against damage and to prevent people from tripping over it.
•Only authorized personnel are allowed to make adjustments on this product.
CAUTION
FAILURE TO COMPLY WITH OR OBSERVE ALL ASSEMBLY, SAFETY AND OPERATING INSTRUCTIONS AND
WARNINGS REGARDING THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS BODILY INJURY.
USAGE
•Luna is provided solely for listening and relaxation.
•It is prohibited to use Luna as a climbing aid or similar. Luna is recommended for public use in areas
which accommodate normal use.
•Only trained personal should have access to the velcro opening for maintenance and troubleshooting
reasons. The opening is therefore positioned discretely under the bottom of Luna.
CLEANING ADVICE (Gabriel Fame Fabric)
•Remove stains with lukewarm water possibly added a neutral detergent.
•It is a good idea to do a test where it will not show before applying a cleaning agent. Use only small
quantities of cleaning agent at a time and dry up with absorbent paper as you work.
TECHNICAL DATA
Size: W800 x D850 x H1475 mm
Material: Upholstered timber shell in Gabriel Fame fabric, steel base with EPC finish
Connection: Input voltage 90-264 V AC (47-63 Hz) with C14 EN60320-1 connection. (3 m
EU standard cable included)
Power consumption: 40 W Max
Sound Speakers: 30 W RMS (2 x 15 W)
WARRANTY
The product is covered by our 2-year warranty for material and manufacturing defects. The invoice is
valid as a certificate of guarantee. If you wish to make use of the warranty, please state the invoice
number. For other matters, please see our Conditions of Sales and Terms of Delivery.

User Manual
Luna Chair
5
www.eurobib.com
TROUBLESHOOTING
See drawing on page 6.
Error type Control Action
There is no sound in the
speakers (a)
Is the plug in the socket and the power
turned on?
Check the electric power, e.g. try
to connect a lamp to check that
the main supply is working.
Are all plugs connected?
Check all connections also on
music device. Check also cables
under the Velcro opening (b)
Is there any visible damage to wires,
operating units?
Any damaged parts should be
replaced.
Check volume indicators
Adjust the volume on the music
device
Adjust the volume on the
amplifier (d) in the bottom of
Luna under the Velcro opening
(b)
There is little sound in the
speakers
Check volume indicators
Adjust the volume on the music
device
Adjust the volume on the
amplifier (d) in the bottom of
Luna under the Velcro opening
(b)

User Manual
Luna Chair
6
www.eurobib.com
This drawing is included for maintenance and troubleshooting purposes only. The drawing does not
show the power cable which is connected to the amplifier (d). Cable connection type C14 EN60320-1.
a) Speakers
b) Velcro opening
c) Connector for 3,5 mm Mini Stereo Jack
d) Amplifier with volume control
e) Transformer with power cable
A
B
C
D
E
