Euromaid EBC178IB User manual

Beverage Centre
EBC178IB
User Manual
www.euromaid.co.nz euromaid.com.au
NOTE: Thank you for purchasing and using this Beverage Centre!

3
Contents
Safety instructions & warnings Page 4 - 6
Installation Page 7
Description of the appliance Page 8 - 10
Operation Page 10 - 12
Troubleshooting Page 13
Maintenance and cleaning Page 14
Technical parameters Page 15
Manufacturer Guarantee Page 16 - 17

4
Safety instructions & warnings
Your safety is of the utmost importance to our company. Please make sure
that you read this instruction booklet before attempting to install or use
the appliance. If you are unsure of any of the information contained in this
booklet, please contact the Technical Department.
Prohibition Warning Caution
Caution
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children should not play with the appliance. Cleaning
and user maintenance should not be performed by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances. Children should be supervised to ensure that they
do not play with the appliance.
• This appliance is intended for HOUSEHOLD USE ONLY and not for
commercial or industrial use.
Warning
• Keep ventilation openings in the appliance enclosure or in the built-in
structure clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.

5
• Make sure that the appliance is connected to power supply in accordance
with the rating label.
• Use an independent grounded socket with 10A or higher, do not connect to
transformer or socket with multiple outlets.
• Make sure socket is grounded properly and do not modify power cord &
plug.
• Connectpowerplugwithsocketrmlyincaseofpossibleriskofre.
• Plug should be placed within reach for easy disconnection after the
appliance positioned in case of accidents occurring.
• Donotstoreorburngasolineorotherinammablesneartheappliancein
caseofpossiblere.
• Donotstoreinammables,explosives,acid&alkalineliquidsetc.inthe
compartment of the appliance.
• Do not operate other appliances in the compartment.
Child Safety
• Do not allow children to play inside the appliance in case of entrapment.
• Do not allow children to hang on the door or play with appliance.
• Do not allow children to reach into compressor compartment or touch metal
components at rear of the appliance in case of possible injury.
Keep away from water
• Do not spray water on the appliance or wash the appliance by pouring or
llingwithwaterincaseofinvalidinsulationandpossibleelectricshock.
Be careful of freezing
• Do not touch surface of the liner inside the compartment, especially with
wet hand, in case of frozen injury while the appliance is in operation.
Do not open the door for long periods
• Openingthedoorforlongperiodscancauseasignicantincreaseofthe
temperature in the compartments of the appliance.

6
Modication on the appliance not allowed
• Do not attempt to modify the appliance by yourself as this may cause
damages to the appliance.
Unplug the appliance under certain conditions
• Unplug the appliance before cleaning & maintenance.
• Unplug the appliance when a power cut has occurred.
Disposal of the appliance
• Please adhere to local regulations regarding disposal of the appliance for
itsammablerefrigerantandblowinggas.
• Before you scrap the appliance, please take off the doors to prevent
children being trapped inside.
• Send the appliance to a designated disposal location.
Prohibition
Do not damage the power cord
• Do not disconnect the appliance by pulling power cord rather than pulling
the plug.
• Do not place the appliance on top of the power cord or step on the cord
intentionally.
• Put the power cord in the right place when moving the appliance.
When the power cord is damaged
• Do not use damaged power cord, and get it replaced immediately by
manufacturerserviceagentorbyaqualiedelectrician.
• If needed, extend the power cord with cord of 0.75mm2 or bigger by a
qualiedelectrician.

7
Installation
Position
Do not lean the appliance over 45°, especially when moving it.
 Theappliancemustbeputonat,rm&dryoororsimilar
noncombustible pad; do not use the package foam pad.
Do not put the appliance in a wet place.
Do not use the appliance in a frozen place.
Do not use the appliance outdoor in case of sunlight or rain.

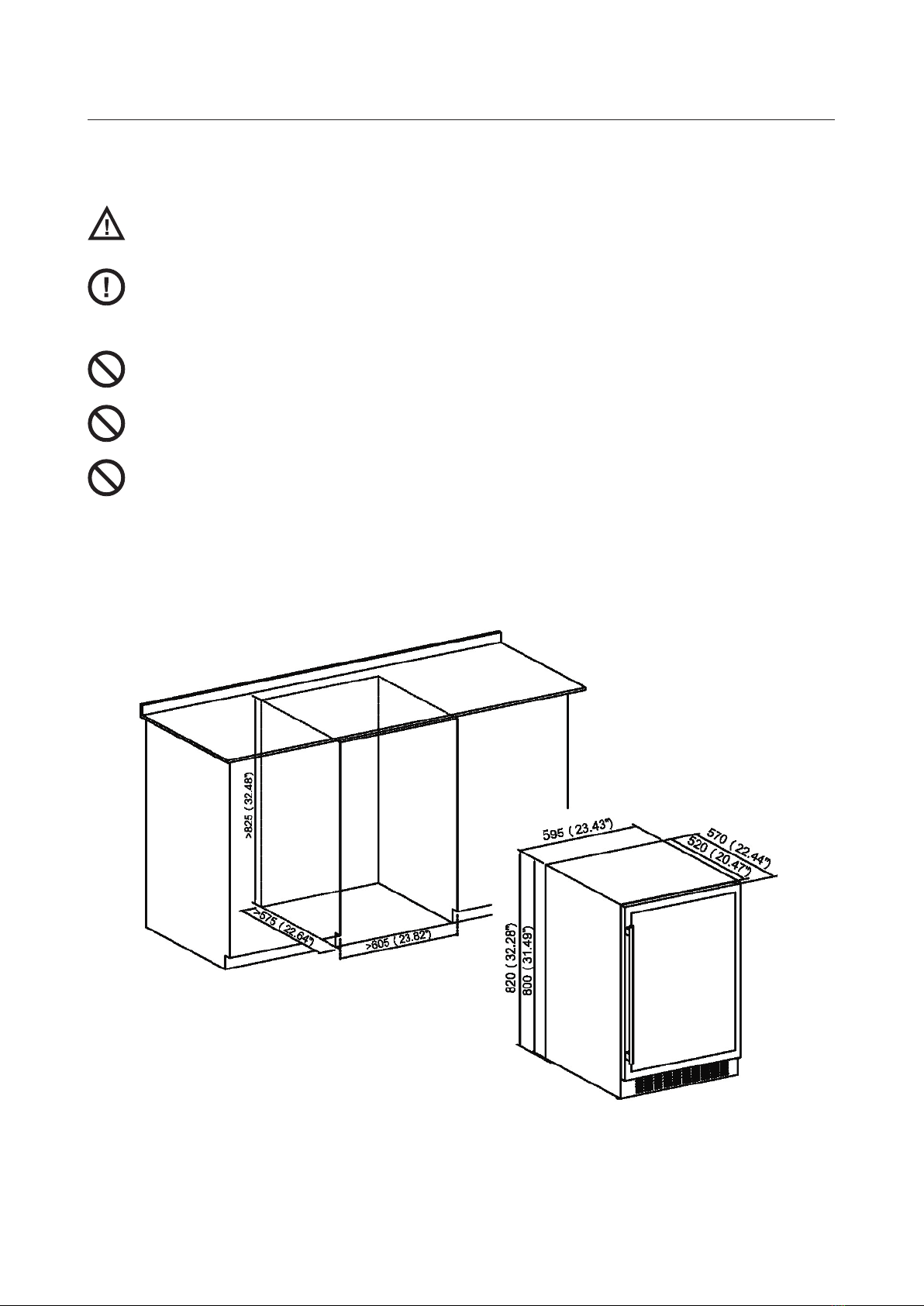

The appliance is designed to either build under the counter or stand
alone on the oor.
Demonstration for building under the counter:
Drinks can be stored inside the appliance 1 hour after turning on, when you
feel it is cool inside the appliance.

8
Description of the appliance
Overall image
Note:
Shelves, door frame, handle and other accessories may be different according to different
modelsandconguration.
All photos in this manual are for reference. The appliance you buy might not be exactly the
same as shown here.
Please refer to the actual product.
1. Housing
2. Control panel
3. Shelf
4. Cover board
5. Grill
6. Adjustable foot
7. Lower hinge cover
8. Door
9. Door seal
10. Handle
11. Upper Hinge
110
11
9
8
7
2
3
4
5
6

9

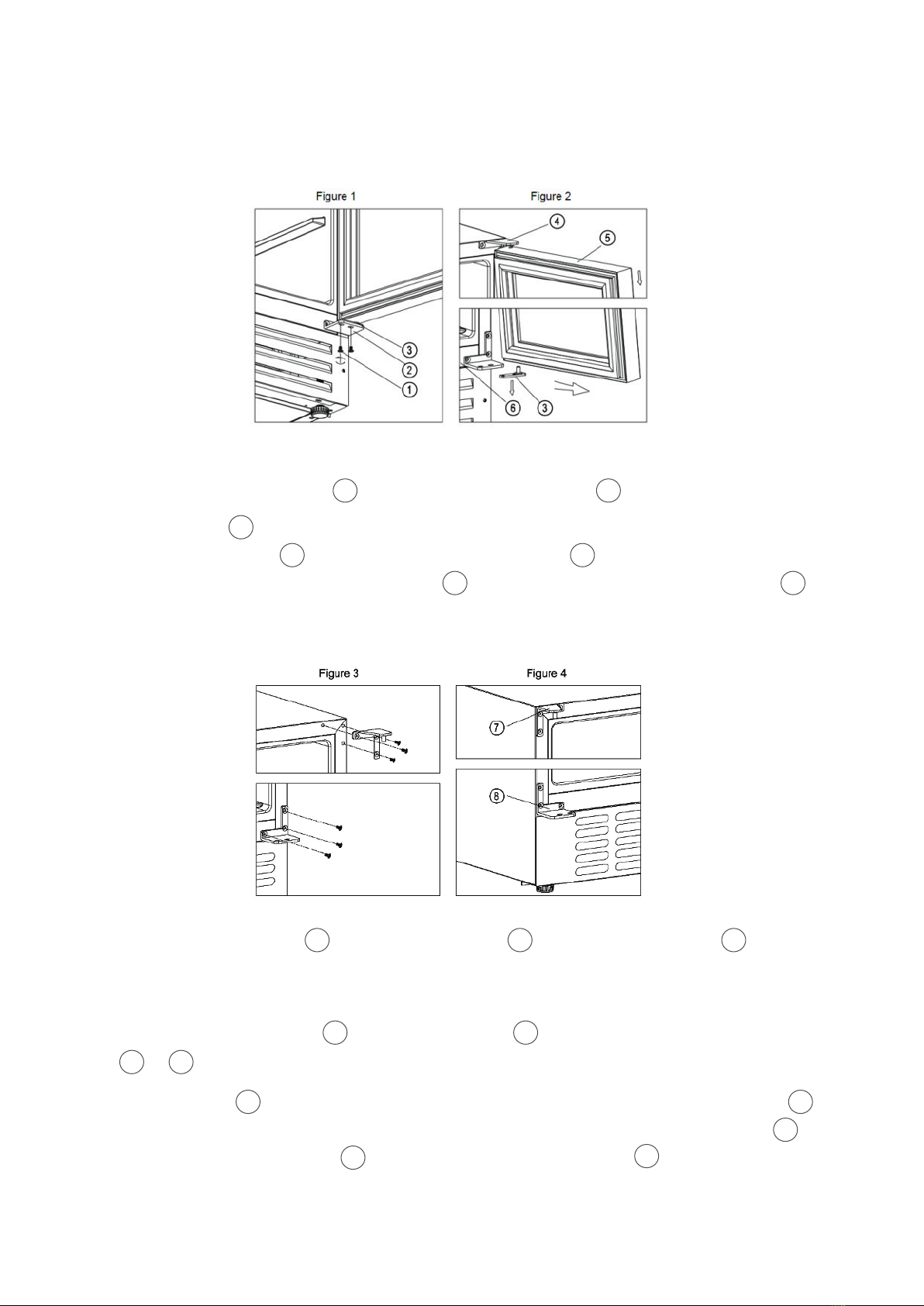

Reversing the door
Our beverage centre is delivered with the door opening from left to right. To
reverse the opening direction:
• Open the door at 90 degrees and keep it steady.
• Unscrew the two screws 1from the lower right hinge 2[Figure 1].
• Pull the door 5outwards slowly [follow the arrow direction in Figure 2] to take
off the lower hinge 2and continue to pull the door 5downwards slowly until
it is removed from the top right hinge 4, and take off the lower hinge plate 3
from the door axis hole [Figure 2].
• Screw top right hinge 4& lower right hinge 2off from the cabinet 6and
keep them in the polybag in case you want to change back to a left opening door
in the future [Figure 3].
• Install the top left hinge 7& lower left hinge 8to the left side of the cabinet
(7& 8delivered in a separated polybag inside the packing carton) [Figure 4].
• Turn the door 5180 degrees upside down and insert the lower hinge plate 3
to the bottom door axis hole. Fit the top door axis hole to the top left hinge 7
and put lower hinge plate 3slowly on the lower left hinge 8and keep the door
steady.Screwupthelowerlefthingewiththeplate.Doorreversingisnished.

10
Allkeyswillbeinvalidinlockmode.Pleaseunlockrst.

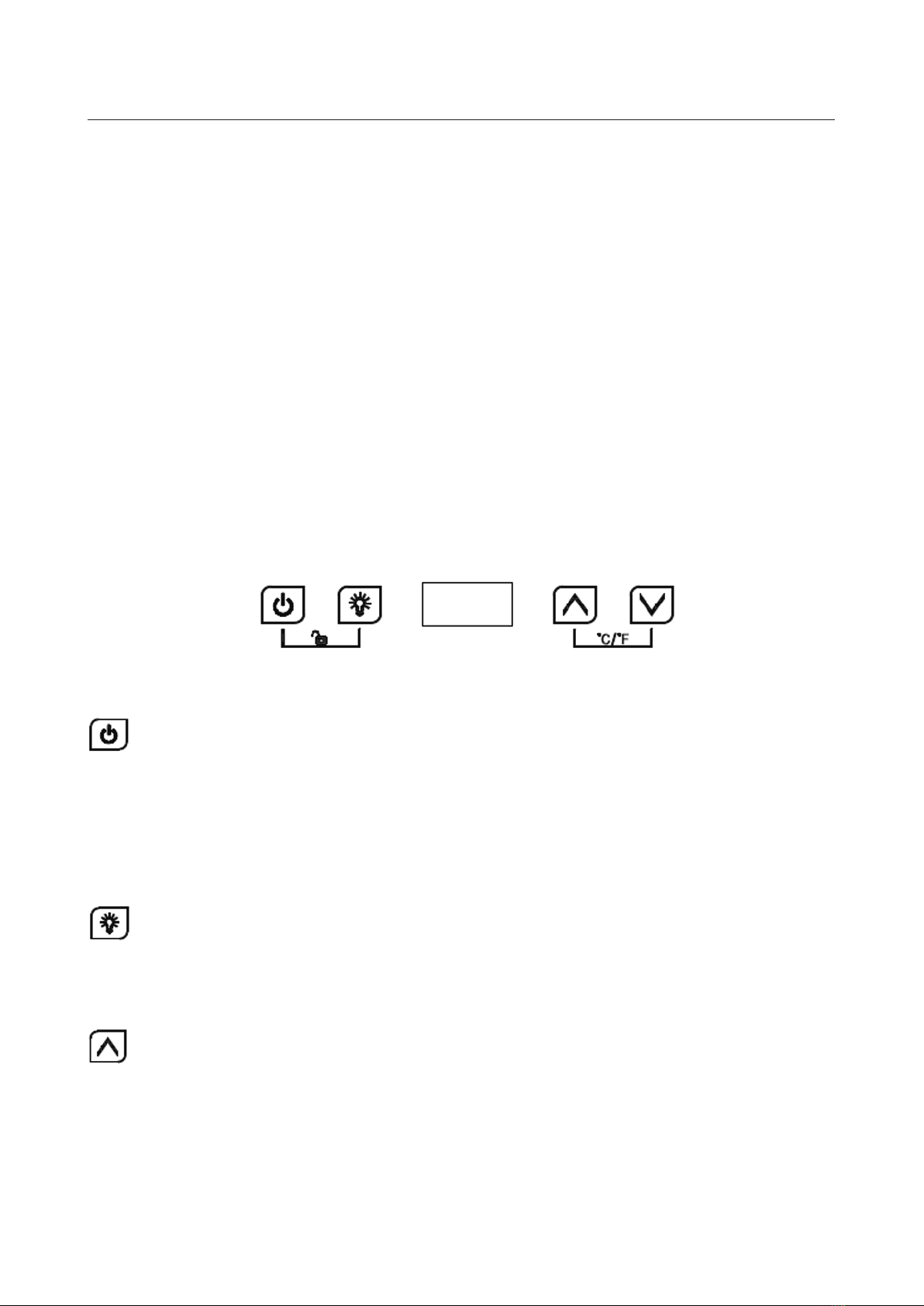

ON/OFF
1. Hold down this key for 3 seconds to power down, the unit will go into
stand-by mode.
2. Hold down this key again for 3 seconds to return back to normal
operation.
Light
Press the Light key, to turn on or turn off the LED lights inside. In stand-
by mode, this key is invalid.
UP
 PresstheUPkeyonce,LEDdisplaywillbeginashingshowingcurrent
set temperature. Continue pressing to adjust set temperature, one press
increases temperature by 1°C. Flashing will cease after 5 seconds of no
activity and new set temperature will be saved. LED display will return to
show actual temperature inside.
Operation
Start operation
1. Cleaning the compartment
Before powering on, clean inside of the appliance and check the drainage
pipe is connected. (For details, please refer to the “Maintenance and
cleaning”).
2. Stabilising the appliance
 Beforepoweringon,leveltheapplianceonarm&dryoorforatleast
30 minutes.
3. Power on
Once the appliance has started operation, it will cool down internally after
1 hour, otherwise you should check the power connection.
Control panel

11
Down
 PresstheDownkeyonce,LEDdisplaywillbeginashingshowing
current set temperature. Continue pressing to adjust set temperature,
one press reduces temperature by 1°C. Flashing will cease after 5
seconds of no activity and new set temperature will be saved. LED
display will return to show actual temperature inside.
Child Lock (Combination key)
1. Lock: Hold down both keys at the same time for 3 seconds to lock.
2. Unlock: Hold down both keys at the same time for 3 seconds to
unlock
Fahrenheit/Celsius display interchange
Switch temperature display between Fahrenheit and Celsius by pressing
both keys for 3 seconds.
Attention
The cooling temperature can be set from 0~10°C.

12
Can storage
• Thisapplianceisequippedwithchromedwireshelvestostoreyourcansof
beverage.
• Full chromed wire shelves loading capacity: 178 cans. (Standard can with
diameter 66x123H’mm’).
• Loading capacity will vary depending on can arrangement and can size.
• Each shelf can be pulled out partly to store cans easily.
• Ensure the door is opened wide enough before pulling out shelves.
• If the beverage centre will not be used for an extended period, it is
recommended to power it off, clean it carefully, and open the door for
ventilation.

13
Troubleshooting
The appliance makes lots of
noise?
• Adjust the front foot, keep the appliance level.
• Keep the appliance spaced away from walls.
There is a liquid owing sound
inside the cabinet?
• It is normal because of the refrigerant working
inside.
The appliance does not start? • Make sure the appliance is connected to the
power source properly.
• Make sure to switch on the power.
• The compressor re-starts after 5 minutes
following a power cut.
The compressor runs
continuously?
• If no cold is being produced, call the after-sale
service.
The door does not seal tightly? • After a long life of use, the door seal may become
stiff & distorted partially.
1. Heat the door seal with a hair dryer or hot
towel.
2. The door seal will be softened to allow a
better seal
The appliance does not cool
sufciently?
• Adjust temperature setting.
• Keep the appliance away from sunlight or heat.
•Pleasedonotopenthedoorfrequently.
There are unpleasant smells
inside the cabinet?
• A little bit of plastic smell for newly-bought
appliance is normal and will disappear after a
short time.
• Clean the compartment and ventilate it for a few
hours.
There is condensation on the
glass door?
•Donotopenthedoorfrequentlyorleaveopenfor
a long time.
• Do not set the temperature too low.
• High ambient temperature and humidity can
cause condensation.
The light is not working? •Checkthepowersupplyrst.
• Call the retailer’s after-sale service if the light is
broken.
Why is the alarm sounding? • When a system malfunction occurs and the alarm
sounds, press any key on the control panel to
cancel the alarm sound.
What do the different error
codes mean?
• Error code:
When the temperature sensor of upper zone
failure occurs, error code displays: E1 for open
circuit; E2 for short circuit.

14
Maintenance and cleaning
Cleaning
• Disconnect the appliance before cleaning.
• Clean the appliance with a soft cloth or sponge with water.
• Do not use organic solvents, alkaline detergent, boiling water, washing
powderoracidicliquidetc.
• Donotushthecompartmentoftheappliance.
• Clean regularly surfaces that can come in contact with accessible drainage
systems.
The below items will damage the surface of the wine chiller:
Power cut
Most power cuts can be resolved within a short time. To protect your wines
during a power cut, avoid opening the door as much as possible. During very
long power cuts, take the necessary measures to protect your wine.
Powered off for an extended period
Remove all bottles from the appliance, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
If the appliance is disconnected or if there is a power cut, you must wait
atleastveminutesbeforere-starting.
Moving the appliance
• Turn off the power supply and unplug the
appliance.
• Remove all bottles from the appliance.
• When moving the appliance, do not lean
the appliance over 45°.
Alkaline detergent Organic solvents Brushes Boiling water
Within 45°

15
Technical parameters
Product model EBC178IB
Voltage/frequency 220-240V~/50Hz
Refrigerant/amount R600a / 35g
Effective volume 135L
Loading capacity 178 cans
Net weight 40.5kg

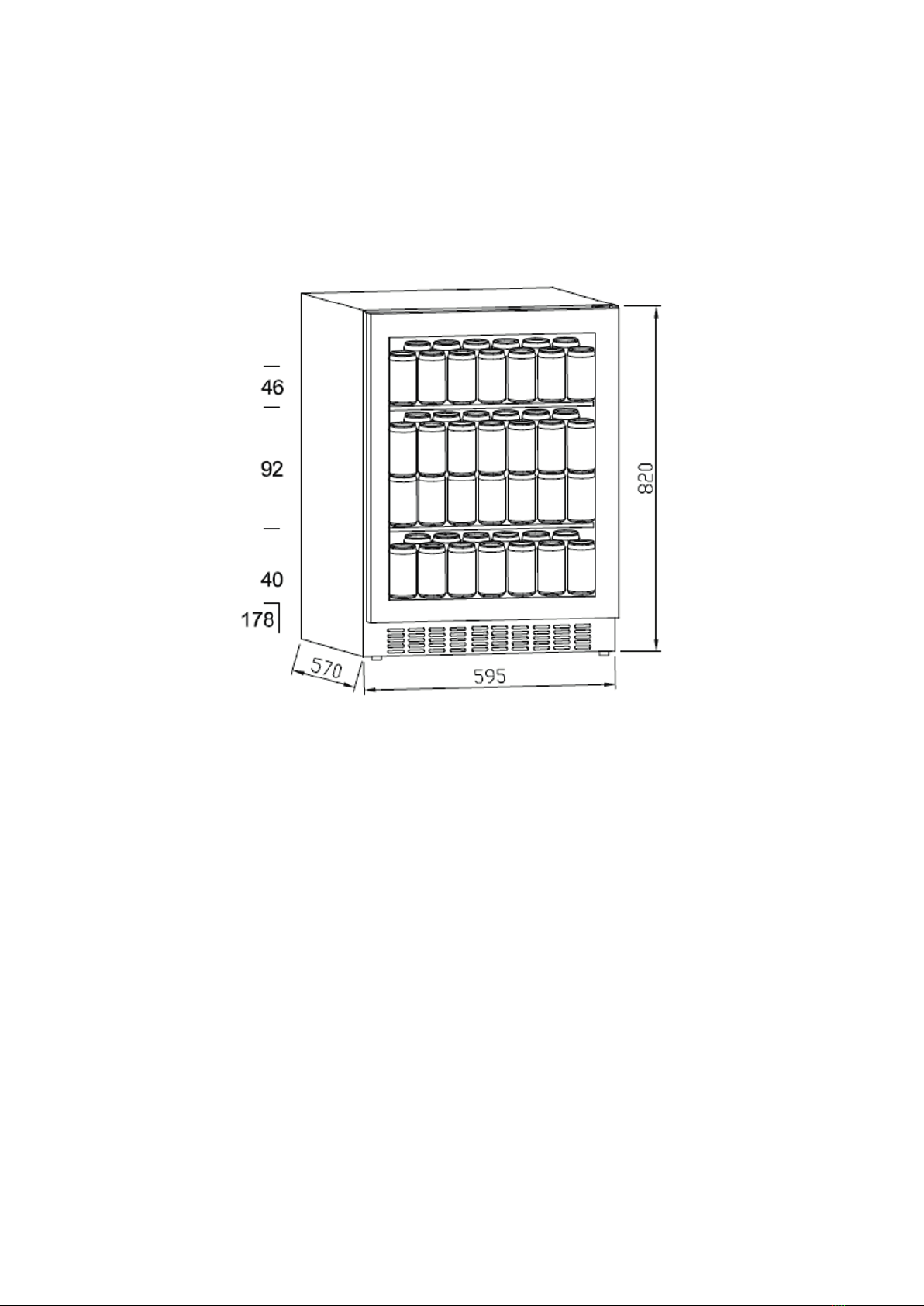

Unit dimension (WxDxH) 595×570×820mm
Packing dimension (WxDxH) 660×625×880mm
Remarks:
1. The net weight includes shelves, and the unit dimension is without handle
on the door.
2. The manufacturer reserves all rights to change the above parameters
without prior notice. Please refer to the nameplate of your appliance.
3. Loading capacity will vary in terms of different bottle arrangement or
different bottle sizes (standard Bordeaux with 750ml is applied here).

16
Manufacturer Guarantee
This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118
275 460 (Phone number 1300 556 816) and in New Zealand by Glen Dimplex New
Zealand Limited NZBN 9429000069823 (Phone number 09 274 8265) in respect of the
Euromaid product.
1. Euromaid Express Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or
mechanical breakdowns within:
a) In the case of Euromaid products used for personal, domestic or household
purposes, a period of 2 years from the date the product is purchased as a brand-
new product from a retailer located in Australia / New Zealand.
b) In the case of Euromaid products used for purposes other than personal, domestic
or household purposes (including business or commercial use), a period of 90
days from the date the product is purchased as a brand-new product from a retailer
located in Australia / New Zealand. Euromaid products are designed and intended
for domestic use only; and
c) All warranty repairs must be carried out by Glen Dimplex or their nominated service
agent.
Note: warranty periods detailed above may vary in line with agreements with select
retail and builder partners and may differ between Australia and New Zealand.
ThebenetsconferredbythisexpresswarrantyareinadditiontotheConsumer
Guarantees referred to in section 3 and any other statutory rights you may have under the
Australian / New Zealand Consumer Law and/or other applicable laws.
2. Warranty exclusions
This express warranty does not apply where:
a) The product has been installed, used or operated otherwise than in accordance
with the product manual or other similar documentation provided to you with the
product;
 b) Theproductrequiresrepairsduetodamageresultingfromaccident,misuse,
incorrectinstallation,insectorvermininfestation,improperliquidspillage,cleaning
ormaintenance,unauthorisedmodication,useonanincorrectvoltage,power
surges and dips, voltage supply problems, tampering or unauthorised repairs
by any persons, use of defective or incompatible accessories or exposure to
abnormally corrosive conditions, events independent of human control which
occurred after the goods left the control of Glen Dimplex;
c) The repair relates to the replacement of consumable parts such as fuses and bulbs
oranyotherpartsoftheproductwhichrequireroutinereplacement;
d) You are unable to provide us with reasonable proof of purchase for the product;

17
e) the breakdown occurs after the expiry of the express warranty period set out in
section 1 or
f) the product was not purchased in Australia / New Zealand as a brand-new product.
3. Consumer guarantees
Our goods come with guarantees that cannot be excluded under the Australian / New
Zealand Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You are also
entitledtohavethegoodsrepairedorreplacedifthegoodsfailtobeofacceptablequality
and the failure does not amount to a major failure.
4. How to make a claim
You may make a claim under this warranty through our website, contacting our customer
care line or via email. Contact details for Glen Dimplex Australia and New Zealand can be
found at the end of this document.
To make a valid claim under this warranty, you must:
a) Lodge the claim with us as soon as possible and no later than 14 days after you
rstbecomeawareofthebreakdown;
b) Provide us with the product serial number;
c) Provide us with reasonable proof of purchase for the product. This can take
the form of a store receipt, new home handover form or other payment receipt
documentation; and
 d) Ifrequiredbyus,provideus(oranypersonnominatedbyus)withaccesstothe
premises at which the product is located at times nominated by us (so that we can
inspect the product).
5. Warranty claims
If you make a valid claim under this warranty and none of the exclusions set out in section
2 apply, we will, at our election, either repair the product or replace the product with a
productofidenticalspecication(orwheretheproductissupersededornolongerinstock,
withaproductofascloseaspecicationaspossible).
Goods presented for repair may be replaced by refurbished goods of the same type rather
than being repaired. Refurbished parts may be used to repair the goods.
Products are designed and supplied for normal domestic use. We will not be liable to you
under this warranty for business loss or damage of any kind whatsoever.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
www.glendimplex.com.au www.glendimplex.co.nz
Australia New Zealand
Ph: 1300 556 816 Ph: 09 274 8265
customer[email protected] [email protected]

18
Notes

READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE
APPLIANCE.
The manufacturer will not be responsible for any damage to property or to persons caused
by incorrect installation or improper use of the appliance.
The manufacturer is not responsible for any inaccuracies, due to printing or transcription
errors,containedinthismanual.Inaddition,theappearanceoftheguresreportedisalso
purely indicative.
The manufacturer reserves the right to make changes to its products when considered
necessary and useful, without affecting the essential safety and operating characteristics.
GlenDimplexconstantlyseekswaystoimprovethespecicationsanddesignsoftheir
products. Whilst every effort is made to produce up to date literature, this document should
not be regarded as an infallible guide. Actual product only should be used to derive cut out
sizes.
Allappliancesmustbeinstalledbyaqualiedperson/swithadherencetotherelevant
electrical,plumbingandbuildingcodes,withcompliancebeingissuedasrequiredbystate
or national legislation.
Additionally, all upright cookers must have the anti-tilt device installed correctly in
adherence to the relevant standards by a licenced installer.
Formaximumeffectivenessandefciencyallrangehoodsshouldbeinstalledwiththe
use of ductwork, by a licenced installer with adherence to the relevant state and national
building codes and regulations.
All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence
installerintoDomesticApplicationsonly,withoutexceptionandtotherequiredAuthorities
guidelines. Any installation outside of this will VOID warranty. Alfresco areas are not a
Domestic application.
Distributed by:
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
www.glendimplex.com.au www.glendimplex.co.nz
For service advice, please contact the Customer Care Centre by phone or email below.
Australia New Zealand
Ph: 1300 556 816 Ph: 09 274 8265
customer[email protected] [email protected]
