Euroset 5020 User manual

1
GB
Euroset 5020 Quick Guide

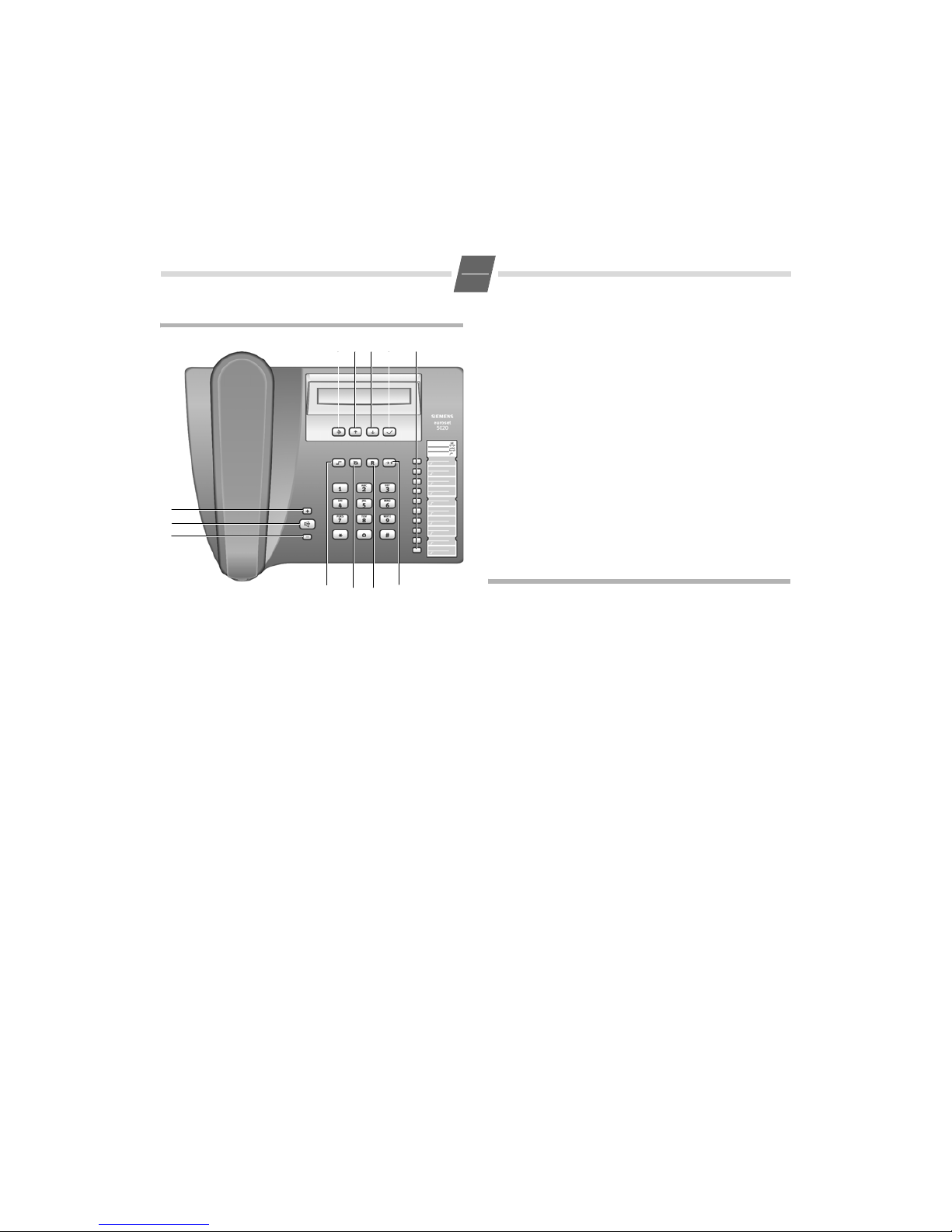

Keys
1 Repertory keys
2 Redial key
3Recallkey
4Mutekey
5Shiftkey
6Quietkey
7 Loudspeaker key (handsfree)
8Loudkey
9Setkey
10 Up key
11 Down key
12 OK key (dial number displayed)
Display symbols
PIn setting mode
‡Shift key pressed
--- Ready for use
yMicrophone off
èBaby Call (direct call) number set
‰(Flashing) No power supply
oEntry mark when setting (e.g. volume)
u Recall key pressed
P Pause
z
No memory content
{Telephone locked
zzzz
When trying to connect: telephone locked
0 – 9 Phone number
With tone dialling:
n –*key pressed
- –#key pressed
With additional services from public network providers:
|New call in calls list
†(Flashing) A new message has arrived
ëCall waiting
™Call forwarding immediately
˜Call forwarding on no reply
—Call forwarding when busy
šAnonymous call on
Safety precautions
When installing, connecting and operating the telephone,
always observe the following precautions:
◆Only use the plugs and leads supplied.
◆Only use the adapter supplied.
◆Only connect the connecting lead to the socket/jack
provided for that purpose.
◆Only connect approved accessories.
◆Arrange the connecting lead where it will not cause
accidents.
◆Position the telephone on a non-slip surface.
◆For your safety and protection, the telephone must not
be used in bath or shower rooms (wet locations).
The telephone is not splash proof.
◆Never expose the telephone to sources of heat, direct
sunlight or other electrical devices.
◆Protect your telephone from moisture, dust, corrosive
liquids and vapours.
◆Never open up the telephone yourself.
◆Do not touch the plug contact with pointed or metallic
objects.
◆Do not carry the telephone by the leads.
◆If you give your Euroset 5020 to someone else, make
sure you also give them the user guide.
1
23
45
6
7
8
1211109

2
GB
Preparing the telephone for use
Recommended installation of telephone
◆Do not expose the telephone to direct sunlight or other
sources of heat.
◆Operate at temperatures between +5°C and +40°C.
◆Maintain a distance of at least one metre between the
telephone and radio equipment, e.g. wireless
telephones, wireless pagers or TV sets. Otherwise,
telephone communication could be impaired.
◆Do not install the telephone in dusty areas as this can
shorten the service life of the telephone.
◆To clean, wipe with a moist or antistatic cloth only, never
with a dry cloth (risk of electrostatic charging and
discharge) or harsh cleaning agent.
◆Furniture lacquer and polish can be damaged by contact
with parts of the unit (e.g. device feet).
Connecting

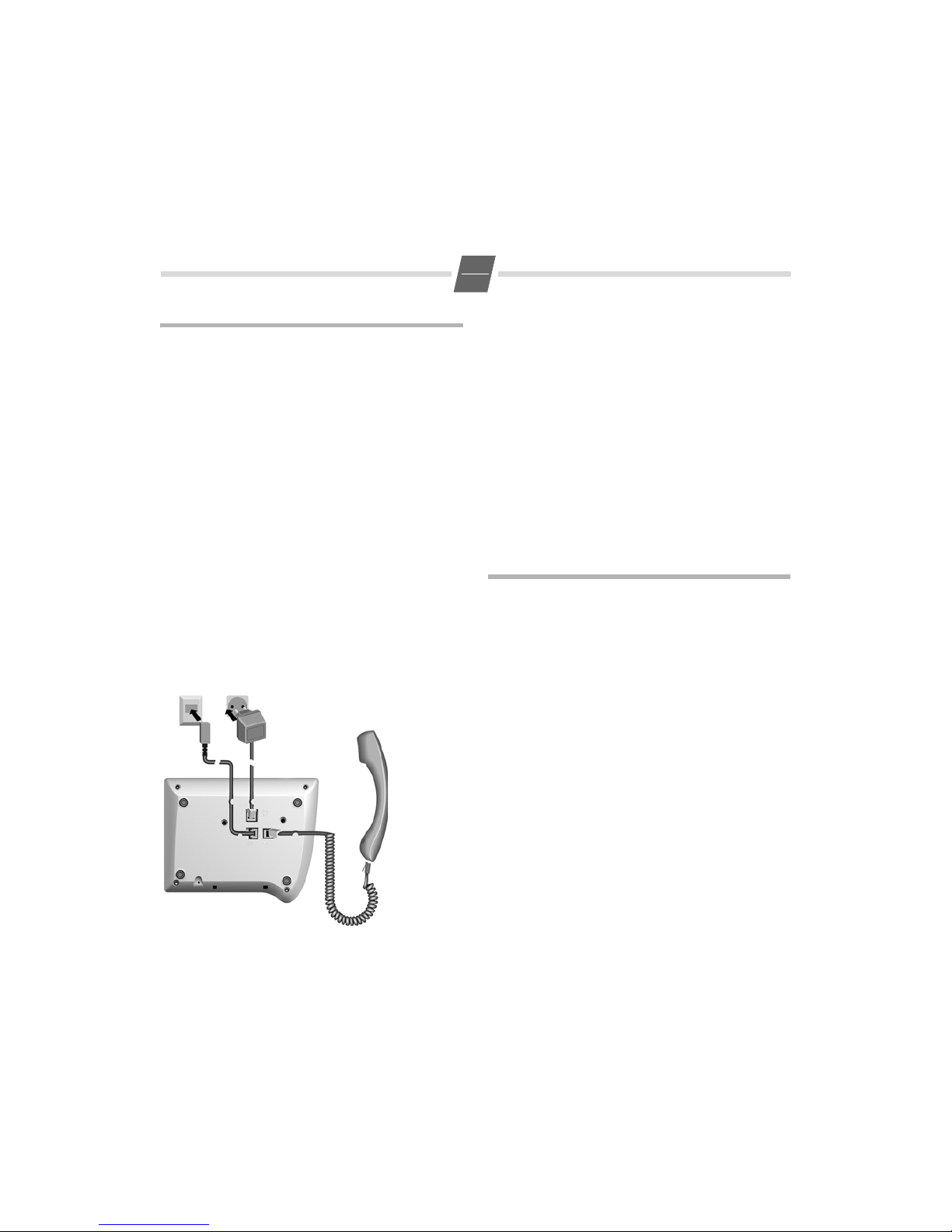

Insert the short end of the coiled handset cord in the socket
provided in the handset and the long end in the socket
marked with an aon the underside of the device. Plug the
phone cord into the outlet on the wall and the other end
into the socket marked with a Yon the underside of the
device. Plug the adapter into the socket identified with "
and connect to the mains socket. Then your telephone is
ready to use.
Purpose of connecting to the mains using the adapter
If your telephone is connected to the mains using the
adapter, you can select and save all settings without lifting
the handset (or without pressing the loud-speaker button).
Without this mains supply, settings must be selected and
saved with the handset lifted (or after pressing the loud-
speaker button). Using the last number redial list and Call-
ing Line Identification and selecting the phone number are
only possible with main supply connection.
Setting the internal clock
?3 Initiate function.
The current set time is displayed in 24-hour
mode (default setting: 00:00).
oEnter the correct time in hours <hh> and
minutes <mm> (24-hour mode).
?Press the Set key.
Making calls
Dialling a number
co Lift handset, dial number.
or ...
oBc Dial number (you can delete wrongly entered
digits with Aand then enter the correct
digit) and press the OK key.
After 2 seconds the number is dialled.
Lift the handset if you want to talk via the
handset.
Any digits after the 20th digit are moved from right to left in
the display. The Last number redial key ;can be used to
insert pauses when dialling, starting from the 2nd digit.
Select phone number from the calls list (if available):
see 6.
Activating/deactivating handsfree talking
With this telephone you can also make calls (handsfree
mode) or settings without lifting the handset if the adapter
is connected. The best distance from the microhone for
speaking is about 50 cm.
◆Activating during a call via the handset
L+ aWith the Loudspeaker key pressed replace the
handset.
◆Activating before dialling the number
LBefore dialling: hold down the Loudspeaker
key until you can hear the dialling tone.

3
GB
Deactivating handsfree talking
cLift the handset during the call.
Last number redial
The last 5 numbers dialled (up to 32 digits) are saved
automatically. You can retrieve these numbers from the last
number redial list and dial them again:
Redialling the last number dialled
c; Lift the handset and press the last number
redial key. The last number dialled is redialled
immediately.
Dialling from the last number redial list
;Without lifting the handset: Press the last
number redial key.
The last number dialled is displayed. (You can
leave the last number redial list at any time by
pressing >.)
A...CUsing the Down/Up key, scroll through the list
to the desired number.
BPress OK or Lkey.
After 2 seconds the number is dialled.
Lift the handset if you want to talk via the
handset.
Dialling using the repertory keys
cLift handset. (If necessary, press =for a 2nd
level repertory key).
:Press repertory key.
or ...
:Press repertory key. (If necessary, press =for
a 2nd level repertory key).
Bc Press OK or Lkey.
After 2 seconds the number is dialled.
Lift the handset if you want to talk via the
handset.
Saving numbers
Different telephone settings must be completed with the
Set key ?so that they are available permanently.
In order to cancel without saving, e. g. after an incorrect
entry, replace the handset instead of pressing ?at the
end. The original setting is then retained.
Saving with notebook function
You can also save phone numbers during a conversation
with the notebook function.
Saving repertory numbers
You can save up to 20 phone numbers (or even functions,
see page 7) on both levels of the repertory keys.
?Press the Set key. (For 2nd memory level, also
press =.)
:Press the repertory key under which you want
to save the repertory number.
A number that has already been saved is
shown in the display. If the memory for this
repertory key is empty,
z appears in the display
oEnter the number to be saved (up to 32 digits).
or ...
Saving from the calls list (if service is available)
A...CPress the Down/Up key until the desired
number appears in the display.
or ...
Saving from the redial list:
;Press the last number redial key.
A...CIf necessary, press the Down/Up key until the
desired number appears in the display.
?Press the Set key.
After the 20th digit, any following digits are moved from
right to left in the display.
Delete all repertory numbers
?1251
Initiate function.
?Press the Set key.

4
GB
Adjusting the telephone
Adjusting the ringer volume
The volume of the ringer can be set to one of 4 levels and
can also be deactivated completely (default setting: level 4).
◆To adjust when the telephone is idle:
?5 Initiate function.
H...IAdjust the volume with the Loud/Quiet key.
?Press the Set key.
◆To adjust while the telephone is ringing:
Press H...Ibefore lifting the handset.
The last value set is saved.
Setting the ringer frequency
The frequency (speed) of the ringer can be set to one of
three levels (default setting: level 3).
?6 Initiate function.
1...3Press one of the keys 1...3:
1: highest frequency; 3: lowest frequency.
?Press the Set key.
Setting the ringtone
Ten different ringtones can be set for the ringer (default
setting: ringtone 9).
◆To set with the telephone is idle:
?7 Initiate function.
0...9Press one of the keys 0 ... 9
?Press the Set key.
◆To set while the telephone is ringing:
0...9Press one of the keys 0 to 9.
Setting the handset volume
The volume on the handset can be set to one of 3 levels and
saved (default setting: level 1).
?9 Initiate function.
H...IAdjust the volume with the Loud/Quiet key.
?Press the Set key.
Mute
You can deactivate the telephone's handset and
microphone. Then the other party can no longer hear you.
JDuring a call: Press the Mute key
Activate: Press the key again.
Adjusting the loudspeaker
While in handsfree mode, you can set the volume to one of
7 levels and save it (default setting: 1).
H...IAdjust the volume with the Loud/Quiet key.
Activating/deactivating the mute melody
You can activate and deactivate the mute melody for the
mute (default setting: on).
?19#
Initiate function.
0/10: deactivate; 1: activate.
?Press the Set key.
Baby call (direct call) number setting
If a phone number is set for the Baby Call function, it is
dialled automatically when the telephone is locked
(s. "Activating/deactivating the telephone lock") after you
lift the handset (or press the Loudspeaker key) and press
any key (except ?,L,Hand I). The telephone
does not allow other phone numbers to be dialled, but
incoming calls can be received.
?82Initiate function.
oEnter direct call number (max. 32 digits).
?Press the Set key.
When the baby call function is activated, you will see è
and {in the display.
Deactivating
?80Initiate function.
?Press the Set key.
Deleting a baby call phone number
?1253
Initiate function.
?Press the Set key.

5
GB
Activating/deactivating the telephone lock
The telephone can be locked completely (with the exception
of a baby call phone number if set) so that it cannot dial any
phone numbers, including the baby call phone number. You
can continue to receive incoming calls.
?8 Initiate function..
0/10: unlock; 1: lock
?Press the Set key.
When the telephone is locked, you will see {in the
display.
Activate/deactivate call duration display
The telephone can display the approximate call duration in
the display (up to 99 min. 59 sec., default setting: on). If the
call duration display is activated, the time display begins
8 seconds after the last digit is dialled.
?18#
Initiate function.
0/10: deactivate; 1: activate.
?Press the Set key.
Setting the pause time
If necessary, the pause time of the Pause key ;(pause
function from second input position) can be changed to 1,
3 or 6 seconds (default setting: 3 seconds).
?102
Initiate function.
0...20: 1 sec.; 1: 3 sec.; 2: 6 sec..
?Press the Set key.
Changing the dialling mode
?# Initiate function.
1/21: Tone dialling.
2: Pulse dialling without flash function.
?Press the Set key.
Changing dialling modes during a call
If your telephone is set to pulse dialling and you want to use
functions that require tone dialling (e.g. remote access to
an answering machine), you can change the dialling mode
during a call.
*With an open connection: press the star key.
oEnter digits for remote control/data transfer.
The telephone is reset to the original dialling mode by hang-
ing up the handset.
Operation on a PABX
Enter/delete an external line prefixe
If you are using your telephone on a PABX, you may have to
save one or more external line prefixes. A dialling pause is
set automatically with the external line prefixe. You can save
up to three external line prefixes.
?0 Initiate function.
If no external line prefixe has been set in a
location,
z appears in the display.
If several external line prefixes are saved, these
are displayed next to one another; the current
external line prefixe to be edited flashes.
If necessary, use the ;key to toggle
between the external line prefixes displayed,
to edit them as follows:
To delete an external line prefix:
?Press the Set key.
To enter an external line prefixe:
oEnter a one- to three-digit code.
Enter additional external line prefixes:
;o Press the Redial key, enter next external line
prefixe.
?Press the Set key.
Recall key (on a PABX)
During an external call, you can make a recall or divert the
call. To do this, press the Recall key >. The subsequent
procedure depends on your PABX. By default, the Recall key
is preset to a flash time (interruption time) of 90 ms for use
of new features on public telephone systems. With a
connection to a PABX, it may be necessary to change the
flash time (e.g. 600 ms). To do this, please refer to the
operating instructions for your PABX.
Setting the flash time for the Recall key
?195
Initiate function.
0...4Enter desired flash code:
0: 90 ms (default setting); 1: 120 ms;
2: 270 ms; 3:375ms; 4:600ms.
?Press the Set key.
