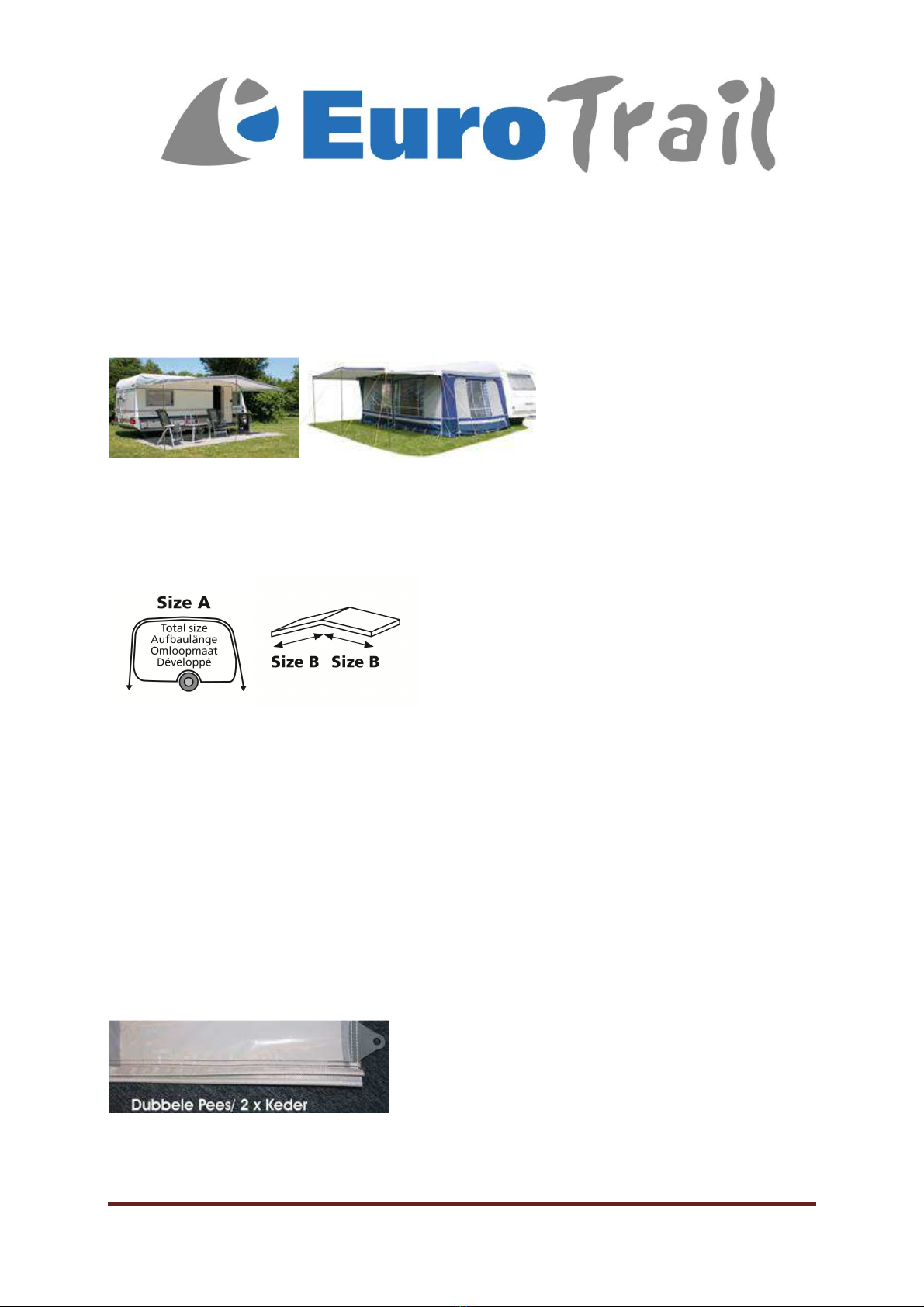

MANUAL COMBI AWNING
Caravan - Awning Combi Canopy
This 2-in-1 Combi Awning you can mount at the caravan or at the front of your caravan tent
to create an extra sunroof!
To find the correct size you can do like the ETCT0001 by measuring the Size A but if you
want to fix it also to the caravan tent it is important to know roof size of your caravan
awning Size B
Available in 200cm or 240cm depth
The 240 cm canopy has next to the 7mm pipin g also a 6 mm piping. The 7 mm is for the
caravan profile and the 6mm is for the separate pole buckles to mount your roof poles
without drilling.
What is also important to know that the Eurotrail Awnings of 240cm depth all have an extra
6mm “keder” or piping.
So the normal piping of 7mm is for the caravan profile but the extra 6mm is for the DWS
buckles (exclude) to mount an extra roof pole without drilling into the caravan. Because the
depth of 240 cm is quite large it is always better to use roof poles to make a complete frame
so that the awning is more supported by the frame and more tight.

Eurotrail Manual Combi Luifel 26-2-2016 Pagina 2
SIZE CHARD
Size Roof size B Caravan size A
04 144-155cm 675-700cm
05 156-168cm 700-725cm
06 169-180cm 725-750cm
07 181-193cm 750-775cm
08
194-205cm 775-800cm
09 206-218cm 800-825cm
10 219-230cm 825-850cm
11 231-243cm 850-875cm
12 244-255cm 875-900cm
13 256-268cm 900-925cm
14 269-280cm 925-950cm
15 281-293cm 950-975cm
16 294-307cm 975-1000cm
17 308-321cm 1000-1025cm
How do I place the plastic ring at the right position?
To fix the awning to the caravan tent you need to make the holes for the poles.
The awning come incl. special rings 4 pcs: 3 to use and 1 spare, which you have to mount to
the special reinforced parts of the caravan roof. The rings can be placed with a hammer.
1) First find the middle of the awning, make a small hole in the fabric and place the ring. Put
one side on top and the contra side of the ring on the other side. Press together with your
hands, than with a soft hit of the hammer. Check if the ring fits oke is not than hit it again with
the hammer.
2) Put the awning over the center pole and place the awning over the tent to each side.
Pull the awning to the side pole and determine the position of the ring. Do this on both sides
and place the ring. The awning is now ready to use.

Eurotrail Manual Combi Luifel 26-2-2016 Pagina 3
Side panel is optional available
The correct side panel is the ETCT0024
This side panel is available in 200cm or 240cm depth (with or without window) depending on
the depth of your Combi Anwing. (Left and right side panel are the same)
Optional canopy frame set (ETSP0515)
A frame set for awnings is optional available. It consists of: two adjustable upright steel poles
Ø 22mm 140/200cm and 1 upright centre pole 170x250cm. Incl. guy ropes, pegs and storage
bag.
