EV-PEAK C1-XR User manual

AC/DC SMART BALANCE CHARGER
INSTRUCTION MANUAL
C1-XR

TABLE OF CONTENTS
INTRODUCTION............................................................................................... 01
SPECIFICATION.................................................................................................03
MAIN FEATURES............................................................................................... 04
WARNING AND SAFETY NOTES........................................................................06
PROGRAM FLOW CHART..................................................................................09
PROGRAM DESCRIPTION.................................................................................10
OPERATING PROGRAM....................................................................................11
EXPLANATION OF BUTTONS....................................................................12
CHARGING PROGRAM.............................................................................13
DISCHARGE PROGRAM............................................................................15
LITHIUM BATTERY STORAGE PROGRAM.................................................16
BATTERY MEMORY SET AND CALL OUT...................................................17
BATTERY CHECKING.................................................................................18
SYSTEM SETUP..................................................................................................20
FAULTY OPERATION.........................................................................................22
CERTIFICATION INFORMATION........................................................................23
AFTER SALE SERVICE........................................................................................24

INTRODUTION
01
These operating instructions are designed to ensure that you quickly
become familiar with its functions. It is therefore important that you read
right through the Operating instructions, Warning and Safety Notes before
you attempt to use your new charger for the first time
EV-PEAK C1-XR integrates battery technology together with LCD screen. It is
equipped with 4 function buttons. Every operating procedure and status
change can be shown on LCD screen, making the operating procedures very
intuitive. When the battery is working, you can directly check the battery
capacity, battery voltage, charging time and internal resistance on the
screen.
C1-XR comes with a memory module. Users can edit and save parameters of
different batteries. Once the battery parameters are edited, the shortcut
for parameters will be generated on the screen, which provides a simple on-
click interface for users.
C1-XR is built-in switching power supply. It can be powered up with 12V car
battery or 100-240V AC input, suitable for use with LiPo / LiFe / LiHV / Li-lon /
NiMH / NiCd / Pb battery.
Please BE SURE to read these INSTRUCTIONS, WARNING and
SAFETY NOTES before you use the charger for the first time
It can be dangerous to mishandle batteries and battery chargers, as there is
always a risk of batteries catching fire and exploding.
Please read this entire operating manual completely and attentively before
using this product, as it covers a wide range of information on operating and
safety. Or please do use this product in company with a specialist.

INTRODUTION
02

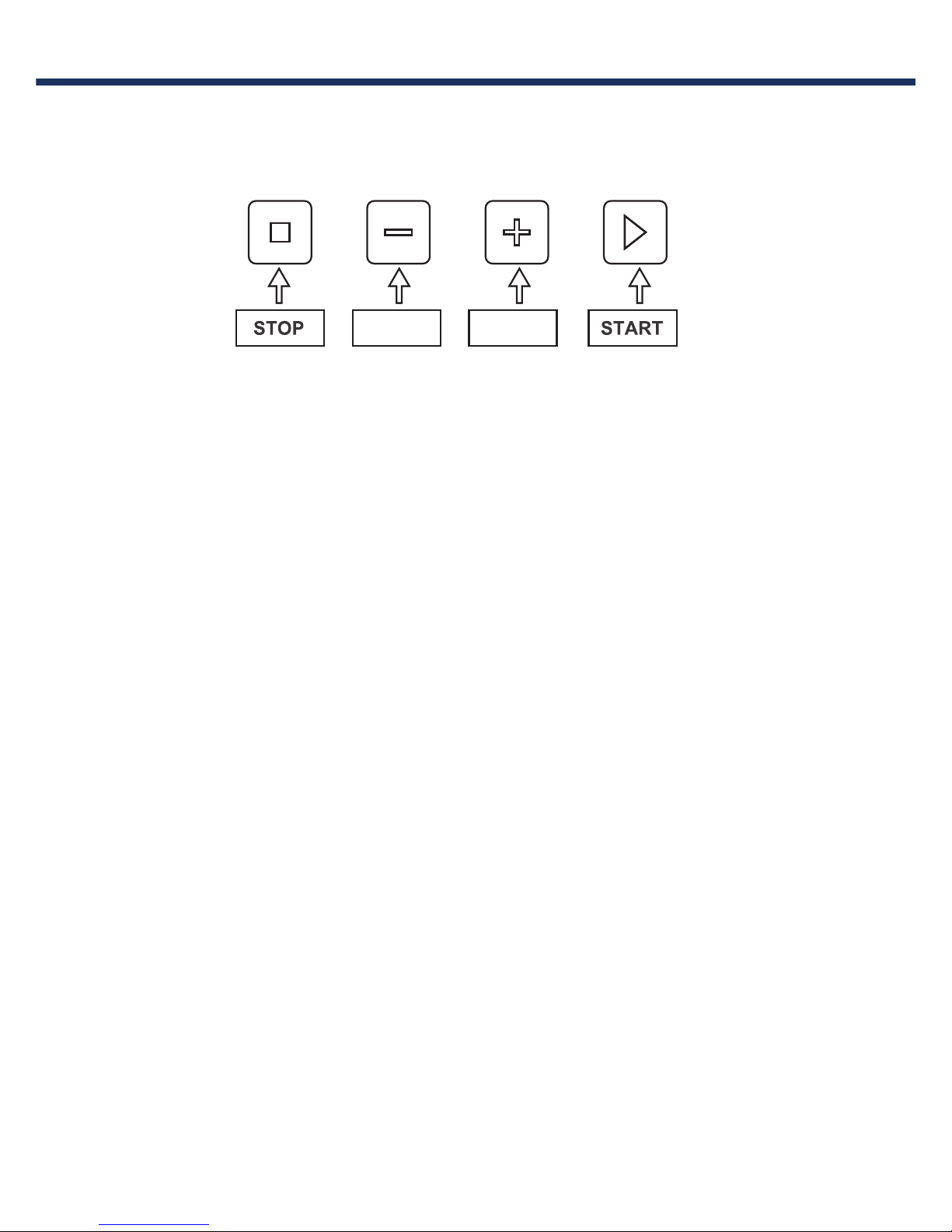

1.Mode / ESC
2.- Dec.
3.+ Inc.
4.Start / Enter
5.LCD screen
6.Main Output
7.Balance port
8.AC Input
9.DC Input
10.Temperature Sensor Port
11.Micro-USB port

SPECIFICATIONS
●Memory: 10 different charge/discharge profiles
●External port: 1-6s Balance Socket-XH, Temperature probe socket,
Battery Socket, DC input, AC Input, Micro USB for PC.
●Battery Types/cells: LiPo/Lilon/LiFe/LiHV:1-6S
NiMH/NiCd:1-15cells
Pb:2-24V
●Charge Voltage: LiPo:4.18-4.22V/cell Lilon:4.18-4.20V/cell
LiFe:3.68-3.80V/cell LiHV:4.30-4.40V/cell
●Discharge cut-off voltage: NiMH/NiCd:0.1-1.1V/cell
LiPo:3.0-3.3V/cell Lilon:2.9-3.2V/cell
LiFe:2.6-2.9V/cell LiHV:3.1-3.4V/cell
Pb:1.8V
●Control: Button
●Backlight: Blue
●Dimension: 130*115*61mm
●Charge current: 0.1A-10A
●Charge power:max.100W
●Balance current: 400mA/cell
●AC input Voltage: 100V -240V ●DC input Voltage: 11-18V
●Display Type: LCD
●Cooling system: 1 cooling fan
●Weight: 380g
●Safety timer: 1-720min or turn off
●Discharge current: 0.1A-2.0A
●Discharge power: max.5W
03

MAIN FEATURES
04
Dual Power Input
The power source can be 11-18V DC input, it can be powered up at any
plance with a 12V car battery or 100-240V AC input. The power supply
is built in and users could connect the AC Power cord to the main AC
socket directly. What’s more the AC input voltage is 100-240V so that
the users could use charger all over the world and don’t need to worry
about any damage caused by improper input voltage.
Charging Status Monitor
When the charger is working, you can check the charging capacity,
battery voltage, charging time and internal resistance on the screen.
More important, the voltage curve can be displayed on the screen, so
you can monitor the charging status.
Internal Independent Lithium Battery Balancer
A20 Changer employs an individual-cell-voltage balancer. It isn’t
neces. sary to connect an external balancer for balance charging.
Balancing Individual Cells Battery Discharging
During the process of discharging, C1-XR Charger can monitor and
balance each cell of the battery individually. Error message will be
indicated and process will be ended automatically if the voltage of any
single one cell is abnormal.
Fast and Storage Mode of Lithium battery
Purposes to charge lithium battery varies, “fast” charge reduce the
duration of charging, whereas “store” state can control the final
voltage of your battery, so as to store for a long time and protect
useful time of thebattery
Memory Preset
The charger can store up to 10 different charge/discharge profiles for
your convenience. You can keep the data pertaining to program
setting of the battery of continuous charging or discharging. Users
can call out these data at any time without any special program
setting.

MAIN FEATURES
05
Terminal Voltage Control (TVC)
The charger allows user to set the charge/dischareg and voltage.
Capacity Limit
The charging capacity is always calculated as the charging current
multiplied ba time. if the charging capacity exceeds the limit, the
process will be terminated automatically when you set the
maximumvalue.
Processing Time Limit
You can also limit the maximum process time to avoid any possible
defect.
PC Control Software ”Charge Master”
Please download the ''PC Monitor” software on our website:
www.ev-peak.com.
There is mini USB port in the charge which can be used to connect
it to the PC. You need optional USB cable (USB A Male to Mini B
Male) which is not included in the package. The free “Charge
Master”software gives you unparalleled ability to operate the
charger through your computer. You can update firmware from
“Charge Master”.
Inner Resistance of Battery Pack
Measure Inner resistance of battery pack inclusively all
connections and leads.

WARNING AND SAFETY NOTES
06
These warnings and safety notes are
particularly important. Please follow the
instructions for maximum safety;
otherwise the charger and the battery
can bedamaged or at worst it can cause a
fire.
Never leave the charger unattended when it is connected to its
power supply. If any malfunction is found, TERMINATE THE PROCESS
AT ONCE and refer to the operation manual. If any malfunction is
found, TERMINATE THE PROCESS AT ONCE and refer to the operation
manual.
Keep the charger well away from dust, damp, rain, heat, direct sunshine
and vibration. Never drop it.
The allowable DC input voltage is 11~18V DC. The allowable AC input
voltage is 100~240V AC.
This charger and the battery should be put on a heat-resistant,
noninflammable and nonconductive surface. Never place them on a
car seat, carpet or similar. Keep all the inflammable volatile
materials away from operating area.
Make sure you know the specifications of the battery to be charged
or discharged to ensure it meets the requirements of this charger. If
the program is set up incorrectly, the battery and charger may be
damaged. It can cause fire or explosion due to overcharging.
To avoid short-circuiting between the charge lead, always connect the
charge cable to the charger first, then connect the battery. Reverse the
sequence when disconnecting.

Standard Battery Parameters
3.7V/cell
3.7V/cell
4.2V/cell
3.8V/cell
≦1C
3.6V/cell
4.1V/cell
≦1C
3.3V/cell
3.6V/cell
3.3V/cell
≦4C
3.0-3.3V/cell 2.9-3.2V/cell 2.6-2.9V/cell
1.2V/cell
1.5V/cell
n/a
1C-2C
1.2V/cell
1.5V/cell
n/a
1C-2C
2.0V/cell
2.46V/cell
n/a
≦0.4C
0.1-1.1V/cell 0.1-1.1V/cell
1.8V/cell
3.7V/cell
4.35V/cell
3.85V/cell
≦1C
3.1-3.4V/cell
WARNING AND SAFETY NOTES
Never attempt to charge or discharge the following types of
batteries.
●A battery pack, which consists of different types of cells (including different
manufacturers)
●A battery that is already fully charged or just slightly dis charged.
●Non-rechargeable batteries (Explosion hazard).
●A faulty or damaged battery.
●A battery fitted with an integral charge circuit or a protection circuit.
●Batteries installed in a device or which are electrically linked to other
components.
●Batteries that are not expressly stated by the manufacturer to be suitable
for the currents the charger delivers during the charge process.
Please bear in mind the following points before commencing
charging:
● Did you select the appropriate program suitable for the type of battery you
are charging?
●Did you set up adequate current for charging or discharging?
● Have you checked the battery voltage? Lithium battery packs can
be wired in parallel and in series, i.e. a 2 cell pack can be 3.7V (in parallel) or 7.4V
(in series).
●Have you checked that all connections are firm and secure? Make sure there
are no intermittent contacts at any point in the circuit.
Nominal
Voltage
Max Charge
Voltage
Storage
Voltage
Allowable
Fast Charge
Min.Discharge
Voltage
LiPo LiIon LiFe NiCd MiMH PbLiHV
※
Be very careful to choose the correct voltage for different types of battery
otherwise you may cause damage to the batteries. Incorrect settings
could cause the cells to fire or Explode.
07

WARNING AND SAFETY NOTES
Charging
During charge process, a specific quantity of electrical energy is fed into the
battery. The charge quantity is calculated by multiplying charge current by
charge time. The maximum permissible charge current varies depending on
the battery type or its performance, and can be found in the information by
the battery manufacturer. Only batteries that are expressly stated to be
capable of quickcharge are allowed to be charged at rates higher than the
standard charge current.
Connect the battery to the terminal of the charger: red is positive and black
is negative. Due to the difference between resistance of cable and
connector, the charger can not detect resistance of the battery pack, the
essential requirement for the charger to work properly is
that the charge lead should be of adequate conductor cross-section, and
high quality connectors which are normally goldplated should be fitted to
both ends.
Always refer to the manual by battery manufacturer about charging
methods, recommended charging current and charging time. Especially, the
lithium battery should be charged according the charging instruction
provided by the manufacturer Strictly.
Attention should be paid to the connection of lithium battery espe cially.
Do not attempt to disassemble the battery pack arbitrarily.
Please get highlighted that lithium battery packs can be wired in parallel
and in series.
In the parallel connection, the battery s capacity is calculated by multiplying
single battery capacity by the number of cells with total voltage stay the
same. The voltages imbalance may cause fire or explosion .Lithium battery
is recommended to charge in Series.
08

Discharging
The main purpose of discharging is to clean residual capacity of the
battery, or to reduce the battery voltage to a defined level. The same
attention should be paid to the discharging process as charging. The
final discharge voltage should be set up correctly to avoid deep-dis-
charging. Lithium battery can not be discharged to lower than the
minimum voltage, or it will cause a rapid loss of capacity or a total
failure.
Generally, lithium battery doesn't need to be discharged. Please pay
attention to the minimum voltage of lithium battery to protect them.
Lithium batteries are recommended to be discharged partially rather
than fully. Frequent full discharging should be avoided if possible.
WARNING AND SAFETY NOTES
09

Program Flow Chart
STOP
STOP
STOP
STOP
STOP
STOP
STOP
STOP
STOP
STOP
STOP
LiHv
IR MAIN OUT *.*
Back-light Batt ry nd volt
LiPo 4 2V C
100
NiMH NiCd
Trickl oFF
1
1
LiHv LiHv LiHv LiHv
m
STOP
FACTORY RESET
PRESS ENTER > 2S
0.00 0.00 0.00
1.
.
. 0.00 0.00 0.00
2
4.
10

NiMH
NiCd
Pb
Description
Charger automatically detects the connected NiMH/NiCd
battery and control the charging current in the affordable
range, and limit the maximum current does not exceed
the setting value.
Attention: Ensure to set the maximum charging current, or
it may overcharge and damage the battery.
Charger will charge the battery with setting current.
To increase the remaining usable battery life, cycling is
strongly recommended. charger supports 1-5 times of
charge﹥discharge or discharge﹥charge cycle.
LiPo
Lilon
LiFe
LiHV
Charger will discharge the battery with setting current,
operation same as lithium battery.
This mode is for charging Pb battery
This mode is for discharging Pb battery.
Fast charge
Discharge
Storage
Balance Charge
Auto mode
Man mode
Discharge
Cycle
Charge
Discharge
This charging mode is for charging LiPo /LiFe /Lilon /LiHV
battery in normal mode without balancing.
This mode is for discharging LiPo /LiFe /Lilon /LiHV battery.
This charging mode is for charging LiPo/ LiFe/ Lilon/ LiHV
battery in normal mode.
This program is for discharging LiPo/ LiFe/ Lilon/LiHV
battery which will not be used for long time.
OPERATION PROGRAM
Depends on different battery types,the operating programs
are different
Battery
type
Operation
Program
11

Dec. Inc.
Explanation of Buttons
OPERATION PROGRAM
“STOP” button
It is used to stop the process or go back to the previous step.
“Dec./-“button
It is used to go through the menus and decrease the parameter value.
“Inc./+”button
It is used to go through the menus and increase the parameter value.
“START”button
It is used to enter parameter or start program.
When you want to alter the parameter value in the program, press the
START/ENTER button to make it blink and then change the value by pressing
DEC and INC button. The value will be stored by re-pressing the
START/ENTER button. If there is another parameter which can be altered in
the same screen, on confirming the first parameter value, the next
parameter value will start to blink and you can set it.
When you are ready to start to program, press and hold the START/ENTER
button for 3 seconds.
When you want to stop the program or go back to the previous step/screen,
press the BATT PROG/STOP button once.
12

Here are the detailed procedures to make the charger work. All the screens
and operations will take LiPo-CHARGE program for example
Connection
Ensure to connect the battery to balance port when charging LiPo,Lilon,
LiFe and LiHV battery under balance mode.
OPERATION PROGRAM
1).ConnectingtoPowerSource
2)ConnectingTheBattery
3).BalanceSocket
C1-XR comes with the built in switching power supply.You can connect the
AC power cord directly to the main AC socket (100-240V AC) or attaching
directly to 12V car batteries. It is critically important that you use a fully
charged 13.8V car battery.
Important!!! Before connecting a battery it is absolutely essential to check
one last time that you have set the parameters correctly.If the settings are
incorrect, the battery may be damaged, and could even burst into flames or
explode. To avoid short circuits between the banana plugs, always connect
the charge leads to the charger first, and only then to the battery. Reverse
the sequence when disconnecting the pack.
The balance wire attached to the battery must be connected to the charger
with the negative marking. Take care to maintain correct polarity!(See the
wiring diagram below.)
This diagram shows the correct way to connect your battery to the AC while
charging in the balance charge program mode only.
batterie
Balance - Board
WARNING:
Failure to connect as shown in this diagram will damage this charger. To
avoid short circuit between the charge lead always connect the charge
cable to the charger first, then connect the battery. Reverse the sequence
when disconnecting.
13

Charge program
BATT/PROGRAM Select
Press “STOP” and “-“to go through all the programs
and press “START/ENTER to enter LiPo BATT program.
Mode Select
Press “+” and “-” to go through all the modes (balance
charge mode,storage mode, discharge mode and fast
charge mode).
Battery Setting
Press START, the present value will start to blink. Press
”+” and ”-” to set the battery cells. And press START to
confirm your setting. At the same time, Press START,
the present value will start to blink. Press “+”and “-“to
change the value and press START to confirm your
setting. Charger automatically recommend charging
current according the capacity and cell count setting
value, Press START to confirm if no objection, or
manually set the current by pressing “+”or”-“button,
then press START to confirm.
Program Start
Press and hold START for 2 seconds to start the
program.
Charging Status
It show the real-time data during charging.
START
Dec./Inc.
Dec./Inc.
START
>2Seconds
BAL-CHG 4S
BAL
Li4S
BAL-CHG 4S
BAL-CHG 4S
OPERATION PROGRAM
14

Li4S
End Voltag16.80V
Capacity Cut-OFF
5000mAh
SaftyTim
ON240min
VARIOUS INFORMATION DURING THE PROCESS
Press INC or DEC during the charging or discharging process to view further
pertinent information on the LCD screen.
TMPCut-off
ON60 140
CF
EXTT MP0
IntT MP43
C
F
INPow
C1415
C3416 C2416
C4415
rVoltag
1474V
C5000 C6000
Dec.
Dec.
Dec.
Dec.
Dec.
Dec.
Inc.
Inc.
BAL
OPERATION PROGRAM
Real-time status: battery type, battery cell count, charge
current, battery pack total voltage, elapsed time and
charge capacity.
Final voltage when the program ends.
Capacity cut-off ON and value of the set capacity limit.
Safety timer ON and duration of time in minutes.
Cut off temperature.
Internal temperature.
Temperature probe needs to be connected to show
external temperature.
Input voltage
Voltage of each cell in the battery packs when the
battery is connected with balance lead.
Program Stop
During the charging process, press STOP to stop the charging process.
Program Finished
Charger will alarm once program finished.
15

START
Dec./Inc.
Dec./Inc.
START
>2Seconds
DCHG
DCHG
4.0V
3.8V
0.1A 15.6V(4S)
0.3A 15.2V(4S)
DCHG 3.8V
0.3A 15.2V(4S)
0.3A
.
.
15.6V
DSC 000 44 00058
Li4S
Discharge program
Warning: Ensure to set the right end voltage, or it may
over-discharge the battery.
OPERATION PROGRAM
BATT/PROGRAM Select
Press “STOP” and “-“to go through all the programs
and press “START/ENTER to enter LiPo BATT
program.
Mode Select
Press “+” and “-” to go through all the modes
(balance charge mode, memory mode, discharge
mode and fast charge mode) .
Battery Setting
Press START, the present value will start to blink.
Press ”+” and ”-” to set the battery cells. And press
START to confirm your setting. At the same time,
Press START, the present value will start to blink.
Press “+” and “-“to change the value and press
START to confirm your setting.
Program Start
Press and hold START for 2 seconds to start the
program.
Discharging Status
It show the real-time data during discharging.
16

START
Dec./Inc.
START
>2Seconds
0.3A
.
.
15.6V
STO 000 44 00058
Li4S
4
4
OPERATION PROGRAM
Storage Program
“STORAGE” is a function which is specialized for Lithium battery storage, its
operation is same as the discharge program. To store for a long time and
protect useful time of the battery, it automatically charge/discharge the
battery to a safe voltage.
17

>2Seconds
Battery Memory Set
BAL-CHG 4S
BAL-CHG 4S
BAL-CHG 4S
BATTMEMORYSAVE
LiPoBattry
MEMORY01
NULL
Battery Memory Recall
OPERATION PROGRAM
Battery Memory
The charger can store up to 10 different charge/discharge profiles for your
convenience, and the stored profiles can be recalled quickly without having
to go through the setup process.
Enter into this program
Press “+“or”-” to set the file number
Press “+“or”-” to set the battery type
Press “+“or”-” to set the Balance Charge Mode, Memory
Mode, Discharge Mode and Automatic Charge Mode, Press
”START” to confirm. Then press “+“or”-” to set battery cell
count, capacity, charge current. Press ”START” for more
than 2s to save data.
It shows battery type, program mode, battery cell count,
capacity, current you have saved.
Enter into this program.
Press” START” for more than 2s to start program.
18
