Keba KeContact P20 User manual

KeContact P20
User manual

© KEBA 2012-2013
Specifications are subject to change due to ongoing technical development. No guarantee is offered in respect of any of the
specifications given here. All rights reserved.
All intellectual property, including trademarks and copyrights are the property of their respective owners. Any unauthorized use
thereof is strictly prohibited.
Document: Version 1.30 / Article no.: 90061
KEBA AG, Postfach 111, Gewerbepark Urfahr, A-4041 Linz
General notes for this manual
At various points in this manual you will see notes and precautionary warnings regarding
possible hazards. The symbols used have the following meanings:
!
DANGER!
Indicates that death or serious bodily injury will occur if appropriate precau-
tionary measures are not taken.
!
WARNING!
Indicates that death or serious bodily injury can occur if appropriate precau-
tionary measures are not taken.
!
CAUTION!
Indicates that damage to property or minor physical injury can occur if appro-
priate precautionary measures are not taken.
ATTENTION
Indicates that damage to property can occur if appropriate precautionary
measures are not taken.
This symbol reminds you of the possible consequences of touching electro-
statically sensitive components.
Note
Notes on use of equipment and useful practical tips are identified by the “Note” symbol. They
do not contain any information that draws attention to potentially dangerous or harmful func-
tions.
►This arrow marks working steps that you are to perform.

KeContact P20 Contents
User manual, Version: 1.30 / Article no.: 90061 3
© KEBA 2012-2013
KeContact P20 bears the CE mark.
The corresponding Declarations of Conformity are located at KEBA AG.
This product meets the requirements of the ROHS Directive (2011/65/EU).
The corresponding Declaration of Conformity is located at KEBA AG.
Disposal information
The crossed-out trash container symbol indicates that electric appliances and electronic
devices including accessories are to be disposed of separately from general household
trash. You can find more information about this directly on the product, in the operating
manual or on the packaging.
The materials are recyclable according to their labeling. You can make an important contri-
bution to protecting our environment by reusing, renewing and recycling materials and old
appliances.
Revision history
Modification
from / to Date modified Pages Description
V1.30 020413 - Manual revised (based on German version 1.30)

Contents KeContact P20
4 User manual, Version: 1.30 / Article no.: 90061
© KEBA 2012-2013
Contents
1Important information.................................................................................................................... 5
1.1 Safety instructions................................................................................................................. 5
1.2 Intended use.......................................................................................................................... 6
1.3 About this manual ................................................................................................................. 6
2Overview......................................................................................................................................... 7
2.1 Variant overview.................................................................................................................... 7
2.2 Optional equipment............................................................................................................... 8
2.2.1 RFID sensor............................................................................................................ 8
2.2.2 Key switch............................................................................................................... 8
2.2.3 Additional optional equipment................................................................................. 9
3Using the charging station.......................................................................................................... 10
3.1 Charging station with socket...............................................................................................10
3.2 Charging station with charging cable.................................................................................. 11
3.3 Status LED.......................................................................................................................... 12
3.4 Authorization (optional) ....................................................................................................... 13
3.5 Programming RFID user cards (optional)........................................................................... 14
3.6 Installing/removing the cylinder lock ................................................................................... 15
4Troubleshooting........................................................................................................................... 17
5Maintenance ................................................................................................................................. 19
5.1 Cleaning.............................................................................................................................. 19
5.2 Customer service ................................................................................................................19

KeContact P20 Important information
User manual, Version: 1.30 / Article no.: 90061 5
© KEBA 2012-2013
1 Important information
1.1 Safety instructions
!
WARNING!
Not observing the safety instructions can result in risk of death, injuries and dam-
age to the device! KEBA AG assumes no liability for claims resulting from this!
Electrical hazard!
The installation, commissioning and maintenance of the charging station may
only be performed by correctly trained, qualified and authorized electricians1
who are fully responsible for the compliance with existing standards and in-
stallation regulations. For details, see "KeContact P20 Installation manual (for
the specialist)".
Electrical hazard / fire hazard!
Never use damaged, worn or dirty charging plugs.
The owner must ensure that the charging station is only ever operated in per-
fect condition:
- The charging station must be checked regularly for faulty sockets and con-
nectors and damage to the housing (visual inspection).
- A damaged charging station must be switched off immediately and replaced.
- Repair work to the charging station is not permitted and may only be per-
formed by the manufacturer (replacement of the charging station)!
- Do not carry out any unauthorized conversion work or modifications to the
charging station!
- Do not remove any notices on the device, such as safety symbols, warning
notices, rating plates, nameplates or cable markings!
The charging station does not have its own power switch! The RCD circuit
breaker and the line circuit breaker of the building installation serve as mains
disconnector.
No extension cables are permitted for connecting an electric vehicle to the
power supply device for electric vehicles.
Only electrical vehicles or their chargers may be connected. No connection of
other loads is permitted (electric tools etc.)!
Read the information and instructions for your vehicle carefully before you
charge the vehicle using the charging station.
Ventilation:
A number of vehicles require an external ventilation system in the interior ar-
eas due to the possible creation of toxic or explosive gases during the charg-
ing procedure.
1Persons who, due to their special training, expertise and experience as well as knowledge of current standards,
are able to assess the work performed and the possible hazards.

Important information KeContact P20
6 User manual, Version: 1.30 / Article no.: 90061
© KEBA 2012-2013
!
WARNING!
Pull the charging cable only at the plug and not at the cable out of the connec-
tor.
Ensure that the charging cable is not mechanically damaged (bent, pinched or
run over) and the connection area does not come into contact with heat
sources, dirt or water.
CAUTION!
Risk of damage!
Never clean the charging station using spray water (from a hose, high-pressure
cleaner etc.) to clean the charging station!
1.2 Intended use
KeContact P20 is a "charging station" for the indoor and outdoor area at which electrically
operated vehicles can be charged (e.g. electric automobiles).
The charging station is designed for installation on a wall or in a floor-mounted column.
The respective national regulations must be observed with regard to the installation and con-
nection of the charging station.
The intended use of the device always includes the compliance with the environmental con-
ditions for which this device was developed.
The device was developed, manufactured, inspected and documented in compliance with the
relevant safety standards. Therefore, the products do not pose any danger to the health of
persons or a risk of damage to other property or equipment under normal circumstances,
provided that the instructions and safety precautions relating to the intended use are properly
observed.
The instructions contained in this manual must be followed precisely in all circumstances.
Failure to do so could result in the creation of potential sources of danger or the disabling of
safety devices. Apart from the safety instructions given in this manual, the safety precautions
and accident prevention measures appropriate to the situation in question must also be ob-
served.
Only electrical vehicles or their chargers may be connected. A connection of other loads (e.g.
electric tools) is not permitted!
Due to technical or legal restrictions, not all variants / options are available in all countries.
1.3 About this manual
This manual is valid for devices of the type: KeContact P20
Use of this manual
This manual is intended for the following groups of people:
End-users (users of the charging station)
Start-up technicians, Service technicians

KeContact P20 Overview
User manual, Version: 1.30 / Article no.: 90061 7
© KEBA 2012-2013
2 Overview
2.1 Variant overview
Charging station (application example)
Base model with socket (Type 2)
[A]… Status LED
[B]… Standard socket (variants possible)
[C]… Housing cover
Charging station (application example)
Base model with charging cable (Type 2)
[A]… Status LED
[B]… Parking bay for charging plug
[C]… Housing cover
[D]… Hanger for charging cable

Overview KeContact P20
8 User manual, Version: 1.30 / Article no.: 90061
© KEBA 2012-2013
Charging station (application example)
Base model with charging cable (Type 1)
[A]… Status LED
[B]… Parking bay for charging plug
[C]… Housing cover
[D]… Hanger for charging cable
2.2 Optional equipment
2.2.1 RFID sensor
RFID sensor
RFID sensor
The RFID sensor [R] is used for touchless au-
thorization of a user with MIFARE cards or tags
according to ISO14443.
2.2.2 Key switch
Key switch
Key switch
The key switch [S] is used for authorizing a
user.

KeContact P20 Overview
User manual, Version: 1.30 / Article no.: 90061 9
© KEBA 2012-2013
2.2.3 Additional optional equipment
Network capability
Switch contact (for control of external additional equipment e.g. fan)
Enable input for e.g. ripple control receivers, time switches,…
This permits a scheduled (time-controlled) charging of the vehicle to be realized.
PLC (Power Line Communication) according to GreenPhy standard
Mounting column

Using the charging station KeContact P20
10 User manual, Version: 1.30 / Article no.: 90061
© KEBA 2012-2013
3 Using the charging station
3.1 Charging station with socket
Charging station (application example)
Base model with socket
[A]… Status LED
[B]… Standard socket (variants possible)
[C]… Housing cover
Starting the charging procedure Status LED
►The charging cable is neither
plugged into to the vehicle nor
the charging station.
The charging station must be ready for operation, the status
LED flashes green slowly every 3 seconds ("Ready for opera-
tion").
►Plug the charging cable into
the charging station first. The status LED lights up orange briefly ("Wait for locking")
while the system attempts to mechanically lock the plug. After
successful locking, the status LED flashes slowly green every 3
seconds again.
►Now plug the charging cable
into the vehicle. The status LED lights up green continuously ("Ready for
charging"). The charging procedure can be started by the
vehicle from this point of time; then the status LED flas-
hes green ("Charging procedure").
The charging procedure can also be started in reverse plugging sequence.
Ending the charging procedure
Do not use force to pull out the mechanically locked plug! The charging procedure must be interrupted
or completed by the plugged-in vehicle. For details, please refer to the instructions of the vehicle
manufacturer.
►Disconnect the charging cable from the vehicle ("Wait for unplugging").
►Disconnect the charging cable from the charging station.

KeContact P20 Using the charging station
User manual, Version: 1.30 / Article no.: 90061 11
© KEBA 2012-2013

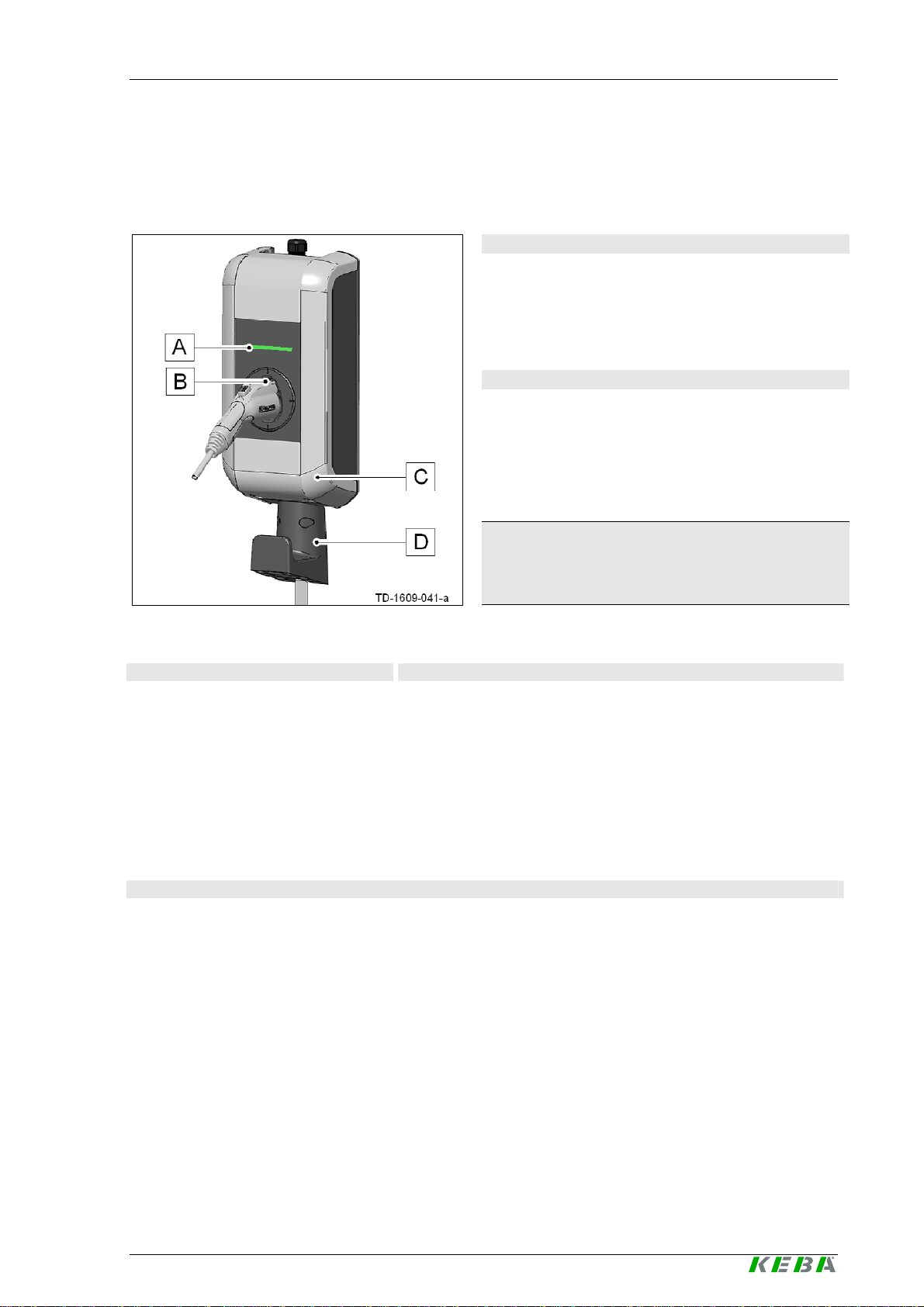

3.2 Charging station with charging cable
Charging station (application example)
Typical version with charging cable
[A]… Status LED
[B]… Parking bay for charging plug
[C]… Housing cover
[D]… Hanger for charging cable
Storing the charging plug/charging cable
If no charging procedure is being performed,
the charging plug can be plugged into the park-
ing bay [B] for safe storage.
The charging cable can be coiled up and placed
on the hanger [D].
Note
Depending on the design of the charging sta-
tion, the parking bay may deviate from the form
shown.
Starting the charging procedure Status LED
►The charging cable is not
plugged into the vehicle.
The charging station must be ready for operation, the status
LED flashes green slowly every 3 seconds ("Ready for opera-
tion").
►Plug the charging cable into
the vehicle. The status LED lights up green continuously ("Ready for charg-
ing"). The charging procedure can be started by the vehicle
from this point of time; then the status LED flashes green
("Charging procedure").
Ending the charging procedure
The charging procedure is ended by unplugging the charging cable at the vehicle. For details, please
refer to the instructions of the vehicle manufacturer.
►Disconnect the charging cable from the vehicle ("Wait for unplugging").
►Store the charging cable on the provided hanger of the device.

Using the charging station KeContact P20
12 User manual, Version: 1.30 / Article no.: 90061
© KEBA 2012-2013
3.3 Status LED
Status LED – segments
Status LED - segments
The status LED provides information about the
current operating state of the charging station
and consists of 4 segments (S1 to S4) which
can light up together or individually.
All segments can light up or flash in different
colors.
If not otherwise specified, all 4 segments light
up together.
Status LED Function
green
Ready for operation (charging cable is not yet plugged in on both sides;
optional: The charging station was authorized correctly by key switch or
RFID card)
Flashes
slowly every
3 seconds blue
Authorization is required (charging station has not been authorized cor-
rectly yet; authorization with RFID, key switch or external enable required)
green
Ready for charging (charging cable is plugged in on both sides and
locked)
Lights up
continuously blue
Ready for charging with ISO15118 (charging cable is plugged in on both
sides and locked)
External enable still required (authorization with RFID or key switch car-
ried out; vehicle connected correctly; external enable on the enable input
still necessary)
green
Charging procedure is carried out (applies for "EN 61851 Mode 3" charg-
ing procedure)
Flashes
every sec-
ond blue
Charging procedure is carried out (applies for "ISO15118" charging proce-
dure)
Lights up orange briefly
after plugging in
Wait for locking (charging cable was plugged in and the system attempts
to lock the plug)
Green LED goes out
briefly every 3 seconds
Wait for unplugging (charging procedure complete, vehicle unplugged)

KeContact P20 Using the charging station
User manual, Version: 1.30 / Article no.: 90061 13
© KEBA 2012-2013
Flashes orange slowly
every 5 seconds
Temperature limit exceeded (charging procedure temporarily interrupted;
charging continues after cooling down)
Flashes red
Malfunction (for details, see "Troubleshooting")
Segment 1 lights up
orange
RFID programming mode (RFID cards can be programmed in this mode.
For details, see "Programming RFID user cards")
Segment 2 lights up
orange
Commissioning mode
(the charging station is in commissioning mode)
3.4 Authorization (optional)
An (optional) authorization of a user for charging at the charging station can either
occur with a key switch or by means of RFID user cards depending on the de-
vice version.
Authorization required:
The status LED flashes blue slowly every 3 seconds.
Authorization successful:
A successful authorization will be indicated by a series of increasing tones.
Authorization failed:
A failed authorization will be indicated by a series of decreasing tones.
Note
After successful authorization, if the charging procedure is not started within 60 seconds, the
automatic enable expires.

Using the charging station KeContact P20
14 User manual, Version: 1.30 / Article no.: 90061
© KEBA 2012-2013
3.5 Programming RFID user cards (optional)
The authorization by an RFID master card is necessary for the programming. The
programming mode can be activated and deactivated with the RFID master card
which is programmed during commissioning of the charging station.
►Activating programming mode:
Hold the RFID master card in front of the RFID sensor and wait for the signal tone.
►Programming RFID user cards:
Hold the new RFID user card in front of the RFID sensor within 5 seconds and wait for
the signal tone.
►End programming mode:
To confirm, hold the RFID master card in front of the RFID sensor again within 5
seconds and wait for the signal tone.
The RFID user card is now programmed.
Deleting RFID user cards:
The deletion of all stored RFID user cards is only possible by opening the device (see “Instal-
lation manual”.

KeContact P20 Using the charging station
User manual, Version: 1.30 / Article no.: 90061 15
© KEBA 2012-2013
3.6 Installing/removing the cylinder lock
Cylinder lock with key
General
Device versions with a key switch are standard
fitted with a cylinder lock. If needed, the cylinder
lock can be replaced according to the following
instructions.
Profile half cylinder – dimensions in millimeters
Requirements
The cylinder lock must fulfill the following re-
quirements:
Profile half cylinder according to EN 1303 or
DIN 18252
Dimension A = 30 mm (for A=31 mm a min-
imal overhang occurs on the housing)
Adjustable lock nose
Preparing the cylinder lock
Preparing the cylinder lock
►Adjust the angle of the lock nose [S] so
that it faces up vertically when the key is
in the removal position.
Adjusting the lock nose
Adjusting the lock nose
►The adjustment of the lock nose angle
normally occurs as follows:
Use a thin object to press in the code pin
and push the lock nose into the desired
position.

Using the charging station KeContact P20
16 User manual, Version: 1.30 / Article no.: 90061
© KEBA 2012-2013
Inserting the cylinder lock
Inserting the cylinder lock
►Turn the key 180° so that the lock nose
faces downwards.
►Use light pressure to press the cylinder
lock into the housing completely until it
audibly engages.
The cylinder lock should be flush with the
surface of the housing.
Engaging the cylinder lock
Engaging the cylinder lock
►Turn the key to the right until the
resistances are noticeably overcome and
the key can be removed.
Do not turn the key past the [MAX]
position.
The key switch is now ready for use.
Removing the cylinder lock
Removing the cylinder lock
Removing the cylinder lock
►Turn the key to the left until the
resistances are noticeably overcome.
Turn the key further until it is located in
the vertical position.
►The cylinder lock can now be unlocked
from the holder using slightly increased
force and removed.

KeContact P20 Troubleshooting
User manual, Version: 1.30 / Article no.: 90061 17
© KEBA 2012-2013
4 Troubleshooting
PROBLEM Possible cause - remedy
Status LED does not light up
No voltage supply –
Check RCD circuit breaker and line circuit
breaker and switch on if necessary.
Defective – please contact your service partner.
Charging procedure is not started
The plug is not inserted correctly -
Pull out the plug and insert the plug again.
The charging procedure was not performed
correctly – follow the instructions in Chapter
"Starting/ending the charging procedure".
The plug may possibly be dirty in the locking
area or damaged – clean the plug or have it re-
placed.
The vehicle does not need any power or has an
error – check the vehicle.
The vehicle is programmed to a later start time
for charging.
Vehicle is not fully charged
Increased charging time
Power reduction due high temperature by vehi-
cle or charging station:
- Protect the vehicle and charging station from
direct sunlight during the charging process
(carport, garage, ...)
- Visual inspection of the connectors for dirt,
wear or damages. If necessary, please contact
your service partner.
Missing release by external controller (energy
supplier, PV system, ...)
Standard plug cannot be unplugged
The charging procedure was not ended cor-
rectly by the vehicle – end the charging proce-
dure according to the instructions of the vehicle
manufacturer.
Eventually the plug cannot be unlocked under
tension - Push in the plug and connect it again
on the vehicle. Then end the charging proce-
dure again.
Status LED flashes red
Malfunction – first check the possible causes of
error for the malfunction (*).
Switch off the supply voltage of the charging
station (installed or superordinate RCD circuit
breaker and line circuit breaker). Unplug the
charging cable from the charging station.
Switch on the voltage supply again.
Defective – please contact your service partner.
Please see our FAQ list on www.kecontact.com for further information.

Troubleshooting KeContact P20
18 User manual, Version: 1.30 / Article no.: 90061
© KEBA 2012-2013
(*) Possible causes of error for malfunction (status LED flashes red)
Malfunctions must always be acknowledged by unplugging the plug and can be triggered, for
example, by the following causes:
The plug is not properly inserted; locking is not possible => insert the plug quickly.
The plug was unplugged during the charging procedure:
The plug was not locked correctly – unplug the plug and plug in correctly and make sure
it interlocks correctly.
The plug at the charging station sends an invalid state:
Hardware fault of the cable – unplug the plug and plug in correctly, if necessary, replace
the cable.
Temperature shut-off:
The permitted temperature in the charging station was exceeded – unplug the plug and
wait until the charging station has cooled down.
Reset of an error:
If during the inserting of the plug or the charging procedure an interrupt occurs, the charging
station tries to start the charging procedure again (max. 5 times).
If the charging procedure can’t be started, it must be acknowledged by the proper ending of
the charging procedure (see section "Ending the charging procedure") or eventually by re-
booting the charging station. On repeated occurrence of errors without any reason, please
contact customer service.

KeContact P20 Maintenance
User manual, Version: 1.30 / Article no.: 90061 19
© KEBA 2012-2013
5 Maintenance
The charging station is essentially maintenance free but it must be checked regularly by the
owner for faulty sockets and charging plug (including the charging cable) and damage to the
housing.
5.1 Cleaning
►If necessary, clean the housing of the charging station using a moist cloth. Stubborn
dirt can be removed using a mild, solvent-free, non-scouring cleaning agent.
5.2 Customer service
For questions or problems please contact the executive electrical installation company.
Before contacting customer service:
Check the troubleshooting measures in the "Troubleshooting" chapter.
Check the troubleshooting measures in the operating manual of the vehicle manufac-
turer.
Make note of model version and serial number (type plate on top of the device).
Type plate
[A]…Model version
[B]…Serial number
[C]…..Part number
