EV Rider TranSport S34-FD User manual

1
USER MANUAL
Electrically powered scooter
Class A (EN 12184)
EV Rider, LLC
6410 Arc Way - Suite A
Ft. Myers - FL 33966 USA
S34-FD TranS
p
ort

2
CONTENTS
1. SAFETY INSTRUCTION…………………………………...……………................................…3
2. ELECTOMAGNETIC INTERFERENCE(EMI)…………….…………………………………7
3. TECHNICAL SPECIFICATION…….…….………………..……………….…………………..9
4. ADJUSTMENT…………………………………………………………………………..………10
5. OPERATION OF CONTROL PANEL…………………………………..……………………..12
6. BATTERY AND CHARGING INSTRUDCTION….…………..……………………….…..…16
7. MAINTENANCE & REPAIR…..……………….………...………………….………..……..…18
8. TROUBLESHOOTING & FAULT REPAIR……….………..…………………………………20
9. CIRCUIT DIAGRAM…….………..…….……..………………………..………………………21
10. BOM LIST DRAWING………………............…………………….………….…………………22
11. WARRANTY DECLARATION…………………………………………………………………23

3
SAFETY INSTRUCTION
General
Do not ride your scooter in traffic
Never operate the scooter while you are under the
influence of alcohol.
Never use electronic radio transmitters such as
walkie-talkies, or cellular phones.
Make sure that there are no obstacles behind you while
reversing your scooter.
Do not make a sharp turn or a sudden stop while riding
your scooter.
Caution:
Pinch Points. Keep hands clear

4

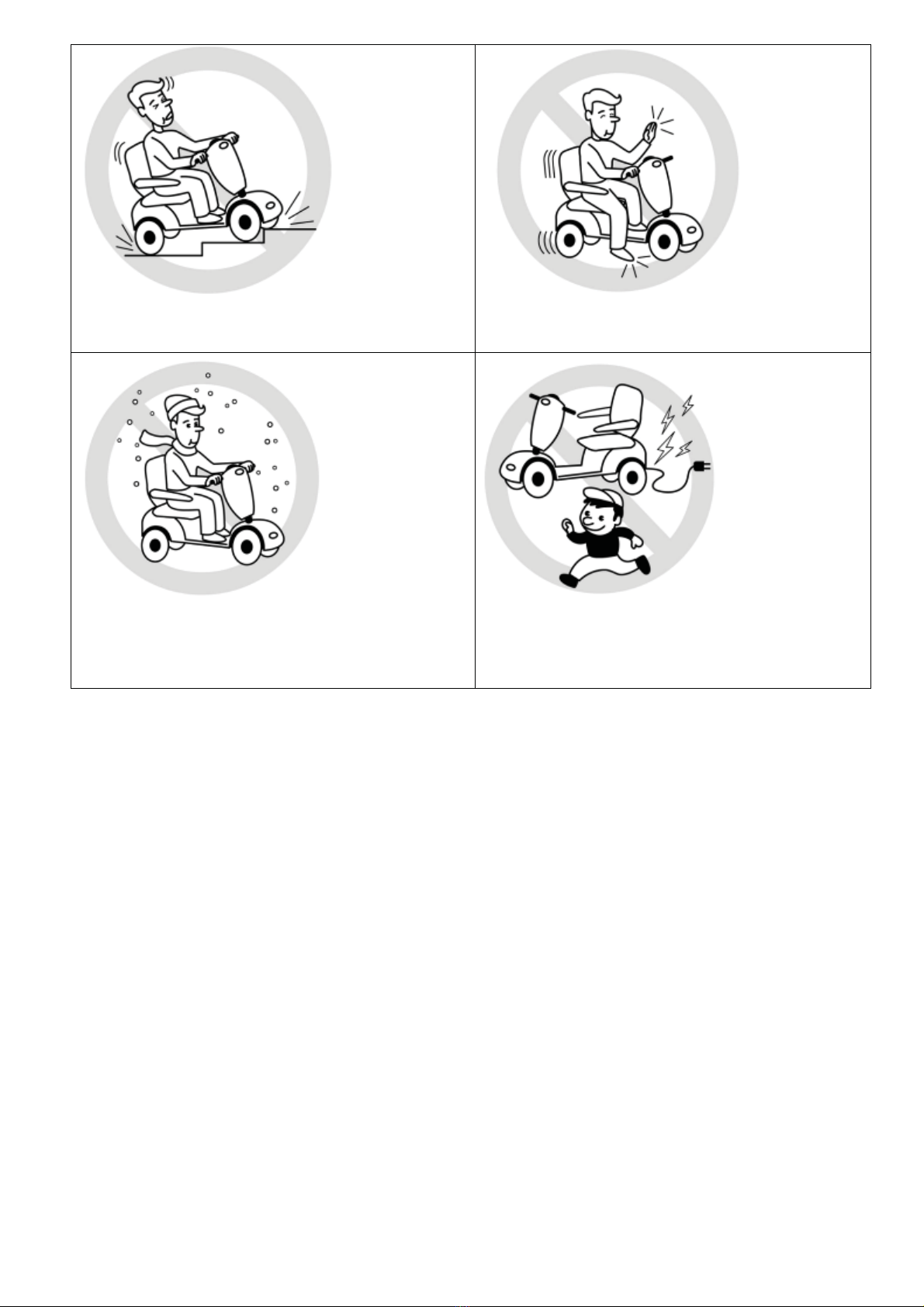

Do not attempt to climb curbs greater than limitation
shown on Technical Specification
Do not leave your hands and legs off the scooter when
driving.
Do not operate your scooter during inclement weather.
This reduces the possibility of an accident or possible
damage to the scooter
Do not allow unsupervised children to play near this
equipment while the batteries are charging.
Warning – Don’t operate your scooter for the first time without completely reading and
understanding this user manual.
1. Don’t operate scooter on public streets and roadways. Be aware that it may be difficult for traffic to see
you when you are seated on the scooter. Obey all local pedestrian traffic rules. Wait until your path is clear
of traffic, and then proceed with extreme caution.
2. To prevent injury to yourself or others, always ensure that the power is switched off when getting on or
off of the scooter.
3. Always check that the drive wheels are engaged (drive mode) before driving. Do not switch off the power
when the scooter is still moving forward. This will bring the chair to an extremely abrupt stop.
4. Do not use this product or any available optional equipment without first completely reading and
understanding these instructions. If you are unable to understand the warnings, cautions or instructions,
contact a healthcare professional, the dealers or technical support before attempting to use this equipment,
otherwise, injury or damage may occur.
5. There are certain situations, including some medical conditions, where the scooter user will need to
practice operating the scooter in the presence of a trained attendant. A trained attendant can be defined as

5
a family member or care professional especially trained in assisting a scooter user in various daily living
activities. Consult with your physician if you are taking any medication that may affect your ability to
operate your scooter safely.
6. Do not attempt to lift or move a power scooter by any of its removable parts including the armrests, seats
or shrouds. Personal injury and damage to the power chair may result.
7. Never try to use your scooter beyond its limitations as described in this manual.
8. Please do not sit on your scooter while it is in a moving vehicle.
9. Keep your hands away from the wheels (tires) while driving scooters. Be aware that loose fitting clothing
can become caught in the drive tires.
10. Consult your physician if you are taking prescribed medication or if you have any physical limitations.
Some medications and limitations may impair your ability to operate scooters in a safe manner.
11. Be aware when the drive mode is unlocked or locked.
12. Don’t remove anti-tipper if there is any-tipper equipped with the scooter.
13. Contact with tools can cause electrical shock. Do not connect an extension cord to the AC/DC converter
or the battery charger.
14. When climbing an incline, don’t drive at an angle up the face of the incline. Drive your scooter straight up
the incline. This greatly reduces the possibility of a tip or a fall.
15. Don’t climb a slope steeper than the scooter’s limitation.
16. Don’t attempt to have your scooter proceed backward down any step, curb or other obstacle. This may
cause the scooter to fall or tip.
17. Always reduce your speed and maintain a stable center of gravity when cornering sharply. Don’t corner
sharply when driving scooters at higher speeds.
18. Operating in rain, snow, salt, mist conditions and on icy or slippery surfaces may have an adverse affect
on the electrical system.
19. Never sit on your scooter when it is being used in connection with any type of lift or elevation product.
Your scooter is not designed with such use in mind and any damage or injury incurred from such use is
not the responsibility of the authorized dealers.
20. Surfaces of the power scooter that can come into direct contact with the occupant’s skin and/or assistant’s
skin during normal use and that are within occupant reach shall not exceed 41 C. The motor surface can
reach temperatures greater than 41C after driving. Do not touch these parts when disassembling the
scooter or wait until the motor is cooled down.
21. If the power scooter is switched off while driving on the horizontal at maximum speed at 7 km/h, it will
come to a stop with the maximum stopping distance of 1.2 m. Please consider this distance when driving.
22. Do not touch these parts (motors) when disassembling the scooter, until the motor is cooled down.
23. Programming of the controller shall only be carried out by authorized personnel. Incorrect programming
can result in safety hazards for the occupant.
24. Drive-wheel needs to be switched to engaged-mode while transporting the power scooter.
