EvenGlo GA 301 H Instruction manual

23
-
428 Millen Road
Stoney Creek ON L8E 3N9 Canada
www.irenergy.ca
DANGER
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odour continues, immediately call your
gas supplier.
S
Se er ri ie es s G GA A3 30 01 1
Radiant Patio Heater
Manual for Installation, Operation & Maintenance
Performance that outshines
WARNING: Improper installation, adjustment, alteration,
service or maintenance can cause injury or property damage.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapours and
liquids in the vicinity of this or any other appliance.An LP
cylinder not connected for use shall not be stored in the
vicinity
of this or any other appliance.
Please retain these instructions for future reference.
IMPORTANT:The installer or seller must leave these
instructions with the owner. Only those who are certified to do
so should perform service on these heaters.
*FOR OUTDOOR USE ONLY
*The Even-GLO heater has been approved for indoor use in non-residential
applications (See page 8 for details) for natural gas unitsONLY
alfresco-heating.com
888-Warm-Glo

alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 3Rev. 06/2009
INDEX
1) Caution and General Safety.................................................................................... 4
2) Pre-installation Overview ........................................................................................ 5
3) What you need to supply.......................................................................................... 7
4) Location Planning .......................................................................................................9
5) Clearance to Combustible Materials .....................................................................10
6) Installation Instructions ............................................................................................11
Equipment dimensions ......................................................................................11
Power/Gas Specification...................................................................................13
7) Assembly ..................................................................................................................14
Floor Mount ........................................................................................................14
Ceiling Mount .....................................................................................................21
8) Lighting and Shutdown Instructions .....................................................................27
9) Maintenance and Trouble Shooting .................................................................... 28
10) Parts List .................................................................................................................29
11) Wiring Diagram ......................................................................................................30
12) Warranty .................................................................................................................31
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 4 Rev. 06/2009
Caution and General Safety
•At all times maintain clearance to combustible materials as further
specified in this manual. Failure to do so can result in serious fire
hazard.
•Never operate heaters in atmosphere containing flammable vapours
or combustible dusts.
•This heater is equipped with an electronic and automatic ignition
device. Do not attempt to light the burner by hand. Failure to comply
can result in a serious fire and personal injury hazard.
•Certain materials, when stored under this heater are subjected to
radiant heat can soften, distort or otherwise be damaged, special
care should be taken of plastic materials
•Appliance surfaces, other than the obvious flame and emitter
surfaces, attain elevated temperatures during operation. Do not
touch the heater head during operation. Everyone should be alerted
to this hazard to avoid burning.
•Children should be strictly supervised when in the area of this heating
appliance. Playing or running around the structure should be strictly
forbidden.
•Clothing or other flammable materials should not be hung on or near
this heater.
CAUTION: FIRE OR BURN INJURY HAZARD
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 5 Rev. 06/2009
Pre-installation Overview
What you will receive:
Top ReflectorHeater head
Sectional Pole Emitter
Gas train/hose assembly
Gas
Connection Cover
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 6 Rev. 06/2009
Pre-installation Overview

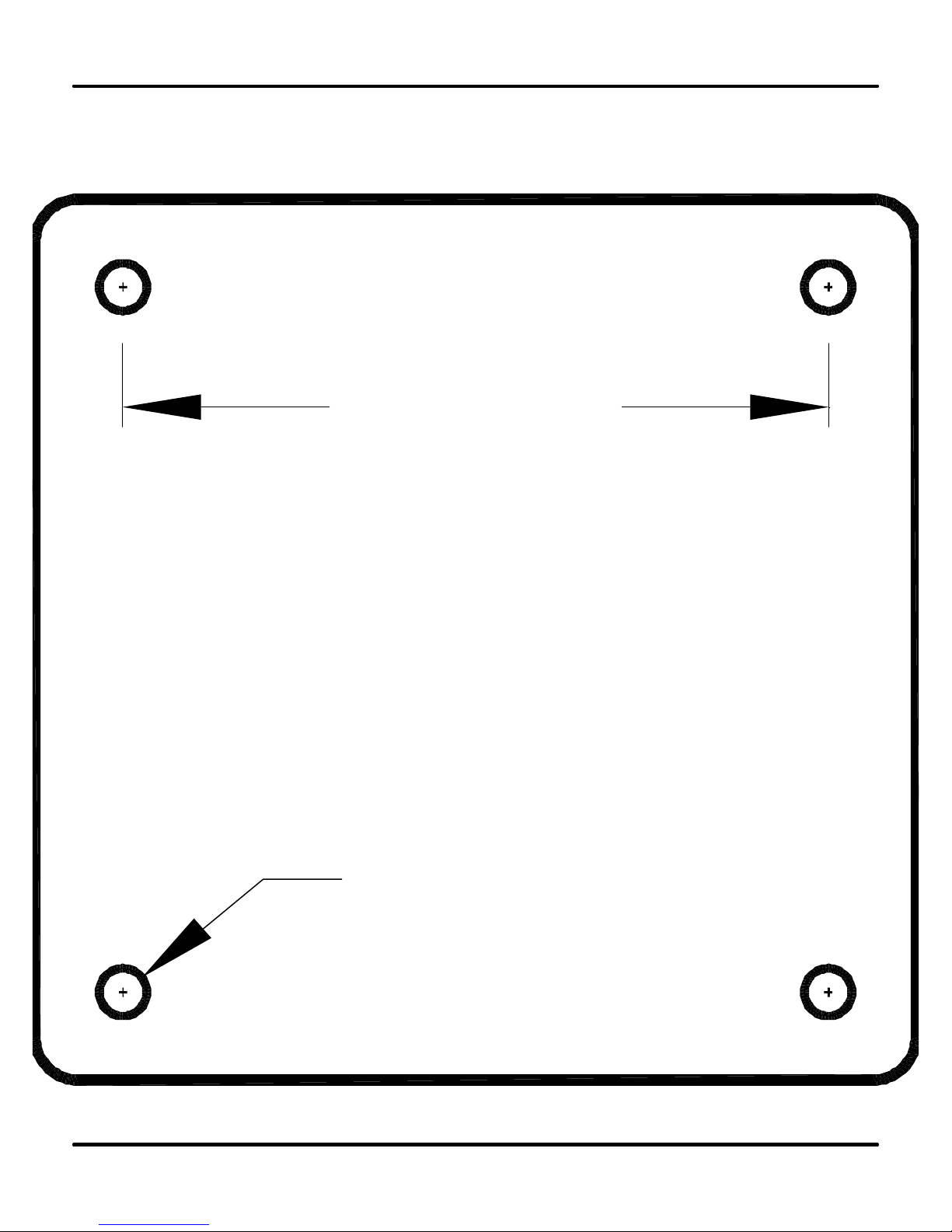

Mounting Plate hole Pattern
(Full size)
Ø0.42"
6.30"
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 7 Rev. 06/2009
What you need to Supply
What you need to Supply:
1. Heater post anchoring hardware for either the base mount or the hanging
model.
2. Materials necessary to construct a concrete base for floor mounted model
3. Gas supply line that is installed to the Gas and Electric Supply according to
the: National Fuel Gas Code, ANSI Z.223.1 (NFPA 54) in the US and
Natural Gas and Propane Installation Code, CSA B149.1 or Propane
Storage and Handling Code,B149.2 in Canada.
4. Electrical supply rated at 24 Vac with two stage control
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 8 Rev. 06/2009
Location Planning
Wind protection has an important influence on the body’s ability to retain radiant
heat. Use natural or newly built wind barriers where possible, such as existing
buildings, shrubbery or tree lines and fences.A clear plastic six-foot fence is used in
some commercial restaurants to give an open look while giving good wind
protection.
One Even-GLO heater, at high fire and in windless conditions has a comfort radius
of about twelve feet (24 ft. circle).
A series of heaters providing area heat should be placed about 14-20 feet apart.
A patio that has been almost entirely closed in with a roof and windbreak walls
or a tent may be considered an indoor location by some code authorities. The
Even-GLO heater has been approved for indoor use in non residential
applications (Natural Gas Models ONLY). Venting of the flue gases is
accomplished by means of an interlocked fan. Refer to the National Fuel Gas
Code, ANSI Z.223.1 (NFPA 54) in the US and CAN/CGA B149.1 and B149.2
Installation Codes in Canada.
1. Location Requirements:
a. Never locate the heater directly below electrical lines, gas lines or
sprinkler systems.
b. Do not locate heater too close to vinyl or plastic wall coverings.
These materials may discolour or soften well before they reach
combustible limits.
c. Always allow room for removal of the top reflector and heater head
for maintenance purposes.
d. The heater aspirates air for combustion. Do not locate heater where
there are severe draft conditions or airflow restrictions to the heater
head base.
NOTE: Sprinkler head heat fuse link performance may alter with age.
WARNING!
This heater is NOT approved for any indoor Residential
application. If in doubt of your application consult with your
local fire marshal or gas authority having jurisdiction. Indoor
spaces include but are not limited to attached garages,
solariums, living quarters etc.
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 9 Rev. 06/2009
Clearance to Combustible Materials
The following clearance data is based on a maximum limit of 90°F plus ambient
temperature. Note with an ambient temperature of 70°F the surface
temperatures at the clearance distances listed below could reach 160°F Care
should be taken with placement of plastic or vinyl in the proximity of the
heater as they tendto distort and soften at these temperatures.
NOTE: Some materials deteriorate or soften at sustained temperatures below 160°F.
Consult material manufacturer for recommendations
BELOW
TOP
SIDE
CLEARANCE TO COMBUSTIBLES
GA 301 H
22"
MODEL NO. TOP SIDES BELOW
18"
33"
22" 33"
18"GA 301
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 10 Rev. 06/2009
Installation Instructions
Installation must comply with local building codes and/or, for the USA/National Fuel
Gas Code, ANZI Z 223.1 (NFPA 54) and for Canada, CAN/CGA B149.1 and B149.2,
National Gas and Propane Installation Code (latest editions).
Appliance must be electrically grounded in accordance with local codes or, in their
absence; the National Electrical Code, ANSI/NFPA 70 in the USA, CSA C22.1
Canadian Electrical Code in Canada.
Equipment Dimensions
Floor mount model# GA 301
89.7"
5.1"
67.0"
39.5"
7.8"
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 11 Rev. 06/2009
Installation Instructions
Equipment Dimensions
Hanging model# GA 301 H
Ø39.50"
47.98"
17.95"
1.13"
46.81"
6 Feet Minimum Clearance Below
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 12 Rev. 06/2009
Power/Gas Specifications
High fire rate: Natural -53,000 btuh Propane -47,000 btuh
Low fire rate:
Natural
-
46,000 btuh
Propane
-
40
,000 btuh
Gas Supply Pressure:
Natural Gas: Minimum 6.5 ” W.C. Maximum 14.0 ” W.C.
Propane Gas: Minimum 10.8 ” W.C. Maximum 14.0 ” W.C.
Electric Supply:24 VAC, 0.8A
The appliance and its individual shutoff valve must bedisconnected from the gas
supply piping system during any pressure testing of that system at test pressures in
excess of ½ psig (3.5 KPa)
The appliance must be isolated from the gas supply piping system by closing its
individual manual shutoff valve during any pressure testing of the gas supply piping
system at test pressures equal to or less than ½ psig (3.5 KPa)
Installation or repair should only be done by personnel qualified for
the installation of powered gas appliances.
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 13 Rev. 06/2009
Assembly
1. Floor Mount
a. Slide the Gas Connection Cover over the bottom pole. Assemble
the top pole portion to the bottom pole portion by sliding the two
parts together and aligning the four boltholes with the threaded
holes in the bottom portion. Use the 4 hex bolts supplied and
tighten snug.
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 14 Rev. 06/2009
Assembly
b. Mount pole base onto aconcrete floor or cast concrete with a
minimum below grade depth of 12” and having a 12” diameter. If
forming concrete, cast in place appropriatepassage for gas and
control wires. Use minimum 3/8” x 5” 90°lag bolts or equivalentto
mount heater base to the concrete base. The pole base could also
be mounted on wood decks with 3/8” bolts and washers on the
underside of thedeck.
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 15 Rev. 06/2009
Assembly
c. Place the emitter in place as illustrated below such that it is held in
place by the three fingers.
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 16 Rev. 06/2009
Assembly
d. Install the fourth finger with the hardware provided. It is normal for the
emitter to have some movement for thermal expansion.
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 17 Rev. 06/2009
Assembly
e. Remove protective coating from the reflector surface and fasten to the
four heater arms using ¼ -20 carriage bolt with washers and nuts.
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 18 Rev. 06/2009
Assembly
f. Feed hose and wires through pole section and guide the gas line and
wires through appropriate hole in the pole.
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 19 Rev. 06/2009
Assembly
g. Assemble heater head to the pole section with three stainless steel
type F screws provided.Install the electrical box provided to the pole
with a self drilling #8 sheet metal screw.
alfresco-heating.com
888-Warm-Glo

Even-GLO™Series GA301 Page 20 Rev. 06/2009
Assembly
h. Connect gas supply and electric power following all local codes.
Check for gas leaks at all connections with appropriate soap solution.
Never connect an unregulated gas supply to the heater.
Do not use high pressure (above ½ psig) to test the gas supply system with
the appliance connected. Failure to comply can result in damage to the
appliance.
2. Ceiling Mount
a. Assemble 4 gusset plates to the base as illustrated. Use 5/16” carriage
bolts with washers and nuts.
alfresco-heating.com
888-Warm-Glo
