EverFocus eZ Tracker EFN3320 User manual

EFN Series Fisheye Network Camera
3MP 360 ePanoramic View, IP68, IK10
Quick Installation Guide
Indoor Outdoor
Copyright © EverFocus Electronics Corp,
Release Date: August, 2014

EFN Series Fisheye IP Camera
1
1. Physical Description
The EFN Series is designed for indoor and outdoor use. The series comes in three models:
Model Megapixel Type Protection Rating PoE 12 VDC Audio I/O
EFN3320 3 MP Indoor - Yes - - -
EFN3320
3 MP Indoor - Yes Yes Yes Yes
EFN3321 3 MP Outdoor IP68, IK10 Yes Yes Yes Yes
Indoor Type
2
1
3
Rear View Front View

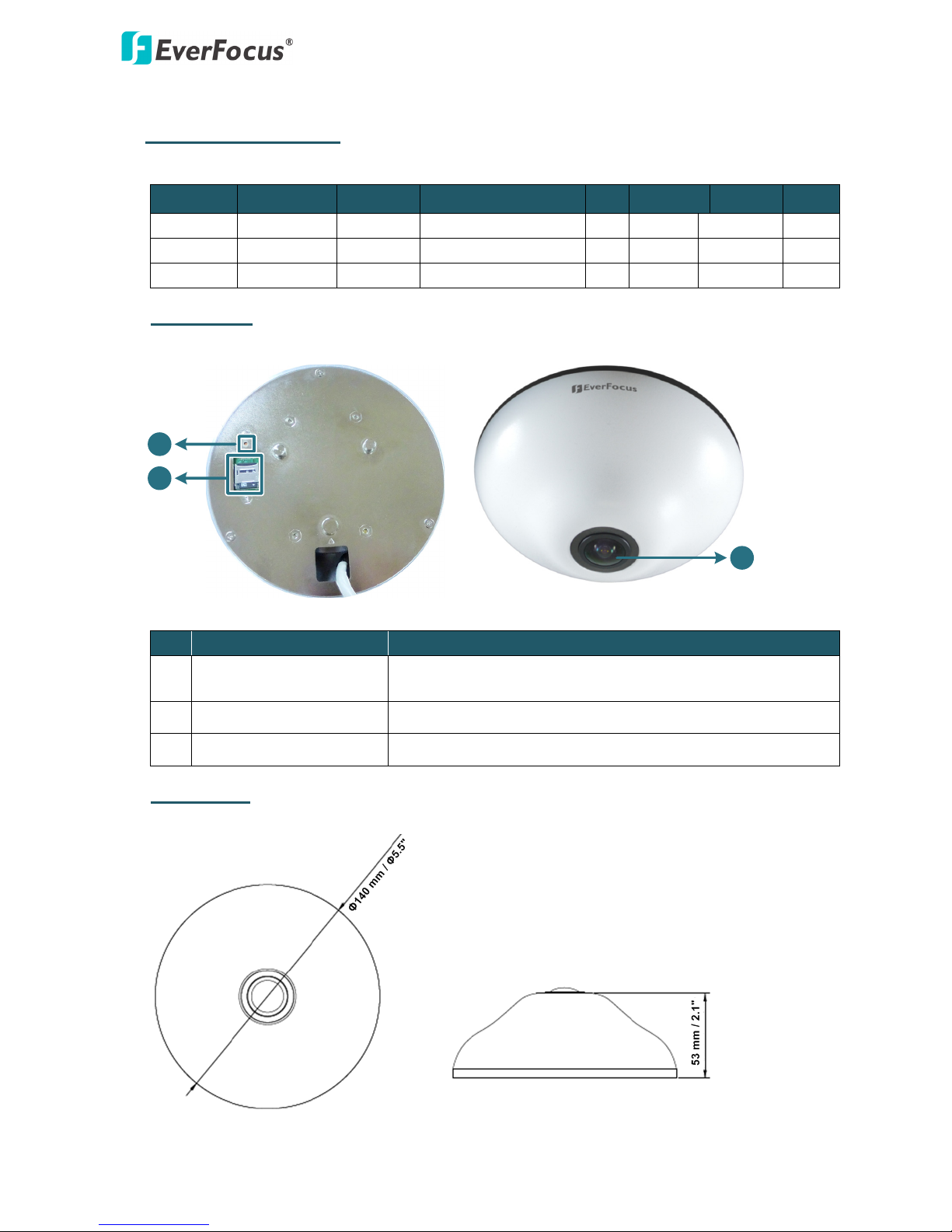

No. Item Name Descriptions
1 Reset Button Press the button for 7 seconds to reset all configurations to
the factory default settings.
2 Micro SDHC / SDXC Slot For inserting a micro SDHC / SDXC card.
3 Fisheye Lens Fisheye lens with fixed IRIS and IR corrected.
Dimensions

EFN Series Fisheye IP Camera
2
Outdoor Type
4
1
52 6
3
No
Item Name Descriptions
1 Lens Fisheye lens with fixed IRIS and IR corrected.
2 Cable Gland Equipped with three plugs inserted in the cable conduits for
waterproofing.
3 Reset Button Resets all configurations to the factory default settings. Press and
hold the Reset Button for 10 seconds by using a pen or a paper click.
4 Micro SDHC / SDXC
Slot
Insert a micro SDHC / SDXC card.
5 Terminal Block A 12-pin terminal block. See 2.Cables and Terminal Block below.
6 LAN / PoE Port Connects to a 10/100 Ethernet or PoE.
Dimensions

EFN Series Fisheye IP Camera
3
Minimum System Requirement
Before installing, please check that your computer meets these system requirements.
•Operating System: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)
•Microsoft Internet Explorer 7 or above
Packing List
Please check that there is no missing item in the package before installing.
Indoor Type
•Camera x 1 •Screw x 3 (with 3 Anchors)
•RJ-45 Connector x 1 •Spacer x 1
•Mounting Template x 1 •Software CD x 1
•Tilting Wall Mount Bracket (15° tilt angle) x 1 •Quick Installation Guide x 1
Outdoor Type
•Camera x 1 •Desiccant Bag x 2
•Base Plate Screw x 4 •Inner Paper x 1
•Screw Anchor x 4 •Software CD x 1
•Hexagon Screwdriver x 1 •Quick Installation Guide x 1
Note:
1. Equipment configurations and supplied accessories vary by country. Please consult
your local EverFocus office or agents for more information. Please also keep the
shipping carton for possible future use.
2. Contact the shipper if any items appear to have been damaged in the shipping
process.

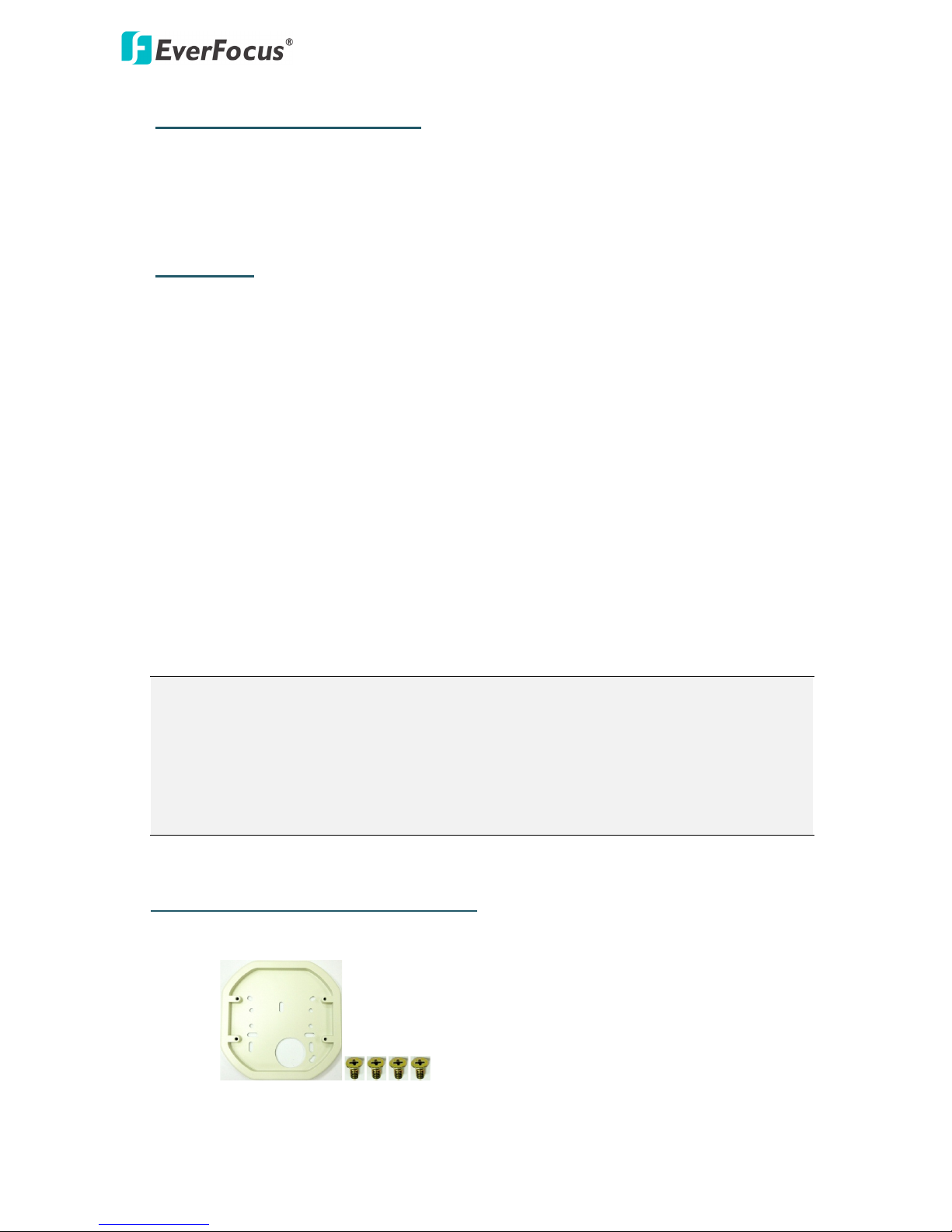

Optional Accessory (for Outdoor Type)
One Adapter Plate with 4 Screws
The Adapter Plate is designed for installing the
camera to the wiring box on the wall. Please
refer to Step 3.d in 3.3 Outdoor Type for more
details.

EFN Series Fisheye IP Camera
4
2. Cables and Terminal Block
This section describes the cables and terminal block of the fisheye cameras. The EFN3320 only
features a PoE cable.
For EFN3320c (Indoor)
The Cables provide connections for Network, power, audio input / output, alarm input / output and
video test output. Note that the audio line in/out cable features a 3.5mm TRS connector. Be sure to
prepare speakers / microphones with TRS connector (see TRS Connector image below). Also,
speakers / microphones with a (built-in) amplifier and external power supply are required.
Alarm Input / Output
Audio Input (TRS Line-in)(Pink)
Audio Output (TRS Line-out)(Green)
Video Test-Out (BNC)
12 VDC Input
LAN / PoE Cable
4 3 2 1
Pin Assignment from Alarm I/O
Pin 1: Alarm In (+)
Pin 2: Alarm GND (-)
Pin 3: Alarm COM (-)
Pin 3: Alarm Out (+)
TRS Connector
Left Channel (Tip)
Right Channel (Ring)
Ground (Sleeve)
To activate the Audio function, the Enable Audio must be checked.
See Audio Settings in 7.2.1 Streaming and Audio in the User’s
Manual.
For the Video Test-Out cable to work, the Stream 4 must be
disabled (unchecked), see Stream Settings in 7.2.1 Streaming
and Audio in the User’s Manual.

EFN Series Fisheye IP Camera
5
For EFN3321 (Outdoor)

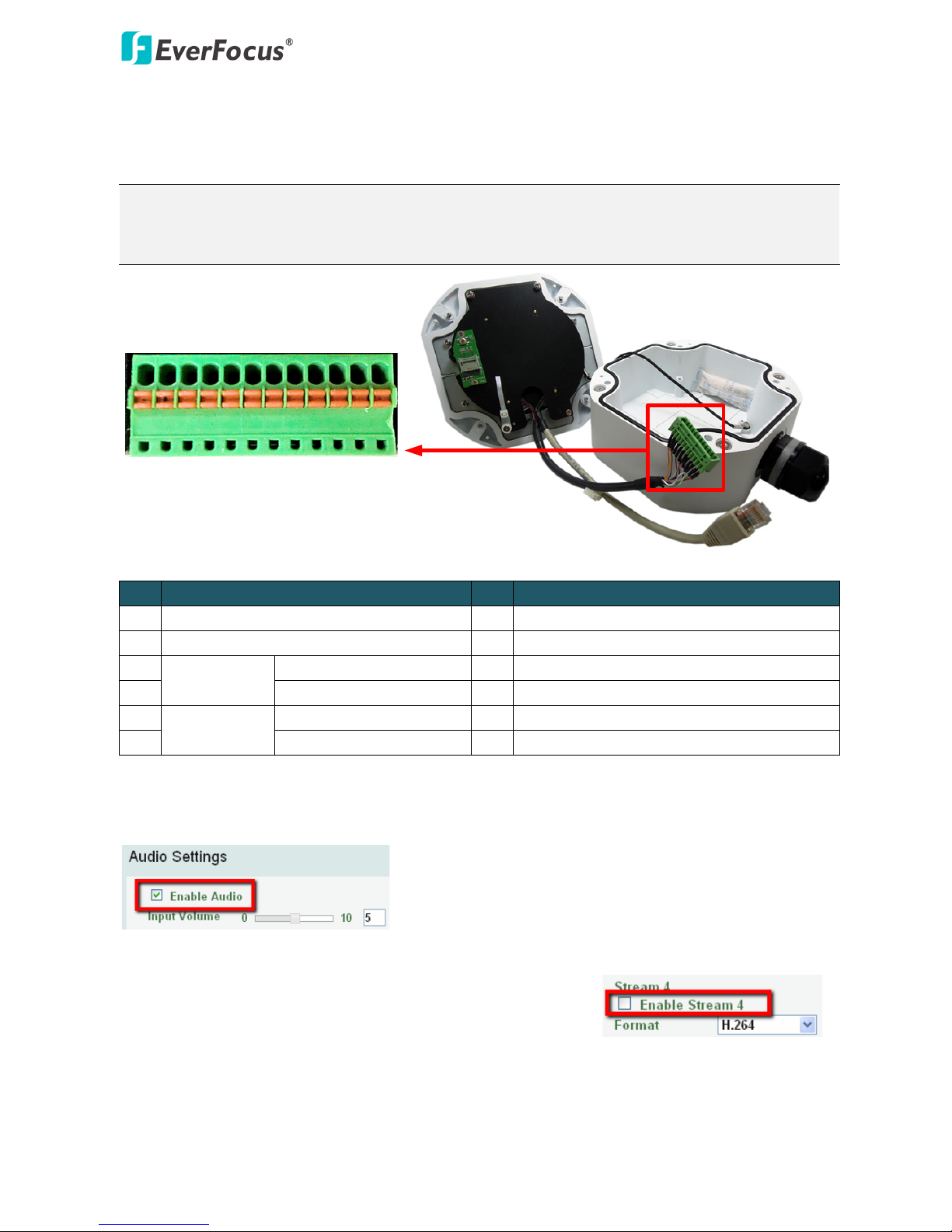

The I/O terminal block, located on the camera module, can be used to develop applications for
alarm input and output, two-way audio, TV-output or a variety of other functions.
Note:
1. You can unplug the terminal block from the camera module for easier wiring.
2. Microphones / speakers with an (built-in) amplifier and external power supply are required.
1 2 3 4 5 6 7 8 9 10 11 12
Camera Module
No. Functions No. Functions
1 12 VDC Input 7 Audio Input C (TRS Line-in)
2 Digital GND 8 Audio GND
3 Alarm Out Alarm Output C (+) 9 Audio Output (TRS Line-Out)
4 Alarm COM C (-) 10 Audio GND
5 Alarm In Alarm Input C (+) 11 CVBS Output
6 Digital GND (-) 12 Digital GND
To activate the Audio function, the Enable Audio must be checked. See Audio Settings in 7.2.1
Streaming and Audio in the User’s Manual.
For the Video Test-Out cable to work, the Stream 4 must be
disabled (unchecked), see Stream Settings in 7.2.1 Streaming
and Audio in the User’s Manual.

EFN Series Fisheye IP Camera
6
3. Installation
3.1 Indoor Type –Ceiling / Desk Mount
Ceiling Mount Desk Mount
1. Stick the Mounting Template to the ceiling / desk. Drill the three red cross marks on the inner
circle, and the square below only if you wish to run the cables through the ceiling / desk. Note
that the square below also indicates the cable position. Point the square below to the direction
for running the cables.
For the Tilting Wall Mount Bracket
Drill a hole only if you want to run
the cables through the ceiling / desk.

EFN Series Fisheye IP Camera
7
2. Insert the supplied three Anchors into the three holes and then screw the Base Plate to the
ceiling / desk using the supplied three Screws.
Base Plate
3. Place the Spacer onto the rear side of the camera. Remove the cut-out from the Spacer only if
you want to run the cables along the ceiling / desk.
Spacer

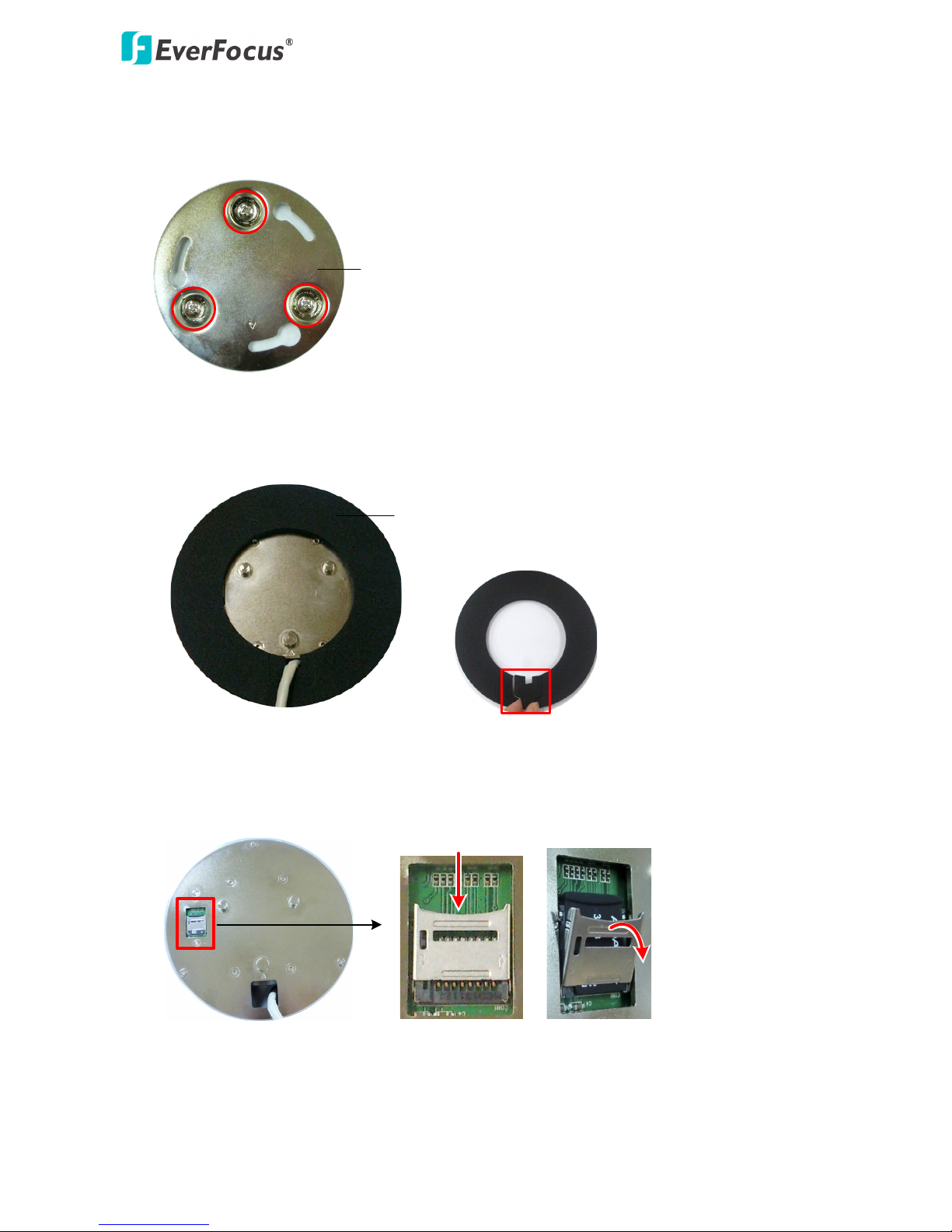

4. Optionally insert the micro SDHC / SDXC card to the push-pull type SD card slot on the rear side
of the camera.
Push
Pull
Rear side of the camera

EFN Series Fisheye IP Camera
8
5. Align the three latches on the camera with the three holes on the Base Plate, attach the camera
to the Base Plate and then rotate clockwise to secure the camera to the Base Plate. Note that
the triangle mark on the rear side of the camera and the Base Plate should point to the same
direction.
Rear side of the camera Base Plate
6. Connect the network or power cable to the camera. The installation is now complete.
3.2 Indoor Type-Wall Mount
You can mount the camera to the wall using the supplied Base Plate or the Tilting Wall Mount
Bracket.
With the Tilting Wall Mount Bracket
With the Base Plate

EFN Series Fisheye IP Camera
9
1. Stick the Mounting Template to the wall. Drill the three red cross marks on the inner circle. If
you want to use the supplied Tilting Wall Mount Bracket, drill the three black cross marks on
the outer circle. Drill the square below only if you wish to run the cables through the wall. Note
that the square below also indicates the cable position. Point the square below to the direction
for running the cables.
Drill a hole only if you want to
run the cables through the wall.
Toward the ground
For the Tilting Wall Mount Bracket
2. Insert the supplied three Anchors into the three holes and then screw the Base Plate / Tilting
Wall Mount Bracket to the wall using the supplied three Screws.
Base Plate Tilting Wall Mount Bracket

EFN Series Fisheye IP Camera
10
3. If you are using the Base Plate, place the Spacer onto the rear side of the camera. This step is
only for the Base Plate mounting. Remove the cut-out from the Spacer only if you want to run
the cables along the wall.
Spacer
4. Optionally insert the micro SDHC / SDXC card to the push-pull type SD card slot on the rear side
of the camera.
Push
Pull
Rear side of the camera
5. Align the three latches on the camera with the three holes on the Base Plate / Tilting Wall
Mount Bracket, attach the camera to the Base Plate / Tilting Wall Mount Bracket and then
rotate clockwise to secure the camera to the Base Plate / Tilting Wall Mount Bracket.
With Base Plate With Tilting Wall Mount Bracket

EFN Series Fisheye IP Camera
11

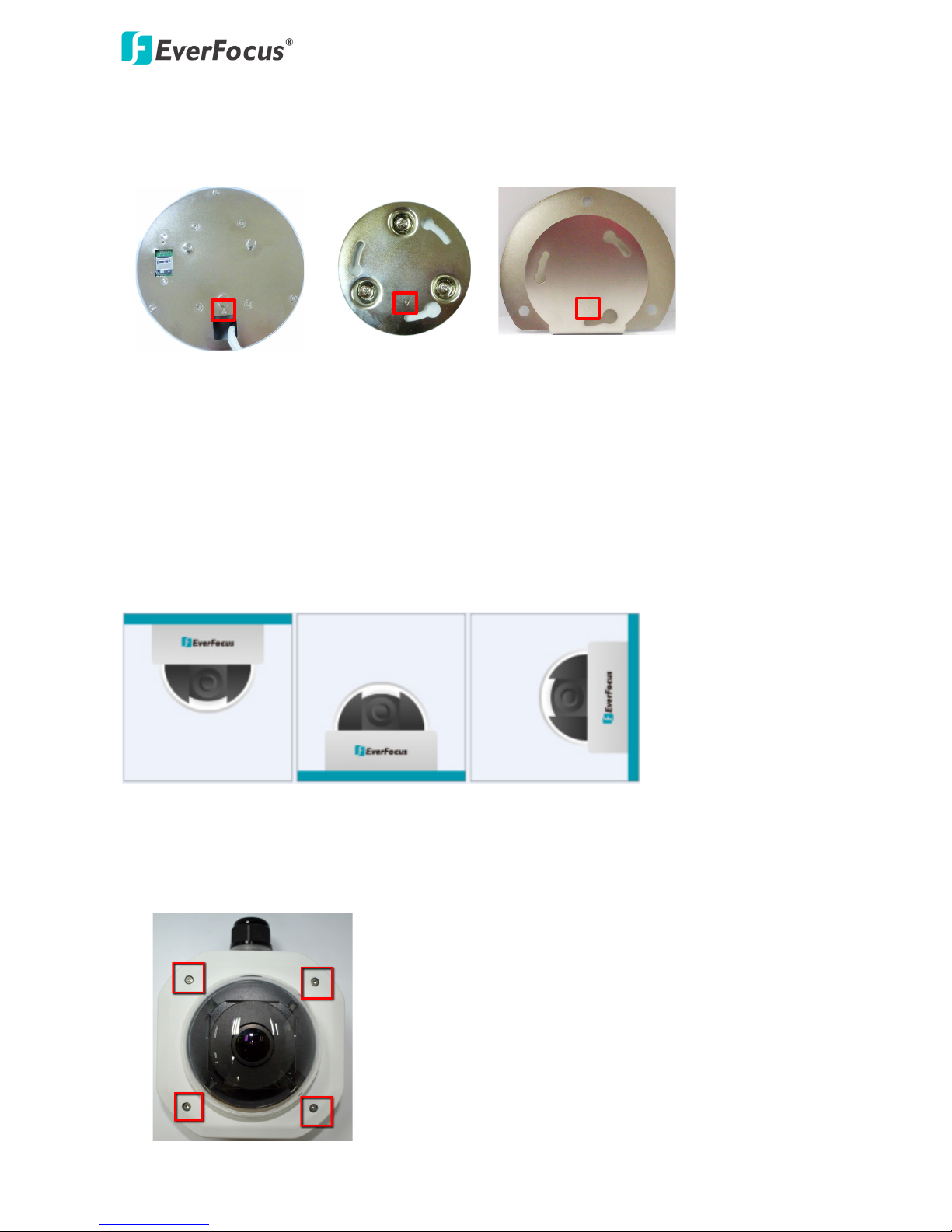

Note that the triangle mark on the rear side of the camera should point to the same direction
with the triangle mark on the Base Plate / Tilting Wall Mount Bracket.
Rear side of the camera Base Plate Tilting Wall Mount Bracket
6. Connect the network or power cable to the camera. The installation is now complete.
3.3 Outdoor Type
The following instruction is an example of Wall Mount installation. You can apply this instruction to
Ceiling / Desk Mount as well.
Ceiling Mount Desk Mount Wall Mount
1. Unscrew the four screws and remove the cover from the camera.

EFN Series Fisheye IP Camera
12
2. Unscrew the four screws and remove the Base Plate from the Camera Case.
Camera Case
Base Plate
3. Screw the Base Plate to the ceiling / wall / desk using the supplied four screws.
Base Plate
Wiring Box
Wall
If you want to wire the cables through the bottom of the Camera Case, follow the steps
below:
a. Remove the Circle Plate on the bottom of the Camera Case. You can simply loosen the Circle
Plate using a coin.
Circle Plate
Camera Case

EFN Series Fisheye IP Camera
13
b. Loosen and remove the Cable Gland from the Camera Case. Screw the Cable Gland to the
hole on the bottom of the Camera Case.
Cable Gland
Camera Case
c. Screw the Circle Plate to the side hole on the camera Case.
d. Screw the Base Plate to the ceiling / wall / desk.
Base Plate Wall

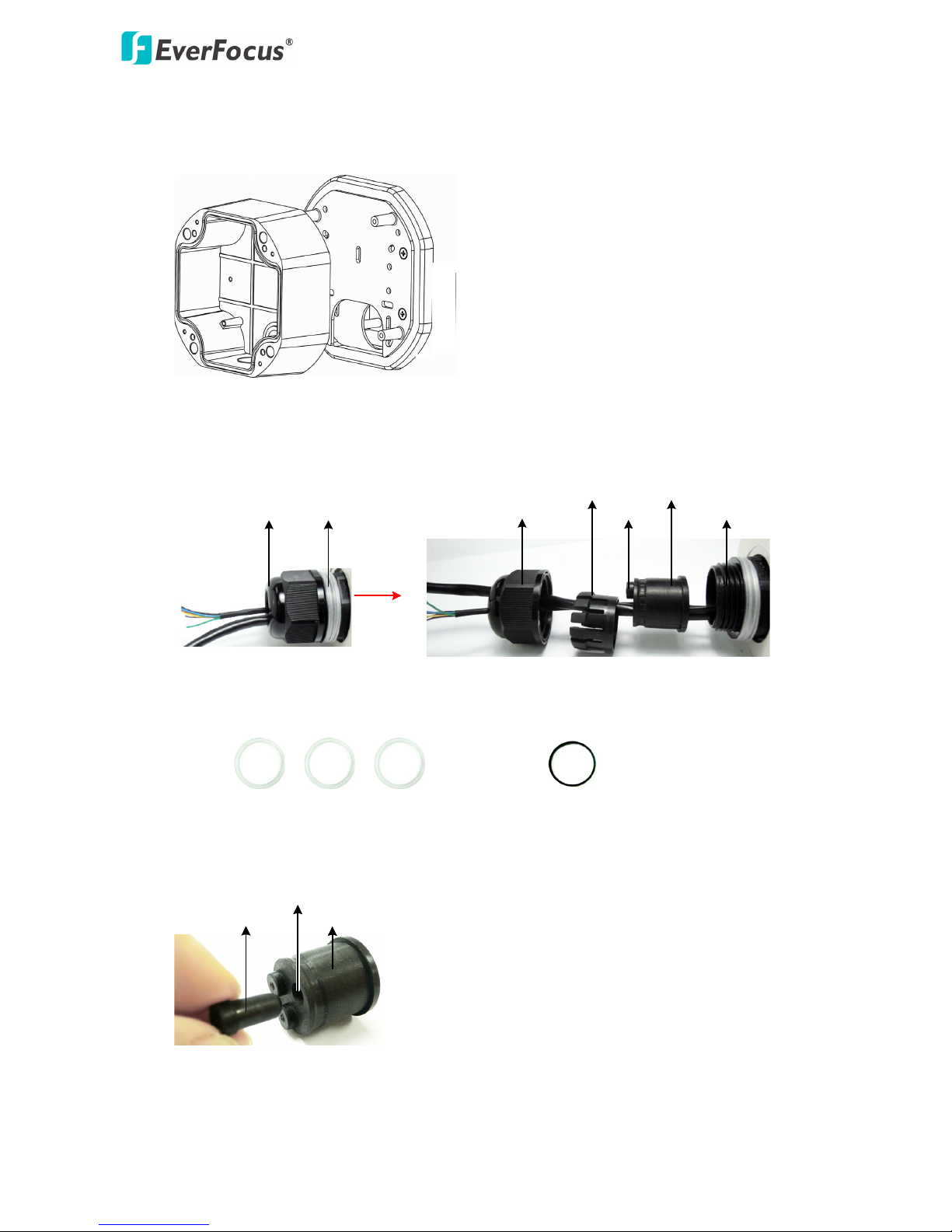

If you want to install the camera to a wiring box, you have to screw the Adapter Plate
between the Base Plate and the Wiring Box.
Base Plate Wiring BoxAdapter Plate

EFN Series Fisheye IP Camera
14
4. Screw the Camera Case back to the Base Plate.
Base Plate
Camera Case
5. Insert the PoE cable or the additional cables through the Cable Gland. Up to three cables can be
inserted. Note that except the PoE cable, additional wires have to be bundled into a cable with
diameter ranging from 5.3mm to 6.4mm (see Step d below).
Screw Body
Screw Cap
Stopper Claw
Plug
Stopper
Adjustment Ring(s)
Cable Gland Cable Gland
Screw Cap
a. Keep the supplied 6 Adjustment Rings for waterproofing.
•Transparent x 5 (1 mm thickness)
•Black x 1 (0.5 mm thickness)
b. Remove the Plug(s) from the Stopper (depends on the number of cables inserted). One
Cable Conduit can only be inserted with one cable.
Plug Stopper
Cable Conduit

EFN Series Fisheye IP Camera
15

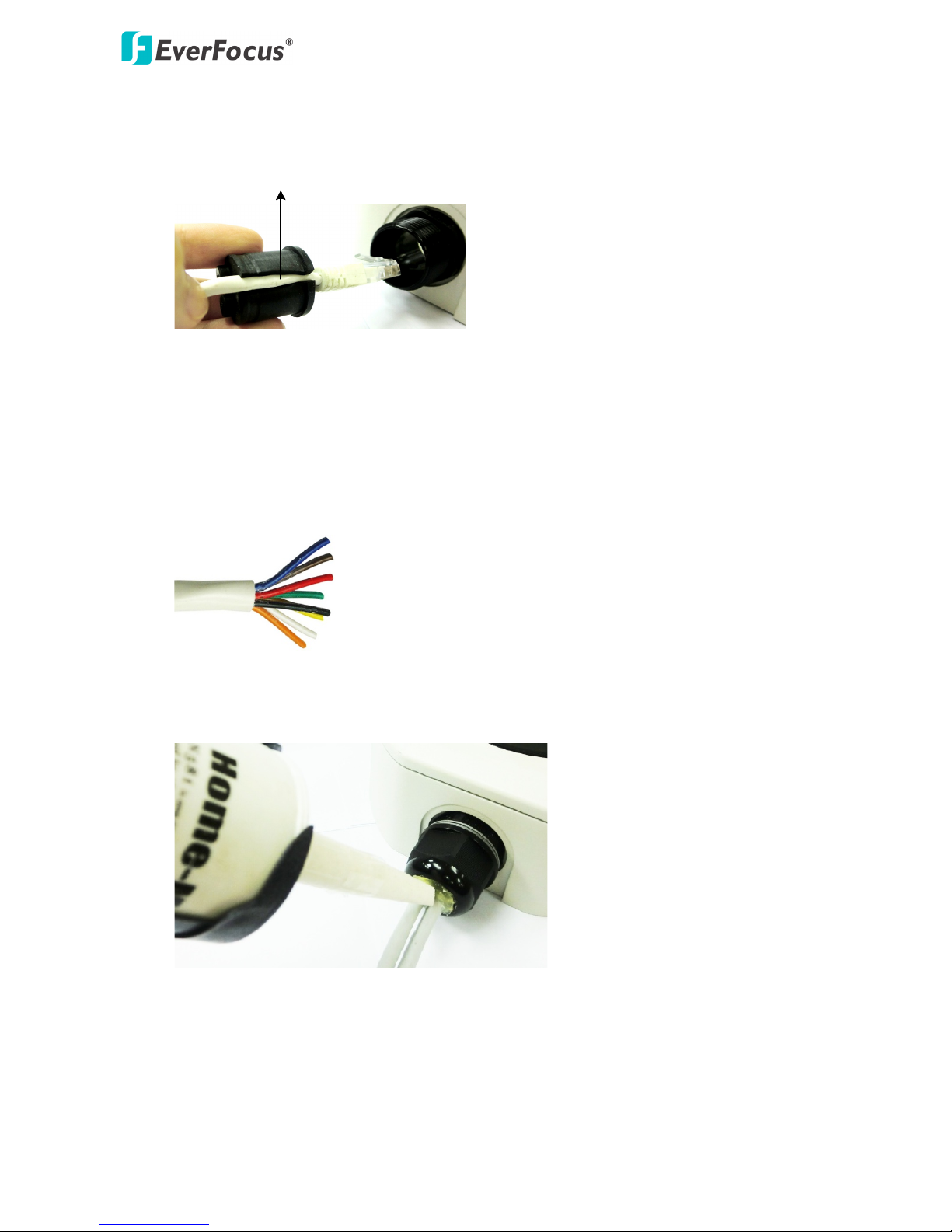

c. Insert the PoE cable through the Cable Conduit, if your PoE cable already has a RJ-45
connector, then you can use the Slitted Cable Conduit.
Slitted Cable Conduit
d. Optionally insert the additional wires, such as power (if you want to power the camera
through a 12 VDC power source), alarm and audio cables, through the other Cable Conduit.
Note that one Cable Conduit can only be inserted with one cable. The Cable Conduit has
been tested to support cable diameter between 5.3mm and 6.4mm. Please refer to the
image below to bundle the lose wires before inserting to the Cable Conduit.
e. Tighten the Screw Cap all the way to the Adjustment Ring(s).
f. Due to the variable cable diameters, for better waterproofing, it is strongly recommended
that you apply silicon sealants to the inner Screw Cap.
6. Connect the PoE cable to the LAN / PoE port on the camera module.
7. If you have inserted additional wires, connect the wires to the terminal block. Please refer to 2.
Cables and Terminal Block for pin assignment.

EFN Series Fisheye IP Camera
16

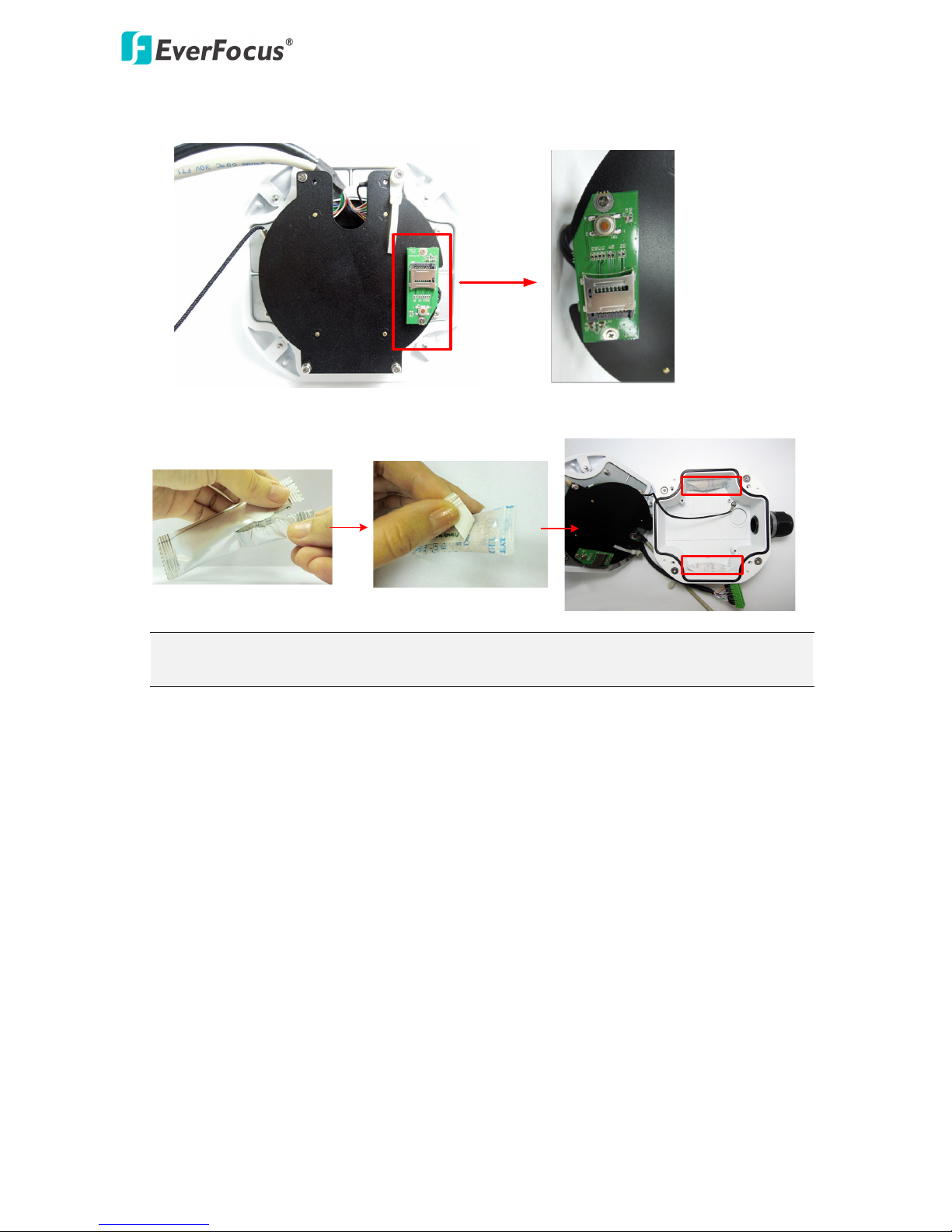

8. Optionally insert a micro SDHC / SDHC card to the card slot.
9. Stick the supplied 2 desiccant bags inside the camera case.
Note: It is highly recommended to replace the desiccant bags every time when you open
the camera.
10. Place and screw the camera module back to the camera case.

EFN Series Fisheye IP Camera
17
4. Accessing the Camera

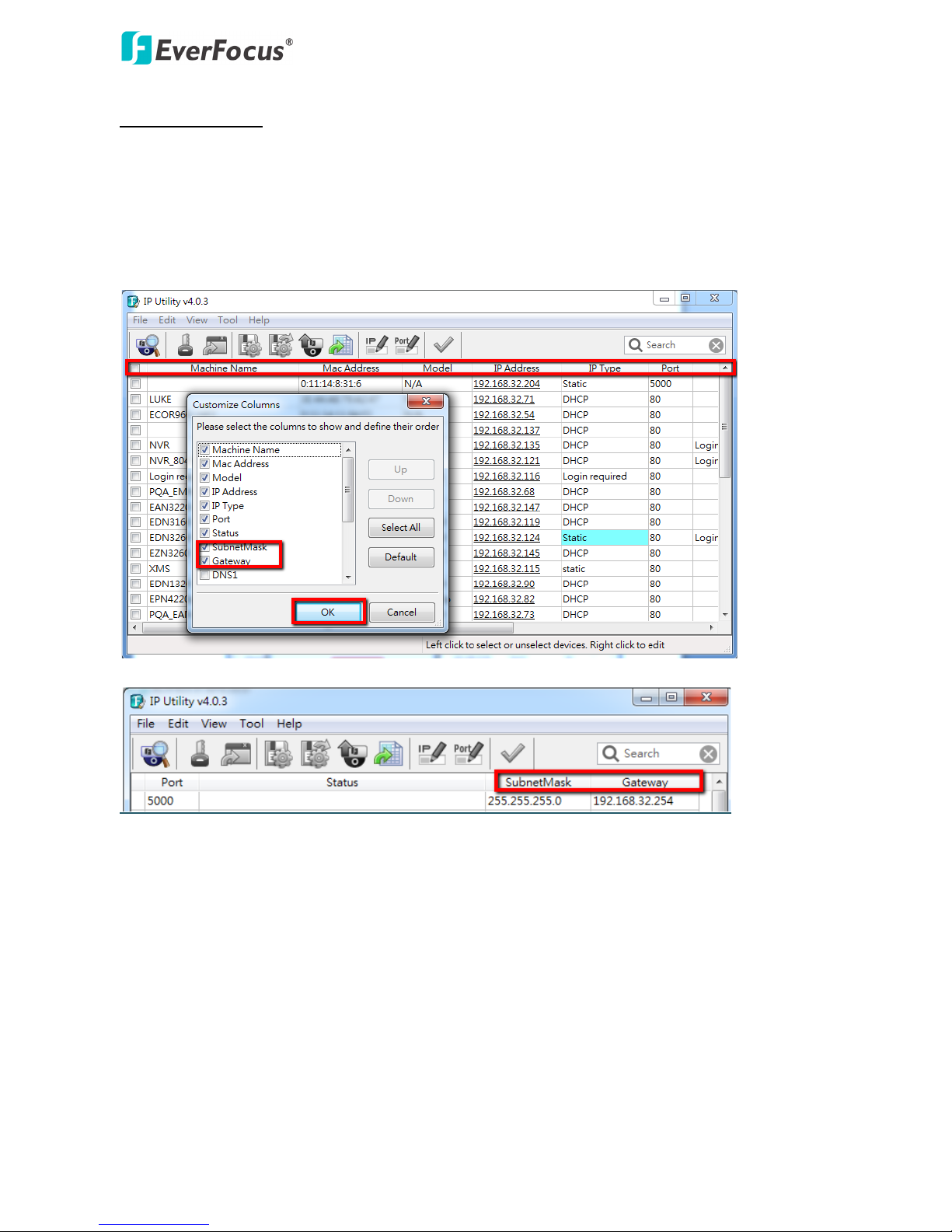

You can look up the IP address and access the Web interface of the camera using the IP Utility (IPU)
software included in the software CD. Please connect the camera in the same LAN of your
computer.

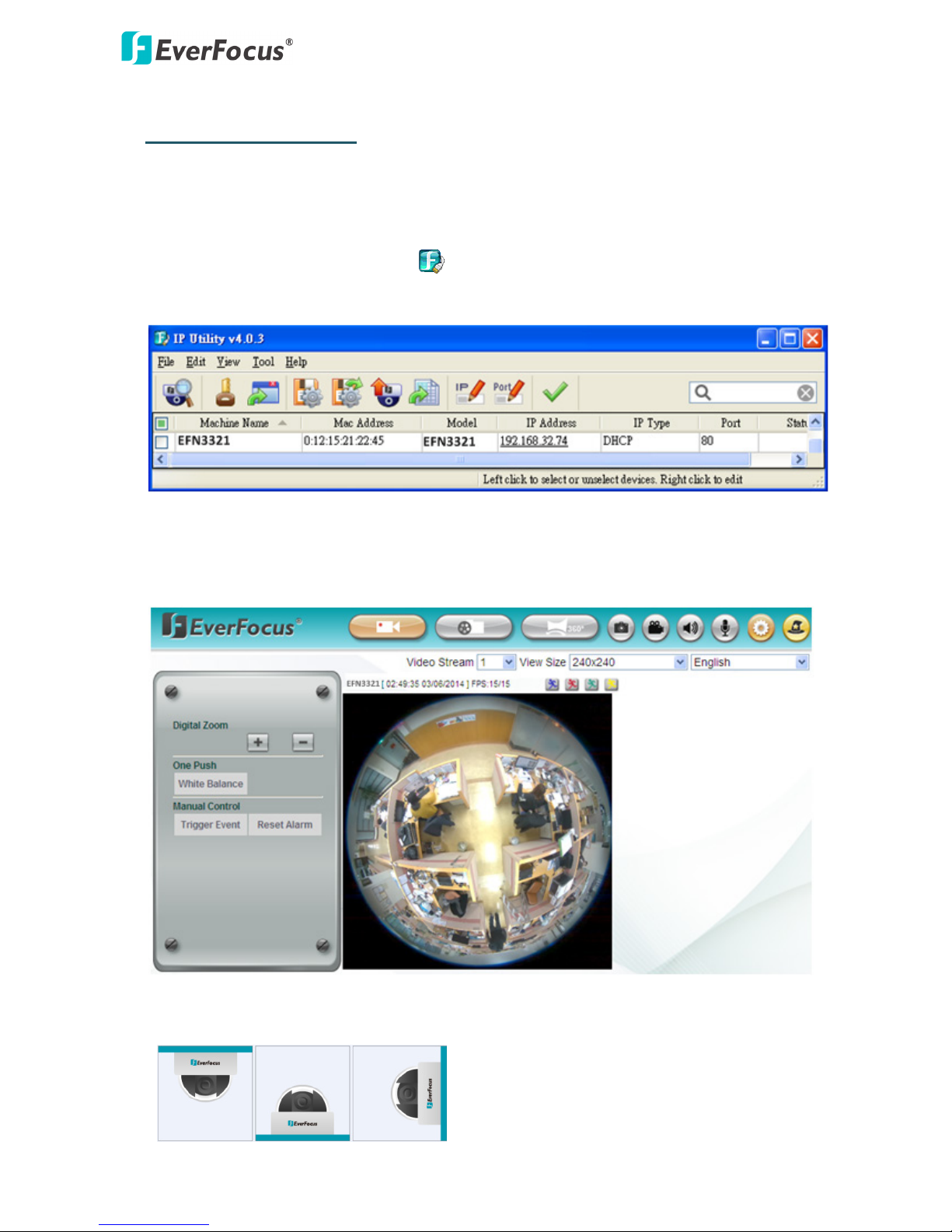

1. Install and then start the IPU program . The following IPU window appears. The IPU will
automatically search the IP devices connected in the LAN.
Double click the IP address of the desired device, the login window pops up. Type the user ID
and password to log in. By default, the user ID is user1 and the password is 11111111. Click OK,
the Live View window appears.
Note that for the first time user, you will be prompted to choose a desired mounting type of
your fisheye camera. Click to select a mounting type, the above live view window appears.

EFN Series Fisheye IP Camera
18
Note:
1. You might be required to install some add-
ons for viewing the camera feed. If asked,
click Run Add-on.
2.
To enable Remove Live View, Firmware Upgrade and ActiveX Prompt on Internet
Explorer, some settings have to be complete. Please refer to 4.2 Settings for Microsoft
Internet Explorer in the User’s Manual.
2. To optionally configure the Machine Name, IP Address, IP Type or Port Number using the IPU:
a. Log in the camera by checking the desired model and then click the Log in icon.
b. Type the Username and Password. Click the OK button, the Login status displays.
Note:
1. The default user ID is user1 and the default password is 11111111.
2. If you select more than one camera that has the same user ID / password, you will
be able to log in several cameras at once.
c. Right click the column to configure the settings. Click the Apply Changes button to
apply and save the settings.
Note:
Most networks uses DHCP to assign IP address, if you are unsure of your
network settings, please consult your network administrators for configuration details.

EFN Series Fisheye IP Camera
19
To set up a static IP:
Select Static from IP Type drop-down list and set up the desired IP Address, for example,
172.17.0.145. Please also set up the Subnet Mask and Gateway. Click the Apply Changes button to
apply and save the settings.
To show the Subnet Mask and Gateway items on the title bar, right click the title bar to display the
Customize Columns window, select Subnet Mask and Gateway and then click OK.
