CGHE1 Installation
& Operating Guide
Faucet Compatibility
Tools and Safety Equipment you may need (not provided)
Only “Open Vent” faucets function with a instant hot water dispenser tank.
Connecting a standard faucet will damage the tank and void the warranty.
2 mounting bracket screws
(and 2 plastic anchors if
attaching to drywall)
1/4" (6.4 mm)
O.D. copper
tubing.
Materials required (not provided)
Components
tank mounting
bracket
tank
When you purchase the Everpure®Commerical
Grade Instant Hot Water tank, contents include:
quick-connect
fitting
Shut-Off valve
with “T” fitting
(EV312120)
• ruler or measuring tape
• pliers
• hand or electric drill
• small drill bit for starter holes
• 13/8" drill bit - if no sink
hole exists
• safety glasses
• bucket or pan
• open-end wrench(es)
• gloves
• tubing cutter
EVERPURE INSTANT HOT WATER DISPENSER
(Connections must meet all local codes and ordinances.)
This hot water dispenser produces instant hot water of approximately 190°F (88°C) as dispensed
from the faucet.
This product is not intended to produce a continuous flow of hot water. The standard model will
produce up to 60 cups of water per hour at approximately 190°F (88°C). Due to high water
temperature, for safety reasons, the tank is not under pressure. Consequently, there is a slight
delay of water flow after the faucet has been activated. This is normal and indicates that the
expansion chamber is functioning properly.
IMPORTANT INFORMATION
560H486P01 REV E
quick-connect fitting
with filter and cap

IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ALL INSTRUCTIONS VERY CAREFULLY
When using electrical appliances, basic safety precautions should always be followed including the following:
ELECTRICAL REQUIREMENTS
Recommended Ground Method
1. Read all instructions.
2. To protect against electrical shock, do not place cord, plugs, or appliance in water or other liquid.
3. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions.
Return appliance to the factory for examination, repair or adjustment. See Warranty insert.
4. Do not use outdoors or in damp area.
5. Do not let cord hang over edge of table or counter, or touch hot surfaces.
6. Do not use appliance for other than intended household use.
7.
When using this appliance, provide 4 to 6 inches of air space around the entire unit for air circulation.
8. Do not attempt to service this product. Repairs should be done by authorized service personnel.
9. Do not let children operate. The water can cause severe burns.
SAVE THESE INSTRUCTIONS. THIS PRODUCT FOR HOUSEHOLD USE ONLY.
The alert symbols displayed at right point to important safety
information to make you aware of potential hazards that can
cause serious injury or death. Please pay special attention to
the information following these alerts and warnings. Failure to
comply with these instructions can result in property damage,
serious injury or death.
For your personal safety, the hot water dispenser is equipped with a power supply cord having a 3-prong
ground plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong, ground-type
outlet, grounded in accordance with the National Electrical Code, ANSI/NFPA 70 — latest edition* or CSA
Standard C22.1, Canadian Electrical Code, Part 1, — latest edition** and all local codes and ordinances.
If a mating outlet is not available, it is the personal responsibility and
obligation of the customer to have a properly grounded, 3-prong outlet
installed by a qualified electrician.
Copies of the standards listed may be obtained from:
* National Fire Protection Association **CSA International
One Batterymarch Park 178 Rexdale Boulevard
Quincy, MA 02269 Toronto, Ontario M9W1R3
If codes permit and a separate ground wire is used, it is recommended
that a qualified electrician determine that the ground path is adequate.
A 120 volt, 60 Hz, AC only 15 or 20 ampere fused, grounded electrical
supply is required. It is recommended that a separate circuit serving only
your hot water dispenser be provided.
NOTE: Use an outlet that cannot be turned on/off by a switch.
WARNING
DANGER
WARNING
Electrical Shock
Hazard
Plug into a grounded
3 prong outlet.
Do not remove ground
prong.
Do not use an adapter.
Do not use an extension
cord.
Failure to follow these
instructions can result in
death, fire or electrical
shock.

Faucet may be installed in spray hose opening in sink or drilled
hole. If faucet is not to be installed in sink spray hose opening,
cut 11/16” (27mm) min. — 13/8” (35mm) max. dia. hole.
Important: Observe all governing codes and ordinances.
613/16”
(173 mm)
111/8”
(283 mm)
81/16”
(205 mm)
1. Make sure you have all necessary parts, tools and materials as suggested on manual cover.
2. Determine a convenient location to mount your faucet. This can be an existing sink hole in the sink
top (the spray hose opening for example) or you may drill another hole into the sink or counter-top. As
you determine the location of your faucet, consider the container you will use with the appliance, such
as a large cooking pan. Location of the hole should also provide easy access for tank connections.
3. The thickness of the sink or counter must be less than 11/8” (29mm).
4. Before connecting to the power source, the dispenser must be filled with water and the thermostat
turned to the OFF position.
5. Do not use an extension cord with this appliance. Appliance must be within 36” (914mm) of the
power source. See electrical requirements.
6. Plumbing connections must comply with all local codes and ordinances.
7. Do not use any pipe sealing compounds as they may get inside the dispenser causing an
objectionable taste and odor.
OVERVIEW
HOT WATER CONCEPT
Unlike a household water heater, this dispenser tank is not pressurized for safety reasons. For a conventional
household water heater, the faucet valve is placed after the heater tank resulting in a pressurized tank. For a
hot water dispenser, the faucet valve is placed before the tank, creating an “open vent” style faucet and
consequently no pressure is built up inside the tank.
Quick-connect fitting with filter
and cap connects to cold water
supply line. Filter and cap side
points toward faucet. Tank
must be
mounted
vertically
See step 4 of installation for optional
connections and instructions.
42” (1067 mm) max. —
electrical outlet to tank

Step 1 - Mounting Tank
Position tank vertically beneath faucet so the flexible
tube from the faucet reaches the center faucet supply
tube on the tank and tank touches the wall. Mark the
wall at the top of tank. Set tank aside. Mark a second
line 21/8” (54 mm) below the first line. Align bottom of
bracket even with the second line and screw into
place. If a stud is not available, drywall anchors may
be used for additional support. Hang tank on bracket.
NOTE: The tank must be positioned so the hose to the faucet does not twist or kink.
Step 2 - Install Faucet Follow the instructions included with faucet.
Step 3 - Connect Faucet to Tank
Connect 1/4” (6.4 mm) faucet copper line (longer piece) or red line to the rear tube at the top corner of the
tank with the quick-connect fitting supplied with the appliance. (Do not use the quick-connect fitting with
filter and cap.) Push line straight into quick-connect fitting as far as possible for both connections.
Use pliers to open clamp and thread hose through clamp then push fully onto center inlet tube on top of
tank. The clamp should create a secure connection when properly installed.
Be sure the hose is not twisted or kinked. Hose may be shortened if necessary.
NOTE: DO NOT lengthen the hose – dispenser performance will be impaired and warranty will be void.
bracket
(21/8”)
54mm be sure
dial is in
OFF
position
during
installation
Before You Begin
Determine where you will install your hot water dispenser. The faucet can be mounted in an existing hole
in the sink (spray hose, etc.), or drill a 11/16” (27 mm) to 13/8” (35 mm) hole in your sink. If you want to
use the spray unit or do not have a hole in your sink you will have to drill a new hole.
Stainless Steel: You need a 11/16” (27 mm) to 13/8” (35 mm) knockout punch available at most hardware
stores or drill a hole with an expandable drill.
Porcelain: Proper tools are required to drill through a porcelain or cast iron sink. If you are not familiar with
this process you should consider having this done by a professional plumber.
Do not attempt to drill without these special tools as you may severely damage your sink.
BE SURE TO CONFIRM YOUR FAUCET’S COMPATIBILITY WITH THIS APPLIANCE.
FAUCET MUST BE “OPEN VENT” STYLE.
INSTALLATION

“T” connection with
Shut-Off Valve
EV312120 Installation
shut-off valve
(use EV312120)
“T” connector
TYPICAL INSTALLATIONS
Step 4 - Connect Cold Water Supply
Check Filter in Quick-Connect Fitting
The cone-shaped screen filter comes seated inside the quick-connect fitting with the narrow end pointing
towards the cap which is also attached to the fitting. (The open or wide end of the screen is inserted into
the fitting.) However, the filter may become dislodged in the shipping process. Check to see that it is
seated correctly within the fitting. If the cap is still in place, pop cap off by slipping a screwdriver into the
notch and lift off. Gently pull on the screen. If it comes loose, push in with a light jiggling or wiggling
motion until it snaps into place. If installed properly, a gentle pull should not dislodge it.
Refer to installation instructions included with faucet if necessary.
Cold water is supplied to the tank through the faucet. Connect the cold water line to the faucet using the
1/4” (6.4 mm) supply line and the quick-connect fitting that contains a cone shaped screen filter (supplied
with the tank.) The cap end of the fitting connects to the faucet line.

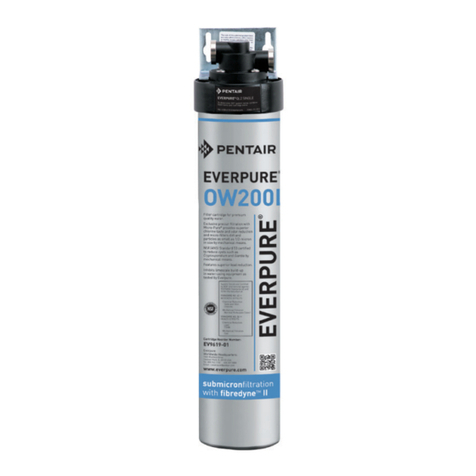

Make sure the cold water connecting to the faucet is filtered. Use an Everpure Commerical Grade
Filter System to provide filtered water. Refer to the Everpure Filter System Install and Operation
Manual for installation procedures.
It is suggested that a shut-off valve be installed between this connection and the cold water supply line.
Another common installation method is with the use of a saddle valve illustrated below. If a saddle valve
is used, follow the manufacturer’s installation instructions.
faucet line connects to
filtered cold water supply.
clamp
faucet line to
cold water
supply
cold water supply
hose to tank
faucet line
to tank
faucet
quick-connect with filter and cap
quick-connect fitting with filter and cap connects to cold
water line and contains a filter inside fitting. It also has
a cap at one end.
cap
faucet line connects to
the inlet tube located on
top corner of tank with
quick-connect fitting
(supplied with tank).
quick-connect
center inlet tube
filter
hose connects with
clamp to faucet supply
tube at center of tank.

Step 5 - Check for Leaks
Open valve in water line. Turn faucet on (hold if necessary) to fill tank (about 1 minute). When tank is full,
water will flow from faucet. Turn faucet off. Check for leaks.
Step 6 - Prepare for Power
Double check thermostat control dial is in the OFF position. Thermostat control dial controls the water
temperature, not the water flow or delivery.
IMPORTANT INFORMATION - This dispenser is equipped with a Self Re-setting Thermal Fuse
Turn thermostat to OFF position and fill tank with water before plugging the power cord from the
tank into an electrical outlet
If tank is empty and the thermostat set in the ON position when the power cord is connected, the
self re-setting fuse in the heater control will disconnect the current to the heater after approximately
one minute, thus protecting the heater from a "dry start” failure. The fuse in the heater control will
self-reset after approximately 1/2hour*. Turn on the water supply to the tank and continue the
installation.
Continued misuse will cause damage to the appliance and is detectible thus, voiding the warranty.
*(Re-setting of fuse can be accelerated by turning on the water supply and dispensing water until
use re-sets, approximately 3 minutes.)
Step 7 - Test Installation
Plug electrical cord into a grounded 3-prong outlet.
Do not use an outlet controlled by an off/on wall switch. Turn thermostat control dial clockwise to the
highest position. Maximum temperature will be reached in about 15 minutes and dispenser will be ready
for use. Lower the temperature setting by turning thermostat control dial counterclockwise if you notice
vapor or a boiling noise. To raise or lower the water temperature, rotate the thermostat dial. At the LOW
setting of thermostat dial water temperature will be approximately 140°F (60°C) and at the HIGH setting
of the thermostat dial water temperature will be approximately 200°F (93°C).

CLEANING AND MAINTENANCE
Seasonal Shutdown
To prevent damage when dispenser is exposed to freezing
temperatures, water must be drained.
1. Unplug dispenser tank to power supply.
2. Turn thermostat control dial to OFF position (fully
counterclockwise).
3. Turn faucet on and run water until water is cold.
4. Place a 3-quart (2.8 L) container under drain plug at bottom
of the tank. Use a screwdriver to remove the screw and
O-ring in the drain tube opening. When tank is fully drained
replace O-ring and screw. Tighten to reseal the drain.
NOTE: Do not plug appliance into power supply if tank is empty.
O-ring
screw
Cleaning Quick-Connect Filter Screen at Cold Water Inlet
If you notice that the water flow is reduced, it may be necessary to clean the quick-connect screen. Refer to
Installation Step 4.
1. Turn thermostat dial to the “Off” position. Turn on
faucet and run water until it is cold to avoid possibility
of burn.
2. Release cap with a screwdriver, pry it loose using the
notch in the cap.
3. Also using the screwdriver push in on the smallest
ring around copper line. This action releases tension,
allowing disconnection of the copper line and quick-
connect.
4. Pull cone shaped filter screen out (there will be slight
tension) and clean with vinegar as necessary. Check cap and clean as necessary. If deposits have
hardened, soak in vinegar for an hour or two. Then use a brush to clean.
5. Reassemble in reverse order of disassembly. Be aware, when inserting the screen back into place there is
a slight resistance. Push until the screen “pops” into place. Check for leaks.
6. Turn thermostat dial to the “Max” setting. The dispenser will be ready in about 15 minutes.
Quick-connect with filter and cap
filter screen
cap
notch

TROUBLESHOOTING
The following situations are not covered by the One Year Replacement Warranty.
1. Water is not hot: (assuming cold water supply is connected properly and valve is open)
• Check if dispenser is plugged in.
• Turn thermostat control dial fully clockwise. This may produce boiling water in approximately
15 minutes and possibly be accompanied by a gurgling sound in the tank and/or water “sputtering”
from the faucet.
If the water boils, turn thermostat control dial slightly counterclockwise until the gurgling and/or
“sputtering” stops. This should take place within 20 seconds. Turn control dial an additional 1/8” (3mm)
counterclockwise at the tip of the dial. Wait 15 minutes and check the temperature of the water.
• Check for blown fuse or circuit breaker is tripped (also see IMPORTANT NOTE explaining the
self re-setting thermal fuse in step 6 of installation).
NOTE: The thermostat activates the heater after water temperature in the tank drops approximately
15°F (8°C) from the maximum setting. The dispenser does not produce a continuous flow of hot water.
2. Hot water drips or sputters from faucet:
• Turn thermostat control dial counterclockwise (see item 1).
• Check that the hose connecting the faucet to the dispenser tank is not clogged, twisted or kinked.
• If quick-connect fitting is connecting cold water supply, check for a clogged filter screen in
quick-connect fitting (see CLEANING AND MAINTENANCE of faucet manual).
• Check for proper installation of copper tubing from faucet to dispenser tank and faucet to water line.
If connected backwards or cross-connected, valve may be damaged. Refer to Step 4 in this manual.
3. Water does not flow right away or at all:
• Due to high temperature and for safety reasons, the tank is not under pressure causing a slight delay
in water flow.
• Make sure all valves on water supply are open.
• Check hose from faucet for twisting or tight bending.
• Check if quick-connect filter screen or faucet filter screen is clogged (see faucet manual).
4. Water boils or vapor appears:
• Lower temperature setting by turning thermostat control dial counterclockwise.
NOTE: If lowering the thermostat setting does not stop the boiling, unplug the power supply cord and
contact customer service.
Everpure, LLC
1040 Murifield Drive • Hanover Park, IL 60133 USA
Toll Free: 800-323-7873 • Technical Service: 800-942-1153
www.everpure.com
