evertz MAGNUM-SE User manual

MAGNUM-SE
Small Router Control System
User Guide
© Copyright 2015
EVERTZ MICROSYSTEMS LTD.
5292 John Lucas Drive
Burlington, Ontario
Canada L7L 5Z9
Phone: [phone]
Sales Fax: [phone]
Tech Support Phone: [phone]
Tech Support Fax: [phone]
Internet: Sales: [e-mail]
Tech Support: [e-mail]
Web Page: http://www.evertz.com
Version 1.0 August 2015
The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of
purchasers of the MAGNUM Server. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the operation
of the Servers.
All rights reserved. No part of this publication may be reproduced without the express written permission of Evertz Microsystems Ltd. Copies
of this guide can be ordered from your Evertz products dealer or from Evertz Microsystems.

This page left intentionally blank

IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “Dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (Servicing) instructions
in the literature accompanying the product.
•Read these instructions
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than other. A grounding-type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC –
SHOCK, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE
WARNING
DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO
OBJECTS FILLED WITH LIQUIDS ARE PLACED ON THE EQUIPMENT
WARNING
TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT THE
POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE
WARNING
THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE

INFORMATION TO USERS IN EUROPE
NOTE
CISPR 22 CLASS A DIGITAL DEVICE OR PERIPHERAL
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to the European Union EMC directive. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
INFORMATION TO USERS IN THE U.S.A.
NOTE
FCC CLASS A DIGITAL DEVICE OR PERIPHERAL
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
WARNING
Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s
authority to operate the equipment.
Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface
cables with the shield connected to the chassis ground of the device must be used.
EN60065
Safety
EN504192 2005
Waste electrical products should not be
disposed of with household waste.
Contact your Local Authority for recycling
advice
EN55103-1: 1996
Emission
EN55103-2: 1996
Immunity

MAGNUM-SE User Guide
Small Router Control System
Revision 1.0 Page - i
TABLE OF CONTENTS
1. OVERVIEW..........................................................................................................................1
2. SPECIFICATIONS...............................................................................................................3
2.1. CONTROL .............................................................................................................................3
2.2. ELECTRICAL ........................................................................................................................3
2.3. COMPLIANCE.......................................................................................................................3
2.4. PHYSICAL.............................................................................................................................3
2.5. REAR DESCRIPTION............................................................................................................3
3. GETTING STARTED...........................................................................................................5
3.1. MAGNUM-SE CONFIGURATION SHELL .............................................................................5
3.1.1. System Configuration .................................................................................................6
3.1.1.1. Setting the Host Name..................................................................................6
3.1.1.2. Setting the Server Date.................................................................................7
3.1.1.3. Setting the Server Time................................................................................7
3.1.1.4. Setting the Server Time Zone.......................................................................8
3.1.1.5. Setting the IP Address of the NTP Server.....................................................8
3.1.1.6. Changing the Server Password ....................................................................9
3.1.1.7. Rebooting the Server....................................................................................9
3.1.1.8. Shutting Down the Server...........................................................................10
3.1.2. Networking Configuration .........................................................................................10
3.1.2.1. Assigning an IP Address for eth0................................................................11
3.1.2.2. Assigning a Subnet Mask for eth0 ..............................................................11
3.1.2.3. Assigning a Gateway Address for eth0.......................................................12
3.1.2.4. Assigning a Broadcast Address for eth0.....................................................12
3.1.3. Bonding Multiple Interfaces.......................................................................................12
3.1.4. Cluster Configuration................................................................................................14
3.2. (HOST X) HOST NAME.......................................................................................................15
3.3. (HOST X) IP ADDRESS.......................................................................................................15
3.4. PREFERRED HOST............................................................................................................16
3.5. CHANGE CLUSTER IP ADDRESS .....................................................................................16
3.5.1. Monitored Interfaces.................................................................................................17
3.5.2. Interface Failure Timeout..........................................................................................18
4. UPGRADING.....................................................................................................................19
4.1. REQUIREMENTS FOR USING THE WEB CONFIG TOOL.................................................20
4.2. GETTING STARTED: SETTING UP YOUR ROUTER SYSTEM .........................................20
5. MAGNUM-SE LIMITS........................................................................................................21

MAGNUM-SE User Guide
Small Router Control System
Page - ii Revision 1.0
Figures
Figure 1-1: MAGNUM-SE Front and Rear View.............................................................................1
Figure 2-1: MAGNUM-SE Rear Panel ...........................................................................................3

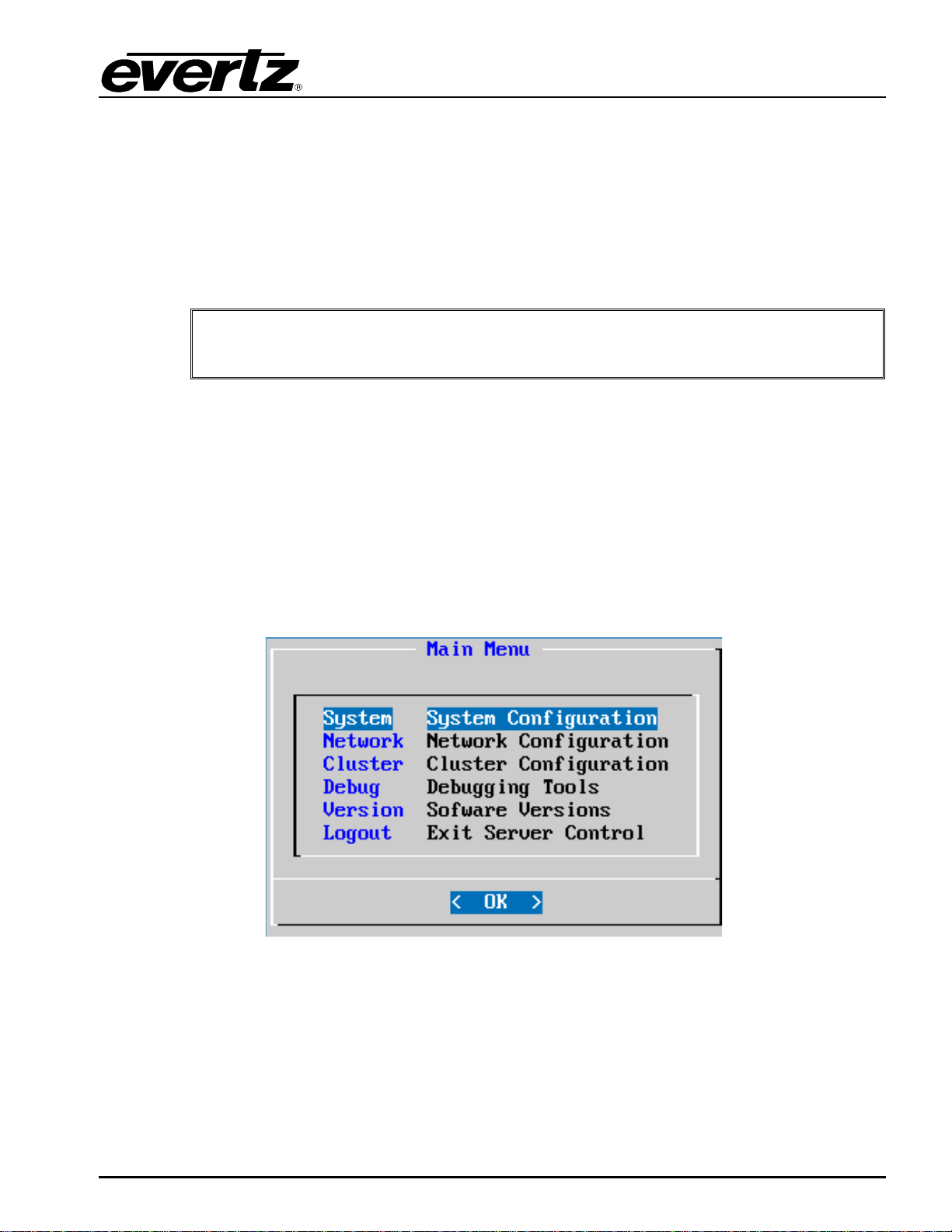

Figure 3-1: Main Server Control Menu...........................................................................................5

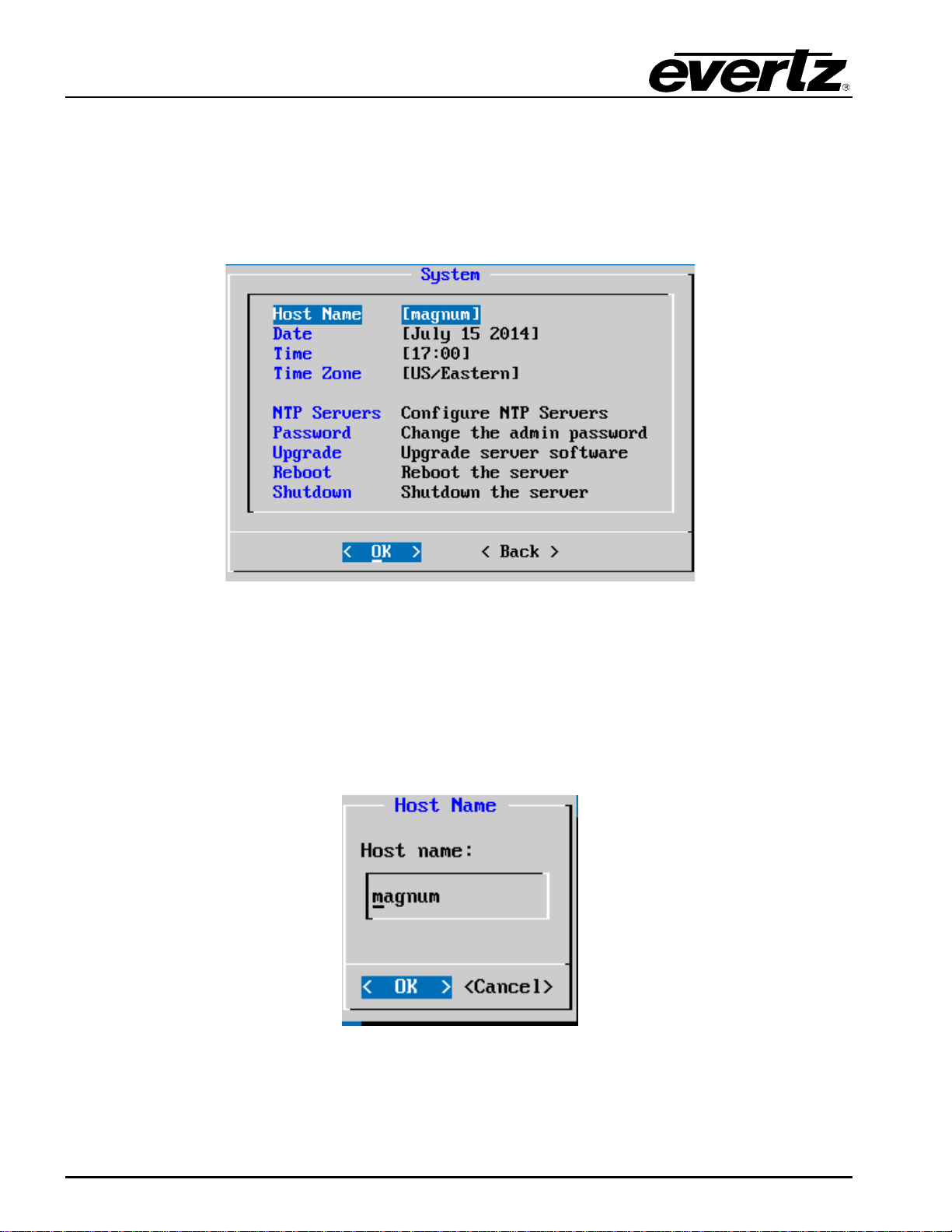

Figure 3-2: System Configuration Menu ........................................................................................6
Figure 3-3: Change Host Name.....................................................................................................6
Figure 3-4: Change Date...............................................................................................................7
Figure 3-5: Change Time...............................................................................................................7
Figure 3-6: Change Time Zone......................................................................................................8
Figure 3-7: Change NTP Server....................................................................................................8
Figure 3-8: Change Password.......................................................................................................9
Figure 3-9: Enter New Password Dialog Box.................................................................................9
Figure 3-10: Enter Password to Reboot Server .............................................................................9
Figure 3-11: Enter Password to Shutdown Server.......................................................................10
Figure 3-12: Network Configuration Menu...................................................................................10
Figure 3-13: Enter IP Address for eth0........................................................................................11
Figure 3-14: Enter Netmask for eth0............................................................................................11
Figure 3-15: Enter Gateway Address for eth1..............................................................................12
Figure 3-16: Enter Broadcast Address for eth0............................................................................12
Figure 3-17: Creating a Bond ......................................................................................................13
Figure 3-18: Bonded Network Ports.............................................................................................13
Figure 3-19: Cluster Configuration...............................................................................................14
Figure 3-20: Change Host Setting ...............................................................................................15
Figure 3-21: Host IP Address ......................................................................................................15
Figure 3-22: Select Preferred Host..............................................................................................16
Figure 3-23: Change Cluster IP Address.....................................................................................16
Figure 3-24: Monitored Interfaces................................................................................................17
Figure 3-25: Select Interfaces to Monitor.....................................................................................17
Figure 3-26: Interface Failure Timeout.........................................................................................18
Figure 3-27: Specify Interface Failure Timeout............................................................................18
Figure 4-1: Enter Password to Upgrade Server...........................................................................19
Figure 4-2: Waiting for USB Device.............................................................................................19
Figure 4-3 : MAGNUM Home screen...........................................................................................20
Tables
Table 5-1: MAGNUM-SE Limits...................................................................................................21

MAGNUM-SE User Guide
Small Router Control System
Revision 1.0 Page - iii
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 First Release Aug 2015
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor
for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning
performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied. The
only warranty offered by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order
confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no
warranty is granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or
order confirmation. Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If
you encounter an error, please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make
changes in equipment design or specifications.

MAGNUM-SE User Guide
Small Router Control System
Page - iv Revision 1.0
This page left intentionally blank

MAGNUM-SE User Guide
Small Router Control System
Revision 1.0 Page - 1
1. OVERVIEW
Based on MAGNUM's Router control module, MAGNUM-SE-R32P is a router control system designed
for smaller routing systems. Using a web based configuration GUI, MAGNUM-SE-R32P supports real
time programming, panel designing, and a host of other features which make system management
easier and more powerful than ever before. The web based GUI also provides real time feedback about
the system including device status, panel status, etc. MAGNUM-SE-R32P is rack mountable using a
hardware bracket that will allow for side by side mount of a redundant control module.
Figure 1-1: MAGNUM-SE Front and Rear View
Benefits
•Compact, rack mountable hardware controller
•Supports all Evertz® Routers (up to 576 sources or destinations)
•Support for up to 32 Ethernet based Evertz® control panels
•Web based configuration with a single user interface
•Robust: Linux based operating system, multi node cluster with automatic failover with the
addition of a second MAGNUM-SE-R32P
•Centralized Management: One interface to manage devices, names, and control panels
•Seamless Reconfiguration: Targeted Configuration changes with minimal impact on the
operation of the system
•Web Interface: No software to install. Configure and manage MAGNUM-SER32P from
anywhere using only a web browser from your computer or mobile device
Supported Configuration
•576 x 576 total sources / destinations or a max of 4 routers contributing to the port total of 576 x
576
•32 Ethernet based Evertz® control panels
•7 Profiles
•3 Name Sets
•5 levels
•15 salvos
•2 Third Party Interfaces (Requires additional 7700R-SC-BRC if protocol translation is required)

MAGNUM-SE User Guide
Small Router Control System
Page - 2 Revision 1.0
This page left intentionally blank

MAGNUM-SE User Guide
Small Router Control System
Revision 1.0 Page - 3
2. SPECIFICATIONS
2.1. CONTROL
Ethernet: Gigabit, 2 x RJ45
2.2. ELECTRICAL
Single Power Supply, Voltage: Auto ranging, 100 ↔ 240 VAC, 50/60 Hz
Power: 60W
2.3. COMPLIANCE
Safety: TUV Listed, complies with EU safety directives
EMI/RFI: Complies with FCC Part 15 Class A regulations
Complies with EU EMC directive
2.4. PHYSICAL
Dimensions: 8.10” W x 5.20” H x 8.70” D
2.5. REAR DESCRIPTION
Figure 2-1: MAGNUM-SE Rear Panel
Serial: N/A.
Mouse: PS/2 Mouse Port.
Key Board: PS/2 Keyboard Port.
VGA Output: VGA Port
DVI Output: DVI Port
Joy Stick: N/A
Ethernet A/B: This RJ45 connector is used for Network connecting to the IP Network.
Reset: Switch to reboot the unit

MAGNUM-SE User Guide
Small Router Control System
Page - 4 Revision 1.0
This page left intentionally blank

MAGNUM-SE User Guide
Small Router Control System
Revision 1.0 Page - 5
3. GETTING STARTED
3.1. MAGNUM-SE CONFIGURATION SHELL
The MAGNUM-SE Configuration Shell enables the user to set up the MAGNUM-SE parameters.By
accessing the MAGNUM-SE Configuration Shell a number of operations can be performed in order to
properly set up your server. Access to the MAGNUM-SE Configuration Shell is available when directly
connected with keyboard / display or KVM access to the Server or remotely through a SSH session. To
access the login screen, hit ctrl+alt+F2 on an attached keyboard.
Tip: Changes that affect the operation of the MAGNUM or admin level actions will
cause an authentication prompt to be displayed
To login to the MAGNUM-SE Configuration Shell, the user will have to enter the following information
when prompted. These are the default credentials:
•Enter admin as the username and then press <enter>
•Enter admin as the password and then press <enter>
Figure 3-1 displays the main setup menu. Section 3.1.1 to 3.1.5 will guide you through the process of
setting up your server and identifying the function of each configuration tool.
You will use the arrow keys, tab, and enter keys to navigate through the MAGNUM-SE Configuration
Shell.
Figure 3-1: Main Server Control Menu

MAGNUM-SE User Guide
Small Router Control System
Page - 6 Revision 1.0
3.1.1. System Configuration
Selecting the System Configuration option will reveal the screen displayed in Figure 3-2. The main
function of the system configuration menu is to complete the set up of the server configuration. The
System Configuration Menu allows the user to verify or change system level configuration, such as
Date/Time, Hostname, etc; or to perform system level operations such as changing the admin
password, upgrading, rebooting, etc.
Figure 3-2: System Configuration Menu
3.1.1.1. Setting the Host Name
Selecting the Hostname option from the System Configuration menu will enable the user to set the
host name for the server. The dialog box in Figure 3-3 will appear when this option is selected. The
user will be prompted to enter the desired name for the host into the “Host name:” field. This name was
set during initial installation but can be changed using this menu option. The host name must be unique
within the system.
Figure 3-3: Change Host Name

MAGNUM-SE User Guide
Small Router Control System
Revision 1.0 Page - 7
3.1.1.2. Setting the Server Date
Selecting Date from the System Configuration menu will enable the user to set the date for which the
server will reference. Select the current day, month and year from the calendar identified in Figure 3-4.
Figure 3-4: Change Date
3.1.1.3. Setting the Server Time
Selecting Time from the System Configuration menu will enable the user to set the current time for
which the server will reference. Select the hour, minute and second identified in the Change Time
dialog box as shown in Figure 3-5. Use the up and down arrow keys to set the values and tab to switch
boxes.
Figure 3-5: Change Time

MAGNUM-SE User Guide
Small Router Control System
Page - 8 Revision 1.0
3.1.1.4. Setting the Server Time Zone
Selecting Time Zone from the System Configuration menu will enable you to set the current time zone
for the region you are in. Toggle through the list of countries and zones to select your region. Refer to
Figure 3-6.
Figure 3-6: Change Time Zone
3.1.1.5. Setting the IP Address of the NTP Server
Selecting NTP Server from the System Configuration menu will enable you to set the IP address for the
NTP Server. The dialog box in Error! Reference source not found. will appear when this option is
selected. The user will be prompted to enter the IP address of the NTP Server into the empty field.
Figure 3-7: Change NTP Server

MAGNUM-SE User Guide
Small Router Control System
Revision 1.0 Page - 9
3.1.1.6. Changing the Server Password
Selecting the Password option from the System Configuration menu will enable you to change the
admin password and set a new password for the “admin” account used to access the Server
Configuration Shell. The dialog box in Figure 3-8 will appear when this option is selected. The user will
be prompted to enter the current password into the “enter password to change” field.
Figure 3-8: Change Password
Once the current password is entered, a new dialog box will appear as shown in Figure 3-9. This
dialog box will prompt the user to enter the new password for the server. Type the new password into
the empty field and select OK to set the password.
Figure 3-9: Enter New Password Dialog Box
3.1.1.7. Rebooting the Server
Selecting the Reboot option from the System Configuration menu will enable the user to reboot the
server. The dialog box in Figure 3-10 will appear when this option is selected. Enter the current
password into the “Enter password to reboot the server:” field and press OK. The server will reboot.
Figure 3-10: Enter Password to Reboot Server

MAGNUM-SE User Guide
Small Router Control System
Page - 10 Revision 1.0
3.1.1.8. Shutting Down the Server
Selecting the Shutdown option from the System Configuration menu will enable the user to shutdown
the server. The dialog box in Figure 3-11 will appear when this option is selected. The user will be
prompted to enter the current password into the “Enter password to shutdown the server” field. Once
the password is entered, press the OK button.
Figure 3-11: Enter Password to Shutdown Server
3.1.2. Networking Configuration
The Networking Configuration menu will enable the user to set the network information (IP, Netmask,
Gateway, and Broadcast) for multiple network adapters.
Figure 3-12: Network Configuration Menu

MAGNUM-SE User Guide
Small Router Control System
Revision 1.0 Page - 11
3.1.2.1. Assigning an IP Address for eth0
To assign an IP Address, select the (eth0) IP Address option from the Networking Configuration menu.
The dialog box in Figure 3-13 will appear when this option is selected. The user will be prompted to
enter the desired IP address into the “IP address for eth0” field and then select the OK button. Please
note that the settings must be saved using the Save and Apply option from the Networking
Configuration menu. Please note that DHCP is NOT recommended at any time. Repeat these steps for
each network adapter that requires configuration.
Figure 3-13: Enter IP Address for eth0
3.1.2.2. Assigning a Subnet Mask for eth0
To assign a subnet mask for eth0, select the (eth0) Netmask option from the Networking Configuration
menu. The dialog box in Figure 3-14 will appear when this option is selected. The user will be prompted
to enter the desired subnet mask into the “Netmask for eth0” field and then select the OK button.
Please note that the settings must be saved using the Save and Apply option from the Networking
Configuration menu. Repeat these steps for each network adapter that requires configuration.
Figure 3-14: Enter Netmask for eth0

MAGNUM-SE User Guide
Small Router Control System
Page - 12 Revision 1.0
3.1.2.3. Assigning a Gateway Address for eth0
To assign a gateway for eth0, select the (eth0) Gateway option from the Networking Configuration
menu. The dialog box in Figure 3-15 will appear when this option is selected. The user will be prompted
to enter the desired gateway into the “Gateway address for eth0” field and then select the OK button.
Please note that the settings must be saved using the Save and Apply option from the Networking
Configuration menu. Repeat these steps for each network adapter that requires configuration.
Figure 3-15: Enter Gateway Address for eth1
3.1.2.4. Assigning a Broadcast Address for eth0
To assign a broadcast address for eth0, select the (eth0) Broadcast option from the Networking
Configuration menu. The dialog box in Figure 3-16 will appear when this option is selected. The user
will be prompted to enter the desired subnet mask into the “Broadcast address for eth0” field and then
select the OK button. Please note that the settings must be saved using the Save and Apply option
from the Networking Configuration menu. Repeat these steps for each network adapter that requires
configuration.
Figure 3-16: Enter Broadcast Address for eth0
3.1.3. Bonding Multiple Interfaces
The Create Bond option enables the user to create an active/backup network configuration using two
network ports on the MAGNUM Server. This feature allows the user to bond two adapters together to
function as one. For example, if one of the adapters of the bond were to fail (link loss as result of cable
failure, NIC failure, switch port failure, switch failure etc) the second adapter would automatically
continue network connectivity. To create a bond, toggle to the Create Bond menu item as shown in
Figure 3-17 and use this command to bond multiple interfaces.
