EVEXPERT EVELINE MAX II User manual
EVELINE MAX II MANUAL
EV Expert Portable charger 22kW
(for the European Union and Norway)
USER MANUAL
CONTENT
IMPORTANT SAFETY INSTRUCTIONS 3
Charger components 4
OLED Display 4
EVELINE MAX II CHARGER SETTINGS 5
Charging current settings 5
Electrical network settings 6
CHARGER CONNECTION 7
END OF CHARGING AND DISCONNECTING THE CHARGER 8
ERROR MESSAGES 9
PROBLEM-SOLVING 10
TECHNICAL SPECIFICATIONS 11
EU DECLARATION OF CONFORMITY 12
EVELINE MAX II warranty conditions 13
Procedure for applying the warranty conditions 13
Additional provisions 14
IMPORTANT SAFETY INSTRUCTIONS
This document contains important instructions and warnings that must be observed when
using the portable charger for electric vehicles from EV Expert s.r.o.
WARNING
Read this document before using the charger. Failure to follow the instructions or warnings described in this
document may result in fire, electric shock, serious injury, or death.
➢The portable charger contains an RCD-A-EV circuit breaker and therefore a residual current device is
not necessary.
➢The EVELINE MAX II portable charger is only designed for charging electric vehicles that support the IEC
62196-1 and IEC 61851-1 standard. Do not use it for other purposes or with other vehicles or objects.
➢The portable charger is only intended for vehicles that do not require ventilation during charging.
➢Before connecting the charger to the socket, make sure that the socket is rated for the required current
load and is not damaged.
➢Do not use the charger if it is defective, corroded, or otherwise damaged, or if the display indicates a
serious internal error.
➢Do not touch the end terminals with sharp metal objects such as wires, needles, or other tools.
➢Do not damage the charger with sharp objects or insert foreign objects into any part of the charger.
➢Keep the charger out of the reach of children or mentally incapable people.
➢When using and transporting the charger, handle it carefully to avoid damage. Do not subject it to
strong shocks, tension, twisting, tangling, or any other strain.
➢Protect the charger, and especially its terminals, from moisture and water. Do not use it in heavy rain or
snow.
➢Make sure that the charging cable does not obstruct the movement of pedestrians or other vehicles.
The charger must not be exposed to direct sunlight!
If a fault occurs, the user is not authorized to open, disassemble, repair or otherwise modify the device. If repair
is needed, contact your dealer or EV Expert s.r.o.
If you have any questions or recommendations, contact us at: [email protected]
EVELINE MAX II CHARGER SETTINGS
Charging current settings
Before you start charging an electric car, it is important to set an adequate charging current limit to prevent the
circuit breaker from tripping. Settings can only be made if the electric car is not connected.
The current is set using the control button located on the opposite side of the charger than the display. The
restriction is set in steps: 6A, 8A, 10A, 13A, 16A, 20A, 25A and 32A. Each press of the button moves the limit
one value further. After the last step, it returns to the beginning. The set limit is shown on the display in the
lower-left corner.
The correct limit depends on the type of circuit breaker, the number of connected appliances, and the phase
load. In the case of a circuit breaker of 32A and other appliances connected on the same circuit, a limit of 25A
is usually appropriate, if there are more appliances or have a high consumption then the 20A limit would be
better. If the circuit breaker is 25A, then a limit of 16 or 13A is appropriate.
When using an adapter from an industrial CEE socket to a SCHUKO home socket, the maximum current must be
limited to 16A if there are no other appliances, if there are, the ideal setting is 10 / 13A.
If the charger is not properly restricted, the circuit breaker may trip. If this happens, you must first disconnect
the charger from the electric car. Then you switch the circuit breaker on again and adjust the settings. There is
no risk of damage to the charger. The charger remembers the set value, it does not need to be set again the next
time it is used.
The correct setting needs to be calculated according to the energy consumption of each household and solely
the user is responsible for it.
Electrical network settings
1. In case you need to change the type of electrical network, press the button for 5 seconds during the
initialization phase and you get to the TN-S, IT and IT (USA) network selection.
2. Confirm the selected network by pressing the button again for 5 seconds.
If you are not using the charger outside of Europe, do not change the network settings and leave the default
TN-S settings selected.
The user is solely responsible for selecting the correct network. Incorrect settings can cause the RCD to
malfunction.
CHARGER CONNECTION
1. Inspect the charger for any visible damage. If it is damaged, do not use it. If service is required, contact
your dealer or EV Expert s.r.o.
2. Connect the charger to an industrial CEE socket. Do not use extension cords!

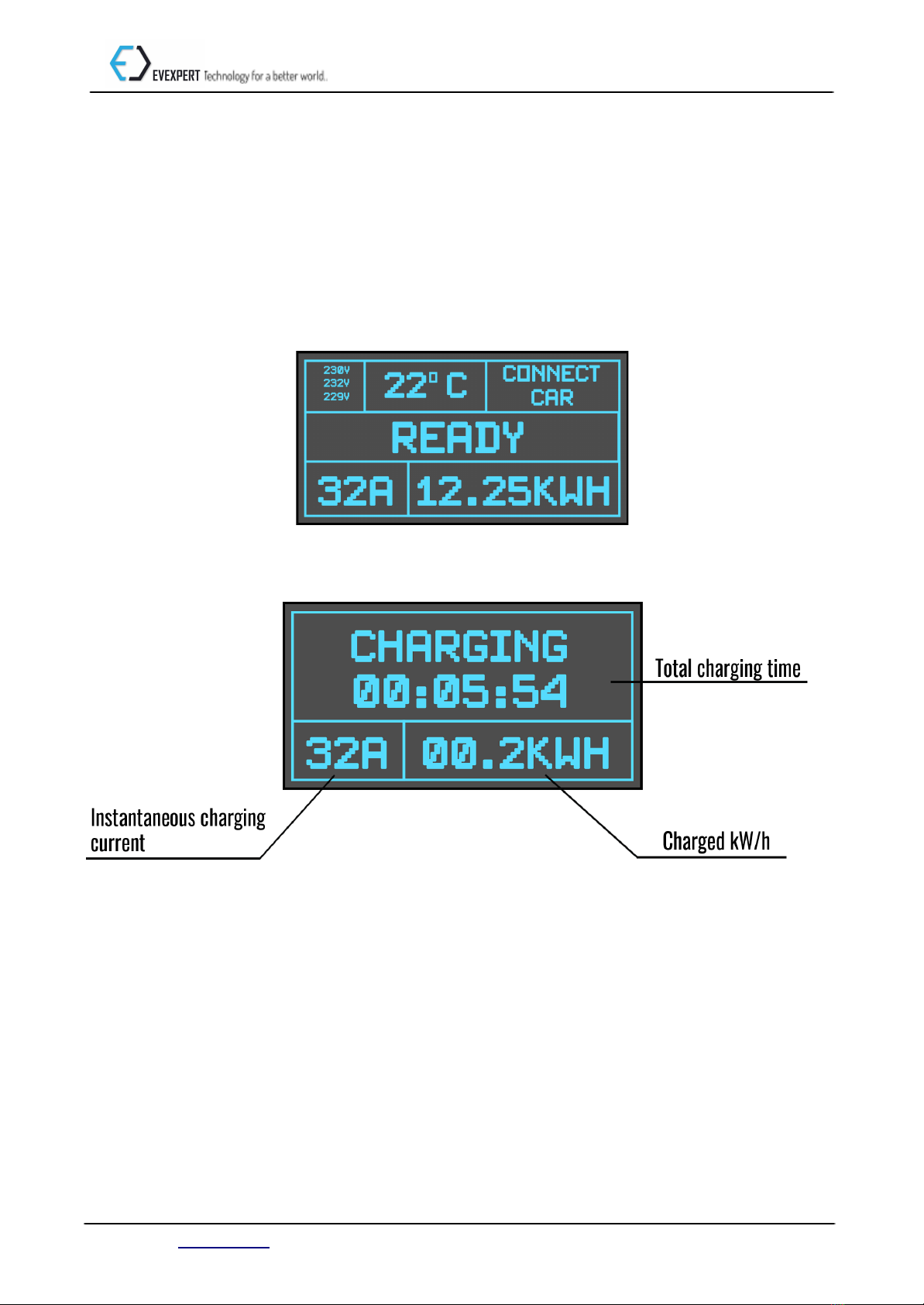

3. The display on the charger lights up and a diagnostic is performed, followed by a basic information
window.
4. After connecting the electric car, CHARGING starts and the total charging time and kW / h charged so
far are displayed.
END OF CHARGING AND DISCONNECTING THE CHARGER
NEVER disconnect the charger while charging!
1. First, stop charging on the side of the vehicle.
2. Unplug the charger.
3. If necessary, release the lock on the vehicle's charging port, and disconnect the charger from the
vehicle.

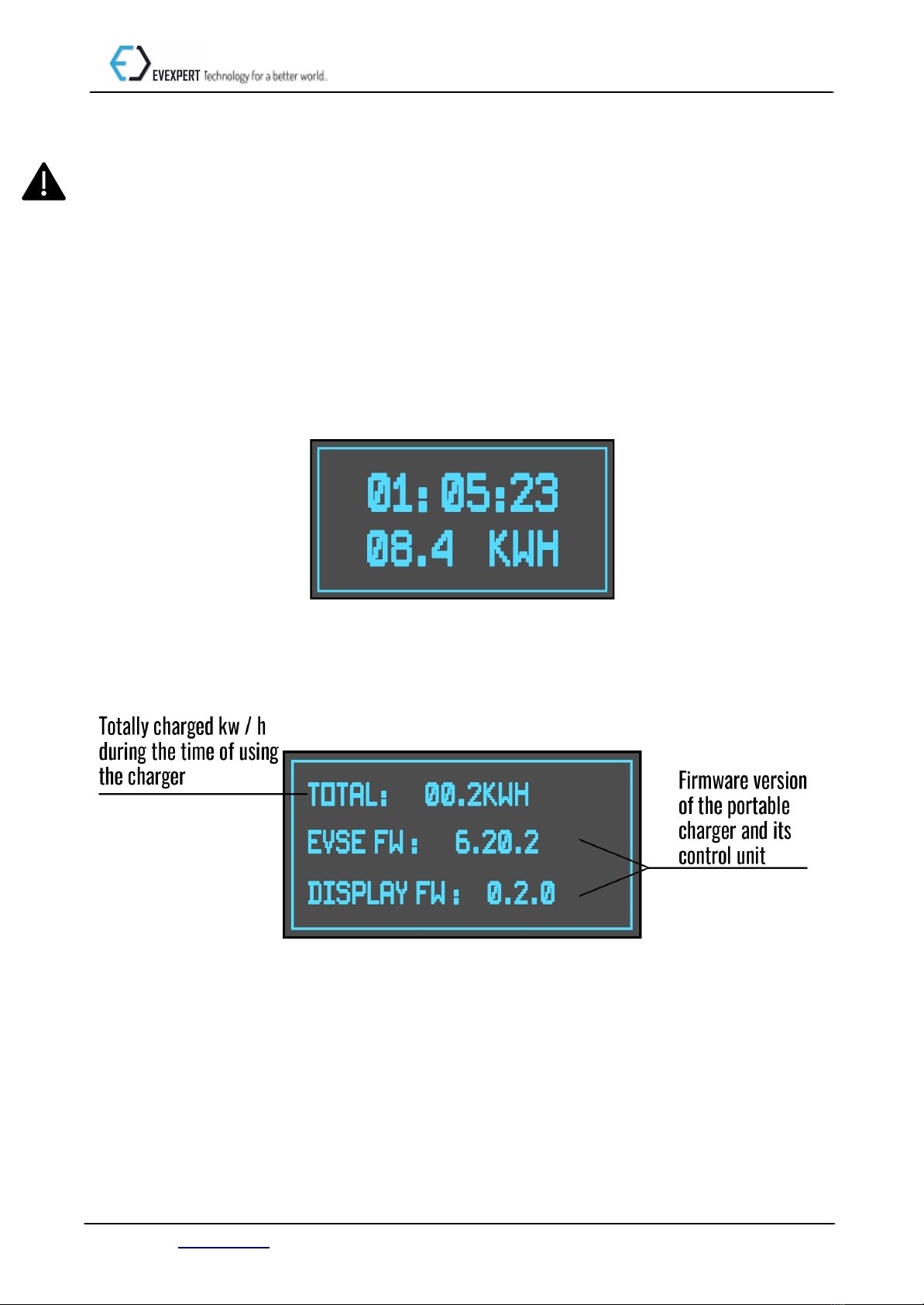

When the electric vehicle finishes charging, the display shows an overview of the last charging session with
information on the charged kW / h and the total charging time.
If the charger is not charging, it is possible to induce a complete overview of the charger’s history by pressing
the control button for 5 seconds.
ERROR MESSAGES
Warning
RELAY 2 MALFUNCTION
Relay B failed to close (Phase 2 + 3)
Restart the charger or Contact the
manufacturer if the error persists
PHASE OR VOLTAGE
PROBLEM
Undervoltage or a missing phase (displayed
even in 1-phase portable chargers,
where it is not an error, but only
information)
Try plugging the charger into a dierent
outlet
CHARGING LIMITED
TEMPERATURE
PROBLEM
Charging limitation due to high temperature
Unplug the charger and wait until it cools
down
COMM ERROR
Error in communication with the control unit
Restart the charger or Contact the
manufacturer if the error persists
POWERGRID PROBLEM
Another problem with the electrical network
Try plugging the charger into a dierent
outlet
Verify that the correct TN/IT network is set
Error
RELAY DISENGAGE
FAULT
The relay remained closed
Restart the charger or Contact the
manufacturer if the error persists
RELAY ENGAGE
FAULT
The relay did not close
Restart the charger or Contact the
manufacturer if the error persists
RCD PROBLEM
RCD error
Try another outlet or car
PE / N PROBLEM
Error on PE / N conductor
Try another outlet
INPUT VOLTAGE FAULT
Overvoltage
Try plugging the charger into a dierent
outlet
CURRENT LEVEL FAULT
Overcurrent
Try plugging the charger into a dierent
outlet
OVERTEMPERATURE
High temperature (over ≥ 80 ° C)
Unplug the charger and wait until it cools
down
UNSUPPORTED
CHARGING MODE
Unsupported charging mode
Change the charging mode
PROBLEM-SOLVING
➢If charging slows down or suddenly stops, check the onboard system in the vehicle and the display on
the charger for an error code. Then follow the instructions related to the reported error. See the next
page.
➢If charging has stopped, it may help to disconnect the EVSE from the car and the CEE socket and
reconnect it.
➢If the problem is caused by the high temperature of the charger, stop charging until the charger cools
down. Check that the EVSE is not in direct sunlight, if so, put it in shade. If overheating occurs regularly,
contact your dealer or EV Expert s.r.o.
In case of persistent problems, contact EV Expert s.r.o. at [email protected]
TECHNICAL SPECIFICATIONS
Rated charging current
Max 1x32A or 3x32A* (22kW) depending on the connector
Consumption at rest
Less than 0,5W
Permissible ambient temperature
-40°C to +50°C
Degree of protection
Body and cable: IP65, when connected: IP44
Dimensions of the aluminum body
50 x 80 x 190mm (HxWxL)
Power supply terminal
CEE32 (red 5pin socket 32A)
Terminal for electric vehicle
Type 1 or Type 2 in compliance with IEC 62196-2 to 32A
Phases used
1, 2 or 3 (depending on the vehicle)
Manufactured in accordance with
IEC 62196, IEC 61851-1, CE, EMC, RoHS
Total length
5m or 7m
Compatible electrical network
TN, IT
RCD-A-EV (Integrated in the charger)
AC < 30mA / DC < 6mA
*The maximum current and charging time depend on the characteristics of the electric vehicle being charged. The charger
may limit the charging current at high temperatures.
EU DECLARATION OF CONFORMITY
WE
EV Expert s.r.o.
Polská 181 / 70
779 00, Olomouc
IČ: 056 99 711
as manufacturer, declare under our sole responsibility that the following referenced vehicle charging
products:
Portable charger EVELINE MAX II
(the serial number printed on the body of each charger)
is in conformity with the applicable requirements of the following directives:
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2011/65/EU Restriction of the use of certain hazardous substances in electrical and electronic
equipment
Conformity with these directives has been assessed for this product by demonstrating compliance
to the following harmonized standards and/or regulations:
●EN 61851-1:2010
●EN 62196-2
●EN 61000-6-3 ed.2:2007 + A1:2011
●EN 61000-6-1 ed.2:2007
●EN 61000-3-2
●EN 61000-3-3
The product is safe under normal and intended use conditions. We have taken all measures available to ensure the
conformity of products placed on the market with the essential requirements of European Union legislation.
In Olomouc, 5.1.2020
EVELINE MAX II warranty conditions
1. EV Expert, s.r.o. (hereinafter "EV Expert") has developed a highly reliable device for charging electric vehicles,
called EVELINE MAX II, which is designed to withstand normal operating conditions when used in accordance with
the operating manual (the “Manual”) supplied by EV Expert.
2. The EV Expert Limited Warranty (“Limited Warranty”) covers defects in workmanship and EVELINE MAX II
material (“Defective Product”) for a period of two (2) years (“Warranty Period”) from the date of original
purchase of the Product.
3. The Limited Warranty does not apply and EV Expert assumes no responsibility for any defect or damage to any
EVELINE MAX II that has been:
a. misused, neglected, altered, or otherwise damaged, either internally or externally,
b. improperly operated, manipulated, or used, including use under conditions for which the product was not
designed or used in an unsuitable environment or used in a manner inconsistent with EV Expert's
installation and operating manual or applicable laws and regulations
c. exposed to fire, water, corrosion, biological attack, or input voltage that creates operating conditions
above the maximum or minimum limits specified in the EV Expert technical specifications, including
high input voltage from generators or lightning strikes,
d. exposed to accidental or consequential damage caused by defects in other components of the electrical
system,
e. if the original identification mark (including the trademark or serial number) of such EVELINE MAX II has
been contaminated, altered, or removed.
4. The limited warranty does not cover costs associated with troubleshooting the customer's electrical systems. The
limited warranty does not exceed the original costs of EV Expert.
5. During the warranty period, EV Expert will, at its sole discretion, repair or replace a defective product free of
charge, provided that EV Expert inspects the existence of a defect covered by the limited warranty.
6. EV Expert will use new and/or repaired parts at its discretion when repairing or replacing a defective product. EV
Expert reserves the right to use parts or products of original or improved design when repairing or replacing a
defective product.
7. If EV Expert repairs or replaces a defective product, the limited warranty will continue on the repaired or
replacement product for the remainder of the original warranty period or ninety (90) days from the date of
return of the repaired or replacement product by EV Expert, whichever is later.
8. The limited warranty covers only parts and labor required to repair a defective product.
9. The Limited Warranty covers the cost of shipping a repaired or replacement product from EV Expert through a
carrier selected by EV Expert to locations within the European Union, but not to locations outside the European
Union. The limited warranty does not cover damage during transport or damage caused by improper handling by
the carrier. The carrier is responsible for such damages.
Procedure for applying the warranty conditions
1. To obtain repair or replacement under the limited warranty, the customer must follow a certified Return
Merchandise Authorization process.
2. All defective products must be returned with a Return Merchandise Authorization Number (RMAN), which the
customer must request from EV Expert.
The RMA request must contain the following information:
i. Proof of purchase of the defective product
ii. Defective product model number
iii. Serial number of the defective product
iv. A detailed description of the defect
v. Shipping address for returning a repaired or replacement product.
3. Any defective product approved for return must be returned in the original shipping container or another
packaging that adequately protects the product from damage during shipment.
4. The returned defective product may not be disassembled or modified without the prior written consent of EV
Expert.
Additional provisions
1. The Limited Warranty is the only and exclusive warranty provided by EV Expert that is permitted by law. Its
meaning takes precedence over all other warranties, express or implied, statutory or otherwise, including
warranties of title, quality, merchantability, fitness for a particular purpose, or warranties as to the accuracy,
eectiveness, or suitability of any technical or other information provided in manuals or other documentation.
2. In no event shall EV Expert be liable for any special, direct, indirect, incidental, or consequential damages, losses,
costs or expenses under contract, or restrictions on the commencement of any economic loss of any kind, any
loss or damage to property, or any personal injury.
3. To the extent that warranties relating to EVELINE MAX II are required under applicable law, such implied
warranties will be limited in time to the Warranty Period to the extent permitted by applicable law. In states and
provinces that do not allow the limitation or exclusion of implied warranties or for the duration of the implied
warranty, or the limitation or exclusion of incidental or consequential damages, the above limitations or
exclusions may not apply.
4. This Limited Warranty gives the customer specific legal rights. The customer may have other rights that vary
from state to state or region to region.
Email contact address is [email protected]
Contact phone is +420 722 689 252
Table of contents
Other EVEXPERT Batteries Charger manuals
Popular Batteries Charger manuals by other brands
Circutor
Circutor WB-eBasic T2C32 Installation quick guide
PAG
PAG Pulsar 9795 instruction manual
Schumacher
Schumacher SE-2150MA owner's manual
Clarke
Clarke Start-N-Charge BC420N Operating & maintenance instructions
Kompernass
Kompernass Tronic KH 972 operating instructions
Samlex Europe
Samlex Europe PSC1600-12-60 manual
