Evil Pimp Kit User manual
Version 1.0
™™
© 2004 Pursuit Marketing,Inc. EVIL® , Pimp Kit™, EVIL®Pimp Kit™, Detonator™, Pipe™, EVIL stylized e and
design are trademarks of Pursuit Marketing, Inc. U.S. and Foreign Patents Pending. All rights reserved.
3
THIS PAINTBALL MARKER IS INTENDED FOR SALE TO ADULTS ONLY, FOR USE
IN COMPLIANCE WITH ALL APPLICABLE LAWS AND REGULATIONS. ADULT
SUPERVISION IS RECOMMENDED AT ALL TIMES WHENEVER A MINOR IS
HANDLING THIS PAINTBALL MARKER. PROTECTIVE GOGGLES AND HEADGEAR
SPECIFICALLY DESIGNED FOR PAINTBALL MUST BE WORN BY ALL PERSONS
WITHIN 200 YARDS WHEN A PAINTBALL MARKER IS IN USE. PAINTBALL SAFETY
RULES MUST BE FOLLOWED AT ALL TIMES.
PAINTBALL MARKERS ARE NOT TOYS. MISUSE MAY CAUSE SERIOUS INJURY
OR DEATH. EYE PROTECTION DESIGNED FOR PAINTBALL USE MUST BE WORN
BY THE USER AND ANY PERSON WITHIN RANGE. READ THIS OPERATOR’S
MANUAL COMPLETELY BEFORE LOADING, PRESSURIZING, OR OPERATING THE
EVIL PIMP KIT™ PAINTBALL MARKER.
PROTECTIVE GOGGLES AND HEADGEAR SPECIFICALLY DESIGNED FOR PAINTBALL
MUST BE WORN BY ALL PERSONS WITHIN RANGE WHEN A PAINTBALL MARKER
IS IN USE. PAINTBALL SAFETY RULES MUST BE FOLLOWED AT ALL TIMES.
The EVIL®Pimp Kit™is a semi-automatic paintball marker designed to shoot .68 caliber
paintballs for use in the sport of paintball.
Paintball is a recreational and competitive sport played worldwide. Special equipment
used in paintball includes goggles designed for paintball, paintball markers, and
paintballs, which are liquid-filled gelatin capsules that mark with a bright color. The object
of the game is to capture the opposing team’s flag; while on that quest, players try to
mark their opponents to eliminate them from the game.
THE EVIL®PIMP KIT ™PAINTBALL MARKER IS NOT A TOY. MISUSE MAY CAUSE
SERIOUS INJURY OR DEATH. EYE PROTECTION DESIGNED FOR PAINTBALL
USE MUST BE WORN BY THE USER AND ANY PERSON WITHIN RANGE. READ
THIS OPERATOR’S MANUAL COMPLETELY BEFORE LOADING, PRESSURIZING, OR
OPERATING THE PIMP KIT ™ PAINTBALL MARKER.
Statement of Liability
This EVIL®Pimp Kit™semi-automatic paintball marker is surrendered by Pursuit
Marketing, Inc. (PMI, Inc.), with the express understanding that the purchaser assumes
all liability arising out of any unsafe handling of this marker or any action that violates
any applicable laws or regulations. PMI, Inc., assumes no liability for, and shall not
be responsible for, any personal injury or loss of property or life resulting from the use
of this paintball marker under any circumstances, including but not limited to those
resulting from intentional, reckless, negligent or accidental discharges.
Pursuit Marketing, Inc. (PMI, Inc.) reserves the right to modify or change its markers
without incurring any obligation to incorporate such modifications or changes in any of
its products that were sold prior to the modification. The information in this operator’s
manual may be updated or changed without notice.
This operator’s manual is intended to remain with the paintball marker upon any
subsequent transfer of the marker, whether through sale, resale, or furnishing in any
manner. Updated and replacement operator’s manual may be obtained from:
Pursuit Marketing, Inc., 55 Howard Ave, Des Plaines, IL 60018 USA; phone 1.800.579.1633;
www.evil-paintball.com. Questions about the operation of this or any EVIL™line of
paintball markers can be directed to Pursuit Marketing Inc., or visit www.evil-paintball.com
for updates regarding your PIMP KIT™purchase.
Table of Contents
PAINTBALL SAFETY RULES 4
COMPRESSED GAS/NITROGEN 6
OPERATING INSTRUCTIONS 8
SPECIFICATIONS 10
VELOCITY ADJUSTMENT 11
PARTS/DIAGRAMS 12
WARRANTY INFORMATION CARD CENTER
TUNING 22
TROUBLESHOOTING & MAINTENANCE 24
EVIL®Pimp Kit™Operator’s Manual EVIL®Pimp Kit™Operator’s Manual
Read this operator’s manual completely before loading, pressurizing,
or operating this, or any paintball marker.
™
2
Markers with regulators hold pressure even after tank is removed. Shoot marker
in safe direction after tank is removed to degas it completely.
All paintball markers must be chronographed regularly. Adjust marker to shoot
paintballs at a velocity that is less than 300 feet per second (fps) and that does
not exceed the velocity limit set by the paintball park where the marker is in
use. Chronograph the marker at regular intervals during the day, as well as any time
the power source is refilled or changed, any time the barrel, the brand, the type
of paintball or any part in the power system is changed, and upon request of any
player or game official.
This paintball marker operates using compressed nitrogen at specified pressure
ranges. Follow safety procedures when handling compressed gas or air. All filling
of compressed gas or air cylinders must be done by qualified persons.
Follow the rules of safe marker handling: Keep finger off trigger until ready to
shoot. Keep muzzle pointed in a safe direction. In addition, place the barrel
blocking device over the tip of the barrel with the elastic strap firmly around the
back of the marker. Keep the marker turned “off” when the marker is not in
use and when in any non-shooting area.
Never shoot at animals.
Never mark objects outside the confines of the game or authorized shooting areas.
Never look down the barrel of the marker.
Before disassembly, storage, or transport of the marker, remove all paintballs from
the marker, barrel, and loader; remove power source; and remove all gas or air
from the power system. Employ barrel blocking device (barrel sleeve condom, sock,
bag, or barrel plug) and turn the marker “off”.
Carry marker in case or sturdy bag when in public.
Safely and securely store marker to prevent access to it by unauthorized persons.
DO NOT STORE PRESSURIZED. Always remove air source when storing and, or
transporting. In some states this is the law.
Always wear protective goggles and headgear specifically designed for paintball
when shooting this or any paintball marker.
Every person within range of an area where a paintball marker is in use must wear
protective goggles and headgear specifically designed for paintball.
Operate a paintball marker only in areas where it is safe and lawful to do so.
Misuse of this paintball marker can result in criminal penalties, including jail time.
This marker is intended for sale to adults only. Adult supervision is recommended
at all times whenever a minor is handling this marker in any manner.
During game play, follow referee’s instructions and all field safety rules. Avoid
shooting at a player’s head, neck, or groin area.
Play paintball only where the rules of safe paintball play are followed.
Never aim or shoot a paintball marker (loaded or unloaded) toward any person
who is not wearing protective goggles and headgear specifically designed for
paintball.
There is always the chance that there is a paintball lodged in the barrel of the
marker even when it is not visible in the chamber. To check if the marker is
loaded: remove air system and shoot marker in safe direction, remove hopper,
visually inspect chamber for a paintball, remove barrel and inspect for paintball
present in barrel.
Paintball markers with electronic frames have extremely sensitive triggers. Take
extra safety precautions any time handling or shooting an electronic paintball
marker. To avoid accidentally firing the marker, keep the marker off until you are
ready to fire.
Paintball Basic Safety Rules
Safety standards information is available from the American Society for Testing and Materials,
100 Barr Harbor Drive, West Conshohocken, PA 19428-2959; phone 1.610.832.9500;
www.astm.org. “Standard Practice for Paintball Field Operation” is publication F1777-97, and
“Standard Specification for Eye Protective Devices for Paintball Sports” is publication F1776-97;
inquire about additional publications which may be available at the time request is made.
PAINTBALL MARKERS ARE NOT TOYS. MISUSE MAY CAUSE SERIOUS INJURY
OR DEATH. EYE PROTECTION DESIGNED FOR PAINTBALL USE MUST BE WORN
BY THE USER AND ANY PERSON WITHIN RANGE. READ THIS OPERATOR’S
MANUAL COMPLETELY BEFORE LOADING, PRESSURIZING, OR OPERATING
THE EVIL®PIMP KIT™PAINTBALL MARKER.
Paintball Basic Safety Rules
Read this operator’s manual completely before loading, pressurizing,
or operating the EVIL
®
Pimp Kit
™
Paintball Marker.
5
4
DO NOT EXCEED RECOMMENDED INPUT OR OPERATING PRESSURE.
The EVIL®Pimp Kit™ paintball marker may be powered by regulated compressed air,
or regulated nitrogen only.
Operating Pressure and Input Pressure
• Operating pressure range: 150-400 psi.
• Respirator Low Pressure Regulator (LPR) Range: 100-150 psi.
• Recommended maximum input pressure is 175 p.s.i. into the marker
from the LPR.
• Exceeding 175 psi into marker can damage solenoid and void warranty.
• Maximum inlet to Detonator regulator 1000 psi.
• Do not exceed recommended pressures.
Valve-Cylinder Connection
The valve on a cylinder is to remain screwed into the cylinder; Figure 1. Should it loosen,
the cylinder may detach from the valve with extremely dangerous force. Call manufacturer
or take to qualified personnel for inspection
if valve and cylinder begin to separate or leak.
Every time a cylinder is filled, the connection
between the valve and cylinder must be inspected.
If any looseness or leak is detected between the
valve and the cylinder, do not fill. Drain cylinder
and call manufacturer or take to qualified
personnel for inspection.
DO NOT OVERFILL ANY CYLINDER. AN OVERFILL CAN CAUSE THE SAFETY
BURST DISK OR THE CYLINDER ITSELF TO RUPTURE.
Hydrostatic Testing Date
Many cylinders are required by the U.S. Department of Transportation to be hydro
tested at periodic intervals, with the interval varying according to cylinder type. The
date of the cylinder’s initial or later testing appears on the cylinder. A cylinder that
is out of date for hydrostatic testing must not be filled or used.
The safety rules for handling compressed gas or air must be followed at all times.
A COMPRESSED GAS OR AIR CYLINDER IS A PRESSURE VESSEL. FOLLOW
RULES FOR SAFE HANDLING OF COMPRESSED GAS OR AIR. ALL FILLING OF
COMPRESSED GAS OR AIR CYLINDERS, AND ALL REPAIRS TO A MARKER’S
POWER SYSTEM OR ITS COMPONENTS MUST BE PERFORMED BY QUALIFIED
PERSONNEL.
Filling Compressed Gas/Air
An overfill of any compressed gas or air cylinder can cause the safety burst disk
(Figure 1) on the cylinder to burst, or the cylinder itself to rupture. A cylinder may
rupture with extremely dangerous, and potentially lethal force. Use properly rated
discs only.
Fills must be performed by qualified personnel. A cylinder must not be filled beyond
the cylinder’s capacity per the U.S. Department of Transportation. A cylinder’s rated
capacity appears on the cylinder itself.
Compressed Gas/AirCompressed Gas/Air

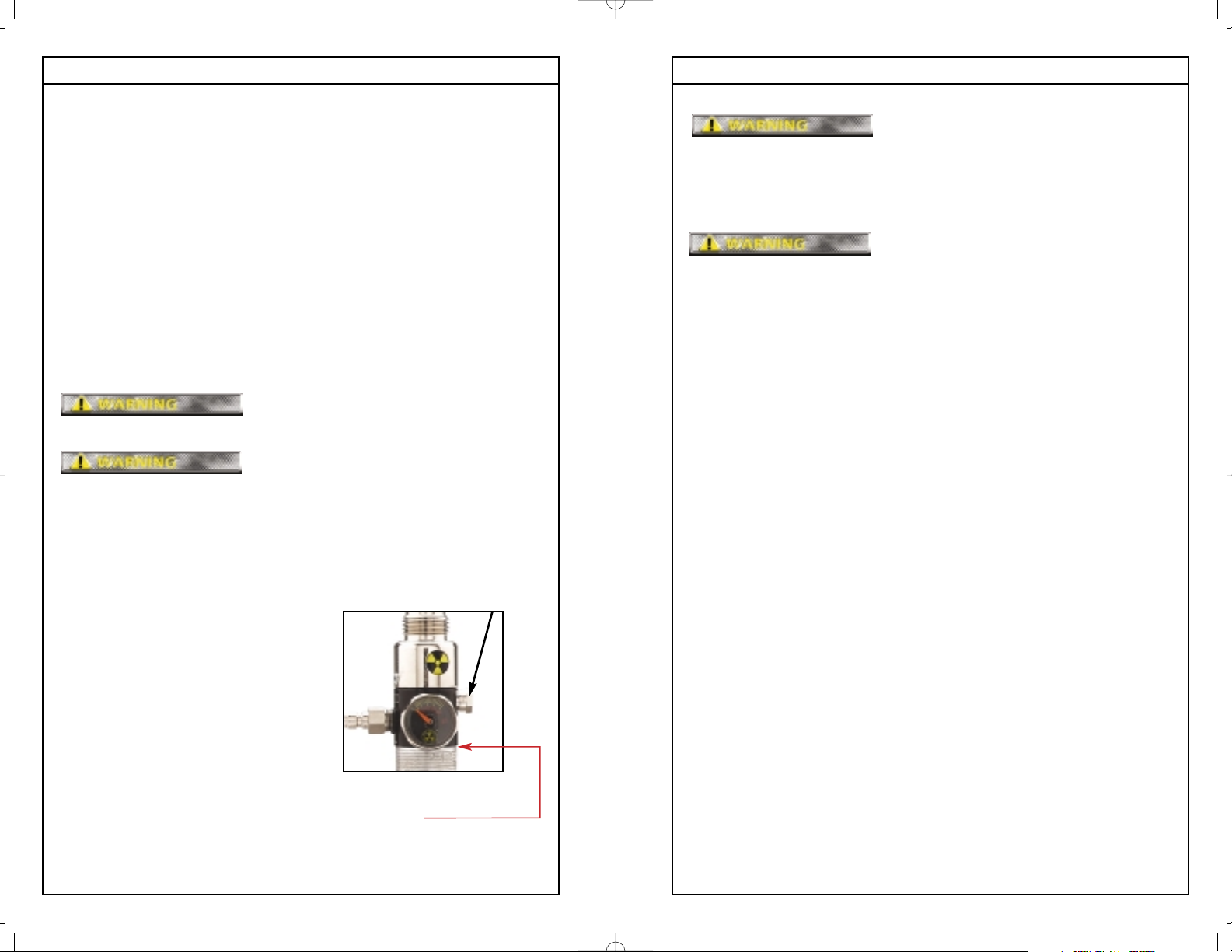

Figure 1. Valve-cylinder
connection.
Burst Disk
USE N2ONLY! DO NOT USE CO2ON YOUR PIMP KIT ™!
7
6
First time users follow instructions carefully until familiar with EVIL®Pimp Kit™
1 Attach threaded barrel firmly to marker.
2 Install barrel blocking device (barrel condom, bag, sock or plug) firmly
into or onto barrel.
3 Attach empty loader into feed tube. There are two standard sizes of loader
‘necks’ in paintball, the stock feed tube was designed to take the larger of
the two. If the loader is too small, use the provided O-rings from the parts kit
in the feed tube. Do not load paintballs at this time.
4 Before attaching air source, read and understand the section in this manual
on “Compressed Gas/Air” (page 6). Use N2only. Follow safety rules for
handling compressed gas/air. If any leak occurs in the air system or marker
refer to troubleshooting guide or to a qualified air smith. Use only cylinders
for compressed gas or air that comply with all applicable laws and regulations,
including but not limited to those of the U.S. Department of Transportation,
OSHA, Compressed Gas Association, and/or American Society for Testing
and Materials.

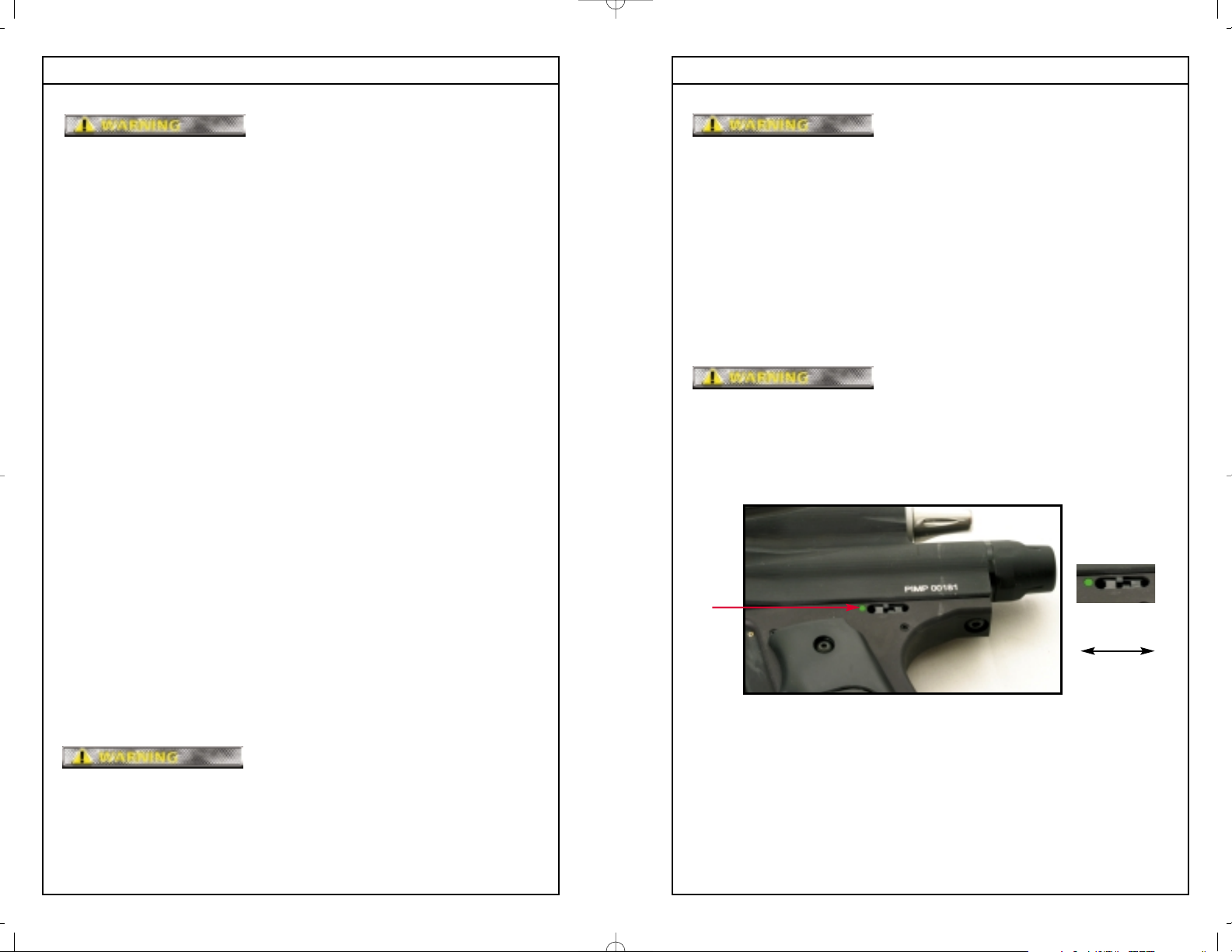

5 Turn marker “on.” The light will light up on the left side of the frame.
See page 9.
6 Hold trigger. Marker should not fire right away if eye is functioning. It should
override the eye after 3/4 second and fire once.
7 Turn marker “off” and install barrel blocking device. Paintballs may then be
loaded.
EVERY PERSON WITHIN RANGE OF AN AREA WHERE ANY PAINTBALL
MARKER IS IN USE MUST WEAR PROTECTIVE GOGGLES AND HEADGEAR
SPECIFICALLY DESIGNED FOR PAINTBALL.
BEFORE DISASSEMBLY, STORAGE, OR TRANSPORT OF THE MARKER, REMOVE
AIR SOURCE FIRST. THEN REMOVE ALL PAINTBALLS FROM THE MARKER,
BARREL, AND LOADER. REMOVE ALL GAS OR AIR BY CYCLING MARKER AFTER
TANK IS REMOVED. THE REGULATOR WILL HOLD A SHOT EVEN AFTER THE
TANK IS REMOVED UNLESS THE MARKER IS FIRED. INSTALL BARREL BLOCKING
DEVICE AND SLIDE THE ON/OFF SWITCH TO THE “OFF” POSITION.
LED
LIGHT
THIS PAINTBALL MARKER HAS A MEMORY THAT HOLDS A SHOT UP TO 3/4
OF A SECOND AFTER THE TRIGGER IS PULLED. ALWAYS KEEP YOUR MARKER
POINTED IN A SAFE DIRECTION WHEN THE BARREL BLOCKING DEVICE IS
REMOVED
Led Boot Up Indicators
When the marker turns on, the led first turns Red if the eye is disabled or Green if
it is enabled. The led then quickly cycles red-orange-green if the Tournament Lock is
enabled. If the Tournament Lock isn’t enabled, the marker just goes straight to the
normal live mode strobe (Orange=not ready, Green=ready to fire). See Tuning pages
18-19 for further Board and led instructions.
A BLINKING OR SOLID LIGHT INDICATES THE MARKER IS LIVE. IF THE SWITCH
IS TURNED TO THE ON POSITION AND THE LED DOES NOT LIGHT UP OR
CONTINUALLY STROBES, THE BATTERY MAY NEED TO BE REPLACED.
ON
OFF
(SAFE)
NEVER DISASSEMBLE MARKER UNTIL REMOVING ALL GAS OR AIR FROM
THE MARKER. RULES FOR SAFE HANDLING OF COMPRESSED GAS OR AIR
MUST BE FOLLOWED AT ALL TIMES.
Operating the EVIL®Pimp Kit™Marker Operating the EVIL®Pimp Kit™Marker
9
8
1 Chronograph the marker using standard chronograph procedures and following
safety rules. Shooting velocity will vary based upon many factors, such as paint,
weather, and air system.

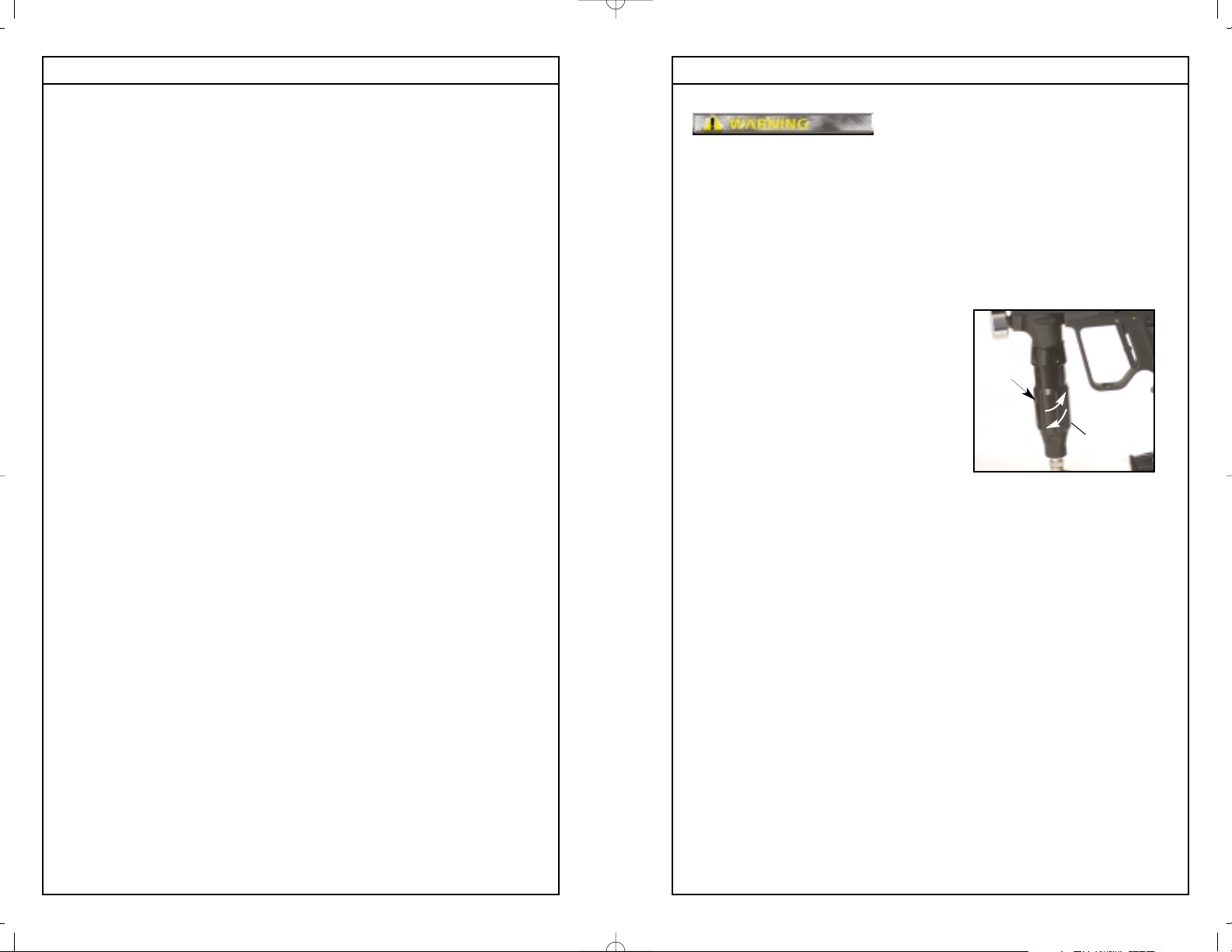

2 Velocity of the EVIL®Pimp Kit™is normally
adjusted by rotating the adjusting ring on the
regulator. The thread used in this ring is a fine
pitch, allowing for very small adjustments
to be made accurately. Generally, increasing
output pressure increases paintball velocity.
(However, excessive regulator output pressure
actually decreases velocity).
To adjust velocity, first loosen the locking screw (3/32 allen wrench) and back it off
three full turns. If the locking screw is not backed off far enough you will be unable
to turn the adjusting ring. The adjusting ring should turn easily; DO NOT FORCE IT!
NOTE: When turning the Adjusting Ring to reduce velocity, it is necessary to cycle the
marker every 1/2 turn. This is done to relieve the captive pressure in the downstream portion
of the gas system. Failure to do this will result in premature wear to the sealing seat in
the regulator.
In extreme cases the Dwell or even the Respirator Low Pressure Regulator (LPR)
can be adjusted to alter velocity.
3 Lock the velocity lock screw back in place.
4 Chronograph the marker after every velocity or pressure adjustment.
5 Chronograph the marker at regular intervals during the day, as well as any time
the air source is refilled or changed, any time the barrel, brand, type of paintballs
used, and upon request of any player or game official.
NOTE: The gauge on the front of the marker is the LPR gauge. It should not move when
adjusting your vertical regulator unless your vertical regulator was less than 150 psi. Your
LPR should be set at approximately 120-150 psi.
ALL PAINTBALL MARKERS MUST BE CHRONOGRAPHED REGULARLY. ADJUST
MARKER TO SHOOT PAINTBALLS AT A VELOCITY THAT IS LESS THAN 300
FEET PER SECOND (FPS) AND THAT DOES NOT EXCEED THE VELOCITY LIMIT
SET BY THE PAINTBALL PARK WHERE THE MARKER IS IN USE. CHRONOGRAPH
THE MARKER AT REGULAR INTERVALS DURING THE DAY, AS WELL AS ANY
TIME THE AIR SOURCE IS REFILLED OR CHANGED AND UPON REQUEST OF
ANY PLAYER OR GAME OFFICIAL.
Locking
Screw
Adjusting
Ring
Semi-automatic
11 inches without barrel
3.45 lbs.
9.5 inches
Two piece construction with Impulse threads. Mid-grade
.689 back. EVIL®Pipe™front anodized to match can be used
interchangeably with EVIL®Pipe™backs. .689 backs available
in high polish or matte finish
For use only with standard “.68 caliber” (.68-inch diameter)
paintballs
Accepts standard connections for regulated N2, or regulated
compressed air
150-400 psi recommended
100-150 psi maximum
Not to exceed 175 psi from LPR
Not to exceed 1000 psi
EVIL®bottom line on/off assembly with rail
45 style frame
On/Off safety switch and barrel blocking
device (included)
Decrease (–)
Increase (+)
Pursuit Marketing, Inc. (PMI Inc.), reserves the right to modify or change its markers
without incurring any obligation to incorporate such modifications or changes in any
of its products that were sold prior to the modification. The information in this operator’s
manual may be updated or changed without notice.
This operator’s manual is intended to remain with the paintball marker upon any
subsequent transfer of the marker, whether through sale, resale, or furnishing in any
manner. A replacement operator’s manual may be obtained from Pursuit Marketing, Inc.,
55 Howard Ave, Des Plaines, Illinois USA; phone 800.579.1633; www.evil-paintball.com
Action:
Length:
Weight:
Height:
Barrel:
Paintballs:
Air Source:
EVIL®Pimp Kit™Operating
pressure:
LPR Operating Pressure:
Marker Pressure:
Input Pressure to
EVIL®Detonator™:
Air Source Input:
Grip:
Safety:
Velocity AdjustmentEVIL®Pimp Kit™Specifications
10 11
9
2
8
31
7
3
35
34
5
4
12
40
15
39
6
11
10
35
1
2
2
11
13
15
16
17
19
20
12 18
22
23 24 25
21
26
32
33
41
34
28
38
35
31
34
36
30
35
42
43
44 45 46
47
50
49
48
54
60
59
57
58
55
56
28
52
53
82
84
85
86
27
28
29
1. Ball Detent 10160
2. 2-56 x .125 56511
3. Eye Cover Right 56523
4. Eye Cover Left 56524
6. Pimp Kit™Short Stack 57455
7. Small Evil Jewel 11441
8. Bolt Cover 56522
9. Pimp Kit™Receiver Body 56500
10. Barb 56527
11. Barb Seal–Alternate 57610
12. 010-70 Urethane O-ring 57645
13. 011-70 Urethane O-ring 10608
14. Pimp Kit™Valve Plug 56509
15. Barb–Alternate 57600
16. 90º Barb Fitting 56529
17. ASA Gas-Thru Bolt 57709
18. 012-70 Urethane O-ring 10257
19. Pimp Kit™ASA 56506
20. 0-300 Pressure Gauge 46999
21. 018-70 Urethane O-ring 57994
22. 10-32 x .250 Set Screw 57747
23. Valve Spring 57972
24. Valve Stem 56535
25. Valve Body 57989
26. 019/70U O-ring 10265
27. Pimp Kit™Wire Harness 56541
28. Barbs 56527

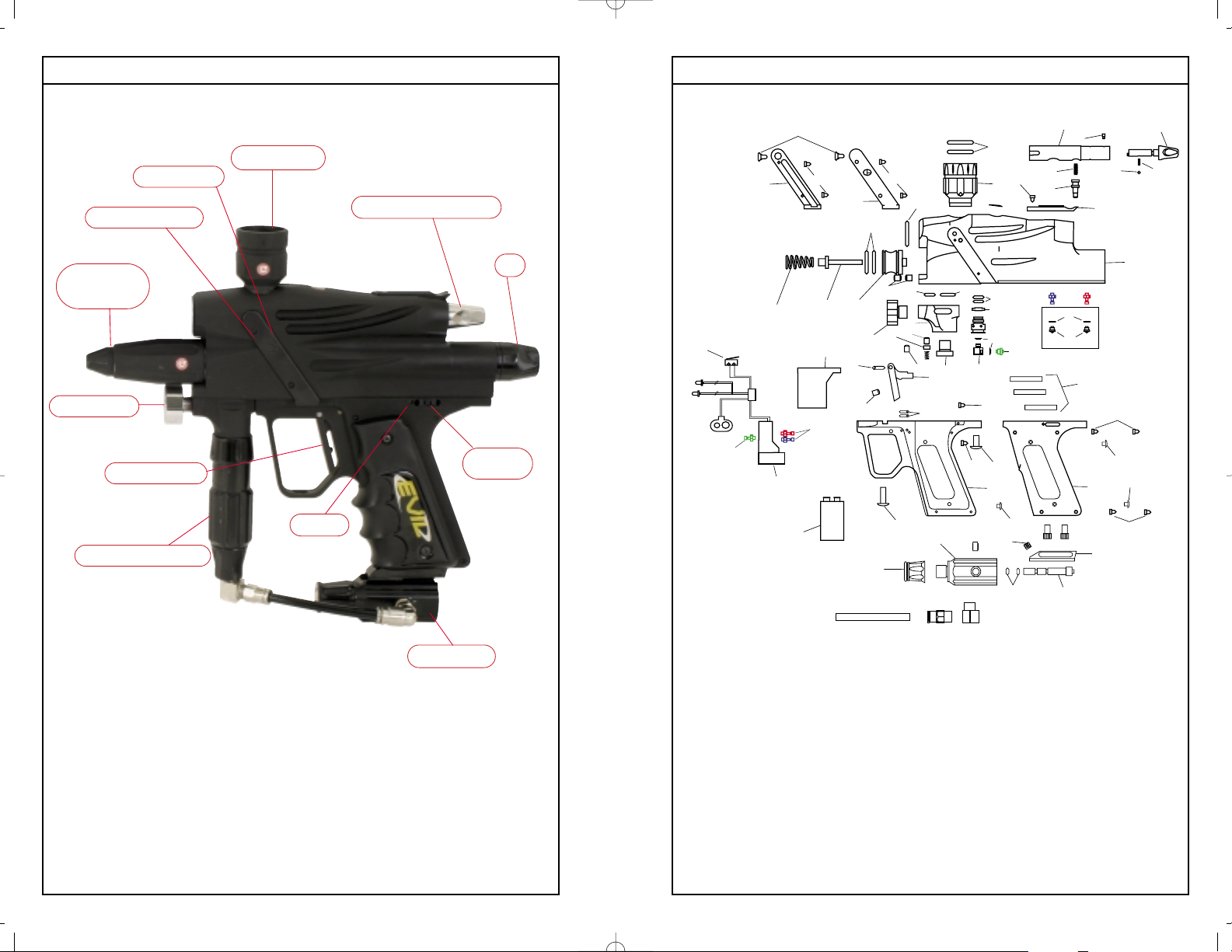

EVIL®Pimp Kit™Parts Location EVIL®Pimp Kit™Body Diagram
Venturi Style Quick Release Delrin Bolt
Ram
On/Off
Safety Switch
On/Off Bottomline
Indicator LED
EVIL Inline Detonator™ Regulator
Low Pressure Gauge
Evil Respirator
Low Pressure Regulator
(LPR)
Electronic Anti-Chop Eye
Shortstack Feed Tube
Dual Ball Detents
Adjustable Double Trigger
12 13
61
64
62 63 65 63 66 67
62
68
69
70 71 72
73
75 76 77 78
81
79 80
74
83
29. Solenoid 56539
30. Pimp Trigger Pin 55505
31. 10-32 x .250 57747
32. Pimp Kit™Trigger 56505
33. Pimp Kit™Switch Pins 56528
34. 2-56 x .125 Socket Head Screw 56511
35. 6-32 x .1875 Button 56544
36. Pimp Kit™Grip Panel 56502
37. 10-32 x .375 Button Head Screw 10682
38. 10-32 x .75 Button Head Screw 57781
39. Pimp Kit™Board 56518
40. 9 Volt Battery 70092
41. Hoses 56526
42 Pimp Kit™Grip Frame 56501
43. O/O Bottomline Cap 42075
44. O/O Bottomline Body 42074
45. 1/8 NPT Plug 47006
46. 10-32 x .250 Set Screw 57747
47. 006-70 Urethane O-ring 10259
48. O/O BL Piston 42073
49. O/O BL Slide Rail 42076
50. 10-32 x .375 Socket Head Screws 10797
52. 90º Elbow 47004
53. Straight Fitting Macroline 47075
54. Pimp Kit™Bolt 56514
55. Pimp Kit™Bolt Set Screw 56519
56. Pimp Kit™Bolt Cam Pin 56516
57. Pimp Kit™Bolt Ball Spring 10750
58. Pimp Kit™Bolt Ball 10730
59. Pimp Kit™Bolt Pin 56515
60. Pimp Kit™Bolt Pin Spring 56517
61. Pimp Kit™Hammer 56534A
62. 011-70 Urethane O-ring 10608
63. Pimp Kit™Ram Bumper 56532
64. 018-70 Urethane O-ring 57994
65. Pimp Kit™Ram Body 56533A
66. Pimp Kit™Ram Piston 56531A
67. 009-70 Urethane O-ring 57643
68. Pimp Kit™Ram Cap 56530SB
69. Pimp Kit™Ram Piston Adjuster 57625
70. Pimp Kit™Reg Adjuster 57490SB
71. Pimp Kit™Reg Spring 57497
72. 012-70 O-Ring 10257
73. Pimp Kit™Reg Cap 57491SB
74. 020-70 Buna 40920
75. Pimp Kit™Reg Poppet 57489
76. 016-70 Urethane O-ring 10361
77. Pimp Kit™Reg Body 57487B
78. 019-70 Urethane O-ring 10265
79. 010/70 Buna 57608
80. Pimp Kit™Reg Seat Base 57488
81. Pimp Kit™Reg Seat Seal 57486
82. Macroline Hose 47028
83. Evil Jewel 11442
84. Trigger Spring Screw 57747
85. Trigger Spring Rest 56543
86. Trigger Spring 56517
PURSUIT MARKETING INC.
55 Howard Ave
Des Plaines, IL 60018 USA
Tape Here
WARRANTY REGISTRATION
Detach and Mail
First Class
Stamp
Here

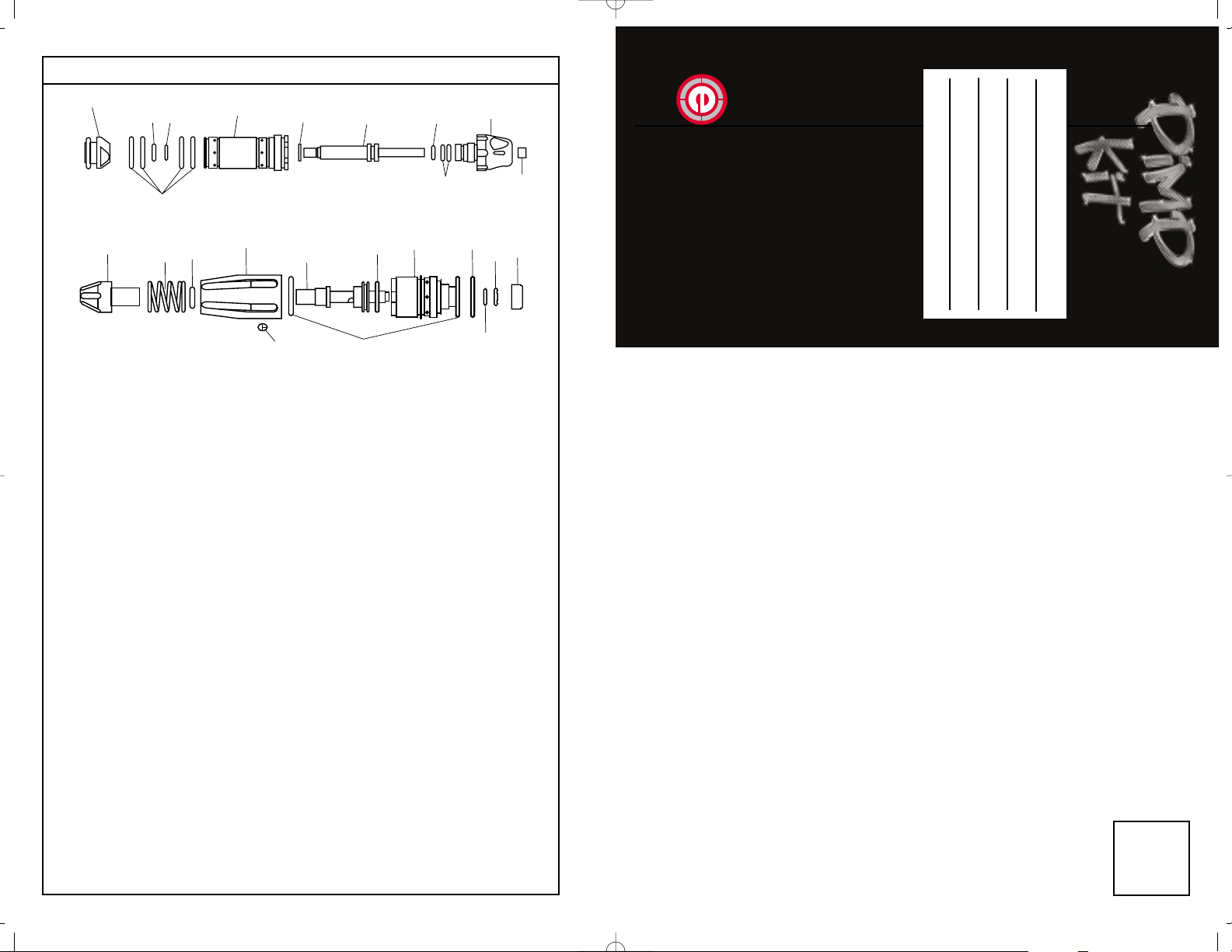

EVIL®Pimp Kit™Ram & Reg Diagram
14
™
1. Always wear protective goggles and headgear specifically designed for paintball when shooting
this or any paintball marker. Please initial: ______
2. Every person within range of an area where a paintball marker is in use must wear protective
goggles and headgear specifically designed for paintball. Please initial: ______
3. Operate a paintball marker only in areas where it is safe and lawful to do so. Please initial: ______
4. Misuse of this paintball marker can result in criminal penalties, including jail time. Please initial: _____
5. This marker is intended for sale to adults only. Adult supervision is recommended at all times
whenever a minor is handling this marker in any manner. Please initial: ______
6. During game play, follow referee’s instructions and all field safety rules. Avoid shooting at a player’s
head, neck, or groin area. Please initial: ______
7. Play paintball only where the rules of safe paintball play are followed. Please initial: ______
8. Never aim or shoot a paintball marker (loaded or unloaded) toward any person who is not wearing
protective goggles and headgear specifically designed for paintball. Please initial: ______
9. There is always the chance that there is a paintball lodged in the barrel of the marker even when it
is not visible in the chamber. To check if the marker is loaded: remove air system and shoot marker
in safe direction, remove hopper, visually inspect chamber for a paintball, remove barrel and inspect
for paintball present in barrel. Please initial: ______
10. Paintball markers with electronic frames have extremely sensitive triggers. Take extra safety
precautions any time handling or shooting an electronic paintball marker. To avoid accidentally firing
the marker, keep your finger away from the trigger until you are ready to fire.Please initial: ______
11. Markers with regulators hold pressure even after tank is removed. Shoot marker in safe direction
after tank is removed to degas it completely.Please initial: ______
12. All paintball markers must be chronographed regularly. Adjust marker to shoot paintballs at
a velocity that is less than 300 feet per second (fps) and that does not exceed the velocity limit set
by the paintball park where the marker is in use. Chronograph the marker at regular intervals during
the day, as well as any time the power source is refilled or changed, any time the barrel, the brand,
the type of paintball or any part in the power system is changed, and upon request of any player or
game official.Please initial: _____
13. This paintball marker operates using compressed nitrogen at specified pressure ranges. Follow safety
procedures when handling compressed gas or air. All filling of compressed gas or air cylinders must be
done by qualified persons. Please initial: ______
14. Follow the rules of safe marker handling: Keep finger off trigger until ready to shoot. Keep muzzle
pointed in a safe direction. In addition, place the barrel blocking device over the tip of the barrel
with the elastic strap firmly around the back of the marker. Keep the marker turned “off” when the
marker is not in use and when in any non-shooting area. lease initial: ______
15. Never shoot at animals. Please initial: __________
16. Never mark objects outside the confines of the game or authorized shooting areas.
Please initial: ______
17. Never look down the barrel of the marker. Please initial: ______
18. Before disassembly, storage, or transport of the marker, remove all paintballs from the marker,
barrel, and loader; remove power source; and remove all gas or air from the power system. Employ
barrel blocking device (barrel condom, sock, bag, or barrel plug) and turn the marker “off”.
Please initial: ______
19. Carry marker in case or sturdy bag when in public. Please initial: ______
20. Safely and securely store marker to prevent access to it by unauthorized persons.
Please initial:______
21. DO NOT STORE PRESSURIZED. Always remove air source when storing and, or transporting.
In some states this is the law. Please initial: ______
EVIL®Pimp Kit™Warranty Registration
Please fill out entirely this EVIL®Pimp Kit™Warranty Registration form including the checklist
and mail it to: Pursuit Marketing, Inc., 55 Howard Ave, Des Plaines, IL 60018 USA. Save your
original sales purchase receipt or packing slip. A copy must accompany the marker when
warranty repairs are sought. Consult owners manual for warranty information and instructions
on obtaining repair service.
Purchaser’s name:
Mailing address:
City, State, Zip:
Phone number:
E-Mail Address:
Age:
Model purchased:
Serial number:
(Serial number is located on the left hand side above the grip frame)
Where purchased:
Date of purchase:
Seller’s name:
Seller’s address:
City, State, Zip:
Purchase price:
THE EVIL®PIMP KIT ™PAINTBALL MARKER IS NOT A TOY. MISUSE MAY CAUSE
SERIOUS INJURY OR DEATH. EYE PROTECTION DESIGNED FOR PAINTBALL
USE MUST BE WORN BY THE USER AND ANY PERSON WITHIN RANGE. READ
THIS OPERATOR’S MANUAL COMPLETELY BEFORE LOADING, PRESSURIZING, OR
OPERATING THE EVIL®PIMP KIT ™PAINTBALL MARKER. Please initial: _______
Pursuit Marketing, Inc., thanks you for purchasing this high quality EVIL®Pimp Kit™paintball marker. Please read each of the
following items and initial that you have read and understood it before operating the EVIL®Pimp Kit™paintball marker:
1. 20/70 Buna O-Ring 40920
2. 21/70 Buna O-Ring 40921
3. 22/70 Buna O-Ring 40922
4. 3/32 long arm 42033
5. 3/16 short arm 42028
6. 5/64 short arm 42038
7. 1/8 short arm 42026
8. Regulator Reg Seat 57486
9. Evil Pus 62221
10. 4 Ball Detents 10160
11. Barrel Centering O-ring 19/70 U 10265
12. Evil Barrel Condom 61228
15
™
Screwing the Trigger Adjustment Screw (part #84) in further will make the spring push on the trigger more,
and therefore make the trigger pull more stiff. Loosening the screw will make the trigger pull lighter. If you
remove the plate, spring and screw the marker may bounce too much for tournament play. Make sure the
cone of the spring is installed with the larger end down.
Parts Kit

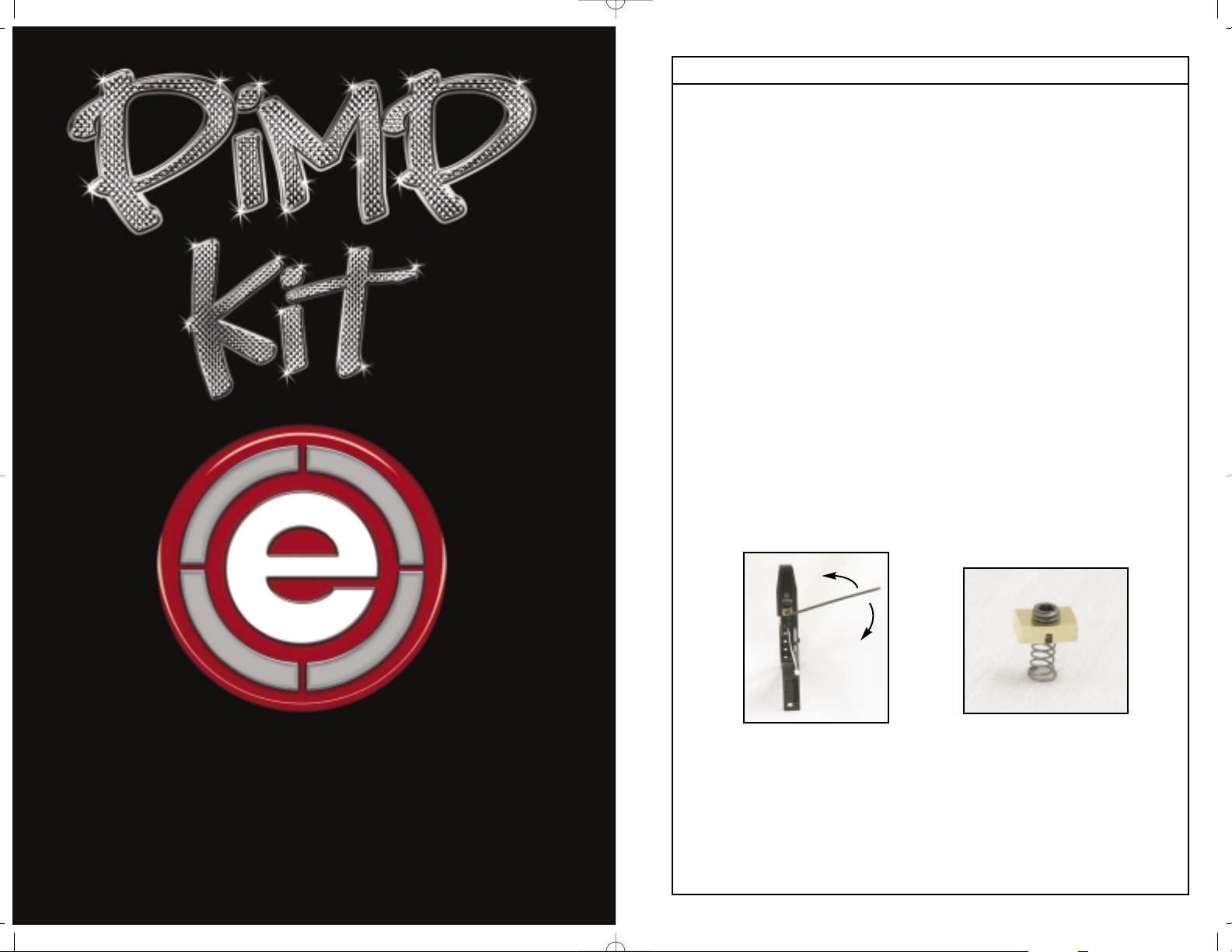

Trigger Adjustment
Remove Trigger Frame from the marker. You will have to disconnect the Solenoid to
completely remove the Trigger Frame.
Trigger Frame pictured from directly above.
Lighter Trigger Pull
Stiffer Trigger Pull
17
UNLOCKING BOLT REMOVING BOLT RE-INSTALLING BOLT
Twist the back of the bolt 180º
in either direction.
Pull out Line up with the back of marker so a
sliver of the white bolt is showing &
twist bolt 180º to lock back in place.
MAKE SURE BOLT LOCKS IN PLACE IN HAMMER. DO NOT CYCLE MARKER
WITHOUT BOLT PROPERLY LOCKED IN PLACE.
The EVIL®Pimp Kit™stock delrin bolt needs no maintenance.
Always clean marker after
every day of play. This usually does not mean a complete strip. On the contrary, most
warranty calls originate from improper assembly by the operator. However, do not
hesitate to call Evil HQ with questions.
Bolt Position Screw Adjustment
Pimp Kit™Ram assemblies have a Ram Piston adjustment screw (69) in the back. If the
top of the bolt is visible when looking down the
feed tube while the marker is aired up, then that
screw is too far forward. If the ball is rolling
backwards off the eye once it is in the chamber,
then that screw is too far back. Do not attempt to
adjust unless one of these two problems is causing
the Pimp Kit™to break paint.
Use a 1/8 allen wrench to adjust the Ram Piston
screw. Make sure to use a drop of Red 277 Loc Tite
on the center of the screw while it is removed from the Ram so the screw won’t move
after adjustment is made. Allow to dry for 24 hours before cycling marker.
Do not leave marker in direct sunlight. In extreme circumstances it can cause the bolt
to swell.
Remove these two screws with
a 5/64 allen wrench Replace worn or damaged ball detents
The eyes can be gently removed and cleaned by
factory trained technicians only. Broken or pinched
wires are not covered under the warranty.
If the electronic eyes get paint or dirt on them, they will not
function properly.
The ball detents will wear over time and will have to be replaced. Check ball detents
if the Pimp Kit™is chopping or breaking paint.
DO NOT PUSH BOLT TOO FAR FORWARD IN PIMP KIT™OR YOU WILL DAMAGE
BALL DETENTS.
Changing the Battery
The 9 Volt battery will need to be occasionally replaced as part of normal
maintenance. You should get over 50,000 shots before the battery needs to be
replaced. When troubleshooting the marker, always check or replace battery.
1Remove the 2 grip cheek screws on the left hand side of the
marker with a 5/64 allen wrench.
2Remove the 4 panel screws with a 5/64 allen wrench.
See picture for screw locations.
3Remove the bottomline adapter and rail if the panel does
not remove easily
4Carefully replace battery with a fresh 9 Volt.
EVIL®Pimp Kit™Eye & Ball Detent ReplacementEVIL®Pimp Kit™Bolt Removal
Good
Damaged
16
There are only three O-rings and one urethane Regulator seat in the EVIL®Detonator.™
If a leak is detected, the fault lies with one of the three O-rings. If the regulator fails to
hold a consistent delivery pressure, then the problem is with the Regulator Seat (4).
The EVIL®Pimp Kit™is designed to be very low maintenance. The EVIL®Detonator™
must be well maintained as most issues will start with neglect of the Detonator™inline
regulator. Run a couple of drops of 100% synthetic oil through the Detonator after every
10 cases of paint. The easiest way to oil the internals of Detonator is to drop three drops
in the inlet port or the ASA and air the marker up.
Complete maintenance of the Detonator should never have to be performed unless dirt
is introduced into the system or a leak is detected. Improper disassembly will void
warranty. To completely disassemble the Detonator the Snap Ring (10) and both the
Locking Screw (11) and the Retaining Screw (14) must be removed. The Seal Retainer (6)
and Inner Tube (3) are Blue Loc Tited together and if that Loc Tite is broken it will void the
warranty.
Oil the top Piston O-ring (15).
Oil the bottom 1/3 of the Piston Shaft (9); this should oil Poppet O-ring (13).
Do not lube the tip.
If you tighten the Retaining Screw during reassembly the Detonator will not turn properly.
Loc Tite the seal retainer and inner tube back together with a small amount of Blue Loc Tite.
Make sure they screw all the way together or it will leak.
EVIL®Detonator™Service Procedures
For Experts Only - Do Not Attempt to disassemble EVIL®Detonator™without reading
complete instructions.
Normal Maintenance
Note: The PIMP KIT’s valve was designed for more cycles of trouble free performance than
most players can afford to play. There should be no reason to remove the valve body from marker
main body.
The EVIL®Pimp Kit™is easy to strip for cleaning and basic maintenance. Regular
cleaning and maintenance is highly recommended, including checks of regulator
components. Keep screws tightened. Replace worn components with factory parts; all
leaks must be repaired promptly. Solenoid or electronic repairs are best performed by
the factory or an authorized factory repair facility; contact PMI for information regarding
authorized repair facilities: 1.800.579.1633.
DO NOT ATTEMPT TO PERFORM MAINTENANCE PROCEDURES UNLESS
QUALIFIED TO DO SO. DO NOT DISASSEMBLE MARKER UNTIL IT IS COMPLETELY
DRAINED OF COMPRESSED GAS OR AIR AND ALL PAINTBALLS HAVE BEEN
REMOVED. FILLING OF COMPRESSED GAS OR AIR CYLINDERS MUST BE DONE
BY QUALIFIED PERSONS. DISASSEMBLY OF REGULATOR MAY VOID WARRANTY.
CONTACT PMI, INC., FOR REPAIR ASSISTANCE AND INFORMATION REGARDING
AUTHORIZED REPAIR FACILITIES. PHONE 800.579.1633; WWW.BUYPMI.COM
01 Detonator End Cap 57201
02 Detonator Adjusting Ring 57202
03 Inner Tube 57203
04 Regulator Seat 57204
05 Thrust Element 57205
06 Seal Retainer 57206
07 Detonator Main Body 57207
08 Piston Spring 57208
09 Piston 57209
10 Snap Ring 57210
11 Locking Screw 10/32 Oval Point 57211
12 O-Ring 011/70 Buna 57212
13 O-Ring 008/90 Urethane (Poppet O-ring) 40923
14 Retaining Screw 8/32 Dog Point 57213
15 O-Ring 012/90 Urethane 40919
16 Screen Filter 71667
17 10/32 Black Lower Locking Screw 41318

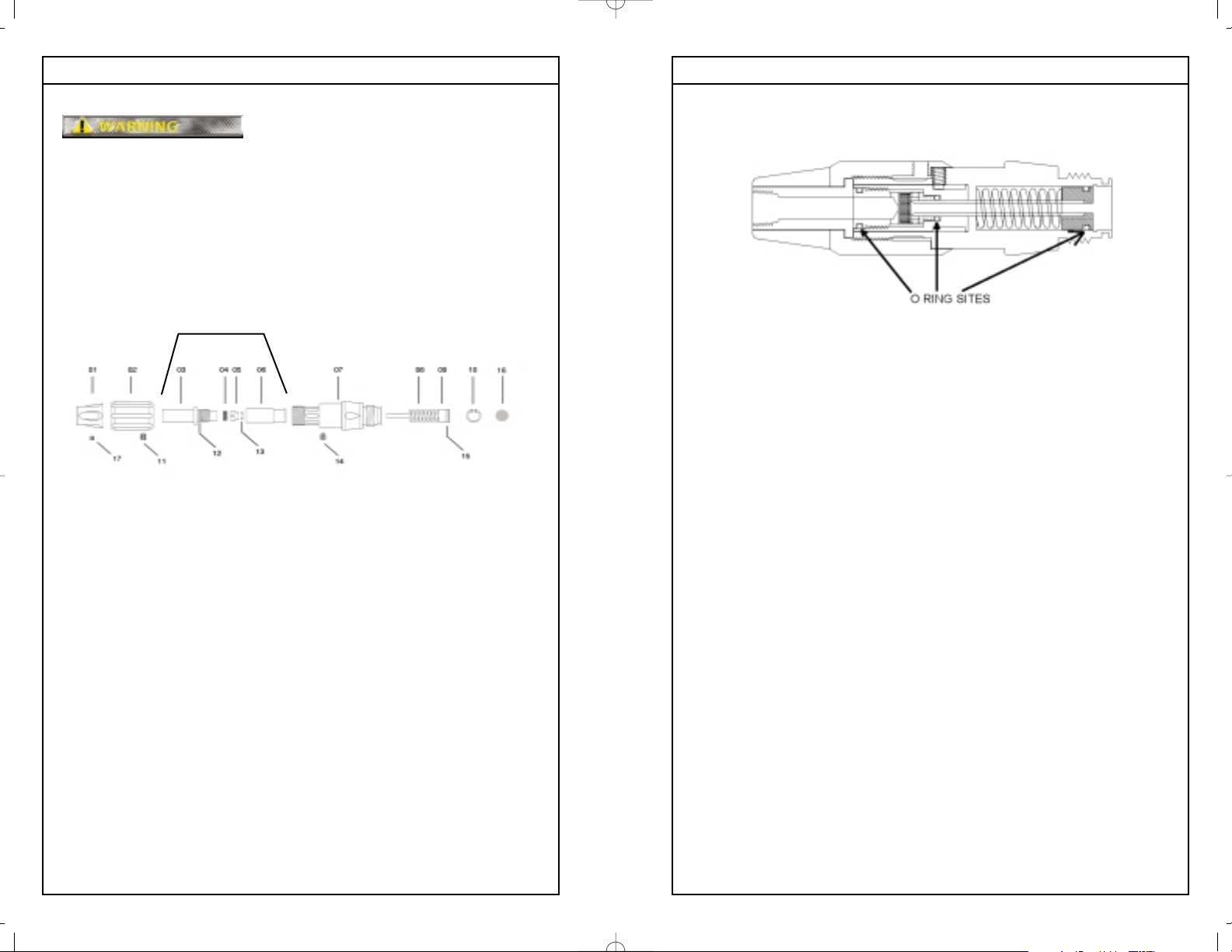

EVIL®Pimp Kit™Detonator Diagram EVIL®Pimp Kit™Detonator Maintenance
1918
Disassembly will void warranty
• Grease Ram once every 10,000 shots. Do not use OIL.
We recommend EVIL®Pus.
• Apply a small amount to the shaft. Figure 1.
• Remove the cap and lightly grease the O-ring inside the cap. Figure 2.
• Grease the back of the shaft. Figure 3.
• Apply grease to the four external O-rings. Figure 3.
• Keep grease away from holes to keep your solenoid working properly. Figure 3.

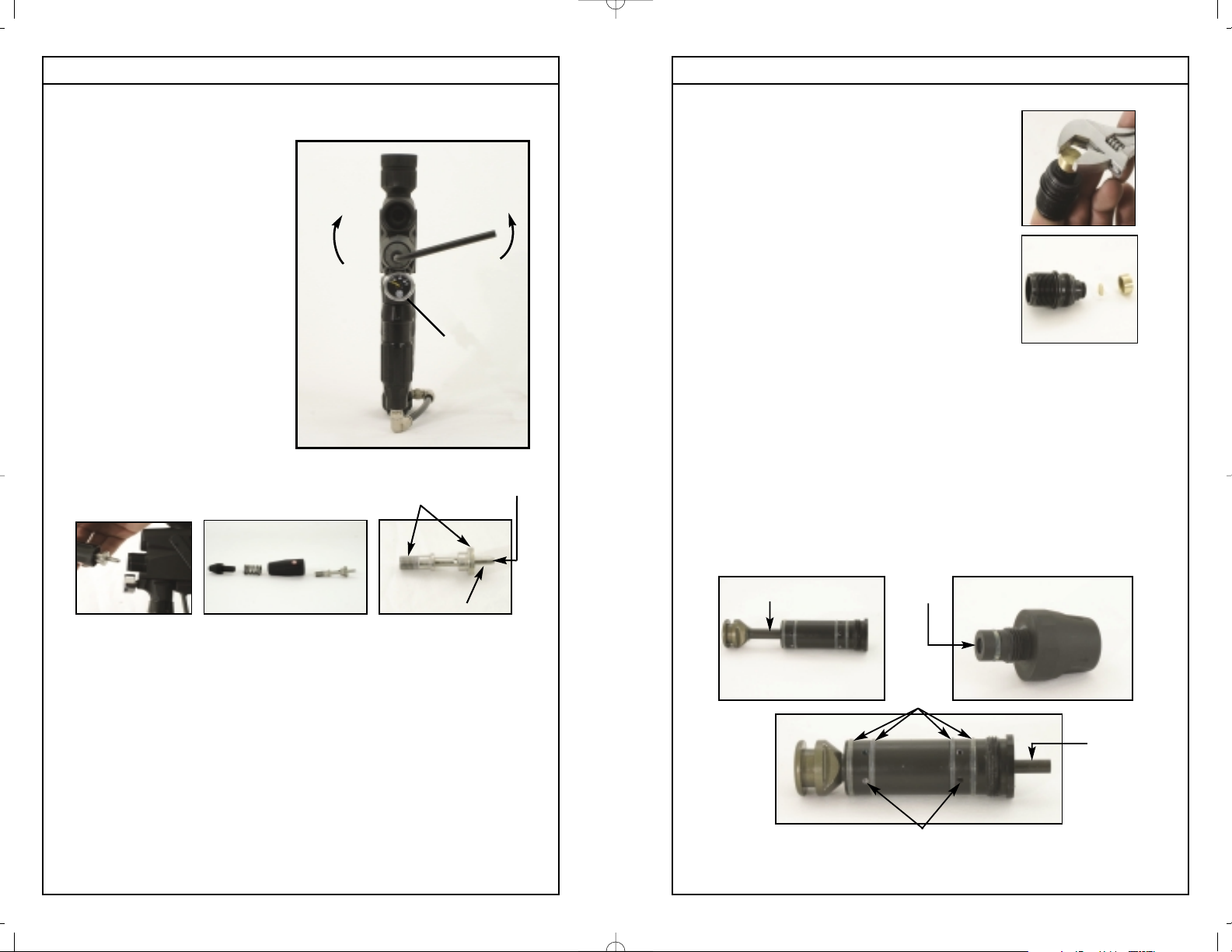

Greasing the Ram
With the bolt removed, remove the Ram from the back of the Pimp Kit.
™
The easiest way to not damage the Ram O-rings is to unscrew the Ram 5 1/2 full turns
and pull it firmly straight out the back without rotating it.
Respirator LPR Adjustment
• Always degas the marker before disassembling the LPR.
• Unscrew the entire LPR Cap from the front of the marker. (Figure 1)
• Unscrew the Poppet Shaft from the Nose Piece and remove the Poppet Shaft
from the Cap. (Figure 2)
• Grease the threads of the Poppet Shaft where it screws into the Nose Piece.
• Clean and grease the O-ring on the Poppet Shaft.
• Clean and grease the tip of the Poppet Shaft.
• Keep grease away from non-threaded end of the Poppet Shaft. (Figure 3)
Figure 1 Figure 2 Figure 3
grease here
grease here
keep grease away
from here
Respirator LPR maintenance
• Always degas the marker before
adjusting the LPR.
• From the front of the marker, screw the
cap further in (clockwise) to raise the
LPR pressure. Unscrew the cap to lower
the LPR pressure.
• Optimum performance can usually be
achieved with an LPR pressure of 100
to 150 psi. Do not adjust over 170 psi.
grease here grease here
grease O-rings here
keep grease away from holes
LPR Seat Seal
If the LPR creeps or doesn’t adjust properly after greasing
the internals, the seat seal may need to be replaced.
• Unscrew the LPR base from the Pimp Kit.
™
• Carefully unscrew the brass seat base from the LPR base
and remove the seat seal.
• Fit new seal carefully and completely into the seat base
and reassemble.
grease here
Figure 1
Figure 3
Figure 2
Decrease (-)
Increase (+)
LPR
Gauge
Punch Ram MaintenanceLPR Adjustment and Maintenance
2120
LPR Maintenance Cont.
Setting the Ghetto Board
Each time you press the Dwell button, the light should blink Green. The led glows Orange
once any setting has been adjusted to its maximum or minimum.
Board Adjustments-Instructions for ROF, ETS and BIP
Hold down the trigger and switch on the gun. Keep holding the trigger until the led
changes from Orange to Red (4 seconds). If the led stays unlit then the EVIL®Pimp Kit™
is locked–see Tournament Lock Section. You’re now in the settings menus and the gun
should now be blinking Red. To cycle through the different options, pull the trigger. The
led flashes a color to indicate the option selected. Red=Ball In Place, Orange=Rate
of Fire, Green=Electronic Trigger Sensitivity. Just hold down or press the up or down
Dwell buttons located under the grip on the left side of the marker to change the setting
of each option. Each time you press the Dwell button, the light should blink Green.
The led glows Orange once any setting has been adjusted to its maximum or minimum.
When you’re done changing all the settings, just turn the gun off and then on again
and you’re ready to go.
Ball in Place Adjustment (BIP)
This delay allows the the paintball to fully seat in the chamber. Raise the BIP delay if you
are using a slower hopper or having problems chopping or breaking paint.
Rate Of Fire Adjustment (ROF)
The ROF adjustment only affects the EVIL®Pimp Kit™when eye is off. The EVIL®Pimp Kit™
has an uncapped rate of fire with the eye on.
Electronic Trigger Sensitivity (ETS)
This allows the sensitivity of the EVIL®Pimp Kit’s trigger switch to be adjusted.The lower
the number, the higher degree sensitivity. Some fields and tournaments are very strict
about bounce and this allows you to customize your gun so it is always legal.
Reset Function
This will reset all adjustments done to the board back to the default stock settings
(below). It can be done only when the Tournament Lock is disabled. To reset the board,
hold the trigger for a full 20 seconds while turning the marker on. The led will strobe
between Green and Orange when it has been reset.
4ms
20ms
10ms
1/2ms
1bps
25bps
12bps
1bps
1ms
127ms
10ms
1ms
0ms
2.0
0.1
Dwell
min
max
default
increment*
ROF† ETS Ball in Place
25.5ms
†ROF only affects the marker when the eye is off.
*increment is how much it changes when you press the up or down button.
Stock Settings
The EVIL®Pimp Kit™ships from the factory already tuned, and with regular cleaning
and lubrication should only require pressure regulator adjustments to set the velocity
and avoid shoot down.
Respirator LPR Adjustment
The LPR should be set at about 100-150 psi. If the EVIL®Pimp Kit™is not getting correct
velocity even after adjusting the Detonator™or it is shooting down, see page 19 for
instructions on how to lubricate and adjust the LPR. If the LPR leaks, turn it down. The LPR
should vent at 170 psi. Degas marker before adjusting LPR.
Velocity Adjustment EVIL®Detonator™Regulator
Adjust your velocity using the Detonator™Vertical Regulator. Please see page 11 for
instructions.
NOTE: As gas pressure is increased, velocity first increases to a maximum and then
decreases.
Dwell Adjustment
Dwell adjustment is how long the valve is held open. Higher Dwell usually leads to
higher velocity. Dwell adjustment can be made in any live mode and it can be adjusted
whether the Tournament Lock is on or off. The Dwell buttons are located directly on the
left hand side of the board and are visible once the grips are removed. The upper button
adjusts the Dwell up and the lower button takes the Dwell down.
Eye Settings
Turning the Eye On The Anti-Chop Eye
(ACE) turns on automatically when the marker
is turned on. The led light indicates what
the ACE is doing. Orange–No ball in chamber.
Red–Trigger has been pulled and marker is
waiting for a ball to load. Green–Ball is loaded
and ready to shoot.
Override Eye To override the eye for one
shot, hold in the trigger for 3/4 of a second.
The Pimp Kit™will fire once, but the eye will not turn off.
Turning the Eye Off To turn the eye off, hold the trigger down and turn the marker on.
Once the marker is turned on, release the trigger. The light will blink Green even when
there is no ball in the chamber. You can adjust the ROF with the eye off. See next page.
Tournament Lock
The Pimp Kit™comes stock with the Tournament Lock on. Tournament Lock mode is
toggled if both Dwell buttons are held when the power is turned on. The light will turn
solid Green when the Tournament Lock is OFF. The light will turn solid Red when the
Tournament Lock is ON. Once the Tournament Lock has been changed, the Pimp Kit™
must then be turned off and on again to adjust settings. The Tournament Lock must be
turned off to adjust the BIP, ROF, ETS or use the reset function.
Dwell Up
Dwell Down
Tuning Tuning
2322
No velocity
Low velocity
High velocity
Shoot down
Velocity is very erratic
Marker chops paint
Paintballs break in barrel
Paintball doesn’t load
Paintballs roll forward in barrel
Ball detents wear quickly
Marker fires with no paintball
in the chamber
Eye doesn’t work
Eyes are clean and turned on
and marker fires with no
paintball
Marker shoots once and will not
fire again with eye on.
Fires with eye off.
Ball rolls back off the eye
Ball rolls forward off eye
Internal Leak
LPR Leaks
LPR won’t adjust
LPR Creeps
Marker cycles but doesn’t fire
Marker shoots slow (BPS)
Marker gets first shot drop off
Marker does not fire with each
trigger pull
Hopper doesn’t fit
Lose often
TroubleshootingTroubleshooting
• Turn marker off then on to reset the eye.
• Remove eye cover and clean eye.
• Replace battery.
• Check for pinched eye wire. Replace.
• Clean eyes.
• Bolt positioning screw must be moved forward.
• Hold trigger for 3/4 of a second and the
marker will override the eye and fire once to
clear the ball.
• Replace ball detents if problem persists.
• Check LPR and make sure it is less than 170 psi.
• Check internal hoses for a loose or
damaged hose.
• Check for damaged cup seal.
• Turn it down. It should vent at 170 psi.
• Grease LPR.
• Degas marker, then make adjustments.
• Replace LPR seat seal.
• Grease LPR.
• Replace LPR seat seal.
• Inline regulator is too low or too high and marker
is overpressurized.
• Grease Ram.
• Hose to the back of the Ram is pinched.
• LPR is too low.
• Dwell is too low.
• Check hopper battery.
• Check Pimp Kit™battery.
• Buy faster hopper.
• Replace battery.
• Battery is low.
• Marker is not assembled correctly.
• Trigger is adjusted incorrectly.
• Hopper can’t keep up. Buy faster hopper.
• Use O-rings provided in parts kit or remove
O-rings from vertical feed.
• Practice more.
• Bolt installed improperly. See page 16.
• See page 8 for set up instructions.
• Check battery.
• Verify LPR is between 100-150 psi.
• Increase regulator output pressure.
(See page 11).
• Reg pressure that is way too high (400 psi or
more) can also lead to low velocity.
• Grease Ram
• Increase Dwell.
• Decrease Detonator regulator output pressure.
• Verify LPR is between 100-150 psi.
• Decrease Dwell.
• Tank not screwed in all the way.
• LPR needs to be lubed. (See page 20)
• Adjust LPR up; do not adjust above 150 psi.
• Your barrel is a bad match for your paint.
• Detonator™Regulator is not providing
a consistent output pressure and may need
oil run through it.
• Replace ball detents.
• Turn up BIP delay.
• Check bolt position and move bolt positioning
screw only if needed.
• Barrel diameter is too large or too small for the
paint you are using.
• Paint has gone bad and must be replaced.
• Check barrel centering O-ring and make sure it is
firmly seated.
• Bolt installed in front of Ram. Reinstall bolt properly.
• Replace ball detents.
• Your paint is really bad.
• When installing or removing bolt, do not push
the bolt forward or you will break off ball detents.
• Eyes are turned off.
• Eyes are dirty. Clean.
2524
Pursuit Marketing, Inc. (PMI, Inc.), extends a warranty to the original purchaser of the
paintball marker that the product is free from defects in materials and workmanship for
a period of one year from the date of purchase. PMI, Inc.’s obligation under this warranty
shall be limited to repairing or replacing any part of the product which is defective.
Service for this replacement or repair will be done free of charge upon delivery of the
product to Pursuit Marketing, Inc. (PMI, Inc.), 55 Howard Ave, Des Plaines, IL 60018 USA;
Customer pays shipping charges. Please call PMI, Inc., at 1.800.579.1633 for information
on obtaining warranty service or to obtain a Return Authorization (RA) number before
shipping product to PMI, Inc.
Do not mail your marker in without first obtaining a RA number. Please make
sure to ship your marker through a shipping company that allows you to track
and insure your package. PMI is not responsible for markers that never reach
us. Clearly mark your RA number on the outside of the package.
Warranty Exclusions an Limitations
This warranty does not apply in the event of misuse or abuse of the product, use of
any parts other than original factory parts, or unauthorized repairs, modifications,
or alterations, and does not apply to any parts that are made defective by modification,
misuse, abuse, or accident. This warranty does not apply to o-rings, cup seals, springs,
normal fading of anodized finish, scratches, cosmetic wear, or to any items or parts not
manufactured by PMI, Inc.
Other than as expressly stated herein, PMI, Inc., does not make any warranties, express
or implied, including but not limited to implied warranties of merchantability or fitness,
for any purpose other than that for which the EVIL®Pimp Kit™was designed. This
warranty gives you specific legal rights. You may have other rights which may vary from
state to state. PMI, Inc., is not liable for any consequential damages or incidental
damages which may arise from the use or operation of the EVIL®Pimp Kit™or from
any breach of the warranty herein set forth.
Warranty Registration Form
Please fill out entirely the enclosed EVIL®PIMP KIT™Warranty Registration form found
in the center of this manual and mail it to:
Pursuit Marketing, Inc., 55 Howard Ave, Des Plaines, Illinois 60018 USA.
Covered by one or more of U.S. Patent Nos. 5,881,707; 5,967,133; 6,035,843; 6,474,326; and
6,637,421. The EVIL®Pimp Kit™is a registered trademark. Design rights & all rights reserved. All
patterns, drawings, photographs, instructions or manuals remain the intellectual property
of the manufacturer. Patents pending. All rights will be strictly enforced.
Original Sales Purchase Receipt or Packing Slip
Save your original sales purchase receipt or packing slip. A copy must accompany the
marker if warranty repairs are needed. EVIL®takes pride in manufacturing high quality
paintball products for many years of trouble free enjoyment. Should you experience any
difficulty in operating or maintaining this paintball marker, please re-read the operator’s
manual carefully. If further assistance is needed, contact PMI, Inc., at 1.800.579.1633.
Warranty Repair Return Procedure
A returned product must be accompanied by a Return Authorization (RA) number on
the outside of the box; please call PMI, Inc., at 1.800.579.1633 to obtain an RA number
before shipping product to PMI, Inc. All warranty returns must be accompanied by the
operator’s name, address, telephone number and a copy of the receipt. Include operator’s
fax and e-mail if possible. Owner must remove all paintballs and completely drain
air system before shipping, and must pack product securely to avoid damage during
shipping. Include a brief description of what does not appear to work
correctly. Ship to: PMI Inc., 55 Howard Ave, Des Plaines, Illinois 60018 USA. Most
lost or delayed guns are the result of not including an RA number. Do not ship your
PIMP KIT™ to PMI without first obtaining an RA number.
Out of Warranty Repair
Should repairs be needed on a paintball marker that is out of warranty, contact PMI at
1.800.579.1633 for information regarding authorized EVIL PIMP KIT™repair facilities.
Any paintball marker returned to PMI for out of warranty repairs must be accompanied
by an RA number, description of what does not appear to work correctly, and operator’s
information requested in “Warranty Repair Return Procedure” above. Including sales
purchase receipt or packing slip is optional for out of warranty repairs. Please note that
there will be a minimum labor charge of $20.00 and there may be additional charges
for parts to repair an item/product that is not covered by warranty. An estimate of repair
cost will be provided to the customer and authorization to complete the repairs will
be obtained prior to repairs being done.
Warranty Repair Procedure
2726
EVIL®Pimp Kit™
Paintball Markers
manufactured by:
Pursuit Marketing, Inc.
55 Howard Ave
Des Plaines, Illinois 60018
USA
Phone 1.800.579.1633
847.233.2545
www.evil-paintball.com
Please visit
www.EVIL-PAINTBALL.com
for updates on your EVIL PIMP KIT™ purchase
or to download an up-to-date manual
Manual #56547
Other Evil Paintball Equipment manuals
