CONTENTS
EU Directives and UKCA Standards......................................................................3
Important Information and Health & Safety........................................................... 4
Components for Suites and Stoves....................................................................... 5
Installation........................................................................................................... 6
Model Dimensions...................................................................................... 7
Installation (Wall Mounted Suites)............................................................... 9
Applies to:
Aaren / Bergen / Bonham 7 / Bonham 9 / Bonham 10 /Aaren / Bergen / Bonham 7 / Bonham 9 / Bonham 10 /
Compton 2 / Compton 1000 / Empire 2 / Gilmour 6 /Compton 2 / Compton 1000 / Empire 2 / Gilmour 6 /
Gilmour 7 / Gilmour 9 / Gilmour 10 / Kalmar / Midori /Gilmour 7 / Gilmour 9 / Gilmour 10 / Kalmar / Midori /
Nessa / Nimbus / WestfieldNessa / Nimbus / Westfield
Installation (Suites with Risers and Stoves).................................................13Installation (Suites with Risers and Stoves).................................................13
Applies to: Banff / Bonham 7 / Bonham 9 / Bonham 10 / EV8S /Applies to: Banff / Bonham 7 / Bonham 9 / Bonham 10 / EV8S /
Gilmour 6 / Gilmour 7 / Gilmour 9 / Gilmour 10 / Halden /Gilmour 6 / Gilmour 7 / Gilmour 9 / Gilmour 10 / Halden /
Halmstad / Kalmar / Kibo / TuvaHalmstad / Kalmar / Kibo / Tuva
Log Layouts......................................................................................................... 15
Front & Side Glass Installation..............................................................................18Front & Side Glass Installation..............................................................................18
Applies to;Applies to; Aaren / Bergen / Kalmar / Kibo / Midori / Nessa / Banff /Aaren / Bergen / Kalmar / Kibo / Midori / Nessa / Banff /
EV8S / Halmstad / TuvaEV8S / Halmstad / Tuva // HaldenHalden
Troubleshooting, Warranty & Registration............................................................ 23

3
EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
All Evonic Fires products are in conformity with the relevant UK Statutory InstrumentsAll Evonic Fires products are in conformity with the relevant UK Statutory Instruments
(and their amendments).(and their amendments).
2016 No. 1101 The Electrical Equipment (Safety) Regulations 20162016 No. 1101 The Electrical Equipment (Safety) Regulations 2016
2016 No. 1091 The Electromagnetic Compatibility Regulations 20162016 No. 1091 The Electromagnetic Compatibility Regulations 2016
2012 No. 3032 The Restriction Of Use Of Certain Hazardous Substances In2012 No. 3032 The Restriction Of Use Of Certain Hazardous Substances In
Electrical And Electronic Equipment Regulations 2012Electrical And Electronic Equipment Regulations 2012
EU DIRECTIVES
All Evonic Fires products meet the requirements of the EC Directives.All Evonic Fires products meet the requirements of the EC Directives.
These directives have been met by compliance with the following standards:These directives have been met by compliance with the following standards:
EU 2011-65/EU 2015/863 Restriction of Hazardous Substances.EU 2011-65/EU 2015/863 Restriction of Hazardous Substances.
References to the relevant designated standards used:References to the relevant designated standards used:
EN 55014-1:2006 + A1:2009 + A2:2011 Electromagnetic Compatibility.EN 55014-1:2006 + A1:2009 + A2:2011 Electromagnetic Compatibility.
EN 55014-2:2015 Electromagnetic Compatibility.EN 55014-2:2015 Electromagnetic Compatibility.
EN 61000-3-2:2014 Electromagnetic Compatibility (EMC). Limits. Limits forEN 61000-3-2:2014 Electromagnetic Compatibility (EMC). Limits. Limits for
Harmonic Current Emissions.Harmonic Current Emissions.
EN 61000-3-3:2013 Electromagnetic Compatibility (EMC). Limits. Limitation ofEN 61000-3-3:2013 Electromagnetic Compatibility (EMC). Limits. Limitation of
Voltage Changes, Voltage Fluctuations and Flicker.Voltage Changes, Voltage Fluctuations and Flicker.
EN 60335-1:2012 + A11:2014 Household and similar electrical appliances - SafetyEN 60335-1:2012 + A11:2014 Household and similar electrical appliances - Safety
EN 60335-2-30:2009+A11:2012 Household and similar electrical appliances. Safety.EN 60335-2-30:2009+A11:2012 Household and similar electrical appliances. Safety.
Particular requirements for room heatersParticular requirements for room heaters
UKCA STANDARDS

4EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
IMPORTANT INFORMATION AND HEALTH & SAFETY
When using electrical appliances, basic precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
• Read all of the instructions carefully before using the appliance, only use this appliance
as described in this manual. Any other use not recommended by the manufacturer mayAny other use not recommended by the manufacturer may
cause injury to persons, or damage to the appliance.cause injury to persons, or damage to the appliance.
• Remove all packaging and dispose of it at an appropriate recycling facility.
•• When transporting or storing the appliance and power lead, keep in a dry place, awayWhen transporting or storing the appliance and power lead, keep in a dry place, away
from excessive vibration and store so as to avoid damage.from excessive vibration and store so as to avoid damage.
• This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. The trim around the heater outlet becomes hot during heater operation.
DANGER: High temperatures may be generated under certain abnormal conditions.
• Do not install this appliance immediately in front of a fixed socket outlet.
• Do not install this appliance in the immediate surroundings of a bath, shower,
swimming pool or any other area where the appliance could come into contact with
water or humidity, e.g. a bathroom.
•• Do not use in areas where gasoline, paint, or any flammable liquids are used or stored.Do not use in areas where gasoline, paint, or any flammable liquids are used or stored.
• This appliance is only suitable for indoor use, do not use outdoors.
• Do not cover the appliance, or let the air inlet/outlet to be obstructed in any way as it
may overheat.
• Keep the power lead away from hot surfaces and the heater outlet. Do not route the
power lead in front of the appliance, or under any carpets or rugs. Do not allow the
power lead to be coiled up once installed, as this can cause overheating.
• This appliance must be firmly fixed to a flat internal wall.
• A maintenance hatch must be installed into the surrounding installation to allow future
access.
• Always use a certified electrician should new circuits or outlets be required. And
always use properly grounded, fused and polarised outlets.
• Where the power lead passes through any masonry wall, stone surround etc. ensure
that suitable rubber bushes are fitted at any possible wear points.
• If the power lead is damaged do not use the appliance until it has been replaced.
• Do not use any external switching device, timers, or extension leads. Do not connect
the appliance to a circuit that is frequently switched on and off by the utility.
•• In the event of a malfunction, switch off the appliance, and disconnect it from theIn the event of a malfunction, switch off the appliance, and disconnect it from the
mains power supply. Have the appliance inspected by a certified electrician beforemains power supply. Have the appliance inspected by a certified electrician before
reusing.reusing.
• Do not use the appliance if it is damaged. In the event of any damage to the appliance,
please contact the retailer from whom the appliance was purchased.
• Any repairs must only be performed by a certified electrician.
• Extreme caution is necessary when any heater is used by, located near children or
people of reduced mobility, and whenever the unit is left operating and unattended.
• Young children should be supervised to ensure that they do not play with the appliance.
•• Disconnect from the power supply before performing any cleaning, maintenance orDisconnect from the power supply before performing any cleaning, maintenance or
relocation of the unit. Do not use steam cleaners, or aerosols near the appliance.relocation of the unit. Do not use steam cleaners, or aerosols near the appliance.
• Do not burn wood or anything else in this appliance.
• Do not strike the glass. The glass used is toughened safety glass, if broken it will
shatter into small chunks which are less likely to cause injury.
• Do not drill or screw any new holes into the appliance.

5
EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
COMPONENTS FOR SUITES & STOVES
Name
Log Sets &
Quantity
Glass Stones
Clear & Amber
Chippings
Black
Vermiculite
Suction Lifter
Riser
Wall Bracket
Bracket
fixings
Bench
Electrical Lead
IEC Clip
Remote Control
Woodland Silver Birch Wall Plugs Screws
Aaren 1 x Small 1 x Small 1 x Clear
1 x Amber 1 x 1 x YES 1 x 5 x 5 x 1 x 1 x
Banff 1 x Small 1 x 1 x 1 x 1 x 1 x Bergen 1 x Large 1 x Large 1 x Clear
1 x Amber 1 x 1 x YES 1 x 5 x 5 x 1 x 1 x
Bonham 7 1 x Legacy 6 1 x Legacy 6 OPTIONAL 1 x 5 x 5 x 1 x 1 x
Bonham 9 1 x Legacy 10 1 x Legacy 10 OPTIONAL 1 x 5 x 5 x 1 x 1 x
Bonham 10 1 x Legacy 10 1 x Legacy 10 OPTIONAL 1 x 5 x 5 x 1 x 1 x
Compton 2 1 x Small 1 x Small 1 x 1 x YES 1 x 5 x 5 x 1 x 1 x Compton 1000 1 x Large 1 x Large 1 x 1 x YES 1 x 5 x 5 x 1 x 1 x Empire 2 1 x Small 1 x Small 1 x 1 x YES 1 x 5 x 5 x 1 x 1 x EV8S 1 x Small 1 x 1 x 1 x 5 x 5 x OPTIONAL 1 x 1 x
Gilmour 6 1 x Legacy 6 1 x Legacy 6 OPTIONAL 1 x 5 x 5 x 1 x 1 x
Gilmour 7 1 x Legacy 6 1 x Legacy 6 OPTIONAL 1 x 5 x 5 x 1 x 1 x
Gilmour 9 1 x Legacy 10 1 x Legacy 10 OPTIONAL 1 x 5 x 5 x 1 x 1 x
Gilmour 10 1 x Legacy 10 1 x Legacy 10 OPTIONAL 1 x 5 x 5 x 1 x 1 x
Halden 1 x Tuva log set 1 x Tuva log set 1 x Clear
1 x Amber 1 x 1 x
Halmstad 1 x Small 1 x Small 1 x Clear
1 x Amber 1 x 1 x 1 x 1 x
Kalmar 1 x Split Small 1 x Split Small 2 x Clear
2 x Amber 4 x YES OPTIONAL 1 x 5 x 5 x 1 x 1 x
Kibo (Open) 2 x Twig set 2 x 2 x 1 x 5 x 5 x 1 x 1 x
Kibo (Glass) 2 x Twig set 2 x 2 x YES 1 x 5 x 5 x 1 x 1 x
Midori 1 x Small 1 x Small 1 x 1 x YES 1 x 5 x 5 x 1 x 1 x Nessa 1 x Small 1 x Small 1 x Clear
1 x Amber 1 x 1 x YES 1 x 5 x 5 x 1 x 1 x
Nimbus 1 x Small 1 x Small 1 x 1 x YES 1 x 5 x 5 x 1 x 1 x Tuva 1 x Tuva log set 1 x Tuva log set 1 x Clear
1 x Amber 1 x 1 x
Westfield 3 x Mini 1 x 1 x YES 1 x 5 x 5 x 1 x 1 x

6EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
INSTALLATIONINSTALLATION

7
EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
MODEL DIMENSIONS
The model shown in these drawings is a Gilmour 7, however the same
processes apply to all Suites.
Scan the QR code for more detailed specification drawings.

8EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
MODEL DIMENSIONS
Model Width Height Depth
Overall unit
(A)
Overall unit
(B)
With Riser /
Bench (C)
Opening
(D)
Overall unit
(E)
Aaren 845mm 687mm 457mm 360mm
Banff 460mm 670mm 310mm 355mm
Bergen 1475mm 615mm 355mm 357mm
Bonham 7 1120mm 2027mm 2285mm 285mm 276mm
Bonham 9 1295mm 2027mm 2285mm 492mm 276mm
Bonham 10 1475mm 2027mm 2285mm 277mm 276mm
Compton 2 1120mm 514mm 274mm 310mm
Compton 1000 1500mm 511mm 261mm 355mm
Empire 2 1120mm 512mm 272mm 270mm
EV8S 860mm 520mm 326mm 327mm
EV8S Bench 1370mm 520mm 850mm 326mm 405mm
Gilmour 6 1120mm 712mm 992mm 455mm 276mm
Gilmour 7 1120mm 538mm 818mm 285mm 276mm
Gilmour 9 1295mm 745mm 1025mm 492mm 276mm
Gilmour 10 1475mm 531mm 811mm 277mm 276mm
Halden 488mm 1015mm 495mm 416mm
Halmstad 863mm 832mm 460mm 331mm
Kalmar 1475mm 854mm 357mm 375mm
Kibo 1375mm 845mm 889mm 495mm 380mm
Midori 527mm 625mm 455mm 280mm
Nessa 1120mm 520mm 282mm 360mm
Nimbus 1402mm 522mm 282mm 253mm
Tuva 493mm 1014mm 540mm 342mm
Westfield 860mm 625mm 455mm 280mm

9
EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
INSTALLATIONINSTALLATION
Wall Mounted SuitesWall Mounted Suites
AarenAaren
BergenBergen
Bonham 7Bonham 7
Bonham 9Bonham 9
Bonham 10Bonham 10
Compton 2Compton 2
Compton 1000Compton 1000
Empire 2Empire 2
Gilmour 6Gilmour 6
Gilmour 7Gilmour 7
Gilmour 9Gilmour 9
Gilmour 10Gilmour 10
KalmarKalmar
MidoriMidori
NessaNessa
NimbusNimbus
WestfieldWestfield

10 EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
Before installing the appliance please read and take into account the following important
requirements;
• The appliance must never be installed in front of an electrical socket.
• The appliance must not be installed anywhere that it may come into contact with water,
i.e. a bathroom.
• The minimum height above the finished floor level is 300mm.
INSTALLATION REQUIREMENTS
INSTALLATION
CHECKS BEFORE INSTALLATION

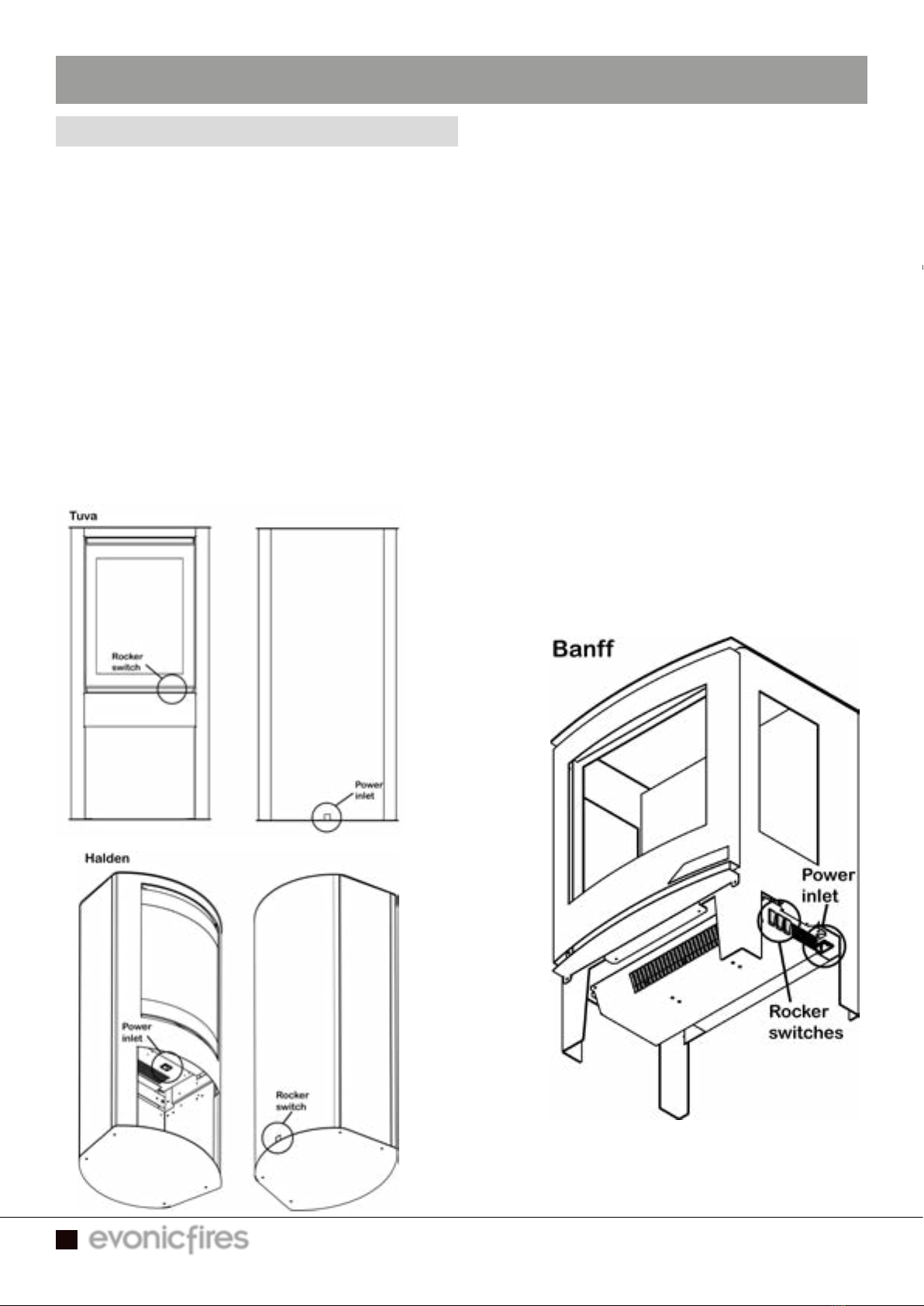

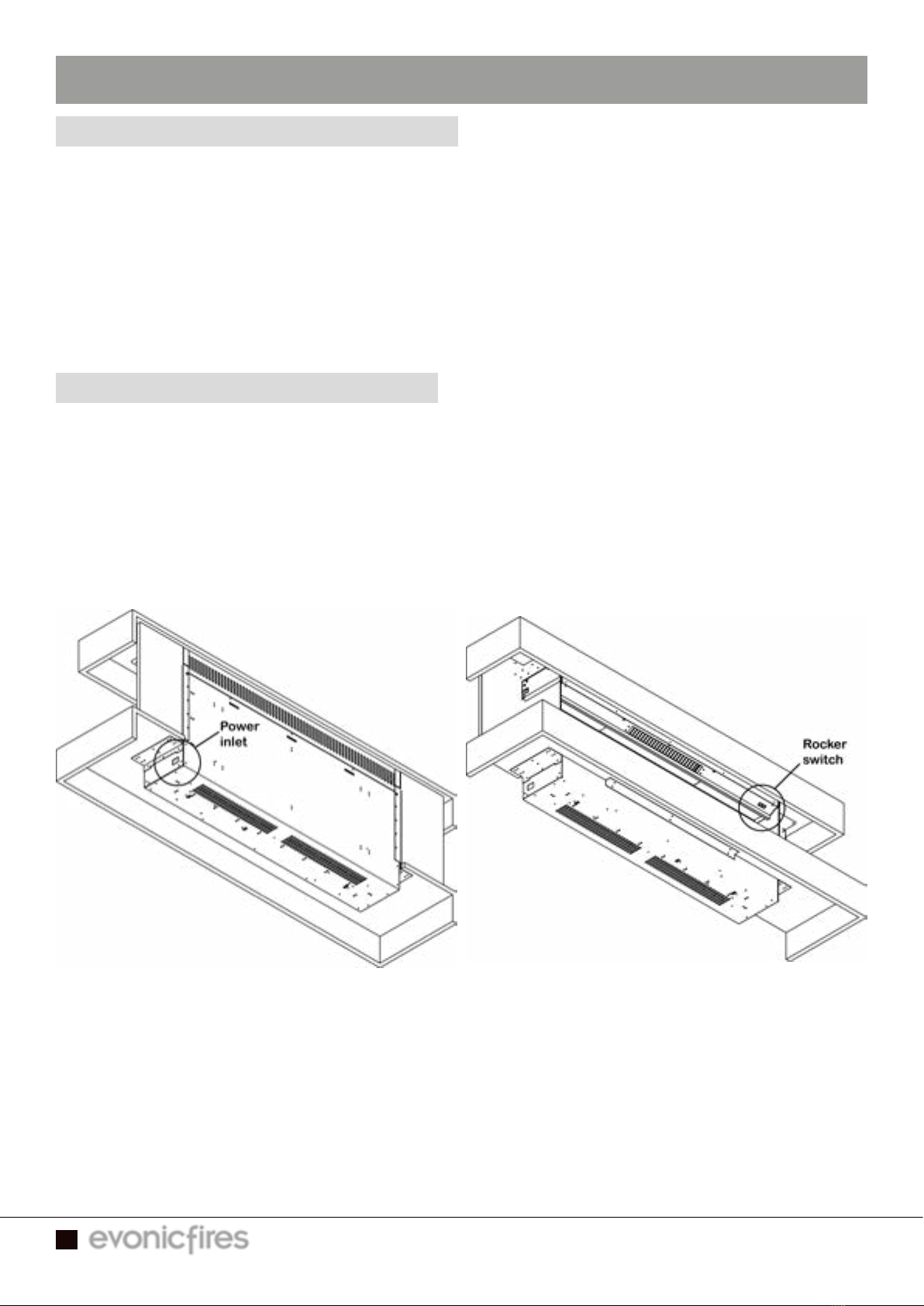

We recommend turning on the appliance before installation, connect the appliance to a
power source using the provided electrical lead, and depress the right side of the rocker
switch.

11
EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
TOOLS REQUIRED
• Tape Measure
• Pencil
• Spirit Level
• Screwdriver
• PZ2 Screw Bit

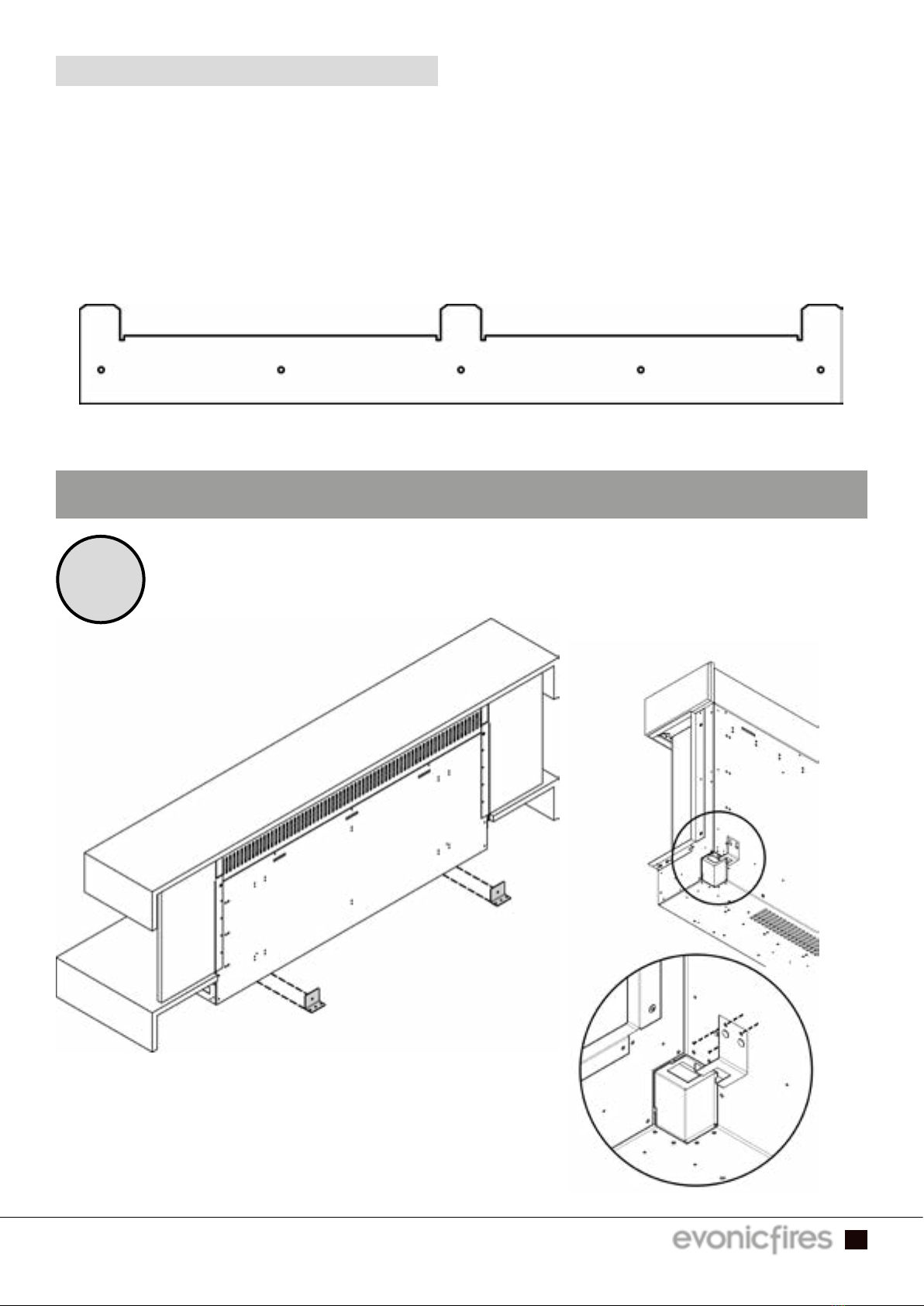

The appliance is supplied with a wall bracket, shown above.
INSTALLATION STEPS
• Drill Bit
• Wall Plugs (Masonry type supplied)
• Wall Screws (Masonry type supplied)
• Stud Detector (For plasterboard
installations only)
• Wall Anchors (For plasterboard
installations only. Not supplied)
1Remove the two bottom mounted transit brackets, you won’t need these for
installation. Then screw on the IEC Clip to the bottom back of the case, with
the two provided screws.

12 EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
2
Determine the finished height and position that you want the appliance to be
located. Then secure the wall bracket to the wall in the position you need using
the wall plugs and screws provided. If you’re not securing the appliance to a
masonry wall you will need to use the appropriate fixings.
3You can now hang the appliance on the wall by slotting the tabs of the wall
bracket into the slots on the back of the appliance. Connect the appliance to
the mains power supply and it is ready to use.

13
EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
INSTALLATIONINSTALLATION
Suites with Risers & StovesSuites with Risers & Stoves
BanffBanff
Bonham 7Bonham 7
Bonham 9Bonham 9
Bonham 10Bonham 10
EV8SEV8S
Gilmour 6Gilmour 6
Gilmour 7Gilmour 7
Gilmour 9Gilmour 9
Gilmour 10Gilmour 10
HaldenHalden
HalmstadHalmstad
KalmarKalmar
KiboKibo
TuvaTuva

14 EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
Before positioning the appliance please read and take into account the following
important requirements;
• The appliance must not be located anywhere that it may come into contact with water,
i.e. a bathroom.
• This appliance is only suitable for indoor use, do not use outdoors.
• Keep the power lead away from hot surfaces and hot conditions, including the heater
outlet.
• Do not route the power lead under any carpets or rugs.
Once you have taken the above requirements into consideration you can plug in your
appliance, and switch on the rocker switch.
For most models the power inlet is located at the back right, and the rocker switch is
located at the front top right. Some models differ, and are shown below;
INSTALLATION REQUIREMENTS
INSTALLATION

15
EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
LOG LAYOUTSLOG LAYOUTS
Suites & StovesSuites & Stoves

16 EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
LOG LAYOUTS
When you have your appliance installed you can set up your log set/s. If your model
comes with Chippings, Glass Stones and/or Vermiculite lay this on the fuel bed first, then
continue with laying out your logs. There is no right or wrong way to arrange your logs, the
following images are an example of how you could lay them out.
1 x Small Woodland / Silver Birch
Aaren / Banff / Compton 2 / Empire 2 /
EV8S / Halmstad / Midori / Nessa / Nimbus
3 x Small Log Set
Westfield
1 x Large Woodland / Silver Birch
Bergen / Compton 1000
1 x Tuva Log Set
Halden / Tuva
2 x Twig Log Set
Kibo

17
EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
1 x Small Legacy Log Set
Bonham 7 / Gilmour 6 / Gilmour 7
1 x Small Split Woodland / Silver Birch
Kalmar
1 x Large Legacy Log Set
Bonham 9 / Bonham 10 / Gilmour 9 / Gilmour 10

18 EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
Pivot Install Slotted Install Slide Install
FRONT AND SIDE GLASSFRONT AND SIDE GLASS
INSTALLATIONINSTALLATION
AarenAaren
BergenBergen
KalmarKalmar
KiboKibo
MidoriMidori
NessaNessa
BanffBanff
EV8SEV8S
HalmstadHalmstad
TuvaTuva
HaldenHalden

19
EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
PIVOT INSTALL
The pivot install of the front glass applies to the Aaren, Bergen, Kalmar, Kibo, Midori, and
Nessa. The model shown in this example is an E1030, but the same process applies to all
six models.
1Unscrew and remove the top and bottom glass retainer panels.
2The side glass can now be slid into the appliance. If you have a Kibo model you
can skip this step and move on to step 3.

20 EVONIC - 104 INSTRUCTION MANUAL ISS. 14EVONIC - 104 INSTRUCTION MANUAL ISS. 14
3Apply the Suction Lifter to the glass and apply the glass to the bottom edge
first, then pivot into the appliance.
4The top and bottom glass retainers can now be replaced on the appliance.
Warning
The Suction Lifter is provided
to assist in moving the glass
NEVER as the sole support of
the glass. Always support the
glass throughout the entire
process until the glass is fully
fitted. The glass is toughened
safety glass and if broken will
shatter into many small chunks.
