Evonicfires e1800 User manual

BUILT-INSBUILT-INS
INSTALLATION MANUALINSTALLATION MANUAL
ee18001800
ee15001500
ee12501250
ee10301030
ee800T800T
HaloHalo 24002400
HaloHalo 18001800
HaloHalo 15001500
HaloHalo 12501250
HaloHalo 10301030
HaloHalo 800800
HaloHalo 10301030 DSDS
HaloHalo 810810 DSDS
VolanteVolante 18001800
VolanteVolante 15001500
VolanteVolante 12501250
VolanteVolante 10301030
VolanteVolante 800800
ee-lectra 1800-lectra 1800
ee-lectra 1500-lectra 1500
ee-lectra 1250-lectra 1250
ee-lectra 1030-lectra 1030
ee-lectra 800-lectra 800
OctaneOctane 15001500 DSDS
OctaneOctane 18501850
OctaneOctane 15501550
OctaneOctane 11501150
1
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
evonicfires

CONTENTS
Health and safety ................................................................................................................................................................4
Side panel configuration ...............................................................................................................................................5
Checks before installation – All models ..............................................................................................................6
Installation steps – Single-sided models ............................................................................................................7
Installation – Double-sided models .......................................................................................................................9
Side glass panels – Single-sided models ...........................................................................................................11
Effect glass – Octane models ...................................................................................................................................12
Fitting the front glass – All models ......................................................................................................................14
Control options ...................................................................................................................................................................15
E-smart cloud app..........................................................................................................................................................16
Remote Control ..................................................................................................................................................................21
Connection Problems...........................................................................................................................................................22
Retro-fitting the remote control.............................................................................................................................23
Pairing with Amazon Alexa ......................................................................................................................................24
Pairing with Google Home ........................................................................................................................................26
Voice control commands ...........................................................................................................................................28
e-lluminate lighting setup ........................................................................................................................................29
Warranty ................................................................................................................................................................................30
The following materials and components should be disposed of in accordance with the below table.
Metal -
Steel or cast iron
Can be taken to a local recycling centre for reuse to reduce waste going to landfill.
Glass & Screens Can be taken to a local recycling centre for reuse to reduce waste going to landfill.
Vermiculite Non hazardous material. Vermiculite can be crushed up and used for plant bedding and ash
used for composting or disposed of at a local recycling centre for reuse to reduce waste going to
landfill.
Electrical components -
Fans, heater elements,
PCB’s, Power pack’s,
LED’s
Dispose at a local recycling centre In accordance with latest WEEE directive.
Log fuel effects These logs contain refractory ceramic fibre materials which requires disposal in accordance with
WEEE legislation.
Natural Wood Can be taken to a local recycling centre for reuse to reduce waste going to landfill.
2EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1

All Evonic Fires products are in conformity with the relevant UK Statutory InstrumentsAll Evonic Fires products are in conformity with the relevant UK Statutory Instruments
(and their amendments).(and their amendments).
2016 No. 1101 The Electrical Equipment (Safety) Regulations 20162016 No. 1101 The Electrical Equipment (Safety) Regulations 2016
2016 No. 1091 The Electromagnetic Compatibility Regulations 20162016 No. 1091 The Electromagnetic Compatibility Regulations 2016
2012 No. 3032 The Restriction Of Use Of Certain Hazardous Substances In2012 No. 3032 The Restriction Of Use Of Certain Hazardous Substances In
Electrical And Electronic Equipment Regulations 2012Electrical And Electronic Equipment Regulations 2012
EU DIRECTIVES
All Evonic Fires products meet the requirements of the EC Directives.All Evonic Fires products meet the requirements of the EC Directives.
These directives have been met by compliance with the following standards:These directives have been met by compliance with the following standards:
EU 2011-65/EU 2015/863 Restriction of Hazardous Substances.EU 2011-65/EU 2015/863 Restriction of Hazardous Substances.
References to the relevant designated standards used:References to the relevant designated standards used:
EN 55014-1:2006 + A1:2009 + A2:2011 Electromagnetic Compatibility.EN 55014-1:2006 + A1:2009 + A2:2011 Electromagnetic Compatibility.
EN 55014-2:2015 Electromagnetic Compatibility.EN 55014-2:2015 Electromagnetic Compatibility.
EN 61000-3-2:2014 Electromagnetic Compatibility (EMC). Limits. Limits forEN 61000-3-2:2014 Electromagnetic Compatibility (EMC). Limits. Limits for
Harmonic Current Emissions.Harmonic Current Emissions.
EN 61000-3-3:2013 Electromagnetic Compatibility (EMC). Limits. Limitation ofEN 61000-3-3:2013 Electromagnetic Compatibility (EMC). Limits. Limitation of
Voltage Changes, Voltage Fluctuations and Flicker.Voltage Changes, Voltage Fluctuations and Flicker.
EN 60335-1:2012 + A11:2014 Household and similar electrical appliances - SafetyEN 60335-1:2012 + A11:2014 Household and similar electrical appliances - Safety
EN 60335-2-30:2009+A11:2012 Household and similar electrical appliances. Safety.EN 60335-2-30:2009+A11:2012 Household and similar electrical appliances. Safety.
Particular requirements for room heatersParticular requirements for room heaters
UKCA STANDARDS
3
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1

IMPORTANT INFORMATION AND HEALTH & SAFETY
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the following:
• Read all of the instructions carefully before using the appliance, only use this appliance as described
in this manual. Any other use not recommended by the manufacturer may cause injury to persons,Any other use not recommended by the manufacturer may cause injury to persons,
or damage to the appliance.or damage to the appliance.
• Remove all packaging and dispose of it at an appropriate recycling facility.
•• When transporting or storing the appliance and power lead, keep in a dry place, away from excessiveWhen transporting or storing the appliance and power lead, keep in a dry place, away from excessive
vibration and store so as to avoid damage.vibration and store so as to avoid damage.
• This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. The trim
around the heater outlet becomes hot during heater operation. DANGER: High temperatures may be
generated under certain abnormal conditions.
• Do not install this appliance immediately in front of a fixed socket outlet.
• Do not install this appliance in the immediate surroundings of a bath, shower, swimming pool or any
other area where the appliance could come into contact with water or humidity, e.g. a bathroom.
•• Do not use in areas where gasoline, paint, or any flammable liquids are used or stored.Do not use in areas where gasoline, paint, or any flammable liquids are used or stored.
• This appliance is only suitable for indoor use, do not use outdoors.
• Do not cover the appliance, or let the air inlet/outlet to be obstructed in any way as it may overheat.
• Keep the power lead away from hot surfaces and the heater outlet. Do not route the power lead in
front of the appliance, or under any carpets or rugs. Do not allow the power lead to be coiled up once
installed, as this can cause overheating.
• This appliance must be firmly fixed to or recessed into, a flat internal wall.
• A maintenance hatch must be installed into the surrounding installation to allow future access.
• Always use a certified electrician should new circuits or outlets be required. And always use properly
grounded, fused and polarised outlets.
• Where the power lead passes through any masonry wall, stone surround etc. ensure that suitable
rubber bushes are fitted at any possible wear points.
• If the power lead is damaged do not use the appliance until it has been replaced.
• Do not use any external switching device, timers, or extension leads. Do not connect the appliance to
a circuit that is frequently switched on and off by the utility.
•• In the event of a malfunction, switch off the appliance, and disconnect it from the mains powerIn the event of a malfunction, switch off the appliance, and disconnect it from the mains power
supply. Have the appliance inspected by a certified electrician before reusing.supply. Have the appliance inspected by a certified electrician before reusing.
• Do not use the appliance if it is damaged. In the event of any damage to the appliance, please
contact the retailer from whom the appliance was purchased.
• Any repairs must only be performed by a certified electrician.
• Extreme caution is necessary when any heater is used by, located near children or people of reduced
mobility, and whenever the unit is left operating and unattended.
• Young children should be supervised to ensure that they do not play with the appliance.
•• Disconnect from the power supply before performing any cleaning, maintenance or relocation of theDisconnect from the power supply before performing any cleaning, maintenance or relocation of the
unit. Do not use steam cleaners, or aerosols near the appliance.unit. Do not use steam cleaners, or aerosols near the appliance.
• Do not burn wood or anything else in this appliance.
• Do not strike the glass. The glass used is toughened safety glass, if broken it will shatter into small
chunks which are less likely to cause injury.
• Do not drill or screw any new holes into the appliance.
4EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1

5
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
Unscrew and remove the
side panel(s) from the side/s
of the appliance. Then remove
the plaster kit from the side
panel.
Re-attach the plaster kit(s)
using the same fixing points.
12
All our built-in appliances are shipped as 1 box models, with the side panels attached and the glass
installed to the GF3 configuration. Please note: This does not apply to double-sided models. To convert
to GF2 or GF3 configurations, you simply need to remove the side panel(s) and re-attach the plaster kit.
GF CONFIGURATION
Glass Fronted
A single glass panel
at the front of the
appliance.
GF2 CONFIGURATION
A glass panel at the
front and one side
piece of glass. The
glass can be either
side.
GF3 CONFIGURATION
The standard
configuration.
A glass panel at the
front and both side
pieces of glass.
REMOVING THE SIDE PANELS / CONVERTING TO GF2 or GF3

CHECKS BEFORE INSTALLATION - ALL MODELS
6EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1

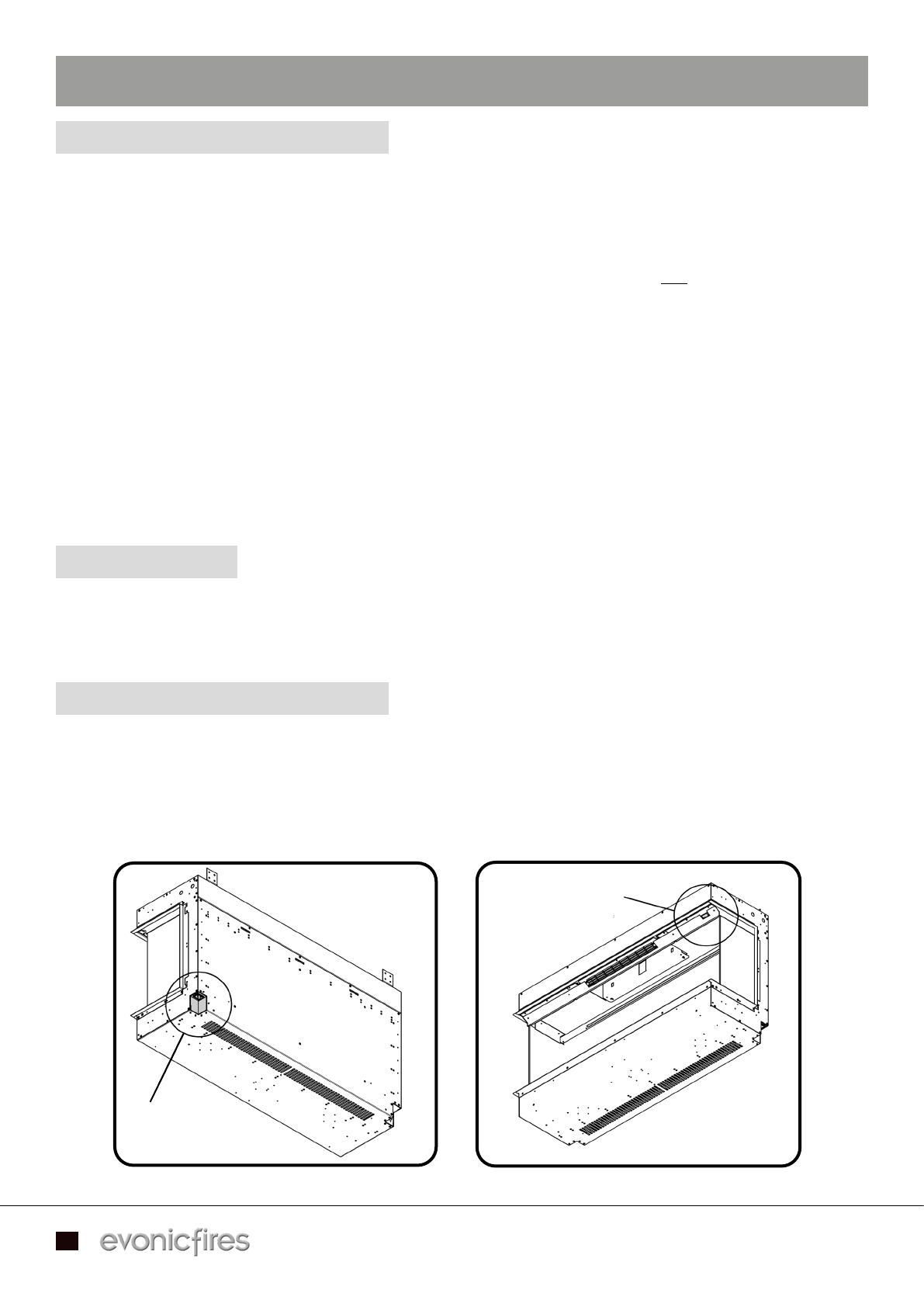

INSTALLATION DO’S AND DONT’S
Before installing the appliance please read and take into account the following important requirements;
• Consult a qualified professional to check the structure of the installation site.
• These appliances have been designed to be installed into either a stud and plasterboard wall, or an
existing chimney breast. (Please note that Open, GF2, and GF3 models are not suitable for existing
chimney breast installations.)
• If installing into an existing chimney, make sure to adequately block off the flue.
• Any 1800mm or 2400mm appliance requires extra support due to their size and weight, as such they
are not suitable for ‘floating’ installations.
• The appliance must never be installed in front of an electrical socket.
• The appliance must not be installed anywhere that it may come into contact with water, i.e. a
bathroom.
• Do not wet plaster directly onto the appliance.
AIR CLEARANCE
When installing e-series and Halo models, a minimum internal air clearance gap of 50mm is required
below the appliance to allow air circulation and prevent the ribbon blowers from overheating. E-lectra,
Volante and Octane models do not require air clearance.
CHECKS BEFORE INSTALLATION
We recommend turning on the appliance before installation, connect the appliance to a power source
using the provided electrical lead, and depress the right side of the ON/OFF switch.
Remove the electrical lead from the wall and continue with the installation.
ON/OFF SWITCH
PLUG SOCKET

7
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
INSTALLATION STEPS - GF1 / GF2 / GF3 MODELS
Remove the bottom transit brackets, and side brace bars. Then screw on the top mounted
brackets, and the IEC Clip on the back right.
1
2Determine the finished height
and position that you want the
appliance to be located. Then secure
the wall bracket to the wall in the
position you need using the wall
plugs and screws provided. If you’re
not securing the appliance to a
masonry wall you will need to use
the appropriate fixings.
You can now hang the appliance
on the wall by slotting the tabs of
the wall bracket into the slots on
the back of the appliance. If you are
installing an 1800mm or 2400mm
model, you will need to provide
extra support for the appliance.
Please note: The wall bracket is an
optional extra.

3Screw the two top mounted brackets to the wall.
You can now construct your stud wall/s around the appliance in the design of your choosing.
When constructing the stud work for e-series and Halo models, remember that the vents on the underside
of the appliance need a minimum of 50mm clearance beneath them.
Ensure that the appliance does not support the weight of the stud work.
Do not use silicones, adhesives, or wet plaster to seal in the appliance.
Before plaster boarding your stud work, it is strongly recommended that you create a maintenance
hatch that allows access to where the power lead connects with the fire. This is usually on the right
hand side of the appliance on single-sided appliances (see page 6).
INSTALLATION DO’S AND DONT’S
4Your plasterboard can now line up with the plaster kits on the edge of the appliance.
Alternatively, the optional chrome side panels can be attached to the case with the magnets
as shown below.
8EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1

9
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
INSTALLATION - DOUBLE-SIDED MODELS

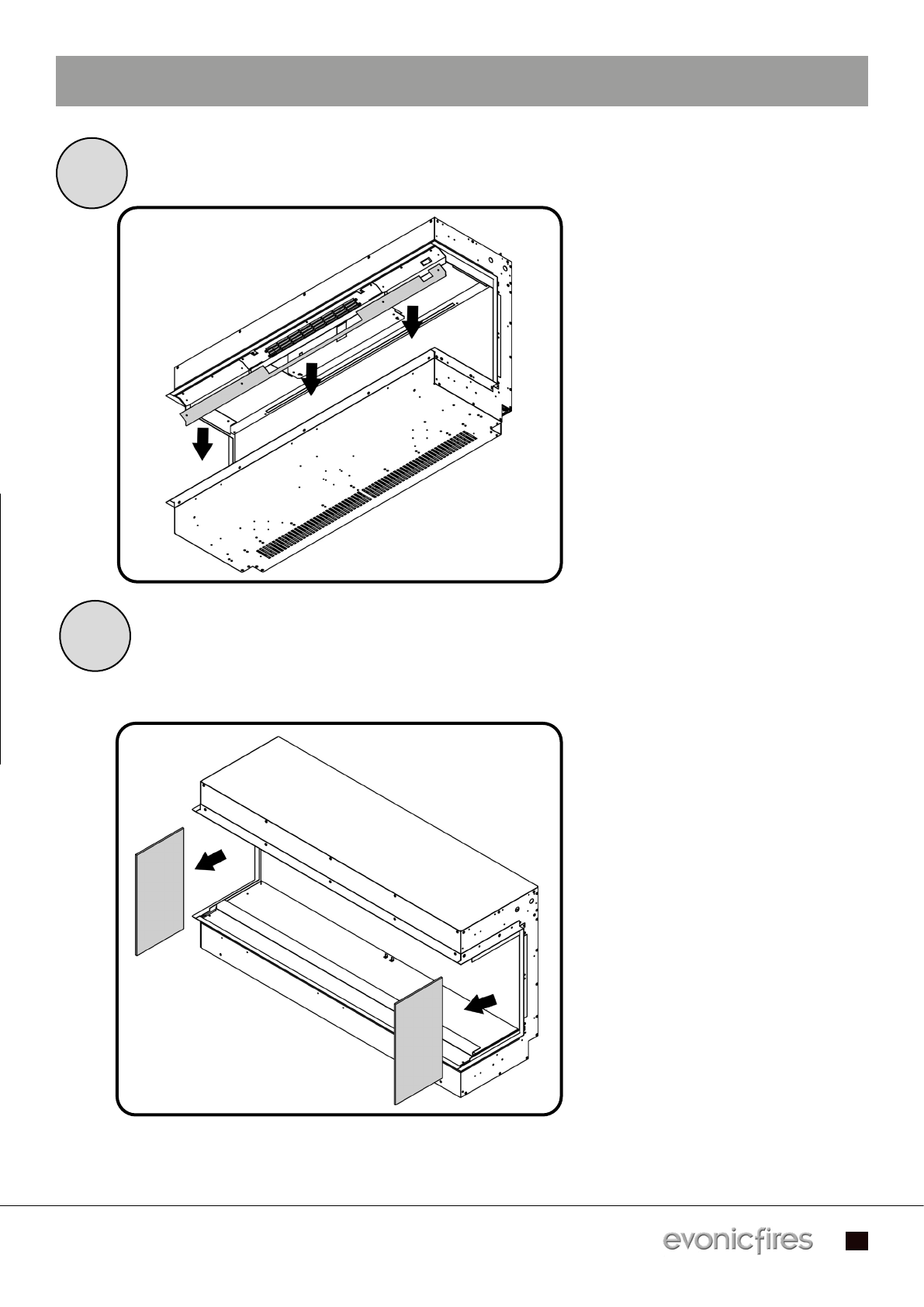

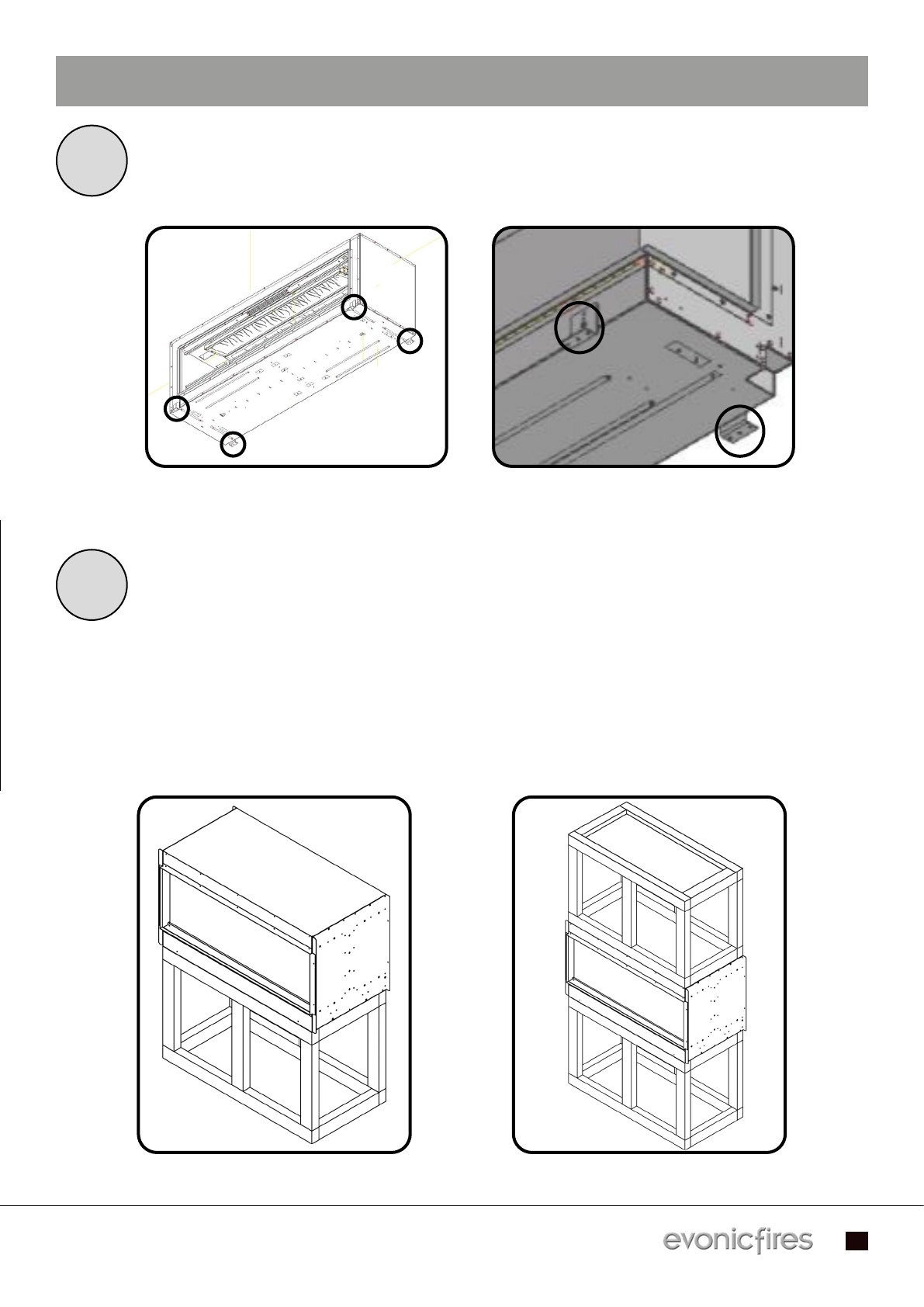

Remove the two bottom mounted transit brackets from both sides. You will not need
these for the installation.
1
Determine the finished height and position that you want the appliance to be located.
Build your base support taking into consideration the 50mm ventilation gap under the
appliance required on e810DS and e1030DS models (There is no ventilation gap required
for the Octane DS model). Then place the appliance onto your constructed base and check
that it is well supported.
Once you have established this, you can add the top section of your installation. To ensure
the weight of your top section is not solely resting on the appliance, we suggest securing it
to the ceiling to add extra support.
2

10 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
3You can now begin to plasterboard your studwork.
When constructing the stud work for e810DS and e1030DS models, remember that the vents on the
underside of the appliance need a minimum of 50mm clearance beneath them.
Ensure that the appliance isn’t supporting the weight of the stud work.
Do not use silicones, adhesives, or wet plaster to seal in the appliance.
Before plaster boarding your stud work, it is strongly recommended that you create a maintenance
hatch that allows access to where the power lead connects with the fire. This is usually in the
middle of the left or right side of the appliance, depending on which side you are looking from.
INSTALLATION DO’S AND DONT’S

11
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
REMOVING THE SIDE GLASS PANELS - GF2 / GF CONVERSION

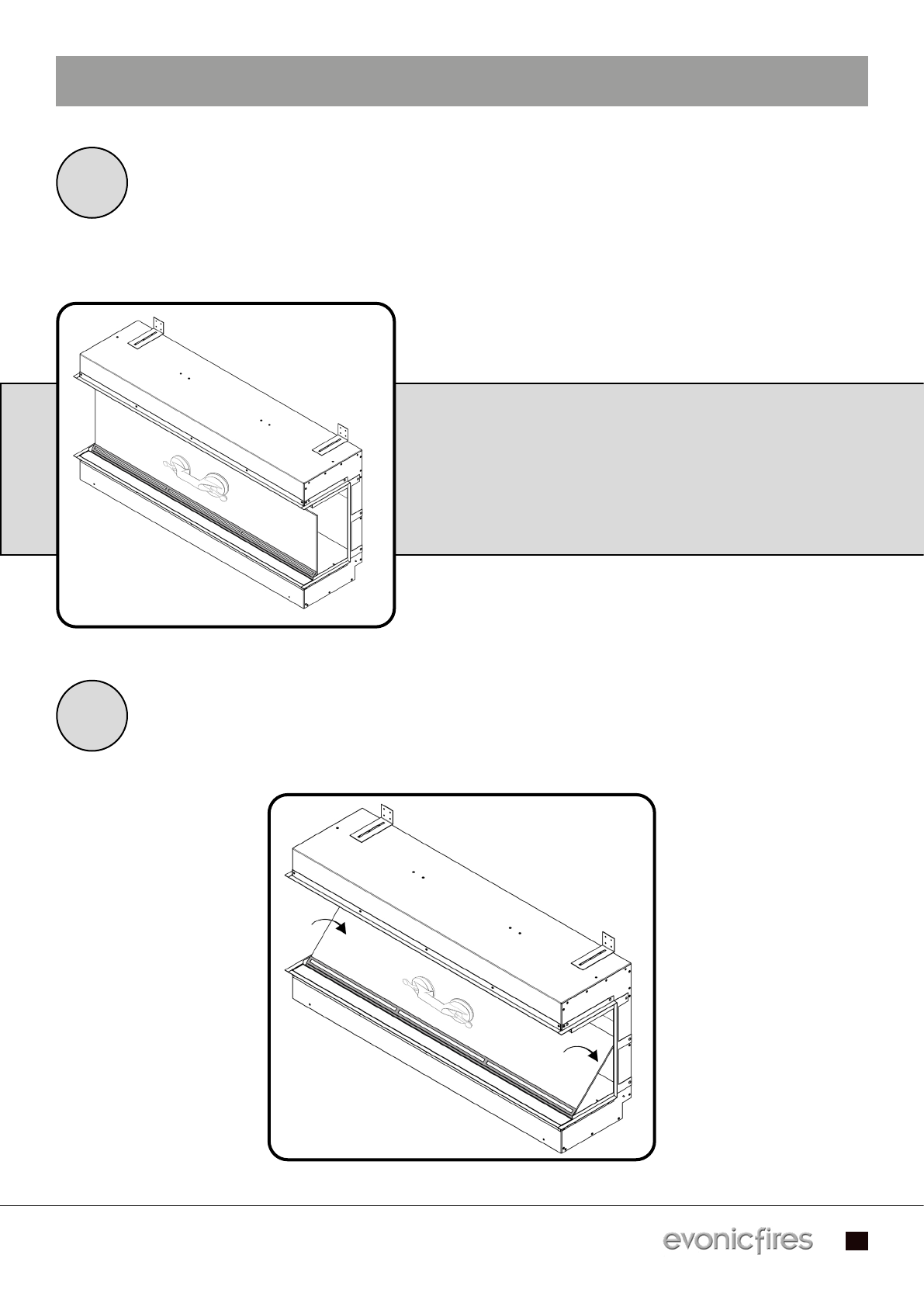

Unscrew and remove the top glass retainer panels.
1
Slide out the side glass piece(s). Depending on the model, you may have to angle the side
glass
2

INSTALLING THE EFFECT GLASS - OCTANE DOUBLE-SIDED

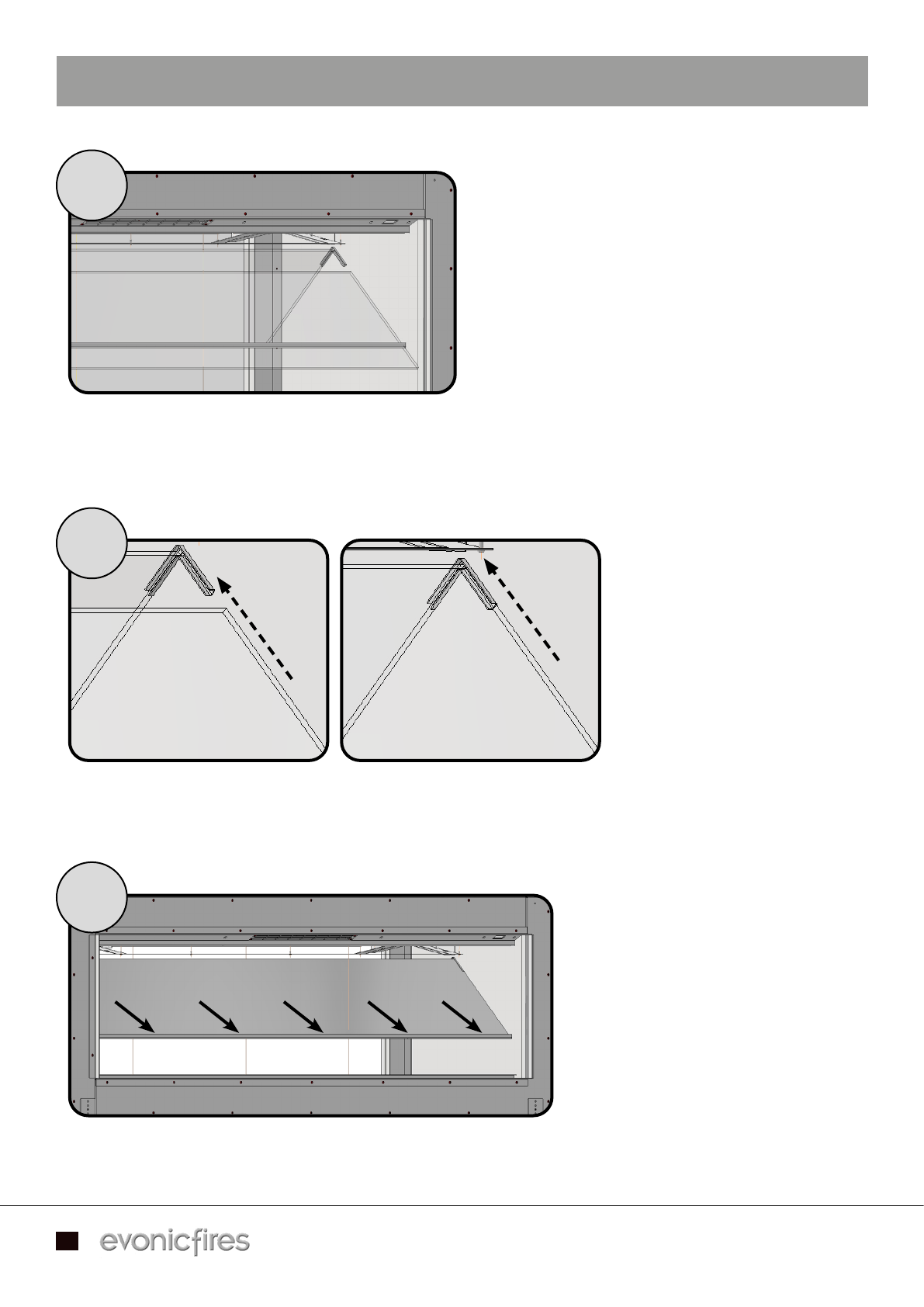

Start by applying the glass sucker to the centre of the effect glass. Begin lifting the glass up towards
the triangular glass clip to slot in place.
Line up the glass with the glass clip, and carefully push into place. The glass clips can be loosened on
both sides to allow easier fitting.
Once the glass has been inserted into the clip, ensure the bottom of the glass been fitted to rest on
the retainer bar. You can then repeat the process on the other side.
1
2
3
12 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1

PLEASE NOTE:
The suction cup is provided to assist in moving the glass,
NEVER as the sole support for the glass. Always support the
glass throughout the entire process until fully fitted in place.
13
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
INSTALLING THE EFFECT GLASS - OCTANE SINGLE-SIDED
Apply the Suction Lifter to the glass and position the bottom edge of the glass first, then
pivot the glass into the appliance. If not using a glass sucker, carefully hold the glass on
either end and follow the same process. 2 people may be required for this to ensure the
glass is carefully supported at all times.
1
Pivot the glass backwards to a 45° angle so that it fits under the retaining bar, and rests
against the back of the interior of the appliance.
2

INSTALLING THE FRONT GLASS PANEL - ALL MODELS
On 1800mm and 2400mm models, apply the suction cup to the glass and position the
bottom edge of the glass first, then pivot the glass into the appliance. If not using a suction
cup, carefully hold the glass on either end and follow the same process. 2 people may be
required for this to ensure the glass is carefully supported at all times.
PLEASE NOTE:
The suction cup is provided to assist in moving the glass,
NEVER as the sole support for the glass. Always support the
glass throughout the entire process until fully fitted in place.
1
Then replace the top glass retainer bar.
2
14 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1

CONTROLLING YOUR FIRE
There are two ways to control all the features of your Evonic appliance - remote or e-smart App
E-SMART
REMOTE
E-SMART
APP
Our remote handset comes automatically paired and ready to operate straight out of the box. If you
choose to control your appliance via the e-smart app, your internet router and smart device should meet
the following minimum requirements -
Wi-Fi Router
• Compatible with IEEE 802.11n/g/b
• WPA2 encryption
• Radio frequency: 2.4GHz band
• Wireless auto channel: auto search for wireless LAN radio channel free of interference
• Support for the User Datagram Protocol (UDP)
• The minimum distance from your internet router to the fire should be 70cm
Smart Device
• Minimum device requirements IOS 8.0 or Android 10
15
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1

16 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
To begin using the app you first need to pair your appliance to the app, we haveTo begin using the app you first need to pair your appliance to the app, we have
created a video on our Youtube channel to guide you through the process of pairingcreated a video on our Youtube channel to guide you through the process of pairing
your appliance to your smart phone or tablet. Scan the QR code to be taken to theyour appliance to your smart phone or tablet. Scan the QR code to be taken to the
video and get started. Alternatively follow the step-by-step guide below.video and get started. Alternatively follow the step-by-step guide below.
E-SMART APP SETUP CONTINUED...
Make sure that your fire is plugged in
and the switch is on. Then turn on your
fire by pressing the ON/OFF switch to
the ‘ON’ position.
Download the E-Smart Cloud app from
the Apple Store, or Google Play Store.
Open the Settings panel on your device
and connect to the fire’s wireless
connection. The name of the fire’s wi-fi
will vary depending on the model.
Open the E-Smart app on your device
12
3 4
ON/OFF SWITCH

17
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
E-SMART APP SETUP CONTINUED...
56
7 8
Open the settings panel on the app’s
Home Screen.
Scroll down to the ‘IoT Registration’ section
and fill in your email address and create a
password. Press ‘Save’. Then select the grey
wi-fi button.
Select your router from the drop down box, and
enter your router’s password. Press the eye icon
to double check for mistakes. Press ‘Save and
Connect’. Only select Static IP if advised by an IT
professional.
The pairing process between your device, the
fire, and your router will now take place. This
may take a few minutes, and when the app
shows ‘Redirect’ you may see the lighting on
your fire change colour. This is completely
normal. To complete the setup, turn your fire off
then back on.

18 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
USING THE E-SMART APP

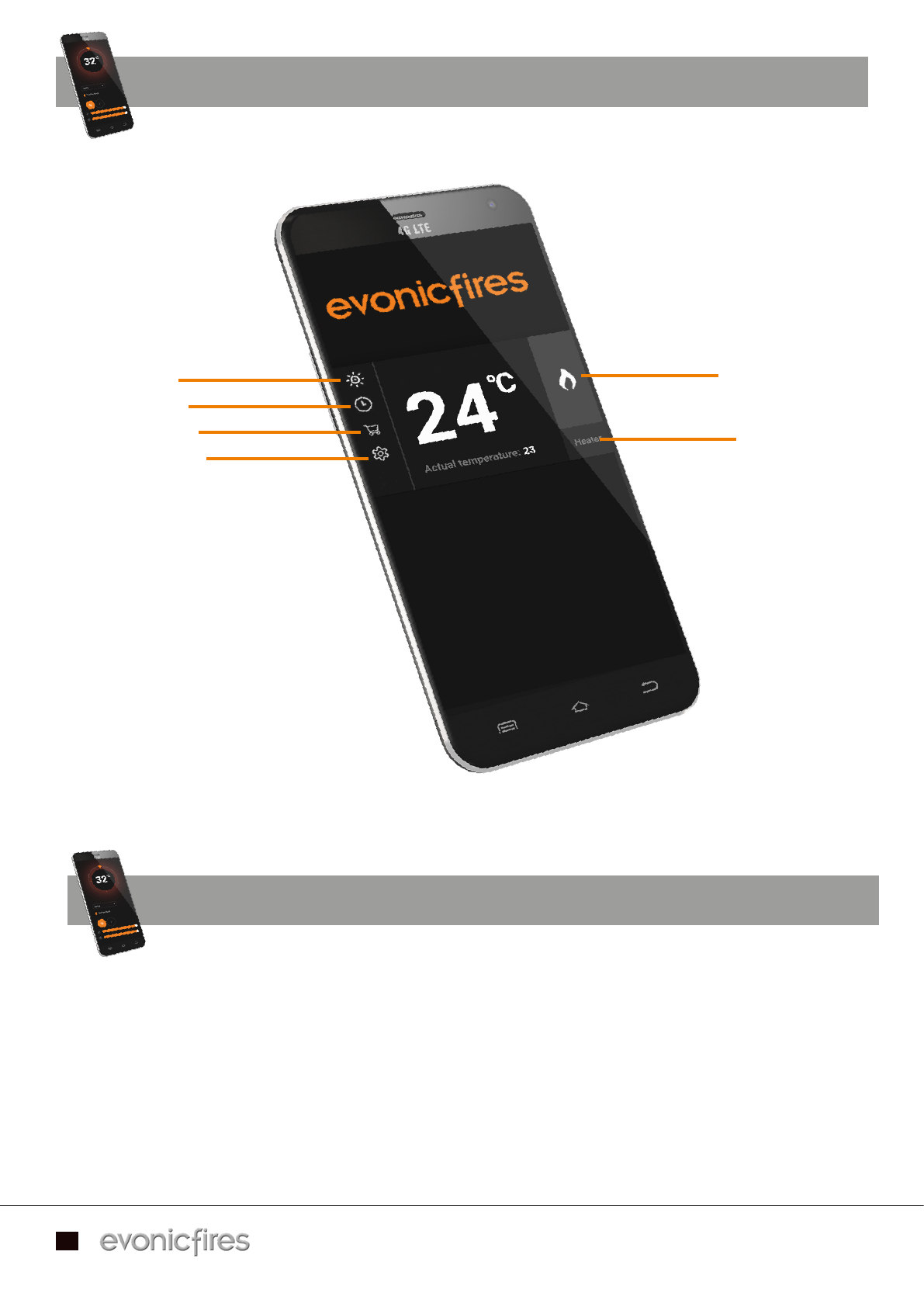

On the Home Page of the E-Smart Cloud App you can see the name of your fire, the chosen
temperature, and the actual temperature. On the left hand side you can select the timer, shop, and app
settings. On the right hand side you can turn the lights in the fire on and off, and also turn the heater on
and off.
To enter the Control Overview either select the light bulb icon on the top left or the central temperature
box.
E-SMART APP SETUP
Press to turn the
fire ON or OFF
Press to turn the
heater ON or OFF
Control Overview
Timer settings
Shop
General settings

19
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
CONTROL OVERVIEW
To adjust the desired temperature of your fire ensure that the heater is selected on the Home Page inTo adjust the desired temperature of your fire ensure that the heater is selected on the Home Page in
the previous step. Then press, hold, and rotate the temperature dial to set the temperature.the previous step. Then press, hold, and rotate the temperature dial to set the temperature.
The animation drop down allows you to choose the flame effect for your fire, more flame effects areThe animation drop down allows you to choose the flame effect for your fire, more flame effects are
available to download from our shop on the Home Page.available to download from our shop on the Home Page. This is not available on single-colour modelsThis is not available on single-colour models..
The ‘Feature lights’ button will activate the over fuel-bed lights, if you have a model with tile wings thenThe ‘Feature lights’ button will activate the over fuel-bed lights, if you have a model with tile wings then
this button will also turn on the side down-lighters.this button will also turn on the side down-lighters.
By clicking on lighting settings you can adjust the flame brightness by pressing, holding, and sliding theBy clicking on lighting settings you can adjust the flame brightness by pressing, holding, and sliding the
tab at the bottom of the screen. Slide left to lower the brightness, and right to increase the brightness.tab at the bottom of the screen. Slide left to lower the brightness, and right to increase the brightness.
You can adjust the fuel bed brightness in the same way with the lower tab slider.You can adjust the fuel bed brightness in the same way with the lower tab slider.
To change the speed of the LED flame effect single press the speed setting option, and slide the top dialTo change the speed of the LED flame effect single press the speed setting option, and slide the top dial
left to slow it down, and right to increase the speed. Likewise with the fuel bed speed, slide the lower tableft to slow it down, and right to increase the speed. Likewise with the fuel bed speed, slide the lower tab
left to slow it down and right to increase it.left to slow it down and right to increase it.
Animation choice
Turn your feature
lights ON or OFF
Lighting settings
Flame speed /
brightness bar
Temperature dial
Target temperature
Speed settings
Fuel bed speed /
brightness bar

20 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 BUILT-INS ISS. 1BUILT-INS ISS. 1
PROGRAMMING THE TIMER
UPDATING YOUR FIRE AND LOGGING OUT
12
3

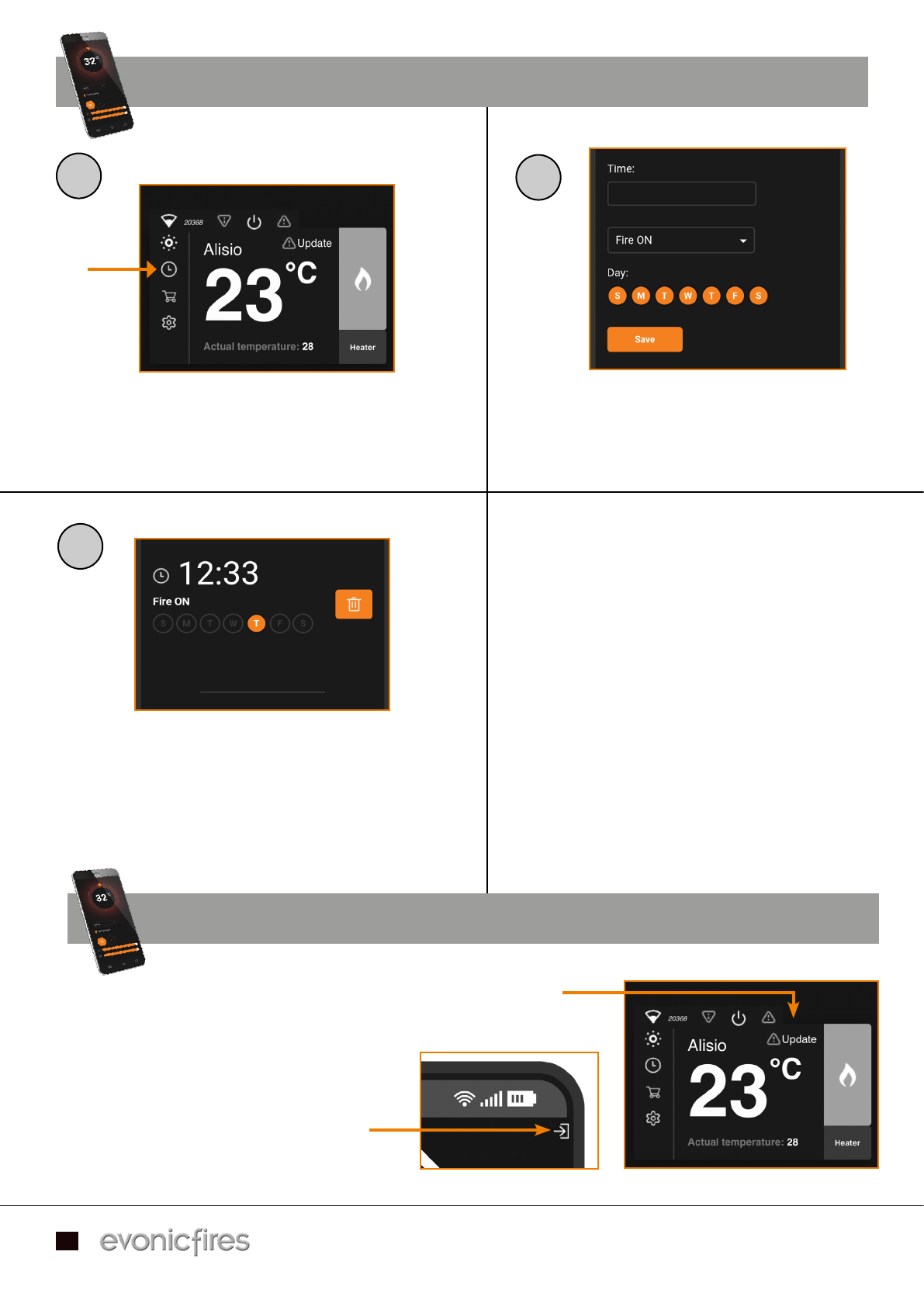

Single press the clock icon on the Home PageSingle press the clock icon on the Home Page
to begin programming the Timer.to begin programming the Timer.
Input your desired time in the Time box,Input your desired time in the Time box,
select the action (Fire On/Off/, Heater On/Off)select the action (Fire On/Off/, Heater On/Off)
you want. Deselect the day/s you don’t want ityou want. Deselect the day/s you don’t want it
to apply to, and press the Save button.to apply to, and press the Save button.
The above screen will now show your setThe above screen will now show your set
timer. To delete the timer press the bin icon.timer. To delete the timer press the bin icon.
To add an additional timer scroll down andTo add an additional timer scroll down and
repeat the process. Press the Back button torepeat the process. Press the Back button to
return to the Home Page.return to the Home Page.
Update your fire by clicking on the triangular icon.
Do not turn your fire off until it is complete
It may take up to 10 minutes to update.
To log out of the e-smart cloud app, on your
home screen you need to press the ‘log out’
icon.
