1
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
evonicfires
CubbingtonCubbington 13501350
CubbingtonCubbington 15001500
HeathcoteHeathcote 13501350
HeathcoteHeathcote 15001500
LedburyLedbury 13501350
LedburyLedbury 15001500
WelfordWelford 13501350
WelfordWelford 15001500
e-lectrae-lectra 13501350
e-lectrae-lectra 15001500
EspireEspire 200200
EspireEspire 175175
EspireEspire 150150
ImperiumImperium
CrenshawCrenshaw
InglewoodInglewood
EllipseEllipse
BergenBergen
GilmourGilmour 1010
GilmourGilmour 77
GilmourGilmour 66
ComptonCompton 10001000
ComptonCompton 22
EmpireEmpire 22

The following materials and components should be disposed of in accordance with the below table.
Metal -
Steel or cast iron
Can be taken to a local recycling centre for reuse to reduce waste going to landfill.
Glass & Screens Can be taken to a local recycling centre for reuse to reduce waste going to landfill.
Vermiculite Non hazardous material. Vermiculite can be crushed up and used for plant bedding and ash
used for composting or disposed of at a local recycling centre for reuse to reduce waste going to
landfill.
Electrical components -
Fans, heater elements,
PCB’s, Power pack’s,
LED’s
Dispose at a local recycling centre In accordance with latest WEEE directive.
Log fuel effects These logs contain refractory ceramic fibre materials which requires disposal in accordance with
WEEE legislation.
Natural Wood Can be taken to a local recycling centre for reuse to reduce waste going to landfill.
CONTENTS
Health and safety.................................................................................................................................................................4
Checks before installation – All models................................................................................................................5
Attaching the woodwork...............................................................................................................................................6
Attaching the side wings...............................................................................................................................................7
Wall mounting......................................................................................................................................................................8
Removing the side glass................................................................................................................................................9
Removing the front glass............................................................................................................................................10
Control Methods………………………………………………………………………………………………………………...........................…...11
E-Smart App Setup…………………………………………………………………………………………………………..........................…...12
Using the E-Smart App ………………………………………………………………………………………………...................................14
Control Overview……………………………………………………………………………………………………………...........................…....15
Programming the Timer……………………………………………………………………………………………..........................….......16
Remote control....................................................................................................................................................................17
Connection Problems…………………………………………………………………………………………………..........................….......18
Retro-fitting the Remote Control…………………………………………………………………………...........................….......19
Connecting to Amazon Alexa…………………………………………………………………………………...........................….......20
Connecting to Google Home……………………………………………………………………………………...............................…22
Commands for Voice Control…………………………………………………………………………………...........................….......24
e-lluminate lighting setup .........................................................................................................................................25
Warranty…………………………………………………………………………………………………………………………...........................…........26
2EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1

All Evonic Fires products are in conformity with the relevant UK Statutory InstrumentsAll Evonic Fires products are in conformity with the relevant UK Statutory Instruments
(and their amendments).(and their amendments).
2016 No. 1101 The Electrical Equipment (Safety) Regulations 20162016 No. 1101 The Electrical Equipment (Safety) Regulations 2016
2016 No. 1091 The Electromagnetic Compatibility Regulations 20162016 No. 1091 The Electromagnetic Compatibility Regulations 2016
2012 No. 3032 The Restriction Of Use Of Certain Hazardous Substances In2012 No. 3032 The Restriction Of Use Of Certain Hazardous Substances In
Electrical And Electronic Equipment Regulations 2012Electrical And Electronic Equipment Regulations 2012
EU DIRECTIVES
All Evonic Fires products meet the requirements of the EC Directives.All Evonic Fires products meet the requirements of the EC Directives.
These directives have been met by compliance with the following standards:These directives have been met by compliance with the following standards:
EU 2011-65/EU 2015/863 Restriction of Hazardous Substances.EU 2011-65/EU 2015/863 Restriction of Hazardous Substances.
References to the relevant designated standards used:References to the relevant designated standards used:
EN 55014-1:2006 + A1:2009 + A2:2011 Electromagnetic Compatibility.EN 55014-1:2006 + A1:2009 + A2:2011 Electromagnetic Compatibility.
EN 55014-2:2015 Electromagnetic Compatibility.EN 55014-2:2015 Electromagnetic Compatibility.
EN 61000-3-2:2014 Electromagnetic Compatibility (EMC). Limits. Limits forEN 61000-3-2:2014 Electromagnetic Compatibility (EMC). Limits. Limits for
Harmonic Current Emissions.Harmonic Current Emissions.
EN 61000-3-3:2013 Electromagnetic Compatibility (EMC). Limits. Limitation ofEN 61000-3-3:2013 Electromagnetic Compatibility (EMC). Limits. Limitation of
Voltage Changes, Voltage Fluctuations and Flicker.Voltage Changes, Voltage Fluctuations and Flicker.
EN 60335-1:2012 + A11:2014 Household and similar electrical appliances - SafetyEN 60335-1:2012 + A11:2014 Household and similar electrical appliances - Safety
EN 60335-2-30:2009+A11:2012 Household and similar electrical appliances. Safety.EN 60335-2-30:2009+A11:2012 Household and similar electrical appliances. Safety.
Particular requirements for room heatersParticular requirements for room heaters
UKCA STANDARDS
3
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1

4EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
IMPORTANT INFORMATION AND HEALTH & SAFETY
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the following:
• Read all of the instructions carefully before using the appliance, only use this appliance as described
in this manual. Any other use not recommended by the manufacturer may cause injury to persons,Any other use not recommended by the manufacturer may cause injury to persons,
or damage to the appliance.or damage to the appliance.
• Remove all packaging and dispose of it at an appropriate recycling facility.
•• When transporting or storing the appliance and power lead, keep in a dry place, away from excessiveWhen transporting or storing the appliance and power lead, keep in a dry place, away from excessive
vibration and store so as to avoid damage.vibration and store so as to avoid damage.
• This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. The trim
around the heater outlet becomes hot during heater operation. DANGER: High temperatures may be
generated under certain abnormal conditions.
• Do not install this appliance immediately in front of a fixed socket outlet.
• Do not install this appliance in the immediate surroundings of a bath, shower, swimming pool or any
other area where the appliance could come into contact with water or humidity, e.g. a bathroom.
•• Do not use in areas where gasoline, paint, or any flammable liquids are used or stored.Do not use in areas where gasoline, paint, or any flammable liquids are used or stored.
• This appliance is only suitable for indoor use, do not use outdoors.
• Do not cover the appliance, or let the air inlet/outlet to be obstructed in any way as it may overheat.
• Keep the power lead away from hot surfaces and the heater outlet. Do not route the power lead in
front of the appliance, or under any carpets or rugs. Do not allow the power lead to be coiled up once
installed, as this can cause overheating.
• This appliance must be firmly fixed to or recessed into, a flat internal wall.
• A maintenance hatch must be installed into the surrounding installation to allow future access.
• Always use a certified electrician should new circuits or outlets be required. And always use properly
grounded, fused and polarised outlets.
• Where the power lead passes through any masonry wall, stone surround etc. ensure that suitable
rubber bushes are fitted at any possible wear points.
• If the power lead is damaged do not use the appliance until it has been replaced.
• Do not use any external switching device, timers, or extension leads. Do not connect the appliance to
a circuit that is frequently switched on and off by the utility.
•• In the event of a malfunction, switch off the appliance, and disconnect it from the mains powerIn the event of a malfunction, switch off the appliance, and disconnect it from the mains power
supply. Have the appliance inspected by a certified electrician before reusing.supply. Have the appliance inspected by a certified electrician before reusing.
• Do not use the appliance if it is damaged. In the event of any damage to the appliance, please
contact the retailer from whom the appliance was purchased.
• Any repairs must only be performed by a certified electrician.
• Extreme caution is necessary when any heater is used by, located near children or people of reduced
mobility, and whenever the unit is left operating and unattended.
• Young children should be supervised to ensure that they do not play with the appliance.
•• Disconnect from the power supply before performing any cleaning, maintenance or relocation of theDisconnect from the power supply before performing any cleaning, maintenance or relocation of the
unit. Do not use steam cleaners, or aerosols near the appliance.unit. Do not use steam cleaners, or aerosols near the appliance.
• Do not burn wood or anything else in this appliance.
• Do not strike the glass. The glass used is toughened safety glass, if broken it will shatter into small
chunks which are less likely to cause injury.
• Do not drill or screw any new holes into the appliance.

5
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
CHECKS BEFORE INSTALLATION - ALL MODELS
INSTALLATION DO’S AND DONT’S
Before installing the appliance please read and take into account the following important requirements;
• Consult a qualified professional to check the structure of the installation site.
• If installing into an existing chimney, make sure to adequately block off the flue.
• The appliance must never be installed in front of an electrical socket.
• The appliance must not be installed anywhere that it may come into contact with water, i.e. a
bathroom.
• Do not wet plaster directly onto the appliance.
CHECKS BEFORE INSTALLATION
We recommend turning on the appliance before installation, connect the appliance to a power source
using the provided electrical lead, and depress the right side of the ON/OFF switch.
Remove the electrical lead from the wall and continue with the installation.
ON/OFF
Switch
Power
Inlet

6EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
ATTACHING THE WOODWORK - APPLICABLE MODELS
1

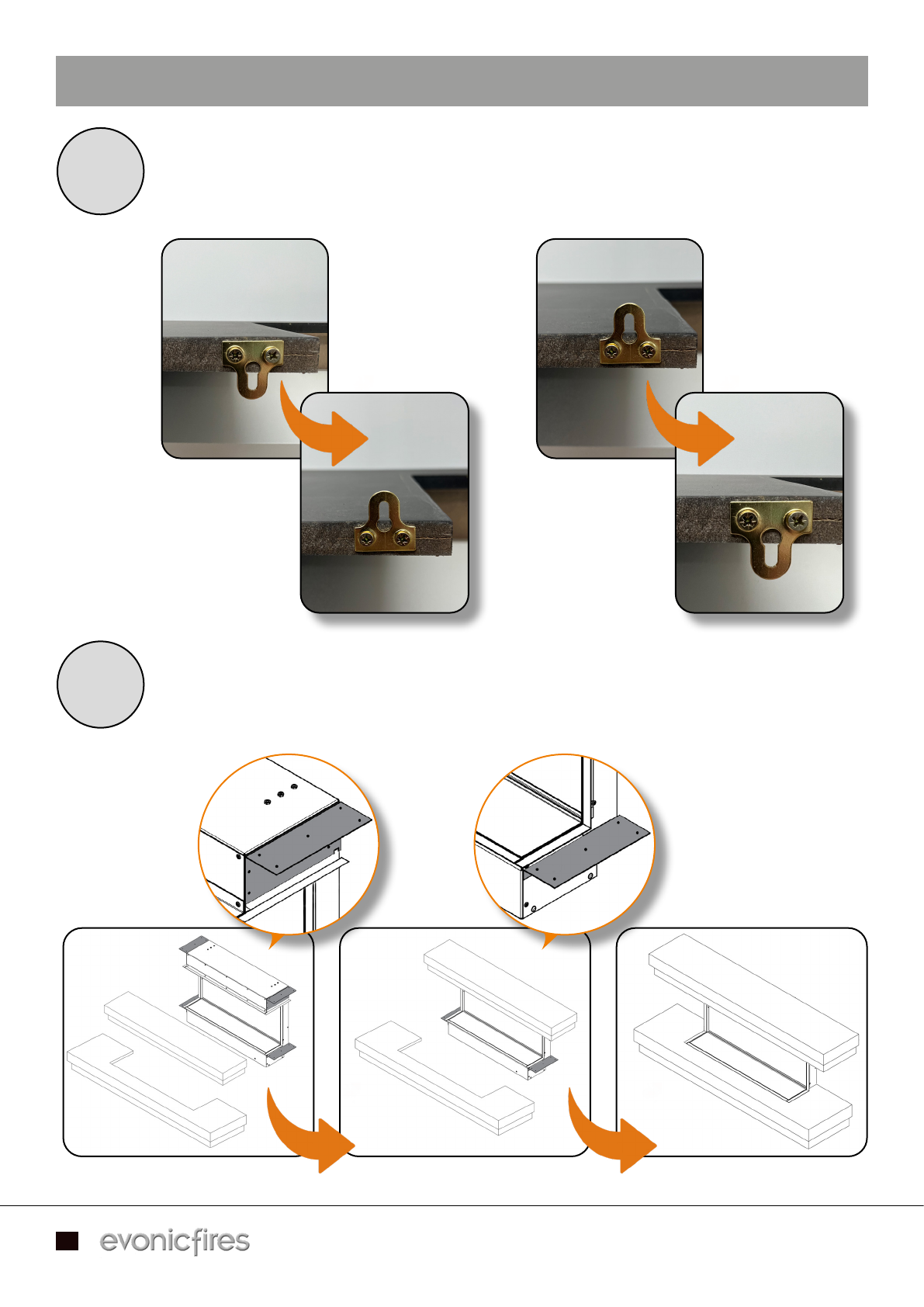

On the bottom woodwork section of the suite, unscrew and turn the mirror
brackets on the rear 180°, so they are pointing upwards. Then on the top
woodwork section, unscrew and turn the mirror brackets 180° so they are
pointing downwards.
Bottom
woodwork
brackets
Top
woodwork
brackets
2The fire will have come with 2 top brackets and 2 bottom brackets already
attached, and you can now slide your woodwork onto these brackets. The
top woodwork section sits on top of the bracketry and rests on the plaster
kit, and the bottom woodwork section will fit in just below the plaster kit.

7
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
FLOOR-BASED INSTALLATION (WITH RISER)
1Identify where you want to position your fire in a room. Once you have
done this, slide your riser into position. You may want to measure the
width of both the suite and the riser so you can identify the centre point of
the fireplace.
2Carefully lift your fireplace and insert it into the riser. This will require a
minimum of 2 people.
X

8EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
WALL-MOUNTING - ALL MODELS
1Remove the two bottom mounted transit brackets, you won’t need these for installation.

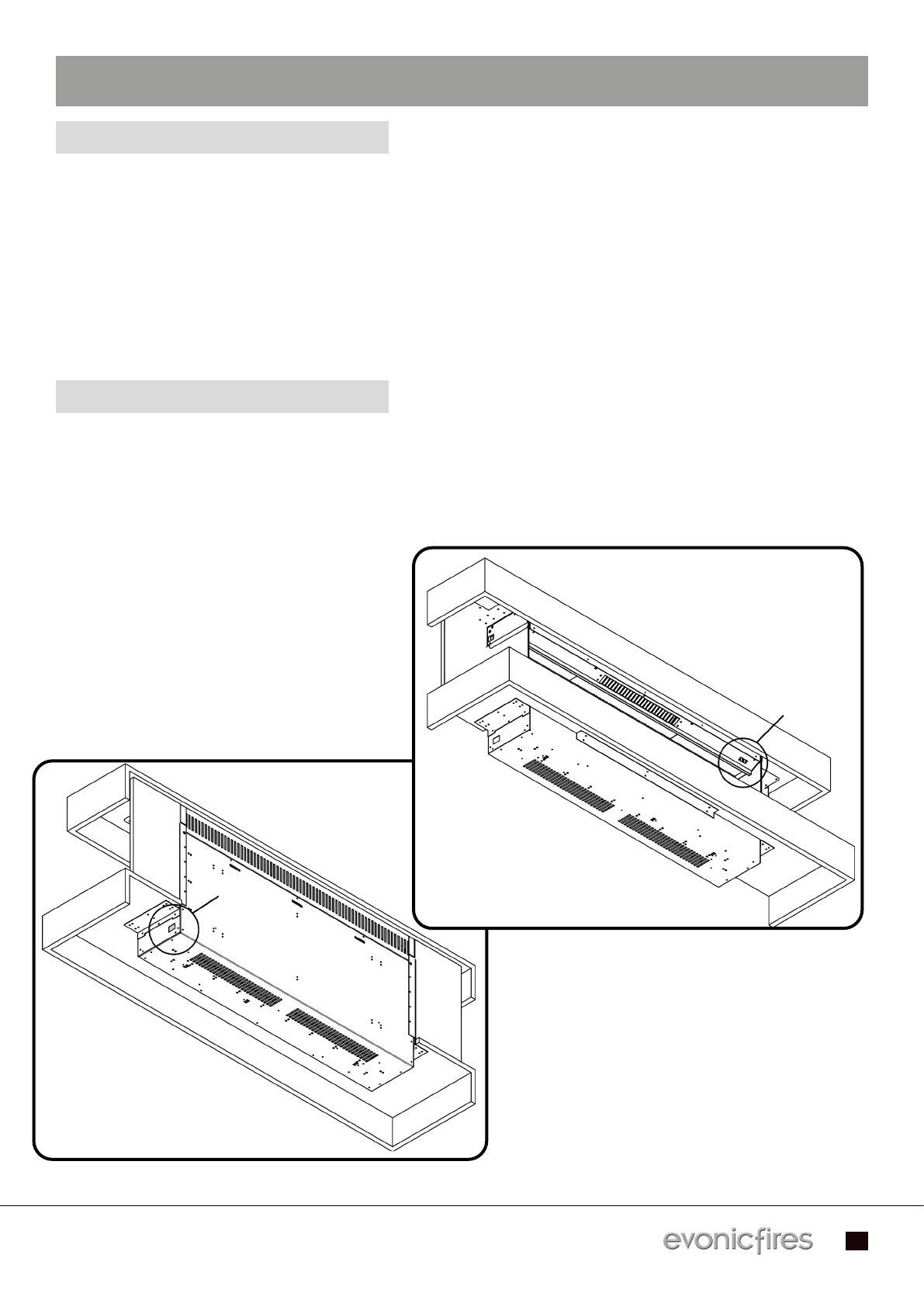

Then screw on the IEC Clip to the bottom back of the case, with the two provided screws.
Determine the finished height
and position that you want the
appliance to be located. Then secure
the wall bracket to the wall in the
position you need using the wall
plugs and screws provided. If you’re
not securing the appliance to a
masonry wall you will need to use
the appropriate fixings.
You can now hang the appliance
on the wall by slotting the tabs of
the wall bracket into the slots on
the back of the appliance. If you are
installing an 1800mm or 2400mm
model, you will need to provide
extra support for the appliance.
Please note: The wall bracket is an
optional extra.
2

9
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
REMOVING THE SIDE GLASS PANELS - APPLICABLE MODELS
Unscrew and remove the top glass retainer panels.

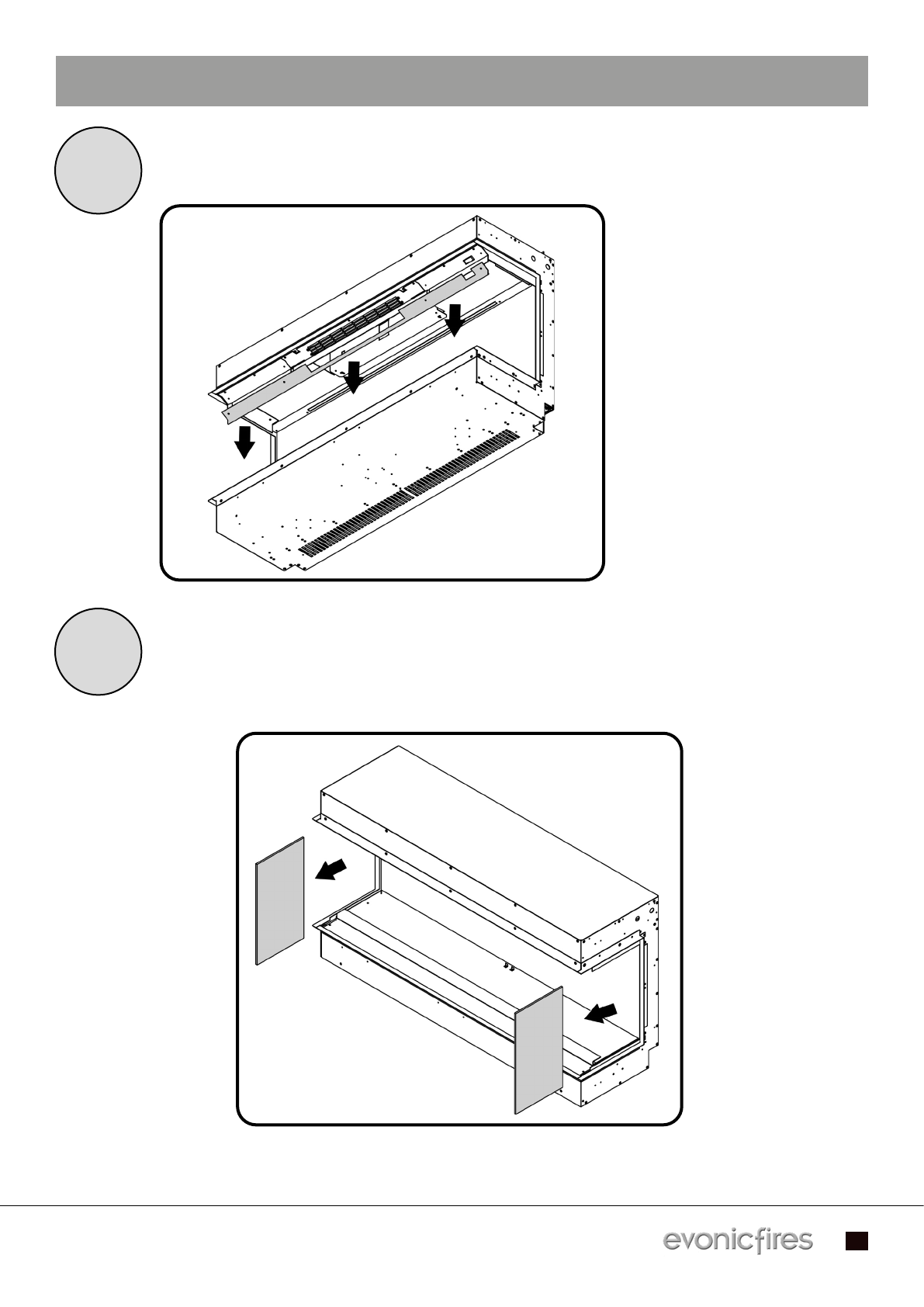

Slide out the side glass piece(s). Depending on the model, you may have to angle the side
glass.
1
2

10 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
INSTALLING THE FRONT GLASS PANEL - APPLICABLE MODELS

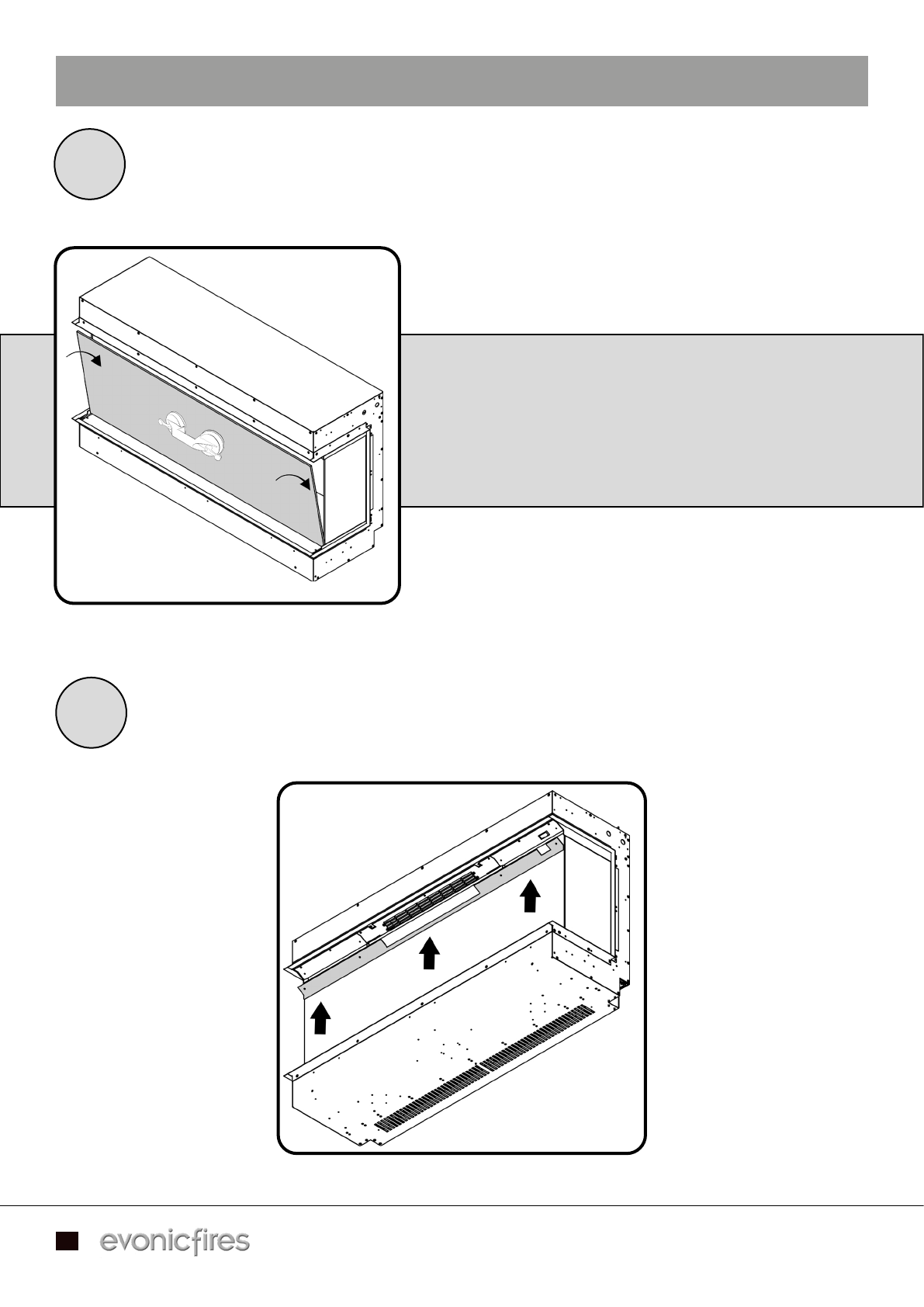

On 1800mm and 2400mm models, apply the suction cup to the glass and position the
bottom edge of the glass first, then pivot the glass into the appliance. If not using a suction
cup, carefully hold the glass on either end and follow the same process. 2 people may be
required for this to ensure the glass is carefully supported at all times.
PLEASE NOTE:
The suction cup is provided to assist in moving the glass,
NEVER as the sole support for the glass. Always support the
glass throughout the entire process until fully fitted in place.
1
Then replace the top glass retainer bar.
2

11
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
CONTROLLING YOUR FIRE
There are two ways to control all the features of your Evonic appliance - remote or e-smart App
E-SMART

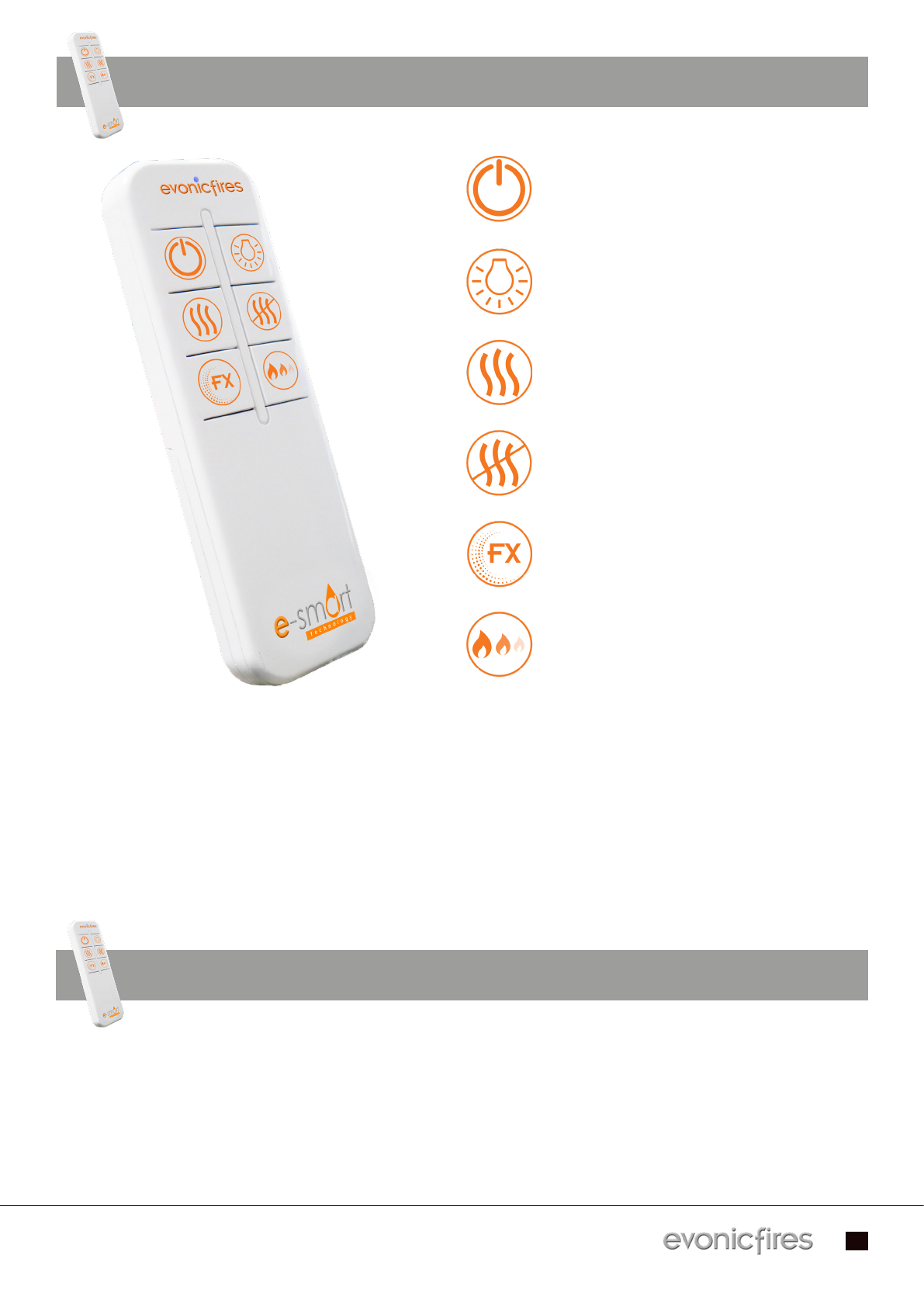

REMOTE
E-SMART
APP
Our remote handset comes automatically paired and ready to operate straight out of the box. If you
choose to control your appliance via the e-smart app, your internet router and smart device should meet
the following minimum requirements -
Wi-Fi Router
• Compatible with IEEE 802.11n/g/b
• WPA2 encryption
• Radio frequency: 2.4GHz band
• Wireless auto channel: auto search for wireless LAN radio channel free of interference
• Support for the User Datagram Protocol (UDP)
• The minimum distance from your internet router to the fire should be 70cm
Smart Device
• Minimum device requirements IOS 8.0 or Android 10

12 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
To begin using the app you first need to pair your appliance to the app, we haveTo begin using the app you first need to pair your appliance to the app, we have
created a video on our Youtube channel to guide you through the process of pairingcreated a video on our Youtube channel to guide you through the process of pairing
your appliance to your smart phone or tablet. Scan the QR code to be taken to theyour appliance to your smart phone or tablet. Scan the QR code to be taken to the
video and get started. Alternatively follow the step-by-step guide below.video and get started. Alternatively follow the step-by-step guide below.
E-SMART APP SETUP CONTINUED...
Make sure that your fire is plugged in
and the switch is on. Then turn on your
fire by pressing the ON/OFF switch to
the ‘ON’ position.
Download the E-Smart Cloud app from
the Apple Store, or Google Play Store.
Open the Settings panel on your device
and connect to the fire’s wireless
connection. The name of the fire’s wi-fi
will vary depending on the model.
Open the E-Smart app on your device
12
3 4
ON/OFF SWITCH

13
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1

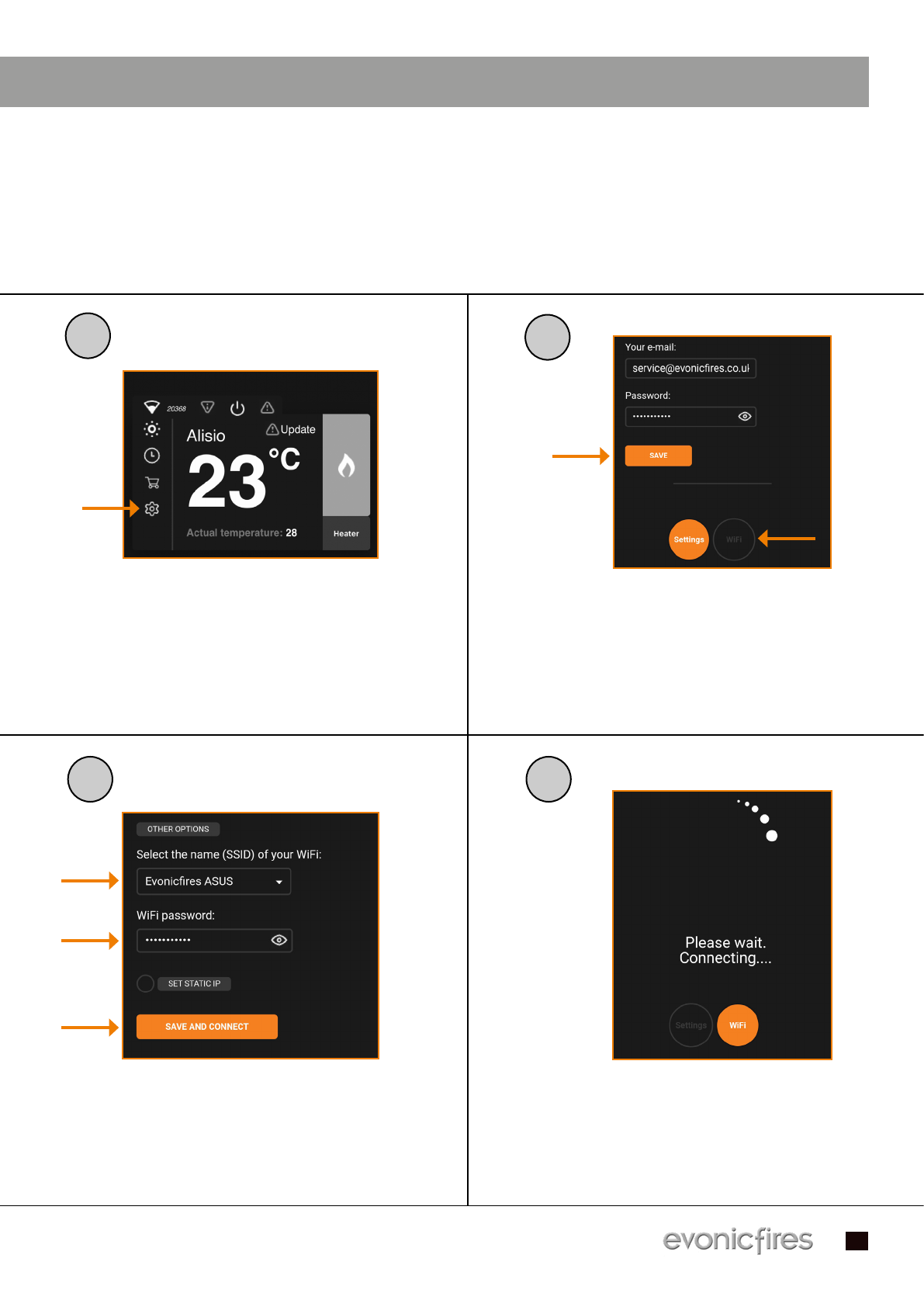

E-SMART APP SETUP CONTINUED...
56
7 8
Open the settings panel on the app’s
Home Screen.
Scroll down to the ‘IoT Registration’ section
and fill in your email address and create a
password. Press ‘Save’. Then select the grey
wi-fi button.
Select your router from the drop down box, and
enter your router’s password. Press the eye icon
to double check for mistakes. Press ‘Save and
Connect’. Only select Static IP if advised by an IT
professional.
The pairing process between your device, the
fire, and your router will now take place. This
may take a few minutes, and when the app
shows ‘Redirect’ you may see the lighting on
your fire change colour. This is completely
normal. To complete the setup, turn your fire off
then back on.

14 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1

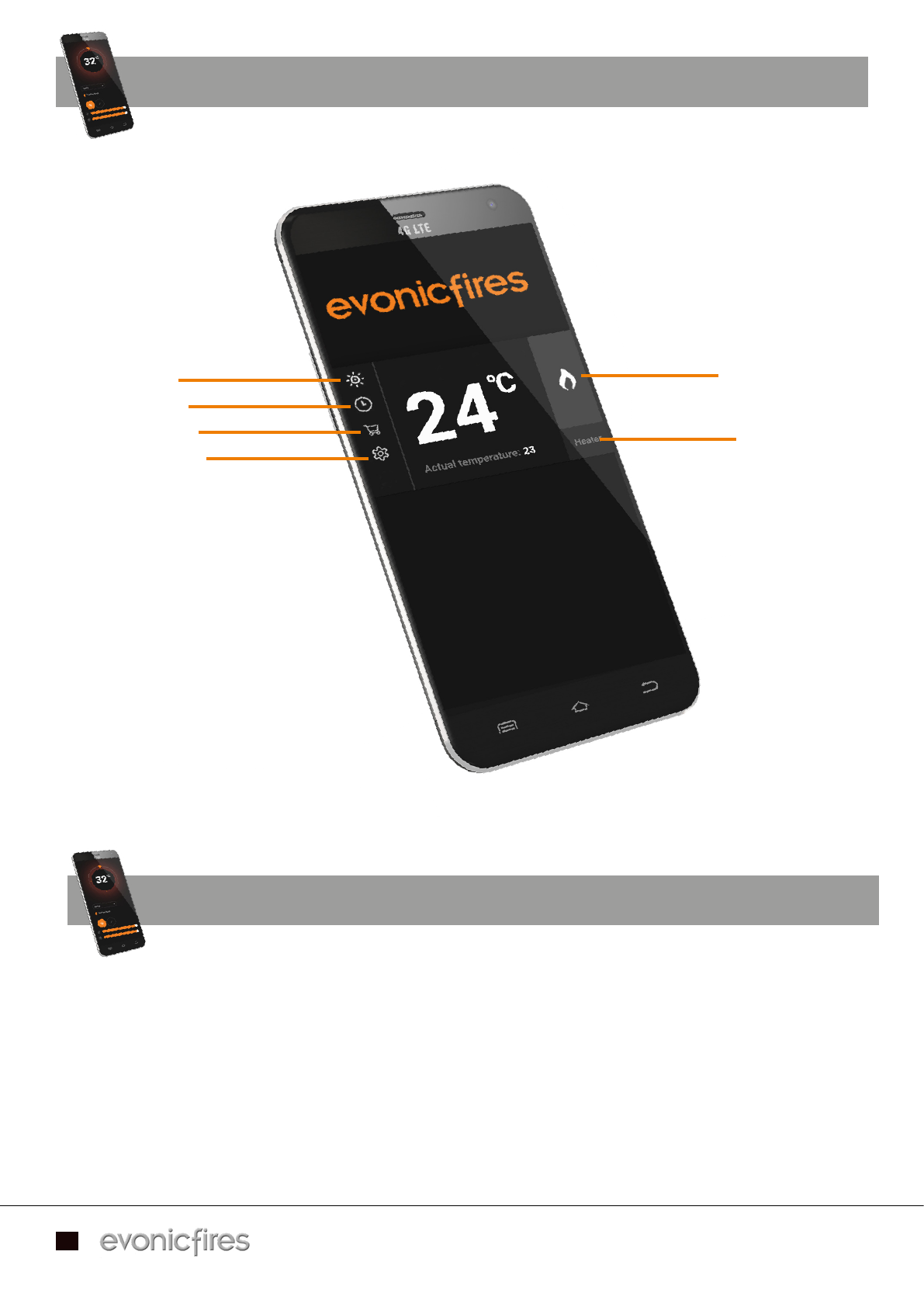

USING THE E-SMART APP
On the Home Page of the E-Smart Cloud App you can see the name of your fire, the chosen
temperature, and the actual temperature. On the left hand side you can select the timer, shop, and app
settings. On the right hand side you can turn the lights in the fire on and off, and also turn the heater on
and off.
To enter the Control Overview either select the light bulb icon on the top left or the central temperature
box.
E-SMART APP SETUP
Press to turn the
fire ON or OFF
Press to turn the
heater ON or OFF
Control Overview
Timer settings
Shop
General settings

15
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
CONTROL OVERVIEW
To adjust the desired temperature of your fire ensure that the heater is selected on the Home Page inTo adjust the desired temperature of your fire ensure that the heater is selected on the Home Page in
the previous step. Then press, hold, and rotate the temperature dial to set the temperature.the previous step. Then press, hold, and rotate the temperature dial to set the temperature.
The animation drop down allows you to choose the flame effect for your fire, more flame effects areThe animation drop down allows you to choose the flame effect for your fire, more flame effects are
available to download from our shop on the Home Page.available to download from our shop on the Home Page. This is not available on single-colour modelsThis is not available on single-colour models..
The ‘Feature lights’ button will activate the over fuel-bed lights, if you have a model with tile wings thenThe ‘Feature lights’ button will activate the over fuel-bed lights, if you have a model with tile wings then
this button will also turn on the side down-lighters.this button will also turn on the side down-lighters.
By clicking on lighting settings you can adjust the flame brightness by pressing, holding, and sliding theBy clicking on lighting settings you can adjust the flame brightness by pressing, holding, and sliding the
tab at the bottom of the screen. Slide left to lower the brightness, and right to increase the brightness.tab at the bottom of the screen. Slide left to lower the brightness, and right to increase the brightness.
You can adjust the fuel bed brightness in the same way with the lower tab slider.You can adjust the fuel bed brightness in the same way with the lower tab slider.
To change the speed of the LED flame effect single press the speed setting option, and slide the top dialTo change the speed of the LED flame effect single press the speed setting option, and slide the top dial
left to slow it down, and right to increase the speed. Likewise with the fuel bed speed, slide the lower tableft to slow it down, and right to increase the speed. Likewise with the fuel bed speed, slide the lower tab
left to slow it down and right to increase it.left to slow it down and right to increase it.
Animation choice
Turn your feature
lights ON or OFF
Lighting settings
Flame speed /
brightness bar
Temperature dial
Target temperature
Speed settings
Fuel bed speed /
brightness bar

16 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
PROGRAMMING THE TIMER
UPDATING YOUR FIRE AND LOGGING OUT
12
3
Single press the clock icon on the Home PageSingle press the clock icon on the Home Page
to begin programming the Timer.to begin programming the Timer.
Input your desired time in the Time box,Input your desired time in the Time box,
select the action (Fire On/Off/, Heater On/Off)select the action (Fire On/Off/, Heater On/Off)
you want. Deselect the day/s you don’t want ityou want. Deselect the day/s you don’t want it
to apply to, and press the Save button.to apply to, and press the Save button.
The above screen will now show your setThe above screen will now show your set
timer. To delete the timer press the bin icon.timer. To delete the timer press the bin icon.
To add an additional timer scroll down andTo add an additional timer scroll down and
repeat the process. Press the Back button torepeat the process. Press the Back button to
return to the Home Page.return to the Home Page.
Update your fire by clicking on the triangular icon.
Do not turn your fire off until it is complete
It may take up to 10 minutes to update.
To log out of the e-smart cloud app, on your
home screen you need to press the ‘log out’
icon.

17
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
E-SMART REMOTE CONTROL
With the remote control the heater is pre-set toWith the remote control the heater is pre-set to 28°28°, if you would like to adjust the temperature you need, if you would like to adjust the temperature you need
to do this through the app.to do this through the app.
The brightness button adjusts the brightness of the fire byThe brightness button adjusts the brightness of the fire by 0%0%,, 25%25%,, 50%50%, and, and 100%100%..
Top Left - Turn your fire ON and OFF
Top Right - Turn your feature lights
and overbed illumination ON and OFF
Middle Left - Turn your heater ON
Middle Right - Turn your heater OFF
Bottom Left - Change the flame animation.
Not applicable with single colour models.
Bottom Left - Adjust the brightness.
SETTING TIMERS USING YOUR REMOTE
You can set up timers for your appliance easily by using your remote control.You can set up timers for your appliance easily by using your remote control.
Once you have turned your fire on using the remote, simply press theOnce you have turned your fire on using the remote, simply press the Heater ONHeater ON icon to set a 15 minuteicon to set a 15 minute
timer. Each click of thetimer. Each click of the Heater ONHeater ON button adds another 15 minutes to the timer and this can be used forbutton adds another 15 minutes to the timer and this can be used for
a total of 90 minutes (6 clicks).a total of 90 minutes (6 clicks).

18 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
PROBLEMS CONNECTING
RESETTING YOUR FIRE
If you have entered a wrong email or password during the set-up process, then you may need to reset
your fire to factory settings. To do this your fire must be updated to the latest version, you can do this by
following the instructions on page 22.
Once your fire is fully updated you can reset it by turning it off and on at the power switch 5 times. Be
sure to allow 1 second between each click. There will be an audible beep after this has been done, you
can then continue with the set up process on page 18.
If you are having problems connecting your fire with your device and router please try the following
steps to fix the issue.
- Switch fire OFF
- Switch wi-fi router OFF
- Switch fire back ON (Keeping router OFF)
- Open the wi-fi settings on your device - find and select your product / fire
- Open the e-smart App on your device and select the settings icon
- In ‘Device Name’, rename your fire (Be sure not to use numbers or spaces when renaming your fire)Be sure not to use numbers or spaces when renaming your fire)
-- In the Settings menu scroll down to the IoT Registration and check that your email and password areIn the Settings menu scroll down to the IoT Registration and check that your email and password are
correct. You can click thecorrect. You can click the eye iconeye icon to help you see any mistakes. Press save.to help you see any mistakes. Press save.
-- Check you have selected the correct network and the wi-fi password entered is correct, you can clickCheck you have selected the correct network and the wi-fi password entered is correct, you can click
thethe eye iconeye icon to help you see any mistakes.to help you see any mistakes.
- Make sure- Make sure ‘Static IP’‘Static IP’ is NOT selected (unless advised by an IT professional). Press save and connect.is NOT selected (unless advised by an IT professional). Press save and connect.
- Wait 2 minutes for the fire to try and re-connect. Once this process is finished the App will show the- Wait 2 minutes for the fire to try and re-connect. Once this process is finished the App will show the
home screen (Page 20).home screen (Page 20).
- Switch your fire OFF.
- Switch your wi-fi router back ON.
- Switch your fire back ON.
If your wi-fi signal is weak, the App will show you a red warning message located on the home screen.
If your problems persist after attempting to re-connect, please contact our service department.

19
EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
RETRO-FITTING THE REMOTE CONTROL
In order to retro-fit your remote on older models, please ensure you follow these steps BEFORE you
attempt to use the remote control system.
1
To begin the retro-fit of the remote control,To begin the retro-fit of the remote control,
press the ‘update’ icon on the e-smart cloudpress the ‘update’ icon on the e-smart cloud
app home screen.app home screen.
2
Once the fire has updated, select theOnce the fire has updated, select the
settings icon on the home screen.settings icon on the home screen.
3
Once the settings panel is open, click ‘otherOnce the settings panel is open, click ‘other
options’.options’.
Scroll down to the section that statesScroll down to the section that states
‘allow remote control (universal)’. Ensure‘allow remote control (universal)’. Ensure
this is highlighted and press save.this is highlighted and press save.
4
56
Press save. You will then hear an audiblePress save. You will then hear an audible
beep to notify you of the pairing.beep to notify you of the pairing.
Turn your fire OFF, then back ON. YouTurn your fire OFF, then back ON. You
remote will now be paired and ready to use.remote will now be paired and ready to use.

20 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 SUITES. 1SUITES. 1
CONNECTING TO AMAZON ALEXA CONTINUED...
Once your fire is installed, and switched on,Once your fire is installed, and switched on,
download and open the Amazon Alexa app.download and open the Amazon Alexa app.
Once open single press More in the bottomOnce open single press More in the bottom
right hand corner.right hand corner.
Single press Skills & Games on the pop up list.Single press Skills & Games on the pop up list.
1 2
3
Single press Search and type in evonicfires.Single press Search and type in evonicfires.
Select the Evonicfires Halo skill icon to open.Select the Evonicfires Halo skill icon to open.
Now on the Evonicfires Halo skill page you canNow on the Evonicfires Halo skill page you can
single press the Enable to Use button to go tosingle press the Enable to Use button to go to
the log in page.the log in page.
4
