Evonicfires Alisio 850 User manual

1
E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
E-LLUSIONE-LLUSION
E-SmartE-Smart
INSTRUCTION MANUALINSTRUCTION MANUAL
EnglishEnglish
Alisio 850Alisio 850
Alisio 1150Alisio 1150
Alisio 1550Alisio 1550
Alisio 1850Alisio 1850
SirusSirus

2E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11
EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
CONTENTS
EU Directives and UKCA Standards......................................................................3
Important Information and Health & Safety........................................................... 4
Components for E-llusion.................................................................................... 5
Installation for Alisio.............................................................................................6
Model Dimensions...................................................................................... 7
Installation Process.................................................................................... 9
Converting to GF / GF2 / GF3.......................................................................10
Installing the Side Panels / Converting to GF / GF2.............................11
Requirements and Checks.......................................................................... 12
Installation................................................................................................. 13
Installation for Sirus............................................................................................. 17
Model Dimensions...................................................................................... 18
Requirements and Checks.......................................................................... 19
Installation................................................................................................. 20
Installation with Fascia Board........................................................... 21
Installation without Fascia Board...................................................... 22
Removing the Internal Glass....................................................................... 23
Log Layouts......................................................................................................... 24
Installing the Glass - Alisio....................................................................................26
Installing the Glass - Sirus.................................................................................... 30
Troubleshooting, Warranty, & Registration........................................................... 32

3
E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
All Evonic Fires products are in conformity with the relevant UK Statutory InstrumentsAll Evonic Fires products are in conformity with the relevant UK Statutory Instruments
(and their amendments).(and their amendments).
2016 No. 1101 The Electrical Equipment (Safety) Regulations 20162016 No. 1101 The Electrical Equipment (Safety) Regulations 2016
2016 No. 1091 The Electromagnetic Compatibility Regulations 20162016 No. 1091 The Electromagnetic Compatibility Regulations 2016
2012 No. 3032 The Restriction Of Use Of Certain Hazardous Substances In2012 No. 3032 The Restriction Of Use Of Certain Hazardous Substances In
Electrical And Electronic Equipment Regulations 2012Electrical And Electronic Equipment Regulations 2012
EU DIRECTIVES
All Evonic Fires products meet the requirements of the EC Directives.All Evonic Fires products meet the requirements of the EC Directives.
These directives have been met by compliance with the following standards:These directives have been met by compliance with the following standards:
EU 2011-65/EU 2015/863 Restriction of Hazardous Substances.EU 2011-65/EU 2015/863 Restriction of Hazardous Substances.
References to the relevant designated standards used:References to the relevant designated standards used:
EN 55014-1:2006 + A1:2009 + A2:2011 Electromagnetic Compatibility.EN 55014-1:2006 + A1:2009 + A2:2011 Electromagnetic Compatibility.
EN 55014-2:2015 Electromagnetic Compatibility.EN 55014-2:2015 Electromagnetic Compatibility.
EN 61000-3-2:2014 Electromagnetic Compatibility (EMC). Limits. Limits forEN 61000-3-2:2014 Electromagnetic Compatibility (EMC). Limits. Limits for
Harmonic Current Emissions.Harmonic Current Emissions.
EN 61000-3-3:2013 Electromagnetic Compatibility (EMC). Limits. Limitation ofEN 61000-3-3:2013 Electromagnetic Compatibility (EMC). Limits. Limitation of
Voltage Changes, Voltage Fluctuations and Flicker.Voltage Changes, Voltage Fluctuations and Flicker.
EN 60335-1:2012 + A11:2014 Household and similar electrical appliances - SafetyEN 60335-1:2012 + A11:2014 Household and similar electrical appliances - Safety
EN 60335-2-30:2009+A11:2012 Household and similar electrical appliances. Safety.EN 60335-2-30:2009+A11:2012 Household and similar electrical appliances. Safety.
Particular requirements for room heatersParticular requirements for room heaters
UKCA STANDARDS

4E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11
EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
IMPORTANT INFORMATION AND HEALTH & SAFETY
When using electrical appliances, basic precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
• Read all of the instructions carefully before using the appliance, only use this appliance
as described in this manual. Any other use not recommended by the manufacturer mayAny other use not recommended by the manufacturer may
cause injury to persons, or damage to the appliance.cause injury to persons, or damage to the appliance.
• Remove all packaging and dispose of it at an appropriate recycling facility.
•• When transporting or storing the appliance and power lead, keep in a dry place, awayWhen transporting or storing the appliance and power lead, keep in a dry place, away
from excessive vibration and store so as to avoid damage.from excessive vibration and store so as to avoid damage.
• This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. The trim around the heater outlet becomes hot during heater operation.
DANGER: High temperatures may be generated under certain abnormal conditions.
• Do not install this appliance immediately in front of a fixed socket outlet.
• Do not install this appliance in the immediate surroundings of a bath, shower,
swimming pool or any other area where the appliance could come into contact with
water or humidity, e.g. a bathroom.
•• Do not use in areas where gasoline, paint, or any flammable liquids are used or stored.Do not use in areas where gasoline, paint, or any flammable liquids are used or stored.
• This appliance is only suitable for indoor use, do not use outdoors.
• Do not cover the appliance, or let the air inlet/outlet to be obstructed in any way as it
may overheat.
• Keep the power lead away from hot surfaces and the heater outlet. Do not route the
power lead in front of the appliance, or under any carpets or rugs. Do not allow the
power lead to be coiled up once installed, as this can cause overheating.
• This appliance must be firmly fixed to or recessed into, a flat internal wall.
• A maintenance hatch must be installed into the surrounding installation to allow future
access.
• Always use a certified electrician should new circuits or outlets be required. And
always use properly grounded, fused and polarised outlets.
• Where the power lead passes through any masonry wall, stone surround etc. ensure
that suitable rubber bushes are fitted at any possible wear points.
• If the power lead is damaged do not use the appliance until it has been replaced.
• Do not use any external switching device, timers, or extension leads. Do not connect
the appliance to a circuit that is frequently switched on and off by the utility.
•• In the event of a malfunction, switch off the appliance, and disconnect it from theIn the event of a malfunction, switch off the appliance, and disconnect it from the
mains power supply. Have the appliance inspected by a certified electrician beforemains power supply. Have the appliance inspected by a certified electrician before
reusing.reusing.
• Do not use the appliance if it is damaged. In the event of any damage to the appliance,
please contact the retailer from whom the appliance was purchased.
• Any repairs must only be performed by a certified electrician.
• Extreme caution is necessary when any heater is used by, located near children or
people of reduced mobility, and whenever the unit is left operating and unattended.
• Young children should be supervised to ensure that they do not play with the appliance.
•• Disconnect from the power supply before performing any cleaning, maintenance orDisconnect from the power supply before performing any cleaning, maintenance or
relocation of the unit. Do not use steam cleaners, or aerosols near the appliance.relocation of the unit. Do not use steam cleaners, or aerosols near the appliance.
• Do not burn wood or anything else in this appliance.
• Do not strike the glass. The glass used is toughened safety glass, if broken it will
shatter into small chunks which are less likely to cause injury.
• Do not drill or screw any new holes into the appliance.

5
E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
COMPONENTS FOR E-LLUSION
ModelModel
Log Sets &Log Sets &
QuantityQuantity
Glass StonesGlass Stones
Clear &Clear &
AmberAmber
BlackBlack
VermiculiteVermiculite
GlassGlass
SideSide
PanelsPanels
SuctionSuction
LifterLifter
WallWall
BracketsBrackets
Wall BracketWall Bracket
FixingsFixings
Sirus FasciaSirus Fascia
Arctic /Arctic /
Sienna /Sienna /
SoapstoneSoapstone
RemoteRemote
ControlControl
PowerPower
LeadLead
E-llusionE-llusion
InstructionInstruction
ManualManual
E-llusion LogE-llusion Log
Set WoodlandSet Woodland
or Silver Birchor Silver Birch
WallWall
PlugsPlugs
Rear & TopRear & Top
BracketBracket
ScrewsScrews
Alisio 850Alisio 850 2 x2 x 2 x Clear2 x Clear
2 x Amber2 x Amber 2 x2 x YESYES 1 x1 x 1 x rear1 x rear
2 x top2 x top 13 x13 x 5 x rear5 x rear
8 x top8 x top 1 x1 x 1 x1 x 1 x1 x
Alisio 1150Alisio 1150 2 x2 x 2 x Clear2 x Clear
2 x Amber2 x Amber 2 x2 x YESYES 1 x1 x 1 x rear1 x rear
2 x top2 x top 13 x13 x 5 x rear5 x rear
8 x top8 x top 1 x1 x 1 x1 x 1 x1 x
Alisio 1550Alisio 1550 3 x3 x 3 x Clear3 x Clear
3 x Amber3 x Amber 3 x3 x YESYES 1 x1 x 1 x rear1 x rear
2 x top2 x top 13 x13 x 10 x rear10 x rear
8 x top8 x top 1 x1 x 1 x1 x 1 x1 x
Alisio 1850Alisio 1850 4 x4 x 4 x Clear4 x Clear
4 x Amber4 x Amber 4 x4 x YESYES 1 x1 x 1 x rear1 x rear
2 x top2 x top 13 x13 x 10 x rear10 x rear
8 x top8 x top 1 x1 x 1 x1 x 1 x1 x
SirusSirus 1 x1 x 1 x Clear1 x Clear
1 x Amber1 x Amber 1 x1 x 1 x1 x 1 x1 x
(Optional)(Optional) 1 x1 x 1 x1 x 1 x1 x

6E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11
EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
INSTALLATIONINSTALLATION
AlisioAlisio

7
E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
MODEL DIMENSIONS
The model shown in these drawings is an 1150, however the same
processes apply to all Alisio models.
Scan the QR code for more detailed specification drawings.

8E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11
EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
MODEL DIMENSIONS
Model Width Height Depth
With glass
sides
(A)(A)
With
optional
side panels
Overall unit
(B)(B)
Opening
(C)(C)
Overall unit
(D)(D)
850 882mm 902mm 557mm 350mm 315mm
1150 1182mm 1202mm 557mm 350mm 315mm
1550 1582mm 1602mm 557mm 350mm 315mm
1850 1882mm 1902mm 557mm 350mm 315mm

9
E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
INSTALLATION PROCESS
Alisio ModelAlisio Model
(GF)(GF)
GlassGlass
FrontedFronted
(GF2)(GF2)
Front &Front &
1 Glass Side1 Glass Side
(GF3)(GF3)
Front &Front &
2 Glass Sides2 Glass Sides
Fit 1 Side PanelFit 1 Side Panel
Page 11Page 11
Fit 2 Side PanelsFit 2 Side Panels
Page 11Page 11
InstallationInstallation
Page 12-16Page 12-16
Setup Your LogsSetup Your Logs
Page 17Page 17
Install Front GlassInstall Front Glass
Page 21Page 21
Complete!Complete!
Fit 1 Glass SideFit 1 Glass Side
Page 21Page 21
Fit 2 Glass SidesFit 2 Glass Sides
Page 21Page 21
Fit the Angled ScreenFit the Angled Screen
Page 19Page 19

10 E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11
EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
CONVERTING TO GF / GF2 / GF3
The appliance is shipped in the GF3 configuration, however it can be converted to be GF
or GF2 depending on your preference.
GF Configuration
Glass Fronted
A single glass panel at the front of the
appliance.
GF2 Configuration
Glass Fronted 2
A glass panel at the front and one side piece of
glass. The glass can be either side.
GF3 Configuration
Glass Fronted 3
The standard configuration.
A glass panel at the front and both side pieces
of glass.

11
E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
INSTALLING THE SIDE PANELS / CONVERTING TO GF / GF2
1Unscrew and remove the plaster kits from the side/s of the appliance.
2Screw in the side panel/s, on one or both sides.

12 E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11
EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
INSTALLATION REQUIREMENTS
INSTALLATION
CHECKS BEFORE INSTALLATION
Before installing the appliance please read and take into account the following important
requirements;
• Consult a qualified professional to check the structure of the installation site.
• These appliances have been designed to be installed into either a stud and
plasterboard wall, or an existing chimney breast. (Please note that GF2, and GF3
models are not suitable for existing chimney breast installations.)
• If installing into an existing chimney, make sure to adequately block off the flue.
• The 1850 appliance requires extra support due to its size and weight, as such it is not
suitable for ‘floating’ installations.
• The appliance must never be installed in front of an electrical socket.
• The appliance must not be installed anywhere that it may come into contact with water,
i.e. a bathroom.
• Do not wet plaster directly onto the appliance.
We recommend turning on the appliance before installation, connect the appliance to a
power source using the provided electrical lead, and depress the right side of the rocker
switch.
Remove the electrical lead from the wall and continue with the installation.

13
E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
TOOLS REQUIRED
• Tape Measure
• Pencil
• Spirit Level
• Screwdriver
• PZ2 Screw Bit
• Drill Bit
• Rear Wall Bracket Plugs (Masonry type
supplied)
• Rear Wall Screws (Masonry type supplied)
• Top Mounted Bracket Screws (supplied)
• Top Mounted Bracket Wall Plugs (supplied)
• Stud Detector (Plasterboard installations
only. Not supplied)
• Wall Anchors (Plasterboard installations
only. Not supplied)
The appliance is supplied with a rear wall bracket, the size of this bracket and the number
of screw holes varies between models.
INSTALLATION STEPS
1Remove the bottom transit brackets, then screw on the top mounted brackets.
x 1 Rear Wall Bracket x 2 Top Mounted
Wall Brackets

14 E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11
EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
2
Determine the finished height and position that you want the appliance to be
located. Then secure the wall bracket to the wall in the position you need using
the wall plugs and screws provided. If you’re not securing the appliance to a
masonry wall you will need to use the appropriate fixings.
3
You can now hang the appliance on the wall by slotting the tabs of the wall
bracket into the slots on the back of the appliance. If you are installing an 1850
you will need to provide extra support for the appliance.

15
E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
4Screw the two top mounted brackets to the wall.
5
When constructing the studwork,
remember that the vents on the underside
of the appliance need a minimum of 50mm
clearance beneath them.
Ensure that the appliance isn’t supporting
the weight of the studwork.
Before plasterboarding in the appliance
it is recommended that you create a
maintenance hatch for future access.
Do not use silicones, adhesives, or wet
plaster to seal in the appliance.
You can now construct your stud wall/s around the appliance in the design of
your choosing.

16 E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11
EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
6Your plasterboard can now line up with the plaster kits on the edge of the
appliance.
7Alternatively, the chrome side panels can be attached to the case with the
magnets as shown below.
Ensure that the magnets are positioned
with the short side touching the case.

17
E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
INSTALLATIONINSTALLATION
SirusSirus

18 E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11
EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1

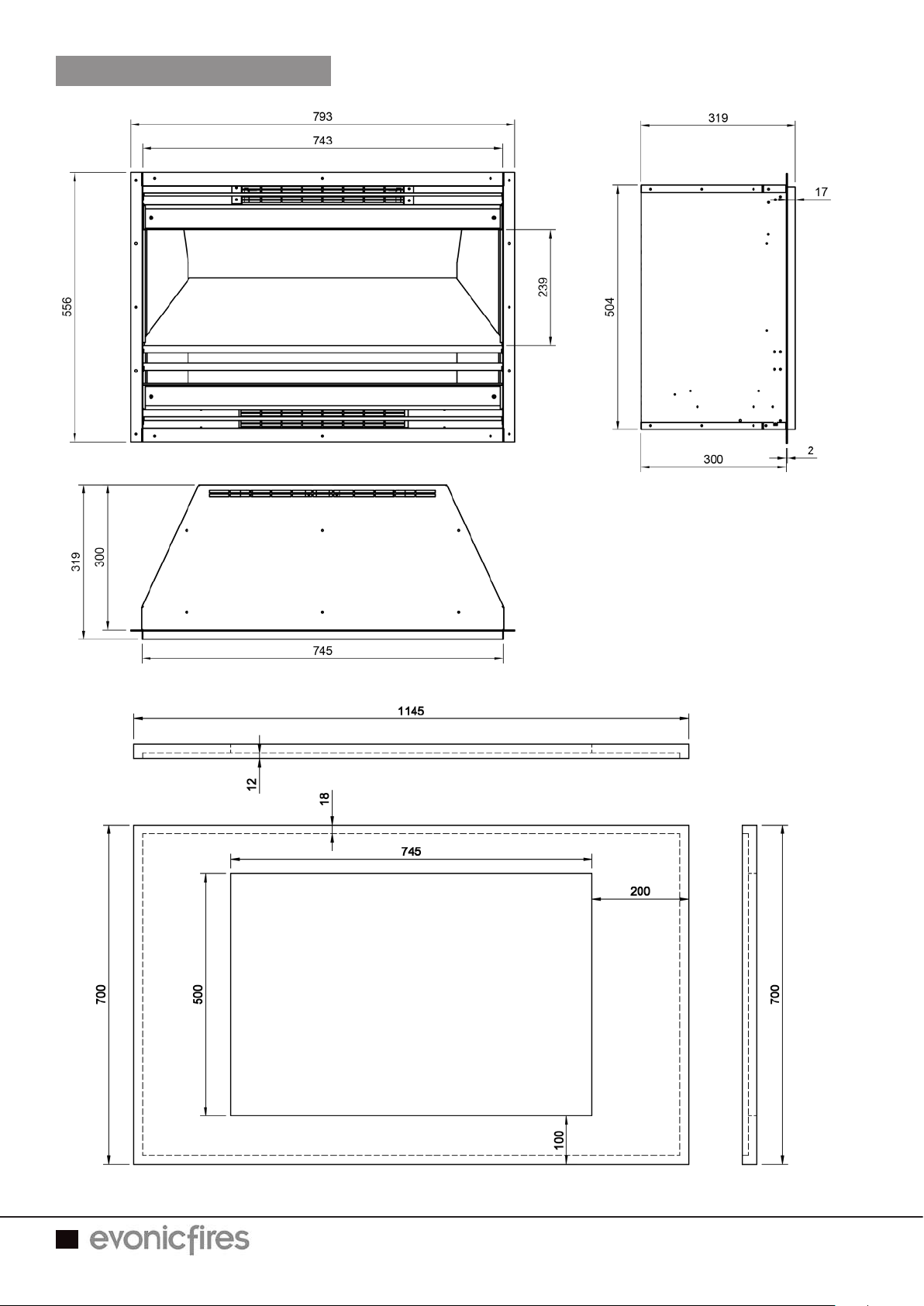

MODEL DIMENSIONS

19
E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
Before installing the appliance please read and take into account the following important
requirements;
• Consult a qualified professional to check the structure of the installation site.
• This appliance has been designed to be installed into either a stud and plasterboard
wall, or an existing chimney breast.
• If installing into an existing chimney, make sure to adequately block off the flue.
• The appliance must never be installed immediately in front of an electrical socket.
• The appliance must not be installed anywhere that it may come into contact with water,
i.e. a bathroom.
INSTALLATION REQUIREMENTS
INSTALLATION
TOOLS REQUIRED
• Tape Measure
• Pencil
• Spirit Level
CHECKS BEFORE INSTALLATION
We recommend turning on the appliance before installation, connect the appliance to a
power source using the provided electrical lead, and depress the right side of the rocker
switch.
• Screwdriver
• PZ2 Screw Bit
• Screws (Supplied)

20 E-LLUSION MANUAL ISS. 11E-LLUSION MANUAL ISS. 11
EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
INSTALLATION STEPS
First, unscrew and remove the four transit brackets on the bottom corners of
the fire. You won’t need these for the installation. Then measure the appliance,
excluding the plaster kits, to determine the size of the opening you need to
create.
1
When constructing your studwork ensure that the appliance will have a
minimum of 20mm clearance around the top and bottom mounted vents.
2
Ensure that the
appliance isn’t
supporting the weight
of the studwork.
