Product Specification Sheet Roam™ RGB 44 Series LED Tape Light
EVORALIGHT.COM 844.964.1600 [email protected]
01
3/8" 10 mm
5/8" 16 mm
Project: Type: Quote/Ref:
Explore millions of colors with the Roam™ RGB 44 Series as you
tap into your creativity. With 300 LEDs per 16.4 ft reel, every
shade you choose will appear vibrantly bold and vividly bright.
Pair this tape light with an RGB controller to take full advantage
of its lighting capabilities. The Roam™ RGB 44 Series is fully
dimmable and can change colors in different styles, such as
fading, flashing, and more. Create playful settings for events,
themes, and moods in residential or commercial spaces.
Description
Warranty
15 Year
Product Features
Component Ordering Process
Voltage
LEDs/ft
Beam Angle
Ambient Temp
LED pitch
Cutting Points
Max Run Length in Series
LED Size
Adhesive Type
Dimmable
Spool Size
24V DC Input
18 LEDs/ft (60 LEDs/m)
120° Beam Angle
-4°F to +104°F (-20°C to 40°C)
3/4" (17 mm)
4" (100 mm)
32'10" ft (10 m)
5050
3M VHB 4930 tape (IP20)
Yes
16.4 ft (5 m) or 100 ft (31 m)
01 02 03 04
Connector Options Channel OptionsDriver Options
RM44 Length
Length
Dimensions
100 mm4”
SKU Builder
1/16" 2 mm
RGB 24V
- - -
Series: Roam™ 44 Color Temp. Voltage
(Click to select your Length)
Ex: RM44-RGB-24V-16FT
16FT - 16.4 ft
100FT - 100 ft
DC
AC
LED Tape Light
Product Specifications
RM44-RGB-24V 33.6 lm/W 4.4 W/ft (14.4W/m)
R: 49 lm/ft (161 lm/m)
G: 87 lm/ft (284 lm/m)
B: 20 lm/ft (66 lm/m)
ALL Channels:
151 lm/ft (496 lm/m)
R: 617-627 nm
G: 515-525 nm
B: 464-474 nm
32' 10" (10 meters)
Product
SKU Luminous Efficacy Watts /ft (Meter) Lumen / Foot (Meter) Color Wave Lengths Max Run Length

Product Specification Sheet Roam™ RGB 44 Series LED Tape Light
EVORALIGHT.COM 844.964.1600 [email protected]
02

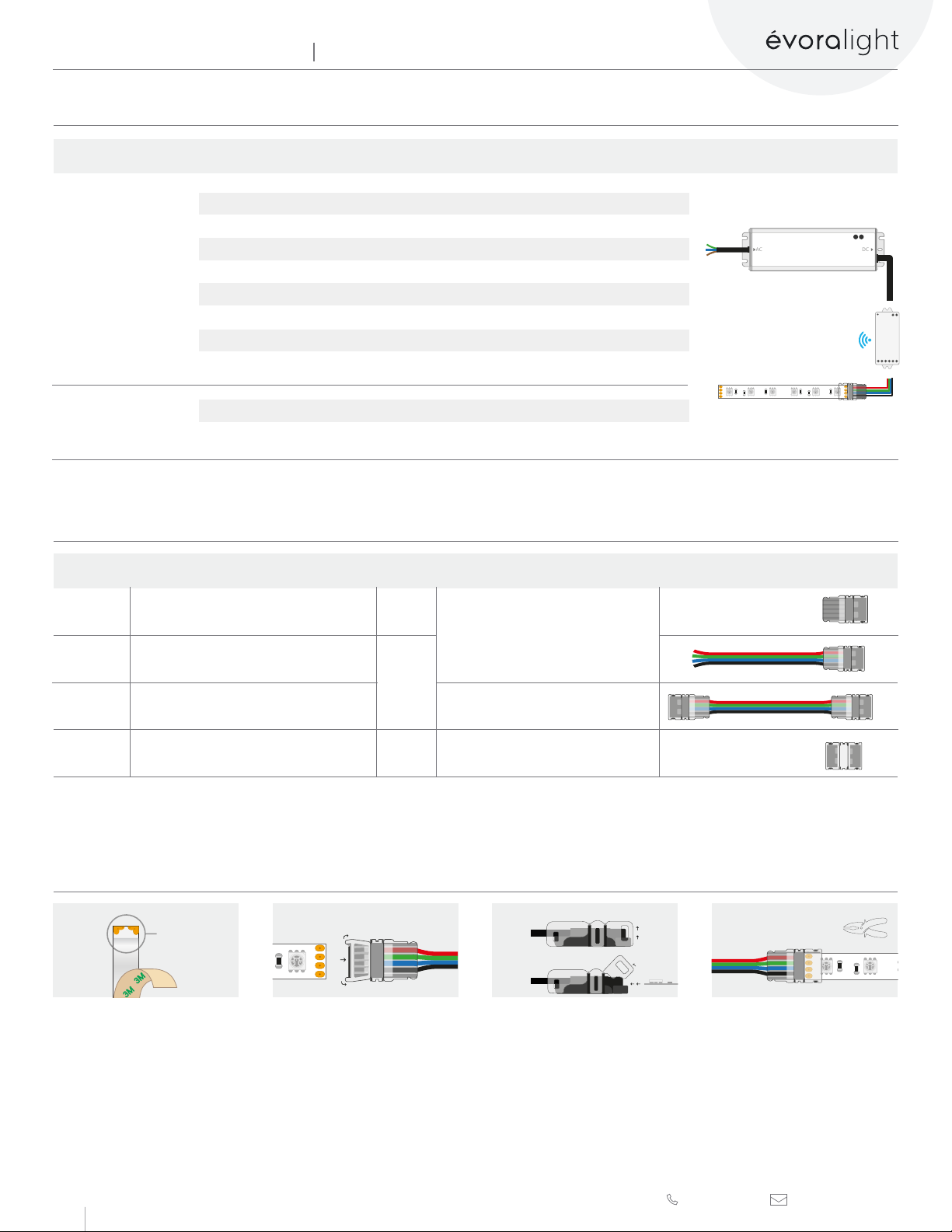

Compatible Drivers
Mean Well™ HLG Driver
Mean Well™ LPV Driver
HLG-40H-24A
HLG-60H-24A
HLG-100H-24A
HLG-120H-24A
HLG-185H-24A
HLG-240H-24A
HLG-320H-24A
HLG-600H-24A
X
X
X
X
X
L: 6 3/4" W: 2 1/2" H: 1 1/2"
L: 6 3/4" W: 2 1/2" H: 1 1/2"
L: 8 5/8" W: 2 11/16" H: 1 1/2"
L: 8 5/8" W: 2 11/16" H: 1 1/2"
L: 9" W: 2 11/16" H: 1 1/2"
L: 9 5/8" W: 2 11/16" H: 1 1/2"
L: 9 7/8" W: 3 1/2" H: 1 3/4"
L: 11" W: 5 5/8" H: 1 7/8"
1 - 7 ft
8 - 12 ft
13 - 19 ft
20 - 24 ft
25 - 36 ft
37 - 48 ft
49 - 67 ft
68 - 120 ft
LPV-35-24
LPV-60-24
L: 5 7/8" W: 1 9/16" H: 1 1/8"
L: 5 7/8" W: 1 9/16" H: 1 1/8"
5 - 7 ft
8 - 12 ft
Power Supply LED Tape
Length Product SKU Class 2 Dimensions Diagram
DC
AC
**
*Be sure no more than 5 amps is run through any solderless connector.
Calculate max length of LED tape to follow the solderless connector based on an amperage draw of 0.18 A/ft (0.60 A/m).
Connectors
Installation
Type
EVO-4-C-0
EVO-4-C-36
EVO-4-J-06
EVO-4-J-0
Two Conductor Connector with no wire
Two Conductor Connector with 36" wire
Two Conductor Jumper Connector 6" wire
Two Conductor Jumper Connector with no wire
SKU DescriptionWire Gauge Mockup
01 02 03 04
R
G
B
+
Peel off
adhesive here
3M
3M
20 AWG
Remove 1/4" of 3M adhesive tape
on the back from the end of the strip
that you want to connect. It must be
removed to allow it to fit properly
with the solderless connector.
Double check the polarity of the
tape to match the positive (+)
markings together and negative (-)
markings together. If you
accidentally close the connector
before you’re ready, you can use a
small flathead screwdriver to pry the
top back open.
Open the top of the EVO connector
and insert the LED tape inside.
Make sure the LED tape is facing
up towards the translucent top and
the solder pads are directly above
the small hooks on the connector.
Once everything is in order, use
pliers to close and lock the
connector. You may hear a “click”
sound when it is properly closed.
Attaches LED tape directly to a
Power Supply/Driver, low
voltage control, or DC source.
Attaches two sections of LED
tape together. Wire lead allows
for turns around tight corners.
Attaches two sections of LED
strip together in a continuous
run.

Product Specification Sheet Roam™ RGB 44 Series LED Tape Light
EVORALIGHT.COM 844.964.1600 [email protected]
03
Compatible Aluminum Extrusions
Kit SKU
Name Type Included Accessories Covers Mockup
Berlin
Tokyo
Oslo
Madrid
Vienna
Milan
Lima
Mud-in
Surface Mount
Surface Mount
Surface Mount
Angled/Surface Mount
Recessed
Heat Sink
2 Open End Caps
2 Closed End Caps
BER-CH-A-CVR-F-1M
BER-CH-A-CVR-O-1M
Frosted Cover
Opal Cover
Frosted Cover TOK-CH-A-CVR-F-1M
LIM-CH-A-1M- -
Clear Cover
Frosted Cover
Opal Cover
OSL-CH-A-CVR-C-1M
OSL-CH-A-CVR-F-1M
OSL-CH-A-CVR-O-1M
Clear Cover
Frosted Cover
Opal Cover
MAD-CH-A-CVR-C-1M
MAD-CH-A-CVR-F-1M
MAD-CH-A-CVR-O-1M
VIE-CH-A-CVR-C-1M
VIE-CH-A-CVR-F-1M
VIE-CH-A-CVR-O-1M
Clear Cover
Frosted Cover
Opal Cover
Frosted Cover
Opal Cover
MIL-CH-A-CVR-F-1M
MIL-CH-A-CVR-O-1M
2 Open End Caps
2 Closed End Caps
4 Metal Mounting Clips w/Screws
2 Open End Caps
2 Closed End Caps
4 PC Mounting Clips w/Screws
2 Open End Caps
2 Closed End Caps
4 Metal Mounting Clips w/Screws
2 Open End Caps
2 Closed End Caps
4 Metal Mounting Clips w/Screws
2 Open End Caps
2 Closed End Caps
4 Metal Mounting Clips w/Screws

Product Specification Sheet Roam™ RGB 44 Series LED Tape Light
EVORALIGHT.COM 844.964.1600 [email protected]
04
Safety and Disclosures
Warranty Information
Contact
1. Installation must be in accordance with local and national electrical code regulations.
2. To ensure safety and correct installation, our tapes are intended to be installed by a qualified, licensed electrician.
3. Only install with a Class 2 DC Constant Voltage LED driver to meet UL requirements.
4. Do not install in environment where excessive heat may exist.
5. LED tape lights must be handled with care. Excessive handling, bending, and pressure may damage the product, voiding the warranty.
Do not bend the strip horizontally.
6. Do not install indoor LED tape light products in outdoor / wet location environments. Only use copper wiring. Use wires rated for at least 167°F (75°C)
and certified for use with external connection of electrical equipment.
7. Each maximum run requires a dedicated power feed from the driver. Do not extend beyond the recommended maximum run length.
8. Make sure the appropriate gauge wire is installed between driver, LEDs, and any dimmers. When choosing wire, calculate voltage drop, maximum
amperage rating, and the location ratings on the wire. Improper wire selection and installation could overheat wires, and cause fire.
9. Do not modify product beyond instructions or warranty will be void.
10. We reserve the right to modify and improve the design of our fixtures without prior notice. Although we try our best to order the same colors every
time, due to changes in technology and phosphors over time, we cannot guarantee to match existing installed fixtures for subsequent orders or
replacements in regards to product appearance, CCT, or lumen output.
This product has a 15 year limited warranty from the date of shipment. This warranty only includes the main product outlined in this specification sheet and does
not include the additional accessories that are used as a reference. Complete warranty details for fixtures and additional accessories are available at
https://www.evoralight.com/ within the Policies section. For warranty related questions please contact product support team at ([email protected]).
Évoralight, Inc. stands behind its products when they are used properly and according to our specifications. When you purchase our products, you are agreeing
to the terms and conditions outlined in our warranty section. We try our best to make recommendations, but the burden of proper installation, design, and
maintenance relies on the purchaser. This limited warranty does not include product failures that are the result of: Not using a voltage regulated power supply
to connect the LED product or controls; Connecting LED products to the wrong output voltage; Improper connection of power supplies, LED products, or controls;
Connecting LED products or controls directly to any AC power source if they are stated for DC only input; Connecting power supplies backwards to an AC power
source; Products used in an inappropriate location or in environmental conditions (temperature, humidity, moisture, etc.) outside the normal specified range;
Water damage to products not specifically sold as waterproof products; Electrical power surges and spikes; Damage from hail, flooding, tornado, fire, wind,
earthquake, lightning, electrical storm, or any other natural disasters or “force majeure” incidences; Damage caused by a vehicle or other accident; Damage
caused when transporting the item; Damage to any products that were modified by the user, used for purposes other than as intended or directed, or connected
to LED systems or components not purchased from Évoralight; Products that have been subjected to misuse, mishandling, misapplication or accident. Products
used in connection with any components, devices or systems other than those explicitly approved as compatible with Company’s products and listed on
Company’s website. Excessive wear and tear and/or physical or accidental abuse, loss, or theft. Improper repairs or warranty services performed by someone
other than Évoralight will void this warranty.
