OWNER’S MANUAL
4320.1-080117
710ST SMART TECHNOLOGY
FLYWHEEL ELLIPTICAL TRAINER
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference. The specifications of this product may vary from
this photo and, subject to change without notice.

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
STOP. Contact customer service if you have any questions
regarding assembly or proper operation of the machine.
Email us at:
[e-mail]
Or call us at:
1-844-641-7921
Hours:
8:00 am to 5:00 pm (PST) Daily

1
TABLE OF CONTENTS
SERVICE ------------------------------------------------------------------------------------ 2
LABEL PLACEMENT --------------------------------------------------------------------- 3
IMPORTANT SAFETY GUIDELINES ------------------------------------------------ 4
OVERVIEW DRAWING ------------------------------------------------------------------ 6
PARTS LIST -------------------------------------------------------------------------------- 8
HARDWARE & TOOLS PACK -------------------------------------------------------- 10
ASSEMBLY --------------------------------------------------------------------------------- 11
ADJUSTMENTS -------------------------------------------------------------------------- 24
CONSOLE---------------------------------------------------------------------------------- 25
TRANSPORTATION -------------------------------------------------------------------- 27
TROUBLESHOOTING & MAINTENANCE ----------------------------------------- 28
WARRANTY ------------------------------------------------------------------------------- 29
PARTS REQUEST FORM ------------------------------------------------------------- 30

2
SERVICE
IMPORTANT: FOR NORTH AMERICA ONLY
For damaged or defective product, questions, replacement parts or any other service
support, please contact our customer service department by the below methods:
For The Best Service, please Email:
[e-mail]
Response Time: 1-2 Business Days
Emailing us with the information above will be the best method to receive a response during
peak business hours
Website:
www.paradigmhw.com
Toll-Free:
1-844-641-7921
(8:00 AM - 5:00 PM Pacific Standard Time, Daily)
Response time may vary via calling
Please have the following information ready when requesting for service:
Your name
Phone number
Model number
Serial number
Part number
Proof of Purchase
For damaged or defective product please contact our customer service before returning to
the store.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave.
City of Industry, CA 91748, USA

3
LABEL PLACEMENT

4
IMPORTANT SAFETY GUIDELINES
Read all guidelines before using this machine. When using this machine,
basic precautions should always be followed, including the following:
WARNING - To reduce the risk of injury to persons:
1. Make sure your equipment is correctly assembled before you use it.
2. Be sure all screws, nuts, and bolts are tightened prior to use.
3. Before using this equipment, we recommend doing warm ups.
4. Only one person should be using the equipment at a time.
5. Never operate this Equipment if it is damaged, if it is not working properly, has been dropped, or
damaged. If a problem is encountered contact Customer Service before using the equipment
again.
6. Always use this equipment on a clear and level surface.
7. For household use only.
8. Do not use outdoors or near water.
9. Use the machine only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
10.Do not wear loose clothing when using the equipment.
11.Never drop or insert any object into any opening.
12.If at any time you feel faint, light-headed, or dizziness while operating the equipment, stop
exercising immediately. You should also stop exercising if you are experiencing pain or any
discomfort.
13.For any problems contact customer service. Servicing should be performed by an authorized
service representative. Our contact number is on the service page.
14.This product requires a minimum of 6 square feet of space for safe operation.
15.Be careful to always hold onto the handlebars when you’re mounting and dismounting.
16.Be careful to have the pedals at their lowest point when stepping off.
17.Hold onto the handlebars and use both the pedals in tandem to ensure a smooth, effective
workout.
18.Warning: - Risk of Personal Injury - Consult with your personal physician to see if exercise
equipment is appropriate for you. This is especially important for people with pre-existing health
problems. Do not use this equipment without your physician's approval.
19.Warning:- Risk of Personal Injury –Do not allow children to use this machine.
20.Warning:- Risk of Personal Injury - Keep children under the age of 13 away from the
machine.
21.Warning:- Risk of Personal Injury –Keep body parts, hair, loose clothing, and jewelry
clear of all moving parts.
22.Warning: - Risk of Personal Injury - Do not attempt to service the unit yourself. Discontinue
use and contact customer service.
23.Warning: - To Reduce The Risk Of Personal Injury - Read And Understand All The
Instructions Before Using This Machine

5
The product weighs more than 44 lbs. It is heavily
recommended that at least 2 persons assemble.
IMPORTANT SAFETY GUIDELINES
Do not use this equipment if you have any of the following conditions or ailments:
Pregnancy
Extreme obesity
Middle ear infection
Hiatus hernia or Ventral hernia
Glaucoma, retinal detachment or conjunctivitis
Use of anticoagulants including Aspirin in high doses.
Spinal injury, Cerebral Sclerosis, or acutely swollen joints
Heart or circulatory disorders for which you are being treated
High blood pressure, Hypertension, Recent stroke or Transient Ischemic attack
Bone weaknesses including Osteoporosis, Unhealed fractures, Modular pins, or surgically implanted
orthopedic supports.
DO NOT EXCEED THE MAXIMUM RATED WEIGHT CAPACITY
The Maximum Weight Capacity for this product is 275 lbs/125 kgs.
RETAIN THIS OWNER’S MANUAL AND KEEP THE ORIGINAL
PURCHASE RECEIPT FOR FUTURE REFERENCE.
&
SAVE THESE GUIDELINES
!

6
OVERVIEW DRAWING

7
OVERVIEW DRAWING

8
PARTS LIST
No.
Description
Qty
No.
Description
Qty
1
Main Frame
1
25
Flat Washer Φ6
6
2R
Right Foot Bar
1
26
Nylon Nut M6
10
2L
Left Foot Bar
1
27L
Left Pedal Bolt φ16*88.5*L23
1
3L
Left Handrail
1
27R
Right Pedal Bolt φ16*88.5*L23
1
3R
Right Handrail
1
28
Wave Washer φ28*φ17*0.3
2
4L
Left Handrail Arm Ф32*1.5
1
29
Bushing Ф24.5*Ф16*14
4
4R
Right Handrail Arm Ф32*1.5
1
30
Spring Washer Ø20
2
5
Front Post
1
31L
Left Nylon Nut
1
6
Handlebar Ф25*1.5
1
31R
Right Nylon Nut
1
7
Front Stabilizer Ф60*1.5*480
1
32
Nut Cap
2
8
Rear Stabilizer
1
33
Bolt M8*55
2
9
Self-Tapping Phillips Screw ST4.2*15
17
34
Bushing φ18*φ8*5
4
10R
Front Right Handrail Cover
1
35
Flat Washer Ф16*Ф8*1.5
4
10L
Front Left Handrail Cover
1
36
Nylon Nut M8
4
11R
Rear Right Handrail Cover
1
37
U-Shaped Bracket
2
11L
Rear Left Handrail Cover
1
38
Front Stablizer End Cap
2
12
Foam Grip
2
39
Carriage Bolt M8*75
4
13
Spring Washer φ8
18
40
Big Curve Washer φ8
4
14
Flat Washer
2
41
Cap Nut M8
4
15
Handlebar End Cap
2
42
Crank Cover
2
16
Bushing φ38，φ32，φ19，14
4
43
Left Crank
1
17
Barrel Bolt φ15.8*62.5
2
44
Rear Stabilizer End Cap
2
18
Bushing φ14.2*φ10.2*10
4
45
Bolt M8*20
13
19
Flat Washer φ6
2
46
Bushing Ф32*Ф16.5*Ф50
2
20
Phillips Screw
2
47
Right Crank
1
21
Self-Tapping Phillips Screw ST4.2*20
14
48
AC Adaptor
1
22L
Left Foot Bar Cover
2
49
Front Post Wire
1
22R
Right Foot Bar Cover
2
50
Rear Post Cover
1
23
Bolt M6*40 L20
6
51
Front Post Cover
1
24
Left Pedal 395*150*65
1
52
Phillips Screw M5*10
4

9
PARTS LIST
No.
Description
Qty
No.
Description
Qty
53
Console
1
78
Flywheel Cover
1
54
Curve Washer φ16*φ8
10
79
Nut M6 S10
2
55
Bottle Holder
1
80
Left Rear Frame Cover
1
56
Lower Hand Pulse wire 750mm
2
81
U shape Bracket 31*30*δ1.0
2
57
Handrail Arm Cap
2
82
Nut M10
2
58
Right Pedal 395*150*65
1
83
Eyebolt M6*36
2
59
Adaptor Wire 550mm
1
84
Flange Nut M10*1.0*6
2
60
Flat Nut S15
1
85
Magnet Wheel
1
61
Foam Grip
2
86
Idle Wheel Bracket
1
62
D Washer Ф19
2
87
Guide Pulley
1
63
Curve Washer Ø6
4
88
Flat Washer Ф12*Ф6*δ1.0
1
64
Carriage Bolt M6*35
4
89
Phillips Screw M6*10
1
65
Self-Tapping Phillips Screw
ST4.2*20
17
90
Eyebolt M8*65
1
66
Motor
1
91
Right Rear Frame Cover
1
67
Speed Sensor
1
92
Left Cover
1
68
Self-Tapping Phillips Screw
ST2.9*12
2
93
C-Clip Ф20
2
69
Phillips Screw M6*15
4
94
Motor Tension Cable
1
70
Belt Pulley
1
95
Wave Washer Ф17
1
71
Pulley Axle
1
96
Bearing
2
72
Spring Washer Ф6
6
97
Shroud Cap
6
73
Lock Nut M6 S10
4
98
Upper Console Wire
1
74
Plastic Bolt Ф8
1
99
Upper Hand Pulse Wire
1
75
Right Cover
1
100
Main Frame Wire
1
76
Belt
1
101
AC Cable Plug
1
77
Crank Cover
2
102
Hand Pulse Sensor
2

10
HARDWARE & TOOLS PACK

11
ASSEMBLY
Metal Tube
Remove the Metal Tubes from the Main Frame (1) by using 6mm Allen Wrench provided. Discard
the metal tubes and any hardware that was attached at this point as they will not be used in the
actual assembly.
1
6mm Allen Wrench 1PC
TOOL

12
ASSEMBLY
STEP 1
1A. Installing the Front Stabilizer –Lift up the front of the Main Frame (1)and align the holes of
the Front Stabilizer (7) with the bracket holes on the Main Frame (1).Ensure that the wheels on
the Front Stablizer End Cap (38) are facing outwards. Secure and tighten the Front Stabilizer (7)
with two Carriage Bolts (39), two Spring Washers (13), two Big Curve Washers (40), and two
Cap Nuts (41). Then tighten using the Multi-Hex Wrench provided.
1B. Installing the Rear Stabilizer –Lift the rear of the Main Frame (1) up and slide the Rear
Stabilizer (8) onto the curved bracket. Align the holes on the Main Frame (1) and the Rear
Stabilizer (8). Secure and tighten the Rear Stabilizer (8) with two Carriage Bolts (39), two Spring
Washers (13), two Big Curve Washers (40), and two Cap Nuts (41). Then tighten using the
Multi-Hex Wrench provided.
HARDWARE PACK
TOOL
Multi-Hex Wrench 1PC
(39) Carriage Bolt
4 PCS
(40) Big Curve Washer
4PCS
(41) Cap Nut
4PCS
(13) Spring Washer
4PCS

13
ASSEMBLY
MUST TIGHTEN IN SEQUENCE: A,B,C,D,E,F,G,H.
STEP 2
2A. Removing The Hardware From The Front Post –Use the 6mm Allen Wrench to remove
eight Bolts (45), eight Spring Washers (13), and eight Curve Washers (54)from the Main Frame
(1). Set the hardware aside.
2B. Connecting The Console Wires –Connect the Front Post Wire (49)from the Front Post (5)
with the Main Frame Wire (100) from the Main Frame (1). See Fig. A.
2C. Installing The Front Post –Place the Front Post (5) onto the Main Frame (1). Reinstall the
previously removed hardware: eight Bolts (45), eight Spring Washers (13), and eight Curve
Washers (54) and securely tighten the bolts in sequence using the 6mm Allen Wrench provided.
6mm Allen Wrench 1PC
TOOL
!
PRE-INSTALLED HARDWARE
(45) Bolt
8PCS
(13) Spring
Washer
8PCS
(54) Curve Washer
8PCS

14
ASSEMBLY
STEP 3
3A. Installing Bushings –Attach two Bushings (46)onto the rods coming out from the Front
Post (5).
3B. Installing The Left Handrail –Insert the Left Handrail (3L) onto the left side of the Front Post
(5). Slide the Left Handrail (3L) onto the left rod of the Front Post (5). Secure the Left Handrail
(3L) using one D-Washer (62), one Flat Washer (14), one Spring Washer (13), and one Bolt (45).
Ensure the notch of the D-Washer (62) sits properly in the groove of the rod on the Front Post (5).
Tighten the Bolt (45) using the 6mm Allen Wrench Provided.
3C. Installing The Right Handrail –Repeat the same assembly steps above for installing the
Right Handrail (3R) onto the right rod of the Front Post (5).
6mm Allen Wrench 1PC
TOOL
PRE-INSTALLED HARDWARE
(62) D Washer
2PCS
(13) Spring
Washer
2PCS
(45) Hex Bolt
2PCS
(14)
Flat Washer
2 PCS

15
ASSEMBLY
STEP 4

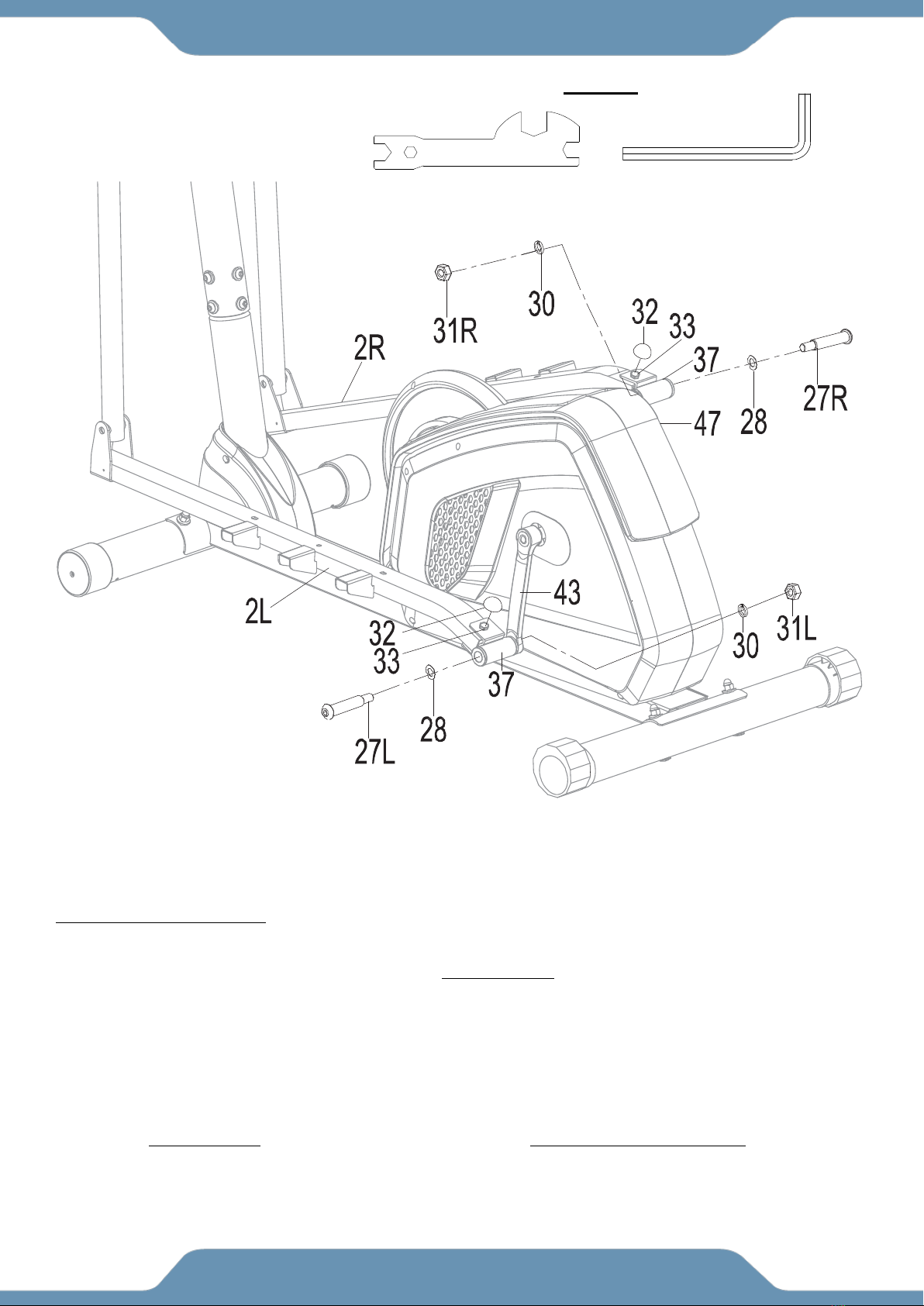

4A. Left Foot Bar Installation –Insert the Left Pedal Bolt (27L) along with a Wave Washer (28)
through the U Shaped Bracket (37) located on the back of the Left Foot Bar (2L). Secure the Left
Pedal Bolt (27L) to the Left Crank (43)by turning the Left Pedal Bolt (27L)
COUNTER-CLOCKWISE. Tighten the Left Pedal Bolt (27L) with the 8mm Allen Wrench provided.
Install a Spring Washer (30)and Left Nylon Nut (31L) on the protruding end of the Left Pedal
Bolt (27L). Turn the Left Nylon Nut (31L) in a CLOCKWISE direction. Tighten both the Left Pedal
Bolt (27L) and Left Nylon Nut (31L) simultaneously using the 8mm Allen Wrench and Multi-Hex
Wrench provided. Then place the Nut Cap (32)onto the Head of the Bolt (33).
4B. Right Foot Bar Installation –Repeat the above assembly steps to install the Right Foot Bar
(2R) into the Right Crank (47). When installing the Right Pedal Bolt (27R) turn the Right Pedal
Bolt (27R) CLOCKWISE and the Right Nylon Nut (31R) COUNTER-CLOCKWISE.
8mm Allen Wrench
1PC
TOOLS
Multi-Hex Wrench
1PC

16
ASSEMBLY
NOTE: Look to Fig. B for the correct installation of the Pedal Bolts.
Keep the bolt perfectly straight when the bolt goes through the Foot
Bars, and is being screwed into the Crank correctly. If the bolt is
screwed into the crank at an angle, this may damage the
equipment.
Installing Right Pedal Bolt into Right Crank can only be done
by turning it CLOCKWISE. Installing the Left Pedal Bolt into the
Left Crank can only be done by turning
COUNTER-CLOCKWISE.
Installing the Right Nylon Nut can only be done by turning it
COUNTERLOCKWISE. Installing the Left Nylon Nut can only be
done by turning it CLOCKWISE.
Incorrect #1: There is a missing gap between bolt & crank. Be sure
to tighten all gaps.
Incorrect #2: There is a missing gap between washer and nut. Be
sure to tighten all gaps.
Incorrect #3: The bolt is not installed straight and level. Be sure to
install the bolt straight and level into the crank.
#1
#2
#3
v
HARDWARE PACK
(30) Spring Washer
2PCS
(28) Wave Washer
2PCS
(27R/L) Right / Left Pedal
Bolt 2PCS
(31R) Right Nylon Nut
1PC
(32) Nut Cap
2PCS
(31L) Left Nylon Nut
1PC
(27L)/(27R)
(28)
(37)
(30)
(31L)/(31R)
Figure B

17
ASSEMBLY
STEP 5
5A. Left Pedal Installation –Install the Left Pedal (24)onto the Left Foot Bar (2L) using three
Bolts (23), three Flat Washers (25) and three Nylon Nuts (26). Tighten the Nylon Nuts (26) using
the Multi Hex Wrench provided.
5B. Right Pedal Installation –Repeat the above steps to install the Right Pedal (58) onto the
Right Foot Bar (2R).
Multi-Hex Wrench 1PC
TOOL
(26) Nylon Nut
6 PCS
(25) Washer
6 PCS
(23) Bolt 6 PCS
HARDWARE PACK

18
ASSEMBLY
STEP 6

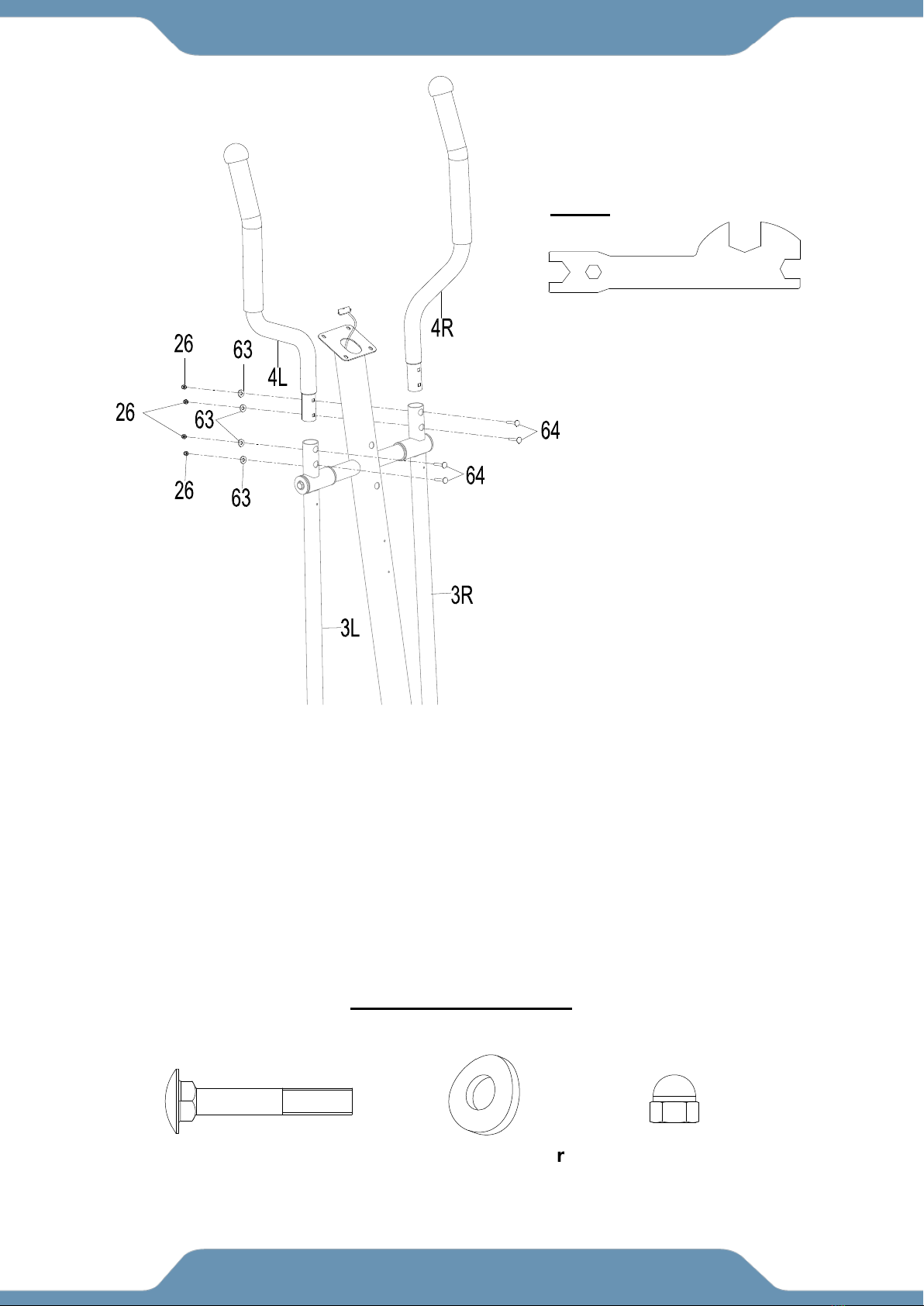

6A. Installing the Left Handrail Arm –Insert the Left Handrail Arm (4L)onto the Left Handrail
(3L) using two Carriage Bolts (64), two Curve Washers (63) and two Nylon Nuts (26). Tighten
the Nylon Nuts (26)using the Multi Hex Wrench provided.
6B. Installing the Right Handrail Arm –Insert the Right Handrail Arm (4R) onto the Right
Handrail (3R) using two Carriage Bolts (64), two Curve Washers (63) and two Nylon Nuts (26).
Tighten the Nylon Nuts (26)using the Multi Hex Wrench provided.
Multi-Hex Wrench 1PC
TOOL
HARDWARE PACK
(64) Carriage Bolt
4 PCS
(63) Curve Washer
4 PCS
(26) Nylon Nut
4 PCS
