Exigo 3131-1 User manual

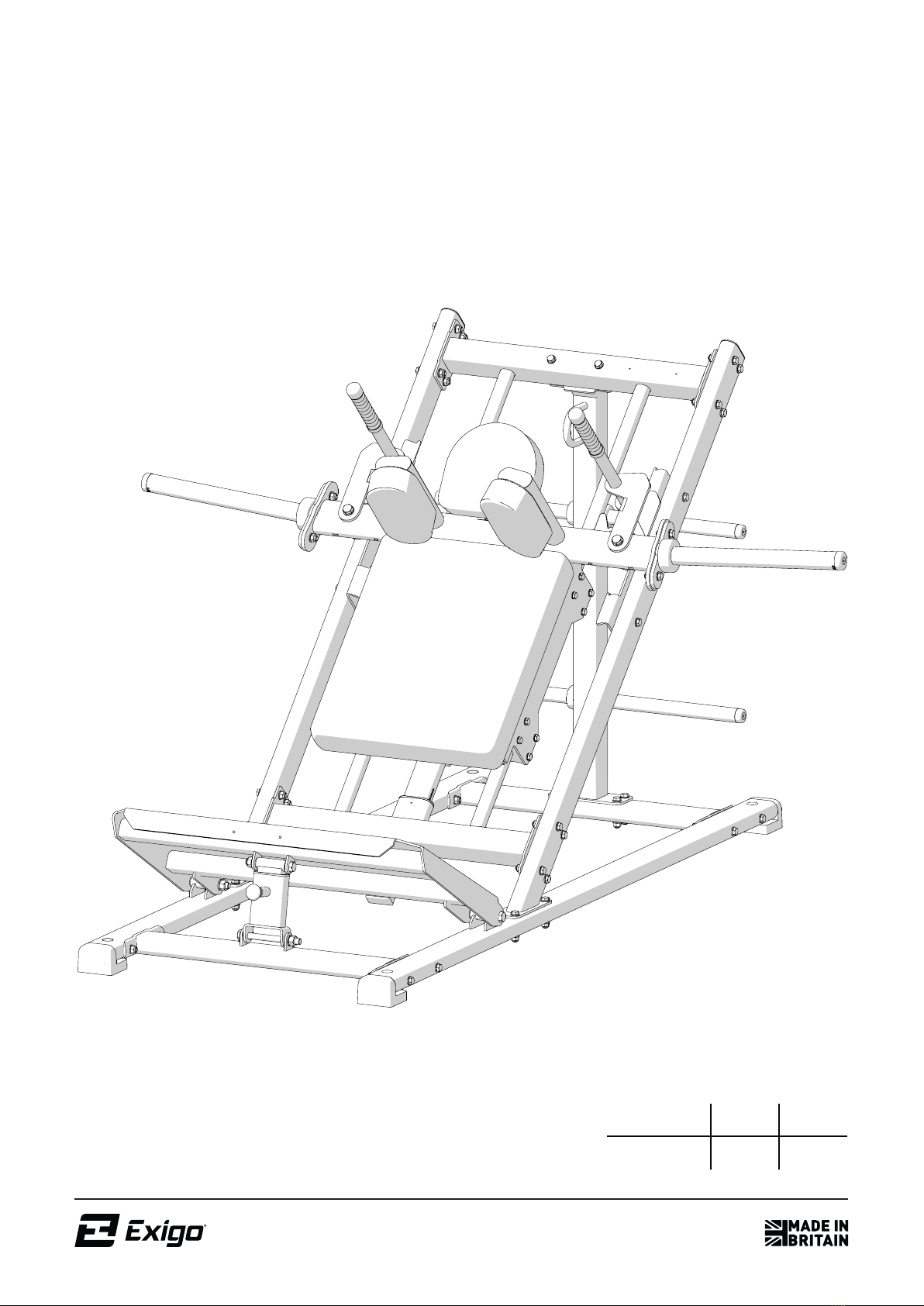

EXIGO
HACK SQUAT
3131-1
DIMENSIONS L x W x H
mm (inch)
MAX LOAD
kg (lbs)
COMMERCIAL
WARRANTY
2330 x 1860 x 1480
(92 x 73 x 59)
280
(617)
Main Frame
Lifetime

WARNING
SERIOUS INJURIES TO USERS, BYSTANDERS OR INSTALLERS CAN OCCUR IF THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL ARE NOT FOLLOWED. TO MINIMIZE THIS RISK, READ THE
MANUAL BEFORE BEGINNING THE INSTALLATION TO FAMILIARIZE YOURSELF WITH ITS CONTENTS
AND THEN BE CERTAIN TO FOLLOW EACH OF THE STEPS AND PRACTICES DESCRIBED.
TOOLS REQUIRED
NO. FIXING QTY
1 M12 X 120 BOLT 8
2 M12 X 75 BOLT 34
3 M12 X 100 BOLT 2
4 M12 X 40 BOLT 4
5 M16 X 130 BOLT 3
6 M16 X 160 BOLT 1
7 M10 X 30 HEX BOLT 16
8 M12 NYLOC 48
9 M12 WASHER 88
10 M16 NYLOC 4
11 M16 WASHER 8
12 M10 SPRUNG WASHER 16
13 FORM G WASHER 8
FIXINGS
17MM, 19MM AND 24MM
SPANNER/SOCKET

STEP 1

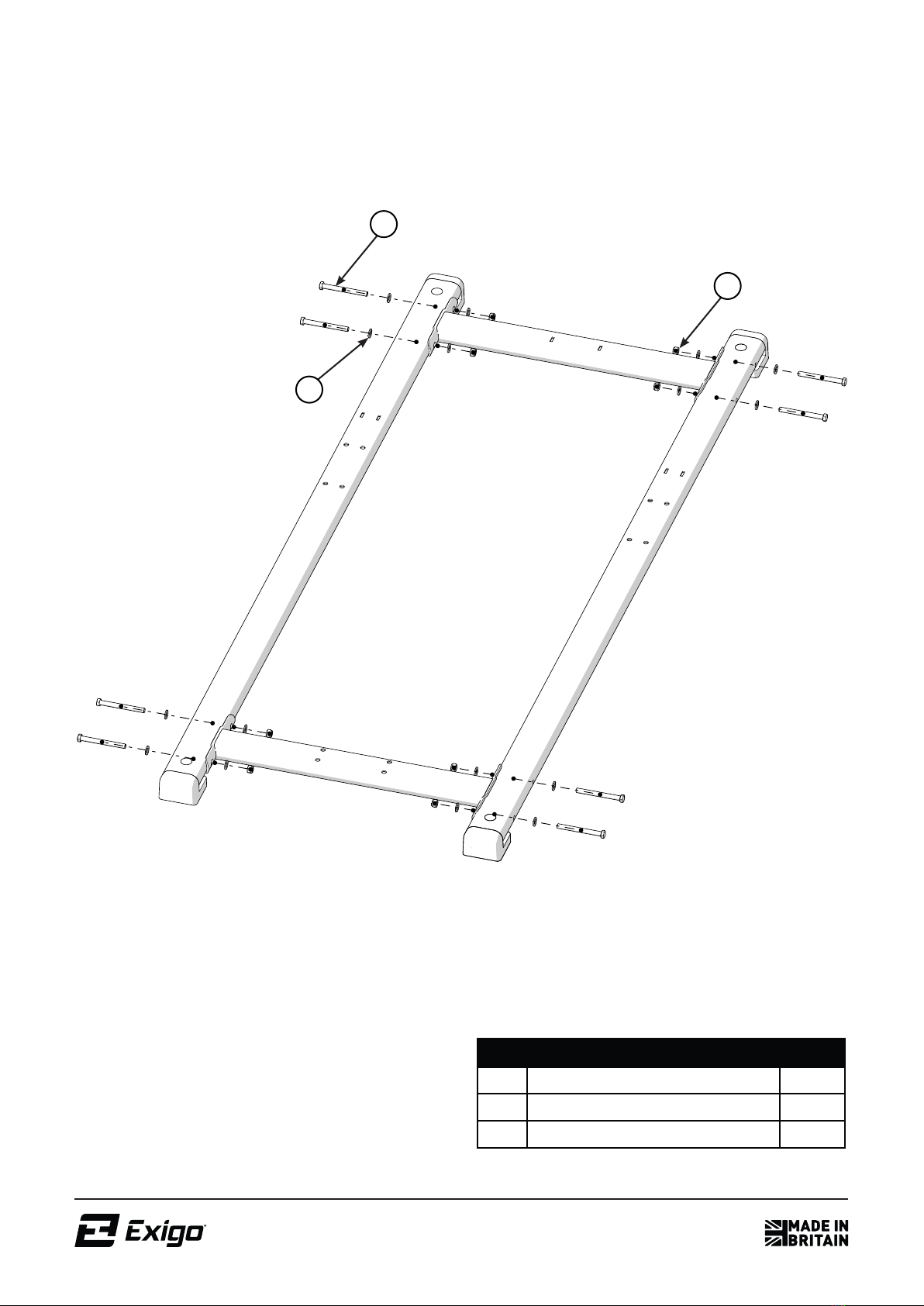

ATTACH THE BASE TUBES TOGETHER USING THE BASE CROSS BEAMS AS SHOWN BELOW.
NO. FIXING QTY
1 M12 X 120 BOLT 8
2 M12 NYLOC 8
3 M12 WASHER 16
1
3
2

STEP 2
ATTACH THE REAR UPRIGHT AND 45 DEGREE UPRIGHTS ONTO THE BASE CROSS MEMBERS AS SHOWN
BELOW
NO. FIXING QTY
1 M12 X 75 BOLT 12
2 M12 NYLOC 12
3 M12 WASHER 24
1
3
2

STEP 3
ATTACH THE BOTTOM JOINING BAR IN BETWEEN THE 45 DEGREE UPRIGHTS AS SHOWN BELOW
NO. FIXING QTY
1 M12 X 75 BOLT 8
2 M12 NYLOC 8
3 M12 WASHER 16
1
2
3

STEP 4

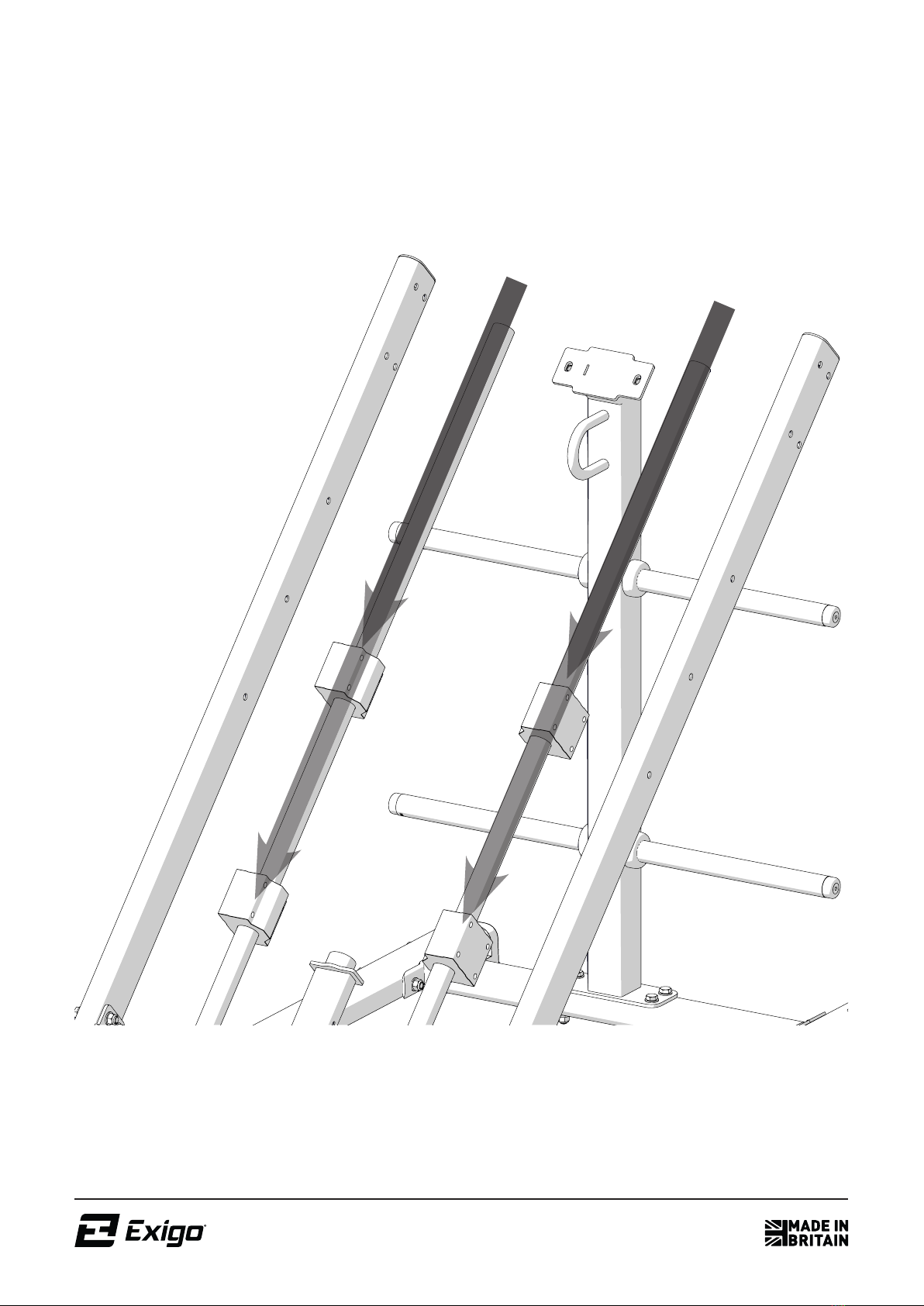

INSERT THE GUIDE RODS AND SLIDE ON THE BEARING BLOCKS AS SHOWN BELOW

STEP 5
ATTACH THE TOP JOINING BAR IN BETWEEN THE 45 DEGREE UPRIGHTS AS SHOWN BELOW
NO. FIXING QTY
1 M12 X 100 BOLT 2
2 M12 X 75 BOLT 8
3 M12 NYLOC 10
4M12 WASHER 18
5FORM G WASHER 2
1
5
2
34

STEP 6

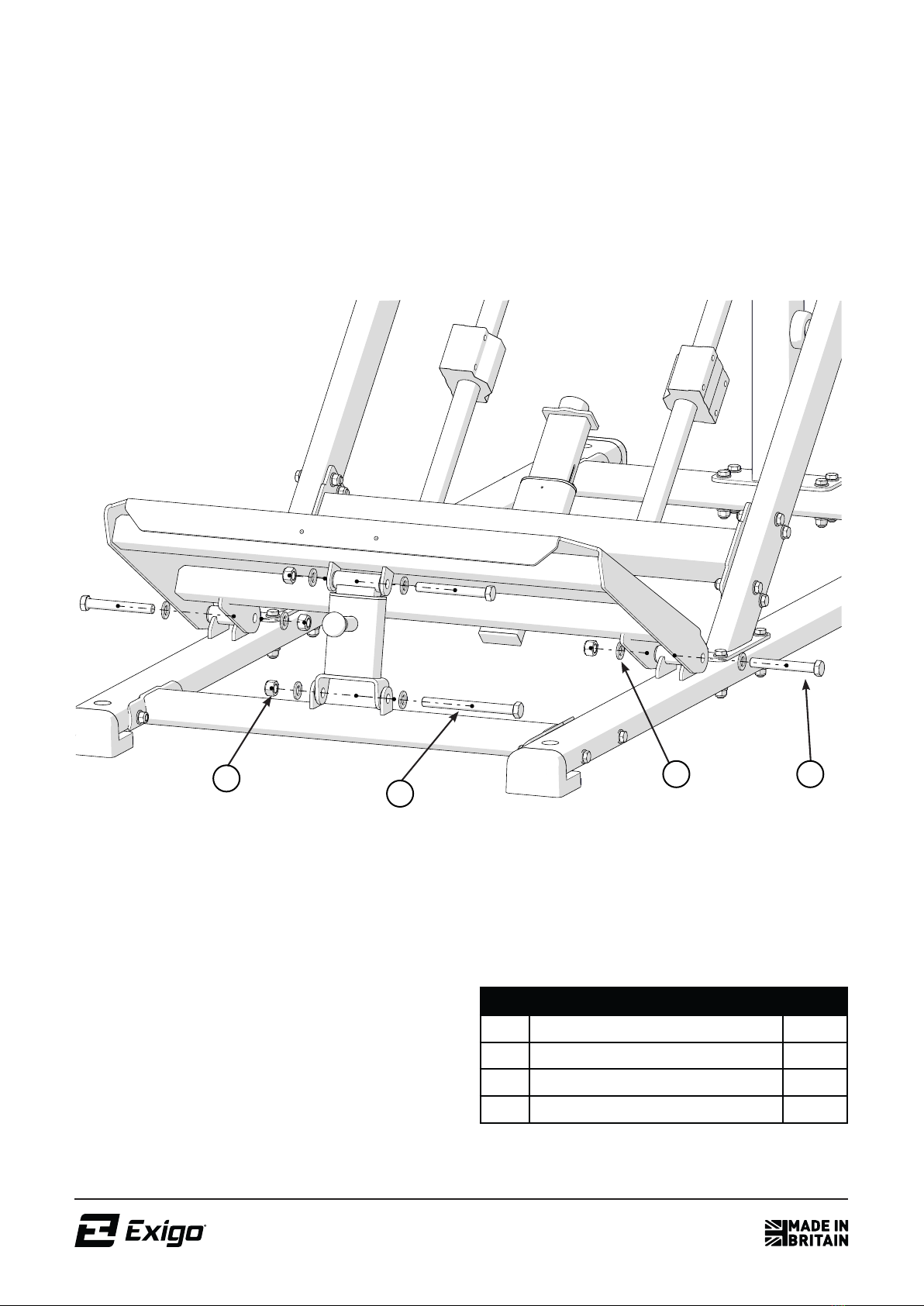

ATTACH THE FOOTPLATE TO THE FRONT OF THE BASE AS SHOWN BELOW
NO. FIXING QTY
1 M16 X 130 BOLT 3
2 M16 X 160 BOLT 1
3 M16 NYLOC 4
4M16 WASHER 8
1
32
4

STEP 7
ATTACH THE SAFETY CATCHERS TO THE INSIDE OF THE 45 DEGREE UPRIGHTS AS SHOWN BELOW
NO. FIXING QTY
1 M12 X 75 BOLT 6
2 M12 NYLOC 6
3 M12 WASHER 6
4FORM G WASHER 6
1
2
3
4

STEP 8

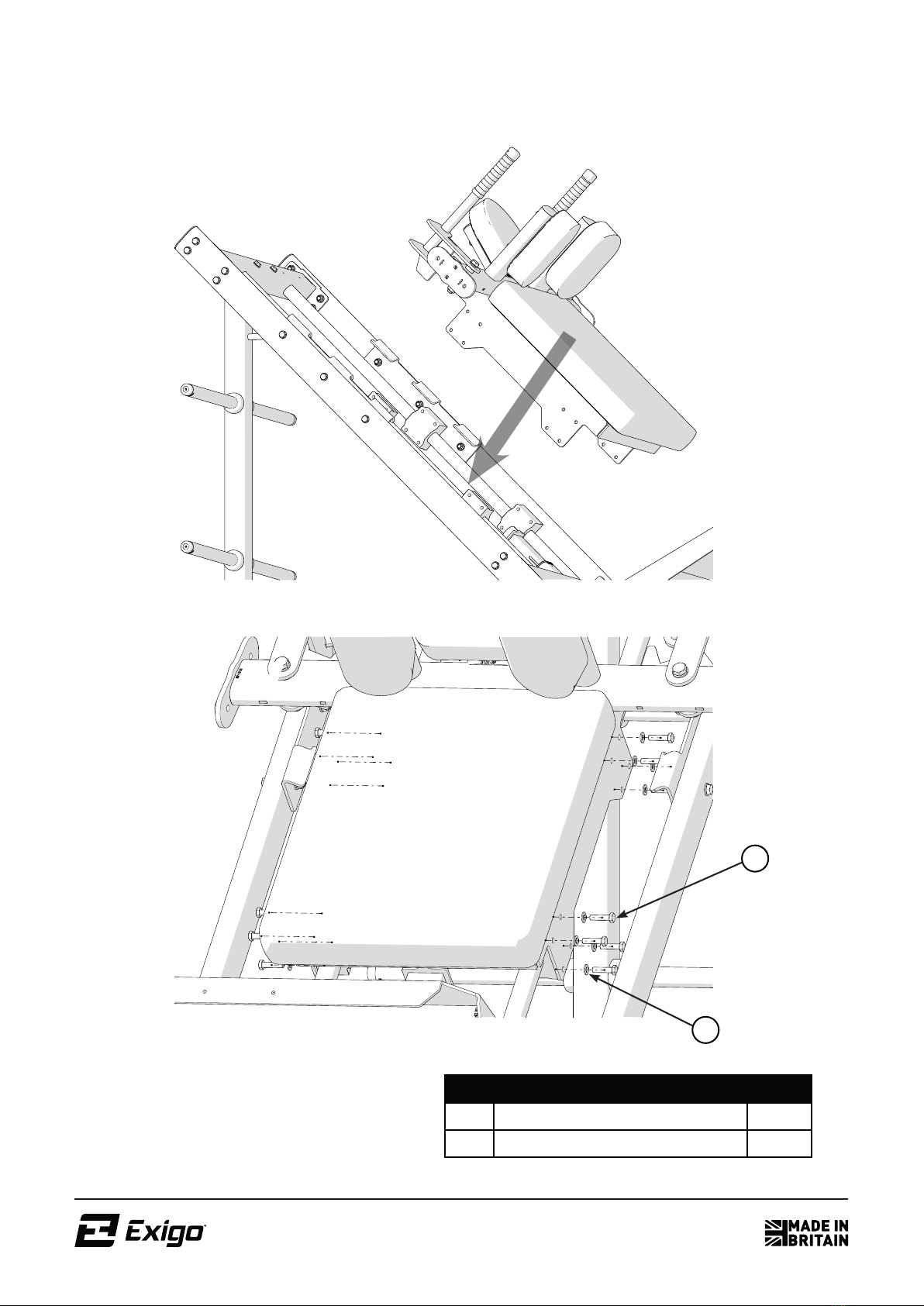

ATTACH THE CARRIAGE TO THE BEARINGS AND REST ON THE SAFETY CATCHERS AS SHOWN BELOW
NO. FIXING QTY
1 M10 X 30 HEX BOLT 16
2 M10 SPRUNG WASHER 16
1
2

STEP 9
ATTACH THE WEIGHT HORNS TO BOTH SIDES OF THE CARRIAGE AS SHOWN BELOW
NO. FIXING QTY
1 M12 X 40 BOLT 4
2 M12 NYLOC 4
3M12 WASHER 8
1
2
3

MAINTENANCE & EQUIPMENT USAGE
PREVENTATIVE MAINTENANCE IS CRITICAL TO THE SAFETY OF USERS AS WELL AS ENSURING THE
OPTIMUM FUNCTION OF THE EQUIPMENT. USE ONLY EXIGO SUPPLIED COMPONENTS WHEN SERVICING
YOUR EQUIPMENT. BE CERTAIN TO REPLACE ANY COMPONENTS AT THE FIRST SIGNS OF WEAR.
DAILY INSPECTION
PAINT: LOOK FOR PAINT CHIPS AND FILL IN IMMEDIATELY
WITH EXIGO TOUCH-UP PAINT.
FIXINGS: CHECK ALL NUTS, BOLTS AND ASSOCIATED
FRAME PARTS FOR ANY LOOSENESS. TIGHTEN AS
REQUIRED.
WALL FIXINGS: ENSURE WALL FIXINGS ARE SOLID AND
SECURED TO THE WALL WITH NO DAMAGE. DO NOT USE IF
ANY DAMAGE IS APPARENT OR FIXINGS ARE LOOSE.
MAIN FRAME: INSPECT FOR ANY DAMAGE. NOTIFY EXIGO
OF ANY FAULTS OR DAMAGE IMMEDIATELY.
DAILY CLEANING
MAIN FRAME: CLEAN THE MAIN FRAME WITH A MILD
SOAP SOLUTION OR AN APPROVED CLEANER AND DRY
COMPLETELY.
PLASTIC PARTS: WIPE PLASTIC PARTS WITH A MILD SOAP
SOLUTION OR AN APPROVED CLEANER TO REMOVE DIRT
AND GREASE MARKS AND DRY COMPLETELY.
CHROME PARTS: WIPE CHROME PLATED PARTS WITH A
MILD SOAP SOLUTION OR AN APPROVED CLEANER AND
DRY COMPLETELY.
HEAVY DUTY CLEANING: IF YOU HAVE SCUFF MARKS,
GREASE OR A HEAVY DIRT BUILDUP ON FRAME
COMPONENTS, START WITH A MILD SOAP SOLUTION OR
A DILUTED SOLUTION OF AN ALL PURPOSE CLEANER.
IF YOU CANNOT REMOVE THE MARKS USING THOSE
METHODS, USE A CAR POLISH/CLEANER. DO NOT USE
SOLVENTS SUCH AS LACQUER THINNER, MINERAL
SPIRITS OR ACETONE. FOR DEEPER SCUFF MARKS, USE
AN AUTOMOBILE FINISH RUBBING COMPOUND.
CAUTION: CERTAIN ANTI-BACTERIAL CLEANERS
AND OTHER HARSH CLEANING AGENTS CAN INDUCE
CORROSION ON THE EQUIPMENT. IT IS IMPORTANT NOT TO
LEAVE PARTS DAMP. THIS WILL INCREASE THE POTENTIAL
FOR CORROSION TO OCCUR.
EQUIPMENT USAGE
REVIEW AND UNDERSTAND ALL OF THE WARNING
LABELS AFFIXED TO THE EQUIPMENT.
BE CERTAIN THAT THE EQUIPMENT OPERATION IS
UNDERSTOOD BEFORE IT IS USED. USE THE RACK ONLY
FOR THE INTENDED EXERCISE.
KEEP CHILDREN AWAY FROM THIS EQUIPMENT.
TEENAGERS MUST BE SUPERVISED.
IT IS RECOMMENDED THAT USERS RECEIVE A THOROUGH
MEDICAL EXAM BEFORE COMMENCING AN EXERCISE
PROGRAM. ALL MEDICAL ISSUES SHOULD BE REVIEWED
TO ENSURE THAT WEIGHT TRAINING WILL NOT
AGGRAVATE PRE-EXISTING MEDICAL CONDITIONS.
DO NOT USE THE EQUIPMENT IF IT APPEARS DAMAGED,
JAMMED OR INOPERABLE.
DO NOT MODIFY THE EQUIPMENT IN ANYWAY.
DO NOT WEAR LOOSE OR DANGLING CLOTHES/OBJECTS
WHEN USING THIS EQUIPMENT.

WARRANTY
ALL EXIGO PRODUCTS ARE WARRANTIED TO BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP.
EXIGO WARRANTS TO THE ORIGINAL PURCHASER OF ALL NEW EQUIPMENT PURCHASED FROM AN EXIGO
AUTHORIZED DEALER OR FROM AN EXIGO MANUFACTURING CONTRACTOR OR DIRECTLY FROM EXIGO,
THAT THESE PRODUCTS BE WARRANTIED UNDER NORMAL USE AND USED IN A MANNER IN WHICH THE
PRODUCT(S) WAS SPECIFICALLY DESIGNED FOR, USED AS INTENDED AND IN AREAS DESIGNED SUITABLE
FOR THAT USE AND SERVICE. THE SHIPPING OF PARTS REPLACED OR PRODUCT REPLACED UNDER
WARRANTY TO BE DETERMINED BY EXIGO. PARTS REPLACED UNDER WARRANTY CARRY THE ORIGINAL
REMAINING WARRANTY PERIOD OR 90 DAYS WHICHEVER IS LONGER.
GENERAL WARRANTIES
LIFETIME WARRNTY: MAIN FRAME, STRUCTURAL STEEL.
TWO YEAR WARRANTY: RACK ATTACHMENTS, LINEAR
BEARINGS, LINEAR SHAFTS, BRONZE BUSHINGS, SEALED
ROTATING BEARINGS AND PULLEY WHEEL, TOP PLATE,
WEIGHT PLATES, SELECTOR SHAFT, WEIGHT STACK GUIDE
RODS AND PULLEY WHEEL HOUSINGS.
ONE YEAR WARRANTY: SPRING LOADED PINS, SELECTOR
PIN CABLES AND CABLE PARTS, HANDLES, END CAPS,
RUBBER LIFTING MATS WITHIN INTEGRATED LIFTING
PLATFORMS, RUBBER SURFACE TILES, OAK CENTRES
AND LIFTING PLATFORM UNDERBOARDS AND ALL OTHER
COMPONENTS NOT MENTIONED ELSEWHERE IN THIS
WARRANTY.
180 DAY WARRANTY: NORMAL PARTS OF WEAR
INCLUDING BUT NOT LIMITED TO LABELS, UPHOLSTERED
PADS, EXCLUDING WEAR, WRAPS AND EMBROIDERY.
OUTDOOR EQUIPMENT
FIVE YEAR WARRNTY: MAIN FRAME, STRUCTURAL
STEEL AND WELDS (EXCLUDING COATINGS) AGAINST
STRUCTURAL FAILURE DUE TO CORROSION OR DEFECTS
IN WORKMANSHIP.
ONE YEAR WARRANTY: RACK ATTACHMENTS, LINEAR
BEARINGS, LINEAR SHAFTS , BRONZE BUSHINGS.
90 DAY WARRANTY: SPRING LOADED PINS, SELECTOR PIN
CABLES AND CABLE PARTS,
HANDLES, END CAPS.
30 DAY WARRANTY: NORMAL PARTS OF WEAR
INCLUDING BUT NOT LIMITED TO LABELS, UPHOLSTERED
PADS, EXCLUDING WEAR, WRAPS AND EMBROIDERY.
EXCLUSIONS, OMISSIONS & INDEMNITY
EXIGO HAVE NO LIABILITY NOR SHALL THIS LIMITED WARRANTY APPLY WITH RESPECT TO:
1. PRODUCTS NOT MANUFACTURED BY EXIGO OR BY AN AUTHORIZED EXIGO MANUFACTURING CONTRACTOR.
2. PRODUCTS WHICH HAVE BEEN ALTERED WITHOUT EXPRESS WRITTEN CONSENT FROM EXIGO
3. PRODUCTS PURCHASED OTHER THAN DIRECTLY FROM EXIGO OR THROUGH AN AUTHORIZED EXIGO DEALER
4. DEFECTIVE COATINGS CAUSED BY ENVIRONMENTAL CONDITIONS INCLUDING BUT NOT LIMITED TO CLIMATE CONDITIONS,
CLEANING MATERIALS AND LUBRICANTS NOT SPECIFIED BY EXIGO AND MOISTURE OR HUMIDITY INCLUDING PERSPIRATION.
5. THE DEFECT OCCURS AS A RESULT OF USE OTHER THAN FAIR WEAR AND TEAR, WILFUL OR NEGLIGENT DAMAGE OR THE USE
OF THE PRODUCT OTHER THAN THE PURPOSE FOR WHICH IT IS INTENDED.
6. PRODUCTS NOT MAINTAINED IN COMPLIANCE WITH EXIGO INSTRUCTIONS DETAILED IN THE OWNER’S MANUAL AND ON
PRODUCT LABELS. UNREADABLE OR ALTERED SERIAL TAG.
7. MOUNTING SURFACE OR SUBSTRATE MOUNTING OF EXIGO WALL MOUNTED UNITS, SECTIONS OR ATTACHMENTS. EXIGO IS
EXPRESSLY INDEMNIFIED AGAINST SELECTION OF; OR USE OF FIXINGS FOR WALL UNITS OR ATTACHMENT TO OR FIXING TO
INAPPROPRIATE OR INADEQUATE SURFACE MOUNTING POINTS.
EXGO SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL CONTINGENT, CONSEQUENTIAL DAMAGES OR OTHERWISE ARISING
OUT OF OR IN CONNECTION WITH A CLAIM FOR ANY ECONOMIC LOSSES INCLUDING BUT NOT LIMITED TO DAMAGE OF LOSS
OF PROPERTY OR EQUIPMENT AND LOSS PROFITS AND REVENUE , LOSS OF GOODWILL OR REPUTATION, ANTICIPATED OR
OTHERWISE. EXIGO AGGREGATE LIABILITY FOR LOSS OR DAMAGE SHALL IN ANY EVENT BE LIMITED TO A SUM EQUAL TO THE
AMOUNT PAID FOR THE PRODUCTS IN ONE INSTANCE.
EXIGO RESERVE THE RIGHT UNDER ANY CLAIM TO REPAIR OR REPLACE THE PRODUCT AS THEY DEEM FIT AND MAY ELECT.
