EXPO MiniPurge D825/ET User manual

ML550 | v6 & ML384 | v3 09-Jan-20
D825/ET MiniPurge®
Manual
ML550 & ML384
Important Note:
It is essential for safety that the installer and user of the Expo system follow these
instructions.
Please refer to the standard for principles and definition.
These instructions apply only to the pressurizing system. it is the responsibility of the
manufacturer of the pressurized enclosure to provide instructions for the enclosure.

ML550 | v6 i
Section 1: System Specification................................................................................................1
MiniPurge® Control Unit Data...................................................................................................2
Relief Valve Unit and Purge Outlet Valve with integral spark arrestor......................................3
Section 2: Quick User Guide......................................................................................................4
Installation ................................................................................................................................4
Operation of the System...........................................................................................................4
Section 3: Application Suitability ..............................................................................................6
Section 4: Description and Principle of Operation ..................................................................7
Section 5: Main Components.....................................................................................................8
Air Supply Filter / Regulator......................................................................................................8
Logic Air Supply Regulator .......................................................................................................8
Minimum Pressure Sensor .......................................................................................................8
Purge Flow Sensor ...................................................................................................................8
Intermediate Sensor .................................................................................................................8
Electronic Purge Timer .............................................................................................................8
Purge Complete Valve..............................................................................................................8
OR Gate ...................................................................................................................................9
Alarm Only Circuit (/AO) ...........................................................................................................9
Power Interlock Output .............................................................................................................9
Alarm / Pressurized Output ......................................................................................................9
Intermediate Pressure Output ..................................................................................................9
Purge Valve ..............................................................................................................................9
CLAPS Sensor .........................................................................................................................9
CLAPS Regulator .....................................................................................................................9
Visual Indicators .....................................................................................................................10
Relief Valve Unit .....................................................................................................................10
Explosionproof Terminal Box..................................................................................................10
Section 6: Installation of the System.......................................................................................11
Relief Valve Unit .....................................................................................................................11
Air Supply Quality ...................................................................................................................11
Pipe Work ...............................................................................................................................12
Multiple Enclosures ................................................................................................................12
Provision and Installation of Alarm Devices ...........................................................................12
Power Supplies and their Isolation .........................................................................................12
Power Interlock Switch ...........................................................................................................12
Section 7: Commissioning .......................................................................................................14
Commissioning the System ....................................................................................................14
Normal Operation ...................................................................................................................15
Section 8: Maintenance of the System....................................................................................16
General maintenance .............................................................................................................16
Maintenance of Electronic Timer ............................................................................................16
Re-calibration of the Relief Valve Unit....................................................................................16
Re-calibration of the Pressure Sensors..................................................................................17
Section 9: Fault Finding............................................................................................................18
General Information................................................................................................................18
System purges correctly but trips and auto re-purges at the end of the purge time...............18
Relief Valve opens (continuously or intermittently).................................................................19
System enters purging but purge indication does not occur...................................................19
Section 10: Recommended Spares List..................................................................................20
Section 11: Glossary.................................................................................................................20
Section 12: Drawings and Diagrams .......................................................................................20
Section 13: FM ML384 Manual .................................................................................................21
Appendix A: Certifications ......................................................................................................28

Page
1
ML550 | v6
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[e-mail]
Expo Technologies China
T: [phone]
E: [e-mail]
Section 1: System Specification
Size
5 = MiniPurge®
Purge flow rate:
2000 to 6000 NI/min
Approval / Certification
ATEX Certificate:
Sira 01ATEX1295X
0518 II 2(2) GD
Ex [pxb] ia IIC T5 Gb
Ex [pxb] ia IIIC T100°C Db
Tamb -20ºC to +55ºC
IECEx Certificate:
IECEx SIR07.0027X
Ex [pxb] ia IIC T5 Gb
Ex [pxb] ia IIIC T100°C Db
Tamb -20ºC to +55ºC
TÜV INMETRO Certificate:
TÜV 12.1462X
Ex [pxb] ia IIC T5 Gb
Ex [pxb] ia IIIC T100ºC Db
Tamb -20ºC to +55ºC
FM Certificate:
FM 1X8A4.AE (USA&Canada)
Class I Div 1 Groups A B C & D
Type X Pressurization
Refer to Section 13 of this manual
for FM specific manual ML384
For limitations and conditions of use
refer to the applicable certificates in
Appendix A of this
manual.
PO = Pneumatic outputs, connected to actuators
on explosionproof terminal box
PC = Pressurized Control. Automatic
leakage compensation (CLAPS)
OV = Purge Outlet Valve is
pneumatically operated.
Timing Method
ET = Electronic Timer
MiniPurge® Housing
ss = Stainless Steel 316L
Pressurization Method
LC = Leakage Compensation
5X POET /ss /
LC / OV / PC /

ML550 | v6 Page
2
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[email protected]
Expo Technologies China
T: [phone]
E: [email protected]
MiniPurge® Control Unit Data
Action on Pressure Failure: Alarm and Trip (isolate power to pressurized enclosure), user
adjustable Alarm Only.
Type of Operation: Automatic leakage compensation using the Closed Loop Automatic
Pressurization System (CLAPS System).
Leakage Compensation
Capacity
1000 NI/min initial maximum pressurized enclosure leakage.
1500 NI/min maximum as leakage increases.
Enclosure Material: Stainless Steel 316L.
Mounting Method: Wall mounting straps. Fixing holes as per drawing.
Temperature Limits: -20oC to +55oC
Compressed Air Supply: Clean, dry, oil free air or inert gas. Refer to Air Supply Quality section
in Installation of the System.
Supply Pressure: 5 to 16 barg (73 to 232 psi).
Main Regulator: Set at 5 barg, 40 μm automatic drain supply inlet filter.
Logic Regulator and Gauge: Fitted and set to 2.3 barg (33 psi).
Process Connections: Purge supply and outlet to pressurized enclosure 1” NPT female.
Minimum supply line 25 mm (1”) ID tube.
Reference points & signals 1/8” NPT female.
Visual Indicators: Alarm (Red ) / Pressurized (Green ).
System Purging: 4 LEDs that flash sequentially to indicate elapsed
time (black when not purging).
Terminal Box: Aluminium, Explosionproof Class I and Class II, Division I group B, C,
D, E, F, and G. Flameproof Ex d Zone 1 Gas Group IIC.
Power Interlock Switch: DPNO 120 Vac 1A.
Alarm/Pressurized Switch: SPCO 120 Vac 6A / 250 Vac 3A.
Pressure Switch: SPCO 120 Vac 6A / 250 Vac 3A.
Minimum Pressure Sensor: Minimum: 0.5 mbarg.
Maximum: 5.0 mbarg.
Default Setting: 1.5 mbarg.
Tolerance -0, +0.7 mbarg.
Intermediate Sensor: Minimum: 2.0 mbarg.
Maximum: 10 mbarg.
Default Setting: 5.0 mbarg.
Tolerance: -0, +10%
Note: There must be a 1.5 mbarg difference between the minimum pressure and intermediate sensors.
Purge Flow Sensor: Set at 6.4 mbarg (Tolerance: -0, +10%).
CLAPS Sensor: Minimum: 5.0 mbarg.
Maximum:15 mbarg.
Default Setting: 10 mbarg.
Tolerance: -0, +10%
Note: there must be a 2.5 mbarg difference between the intermediate and CLAPS sensor calibration point.
For example: Minimum pressure = 5 mbarg, intermediate pressure = 6.5 mbarg, CLAPS sensor = 9 mbarg.
Purge Time: User selectable, in 1 minute intervals, up to 99 minutes (tolerance -0,
+3 seconds).

Page
3
ML550 | v6
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[e-mail]
Expo Technologies China
T: [phone]
E: [e-mail]
Relief Valve Unit and Purge Outlet Valve with integral spark arrestor
Default Setting 99 minutes.
Weight: 27 kg (60lb).
Type: RLV104/ss/FS.
Bore: Purge Outlet Valve Ø 104 mm, Relief Valve Ø 75 mm.
Relief Valve Lift-Off Pressure: Minimum: 20 mbarg.
Maximum: 50 mbarg.
Default: 30 mbarg (+0, -20%).
Flow Rate: Range: 2000, 3000, 4000, 5000, or 6000 NI/min.
Default: 2000 NI/min.
Material: Housing: Stainless steel 316L.
Gasket: Silicone foam.
Spark arrestor: Stainless steel mesh.
Mounting Method: Rectangular cut-out and fixing holes as per drawing.
Weight: 7 kg (15.4 lb)

ML550 | v6 Page
4
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[email protected]
Expo Technologies China
T: [phone]
E: [email protected]
Section 2: Quick User Guide
Installation
The MiniPurge® System must be installed by a competent engineer, in accordance with relevant standards, such
as IEC / EN 60079-14, NEC500 and any local codes or practice.
• Mount the purge system in accordance with the hook-up drawing.
• Ensure the system is installed according to the full instructions in the “Installation of the System” section of
this manual.
• All pipings must be clean and free of dirt, condensation and debris prior to connection to the purge system or
pressurized enclosure.
• It is strongly recommended that a local isolation valve is installed on the air supply upstream of the purge
system.
Note: Most faults are due to restricted air supply, inadequate supply pipe work or drop in air supply pres-
sure during the purge process.
Operation of the System
Once the system is installed correctly, turn on the air supply. Refer to Commissioning section.
The purge system commences the purge cycle:
• The purge air will enter the enclosure.
• The pressurized enclosure will obtain a positive pressure.
• The Purge Outlet Valve will open within the Relief Valve Unit.
• The air will then exit the Relief Valve Unit housing via the spark arrestor.
Open the Purge Flow Restrictor Valve until the air flow reaches the required rate; the system will initiate the timed
purge cycle. Start a stopwatch when the purging indicator flashes yellow.

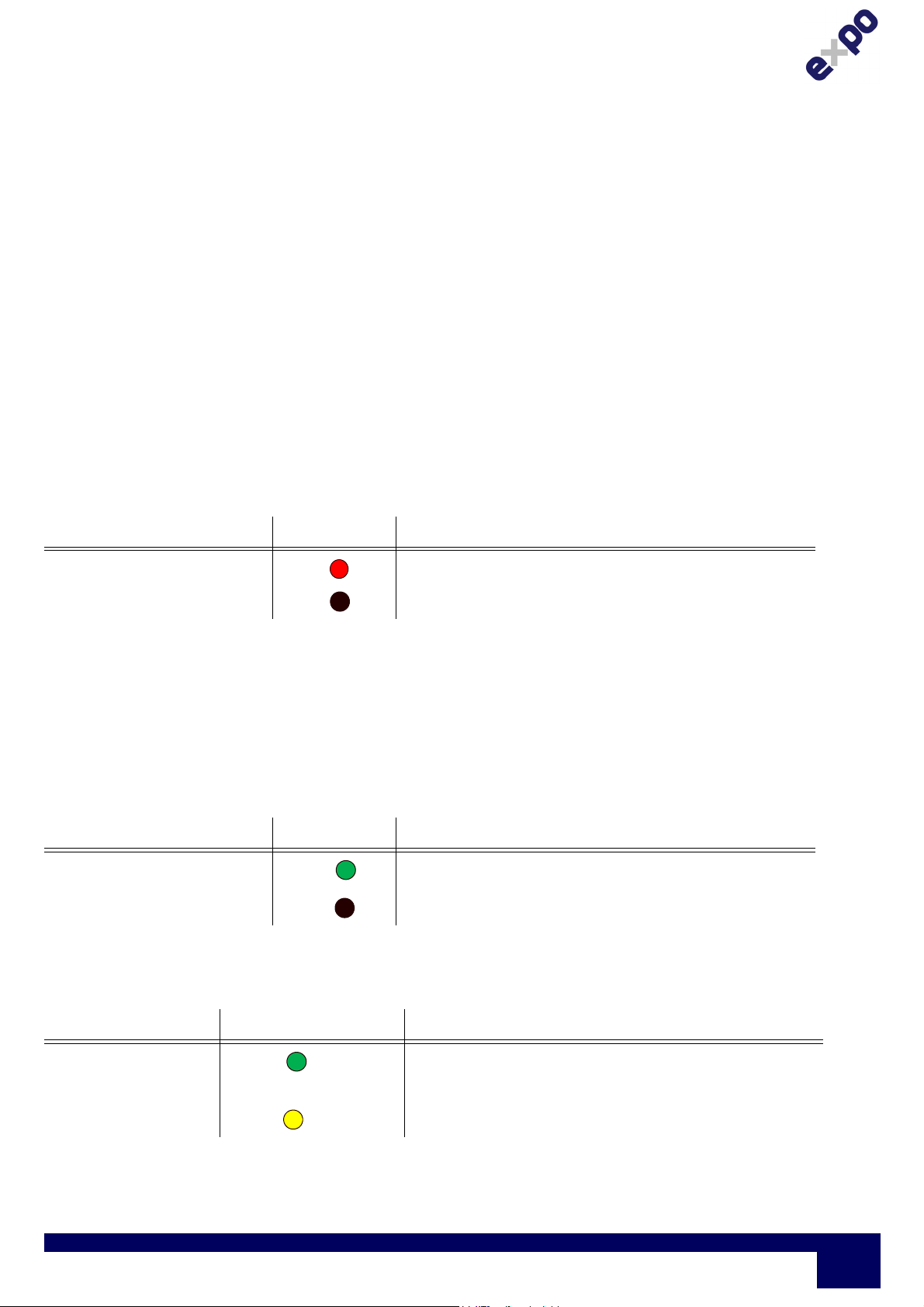

Indicator Colour Status
Alarm / Pressurized Red Low pressure alarm (enclosure pressure too low)
Purging Black Purge flow too low or not in purge mode
Indicator Colour Status
Alarm / Pressurized Green Pressurized (minimum enclosure pressure achieved)
Purging Black Purge flow too low
Indicator Colour Status
Alarm / Pressurized Green Pressurized
Purging Sequential flashing
Yellow
Purge flow rate above minimum

Page
5
ML550 | v6
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[e-mail]
Expo Technologies China
T: [phone]
E: [e-mail]
On completion of an uninterrupted purge cycle of the required length, the system will indicate purge
complete. Stop the stopwatch when the purging indicator stops flashing.
Check stopwatch timing to verify that the actual purge time is equal to or greater than the required purge time.
Note: The recorded purge time must never be less than the required purge time.
The system is now operating correctly in leakage compensation mode.
If the system has not performed as expected, check the installation thoroughly and ensure it has been carried
out according to the instructions.
If an obvious problem has not been highlighted and corrected, follow the procedures in the Fault Finding section.
If all checks have been carried out and the system still does not perform as expected, contact your local
distributor or Expo Technologies.

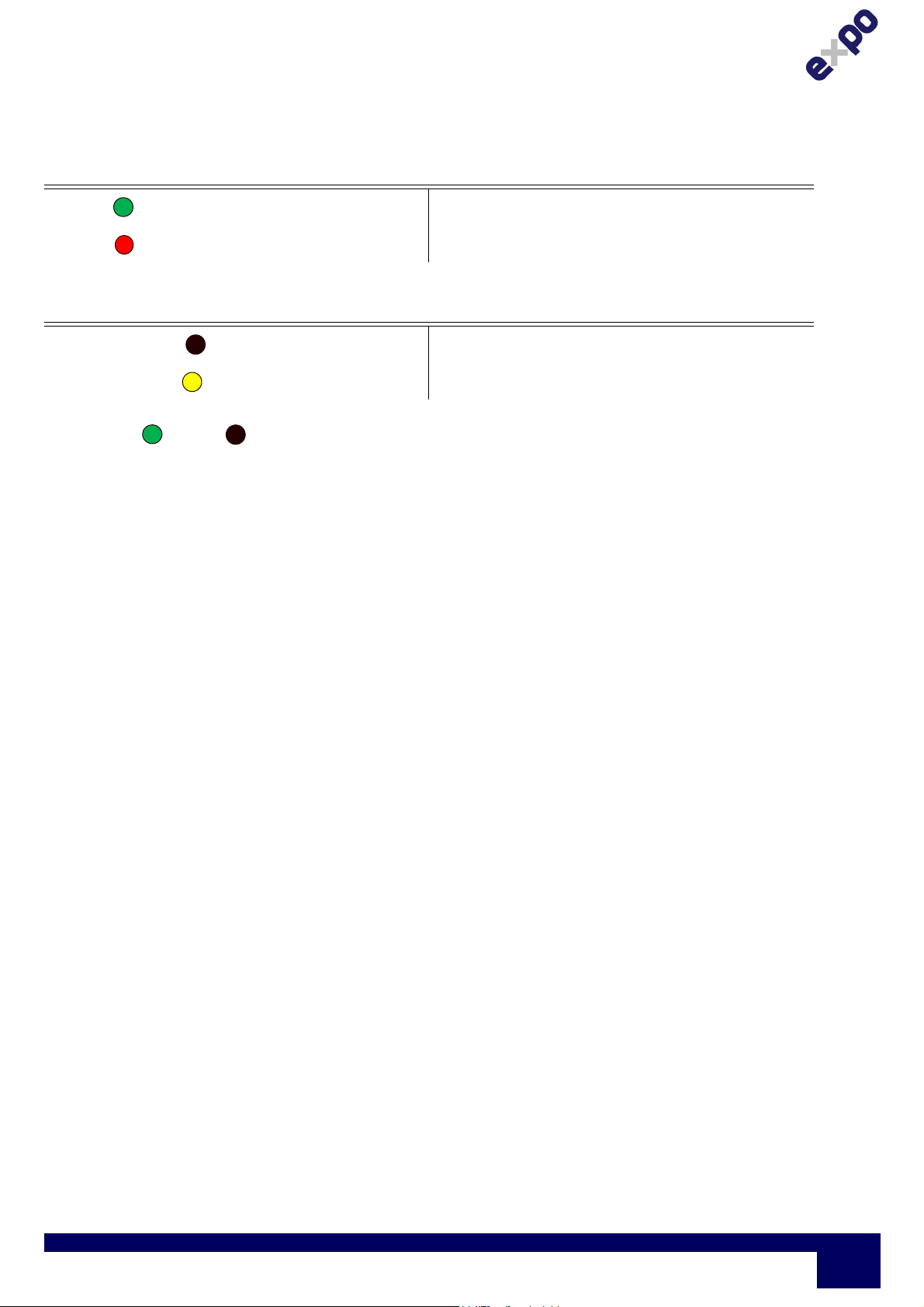

Indicator Colour Status
Alarm / Pressurized Green Pressurized and in leakage compensation mode
Purging Black No longer in purge mode

ML550 | v6 Page
6
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[email protected]
Expo Technologies China
T: [phone]
E: [email protected]
Section 3: Application Suitability
MiniPurge® systems are certified for use in hazardous locations, where the hazardous location is non-mining
(above ground) and the hazard is caused by flammable gasses, vapours or dust. Depending on the model the
systems may be used in IECEx and ATEX Zone 1(21) and Zone 2(22) - Categories 2 and 3 respectively, and
Class I/II/III Division 1 and Division 2.
MiniPurge® systems may be used for hazards of any gas group. Apparatus associated with the MiniPurge®
system, such as intrinsically safe signalling circuits and flameproof enclosures containing switching devices may
be limited in their gas group. The certification documentation supplied with any such devices must be checked
to ensure their suitability.
This system is primarily designed for use with compressed air. Where other inert compressed gasses are used
(Nitrogen, for example) the user must take suitable precautions so that the build up of the inert gas does not
present a hazard to health. Consult the Control of Substances Hazardous to Health (COSHH) data sheet for the
gas used. Where a risk of asphyxiation exists, a warning label must be fitted to the pressurized enclosure.
The following materials are used in the construction of MiniPurge® systems. If substances that will adversely
affect any of these materials are present in the surrounding environment, please consult Expo Technologies for
further guidance.
Materials of Construction
Stainless Steel Aluminium Acrylic
Mild (Carbon) Steel Nylon Silicone
Brass Polyurethane Neoprene
ABS Polycarbonate Polyester (glass filled)

Page
7
ML550 | v6
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[e-mail]
Expo Technologies China
T: [phone]
E: [e-mail]
Section 4: Description and Principle of Operation
The MiniPurge® system is pneumatic in operation, with electrical interfaces.
Purge and pressurization is a method of protection used in Zone 1 (21) and Zone 2 (22), and Division 1 and
Division 2 hazardous locations, to ensure that the interior of an enclosure is free of flammable gas. Addition of a
MiniPurge® system allows the electrical equipment within the enclosure to be used safely in a hazardous
location.
The principle of purge and pressurization is as follows:
• Clean compressed air or inert gas is drawn from a non-hazardous location.
• The interior of the pressurized enclosure is flushed to remove any hazardous gas or dust.
• This is introduced into the pressurized enclosure to keep the internal pressure at least 0.5 mbarg above the
external pressure.
• Whilst pressurized, flammable gas cannot enter the enclosure from the environment.
Prior to switching on the power to the electrical equipment, the enclosure must be purged to remove any
flammable gas that might have entered the enclosure before pressurization. Purging is the process of removal
contaminated air and replacement with air (or inert gas) known to be free from flammable gas. The duration of
this purge process is normally ascertained by performing a purge test.
At the end of the purge cycle the system automatically switches to leakage compensation mode.The Purge
Outlet Valve is closed and the airflow is reduced but remains high enough to compensate for the leakage of air
from the enclosure whilst maintaining the minimum over pressure state.
In the event of pressure failure within the pressurized enclosure the system will raise an alarm in the form of visual
indicators and a volt free contact depending on the specification of the system. The default action on loss of
pressurization is alarm and automatic disconnect of power (A&T - Alarm and Trip). This can be changed by the
customer to Alarm Only (/AO), please refer to section titled Main Components.
The MiniPurge® system incorporates a Closed Loop Automatic Pressurization System (CLAPS). This allows the
system to detect a rise or fall of the enclosure’s internal pressure and adjust the leakage compensation rate
accordingly. Pressure variations are more likely during sudden start up of large rotating electrical machines but
can also be caused by changes in running temperature. This system has been specifically designed to maintain
a stable internal pressure within the enclosure.

ML550 | v6 Page
8
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[email protected]
Expo Technologies China
T: [phone]
E: [email protected]
Section 5: Main Components
Air Supply Filter / Regulator
The unit is provided with a 40 μm liquid / dust filter element as a precaution. The user of the MiniPurge® system
must ensure that air supply is to the quality stated in Air Supply Quality paragraph found in the Installation of the
System section. The regulator is factory set to 5 barg (75 psig) and regulates the pressure of an air supply
between 5 and 16 barg (73 to 232 psig). A pressure gauge is fitted down stream of the filter; this should indicate
no less than 5 barg (73 psig). During the purge cycle a pressure drop will be indicated on the gauge.
Logic Air Supply Regulator
This device provides the system with a stable air supply pressure to the logic system and allows consistent
operation. The pressure level is factory set to 2.3 barg (33 psig) and can be verified by means of the integral
pressure gauge.
Minimum Pressure Sensor
This monitors the pressure inside the pressurized enclosure. When the pressure is below the minimum required
for safe operation, the pressure sensor causes the system to reset and the Alarm / Pressurized indicator turns Red
. The sensor is factory calibrated and set to operate in falling pressure at or above the minimum specified
pressure.
Purge Flow Sensor
The Purge Flow Sensor monitors flow through the Purge Outlet Valve. At correct purge flow rates, above the
minimum specified for purging, the sensor sends a signal that activates the purge timer. This sensor is factory
calibrated to operate on falling flow rate at or above the minimum specified purge flow rate.
Intermediate Sensor
This sensor monitors the pressure inside the pressurized enclosure. It senses when the pressure is drops and
provides early warning before the low pressure sensor trips the system. The setting on this is user selectable.
Electronic Purge Timer
When both the enclosure pressure and the purge flow rate are correct, the Purge Flow Sensor activates the timer
and the electronic timer starts. The timing period is selected using switches mounted on the timer module.
Note: Setting the timer to 00 minutes will cause infinite purging; the cycle will never complete.
During timing, the percentage of the purge cycle is indicated by four LEDs which flashes sequentially while the
timer is running.
The Electronic Timer contains an intrinsically safe battery pack that needs regular replacement. See
Commissioning section.
Purge Complete Valve
This valve receives a signal from the purge timer that indicates the completion of the purge cycle and verifies that
the pressurization signal is still present. If both conditions are satisfied a signal is sent to indicate that the purge
is complete. This performs two functions: to turn on the electrical supply to the pressurized enclosure and to
LED 1
LED 2LED 3
LED 4 LED 1
LED 2LED 3
LED 4 LED 1
LED 2LED 3
LED 4 LED 1
LED 2LED 3
LED 4
0 to 25%
of purge time 26 to 50% of purge time 51 to 75% of purge time 76 to 100% of purge time

Page
9
ML550 | v6
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[e-mail]
Expo Technologies China
T: [phone]
E: [e-mail]
reduce the high purge flow rate to leakage compensation mode. It also provides a hold-on signal that
maintains the leakage compensation mode with the power switch on, even when the purge timer has reset ready
for the next purge cycle.
OR Gate
This device provides the Purge Complete Valve with the hold-on function referred to previously. When either the
timed-out signal or the purge complete signal is present it allows the pilot signal to be sent to the purge complete
valve.
Alarm Only Circuit (/AO)
If the pressure in the pressurized enclosure is too low the system will normally cut off electrical power to it. In
certain circumstances, where local codes of practice allow, the system can be altered to provide a hold-on circuit
that will maintain the electrical power supply to the pressurized enclosure while also providing a pressure failure
alarm. The user must respond to the alarm and either restore the pressure to the pressurized enclosure or
otherwise make the installation safe; for example, cut off the electrical supply. The decision to use the Alarm Only
facility, and the allowable length of time for non-pressurized operation, is the responsibility of the user.
Warning: It is potentially dangerous to energise the pressurized enclosure in an non-pressurized
condition when it is known that there is potentially explosive gas or dust in the hazardous location.
Power Interlock Output
This output is activated by the signal of the Purge Complete Valve. The pneumatic output for this function is
connected to a switch within the explosionproof terminal box. This activation can be used to turn on the electrical
supply to the pressurized enclosure.
Alarm / Pressurized Output
This output is activated by the pressurized signal. The pneumatic output for this function is connected to a switch
within the explosionproof terminal box. It allows a remote electrical system status indicator to show either
pressurized or a pressure failure alarm.
Intermediate Pressure Output
This output is activated by the signal from the Intermediate Sensor. The pneumatic output for this function is
connected to a switch within the explosionproof terminal box.
Purge Valve
This changeover valve selects between purge air flow or leakage compensation. It is sized to allow sufficient air
into the enclosure during purging based on: the specified air supply pressure range, the minimum specified
purging outlet flow rate +10% and the expected leakage rate from the pressurized enclosure. At the end of the
purge cycle, the purge valve closes in response to the “Purge Complete” signal; it remains in the closed position
until the next purge cycle is initiated.
CLAPS Sensor
This sensor monitors the pressure within the pressurized enclosure and sends a control signal to the CLAPS
Regulator. The normal running pressure must be determined prior to system start-up so that the CLAPS Sensor
may be set to the level required to control the CLAPS Regulator.
CLAPS Regulator
This is the regulator that controls the leakage compensation air flow into the enclosure after the purging is
complete. It either increases or decreases the air flow into the enclosure as appropriate to maintain a stable
running pressure.The CLAPS Regulator must be set at the time of commissioning.

ML550 | v6 Page
10
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[email protected]
Expo Technologies China
T: [phone]
E: [email protected]
Visual Indicators
Visual indicators are fitted to provide status information to the operator.
* The Green / Black combination indicates normal operation of the pressurized enclosure after the initial
purging cycle has been completed.
Relief Valve Unit
The Relief Valve Unit allows the purge air to exit the enclosure safely via a built-in spark arrestor. This spark
arrestor is designed to prevent the emission of arcs, sparks and incandescent particles produced within the
pressurized enclosure.
Purge air passes through the Relief Valve Unit; the preset pressure differential across the appropriate orifice
ensures that the purge flow sensor is activated once the selected purge flow has been attained.
During the purge cycle a pneumatic cylinder operates the Purge Outlet Valve that lets the air from inside the
enclosure exhaust through the Relief Valve Unit. When the system changes to leakage compensation mode, the
Purge Outlet Valve is closed and the enclosure sealed.
The Relief Valve Unit has an in-built relief valve.This is sized to ensure that, if the air supply pressure rises up
from the specified maximum, the internal enclosure pressure will not exceed the specified maximum working
pressure of the pressurized enclosure.
Explosionproof Terminal Box
The Terminal Box is flameproof Ex d Zone 1 Gas Group IIC, and explosionproof Class I and Class II Div 1 Grp
BCDEFG, and incorporates the terminal connection points for the alarm, power interlock and intermediate
outputs. All contacts provided are volt free (dry).
Cable entry methods (for example conduit or cable glands) must be suitable certified for the location of the
system and the type of cable being used. Cable entries are 1/2 in. NPT(F). Unused openings shall be blanked
with suitable certified flameproof/explosionproof plugs.
Alarm / Pressurized Indicator
Green* Pressurized
Red Pressure Alarm (enclosure pressure low)
System Purging Indicator
Black* Purge flow too low (not in purge mode)
Yellow (flashing) Purging (flow above minimum)
Alarm/Pressurized Switch
Intermediate Pressure Switch
Power interlock
125Vac 6A / 250Vac 3A
125 Vac 6A / 250 Vac 3 A
125Vac 1A

Page
11
ML550 | v6
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[e-mail]
Expo Technologies China
T: [phone]
E: [e-mail]
Section 6: Installation of the System
The MiniPurge® is designed for use under normal industrial conditions of ambient temperature, humidity and
vibration. Please consult Expo before installing this equipment in conditions that may cause stresses beyond
normal industrial conditions.The MiniPurge® system must be installed by a competent person in accordance with
relevant standards, such as IEC / EN 60079-14, NEC500 and any local codes of practice.
The MiniPurge® control unit should be installed either directly on, or close to the pressurized enclosure. It should
be installed such that the system indicators and certification labels are in view.
All parts of the system carry a common serial number. If installing more than one system, ensure that this
commonality is maintained within each system installed.
Relief Valve Unit
To achieve effective purging, the points where air enters and exits the pressurized enclosure should normally be
at opposite ends of the enclosure. The RLV unit must be mounted vertically and there should be a minimum
clearance of 300 mm (12") around the spark arrestor (purge outlet).
It is important that the interior and exterior of the spark arrestor is kept clean and debris is not allowed to
accumulate; this might affect the calibration of the device. In particular the exterior of the spark arrestor should
not be painted or blocked in any way.
Air Supply Quality
The MiniPurge® system should be connected to a protective gas supply, which is suitable for purging and
pressurization.
The supply pipe connection to the MiniPurge® must be appropriate for the maximum input flow rate for the
application.
The air supply must be regulated at a pressure less than the maximum stated inlet pressure.
The air supply must be: clean, non-flammable and from a non-hazardous location. The air should be of
Instrument Air Quality. Although the purge control system will operate with lower air quality, its operational life
will be adversely affected. The equipment that is being protected by the MiniPurge® may also suffer because of
poor air quality.
With reference to BS ISO 8573-1: 2010, Instrument Air is typically specified as:
Particle Class 1
In each cubic metre of compressed air, the particulate count should not exceed 20,000 particles in the 0.1 to 0.5
micron size range, 400 particles in the 0.5 to 1 micron size range and 10 particles in the 1 to 5 micron size range.
Humidity or pressure dew point
The dew point, at line pressure, shall be at least 10 °C below the minimum local recorded ambient temperature
at the plant site. In no case, should the dew point at line pressure exceed +3 °C.
Oil Class 2
In each cubic metre of compressed air, not more than 0.1mg of oil is allowed. This is a total level for liquid oil, oil
aerosol and oil vapour.
When an inert gas is being used to supply the purge system, risk of asphyxiation exists. Refer to Application
Suitability section.
Before connection of the air supply to the purge system, the supply pipe work should be flushed through with
instrument quality air to remove any debris that may remain in the pipes. This must be carried out for at least 10
seconds for every meter of supply pipe.

ML550 | v6 Page
12
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[email protected]
Expo Technologies China
T: [phone]
E: [email protected]
Unless a supply shut-off valve has been fitted to the MiniPurge® system, an external shut-off valve with
the same, or larger, thread size as the Control Unit inlet fitting should be fitted by the installer to prevent any
restriction of purge flow.
The purge air from the MiniPurge® Control Unit should be piped within the pressurized enclosure to ensure
purging of potential dead air spots.
The purge system is fitted with an internal regulator factory set to 3 bar feeding the logic.
Pipe Work
If the MiniPurge® is not connected directly to the pressurized enclosure, pipe work and fittings used to connect
the Control Unit to the pressurized enclosure should be either metallic or appropriate to the environment into
which the system is installed. No valve may be fitted in any signal pipe connecting the Control Unit to the
pressurized enclosure. This pipe work must be fitted in accordance with local codes of practice where relevant.
Multiple Enclosures
This system is suitable for the purge and pressurization of the primary pressurized enclosure and its associated
terminal boxes.
Provision and Installation of Alarm Devices
When the pressure inside the pressurized enclosure is above the minimum, the Minimum Pressure Sensor re-
turns a positive (pressurized) signal causing the alarm indicator on the control unit to change from red to green.
When the pressure falls below the minimum permissible the positive (pressurized) signal is removed. This ab-
sence of signal indicates a low pressure alarm condition and causes the alarm indicator on the control unit to
go from green to red.
There are volt free (dry) contacts available within the terminal box for remote usage.
The user must make use of this alarm facility in accordance with the local code of practice for Action on Pressure
or Flow Failure. Most codes include the following recommendations:
•Zone 1 / Division 1 Installations: Alarm and Automatic Trip of Power.
•Zone 2 / Division 2 Installations: Alarm Only on pressure or flow failure with power being removed manu-
ally.
Power Supplies and their Isolation
All power entering the pressurized enclosure should have a means of isolation. This requirement also applies to
any external power sources that are connected to the equipment such as volt-free (dry) contacts within the
pressurized enclosure. This is commonly achieved using the Power Interlock Switch.
Power Interlock Switch
This switch is a Double Pole Normally Open, double-break switch: it provides two independent contacts that
should be connected in series and used to isolate the power. This can be achieved using switchgear or other
suitable switching device. These contacts are terminated and accessible to the user in the terminal box.
It is the responsibility of the user to ensure that the switch is only operated within appropriate technical limits.
The switch must be replaced after any short circuit that occurs within the main circuit; the switch is a piece of
encapsulated equipment and as such it is not possible to check the state of the contacts. Technical modifications
to the switch are not permitted.
Prior to commissioning, check that the terminal box is clean, the connections have been made properly, the
cables laid correctly and all screws in the terminals are secure.

Page
13
ML550 | v6
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[e-mail]
Expo Technologies China
T: [phone]
E: [e-mail]
In all cases the application and isolation of power must be controlled by the MiniPurge® system using
the power interlock signal.
No switches are permitted between the power switch and the MiniPurge® system other than an authorized
manual override circuit.
The safe use of this switch is the responsibility of the user, all electrical installations must conform to local codes
of practice.
Exception
Power to apparatus that is already suitable for use in hazardous locations need not be isolated by the MiniPurge®
system.

ML550 | v6 Page
14
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[email protected]
Expo Technologies China
T: [phone]
E: [email protected]
Section 7: Commissioning
Commissioning the System
Note: The steps 11 and 15 to 21 represent detailed commissioning tests
The following equipment is needed for this process:
• Continuity meter
• Gauge manometer (0 to 200 mbarg)
• Differential manometer
If, after commissioning, the system does not perform as expected, refer to the Fault Finding Section.
Follow the steps as outlined:
1. Check all connections and that the Relief Valve Unit is fitted correctly with an unobstructed path to the purge
exhaust.
2. Close the Purge Flow Restrictor Valve.
3. Fully open external supply shut-off valve where fitted.
4. Check that the internal logic pressure gauge reads 2.3 barg / 33 psi / 230 kPag.
5. Check that the pressure gauge on main air supply reads 5 barg / 73 psi / 500 kPag.
6. Check that the Pressure Relief Valve is correctly set by disconnecting the minimum pressure sensing pipe at
the bulkhead fitting on the input to the MiniPurge®. This will disable all of the pressure sensors.
• Using a 4 mm nylon tube, connect a manometer to the bulkhead fitting from which the minimum pressure
sensing pipe was removed.
• Open the Purge Flow Restrictor Valve very slowly, until the Pressure Relief Valve opens
• Check the opening pressure is within calibration limits.
• This test can be carried out several times to ensure repeatability and compliance.
Refer to the Maintenance of the System section if the Relief Valve needs recalibrating.
7. Close the Purge Flow Restrictor Valve.
8. Remove the manometer and reconnect the minimum pressure sensing pipe to the bulkhead fitting.
9. Remove red plug from the top of the Minimum Pressure Sensor and connect a gauge manometer.
10.Connect a differential manometer to the test points on the flow sensor.
11.To check sensor calibration
• The internal pressure in the pressurized enclosure must be below Relief Valve lift off pressure and above
the CLAPS pressure
• At this time the pressurized indicator should be green.
• gradually open Purge Flow Restrictor Valve until purging indicator flashes yellow.
Note: For large volumes it may take a long time for the purge flow to start.
• very slowly close Purge Flow Restrictor Valve until the purging indicator stops flashing yellow.
• Take a reading from pressure gauge.
12.To set the purge flow rate:
• Turn on the compressed air to the MiniPurge®.
• Gradually open the Purge Flow Restrictor Valve until the black / yellow indicator changes to yellow
(flashing).
• The flashing yellow indicator confirms the correct flow rate.
• The differential pressure should be greater than 6.4 mbarg

Page
15
ML550 | v6
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[e-mail]
Expo Technologies China
T: [phone]
E: [e-mail]
• The relief valve is supplied with different orifice plates for the specified flow rate. This orifice
plate is held in position by two M3 screws and can easily be changed by removing the large cover plate from
over the outlet valve assembly and screws.
Warning: When opening the Purge Flow Restrictor Valve, ensure the over pressure within the pressur-
ized enclosure does not exceed the pressure relief valve setting.
13.The purge timer will start as soon as the Purging Indicator flashes yellow. Check that the time delay
between the indicator turning to yellow (flashing) and returning to black is not less than the minimum time
required for complete purging of the pressurized enclosure. Times in excess of minimum are permitted.
14.After the purge has been completed, the Purge Valve will close and the air flow into the pressurized
enclosure will be controlled by the CLAPS Regulator. The initial setting may be too high or too low.
15.Gradually turn the CLAPS Regulator anti-clockwise to reduce enclosure pressure.
16.Reduce regulator until intermediate sensor causes contacts to open.
17.Check the manometer on the minimum pressure sensor.
18.Continue to reduce the CLAPS Regulator to test the minimum pressure sensor.
19.To check operation of Minimum Pressure Sensor, check readings on manometer as system will
automatically re-purge when it reaches minimum pressure.
20.While the system re-purges, return the CLAPS Regulator to the initial setting.
21.If minimum pressure is below the set point, refer to the Recalibration section.
22.If the setting is too high, continual rising and falling of the enclosure pressure will be seen as the CLAPS
Regulator automatically shuts off and reinstates the flow. The CLAPS Regulator should be adjusted to
reduce the flow into the pressurized enclosure by turning the adjuster screw anti-clockwise.
23.If the initial setting is too low the CLAPS Regulator may not provide enough air flow causing a gradual
decline in enclosure pressure. To increase the flow into the pressurized enclosure, adjust the CLAPS
Regulator Relief Valve unit by turning the adjuster screw clockwise.
24.To test the CLAPS settings, create a leak in the system by removing a bolt or losening a gland plate in order
to create a 15mm hole. Remember to replace bolt or retighten gland plate after testing.
25.The setting of the CLAPS Sensor is factory calibrated to the normal working pressure expected in the
pressurized enclosure, typically 10 mbarg. The pressure in the pressurized enclosure should be stabilized
as close as possible to this figure. This can be checked by a manometer attached to the minimum pressure
sensor.
26.Remove the air supply to the system, remove all test equipment and replace all plugs.
Normal Operation
For normal operation of the system, after commissioning has been carried out it is possible to turn the air supply
valve on or off to start or stop the system. After this, the purge and pressurization sequence is automatic.

ML550 | v6 Page
16
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[email protected]
Expo Technologies China
T: [phone]
E: [email protected]
Section 8: Maintenance of the System
General maintenance
The maintenance of the system outlined in this manual should be supplemented with any additional requirements
set out in appropriate local codes of practice.
The following checks should be carried out every 6 – 36 months dependent on environment according
to IEC / EN 60079-17 (local Codes may recommend different periods)
• Tests outlined in the Detailed Commissioning section.
• Ensure that the Relief Valve Unit is free from contamination prior to making any adjustment. To do this:
• Remove large cover plate using a 10 mm spanner (wrench).
• Check that the interior and all components are clean and free from contamination.
• Replace large cover plate.
• Check the condition of the air supply filter element. Clean or replace as necessary.
The following additional checks are recommended at least every 3 years:
Check that:
• Apparatus is suitable for use in the hazardous location.
• There are no unauthorised modifications.
• The air supply is uncontaminated.
• The interlocks and alarms function correctly.
• Approval labels are legible and undamaged.
• Adequate spares are carried.
• The action on pressure failure is correct.
Maintenance of Electronic Timer
This must be carried out every 3 years.
• The intrinsically safe battery pack associated with the electronic timer should be replaced and the
commissioning tests repeated.
• After the timing phase has elapsed, the battery may be hot-swapped in the hazardous location without
affecting the operation of the MiniPurge® system
Re-calibration of the Relief Valve Unit
Warning
Incorrect adjustment of the Relief Valve Unit can lead to significant over pressure and result in damage
to the enclosure.
If maximum pressure setting is reached, stop adjustment and reduce the pressure.
To perform the following adjustments, an 8 mm spanner (wrench), a 10 mm spanner (wrench) and a 2.5 mm hex
key will be required.
Ensure that the Relief Valve Unit is free from contamination prior to making any adjustment. To do this:
• Remove large cover plate using a 10 mm spanner (wrench).
• Check that the interior and all components are clean and free from contamination.
• Replace large cover plate
To adjust the lift off pressure of the Relief Valve:
• Attach test equipment as described in the Commissioning Section.

Page
17
ML550 | v6
Expo Technologies UK
T: [phone]
E: [email protected]
Expo Technologies US
T: [phone]
E:[e-mail]
Expo Technologies China
T: [phone]
E: [e-mail]
• Remove small cover plate.
• Whilst holding the central adjustment screw in position using the hex key, loosen the retaining nut.
• Adjust the hex key clockwise to increase, or anti-clockwise to reduce the lift off pressure.
• Before testing, retighten the locking nut whilst holding the adjustment screw in place.
• Carry out the commissioning tests to check the correct setting of the relief valve after adjustment.
• The adjustment is sensitive and it is recommended that a 1/4 turn (maximum) adjustments are applied
between tests.
Re-calibration of the Pressure Sensors
The brass nozzle on the sensor is sealed into position using Loctite thread sealant. If the thread has seized up,
remove to a safe area and heat slightly to soften prior to making any adjustment. This prevents potential damage
to the brass of the nozzle.
• Disconnect pipe work from the sensor, including pipe located below the sensor.
• Remove sensor by unscrewing anti-clockwise.
• The nozzle is located under the sensor.
• The adjustment is sensitive, turn the nozzle in 1/8 of a turn steps.
• Turn clockwise to reduce the pressure setting and anti-clockwise to increase.
• Replace sensor, screwing clockwise.
• Reconnect all pipe work.
Allen Screw & Lock NUT
Rem ov ing t he sm all cov er pl a te t o set
the RLV opening pressure
Orifice Plate
