EXSOUND Pearl llI H User's Guide

Pearl llI H Manual Catalog
•Package Contents
--------------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-----------------------------------------------------
03
03
03
•Safety Notice
•Product Features / Hardware Diagram
---------------------------------------------------------- 06
•Product Operation & LED Indicator
--------------------------------------------------- 08
•XBOX360®evi ecioVLXOBX/ ®Settings
----------------------------------------------------------- 08
•Pearl llI H Connects to XBOX360®
--------------------------------------------------------- 09
•Pearl llI H Connects to XBOX Live®
------------------------------------------------------------------ 10
•Pearl llI H Connects to PS3™
------------------------------------------------------ 10
•PS3™/PlayStation Network Settings
------------------------------------------------------------------- 11
•Pearl llIH Connects to DVD
---------------------------------------------------------------------- 12
•Pearl llI H Connects to PC
--------------------------- 13
•Pearl llI H Headset Connects to PC/MP3/Smartphone/Pad
--------------------------------------------------------------------- 14
•Pearl lII H Connects to TV
------------------------------------------------------------------ 15
•Pearl lII H Connects to Wii™------------------ --------------------------------------------------------- 15
•Important Information
2
®

Package Contents
Safety Notice
WARNING: Continued exposure to high volumes of noise in headsets can cause long-term hearing damage. Your ears
will adapt to loud volume levels over time and damage your hearing even if you don't feel any discomfort. Keeping the
volume at a safe level is important while using the headset. The louder the sound is set, the less time it takes to affect
your hearing.
When putting the headset on, it is advised to turn the volume to a low level, and then slowly increase it to a moderate
and comfortable level.
Product Features / Hardware Diagram
Product Features
EXSOUND Pearl III H – Experience Surrounding Your XBOX360®/PS3™/Wii™/PC/iPad/LCDTV/DVD
with Dolby Digital 5.1 Sound via Dolby Headphone and 7.1 Dolby Surrounding Sound via Dolby Pro Logic IIx
3
4 5 6
1 2 3
987 10 11 12
1. One EXSOUND Pearl llI H Headset
2. One EXSOUND Pearl III H Breakaway Inline Controller Cable
3. One EXSOUND Pearl llI H Microphone for PC-Gaming/Music
4. One EXSOUND Pearl llI H Mini Microphone for Smartphone/Pad
5. One EXSOUND Pearl llI H Decoder Box
6. One USB Cable
7. One Optical Cable
8. One 3.5 mm plug to 3.5 mm plug Cable
9. One G6(F) to 3.5 mm plug *2 Cable
10. One 3.5 mm plug to 2.5 mm plug Cable
11. One Operation Manual
12. One Smartphone Adapter for NOKIA / Sony Ericsson /
SAMSUNG Devices

■ Dolby Approved for Dolby Digital, Dolby Pro Logic IIx, Dolby Headphone
■ Empower Stereo Game/Music/Movie to 7.1 Channel Surrounding Sound
■ Connect with XBOX360®/PS3™/DVD/PC with Optical; while Wii™/PC/iPad/LCD TV with 3.5 mm Jack
■ Output Surrounding Sound through Stereo Headset
■ Build in Communication Function to PS3™ via USB, while XBOX360®via XBOX Live®,
with Separated Volume Control
■ Connect with Pearl III H Headset for Console Gaming; also can work with PC/Notebook
with either Optical or Analog interface
■ Compact and Hand-Held Size & Power by USB, Easy to Carry
■ Plug & Go. Pearl III H Headset can Easily Plug with iPhone/iPod/iPad
Hardware Diagram
A. EXSOUND Pearl III H Decoder Box

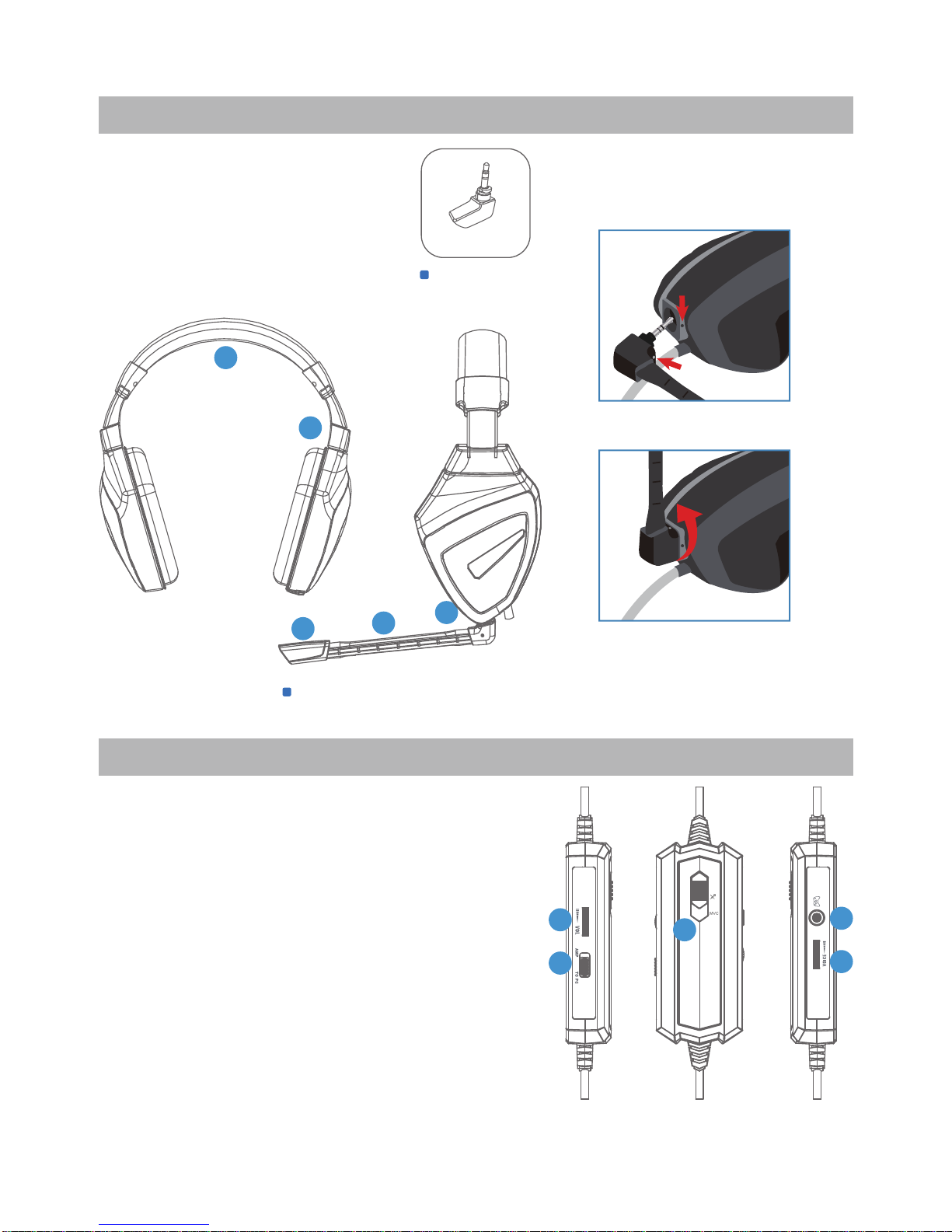

B. EXSOUND Pearl III H Headset
C. EXSOUND Pearl III H Breakaway Inline Controller Cable
A. EXSOUND Pearl III H Decoder Box
4
1. Optical Input: Connect with Optical Output Devices, Like DVD, XBOX360®, PS3™
2. Switch of Optical and Analog Input Selection
3. Analog Input: Connect with Any Analog Audio Output Devices
4. USB Power and Connect to PS3™ for PlayStation® Network Chatting
5. Power ON/OFF
6. Volume Up
7. Volume Down
8. Switch for Dolby Headphone Selection
9. LED Indicator for Power and Source
10. LED Indicator for Dolby Pro Logic llx ON/OFF
11. LED Indicator for Dolby Headphone ON/OFF
12. LED Indicator for Movie and Music Mode Selection
13. Output to EXSOUND Pearl llI H Headset 56789
4
13
1 2 3
9
10
11
12
5
6
7
8

B. EXSOUND Pearl III H Headset
C. EXSOUND Pearl III H Breakaway Inline Controller Cable
14.High Quality & Soft Material Headband.
15.Easy to adjust to Fit in Head Shape.
16.Detachable Microphone with Indicator. (Note)
17.Soft Metal to Adjust Microphone Position.
18.Omni-direction Microphone.
19. Volume Up/Down
20.With Headset Amp and w/o Amp Selections
(If Use Only Headset To Connect with PC Must be w/o Amp)
21.Switch of Microphone Mute/Un-Mute/Mic Volume
Check (MVC) Selection
22.Microphone Jack to Communication with XBOX Live®
23.Separate Volume Control for Communication from Others
5
Note:
Connect & Remove Microphone with
Headset by aligning two dots
Secure the Microphone by
Rotating it 90 degrees counterclockwise
14
15
18 17 16
Pearl III H Microphone
for Smartphone/Pad
Pearl III H Microphone
for PC-Gaming/Music
19 21
20
22
23

Product Operation & LED Indicator
Product Operation
1. PWR Button: Power ON/OFF Default is OFF while Power In, Press is ON, Press Again is OFF
2. VOL+ Button: Volume Up Switch
3. VOL- Button: Volume Down Switch
4. Dolby Headphone Button: First Press is Default Dolby Headphone with Movie Mode,then Dolby Headphone with
Music Mode, then Dolby Pro Logic llx and Dolby Headphone are OFF, then Loop.
5. Reset Button (Reset to OEM setting ) : Press Volume Up & Down Together,
then Press Power Will Reset to OEM Setting, all 4 LED Will Flash 3 Times with White Color
LED Indicator
LED Light Indicators 4 LEDs , from Up to Down
1. 1st LED: Power/Source Indicator: White Color Means Source is Dolby Digital 5.1 Blue Means Non Dolby Digital 5.1.
2. 2nd LED: Dolby Pro Logic llx ON/OFF Indicator: White means ON, Nil for OFF
3. 3rd LED: Dolby Headphone ON/OFF Indicator : White means ON, Nil for OFF
4. 4th LED: Movie/Music Mode Selection : White for Movie, Green for Music, Nil for Bypass
5. While Dolby Pro Logic llx is OFF, then Both Dolby Headphone & Movie/Music Mode LED are OFF
6

About Dolby Digital / Dolby Pro Logic IIx / Dolby Headphone
7
1. Most of Gaming/Movie Titles Are DVD Format, and Encoded with Dolby Digital 5.1 Technology, Multi – Channels
Sound. Need to Have Pearl llI H, with Dolby Digital Decoder to Have Original Sound Play back.
2. Sound with Analog Interface, with 2 Channels, Maybe Different Format, Like Dolby Pro logic IIx with WiiTM and Lt Rt
from other Devices , Dolby Pro Logic IIx with simulate these 2 Channels into 7.1 Channels.
3. Dolby Headphone, either Multi-Channel Sounds from Dolby Digital or Dolby Pro Logic llx ,Dolby Headphone
Processing will Down Mix these Multi-Channels into 2 Channel without Lost Data, and Use 2 Speaker Drivers to
Playback these Multi-Channels Sound with Surrounding Effect.
More Information Please Visit - www.Dolby.com
Dolby Surround Sound
CENTER
LEFT
FRONT RIGHT FRONT
SUB
RIGHT
SURROUND
LEFT
SURROUND
RIGHT BACK
SURROUND
LEFT BACK
SURROUND

8
XBOX360®/ XBOX Live Voice
®Settings
■XBOX360®Audio Settings ■XBOX360 ®sgnitteSecioVeviL
In The XBOX360®Dashboard Select : Press the “ XBOX®Global Button “and go to:
Settings -> Preferences -> Voice ->
Voice Output -> Play through Headset
`System Settings -> Console Settings -> Audio ->
Digital Output -> Dolby Digital 5.1
Pearl llI H Connects to XBOX360®
2. Plug the USB connector into the USB port of XBOX360®and the decoder box.
1. Connect Pearl III H Headset with Breakaway Inline Controller Cable
3. Connect the decoder box and XBOX360®with Optical cable.
4. Plug round 6-pin plug (Male) from inline controller into front of the decoder box. (Note)
5. Slide the Optical/Analog switch on the decoder box to “Optical “.
6. Power on XBOX360®and decoder box.
Note :
Plug 6-pin round plug into decoder box with arrow facing up

9
Pearl III H Connects to XBOX Live®
1. Connect XBOX Live®communication link cable (2.5mm plug to 3.5mm plug) to inline volume controller and
XBOX360®controller
Adjust Others Voice Volume by Turning the Voice Volume Control
®
®
2. Special Note : When you use XBOX Live communication function not allow recharge your controller
from XBOX360

Pearl llI H Connects to PS3™
PS3™/ PlayStation Network Settings
■PS3™ Audio Settings ■PlayStation Network Settings
Go to PS3™ dashboard and select :
Settings -> Sound Settings -> Audio output settings
->Optical Digital -> Dolby Digital 5.1 CH
Go to PS3™ dashboard and select:
Settings -> Accessory Settings -> Audio Device Settings
-> Set both the input & Output to “USB PnP Sound Device
Note: Make sure that the DTS Box is not checked as this will cause some games to have no Audio
10
1. Connect Pearl III H Headset with Breakaway Inline Controller Cable
2. Connect USB Communication cable to an USB port on PS3™ and the decoder box.
Connect the Second USB plug when the time it has not enough electricity to Power on.
(Note:The Second USB plug Can be removed once it has been Power on.)
3. Connect the decoder box and PS3™ with Optical cable.
4. Plug round 6-pin plug (Male) from inline controller into front of the decoder box.
5. Slide the Optical/Analog switch on the decoder box to “Optical “.
6. Power on PS3™ and decoder box.
®
®
